Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11393 - FVZ(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶

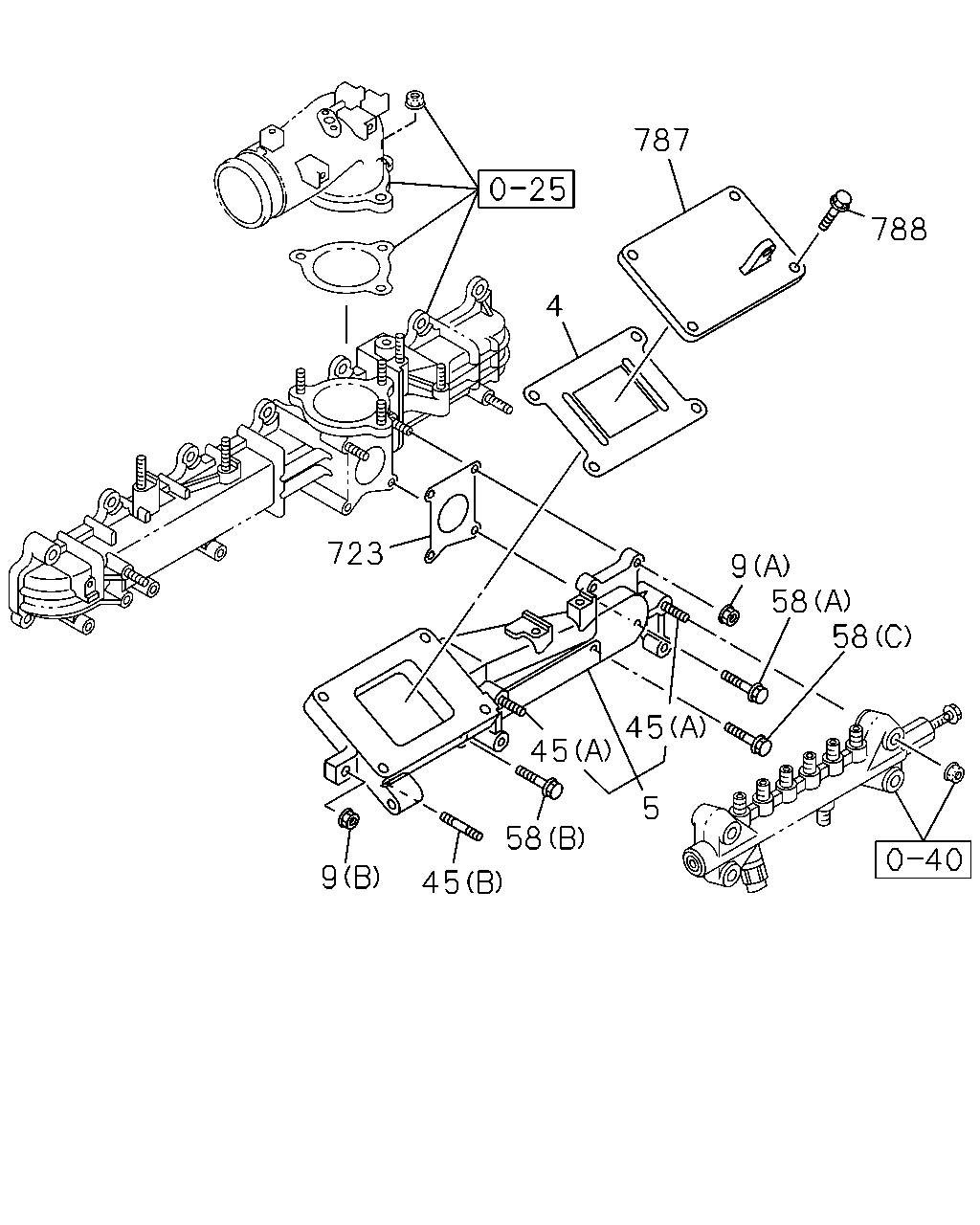

0-57 — EMISSION PIPING
(#17451) — 21 parça
788
787
723
9
45
58
45
45
5
9
58
58
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97608-423-0
01
1
1104-
5
ADAPTER ASM
8-97606-201-3
01
1
1104-1305
5
ADAPTER ASM
8-98240-157-0
01
1
1306-
9
NUT; EGR ADAPTER
(A) M8 FLANGE
0-91180-108-0
02
1
1104-
9
NUT; EGR ADAPTER
(B) M10 FLANGE
0-91180-110-0
02
1
1104-
45
STUD; ADAPTER,EGR
(B) M10X30 L=45
0-44011-030-0
01
1
1104-
45
STUD; ADAPTER,EGR
(A) M10X50 L=65
0-44011-050-0
02
1
1104-
58
BOLT; PIPE
(B) M10X30 FLANGE
0-28151-030-0
01
1
1104-
58
BOLT; PIPE
(C) M8X30 FLANGE
0-28650-830-0
01
1
1104-
58
BOLT; PIPE
(A) M8X30 FLANGE
8-98034-764-0
01
1
1104-
723
GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=52
8-97605-995-0
01
1
1104-
787
COVER; DUCT,EGR VLV
KD ENGINE<7MB>
8-98286-317-0
01
1
1411-
787
COVER; DUCT,EGR VLV
8-98058-709-0
01
1
1104-1401
787
COVER; DUCT,EGR VLV
EXC. KD ENGINE<7MB>
8-98058-709-0
01
1
1402-1402
787
COVER; DUCT,EGR VLV
KD ENGINE<7MB>
8-98238-416-0
01
1
1402-1402
787
COVER; DUCT,EGR VLV
8-98238-416-0
01
1
1403-1410
787
COVER; DUCT,EGR VLV
EXC. KD ENGINE<7MB>
8-98238-416-0
01
1
1411-
788
BOLT; COVER
KD ENGINE<7MB> M10X25 FLANGE
0-28751-025-0
04
1
1402-1402
788
BOLT; COVER
M10X25 FLANGE
0-28751-025-0
04
1
1403-
788
BOLT; COVER
M10X35 FLANGE
0-28751-035-0
04
1
1104-1401
788
BOLT; COVER
EXC. KD ENGINE<7MB> M10X35 FLANGE
0-28751-035-0
04
1
1402-1402
