3-41 — REAR BRAKE POWER CHAMBER (#1745) — 167 parça

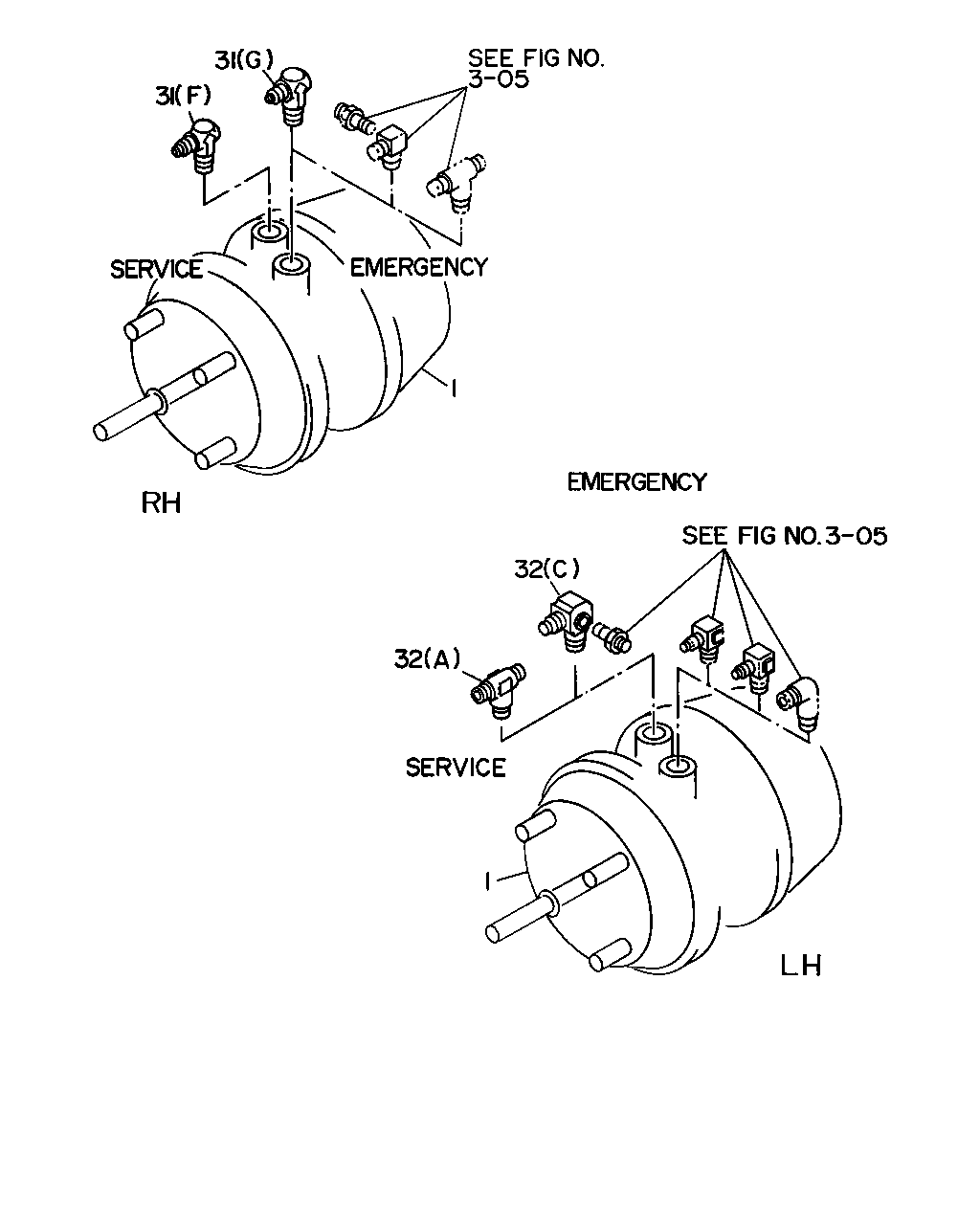

31 31 31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	CONNECTOR NYLON TUBE AIR PIPING<Z29> (A)	1-09660-517-0	01	1	9002-9306	●
31	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> NYLON TUBE AIR PIPING<Z29> NEW ZEALAND EQUIPMENT(PK5) (B)	1-09660-687-0	01	1	9307-9412	●
31	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> INTERNATIONAL STANDARD ISO 10STUD<B3V> NYLON TUBE AIR PIPING<Z29> (B)	1-09660-687-0	01	1	9501-	●
31	CONNECTOR (C)	1-09660-570-0	02	1	9307-	●	●
31	CONNECTOR (D)	1-09660-574-0	01	1	9307-9412	●	●
31	CONNECTOR (D)	1-09660-574-0	01	1	9307-9412	●	●
31	CONNECTOR (D)	1-09660-574-0	01	1	9501-	●	●
31	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (D)	1-09660-574-0	01	1	9501-	●
31	CONNECTOR (D)	1-09660-574-0	01	1	9501-		●
31	CONNECTOR NYLON TUBE AIR PIPING<Z29> (E)	1-09660-518-0	01	1	9002-9306	●	●
31	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (F)	1-09650-325-1	02	1	9002-9306	●	●
31	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (G)	1-48259-136-0	02	1	9002-9306	●	●

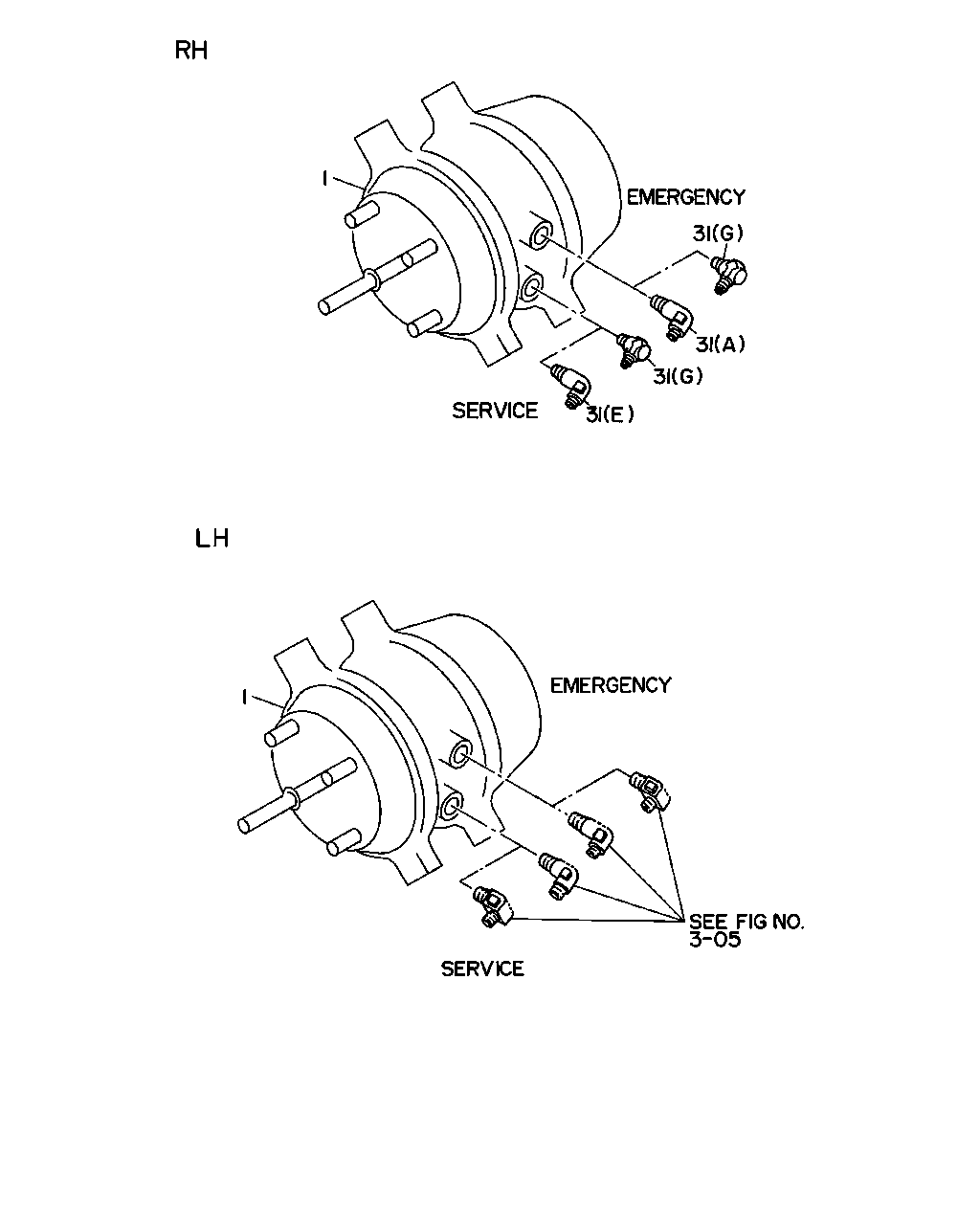

31 31 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	CONNECTOR NYLON TUBE AIR PIPING<Z29> (A)	1-09660-517-0	01	1	9002-9306	●
31	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> NYLON TUBE AIR PIPING<Z29> NEW ZEALAND EQUIPMENT(PK5) (B)	1-09660-687-0	01	1	9307-9412	●
31	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> INTERNATIONAL STANDARD ISO 10STUD<B3V> NYLON TUBE AIR PIPING<Z29> (B)	1-09660-687-0	01	1	9501-	●
31	CONNECTOR (C)	1-09660-570-0	02	1	9307-	●	●
31	CONNECTOR (D)	1-09660-574-0	01	1	9307-9412	●	●
31	CONNECTOR (D)	1-09660-574-0	01	1	9307-9412	●	●
31	CONNECTOR (D)	1-09660-574-0	01	1	9501-	●	●
31	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (D)	1-09660-574-0	01	1	9501-	●
31	CONNECTOR (D)	1-09660-574-0	01	1	9501-		●
31	CONNECTOR NYLON TUBE AIR PIPING<Z29> (E)	1-09660-518-0	01	1	9002-9306	●	●
31	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (F)	1-09650-325-1	02	1	9002-9306	●	●
31	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (G)	1-48259-136-0	02	1	9002-9306	●	●
32	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (A)	1-09660-519-0	01	1	9002-9306	●
32	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (B)	1-09660-318-0	01	1	9307-9412	●
32	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> INTERNATIONAL STANDARD ISO 10STUD<B3V> NYLON TUBE AIR PIPING<Z29> (B)	1-09660-318-0	01	1	9501-	●
32	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09656-557-1	01	1	9002-9306	●
32	CONNECTOR; SPR CHAMBER (C)	1-09656-557-1	01	1	9002-9306		●
32	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (D)	1-09660-697-1	01	1	9307-9412	●
32	CONNECTOR; SPR CHAMBER (D)	1-09660-697-1	01	1	9307-9412		●
32	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (D)	1-09660-697-1	01	1	9501-	●
32	CONNECTOR; SPR CHAMBER (D)	1-09660-697-1	01	1	9501-		●

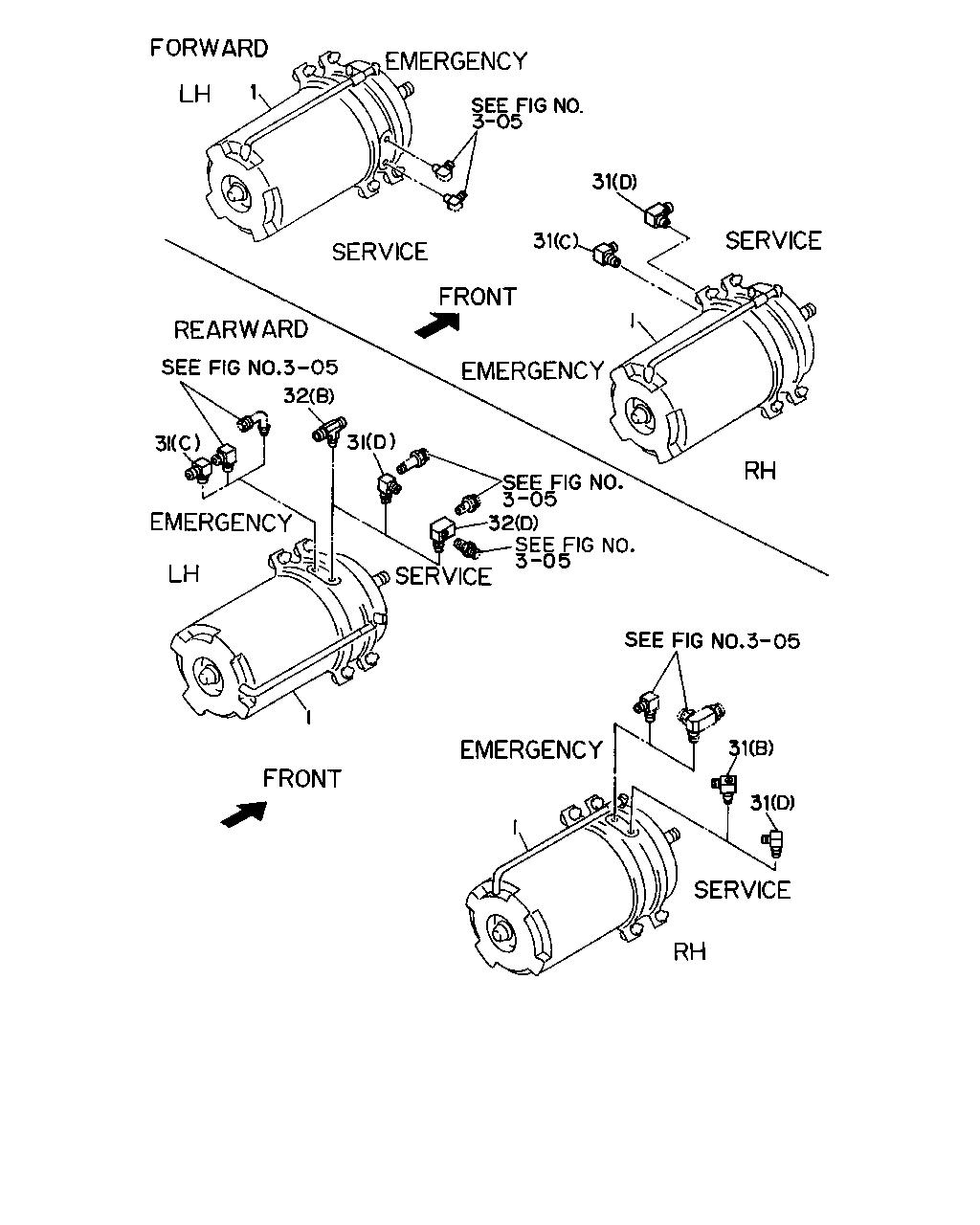

1 31 1 31 32 31 31 31 31 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48250-383-1	01	1	9002-9306	●
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48250-382-1	01	1	9002-9306	●
1	CHAMBER ASM; SPRING FORWARD&REARWARD	1-48250-368-1	01	1	9002-9306	●	●
1	CHAMBER ASM; SPRING EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD&REARWARD	1-48250-368-1	01	1	9002-9306	●
1	CHAMBER ASM; SPRING FORWARD&REARWARD	1-48250-368-1	01	1	9002-9306		●
1	CHAMBER ASM; SPRING FORWARD&REARWARD	1-48250-367-1	01	1	9002-9306	●	●
1	CHAMBER ASM; SPRING EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD&REARWARD	1-48250-367-1	01	1	9002-9306	●
1	CHAMBER ASM; SPRING FORWARD&REARWARD	1-48250-367-1	01	1	9002-9306		●
1	CHAMBER ASM; SPRING FORWARD	1-48250-181-1	01	1	9307-	●	●
1	CHAMBER ASM; SPRING FORWARD	1-48250-180-1	01	1	9307-	●	●
31	CONNECTOR NYLON TUBE AIR PIPING<Z29> (A)	1-09660-517-0	01	1	9002-9306	●
31	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> NYLON TUBE AIR PIPING<Z29> NEW ZEALAND EQUIPMENT(PK5) (B)	1-09660-687-0	01	1	9307-9412	●
31	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> INTERNATIONAL STANDARD ISO 10STUD<B3V> NYLON TUBE AIR PIPING<Z29> (B)	1-09660-687-0	01	1	9501-	●
31	CONNECTOR (C)	1-09660-570-0	02	1	9307-	●	●
31	CONNECTOR (D)	1-09660-574-0	01	1	9307-9412	●	●
31	CONNECTOR (D)	1-09660-574-0	01	1	9307-9412	●	●
31	CONNECTOR (D)	1-09660-574-0	01	1	9501-	●	●
31	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (D)	1-09660-574-0	01	1	9501-	●
31	CONNECTOR (D)	1-09660-574-0	01	1	9501-		●
31	CONNECTOR NYLON TUBE AIR PIPING<Z29> (E)	1-09660-518-0	01	1	9002-9306	●	●
31	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (F)	1-09650-325-1	02	1	9002-9306	●	●
31	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (G)	1-48259-136-0	02	1	9002-9306	●	●
32	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (A)	1-09660-519-0	01	1	9002-9306	●
32	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (B)	1-09660-318-0	01	1	9307-9412	●
32	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> INTERNATIONAL STANDARD ISO 10STUD<B3V> NYLON TUBE AIR PIPING<Z29> (B)	1-09660-318-0	01	1	9501-	●
32	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09656-557-1	01	1	9002-9306	●
32	CONNECTOR; SPR CHAMBER (C)	1-09656-557-1	01	1	9002-9306		●
32	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (D)	1-09660-697-1	01	1	9307-9412	●
32	CONNECTOR; SPR CHAMBER (D)	1-09660-697-1	01	1	9307-9412		●
32	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (D)	1-09660-697-1	01	1	9501-	●
32	CONNECTOR; SPR CHAMBER (D)	1-09660-697-1	01	1	9501-		●

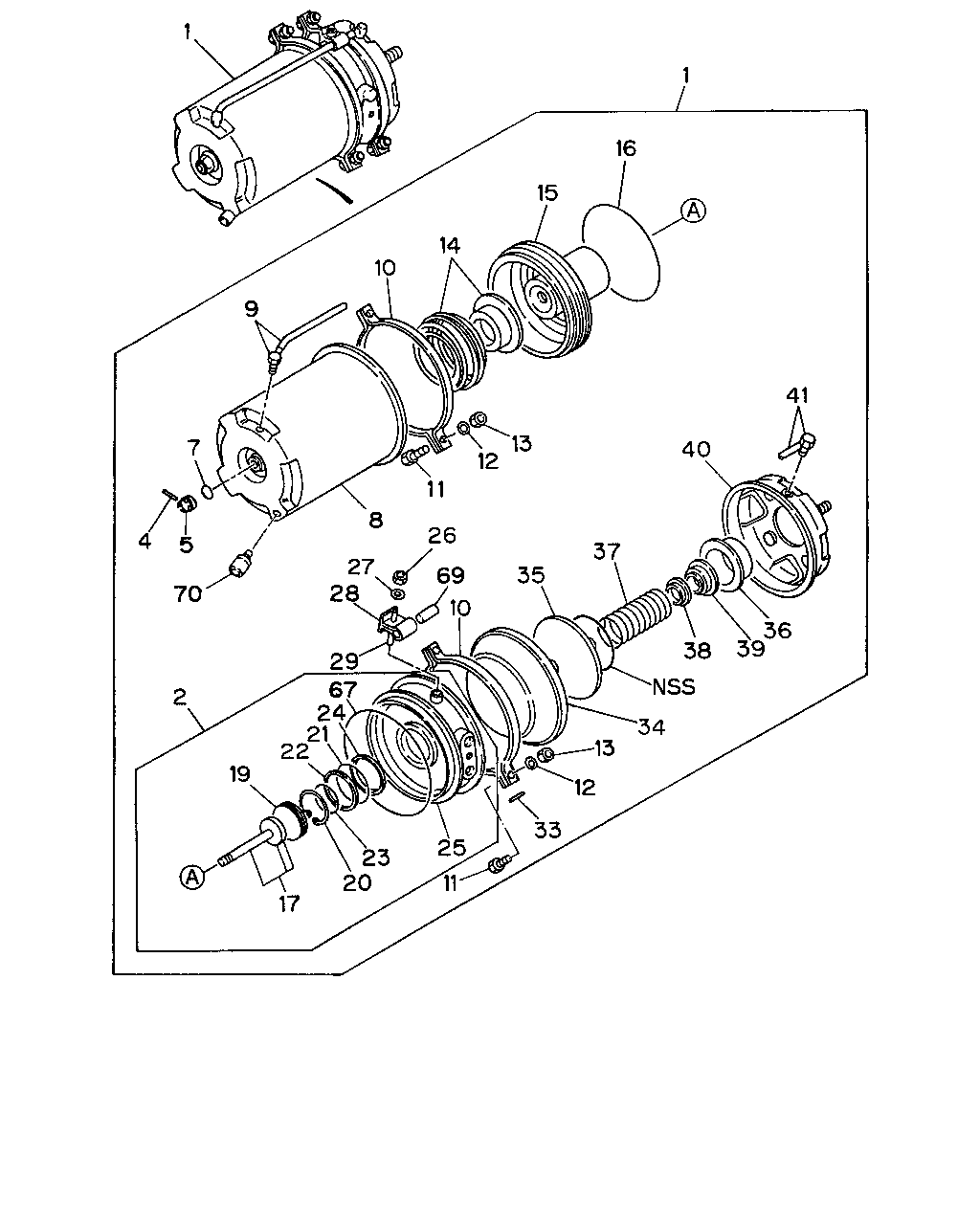

1 1 15 16 14 10 9 7 5 4 8 11 12 13 70 27 28 26 40 41 37 36 39 38 35 69 29 67 24 21 22 19 2 17 10 34 13 12 33 25 11 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48250-383-1	01	1	9002-9306	●
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48250-382-1	01	1	9002-9306	●
1	CHAMBER ASM; SPRING FORWARD&REARWARD	1-48250-368-1	01	1	9002-9306	●	●
1	CHAMBER ASM; SPRING EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD&REARWARD	1-48250-368-1	01	1	9002-9306	●
1	CHAMBER ASM; SPRING FORWARD&REARWARD	1-48250-368-1	01	1	9002-9306		●
1	CHAMBER ASM; SPRING FORWARD&REARWARD	1-48250-367-1	01	1	9002-9306	●	●
1	CHAMBER ASM; SPRING EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD&REARWARD	1-48250-367-1	01	1	9002-9306	●
1	CHAMBER ASM; SPRING FORWARD&REARWARD	1-48250-367-1	01	1	9002-9306		●
1	CHAMBER ASM; SPRING FORWARD	1-48250-181-1	01	1	9307-	●	●
1	CHAMBER ASM; SPRING FORWARD	1-48250-180-1	01	1	9307-	●	●
2	CHAMBER; EMERGENCY FORWARD	1-48252-019-0	01	1	9307-	●	●
2	CHAMBER; EMERGENCY FORWARD	1-48252-018-0	01	1	9307-	●	●
4	PIN; STRAIGHT,SPR CHAMBER	1-48259-056-0	04	1	9307-	●	●
5	NUT; SHELL	1-48259-074-0	02	1	9307-	●	●
5	NUT; SHELL	1-48259-054-0	02	1	9307-	●	●
7	GASKET	1-48259-055-0	02	1	9307-	●	●
8	SHELL; CYL,SPR CHAMBER	1-48259-157-0	04	1	9002-9112	●	●
8	SHELL; CYL,SPR CHAMBER	1-48259-221-0	04	1	9201-9306	●	●
8	SHELL; CYL,SPR CHAMBER FORWARD	1-48259-070-0	01	1	9307-	●	●
8	SHELL; CYL,SPR CHAMBER FORWARD	1-48259-069-0	01	1	9307-	●	●
9	PIPE ASM; SHELL	1-48259-076-0	02	1	9307-	●	●
10	RING; CLAMP,SPR CHAMBER	1-48259-144-0	08	1	9002-9112	●	●
10	RING; CLAMP,SPR CHAMBER	1-48259-229-0	08	1	9201-9306	●	●
10	RING; CLAMP,SPR CHAMBER	1-48259-016-0	08	1	9307-	●	●
11	BOLT; CLAMP RING	1-48259-035-0	08	1	9307-	●	●
12	WASHER; LK,CLAMP RING	1-48259-046-0	08	1	9307-	●	●
13	NUT; CLAMP RING M10	9-09110-510-0	08	1	9307-	●	●
14	SPRING & SEAT SET	1-48259-037-0	02	1	9307-	●	●
15	PISTON	1-48262-005-0	02	1	9307-	●	●
16	GASKET	1-48259-048-0	02	1	9307-	●	●
17	BOLT ASM; EMERGENCY	1-48259-073-0	02	1	9307-	●	●
19	COVER; PISTON	1-48269-011-0	02	1	9307-	●	●
20	RING; RET	1-48259-060-0	02	1	9307-	●	●
21	GASKET; SPR CHAMBER	1-48259-049-0	02	1	9307-	●	●
22	RING; BACKUP,SPR CHAMBER	1-48259-019-0	02	1	9307-	●	●
23	GASKET; SPR CHAMBER	1-48259-047-0	02	1	9307-	●	●
24	BEARING; SPR CHAMBER	1-48259-020-0	02	1	9307-	●	●
25	PLATE; PRESSURE,SPR CHAMBER FORWARD	1-48259-086-0	01	1	9307-	●	●
25	PLATE; PRESSURE,SPR CHAMBER FORWARD	1-48259-085-0	01	1	9307-	●	●
26	NUT; PRESSURE PLATE	1-48259-058-0	04	1	9307-	●	●
27	WASHER; PRESSURE PLATE	1-48259-057-0	02	1	9307-	●	●
28	BRACKET; PRESSURE PLATE,HOSE	1-48259-059-0	02	1	9307-	●	●
29	STUD; PRESSURE PLATE	1-48259-050-0	02	1	9307-	●	●
33	RETAINER; DIAPH FORWARD	1-48259-044-0	04	1	9307-	●	●
34	DIAPHRAGM (A)	1-48259-148-0	04	1	9002-9306	●	●
34	DIAPHRAGM (B)	1-48259-156-0	04	1	9002-9306	●	●
34	DIAPHRAGM	1-48252-010-0	02	1	9307-	●	●
35	PLATE; ROD END,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-207-0	02	1	9002-9306	●
35	PLATE; ROD END,SPR CHAMBER EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-143-0	02	1	9002-9306	●
35	PLATE; ROD END,SPR CHAMBER REARWARD	1-48259-143-0	02	1	9002-9306		●
35	PLATE; ROD END,SPR CHAMBER FORWARD	1-48253-010-0	02	1	9307-	●	●
36	RETAINER; SPR CHAMBER	1-48259-226-0	04	1	9002-9306	●	●
36	RETAINER; SPR CHAMBER	1-48259-043-0	02	1	9307-	●	●
37	SPRING; LWR,SPR CHAMBER	1-48259-142-0	04	1	9002-9306	●	●
37	SPRING; LWR,SPR CHAMBER	1-48255-003-0	02	1	9307-	●	●
38	COVER; ROD & PLATE	1-48259-066-0	02	1	9307-	●	●
39	COVER; ROD & PLATE	1-48259-065-0	02	1	9307-	●	●
40	COVER ASM; LWR,SPR CHAMBER	1-48259-141-0	04	1	9002-9112	●	●
40	COVER ASM; LWR,SPR CHAMBER	1-48259-227-0	04	1	9201-9306	●	●
40	COVER ASM; LWR,SPR CHAMBER	1-48259-068-1	01	1	9307-	●	●
40	COVER ASM; LWR,SPR CHAMBER	1-48259-067-1	01	1	9307-	●	●
41	PIPE ASM; LWR COVER	1-48259-075-0	02	1	9307-	●	●
67	GASKET; SPR CHAMBER	1-48259-053-0	02	1	9307-	●	●
69	HOSE; PRESSURE PLATE	1-48259-051-0	02	1	9307-	●	●
70	COVER; EXH,SPR CHAMBER	1-48259-052-0	04	1	9307-	●	●

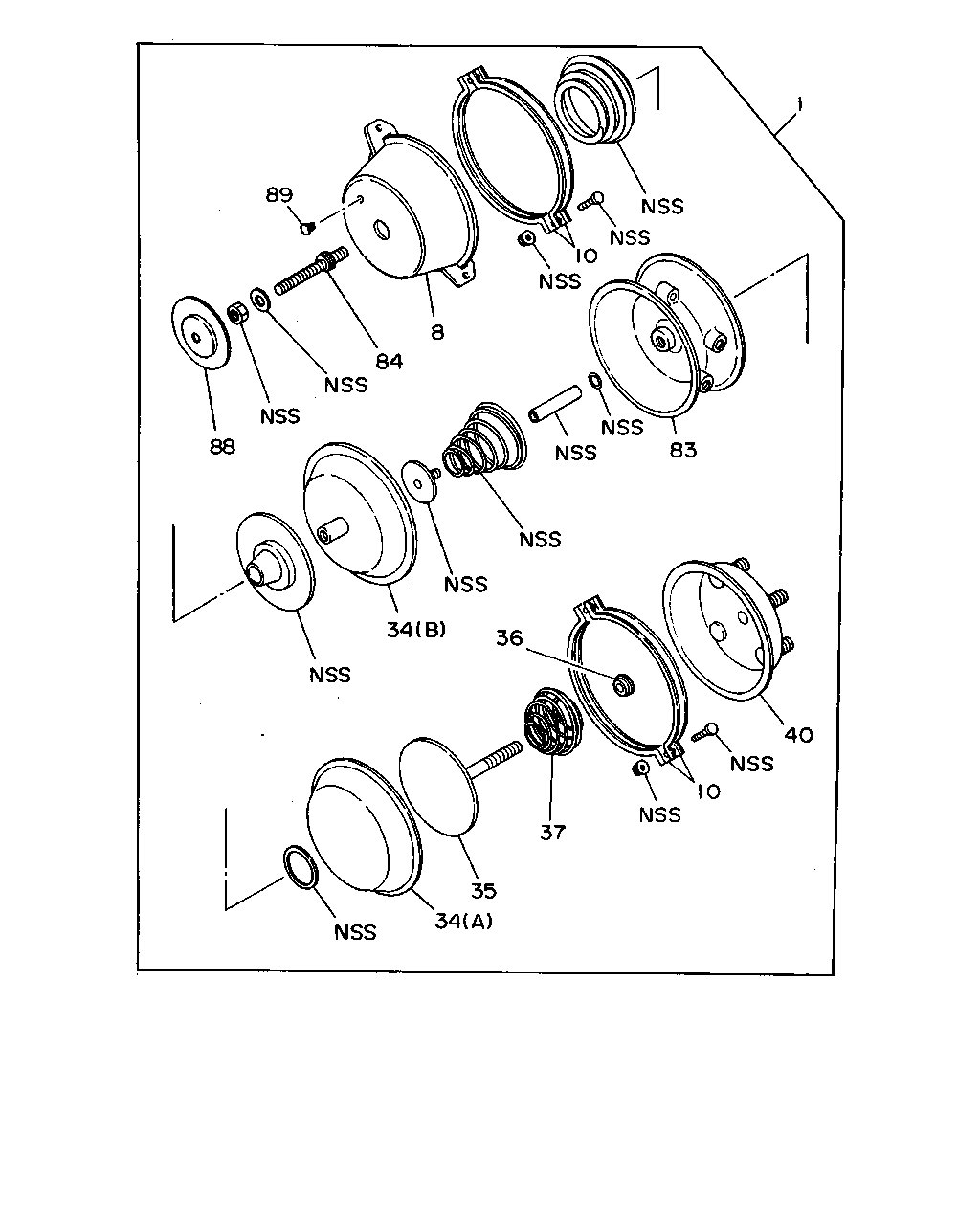

89 1 10 84 8 88 34 83 36 40 10 37 35 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48250-383-1	01	1	9002-9306	●
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48250-382-1	01	1	9002-9306	●
1	CHAMBER ASM; SPRING FORWARD&REARWARD	1-48250-368-1	01	1	9002-9306	●	●
1	CHAMBER ASM; SPRING EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD&REARWARD	1-48250-368-1	01	1	9002-9306	●
1	CHAMBER ASM; SPRING FORWARD&REARWARD	1-48250-368-1	01	1	9002-9306		●
1	CHAMBER ASM; SPRING FORWARD&REARWARD	1-48250-367-1	01	1	9002-9306	●	●
1	CHAMBER ASM; SPRING EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD&REARWARD	1-48250-367-1	01	1	9002-9306	●
1	CHAMBER ASM; SPRING FORWARD&REARWARD	1-48250-367-1	01	1	9002-9306		●
1	CHAMBER ASM; SPRING FORWARD	1-48250-181-1	01	1	9307-	●	●
1	CHAMBER ASM; SPRING FORWARD	1-48250-180-1	01	1	9307-	●	●
8	SHELL; CYL,SPR CHAMBER	1-48259-157-0	04	1	9002-9112	●	●
8	SHELL; CYL,SPR CHAMBER	1-48259-221-0	04	1	9201-9306	●	●
8	SHELL; CYL,SPR CHAMBER FORWARD	1-48259-070-0	01	1	9307-	●	●
8	SHELL; CYL,SPR CHAMBER FORWARD	1-48259-069-0	01	1	9307-	●	●
10	RING; CLAMP,SPR CHAMBER	1-48259-144-0	08	1	9002-9112	●	●
10	RING; CLAMP,SPR CHAMBER	1-48259-229-0	08	1	9201-9306	●	●
10	RING; CLAMP,SPR CHAMBER	1-48259-016-0	08	1	9307-	●	●
34	DIAPHRAGM (A)	1-48259-148-0	04	1	9002-9306	●	●
34	DIAPHRAGM (B)	1-48259-156-0	04	1	9002-9306	●	●
34	DIAPHRAGM	1-48252-010-0	02	1	9307-	●	●
35	PLATE; ROD END,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-207-0	02	1	9002-9306	●
35	PLATE; ROD END,SPR CHAMBER EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-143-0	02	1	9002-9306	●
35	PLATE; ROD END,SPR CHAMBER REARWARD	1-48259-143-0	02	1	9002-9306		●
35	PLATE; ROD END,SPR CHAMBER FORWARD	1-48253-010-0	02	1	9307-	●	●
36	RETAINER; SPR CHAMBER	1-48259-226-0	04	1	9002-9306	●	●
36	RETAINER; SPR CHAMBER	1-48259-043-0	02	1	9307-	●	●
37	SPRING; LWR,SPR CHAMBER	1-48259-142-0	04	1	9002-9306	●	●
37	SPRING; LWR,SPR CHAMBER	1-48255-003-0	02	1	9307-	●	●
40	COVER ASM; LWR,SPR CHAMBER	1-48259-141-0	04	1	9002-9112	●	●
40	COVER ASM; LWR,SPR CHAMBER	1-48259-227-0	04	1	9201-9306	●	●
40	COVER ASM; LWR,SPR CHAMBER	1-48259-068-1	01	1	9307-	●	●
40	COVER ASM; LWR,SPR CHAMBER	1-48259-067-1	01	1	9307-	●	●
83	ADAPTER; SPR CHAMBER	1-48259-149-0	04	1	9002-9112	●	●
83	ADAPTER; SPR CHAMBER	1-48259-230-0	04	1	9201-9306	●	●
84	SCREW ASM; RELEASE	1-48259-161-0	04	1	9002-9306	●	●
88	PLUG; SPR CHAMBER	1-48259-165-0	04	1	9002-9112	●	●
88	PLUG; SPR CHAMBER	1-48259-224-0	04	1	9201-9306	●	●
89	RETAINER; PLUG	1-48259-225-0	04	1	9201-9306	●	●
