3-40 — FRONT BRAKE POWER CHAMBER (#1744) — 66 parça

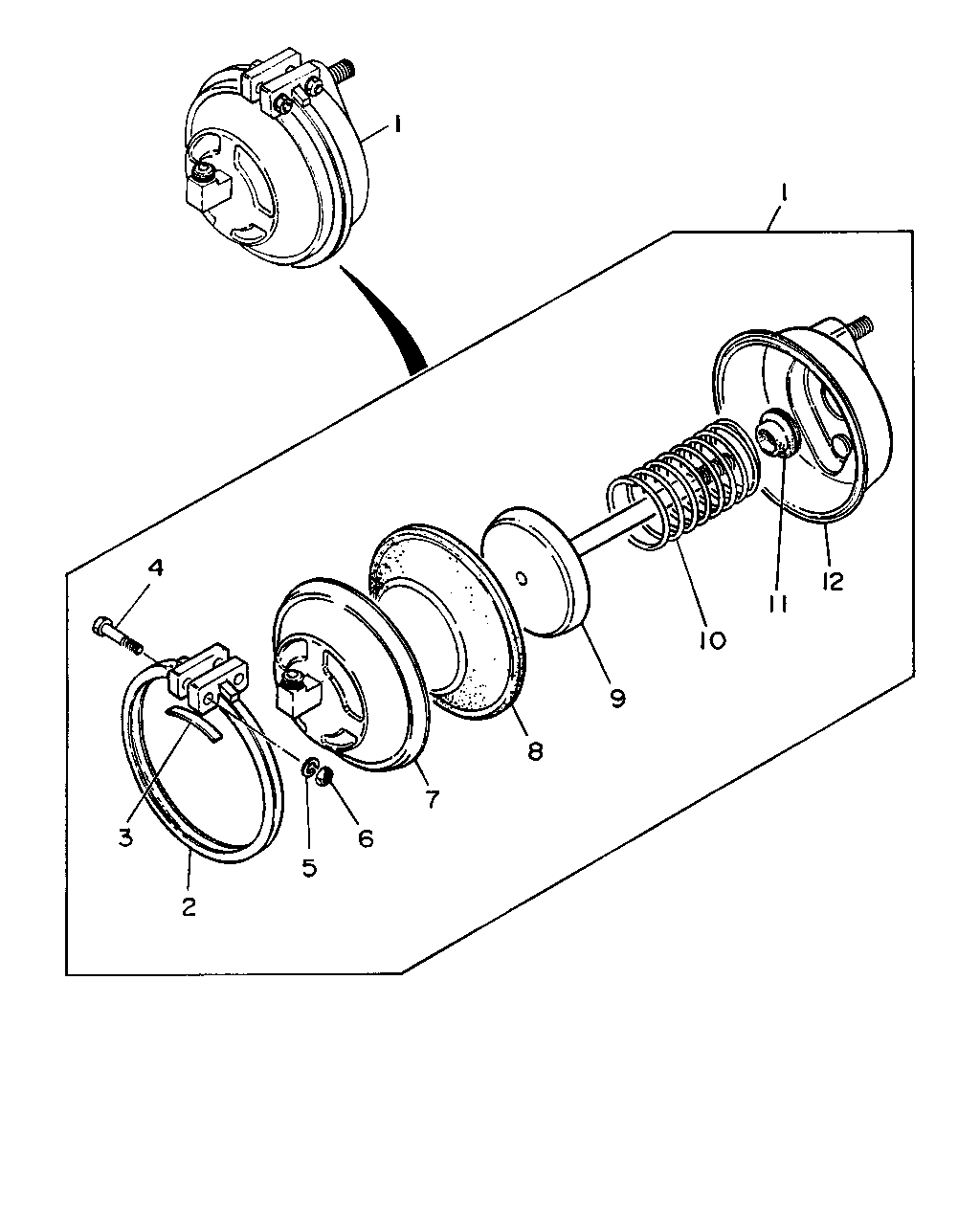

çizim 93255
1 1 12 11 9 10 8 7 6 5 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48250-062-1 02 1 9307-9412 ●
1 CHAMBER ASM; POWER,FRT BRK
THAILAND EQUIPMENT(PM9) DISC WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48250-062-1 02 1 9501- ●
1 CHAMBER ASM; POWER,FRT BRK
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48250-063-1 01 1 9307-9407 ●
1 CHAMBER ASM; POWER,FRT BRK
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48250-425-0 01 1 9408-9412 ●
1 CHAMBER ASM; POWER,FRT BRK
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48250-425-0 01 1 9501- ●
1 CHAMBER ASM; POWER,FRT BRK
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48250-342-0 01 1 9307-9412 ●
1 CHAMBER ASM; POWER,FRT BRK
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48250-342-0 01 1 9501- ●
1 CHAMBER ASM; POWER,FRT BRK
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, THAILAND EQUIPMENT(PM9),DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48250-063-1 02 1 9307-9407 ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-063-1 02 1 9307-9407 ●
1 CHAMBER ASM; POWER,FRT BRK
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, THAILAND EQUIPMENT(PM9),DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48250-425-0 02 1 9408-9412 ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-425-0 02 1 9408-9412 ●
1 CHAMBER ASM; POWER,FRT BRK
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, THAILAND EQUIPMENT(PM9),DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48250-425-0 02 1 9501- ●
1 CHAMBER ASM; POWER,FRT BRK
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48250-425-0 02 1 9501- ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-063-1 02 1 9002-9306 ● ●
2 RING; CLAMP,SPR CHAMBER
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48259-001-0 02 1 9307-9412 ●
2 RING; CLAMP,SPR CHAMBER
THAILAND EQUIPMENT(PM9) DISC WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48259-001-0 02 1 9501- ●
2 RING; CLAMP,SPR CHAMBER
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		9-48259-049-0 02 1 9307-9412 ●
2 RING; CLAMP,SPR CHAMBER 9-48259-049-0 02 1 9307-9412 ●
2 RING; CLAMP,SPR CHAMBER
EXC. THAILAND EQUIPMENT(PM9),DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		9-48259-049-0 02 1 9501- ● ●
2 RING; CLAMP,SPR CHAMBER 9-48259-049-0 02 1 9002-9306 ● ●
3 RETAINER; DIAPH 1-48259-016-0 02 1 9002-9306 ● ●
3 RETAINER; DIAPH 9-48259-016-0 02 1 9307-9412 ● ●
3 RETAINER; DIAPH
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		9-48259-016-0 02 1 9501- ● ●
4 BOLT; CLAMP RING 1-48259-002-0 04 1 9002-9412 ● ●
4 BOLT; CLAMP RING
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48259-002-0 04 1 9501- ● ●
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 9002-9412 ● ●
5 WASHER; LK,CLAMP RING
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> ID=10.2 		9-09150-510-0 04 1 9501- ● ●
6 NUT; CLAMP RING
M10 		9-09110-010-0 04 1 9002-9412 ● ●
6 NUT; CLAMP RING
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> M10 		9-09110-010-0 04 1 9501- ● ●
7 COVER ASM; UPR,SPR CHAMBER
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48251-002-0 02 1 9307-9412 ●
7 COVER ASM; UPR,SPR CHAMBER
THAILAND EQUIPMENT(PM9) DISC WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48251-002-0 02 1 9501- ●
7 COVER ASM; UPR,SPR CHAMBER
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48251-006-0 01 1 9307-9407 ●
7 COVER ASM; UPR,SPR CHAMBER
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48251-050-0 01 1 9408-9412 ●
7 COVER ASM; UPR,SPR CHAMBER
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48251-050-0 01 1 9501- ●
7 COVER ASM; UPR,SPR CHAMBER
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48251-048-0 01 1 9307-9412 ●
7 COVER ASM; UPR,SPR CHAMBER
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48251-048-0 01 1 9501- ●
7 COVER ASM; UPR,SPR CHAMBER
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, THAILAND EQUIPMENT(PM9),DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48251-006-0 02 1 9307-9407 ●
7 COVER ASM; UPR,SPR CHAMBER 1-48251-006-0 02 1 9307-9407 ●
7 COVER ASM; UPR,SPR CHAMBER
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, THAILAND EQUIPMENT(PM9),DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48251-050-0 02 1 9408-9412 ●
7 COVER ASM; UPR,SPR CHAMBER 1-48251-050-0 02 1 9408-9412 ●
7 COVER ASM; UPR,SPR CHAMBER
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, THAILAND EQUIPMENT(PM9),DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48251-050-0 02 1 9501- ●
7 COVER ASM; UPR,SPR CHAMBER
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48251-050-0 02 1 9501- ●
7 COVER ASM; UPR,SPR CHAMBER 1-48251-006-0 02 1 9002-9306 ● ●
8 DIAPHRAGM; SPR CHAMBER
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48252-006-0 02 1 9307-9412 ●
8 DIAPHRAGM; SPR CHAMBER
THAILAND EQUIPMENT(PM9) DISC WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48252-006-0 02 1 9501- ●
8 DIAPHRAGM; SPR CHAMBER
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48252-009-0 02 1 9307-9412 ●
8 DIAPHRAGM; SPR CHAMBER 1-48252-009-0 02 1 9307-9412 ●
8 DIAPHRAGM; SPR CHAMBER
EXC. THAILAND EQUIPMENT(PM9),DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48252-009-0 02 1 9501- ● ●
8 DIAPHRAGM; SPR CHAMBER 1-48252-009-0 02 1 9002-9306 ● ●
9 PISTON; SPR CHAMBER
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48253-001-0 02 1 9307- ●
9 PISTON; SPR CHAMBER
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48253-003-0 02 1 9307-9412 ●
9 PISTON; SPR CHAMBER 1-48253-003-0 02 1 9307-9412 ●
9 PISTON; SPR CHAMBER
EXC. THAILAND EQUIPMENT(PM9),DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48253-003-0 02 1 9501- ● ●
9 PISTON; SPR CHAMBER 1-48253-003-0 02 1 9002-9306 ● ●
10 SPRING; PISTON,SPR CHAMBER
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48255-001-0 02 1 9307- ●
10 SPRING; PISTON,SPR CHAMBER
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		9-48255-012-0 02 1 9307-9412 ●
10 SPRING; PISTON,SPR CHAMBER 9-48255-012-0 02 1 9307-9412 ●
10 SPRING; PISTON,SPR CHAMBER
EXC. THAILAND EQUIPMENT(PM9),DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		9-48255-012-0 02 1 9501- ● ●
10 SPRING; PISTON,SPR CHAMBER 9-48255-012-0 02 1 9002-9306 ● ●
11 SEAL; PISTON,SPR CHAMBER 1-48252-025-0 02 1 9002-9412 ● ●
11 SEAL; PISTON,SPR CHAMBER
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48252-025-0 02 1 9501- ● ●
12 COVER ASM; LWR,SPR CHAMBER
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48251-019-0 02 1 9307- ●
12 COVER ASM; LWR,SPR CHAMBER
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48251-023-0 02 1 9307-9412 ●
12 COVER ASM; LWR,SPR CHAMBER 1-48251-023-0 02 1 9307-9412 ●
12 COVER ASM; LWR,SPR CHAMBER
EXC. THAILAND EQUIPMENT(PM9),DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48251-023-0 02 1 9501- ● ●
12 COVER ASM; LWR,SPR CHAMBER 1-48251-023-0 02 1 9002-9306 ● ●
