Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#1742) — 395 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	3	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-083-0	01	1	9002-	●

31 31 31 30 1 29 31 31 30 4 1 5 6 7 8 23 21 22 20 19 18 17 16 15 14 13 12 11 10 9 5 13 11 2 21 22 20 15 14 18 26 27 28 25 24 28 27 26 25 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

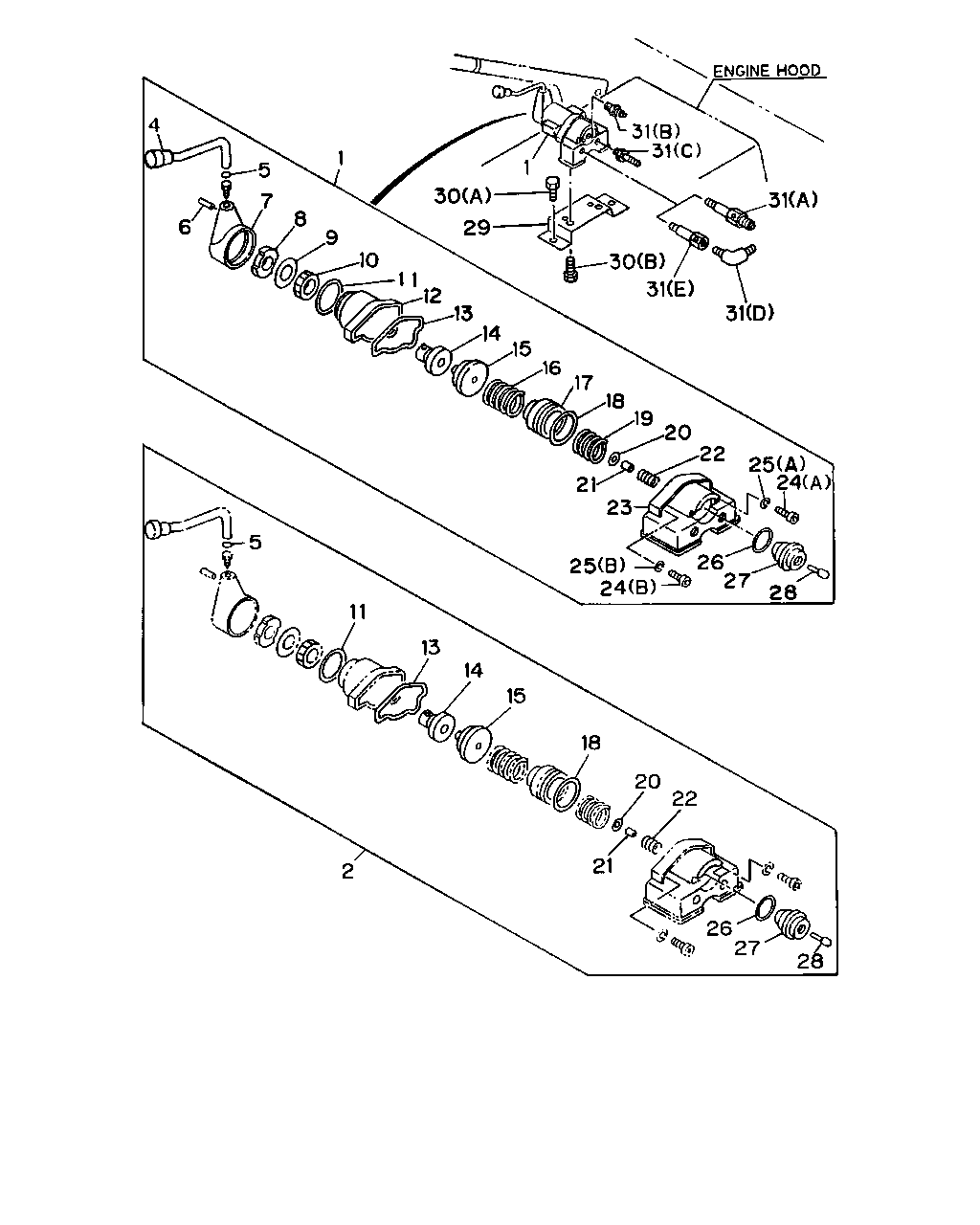

1	VALVE ASM; HAND BRK	1-48100-651-0	01	1	9002-9306	●
1	VALVE ASM; HAND BRK NEW ZEALAND EQUIPMENT(PK5)	1-48460-282-0	01	1	9307-	●
1	VALVE ASM; HAND BRK EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48100-651-0	01	1	9307-	●
1	VALVE ASM; HAND BRK	1-48100-674-0	01	1	9002-		●
2	REPAIR KIT; HAND BRK VLV	1-87830-499-0	01	1	9002-9306	●
2	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-85576-157-0	01	1	9307-	●
2	REPAIR KIT; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-87830-499-0	01	1	9307-	●
2	REPAIR KIT; HAND BRK VLV	1-48119-313-0	01	1	9002-		●
4	HANDLE ASM; BRK VLV	1-48119-144-0	01	1	9002-	●	●
5	GASKET; HANDLE	1-48119-128-0	01	1	9002-	●	●
6	PIN; SPR	1-48119-143-0	01	1	9002-	●	●
7	HEAD; BRK VLV	1-48119-131-0	01	1	9002-	●	●
8	STOPPER; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-327-0	01	1	9307-	●
8	STOPPER; BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48119-239-0	01	1	9307-	●
8	STOPPER; BRK VLV	1-48119-239-0	01	1	9307-		●
8	STOPPER; BRK VLV	1-48119-239-0	01	1	9002-9306	●	●
9	WASHER; LK,ADJ	1-48119-123-0	01	1	9002-	●	●
10	RING; ADJ	1-48119-122-0	01	1	9002-	●	●
11	GASKET; HD TO COVER NEW ZEALAND EQUIPMENT(PK5)	1-48119-328-0	01	1	9307-	●
11	GASKET; HD TO COVER EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48119-130-0	01	1	9307-	●
11	GASKET; HD TO COVER	1-48119-130-0	01	1	9307-		●
11	GASKET; HD TO COVER	1-48119-130-0	01	1	9002-9306	●	●
12	COVER; BRK VLV	1-48129-097-0	01	1	9002-	●	●
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	9002-	●	●
14	FOLLOWER; CAM	1-48129-135-0	01	1	9002-	●	●
15	CAM; FOLLOWER	1-48129-134-0	01	1	9002-	●	●
16	SPRING; GRUDUATING	1-48129-101-0	01	1	9002-	●	●
17	PISTON; SPR	1-48129-095-0	01	1	9002-	●	●
18	GASKET; BODY	1-48129-096-0	01	1	9002-	●	●
19	SPRING; PISTON	1-48129-094-0	01	1	9002-	●	●
20	GUIDE; VLV	1-48129-090-0	01	1	9002-	●	●
21	VALVE; IN & EXH	1-48121-017-0	01	1	9002-	●	●
22	SPRING; VLV	1-48123-024-0	01	1	9002-	●	●
23	BODY; BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48111-030-0	01	1	9002-	●
23	BODY; BRK VLV (A)	1-48111-030-0	01	1	9002-		●
24	BOLT; EXH VLV (B)	1-48129-092-0	02	1	9002-	●	●
24	BOLT; EXH VLV (A)	1-48129-121-0	02	1	9002-	●	●
25	WASHER; LK,EXH VLV (A)	1-48119-134-0	02	1	9002-	●	●
25	WASHER; LK,EXH VLV (B)	1-48129-093-0	02	1	9002-	●	●
26	GASKET; BRK VLV	1-48129-091-0	01	1	9002-	●	●
27	SEAT; INL VLV	1-48122-007-0	01	1	9002-	●	●
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	9002-	●	●
29	BRACKET; HAND BRK	1-47475-257-0	01	1	9002-	●
29	BRACKET; HAND BRK	1-47475-497-0	01	1	9002-		●
30	BOLT; BRKT,HAND BRK VLV (B) M10X20 W/LK WASHER	9-01901-020-0	02	1	9002-9204	●	●
30	BOLT; BRKT,HAND BRK VLV (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	9205-	●	●
30	BOLT; BRKT,HAND BRK VLV (A) M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005	●	●
30	BOLT; BRKT,HAND BRK VLV (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-	●	●
31	CONNECTOR; HAND BRK VLV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-226-0	01	1	9002-9306	●
31	CONNECTOR; HAND BRK VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-233-0	01	1	9002-9306	●
31	CONNECTOR; HAND BRK VLV NYLON TUBE AIR PIPING<Z29> (E)	1-09660-335-0	01	1	9002-	●
31	CONNECTOR; HAND BRK VLV NYLON TUBE AIR PIPING<Z29> (B) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-	●
31	CONNECTOR; HAND BRK VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-635-0	01	1	9307-	●
31	CONNECTOR; HAND BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-09656-391-2	01	1	9002-	●
31	CONNECTOR; HAND BRK VLV (A)	1-09656-391-2	01	1	9002-		●
31	CONNECTOR; HAND BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> (B)	9-09231-810-1	01	1	9002-	●
31	CONNECTOR; HAND BRK VLV (B)	9-09231-810-1	01	1	9002-		●
31	CONNECTOR; HAND BRK VLV (C)	8-94338-874-0	01	1	9002-	●	●

32 32 52 51 54 53 54 55 33 56 145 42 40 58 59 57 45 34 35 38 39 40 41 44 43 42 164 45 48 47 46 44 50 49 37 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

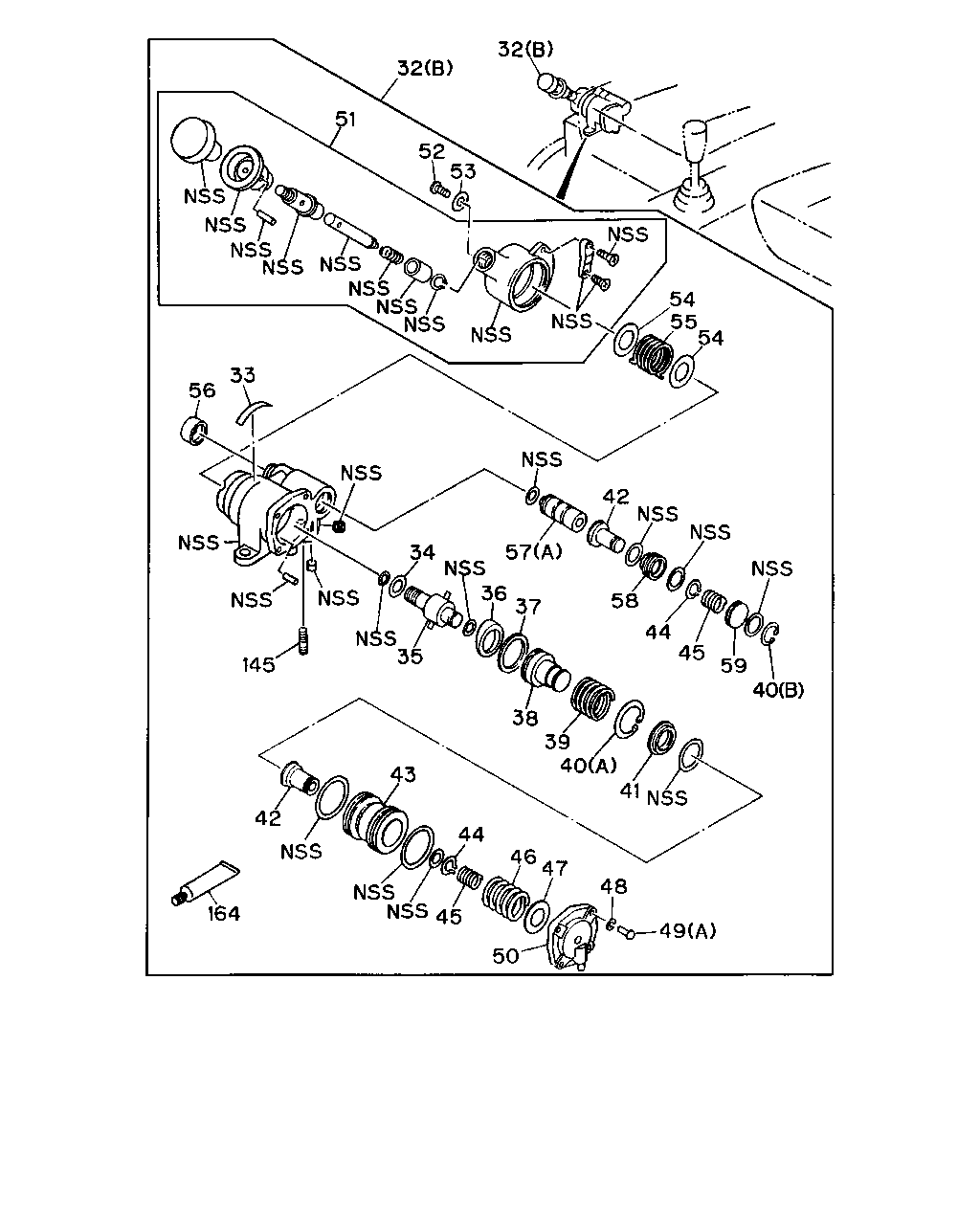

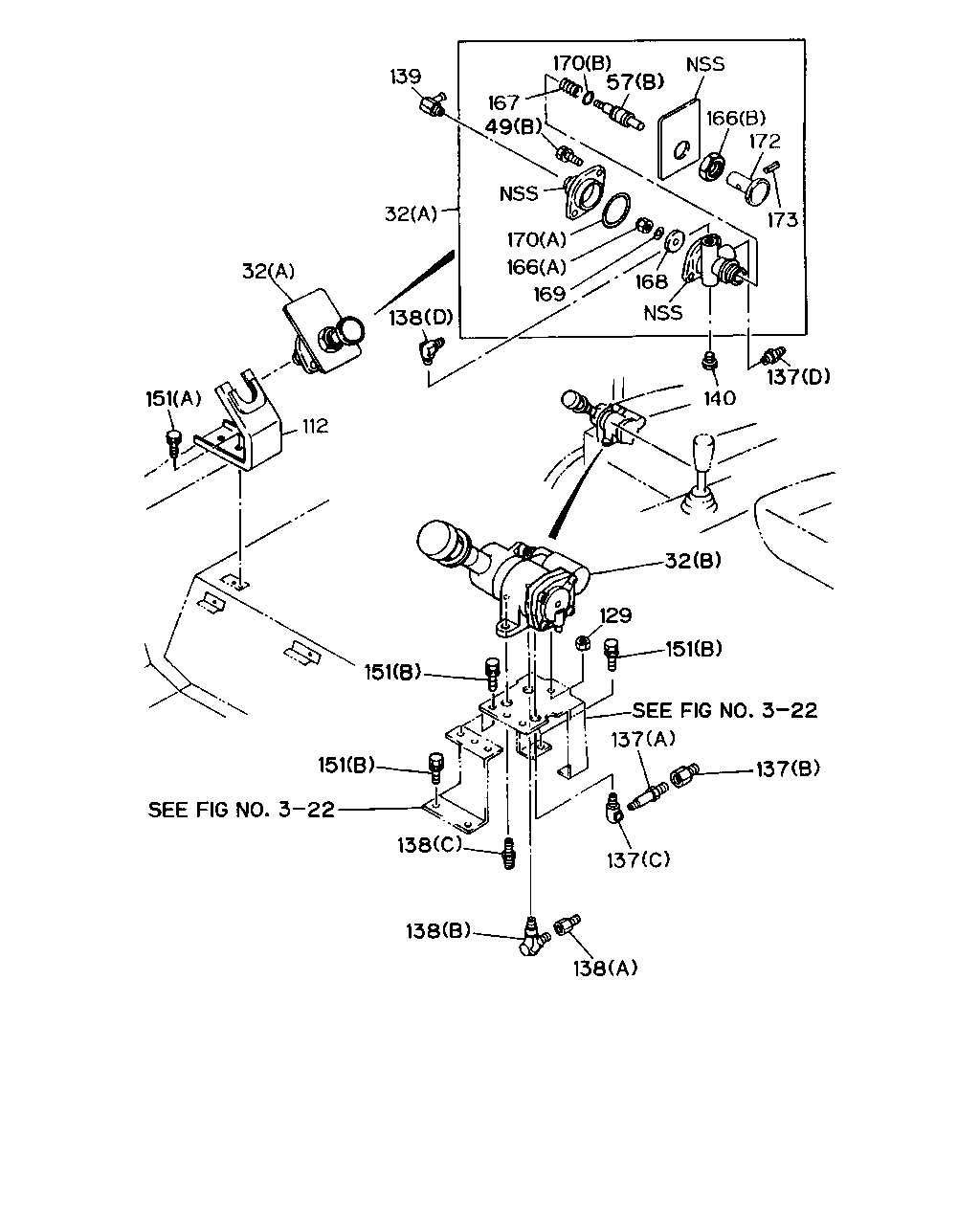

32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-257-0	01	1	9002-	●
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (A)	1-48460-207-0	01	1	9002-9306	●
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (B)	1-48460-292-0	01	1	9307-	●
32	VALVE; BRK,HAND CONT EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-184-0	01	1	9002-	●
32	VALVE; BRK,HAND CONT (A)	1-48460-184-0	01	1	9002-		●
33	PLATE; CAUTION HONG KONG EQUIPMENT(PQ1)	1-48469-081-0	01	1	9002-	●
33	PLATE; CAUTION NEW ZEALAND EQUIPMENT(PK5)	1-48469-121-0	01	1	9307-	●
34	SHIM; CAM HOLDER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-055-0	01	1	9002-	●
35	HOLDER; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-054-0	01	1	9002-	●
36	RING; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-056-0	01	1	9002-	●
37	GUIDE; CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-058-0	01	1	9002-	●
38	SEAT; EXH VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-057-0	01	1	9002-	●
39	SPRING; RETURN,CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-063-0	01	1	9002-	●
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48469-067-0	01	1	9002-	●
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-48469-079-0	01	1	9002-	●
41	SEAT; FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-066-0	01	1	9002-	●
42	VALVE; FEED NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-065-0	02	1	9002-	●
43	PISTON; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-064-0	01	1	9002-	●
44	RING; SNAP,FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-068-0	02	1	9002-	●
45	SPRING; FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-070-0	02	1	9002-	●
46	SPRING; MAIN,PISTON HONG KONG EQUIPMENT(PQ1)	1-48469-071-0	01	1	9002-	●
46	SPRING; MAIN,PISTON NEW ZEALAND EQUIPMENT(PK5)	1-48469-119-0	01	1	9307-	●
47	SHIM; MAIN SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-072-0	01	1	9307-	●
48	WASHER; COVER HONG KONG EQUIPMENT(PQ1)	1-48469-074-0	04	1	9002-	●
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1) (A)	1-48469-075-0	04	1	9002-	●
49	SCREW; COVER NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-120-0	04	1	9307-	●
49	SCREW; COVER EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	02	1	9002-	●
49	SCREW; COVER (B)	1-52139-005-0	02	1	9002-		●
50	COVER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-073-0	01	1	9002-	●
51	HANDLE ASM; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-060-0	01	1	9002-	●
52	SCREW; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-062-0	01	1	9002-	●
53	WASHER; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-061-0	01	1	9002-	●
54	SEAT; SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-082-0	02	1	9002-	●
55	SPRING; RETURN,HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-059-0	01	1	9002-	●
56	BOOT; PLUNGER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-080-0	01	1	9002-	●
57	PLUNGER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48469-076-0	01	1	9002-	●
57	PLUNGER; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-097-0	01	1	9002-	●
57	PLUNGER; HAND BRK VLV (B)	1-48469-097-0	01	1	9002-		●
58	HOLDER; FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-077-0	01	1	9002-	●
59	HOLDER; SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-078-0	01	1	9002-	●
145	STUD; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-069-0	01	1	9002-	●
164	GREASE; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-084-0	01	1	9002-	●

64 66 64 66 108 70 87 87 87 130 129 128 86 88 87 127 61 203 90 71 66 64 107 60 76 69 63 157 65 68 102 125 69 110 115 62 115 67 65 61 115 115 115 115 116 115 115 115 115 64 66 143 143 115 114 115 115 115 143 143 142 122 87 89 87 89 89 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

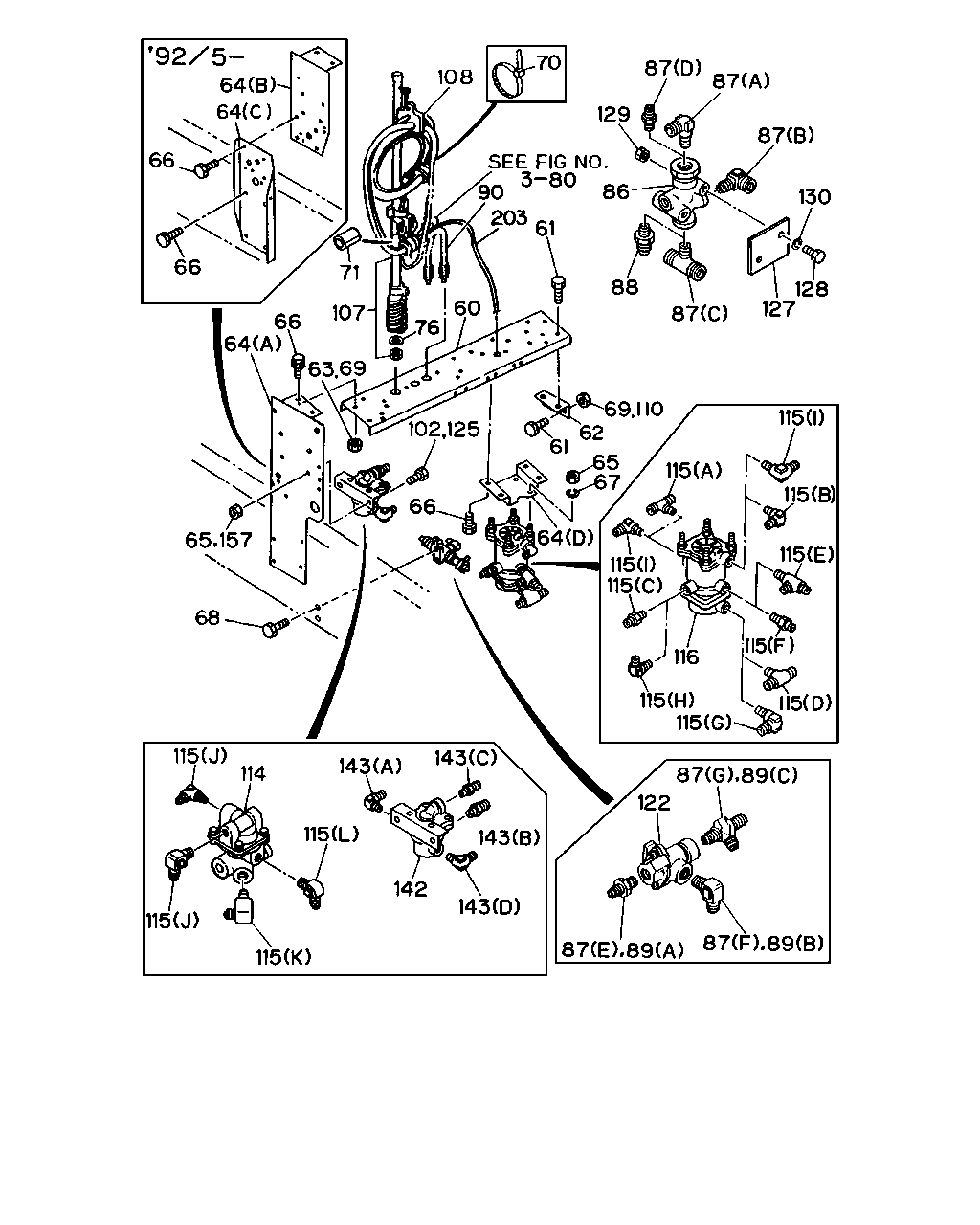

60	BOARD; STEP,TRAILER NYLON TUBE AIR PIPING<Z29>	1-53497-248-2	01	1	9002-9306	●
60	BOARD; STEP,TRAILER EXC. NYLON TUBE AIR PIPING<Z29>	1-53497-173-9	01	1	9002-9306	●
60	BOARD; STEP,TRAILER	1-53497-173-9	01	1	9002-9306		●
60	BOARD; STEP,TRAILER	1-53497-173-9	01	1	9307-9312	●	●
60	BOARD; STEP,TRAILER	1-53497-526-1	01	1	9401-	●	●
61	BOLT; STEP BOARD HONG KONG EQUIPMENT(PQ1) M12X35	9-92061-235-0	02	1	9205-	●
61	BOLT; STEP BOARD TAIL PIPE SINGLE HORIZONTAL<NC2> M12X32 W/LK WASHER	9-01911-232-0	03	1	9002-9005	●
61	BOLT; STEP BOARD TAIL PIPE SINGLE HORIZONTAL<NC2> M12X32 W/LK WASHER	0-50041-232-0	03	1	9006-	●
61	BOLT; STEP BOARD TAIL PIPE SINGLE HORIZONTAL<NC2> M12X45	9-01911-245-0	03	1	9002-9005	●
61	BOLT; STEP BOARD TAIL PIPE SINGLE HORIZONTAL<NC2> M12X45 W/LK WASHER	0-50041-245-0	03	1	9006-	●
61	BOLT; STEP BOARD M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	9002-	●	●
61	BOLT; STEP BOARD M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●	●
61	BOLT; STEP BOARD M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●	●
62	BRACKET; BOARD,HANGER TAIL PIPE SINGLE HORIZONTAL<NC2>	1-53497-331-1	01	1	9002-	●
62	BRACKET; BOARD,HANGER EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-53497-148-0	01	1	9002-	●
62	BRACKET; BOARD,HANGER	1-53497-148-0	01	1	9002-		●
63	NUT; STEP BOARD HONG KONG EQUIPMENT(PQ1) M12	9-99110-512-0	02	1	9205-	●
63	NUT; STEP BOARD M8	9-09110-408-0	02	1	9002-	●	●
64	BRACKET; RELAY VLV EXC. AUTO CAB TILT<WV2> (C)	1-48495-134-1	01	1	9205-9306	●
64	BRACKET; RELAY VLV (C)	1-48495-134-1	01	1	9205-9306		●
64	BRACKET; RELAY VLV FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AUTO CAB TILT<WV2> (C)	1-48495-139-0	01	1	9307-	●
64	BRACKET; RELAY VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AUTO CAB TILT<WV2> (C)	1-48495-138-0	01	1	9307-	●
64	BRACKET; RELAY VLV (C)	1-48495-138-0	01	1	9307-		●
64	BRACKET; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	1-48495-103-0	01	1	9002-	●
64	BRACKET; RELAY VLV (A)	1-48495-111-0	01	1	9002-9204	●	●
64	BRACKET; RELAY VLV (B)	1-48495-133-1	01	1	9205-9306	●	●
64	BRACKET; RELAY VLV (B)	1-48495-137-2	01	1	9307-	●	●
65	NUT; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	04	1	9002-	●
65	NUT; RELAY VLV M10	9-09110-510-0	02	1	9002-	●	●
66	BOLT; VLV BRKT AUTO CAB TILT<WV2> M10X35 W/LK WASHER	0-50041-035-0	01	1	9002-9204	●
66	BOLT; VLV BRKT M12X30 W/LK WASHER	0-50041-230-0	04	1	9205-	●	●
66	BOLT; VLV BRKT AUTO CAB TILT<WV2> M10X45 W/LK WASHER	0-50041-045-0	04	1	9002-9204	●
66	BOLT; VLV BRKT EXC. AUTO CAB TILT<WV2> M10X30 W/LK WASHER	0-50041-030-0	04	1	9002-9204	●
66	BOLT; VLV BRKT M10X30 W/LK WASHER	0-50041-030-0	04	1	9002-9204		●
66	BOLT; VLV BRKT EXC. AUTO CAB TILT<WV2> M12X45 W/LK WASHER	0-50041-245-0	04	1	9205-	●
66	BOLT; VLV BRKT M12X45 W/LK WASHER	0-50041-245-0	04	1	9205-		●
66	BOLT; VLV BRKT HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	0-50040-825-0	04	1	9002-9302	●
66	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28080-825-0	04	1	9303-	●
67	WASHER; LK,RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=8.2	9-09150-508-0	04	1	9002-	●
68	BOLT; DOUBLE CHECK VLV FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●
68	BOLT; DOUBLE CHECK VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	02	1	9307-	●
68	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28080-820-0	02	1	9307-		●
68	BOLT; DOUBLE CHECK VLV NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9307-9404	●
68	BOLT; DOUBLE CHECK VLV NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9405-	●
68	BOLT; DOUBLE CHECK VLV M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
68	BOLT; DOUBLE CHECK VLV M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
68	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28080-820-0	02	1	9303-9306	●	●
69	NUT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	04	1	9002-	●
69	NUT; VLV BRKT M10	9-09110-510-0	01	1	9002-	●	●
69	NUT; VLV BRKT M12	9-99110-412-0	02	1	9310-	●	●
70	CLIP; BAND,JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK> L=250	5-09707-030-0	08	1	9002-	●	●
71	RUBBER; STEP BOARD EXC. JUMPER HOSE & CABLE DELETE<SJK> ID=38.1 L=50	5-09360-835-0	03	1	9002-9101	●	●
71	RUBBER; STEP BOARD EXC. JUMPER HOSE & CABLE DELETE<SJK> ID=38.1 L=50	5-09360-835-0	02	1	9102-	●	●
76	WASHER; PL,HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK> ID=17 OD=32	9-09160-616-0	02	1	9111-	●	●
86	VALVE; SYN EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48460-173-0	01	1	9002-	●
86	VALVE; SYN	1-48460-173-0	01	1	9002-		●
87	CONNECTOR; DBL CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D) M14	1-09650-031-0	01	1	9002-9103	●
87	CONNECTOR; DBL CHECK VLV (D) M14	1-09650-031-0	01	1	9002-9103		●
87	CONNECTOR; DBL CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9104-	●
87	CONNECTOR; DBL CHECK VLV (D) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9104-		●
87	CONNECTOR; DBL CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302	●
87	CONNECTOR; DBL CHECK VLV (B) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302		●
87	CONNECTOR; DBL CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-	●
87	CONNECTOR; DBL CHECK VLV (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-		●
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (E) M14 & PT3/8 STRAIGHT	1-09660-227-0	01	1	9002-9306	●
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (F)	1-09660-535-0	01	1	9307-	●
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (A) M14 & PT1/4 ELBOW	1-09660-233-0	01	1	9002-9306	●
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (F) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	9002-9306	●
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (E)	1-09660-555-0	01	1	9307-	●
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-238-0	01	1	9002-9306	●
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (G)	1-09660-245-0	01	1	9002-9306	●
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (G)	1-09660-563-0	01	1	9307-	●
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (C)	1-09660-304-0	01	1	9002-9306	●
88	CONNECTOR; ELBOW EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M22	1-09650-246-1	01	1	9002-	●
88	CONNECTOR; ELBOW M22	1-09650-246-1	01	1	9002-		●
89	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9002-	●
89	CONNECTOR; FLARE (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9002-		●
89	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302	●
89	CONNECTOR; FLARE (B) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302		●
89	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-	●
89	CONNECTOR; FLARE (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-		●
89	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (C) M16	1-09656-374-1	01	1	9002-	●
89	CONNECTOR; FLARE (C) M16	1-09656-374-1	01	1	9002-		●
90	HOSE; JUMPER,TRAILER EXC. NEW ZEALAND EQUIPMENT(PK5),JUMPER HOSE & CABLE DELETE<SJK> L=4140	1-09363-149-0	01	1	9002-	●	●
102	BOLT; SUPPLY DUMP VLV HONG KONG EQUIPMENT(PQ1) M10X22 W/LK WASHER	0-50041-022-0	02	1	9002-	●
102	BOLT; SUPPLY DUMP VLV NYLON TUBE AIR PIPING<Z29> M10X22 W/LK WASHER	0-50041-022-0	02	1	9002-	●
107	HANGER; JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-011-1	01	1	9002-9101	●	●
107	HANGER; JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-014-0	01	1	9102-9110	●	●
107	HANGER; JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-017-0	01	1	9111-	●	●
108	CLAMP; HOSE HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-009-0	01	1	9002-9101	●	●
108	CLAMP; HOSE HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-016-0	01	1	9102-9110	●	●
108	CLAMP; HOSE HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-018-0	01	1	9111-	●	●
110	NUT; BRKT TO FRAME TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-412-0	02	1	9002-9304	●
110	NUT; BRKT TO FRAME TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	02	1	9305-	●
114	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48210-157-1	01	1	9002-	●
114	VALVE; RELAY	1-48210-157-1	01	1	9002-		●
115	CONNECTOR; DUAL RELAY VLV HONG KONG EQUIPMENT(PQ1) (G)	1-09650-144-1	01	1	9002-9302	●
115	CONNECTOR; DUAL RELAY VLV HONG KONG EQUIPMENT(PQ1) (G) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	9303-	●
115	CONNECTOR; DUAL RELAY VLV HONG KONG EQUIPMENT(PQ1) (F) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9002-	●
115	CONNECTOR; DUAL RELAY VLV HONG KONG EQUIPMENT(PQ1) (H)	1-09650-266-1	01	1	9002-9302	●
115	CONNECTOR; DUAL RELAY VLV HONG KONG EQUIPMENT(PQ1) (H) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-	●
115	CONNECTOR; DUAL RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) M16X2 & PT1/4 3WAY	1-09656-372-1	01	1	9002-	●
115	CONNECTOR; DUAL RELAY VLV HONG KONG EQUIPMENT(PQ1) (I) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302	●
115	CONNECTOR; DUAL RELAY VLV HONG KONG EQUIPMENT(PQ1) (I) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-	●
115	CONNECTOR; DUAL RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (J) M16 & PT3/8 ELBOW	1-09650-180-1	02	1	9002-9302	●
115	CONNECTOR; DUAL RELAY VLV (J) M16 & PT3/8 ELBOW	1-09650-180-1	02	1	9002-9302		●
115	CONNECTOR; DUAL RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (J) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9303-	●
115	CONNECTOR; DUAL RELAY VLV (J) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9303-		●
115	CONNECTOR; DUAL RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (K)	1-09650-221-1	01	1	9002-9302	●
115	CONNECTOR; DUAL RELAY VLV (K)	1-09650-221-1	01	1	9002-9302		●
115	CONNECTOR; DUAL RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (K) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-	●
115	CONNECTOR; DUAL RELAY VLV (K) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-		●
115	CONNECTOR; DUAL RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (L) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302	●
115	CONNECTOR; DUAL RELAY VLV (L) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302		●
115	CONNECTOR; DUAL RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (L) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-	●
115	CONNECTOR; DUAL RELAY VLV (L) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (J) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	9002-9306	●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-318-0	01	1	9307-	●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (K),(L) M18 & PT1/2 ELBOW	1-09660-236-0	02	1	9002-9306	●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (E)	1-09660-436-1	01	1	9307-	●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (A)	1-09660-543-0	01	1	9307-	●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (B) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-	●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (C) 17/32" PT1/4	1-09660-573-0	01	1	9307-	●
116	VALVE; DUAL RELAY HONG KONG EQUIPMENT(PQ1)	1-48210-347-0	01	1	9002-9306	●
116	VALVE; DUAL RELAY HONG KONG EQUIPMENT(PQ1)	1-48210-347-0	01	1	9307-	●
116	VALVE; DUAL RELAY NYLON TUBE AIR PIPING<Z29>	1-48210-347-0	01	1	9307-	●
122	VALVE ASM; DOUBLE CHECK NYLON TUBE AIR PIPING<Z29>	1-48410-251-0	01	1	9307-	●
122	VALVE ASM; DOUBLE CHECK EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-050-0	01	1	9307-	●
122	VALVE ASM; DOUBLE CHECK	1-48410-050-0	01	1	9307-		●
122	VALVE ASM; DOUBLE CHECK	1-48410-050-0	01	1	9002-9306	●	●
125	BOLT; RELAY VLV M10X30 W/LK WASHER	0-50041-030-0	02	1	9002-9210	●	●
125	BOLT; RELAY VLV M10X40 W/LK WASHER	0-50041-040-0	02	1	9211-9306	●	●
125	BOLT; RELAY VLV M10X30 W/LK WASHER	0-50041-030-0	02	1	9307-	●	●
127	DISTANCE; SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48499-002-0	01	1	9002-	●
127	DISTANCE; SYN VLV	1-48499-002-0	01	1	9002-		●
128	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1)	9-01055-665-0	02	1	9002-9005	●
128	BOLT; VLV	9-01055-665-0	02	1	9002-9005		●
128	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1)	0-10805-665-0	02	1	9006-9008	●
128	BOLT; VLV	0-10805-665-0	02	1	9006-9008		●
128	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X60	0-10805-660-0	02	1	9009-	●
128	BOLT; VLV M6X60	0-10805-660-0	02	1	9009-		●
129	NUT; VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6	9-09110-406-0	02	1	9002-	●
129	NUT; VLV M6	9-09110-406-0	02	1	9002-		●
129	NUT; VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9002-	●
130	WASHER; LK,VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=6.1	9-09150-606-0	02	1	9002-	●
130	WASHER; LK,VLV ID=6.1	9-09150-606-0	02	1	9002-		●
142	VALVE; SUPPLY DUMP HONG KONG EQUIPMENT(PQ1)	1-48210-367-0	01	1	9002-	●
142	VALVE; SUPPLY DUMP NYLON TUBE AIR PIPING<Z29>	1-48210-367-0	01	1	9002-	●
143	CONNECTOR; CONT HONG KONG EQUIPMENT(PQ1) (D)	1-09650-144-1	01	1	9002-9302	●
143	CONNECTOR; CONT HONG KONG EQUIPMENT(PQ1) (D) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	9303-	●
143	CONNECTOR; CONT HONG KONG EQUIPMENT(PQ1) (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9002-	●
143	CONNECTOR; CONT HONG KONG EQUIPMENT(PQ1) (C) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9002-	●
143	CONNECTOR; CONT HONG KONG EQUIPMENT(PQ1) (A)	9-09234-310-1	01	1	9002-9302	●
143	CONNECTOR; CONT HONG KONG EQUIPMENT(PQ1) (A)	1-09650-434-0	01	1	9303-	●
143	CONNECTOR; CONT NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-	●
143	CONNECTOR; CONT NYLON TUBE AIR PIPING<Z29> (B)	1-09660-572-0	01	1	9307-	●
143	CONNECTOR; CONT NYLON TUBE AIR PIPING<Z29> (C) 17/32" PT1/4	1-09660-573-0	01	1	9307-	●
143	CONNECTOR; CONT NYLON TUBE AIR PIPING<Z29> (D)	1-09660-574-0	01	1	9307-	●
157	NUT; SUPPLY DUMP VALVE HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	9002-9306	●
157	NUT; SUPPLY DUMP VALVE HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	9307-	●
157	NUT; SUPPLY DUMP VALVE NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9307-	●
203	CABLE; JUMPER EXC. JUMPER HOSE & CABLE DELETE<SJK> L=6000	1-82659-035-1	01	1	9002-	●	●

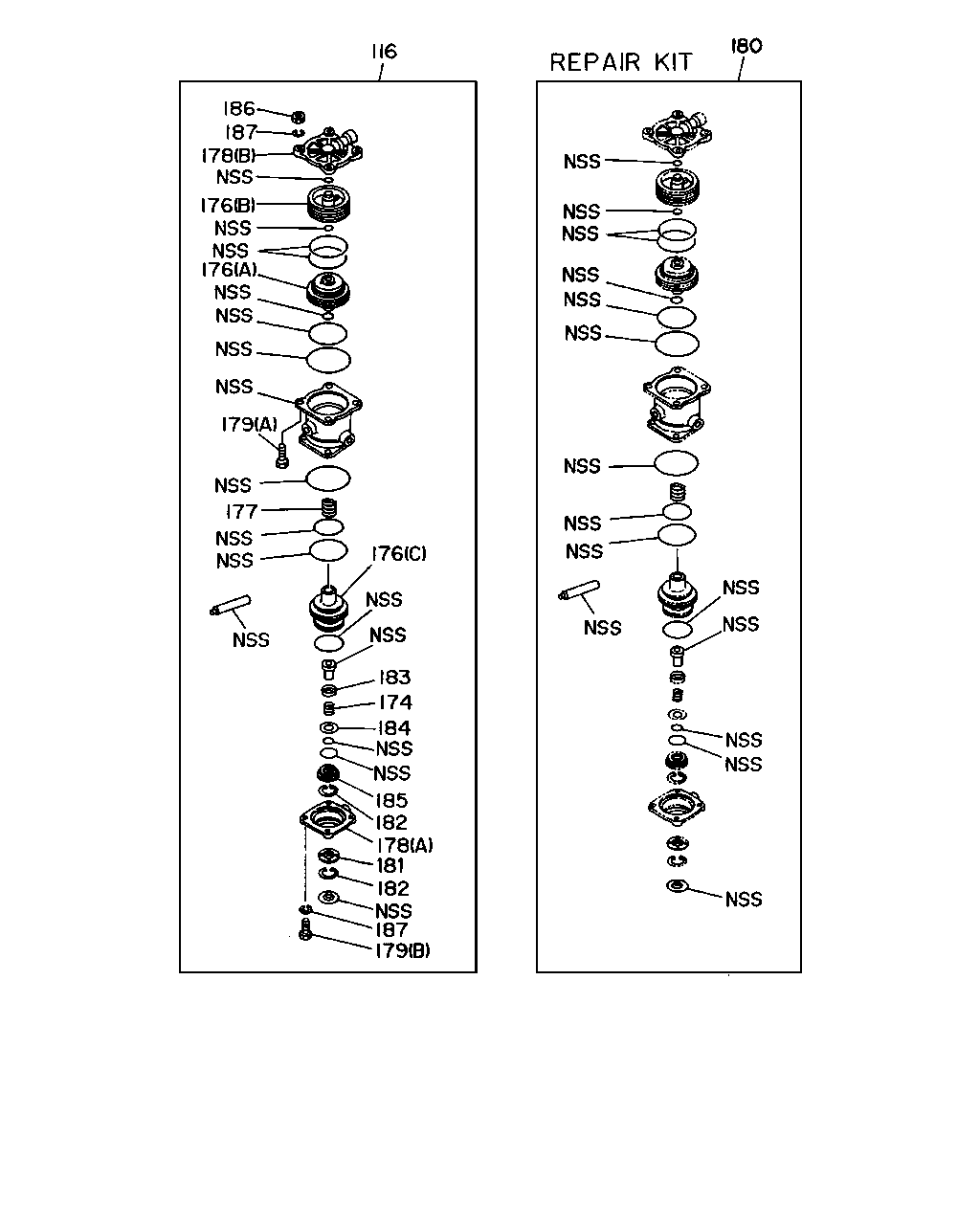

116 186 187 178 180 176 179 177 176 176 183 174 184 185 182 178 181 182 187 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
116	VALVE; DUAL RELAY HONG KONG EQUIPMENT(PQ1)	1-48210-347-0	01	1	9002-9306	●
116	VALVE; DUAL RELAY HONG KONG EQUIPMENT(PQ1)	1-48210-347-0	01	1	9307-	●
116	VALVE; DUAL RELAY NYLON TUBE AIR PIPING<Z29>	1-48210-347-0	01	1	9307-	●
174	SPRING; INL VLV HONG KONG EQUIPMENT(PQ1)	1-48219-094-0	01	1	9002-	●
174	SPRING; INL VLV NYLON TUBE AIR PIPING<Z29>	1-48219-094-0	01	1	9002-	●
176	PISTON; RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) M14	1-48219-088-0	01	1	9002-	●
176	PISTON; RELAY VLV NYLON TUBE AIR PIPING<Z29> (A) M14	1-48219-088-0	01	1	9002-	●
176	PISTON; RELAY VLV HONG KONG EQUIPMENT(PQ1) (B)	1-48219-089-0	01	1	9002-	●
176	PISTON; RELAY VLV NYLON TUBE AIR PIPING<Z29> (B)	1-48219-089-0	01	1	9002-	●
176	PISTON; RELAY VLV HONG KONG EQUIPMENT(PQ1) (C)	1-48219-092-0	01	1	9002-	●
176	PISTON; RELAY VLV NYLON TUBE AIR PIPING<Z29> (C)	1-48219-092-0	01	1	9002-	●
177	SPRING; RELAY VLV HONG KONG EQUIPMENT(PQ1)	1-48219-091-0	01	1	9002-	●
177	SPRING; RELAY VLV NYLON TUBE AIR PIPING<Z29>	1-48219-091-0	01	1	9002-	●
178	COVER; RELAY VLV HONG KONG EQUIPMENT(PQ1) (A)	1-48211-011-0	01	1	9002-	●
178	COVER; RELAY VLV NYLON TUBE AIR PIPING<Z29> (A)	1-48211-011-0	01	1	9002-	●
178	COVER; RELAY VLV HONG KONG EQUIPMENT(PQ1) (B)	1-48219-090-0	01	1	9002-	●
178	COVER; RELAY VLV NYLON TUBE AIR PIPING<Z29> (B)	1-48219-090-0	01	1	9002-	●
179	BOLT; COVER,RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) M8X50	9-01045-850-0	04	1	9002-	●
179	BOLT; COVER,RELAY VLV NYLON TUBE AIR PIPING<Z29> (A) M8X50	9-01045-850-0	04	1	9002-	●
179	BOLT; COVER,RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-	●
179	BOLT; COVER,RELAY VLV NYLON TUBE AIR PIPING<Z29> (B) M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-	●
180	REPAIR KIT; RELAY VLV HONG KONG EQUIPMENT(PQ1)	1-85576-116-0	01	1	9002-	●
180	REPAIR KIT; RELAY VLV NYLON TUBE AIR PIPING<Z29>	1-85576-116-0	01	1	9002-	●
181	PLATE; DUST SEAL HONG KONG EQUIPMENT(PQ1)	1-48219-098-0	01	1	9002-	●
181	PLATE; DUST SEAL NYLON TUBE AIR PIPING<Z29>	1-48219-098-0	01	1	9002-	●
182	RING; SNAP,RELAY VLV HONG KONG EQUIPMENT(PQ1)	1-48219-097-0	02	1	9002-	●
182	RING; SNAP,RELAY VLV NYLON TUBE AIR PIPING<Z29>	1-48219-097-0	02	1	9002-	●
183	RETAINER; VALVE HONG KONG EQUIPMENT(PQ1)	1-48219-093-0	01	1	9002-	●
183	RETAINER; VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-093-0	01	1	9002-	●
184	PLATE; VALVE HOLDER HONG KONG EQUIPMENT(PQ1)	1-48219-095-0	01	1	9002-	●
184	PLATE; VALVE HOLDER NYLON TUBE AIR PIPING<Z29>	1-48219-095-0	01	1	9002-	●
185	HOLDER; VALVE HONG KONG EQUIPMENT(PQ1)	1-48219-096-0	01	1	9002-	●
185	HOLDER; VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-096-0	01	1	9002-	●
186	NUT; COVER HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	04	1	9002-	●
186	NUT; COVER NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-	●
187	WASHER; COVER HONG KONG EQUIPMENT(PQ1) ID=8.2	9-09150-508-0	08	1	9002-	●
187	WASHER; COVER NYLON TUBE AIR PIPING<Z29> ID=8.2	9-09150-508-0	08	1	9002-	●

139 170 166 172 57 167 32 49 170 173 166 169 138 32 15 112 151 151 138 138 138 137 137 137 129 32 151 140 137 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CAM; FOLLOWER	1-48129-134-0	01	1	9002-	●	●
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-257-0	01	1	9002-	●
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (A)	1-48460-207-0	01	1	9002-9306	●
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (B)	1-48460-292-0	01	1	9307-	●
32	VALVE; BRK,HAND CONT EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-184-0	01	1	9002-	●
32	VALVE; BRK,HAND CONT (A)	1-48460-184-0	01	1	9002-		●
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1) (A)	1-48469-075-0	04	1	9002-	●
49	SCREW; COVER NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-120-0	04	1	9307-	●
49	SCREW; COVER EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	02	1	9002-	●
49	SCREW; COVER (B)	1-52139-005-0	02	1	9002-		●
57	PLUNGER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48469-076-0	01	1	9002-	●
57	PLUNGER; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-097-0	01	1	9002-	●
57	PLUNGER; HAND BRK VLV (B)	1-48469-097-0	01	1	9002-		●
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-47475-260-2	01	1	9002-	●
112	BRACKET; CONT VLV	1-47475-260-2	01	1	9002-		●
129	NUT; VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6	9-09110-406-0	02	1	9002-	●
129	NUT; VLV M6	9-09110-406-0	02	1	9002-		●
129	NUT; VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9002-	●
137	CONNECTOR; SUPPLY HONG KONG EQUIPMENT(PQ1) (A)	1-09650-352-1	01	1	9002-	●
137	CONNECTOR; SUPPLY HONG KONG EQUIPMENT(PQ1) (C)	1-09660-505-1	01	1	9002-9302	●
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) PT1/4 2WAY	1-09660-693-0	01	1	9303-	●
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5) (B) M20X36	1-09660-576-0	01	1	9307-	●
137	CONNECTOR; SUPPLY NYLON TUBE AIR PIPING<Z29> (A)	1-09660-334-0	01	1	9002-9306	●
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5) (A)	1-09650-400-0	01	1	9307-	●
137	CONNECTOR; SUPPLY EXC. PARKING BRAKE VALVE LEVER TYPE<W48>,NYLON TUBE AIR PIPING<Z29> (D)	9-09231-810-1	01	1	9002-	●
137	CONNECTOR; SUPPLY (D)	9-09231-810-1	01	1	9002-		●
138	CONNECTOR; DELIVERY HONG KONG EQUIPMENT(PQ1) (C)	1-09650-031-0	01	1	9002-9103	●
138	CONNECTOR; DELIVERY HONG KONG EQUIPMENT(PQ1) (C)	1-09650-332-1	01	1	9104-	●
138	CONNECTOR; DELIVERY HONG KONG EQUIPMENT(PQ1) (B)	1-09650-240-1	01	1	9002-	●
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) (A)	1-09650-373-0	01	1	9307-	●
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) (B)	1-09650-401-0	01	1	9307-	●
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) (C) 17/32" PT1/4	1-09660-573-0	01	1	9307-	●
138	CONNECTOR; DELIVERY NYLON TUBE AIR PIPING<Z29> (A)	1-09660-233-0	01	1	9002-9306	●
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48>,NYLON TUBE AIR PIPING<Z29> (D)	1-09650-034-1	01	1	9002-9302	●
138	CONNECTOR; DELIVERY (D)	1-09650-034-1	01	1	9002-9302		●
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48>,NYLON TUBE AIR PIPING<Z29> (D)	1-09650-432-0	01	1	9303-	●
138	CONNECTOR; DELIVERY (D)	1-09650-432-0	01	1	9303-		●
139	CONNECTOR; EXH EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4 ELBOW	8-94232-303-2	01	1	9002-	●
139	CONNECTOR; EXH PT1/4 ELBOW	8-94232-303-2	01	1	9002-		●
140	PLUG EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4	9-99204-513-0	01	1	9002-	●
140	PLUG PT1/4	9-99204-513-0	01	1	9002-		●
151	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) M6X14 W/LK&PL WASHER	1-09980-549-0	06	1	9002-9401	●
151	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) M6X16 W/LK&PL WASHER	0-50140-616-0	06	1	9402-	●
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M6X20	9-01910-620-0	02	1	9002-9005	●
151	BOLT; VLV BRKT (A) M6X20	9-01910-620-0	02	1	9002-9005		●
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M6X20 W/LK WASHER	0-50040-620-0	02	1	9006-9302	●
151	BOLT; VLV BRKT (A) M6X20 W/LK WASHER	0-50040-620-0	02	1	9006-9302		●
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M6X20 FLANGE	0-28080-620-0	02	1	9303-	●
151	BOLT; VLV BRKT (A) M6X20 FLANGE	0-28080-620-0	02	1	9303-		●
166	NUT; PLUNGER EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48129-069-0	01	1	9002-	●
166	NUT; PLUNGER (A)	1-48129-069-0	01	1	9002-		●
166	NUT; PLUNGER EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-101-0	01	1	9002-	●
166	NUT; PLUNGER (B)	1-48469-101-0	01	1	9002-		●
167	SPRING; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-098-0	01	1	9002-	●
167	SPRING; VALVE	1-48469-098-0	01	1	9002-		●
168	VALVE; INL EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-099-0	01	1	9002-	●
168	VALVE; INL	1-48469-099-0	01	1	9002-		●
169	WASHER; PL,VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> ID=6.4	9-09164-506-0	01	1	9002-	●
169	WASHER; PL,VALVE ID=6.4	9-09164-506-0	01	1	9002-		●
170	GASKET; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48469-100-0	01	1	9002-	●
170	GASKET; VALVE (A)	1-48469-100-0	01	1	9002-		●
170	GASKET; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	9-19519-094-0	01	1	9002-	●
170	GASKET; VALVE (B)	9-19519-094-0	01	1	9002-		●
172	KNOB; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-102-0	01	1	9002-	●
172	KNOB; VALVE	1-48469-102-0	01	1	9002-		●
173	PIN; SPR,KNOB EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48>	8-94124-044-0	01	1	9002-	●
173	PIN; SPR,KNOB	8-94124-044-0	01	1	9002-		●

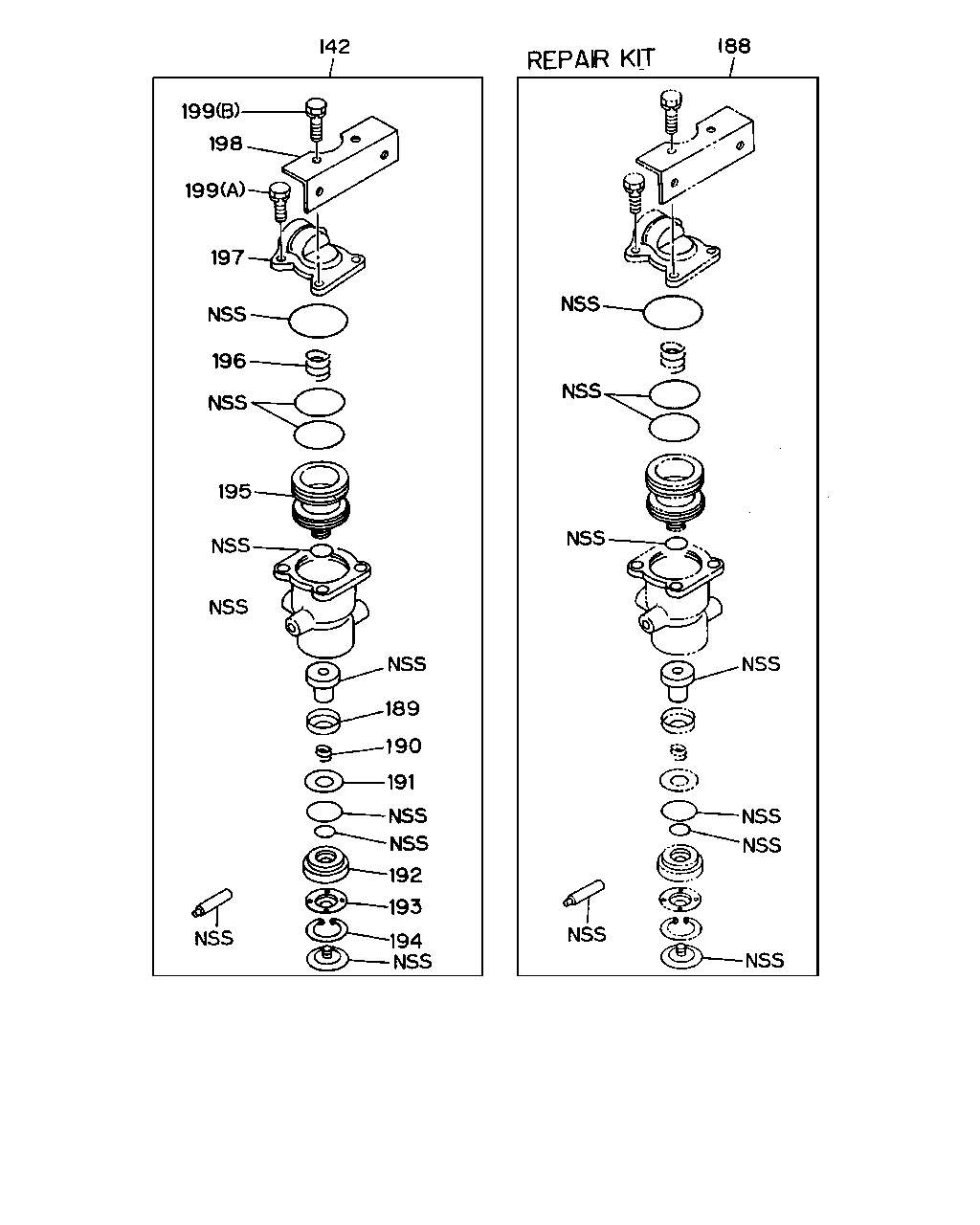

142 199 199 198 197 196 195 189 190 191 192 193 194 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
142	VALVE; SUPPLY DUMP HONG KONG EQUIPMENT(PQ1)	1-48210-367-0	01	1	9002-	●
142	VALVE; SUPPLY DUMP NYLON TUBE AIR PIPING<Z29>	1-48210-367-0	01	1	9002-	●
188	REPAIR KIT; DUMP VLV HONG KONG EQUIPMENT(PQ1)	1-85576-117-0	01	1	9002-	●
188	REPAIR KIT; DUMP VLV NYLON TUBE AIR PIPING<Z29>	1-85576-117-0	01	1	9002-	●
189	RETAINER; VALVE HONG KONG EQUIPMENT(PQ1)	1-48219-099-0	01	1	9002-	●
189	RETAINER; VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-099-0	01	1	9002-	●
190	SPRING; VALVE HONG KONG EQUIPMENT(PQ1)	1-48219-100-0	01	1	9002-	●
190	SPRING; VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-100-0	01	1	9002-	●
191	PLATE; VALVE HOLDER HONG KONG EQUIPMENT(PQ1)	1-48219-101-0	01	1	9002-	●
191	PLATE; VALVE HOLDER NYLON TUBE AIR PIPING<Z29>	1-48219-101-0	01	1	9002-	●
192	HOLDER; VALVE HONG KONG EQUIPMENT(PQ1)	1-48219-102-0	01	1	9002-	●
192	HOLDER; VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-102-0	01	1	9002-	●
193	PLATE; DUST SEAL HONG KONG EQUIPMENT(PQ1)	1-48219-098-0	01	1	9002-	●
193	PLATE; DUST SEAL NYLON TUBE AIR PIPING<Z29>	1-48219-098-0	01	1	9002-	●
194	RING; SNAP,VALVE HONG KONG EQUIPMENT(PQ1)	1-48219-097-0	01	1	9002-	●
194	RING; SNAP,VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-097-0	01	1	9002-	●
195	PISTON; DUMP VALVE HONG KONG EQUIPMENT(PQ1)	1-48219-103-0	01	1	9002-	●
195	PISTON; DUMP VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-103-0	01	1	9002-	●
196	SPRING; MAIN,VALVE HONG KONG EQUIPMENT(PQ1)	1-48219-079-1	01	1	9002-	●
196	SPRING; MAIN,VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-079-1	01	1	9002-	●
197	COVER; DUMP VALVE HONG KONG EQUIPMENT(PQ1)	1-48219-104-0	01	1	9002-	●
197	COVER; DUMP VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-104-0	01	1	9002-	●
198	BRACKET; DUMP VALVE HONG KONG EQUIPMENT(PQ1)	1-48219-105-0	01	1	9002-	●
198	BRACKET; DUMP VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-105-0	01	1	9002-	●
199	BOLT; COVER HONG KONG EQUIPMENT(PQ1) (A) M8X22	9-01900-822-0	02	1	9002-	●
199	BOLT; COVER NYLON TUBE AIR PIPING<Z29> (A) M8X22	9-01900-822-0	02	1	9002-	●
199	BOLT; COVER HONG KONG EQUIPMENT(PQ1) (B) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-	●
199	BOLT; COVER NYLON TUBE AIR PIPING<Z29> (B) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
