3-22 — AIR CONTROL PARTS (#1741) — 437 parça

12 12 12 8 2 12 12 12 12 5 55 2 4 12 12 1 2 12 12 55 12 4 55 10 2 7 10 10 10 6 10 6 10 10 10 2 7 76 6 25 24 23 76 13 14 15 14 20 19 22 21 21 13 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

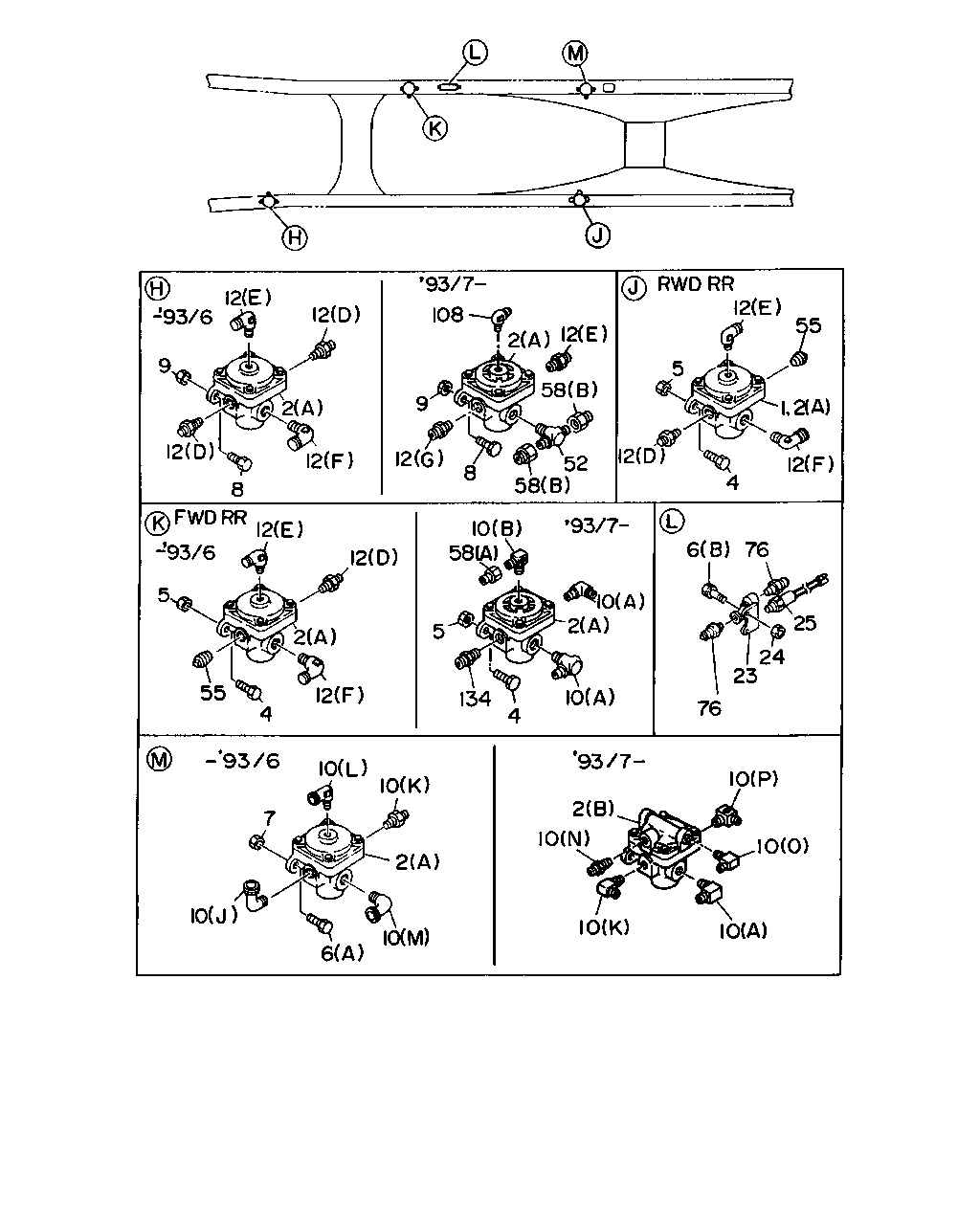

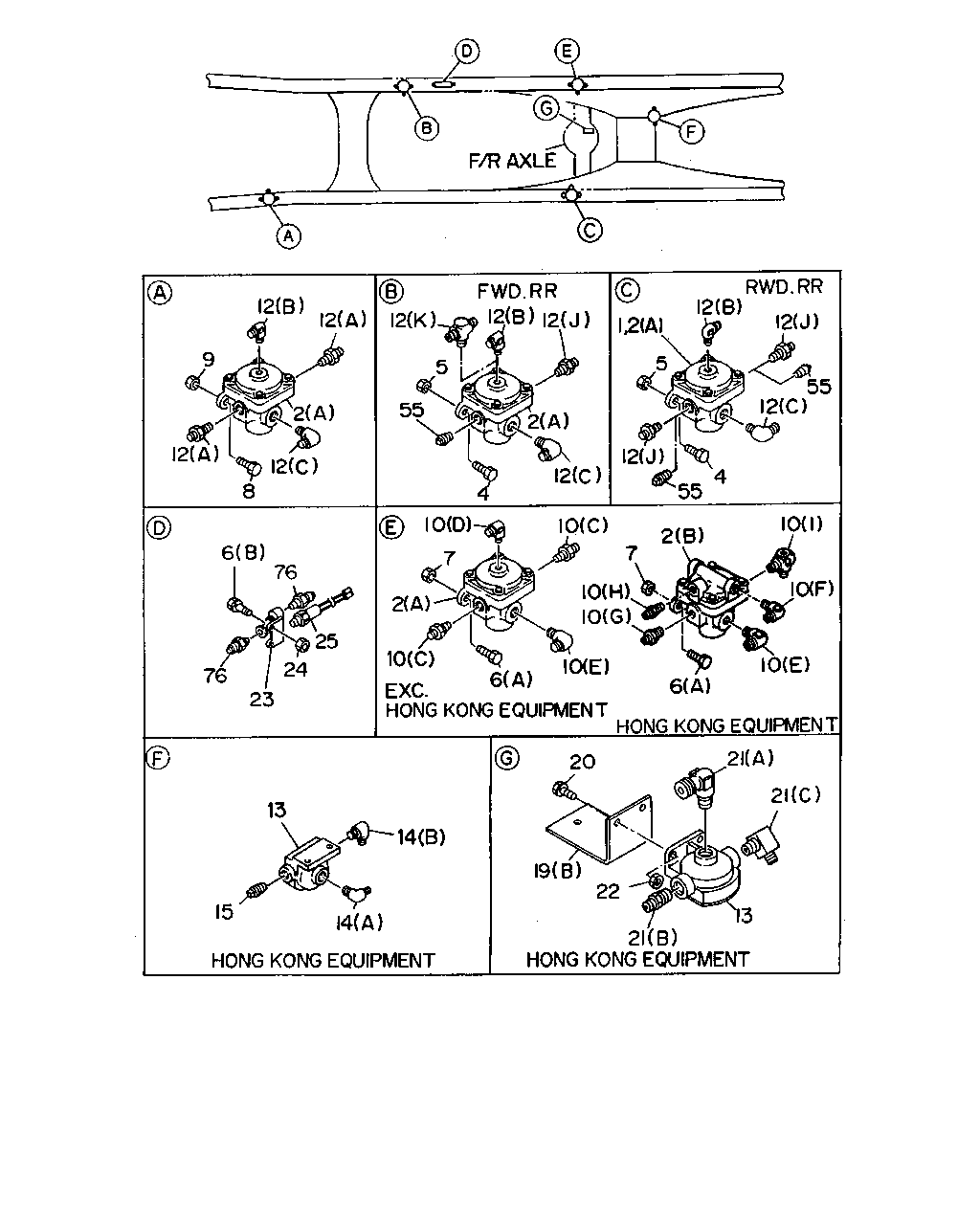

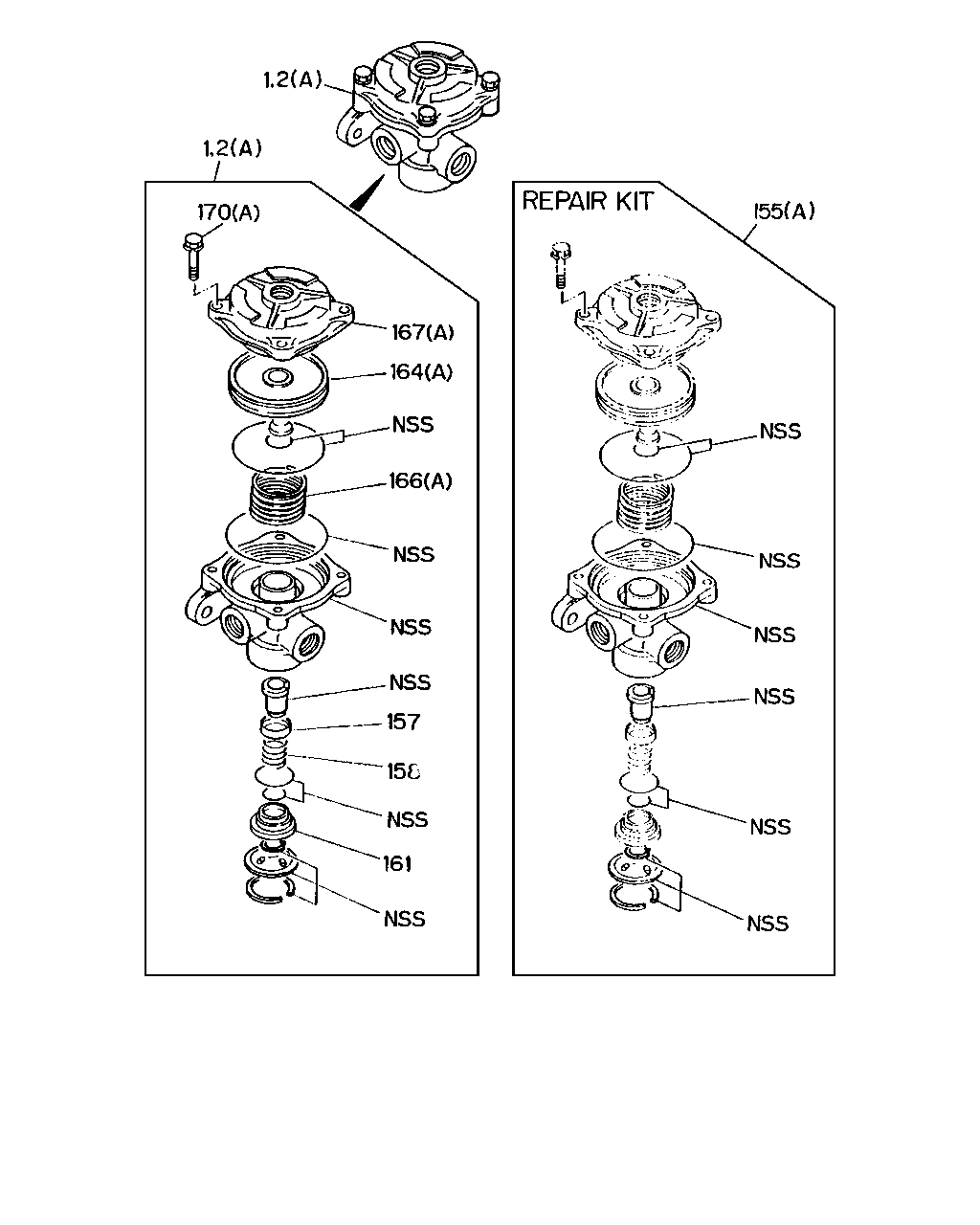

1	VALVE; RELAY RWD RR NYLON TUBE AIR PIPING<Z29>	1-48210-500-0	01	1	9406-	●
1	VALVE; RELAY RWD RR	1-48210-278-0	01	1	9002-9405	●	●
1	VALVE; RELAY RWD RR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48210-278-0	01	1	9406-	●
1	VALVE; RELAY RWD RR	1-48210-278-0	01	1	9406-		●
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9002-9306	●
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9307-	●
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9307-	●
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	02	1	9002-9306	●
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-500-0	01	1	9307-	●
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9002-	●
2	VALVE; RELAY (A)	1-48210-278-0	01	1	9002-		●
4	BOLT; RELAY VLV TO BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 W/LK WASHER	0-50041-040-0	02	1	9307-	●
4	BOLT; RELAY VLV TO BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 W/LK WASHER	0-50041-045-0	02	1	9307-	●
4	BOLT; RELAY VLV TO BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X35 W/LK WASHER	0-50041-035-0	04	1	9307-	●
4	BOLT; RELAY VLV TO BRKT M10X35 W/LK WASHER	0-50041-035-0	04	1	9307-		●
4	BOLT; RELAY VLV TO BRKT M10X35 W/LK WASHER	0-50041-035-0	04	1	9002-9306	●	●
5	NUT M10	9-09110-510-0	04	1	9002-	●	●
6	BOLT; VLV FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X45 W/LK WASHER	0-50041-045-0	02	1	9307-	●
6	BOLT; VLV FRAME EQUIPMENT HEAVY DUTY<F03> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M8X35 FLANGE	0-28080-835-0	02	1	9307-	●
6	BOLT; VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-	●
6	BOLT; VLV (A) M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-		●
6	BOLT; VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M8X30 FLANGE	0-28080-830-0	02	1	9002-	●
6	BOLT; VLV (B) M8X30 FLANGE	0-28080-830-0	02	1	9002-		●
7	NUT; RELAY VLV M10	9-09110-510-0	02	1	9002-	●	●
8	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 W/LK WASHER	0-50041-040-0	02	1	9307-	●
8	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-	●
8	BOLT; BRKT M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-		●
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (H) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9002-	●
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (G)	1-09650-111-1	01	1	9002-	●
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (F) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302	●
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-	●
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (I)	1-09656-576-1	01	1	9002-	●
10	CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D) M14	1-09650-092-1	01	1	9002-9302	●
10	CONNECTOR (D) M14	1-09650-092-1	01	1	9002-9302		●
10	CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-	●
10	CONNECTOR (D) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-		●
10	CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9002-	●
10	CONNECTOR (C) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9002-		●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (K)	1-09660-228-0	01	1	9002-9306	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (K)	1-09660-288-0	01	1	9307-	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (L) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	9002-9306	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (P)	1-09660-472-0	01	1	9307-	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (M)	1-09660-236-0	01	1	9002-9306	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (N)	1-09660-569-0	01	1	9307-	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (J)	1-09660-332-0	01	1	9002-9306	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (O)	1-09660-570-0	01	1	9307-	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (A)	1-09660-571-0	03	1	9307-	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (B)	1-09660-705-0	01	1	9307-	●
10	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (E) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302	●
10	CONNECTOR (E) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302		●
10	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (E) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-	●
10	CONNECTOR (E) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-		●
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (K) M16	1-09656-455-2	01	1	9002-	●
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-230-0	04	1	9002-9306	●
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (E) M14 & PT3/8 ELBOW	1-09660-234-0	04	1	9002-9306	●
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (F) M18 & PT1/2 ELBOW	1-09660-236-0	04	1	9002-9306	●
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (G)	1-09660-298-0	02	1	9307-	●
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW	1-09650-180-1	03	1	9002-9302	●
12	CONNECTOR; RELAY VLV (B) M16 & PT3/8 ELBOW	1-09650-180-1	03	1	9002-9302		●
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306	●
12	CONNECTOR; RELAY VLV (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306		●
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) M16	1-09650-245-1	02	1	9002-	●
12	CONNECTOR; RELAY VLV (A) M16	1-09650-245-1	02	1	9002-		●
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (J) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9002-	●
12	CONNECTOR; RELAY VLV (J) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9002-		●
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M22 & PT1/2 ELBOW	9-09234-315-1	03	1	9002-9302	●
12	CONNECTOR; RELAY VLV (C) M22 & PT1/2 ELBOW	9-09234-315-1	03	1	9002-9302		●
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M22 & PT1/2 ELBOW	1-09650-444-0	04	1	9303-	●
12	CONNECTOR; RELAY VLV (C) M22 & PT1/2 ELBOW	1-09650-444-0	04	1	9303-		●
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	9307-	●
12	CONNECTOR; RELAY VLV (B) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	9307-		●

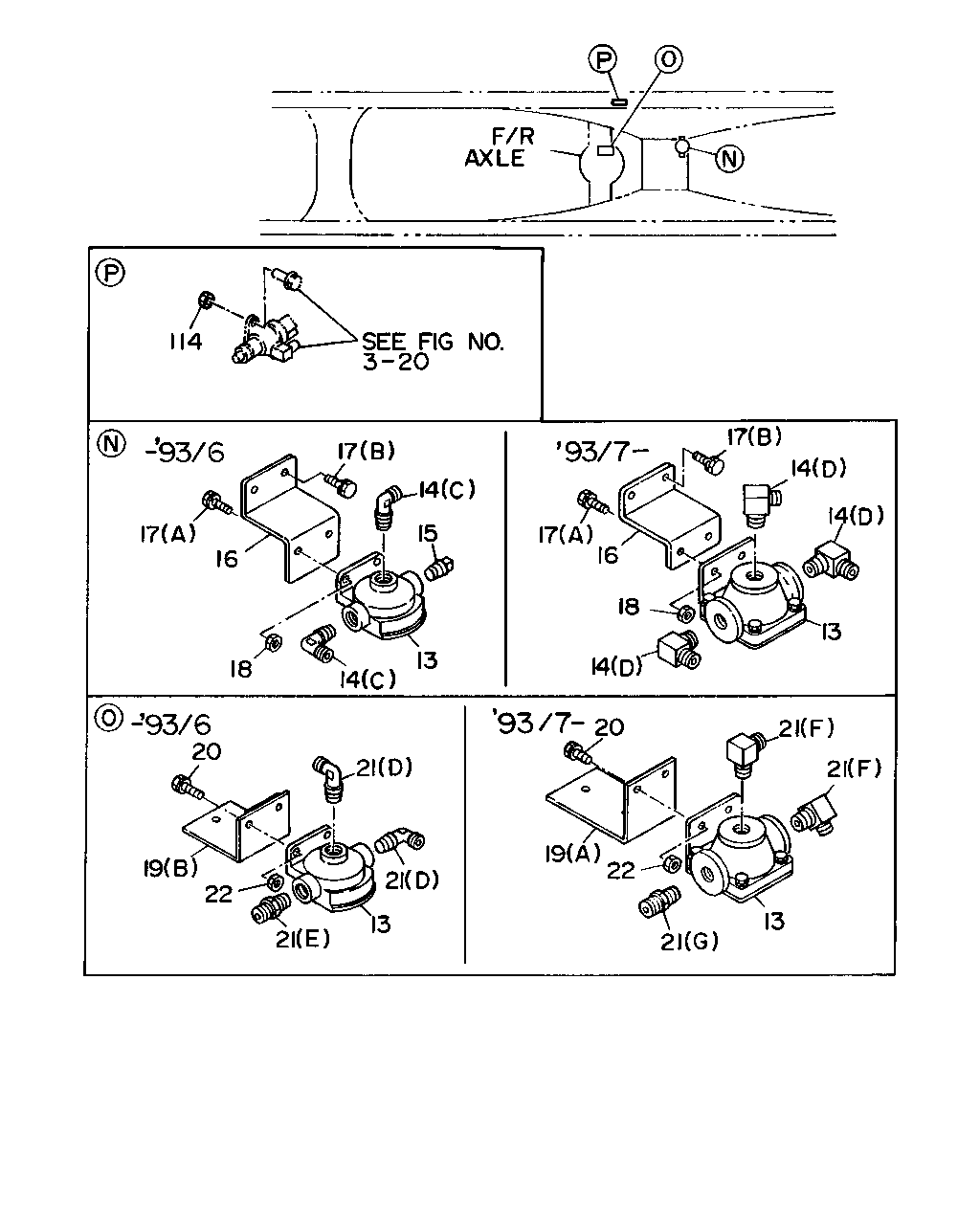

13	VALVE ASM; QUICK RELEASE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-052-1	02	1	9002-9306	●
13	VALVE ASM; QUICK RELEASE NYLON TUBE AIR PIPING<Z29>	1-48410-052-1	02	1	9004-9306	●
13	VALVE ASM; QUICK RELEASE NYLON TUBE AIR PIPING<Z29>	1-48410-234-0	02	1	9307-	●
13	VALVE ASM; QUICK RELEASE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-320-0	01	1	9307-	●
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A) M14	1-09650-092-1	01	1	9002-9302	●
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-	●
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09660-139-1	01	1	9002-9302	●
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9303-	●
14	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (C) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	9004-9306	●
14	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-535-0	03	1	9307-	●
15	PLUG; VALVE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> PT3/8	9-09204-517-0	01	1	9002-	●
19	BRACKET; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-199-1	01	1	9002-9306	●
19	BRACKET; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (B)	1-47475-199-1	01	1	9002-9306	●
19	BRACKET; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-199-1	01	1	9307-	●
19	BRACKET; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (A)	1-47476-866-0	01	1	9307-	●
20	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	02	1	9002-	●
20	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	02	1	9002-	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9002-9306	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (C) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9002-	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09660-569-0	01	1	9307-	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09660-570-0	01	1	9307-	●
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (E) M14 & PT3/8 STRAIGHT	1-09660-227-0	01	1	9002-9306	●
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (D) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	9002-9306	●
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (F)	1-09660-535-0	02	1	9307-	●
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (G)	1-09660-555-0	01	1	9307-	●
22	NUT; BRKT HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●
22	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●
23	VALVE; PRESSURE CONT	1-48460-067-1	01	1	9002-9306	●	●
23	VALVE; PRESSURE CONT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48460-067-1	01	1	9307-	●
23	VALVE; PRESSURE CONT	1-48460-067-1	01	1	9307-		●
24	NUT EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9002-9404	●
24	NUT M8	9-09110-408-0	02	1	9002-9404		●
24	NUT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9405-	●
24	NUT M8	9-09110-408-0	02	1	9405-		●
25	SWITCH; PRESSURE	1-48340-036-0	01	1	9002-9306	●	●
25	SWITCH; PRESSURE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48340-044-0	01	1	9307-9411	●
25	SWITCH; PRESSURE	1-48340-044-0	01	1	9307-9411		●
25	SWITCH; PRESSURE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48340-057-0	01	1	9412-	●
25	SWITCH; PRESSURE	1-48340-057-0	01	1	9412-		●
55	PLUG; SUPPLY NYLON TUBE AIR PIPING<Z29> PT1/2	9-09204-521-0	02	1	9002-9306	●
55	PLUG; SUPPLY EXC. NYLON TUBE AIR PIPING<Z29> PT1/2	9-09204-521-0	02	1	9002-	●
55	PLUG; SUPPLY PT1/2	9-09204-521-0	02	1	9002-		●
76	CONNECTOR; CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14	1-09650-031-0	02	1	9002-9103	●
76	CONNECTOR; CONT VLV M14	1-09650-031-0	02	1	9002-9103		●
76	CONNECTOR; CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14 & PT1/4 STRAIGHT	1-09650-332-1	02	1	9104-	●
76	CONNECTOR; CONT VLV M14 & PT1/4 STRAIGHT	1-09650-332-1	02	1	9104-		●
76	CONNECTOR; CONT VLV NYLON TUBE AIR PIPING<Z29>	1-09660-226-0	02	1	9002-9306	●

29 206 29 29 207 206 206 207 207 207 99 206 29 102 28 29 103 26 207 29 206 27 29 104 105 34 30 31 38 33 35 33 29 26 29 27 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

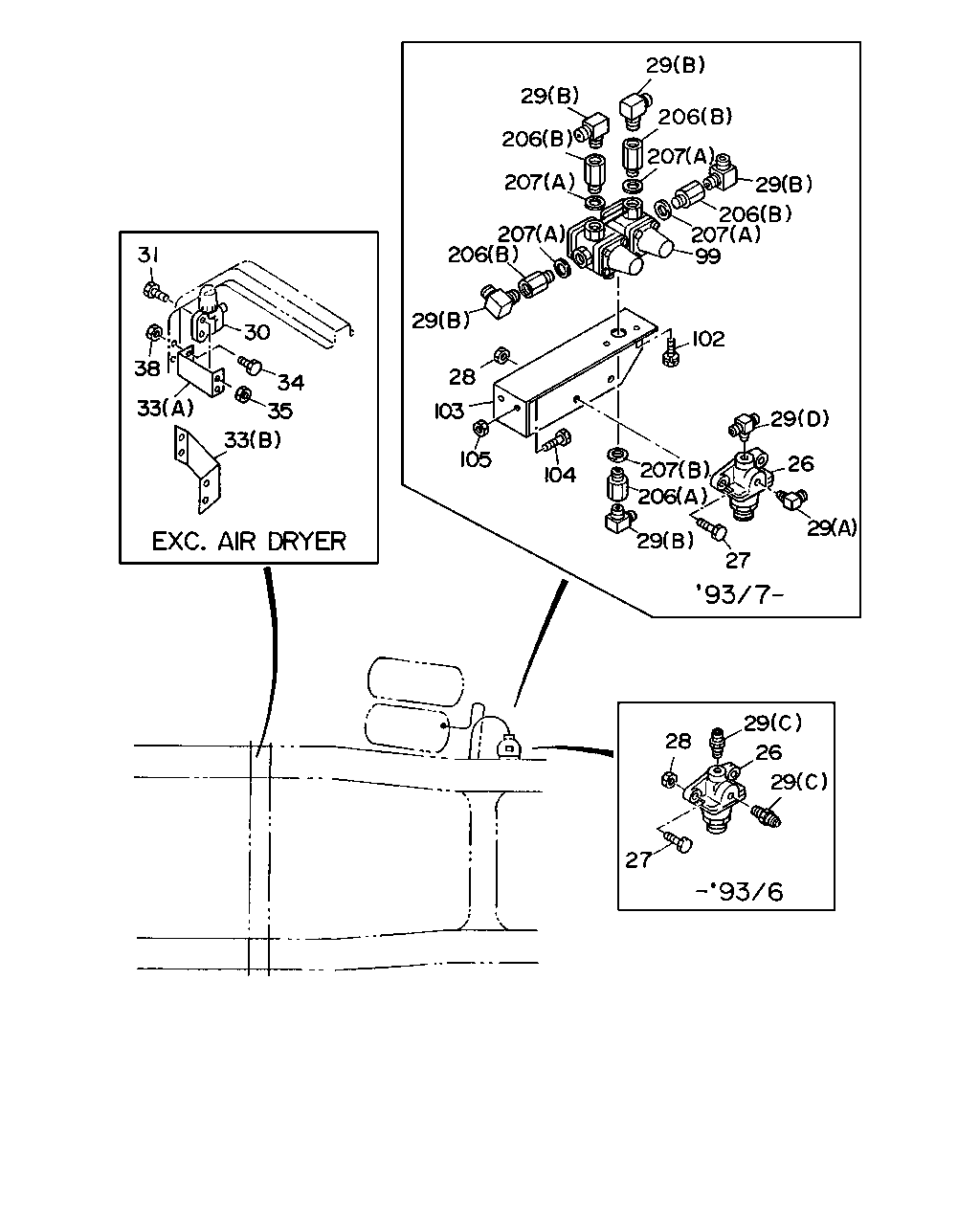

26	VALVE; AIR NYLON TUBE AIR PIPING<Z29>	1-48110-006-0	01	1	9002-	●
27	BOLT; AIR VLV NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●	●
27	BOLT; AIR VLV NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9306	●	●
27	BOLT; AIR VLV NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●
28	NUT; AIR VLV NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●
29	CONNECTOR; AIR VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-543-0	01	1	9307-	●
29	CONNECTOR; AIR VLV NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-	●
29	CONNECTOR; AIR VLV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-571-0	05	1	9307-	●
29	CONNECTOR; AIR VLV NYLON TUBE AIR PIPING<Z29> (C) M16 & PT1/4 STRAIGHT	9-09231-810-1	02	1	9002-9306	●	●
30	GOVERNOR; AIR CONT	1-48350-037-0	01	1	9002-9208	●	●
30	GOVERNOR; AIR CONT	1-48350-050-1	01	1	9209-9409	●	●
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9410-	●	●
31	BOLT; GOV TO FRAME M8X30 W/LK&PL WASHER	9-01960-830-0	02	1	9002-9204	●	●
31	BOLT; GOV TO FRAME M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9205-9306	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28080-830-0	02	1	9307-	●	●
33	BRACKET; GOV,AIR CONT EXC. AIR DRYER<PS7>,CAB UP 50MM(W60) (A)	1-48359-035-0	01	1	9002-	●	●
33	BRACKET; GOV,AIR CONT CAB UP 50MM(W60) EXC. AIR DRYER<PS7> (B)	1-47475-419-2	01	1	9002-	●	●
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9002-	●	●
38	NUT; BRKT,GOV EXC. AIR DRYER<PS7> M8	9-09110-408-0	02	1	9002-	●	●
99	VALVE; PROTECTION NYLON TUBE AIR PIPING<Z29>	1-48110-018-0	01	1	9307-	●
102	BOLT; PROTECTION VALVE NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	02	1	9307-	●
103	BRACKET; PROTECTION VALVE NYLON TUBE AIR PIPING<Z29>	1-48495-129-0	01	1	9307-	●
104	BOLT; BRKT,VALVE NYLON TUBE AIR PIPING<Z29> M8X25 W/LK&PL WASHER	0-50140-825-0	03	1	9307-9312	●
104	BOLT; BRKT,VALVE NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	03	1	9401-	●
105	NUT; BRKT,VALVE NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9307-	●
206	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-199-1	01	1	9307-	●
206	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	5-09650-016-1	04	1	9307-	●
207	GASKET; ADAPTER NYLON TUBE AIR PIPING<Z29> (A)	9-09572-016-0	04	1	9307-	●
207	GASKET; ADAPTER NYLON TUBE AIR PIPING<Z29> (B)	9-09572-022-0	01	1	9307-	●

12 9 12 2 12 12 8 108 9 2 12 8 12 58 58 52 12 5 12 55 4 12 1 2 76 6 25 24 23 76 10 58 5 134 4 10 10 2 12 12 5 55 4 2 12 10 10 2 10 6 10 7 2 10 10 10 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR NYLON TUBE AIR PIPING<Z29>	1-48210-500-0	01	1	9406-	●
1	VALVE; RELAY RWD RR	1-48210-278-0	01	1	9002-9405	●	●
1	VALVE; RELAY RWD RR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48210-278-0	01	1	9406-	●
1	VALVE; RELAY RWD RR	1-48210-278-0	01	1	9406-		●
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9002-9306	●
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9307-	●

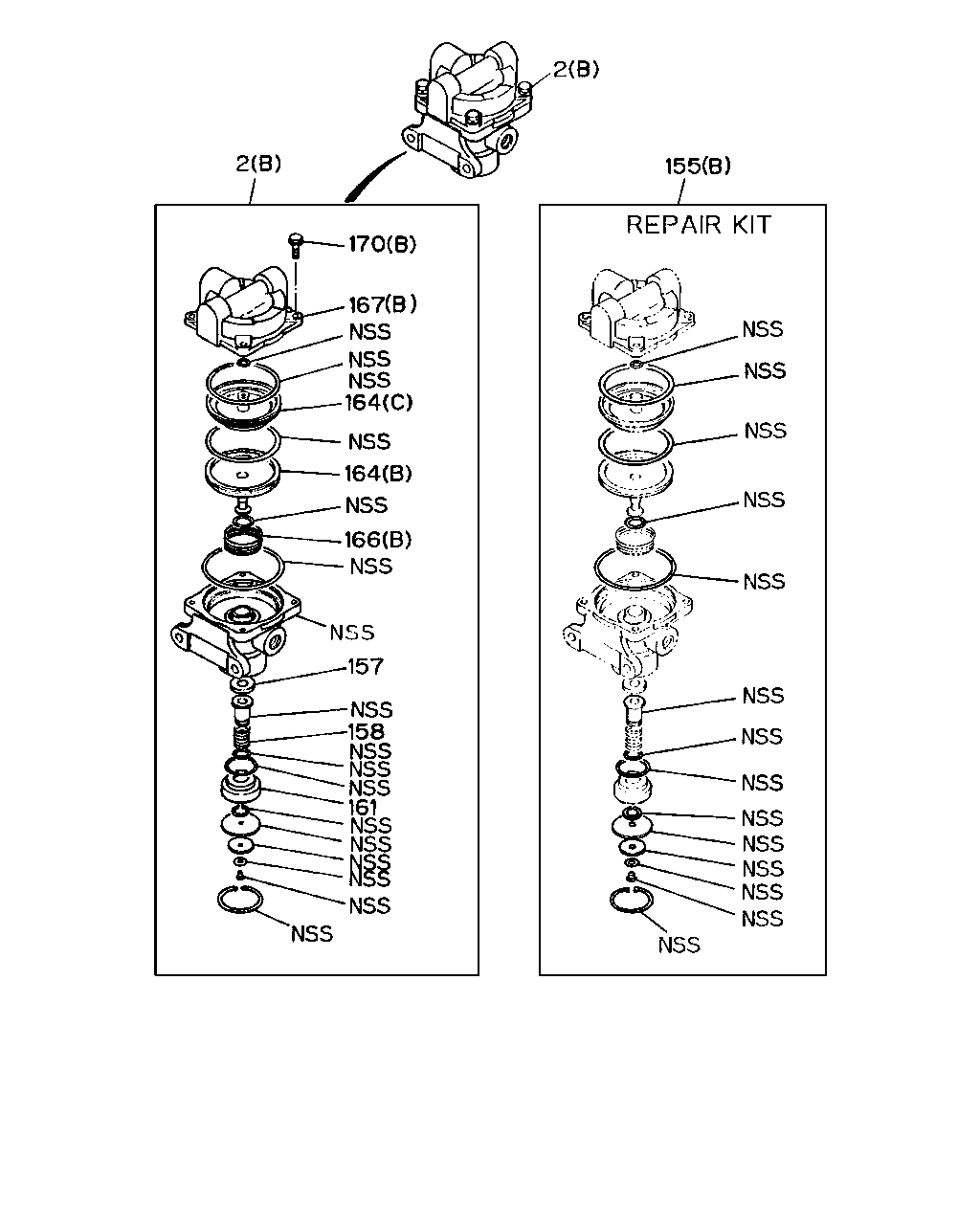

2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9307-	●
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	02	1	9002-9306	●
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-500-0	01	1	9307-	●
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9002-	●
2	VALVE; RELAY (A)	1-48210-278-0	01	1	9002-		●
4	BOLT; RELAY VLV TO BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 W/LK WASHER	0-50041-040-0	02	1	9307-	●
4	BOLT; RELAY VLV TO BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 W/LK WASHER	0-50041-045-0	02	1	9307-	●
4	BOLT; RELAY VLV TO BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X35 W/LK WASHER	0-50041-035-0	04	1	9307-	●
4	BOLT; RELAY VLV TO BRKT M10X35 W/LK WASHER	0-50041-035-0	04	1	9307-		●
4	BOLT; RELAY VLV TO BRKT M10X35 W/LK WASHER	0-50041-035-0	04	1	9002-9306	●	●
5	NUT M10	9-09110-510-0	04	1	9002-	●	●
6	BOLT; VLV FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X45 W/LK WASHER	0-50041-045-0	02	1	9307-	●
6	BOLT; VLV FRAME EQUIPMENT HEAVY DUTY<F03> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M8X35 FLANGE	0-28080-835-0	02	1	9307-	●
6	BOLT; VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-	●
6	BOLT; VLV (A) M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-		●
6	BOLT; VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M8X30 FLANGE	0-28080-830-0	02	1	9002-	●
6	BOLT; VLV (B) M8X30 FLANGE	0-28080-830-0	02	1	9002-		●
7	NUT; RELAY VLV M10	9-09110-510-0	02	1	9002-	●	●
8	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 W/LK WASHER	0-50041-040-0	02	1	9307-	●
8	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-	●
8	BOLT; BRKT M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-		●
9	NUT M10	9-09110-510-0	02	1	9002-	●	●
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (H) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9002-	●
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (G)	1-09650-111-1	01	1	9002-	●
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (F) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302	●
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-	●
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (I)	1-09656-576-1	01	1	9002-	●
10	CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D) M14	1-09650-092-1	01	1	9002-9302	●
10	CONNECTOR (D) M14	1-09650-092-1	01	1	9002-9302		●
10	CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-	●
10	CONNECTOR (D) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-		●
10	CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9002-	●
10	CONNECTOR (C) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9002-		●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (K)	1-09660-228-0	01	1	9002-9306	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (K)	1-09660-288-0	01	1	9307-	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (L) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	9002-9306	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (P)	1-09660-472-0	01	1	9307-	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (M)	1-09660-236-0	01	1	9002-9306	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (N)	1-09660-569-0	01	1	9307-	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (J)	1-09660-332-0	01	1	9002-9306	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (O)	1-09660-570-0	01	1	9307-	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (A)	1-09660-571-0	03	1	9307-	●
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (B)	1-09660-705-0	01	1	9307-	●
10	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (E) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302	●
10	CONNECTOR (E) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302		●
10	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (E) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-	●
10	CONNECTOR (E) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-		●
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (K) M16	1-09656-455-2	01	1	9002-	●
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-230-0	04	1	9002-9306	●
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (E) M14 & PT3/8 ELBOW	1-09660-234-0	04	1	9002-9306	●
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (F) M18 & PT1/2 ELBOW	1-09660-236-0	04	1	9002-9306	●
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (G)	1-09660-298-0	02	1	9307-	●
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW	1-09650-180-1	03	1	9002-9302	●
12	CONNECTOR; RELAY VLV (B) M16 & PT3/8 ELBOW	1-09650-180-1	03	1	9002-9302		●
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306	●
12	CONNECTOR; RELAY VLV (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306		●
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) M16	1-09650-245-1	02	1	9002-	●
12	CONNECTOR; RELAY VLV (A) M16	1-09650-245-1	02	1	9002-		●
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (J) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9002-	●
12	CONNECTOR; RELAY VLV (J) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9002-		●
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M22 & PT1/2 ELBOW	9-09234-315-1	03	1	9002-9302	●
12	CONNECTOR; RELAY VLV (C) M22 & PT1/2 ELBOW	9-09234-315-1	03	1	9002-9302		●
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M22 & PT1/2 ELBOW	1-09650-444-0	04	1	9303-	●
12	CONNECTOR; RELAY VLV (C) M22 & PT1/2 ELBOW	1-09650-444-0	04	1	9303-		●
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	9307-	●
12	CONNECTOR; RELAY VLV (B) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	9307-		●
23	VALVE; PRESSURE CONT	1-48460-067-1	01	1	9002-9306	●	●
23	VALVE; PRESSURE CONT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48460-067-1	01	1	9307-	●
23	VALVE; PRESSURE CONT	1-48460-067-1	01	1	9307-		●
24	NUT EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9002-9404	●
24	NUT M8	9-09110-408-0	02	1	9002-9404		●
24	NUT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9405-	●
24	NUT M8	9-09110-408-0	02	1	9405-		●
25	SWITCH; PRESSURE	1-48340-036-0	01	1	9002-9306	●	●
25	SWITCH; PRESSURE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48340-044-0	01	1	9307-9411	●
25	SWITCH; PRESSURE	1-48340-044-0	01	1	9307-9411		●
25	SWITCH; PRESSURE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48340-057-0	01	1	9412-	●
25	SWITCH; PRESSURE	1-48340-057-0	01	1	9412-		●
52	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29>	1-09656-530-1	01	1	9307-	●
55	PLUG; SUPPLY NYLON TUBE AIR PIPING<Z29> PT1/2	9-09204-521-0	02	1	9002-9306	●
55	PLUG; SUPPLY EXC. NYLON TUBE AIR PIPING<Z29> PT1/2	9-09204-521-0	02	1	9002-	●
55	PLUG; SUPPLY PT1/2	9-09204-521-0	02	1	9002-		●
58	ADAPTER NYLON TUBE AIR PIPING<Z29> (A)	1-09660-415-0	01	1	9307-	●
58	ADAPTER NYLON TUBE AIR PIPING<Z29> (B) M20X36	1-09660-576-0	02	1	9307-	●
76	CONNECTOR; CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14	1-09650-031-0	02	1	9002-9103	●
76	CONNECTOR; CONT VLV M14	1-09650-031-0	02	1	9002-9103		●
76	CONNECTOR; CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14 & PT1/4 STRAIGHT	1-09650-332-1	02	1	9104-	●
76	CONNECTOR; CONT VLV M14 & PT1/4 STRAIGHT	1-09650-332-1	02	1	9104-		●
76	CONNECTOR; CONT VLV NYLON TUBE AIR PIPING<Z29>	1-09660-226-0	02	1	9002-9306	●
108	CONNECTOR; ELBOW NYLON TUBE AIR PIPING<Z29>	1-09660-570-0	01	1	9307-	●
134	PLUG; RELAY VALVE NYLON TUBE AIR PIPING<Z29>	1-09660-298-0	01	1	9307-	●

2 2 155 170 164 167 166 157 158 161 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9002-9306	●
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9307-	●
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9307-	●
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	02	1	9002-9306	●
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-500-0	01	1	9307-	●
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9002-	●
2	VALVE; RELAY (A)	1-48210-278-0	01	1	9002-		●
155	REPAIR KIT; RELAY VALVE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-85576-035-0	01	1	9002-9306	●
155	REPAIR KIT; RELAY VALVE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-85576-035-0	01	1	9307-	●
155	REPAIR KIT; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-85576-035-0	01	1	9307-	●
155	REPAIR KIT; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-85576-033-0	01	1	9002-9306	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	9002-9306		●
155	REPAIR KIT; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (A)	1-85576-033-0	01	1	9002-9306	●
155	REPAIR KIT; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-85576-033-0	01	1	9307-	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	9307-		●
157	RETAINER; VALVE	1-48213-002-0	04	1	9002-	●	●
158	SPRING; VALVE	1-47819-089-0	04	1	9002-	●	●
161	GUIDE; VALVE	1-48129-014-0	04	1	9002-	●	●
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-032-0	01	1	9002-9306	●
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-48219-047-0	01	1	9002-	●
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (C)	1-48219-047-0	01	1	9002-	●
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-032-0	01	1	9307-	●
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-48219-032-0	01	1	9307-	●
164	PISTON; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48219-071-0	03	1	9002-	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	03	1	9002-		●
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (A)	1-48219-071-0	03	1	9002-9306	●
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-048-0	01	1	9002-9306	●
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-048-0	01	1	9307-	●
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (B)	1-48219-048-0	01	1	9307-	●
166	SPRING; PISTON EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	01	1	9002-9405	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	9002-9405		●
166	SPRING; PISTON EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	02	1	9406-	●
166	SPRING; PISTON EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	02	1	9406-	●
166	SPRING; PISTON (A)	1-47819-090-0	02	1	9406-		●
166	SPRING; PISTON (A)	1-47819-090-0	02	1	9406-		●
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	01	1	9002-9306	●
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (A)	1-47819-165-0	02	1	9406-	●
167	COVER; VALVE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-050-1	01	1	9002-9306	●
167	COVER; VALVE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-050-1	01	1	9307-	●
167	COVER; VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-48219-050-1	01	1	9307-	●
167	COVER; VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48219-070-0	03	1	9002-	●
167	COVER; VALVE (A)	1-48219-070-0	03	1	9002-		●
167	COVER; VALVE NYLON TUBE AIR PIPING<Z29> (A)	1-48219-070-0	03	1	9002-9306	●
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-041-0	04	1	9002-9306	●
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-041-0	04	1	9307-	●
170	SCREW; COVER TO BODY NYLON TUBE AIR PIPING<Z29> (B)	1-48219-041-0	04	1	9307-	●
170	SCREW; COVER TO BODY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48219-039-0	24	1	9002-	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	24	1	9002-		●
170	SCREW; COVER TO BODY NYLON TUBE AIR PIPING<Z29> (A)	1-48219-039-0	24	1	9002-9306	●

23 23 176 176 173 177 172 171 174 175 176 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	VALVE; PRESSURE CONT	1-48460-067-1	01	1	9002-9306	●	●
23	VALVE; PRESSURE CONT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48460-067-1	01	1	9307-	●
23	VALVE; PRESSURE CONT	1-48460-067-1	01	1	9307-		●
171	FILTER; PRESS CONT VLV	9-88510-330-0	01	1	9002-9306	●	●
171	FILTER; PRESS CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	9-88510-330-0	01	1	9307-	●
171	FILTER; PRESS CONT VLV	9-88510-330-0	01	1	9307-		●
172	RING; RETAINING EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-31829-081-0	01	1	9307-	●
172	RING; RETAINING (A)	1-31829-081-0	01	1	9307-		●
172	RING; RETAINING EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B)	9-88510-331-0	01	1	9307-	●
172	RING; RETAINING (B)	9-88510-331-0	01	1	9307-		●
172	RING; RETAINING (A)	1-31829-081-0	01	1	9002-9306	●	●
172	RING; RETAINING (B)	9-88510-331-0	01	1	9002-9306	●	●
173	PISTON; PRESS CONT VLV	1-48469-103-0	01	1	9002-9306	●	●
173	PISTON; PRESS CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48469-103-0	01	1	9307-	●
173	PISTON; PRESS CONT VLV	1-48469-103-0	01	1	9307-		●
174	VALVE; PRESS CONT VLV	1-48469-104-1	01	1	9002-9306	●	●
174	VALVE; PRESS CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48469-104-1	01	1	9307-	●
174	VALVE; PRESS CONT VLV	1-48469-104-1	01	1	9307-		●
175	SPRING; PRESS CONT VLV	1-48469-105-0	01	1	9002-9306	●	●
175	SPRING; PRESS CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48469-105-0	01	1	9307-	●
175	SPRING; PRESS CONT VLV	1-48469-105-0	01	1	9307-		●
176	GASKET; PRESS CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47849-010-0	01	1	9307-	●
176	GASKET; PRESS CONT VLV (A)	1-47849-010-0	01	1	9307-		●
176	GASKET; PRESS CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B)	1-48212-004-0	01	1	9307-	●
176	GASKET; PRESS CONT VLV (B)	1-48212-004-0	01	1	9307-		●
176	GASKET; PRESS CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C)	1-48469-107-0	01	1	9307-	●
176	GASKET; PRESS CONT VLV (C)	1-48469-107-0	01	1	9307-		●
176	GASKET; PRESS CONT VLV (A)	1-47849-010-0	01	1	9002-9306	●	●
176	GASKET; PRESS CONT VLV (B)	1-48212-004-0	01	1	9002-9306	●	●
176	GASKET; PRESS CONT VLV (C)	1-48469-107-0	01	1	9002-9306	●	●
177	RETAINER; PRESS CONT VLVE	1-48469-106-0	01	1	9002-9306	●	●
177	RETAINER; PRESS CONT VLVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48469-106-0	01	1	9307-	●
177	RETAINER; PRESS CONT VLVE	1-48469-106-0	01	1	9307-		●

114 17 17 14 16 15 13 14 18 17 17 14 14 16 18 13 14 21 21 13 21 19 22 21 21 20 19 22 21 13 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
13	VALVE ASM; QUICK RELEASE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-052-1	02	1	9002-9306	●
13	VALVE ASM; QUICK RELEASE NYLON TUBE AIR PIPING<Z29>	1-48410-052-1	02	1	9004-9306	●
13	VALVE ASM; QUICK RELEASE NYLON TUBE AIR PIPING<Z29>	1-48410-234-0	02	1	9307-	●
13	VALVE ASM; QUICK RELEASE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-320-0	01	1	9307-	●
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A) M14	1-09650-092-1	01	1	9002-9302	●
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-	●
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09660-139-1	01	1	9002-9302	●
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9303-	●
14	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (C) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	9004-9306	●
14	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-535-0	03	1	9307-	●
15	PLUG; VALVE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> PT3/8	9-09204-517-0	01	1	9002-	●
16	BRACKET; VLV,PARKING BRK NYLON TUBE AIR PIPING<Z29>	1-47475-540-1	01	1	9002-9306	●
16	BRACKET; VLV,PARKING BRK NYLON TUBE AIR PIPING<Z29>	1-48495-128-0	01	1	9307-	●
17	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9002-	●
17	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> (B) M8X35 W/LK WASHER	0-50040-835-0	02	1	9002-	●
18	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●
19	BRACKET; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-199-1	01	1	9002-9306	●
19	BRACKET; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (B)	1-47475-199-1	01	1	9002-9306	●
19	BRACKET; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-199-1	01	1	9307-	●
19	BRACKET; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (A)	1-47476-866-0	01	1	9307-	●
20	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	02	1	9002-	●
20	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	02	1	9002-	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9002-9306	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (C) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (A) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9002-	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09660-569-0	01	1	9307-	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09660-570-0	01	1	9307-	●
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (E) M14 & PT3/8 STRAIGHT	1-09660-227-0	01	1	9002-9306	●
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (D) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	9002-9306	●
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (F)	1-09660-535-0	02	1	9307-	●
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (G)	1-09660-555-0	01	1	9307-	●
22	NUT; BRKT HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●
22	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-	●
114	NUT; VLV NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-	●

40 39 41 42 127 125 128 129 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	PROTECTOR; HEAT,GOV AIR DRYER<PS7>	1-48359-067-0	01	1	9002-	●	●
40	BOLT; HEAT PROTECTOR AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●
40	BOLT; HEAT PROTECTOR AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-	●	●
41	NUT; HEAT PROTECTOR AIR DRYER<PS7> M8	9-09110-408-0	01	1	9002-	●	●
42	STAY; MUD GUARD AIR DRYER<PS7> CAB UP 50MM(W60)	1-53497-379-0	01	1	9002-9306	●	●
42	STAY; MUD GUARD AIR DRYER<PS7> EXC. CAB UP 50MM(W60)	1-53497-350-2	01	1	9002-	●	●
125	PLUG; DELIVERY,PARKING VLV PT1/4	9-99204-513-0	01	1	9002-9306	●	●
125	PLUG; DELIVERY,PARKING VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4	9-99204-513-0	01	1	9307-	●
125	PLUG; DELIVERY,PARKING VLV PT1/4	9-99204-513-0	01	1	9307-		●
127	CONNECTOR; CONT VALVE M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9002-9306	●	●
127	CONNECTOR; CONT VALVE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9307-	●
127	CONNECTOR; CONT VALVE M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9307-		●
128	WASHER; LK,PARK BRK VLV HONG KONG EQUIPMENT(PQ1) ID=8.2	9-09150-508-0	01	1	9002-9312	●
128	WASHER; LK,PARK BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=8.2	9-09150-508-0	01	1	9401-	●
129	BRACKET; PARKING BRK VLV BRKT HONG KONG EQUIPMENT(PQ1) (A)	1-79997-213-0	01	1	9002-9312	●
129	BRACKET; PARKING BRK VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-79997-213-0	01	1	9401-	●
129	BRACKET; PARKING BRK VLV BRKT HONG KONG EQUIPMENT(PQ1) (B)	1-79997-214-0	01	1	9002-9312	●
129	BRACKET; PARKING BRK VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-79997-214-0	01	1	9401-	●

1 2 1 2 170 167 166 164 157 158 161 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR NYLON TUBE AIR PIPING<Z29>	1-48210-500-0	01	1	9406-	●
1	VALVE; RELAY RWD RR	1-48210-278-0	01	1	9002-9405	●	●
1	VALVE; RELAY RWD RR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48210-278-0	01	1	9406-	●
1	VALVE; RELAY RWD RR	1-48210-278-0	01	1	9406-		●
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9002-9306	●
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9307-	●
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9307-	●
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	02	1	9002-9306	●
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-500-0	01	1	9307-	●
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9002-	●
2	VALVE; RELAY (A)	1-48210-278-0	01	1	9002-		●
155	REPAIR KIT; RELAY VALVE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-85576-035-0	01	1	9002-9306	●
155	REPAIR KIT; RELAY VALVE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-85576-035-0	01	1	9307-	●
155	REPAIR KIT; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-85576-035-0	01	1	9307-	●
155	REPAIR KIT; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-85576-033-0	01	1	9002-9306	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	9002-9306		●
155	REPAIR KIT; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (A)	1-85576-033-0	01	1	9002-9306	●
155	REPAIR KIT; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-85576-033-0	01	1	9307-	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	9307-		●
157	RETAINER; VALVE	1-48213-002-0	04	1	9002-	●	●
158	SPRING; VALVE	1-47819-089-0	04	1	9002-	●	●
161	GUIDE; VALVE	1-48129-014-0	04	1	9002-	●	●
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-032-0	01	1	9002-9306	●
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-48219-047-0	01	1	9002-	●
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (C)	1-48219-047-0	01	1	9002-	●
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-032-0	01	1	9307-	●
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-48219-032-0	01	1	9307-	●
164	PISTON; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48219-071-0	03	1	9002-	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	03	1	9002-		●
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (A)	1-48219-071-0	03	1	9002-9306	●
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-048-0	01	1	9002-9306	●
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-048-0	01	1	9307-	●
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (B)	1-48219-048-0	01	1	9307-	●
166	SPRING; PISTON EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	01	1	9002-9405	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	9002-9405		●
166	SPRING; PISTON EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	02	1	9406-	●
166	SPRING; PISTON EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	02	1	9406-	●
166	SPRING; PISTON (A)	1-47819-090-0	02	1	9406-		●
166	SPRING; PISTON (A)	1-47819-090-0	02	1	9406-		●
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	01	1	9002-9306	●
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (A)	1-47819-165-0	02	1	9406-	●
167	COVER; VALVE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-050-1	01	1	9002-9306	●
167	COVER; VALVE HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-050-1	01	1	9307-	●
167	COVER; VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-48219-050-1	01	1	9307-	●
167	COVER; VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48219-070-0	03	1	9002-	●
167	COVER; VALVE (A)	1-48219-070-0	03	1	9002-		●
167	COVER; VALVE NYLON TUBE AIR PIPING<Z29> (A)	1-48219-070-0	03	1	9002-9306	●
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-041-0	04	1	9002-9306	●
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-041-0	04	1	9307-	●
170	SCREW; COVER TO BODY NYLON TUBE AIR PIPING<Z29> (B)	1-48219-041-0	04	1	9307-	●
170	SCREW; COVER TO BODY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48219-039-0	24	1	9002-	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	24	1	9002-		●
170	SCREW; COVER TO BODY NYLON TUBE AIR PIPING<Z29> (A)	1-48219-039-0	24	1	9002-9306	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
