◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#17405) — 303 parça
çizim 15549
16 182 16 19 564 336 19 725 19 692 338
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 0906-1204 ●
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1205- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0906-1204 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1205- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0906-1204 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1205- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0906-1204 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1205- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-527-0 01 1 0906-1204 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-527-0 01 1 1205- ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-1204 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1205- ● ●
19 SCREW; BRKT
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0906-1204 ●
19 SCREW; BRKT
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0906-1204 ●
19 SCREW; BRKT
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1205- ● ●
19 SCREW; BRKT
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> KD PREPARATORY PACK<6HF> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1205- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0906-1204 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1205- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0906-1111 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-1204 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1205- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0906-1204 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1205- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-1204 ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1205- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0906-1204 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1205- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0906-1204 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1205- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0906-1204 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 1205-1208 ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0906-1204 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1205- ● ●
338 SCREW; COVER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0906-1204 ●
338 SCREW; COVER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0906-1204 ●
338 SCREW; COVER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1205- ● ●
338 SCREW; COVER
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> KD PREPARATORY PACK<6HF> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1205- ● ●
564 COVER; SW 8-97043-732-1 06 1 0906-1204 ●
564 COVER; SW 8-97043-732-1 06 1 1205- ● ●
692 BRACKET; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF> 		8-98094-272-0 01 1 0906-1204 ●
692 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> 		8-98094-272-0 01 1 0906-1204 ●
692 BRACKET; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF> 		8-98094-272-0 01 1 1205- ● ●
692 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> KD PREPARATORY PACK<6HF> 		8-98094-272-0 01 1 1205- ● ●
725 COVER; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF> BLACK 		8-97407-896-2 01 1 0906-1204 ●
725 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> BLACK 		8-97407-896-2 01 1 0906-1204 ●
725 COVER; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF> BLACK 		8-97407-896-2 01 1 1205- ● ●
725 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> KD PREPARATORY PACK<6HF> BLACK 		8-97407-896-2 01 1 1205- ● ●

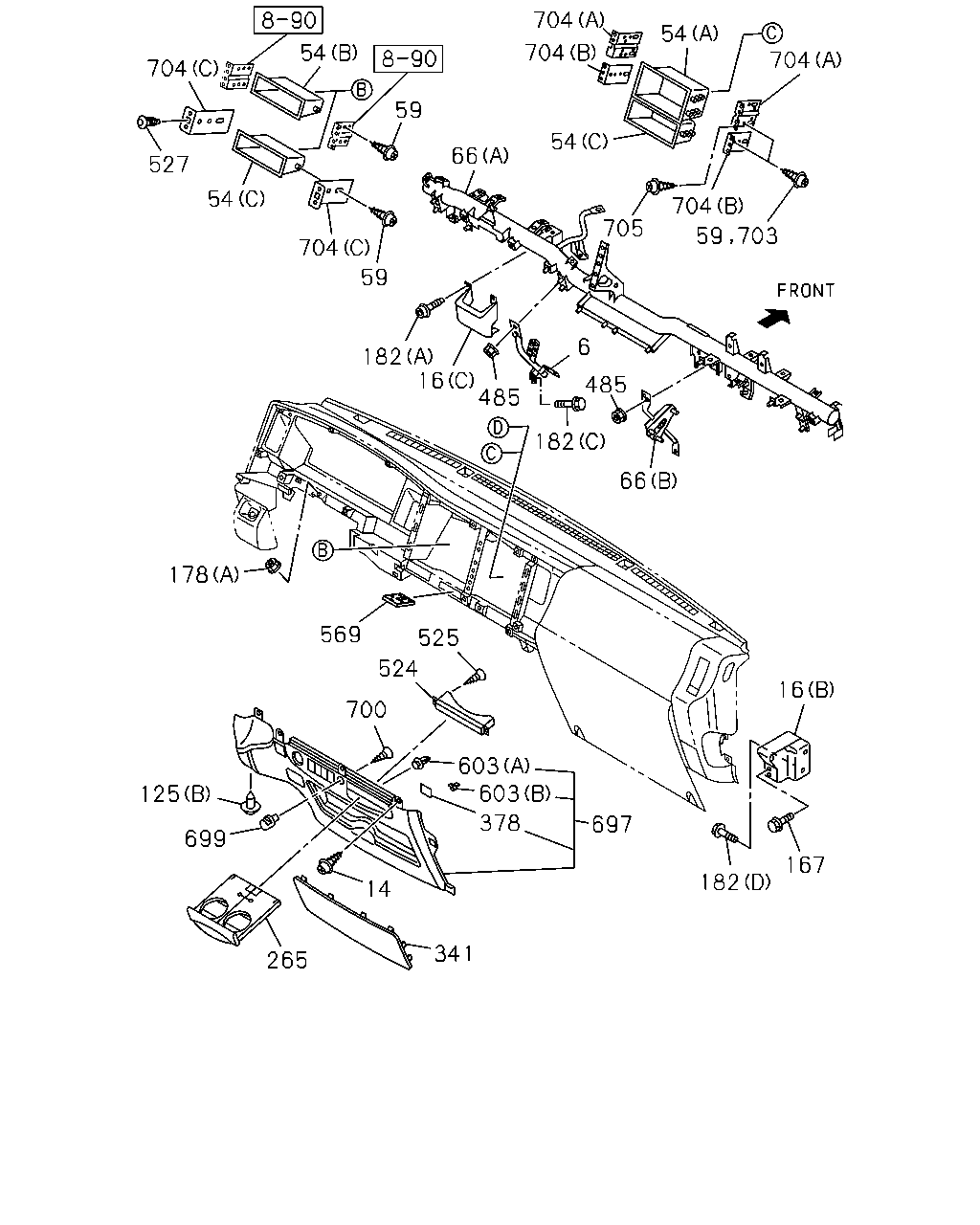

çizim 15550
704 527 54 704 182 485 16 182 485 6 66 704 705 704 54 704 704 59 66 54 54 59 178 569 525 524 700 603 603 378 697 16 167 182 341 14 265 699 125 59 703
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 0906-1204 ●
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1205- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0906-1204 ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1205- ● ●
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 0906-1204 ●
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1205- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0906-1204 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1205- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0906-1204 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1205- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0906-1204 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1205- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-527-0 01 1 0906-1204 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-527-0 01 1 1205- ● ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0906-1204 ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1205- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0906-1204 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1205- ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0906-1012 ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 1101-1204 ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) H=69.8 BLACK 		8-97408-865-2 01 1 1101-1204 ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1205- ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1205- ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1101-1204 ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1205-1209 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0906-1204 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1205-1209 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210- ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-581-1 01 1 1006-1204 ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-581-1 01 1 1205- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98038-221-7 01 1 0906-1204 ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98038-221-7 01 1 1205-1406 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98241-974-0 01 1 1407- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97585-569-7 01 1 0906-1204 ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97585-569-7 01 1 1205-1406 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-606-0 01 1 1407- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98082-466-1 01 1 0906-1204 ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98082-466-1 01 1 1205- ● ●
125 CLIP; INST PANEL
ECE R29<EFE> (A) GRAY 		8-97419-968-1 02 1 1004-1007 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-1204 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1205-1504 ● ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) GRAY 		8-97419-968-1 02 1 1505- ● ●
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),ECE R29<EFE> (A) GRAY 		8-97419-968-1 02 1 1505- ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0906-1003 ●
125 CLIP; INST PANEL
EXC. ECE R29<EFE> (A) GRAY 		8-97408-063-0 02 1 1004-1007 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0906-1204 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1205- ● ●
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0906-1204 ●
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1205- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0906-1204 ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1205- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0906-1204 ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1205- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0906-1204 ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1205- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0906-1204 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1205- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0906-1111 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-1204 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1205- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0906-1204 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1205- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-1204 ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1205- ● ●
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0906-0909 ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910-1204 ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1205- ● ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0906-1010 ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011-1204 ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1205- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011-1204 ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1205- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0906-1204 ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1205- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0906-1204 ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1205- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0906-1204 ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1205- ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) DARK GRAY 		8-97098-326-0 01 1 1101-1204 ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) DARK GRAY 		8-97098-326-0 01 1 1205- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 0906-1204 ●
569 HOLDER; CARD 8-97410-276-1 01 1 1205- ● ●
603 CLIP; COVER
ECE R29<EFE> (D) 		8-98167-222-0 02 1 1005-1204 ●
603 CLIP; COVER
ECE R29<EFE> (D) 		8-98167-222-0 02 1 1205- ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1205- ●
603 CLIP; COVER
ECE R29<EFE> (C) 		8-98162-058-1 02 1 1004-1204 ●
603 CLIP; COVER
ECE R29<EFE> (C) 		8-98162-058-1 02 1 1205- ●
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1205- ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0906-1204 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1205- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0906-1204 ●
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1205- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0906-1204 ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1205- ● ●
697 PANEL; INST CENTER
GRAY 		8-97409-781-2 01 1 0906-1010 ●
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1011-1204 ●
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1205- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0906-1204 ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1205- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-1204 ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1205- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0906-1204 ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1205- ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98107-549-0 02 1 1101-1204 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98107-549-0 02 1 1205- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0906-1204 ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1205- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0906-1204 ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1205- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1101-1204 ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1205- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0906-1204 ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1205-1209 ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210- ● ●

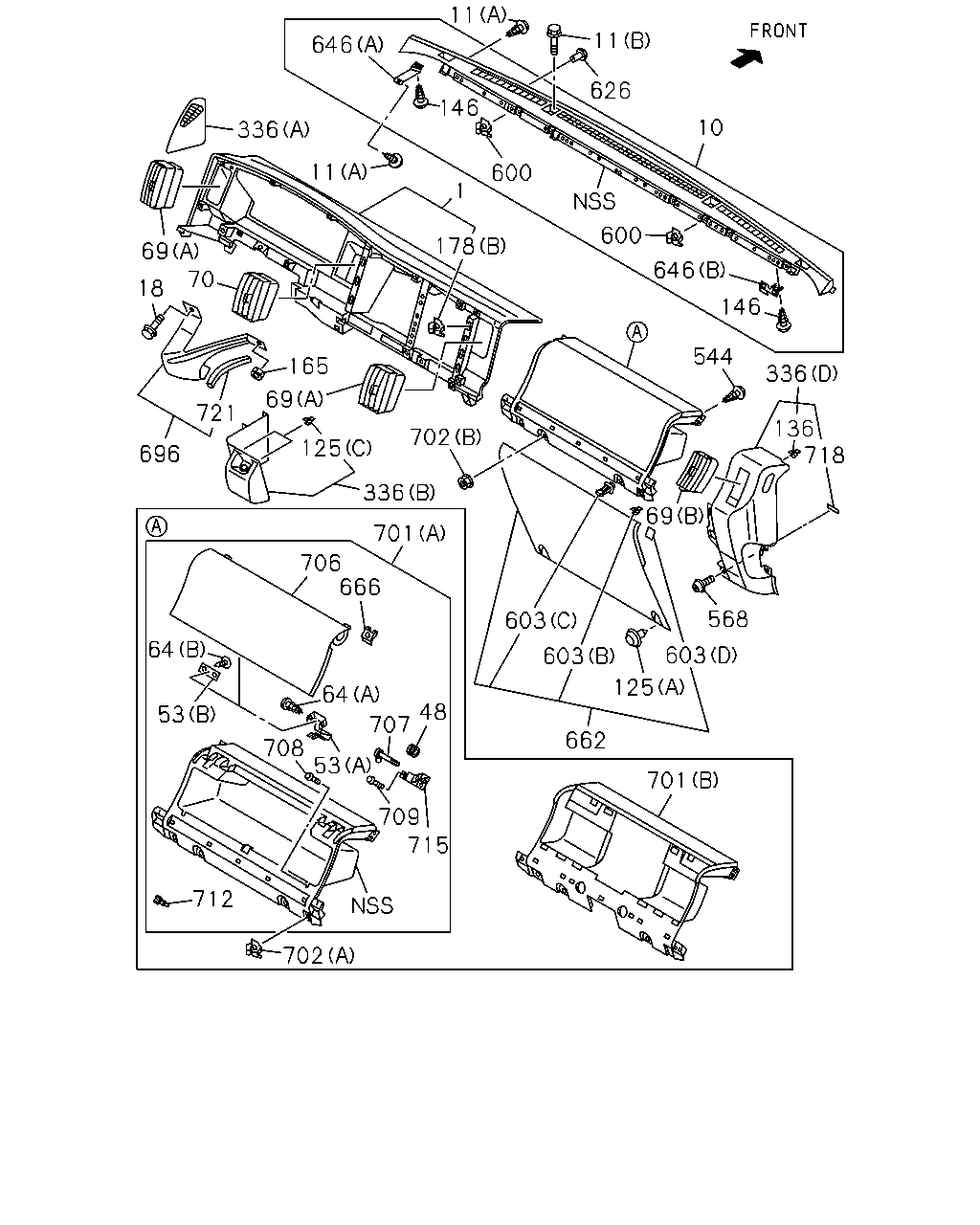

çizim 15551
11 11 626 10 646 146 600 1 336 11 178 600 646 544 146 336 136 718 69 568 603 125 603 603 662 701 701 706 666 64 53 708 64 707 48 715 709 53 712 702 336 702 125 69 165 70 69 18 721 696
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 0906-1204 ●
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1205- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97409-997-6 01 1 0906-1008 ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-096-1 01 1 1009-1204 ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-096-1 01 1 1205- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0906-1204 ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1205- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0906-1204 ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1205- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0906-1204 ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1205- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 0906-1005 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1006-1204 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1205-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 0906-1005 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1006-1204 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1205-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 0906-1005 ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1006-1204 ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1205-1405 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406- ● ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 0906-1005 ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1006-1204 ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1205-1405 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) M4X85 		8-97926-404-0 02 1 1406- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0906-1204 ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1205- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 0906-1204 ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1205- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 0906-1204 ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1205- ● ●
125 CLIP; INST PANEL
ECE R29<EFE> (A) GRAY 		8-97419-968-1 02 1 1004-1007 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-1204 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1205-1504 ● ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) GRAY 		8-97419-968-1 02 1 1505- ● ●
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),ECE R29<EFE> (A) GRAY 		8-97419-968-1 02 1 1505- ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0906-1003 ●
125 CLIP; INST PANEL
EXC. ECE R29<EFE> (A) GRAY 		8-97408-063-0 02 1 1004-1007 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0906-1204 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1205- ● ●
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0906-1204 ●
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1205- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0906-1204 ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1205- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0906-1204 ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1205- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0906-1204 ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1205- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0906-1204 ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1205- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0906-1204 ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1205- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0906-1204 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1205- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0906-1204 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1205- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0906-1204 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 1205-1208 ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0906-1204 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1205- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0906-1204 ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1205- ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-1204 ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1205- ● ●
600 NUT; PANEL 8-98037-629-0 02 1 0906-1008 ●
603 CLIP; COVER
ECE R29<EFE> (D) 		8-98167-222-0 02 1 1005-1204 ●
603 CLIP; COVER
ECE R29<EFE> (D) 		8-98167-222-0 02 1 1205- ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1205- ●
603 CLIP; COVER
ECE R29<EFE> (C) 		8-98162-058-1 02 1 1004-1204 ●
603 CLIP; COVER
ECE R29<EFE> (C) 		8-98162-058-1 02 1 1205- ●
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1205- ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0906-1204 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1205- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0906-1204 ●
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1205- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0906-1204 ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1205- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0906-1204 ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1205- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 0906-1204 ●
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1205- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 0906-1204 ●
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1205- ● ●
662 COVER; LWR,INST PANEL
ECE R29<EFE> GRAY 		8-97419-960-2 01 1 1004-1204 ●
662 COVER; LWR,INST PANEL
ECE R29<EFE> GRAY 		8-97419-960-2 01 1 1205- ●
662 COVER; LWR,INST PANEL
GRAY 		8-97419-960-2 01 1 1205- ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 0906-1003 ●
662 COVER; LWR,INST PANEL
EXC. ECE R29<EFE> GRAY 		8-97407-428-2 01 1 1004- ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 0906-1005 ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1006-1204 ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1205-1311 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312- ● ●
696 BRACKET; KNEE 8-98057-569-0 01 1 0906-1109 ●
696 BRACKET; KNEE 8-98098-126-1 01 1 1110-1204 ●
696 BRACKET; KNEE 8-98098-126-1 01 1 1205- ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-1 01 1 0906-1005 ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-2 01 1 1006-1204 ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-2 01 1 1205- ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-4 01 1 0906-1005 ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1006-1204 ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1205-1405 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-1 01 1 1406- ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0906-1204 ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1205- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0906-1204 ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1205- ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 0906-1005 ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1006-1204 ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1205-1405 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406- ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 0906-1005 ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1006-1204 ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1205-1311 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 0906-1005 ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1006-1204 ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1205- ● ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 0906-1005 ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1006-1204 ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1205- ● ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 0906-1005 ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1006-1204 ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1205- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 0906-1005 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1006-1204 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1205-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 0906-1005 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1006-1204 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1205-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312- ● ●
718 SEAL; COVER
4X35 		8-98185-153-0 01 1 1209- ● ●
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0906-1109 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
