◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#17404) — 28 parça

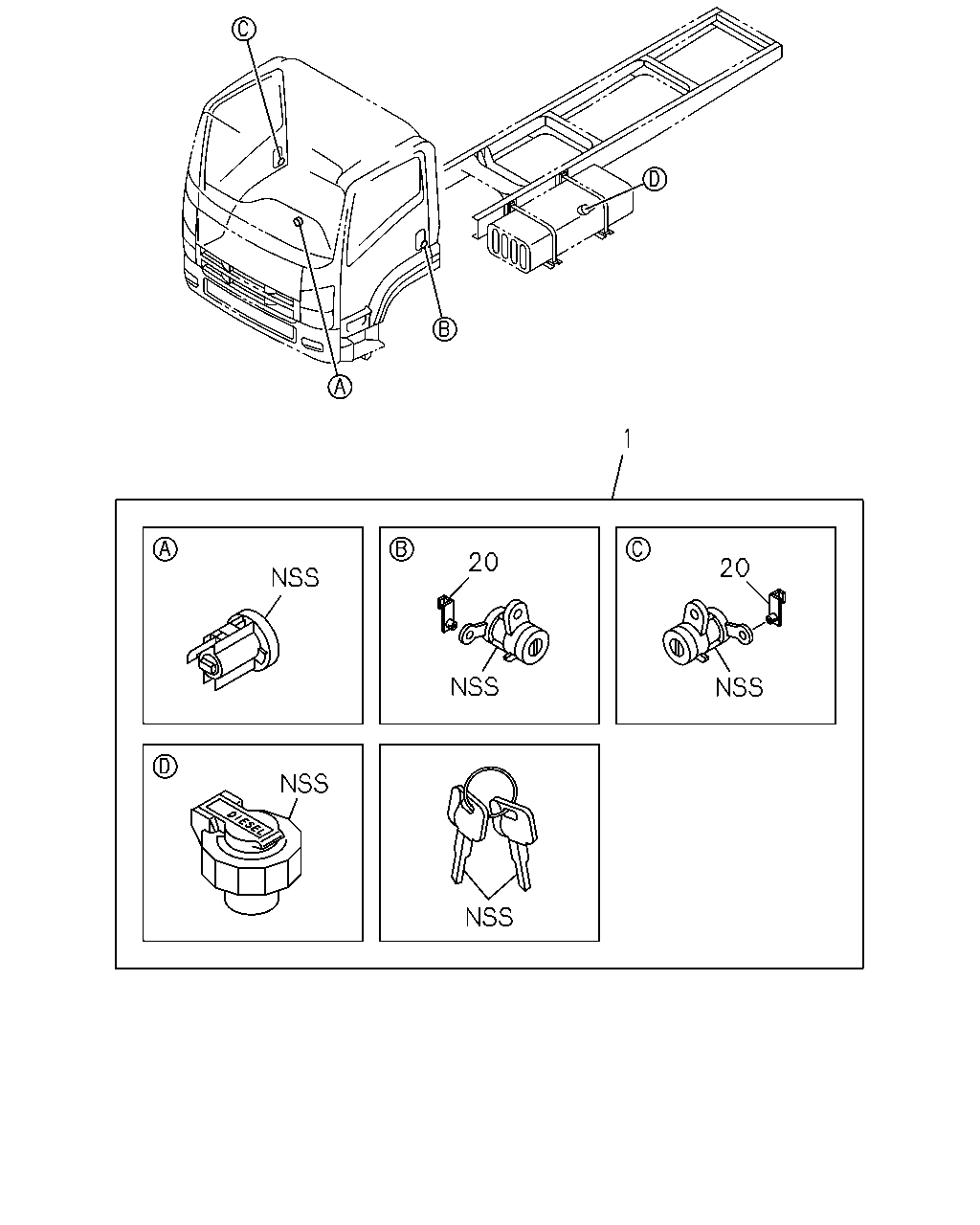

çizim 61833
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK 8-98088-949-0 01 1 0906-0911 ●
1 CYLINDER SET; CAR LOCK 8-98145-977-0 01 1 0912-1203 ●
1 CYLINDER SET; CAR LOCK 8-98201-214-0 01 1 1204-1204 ●
1 CYLINDER SET; CAR LOCK 8-98201-214-0 01 1 1205- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0906-1204 ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1205- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0906-1204 ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1205- ● ●

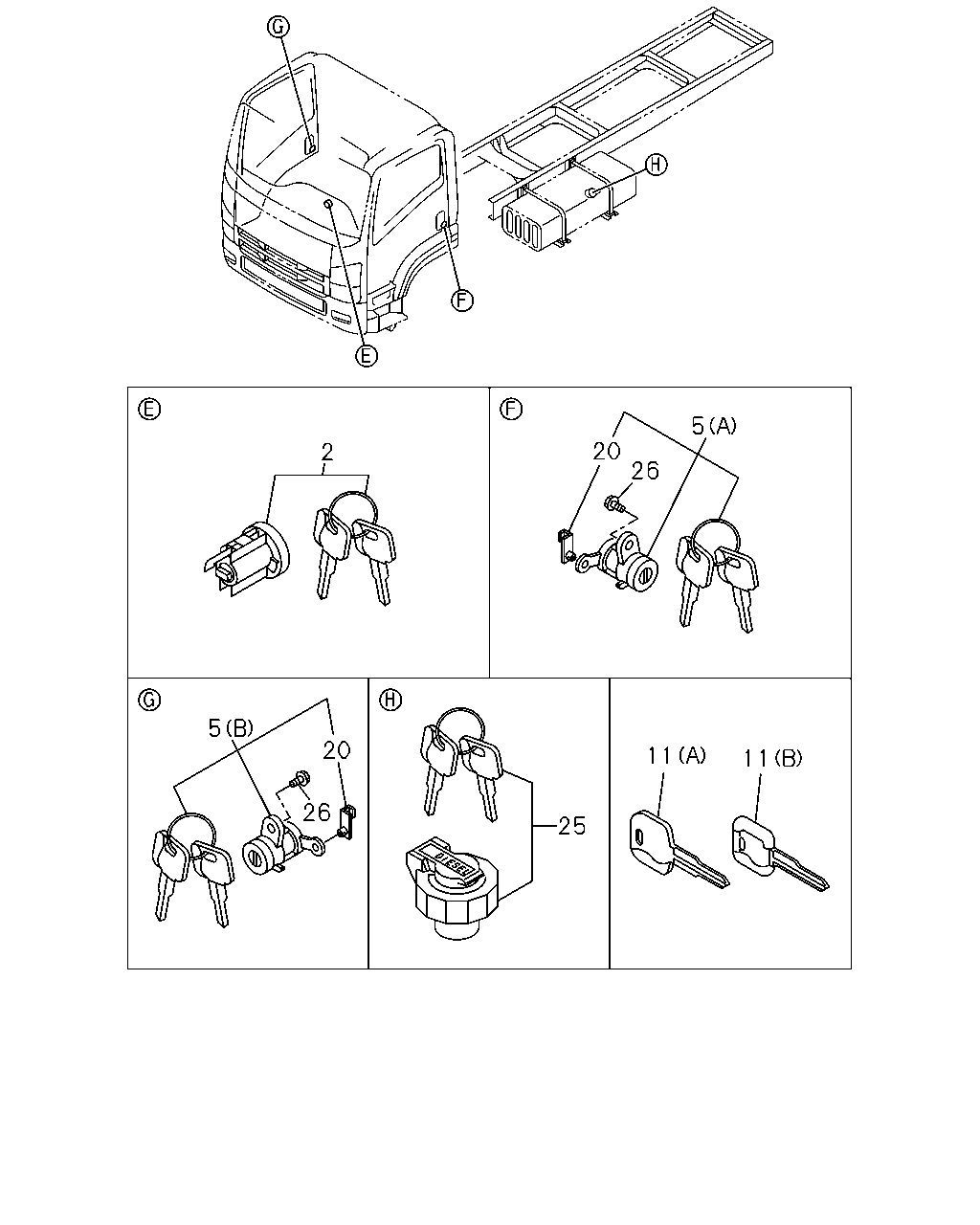

çizim 62831
5 20 26 2 5 20 11 11 26 25
BalonParca AdiParca NoAdetTipApplied Date A B
2 BARREL ASM; W/KEY,STRG LOCK 8-98055-147-0 01 1 0906-1203 ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-341-0 01 1 1204-1204 ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-341-0 01 1 1205- ● ●
5 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0906-1204 ●
5 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1205- ● ●
5 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0906-1204 ●
5 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1205- ● ●
11 KEY; BLANK
(B) IMMOBILIZER 		8-98055-168-0 AR 1 0906-1204 ●
11 KEY; BLANK
(B) IMMOBILIZER 		8-98055-168-0 AR 1 1205- ● ●
11 KEY; BLANK
(A) 		8-98055-170-0 AR 1 0906-1204 ●
11 KEY; BLANK
(A) 		8-98055-170-0 AR 1 1205- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0906-1204 ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1205- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0906-1204 ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1205- ● ●
25 CAP; FUEL TANK,W/KEY 8-98088-982-0 01 1 0906-0911 ●
25 CAP; FUEL TANK,W/KEY 8-98146-010-0 01 1 0912-1204 ●
25 CAP; FUEL TANK,W/KEY 8-98146-010-0 01 1 1205- ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0906-1204 ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1205- ● ●
