7-20 — MIRROR AND MIRROR STAY (#17403) — 259 parça

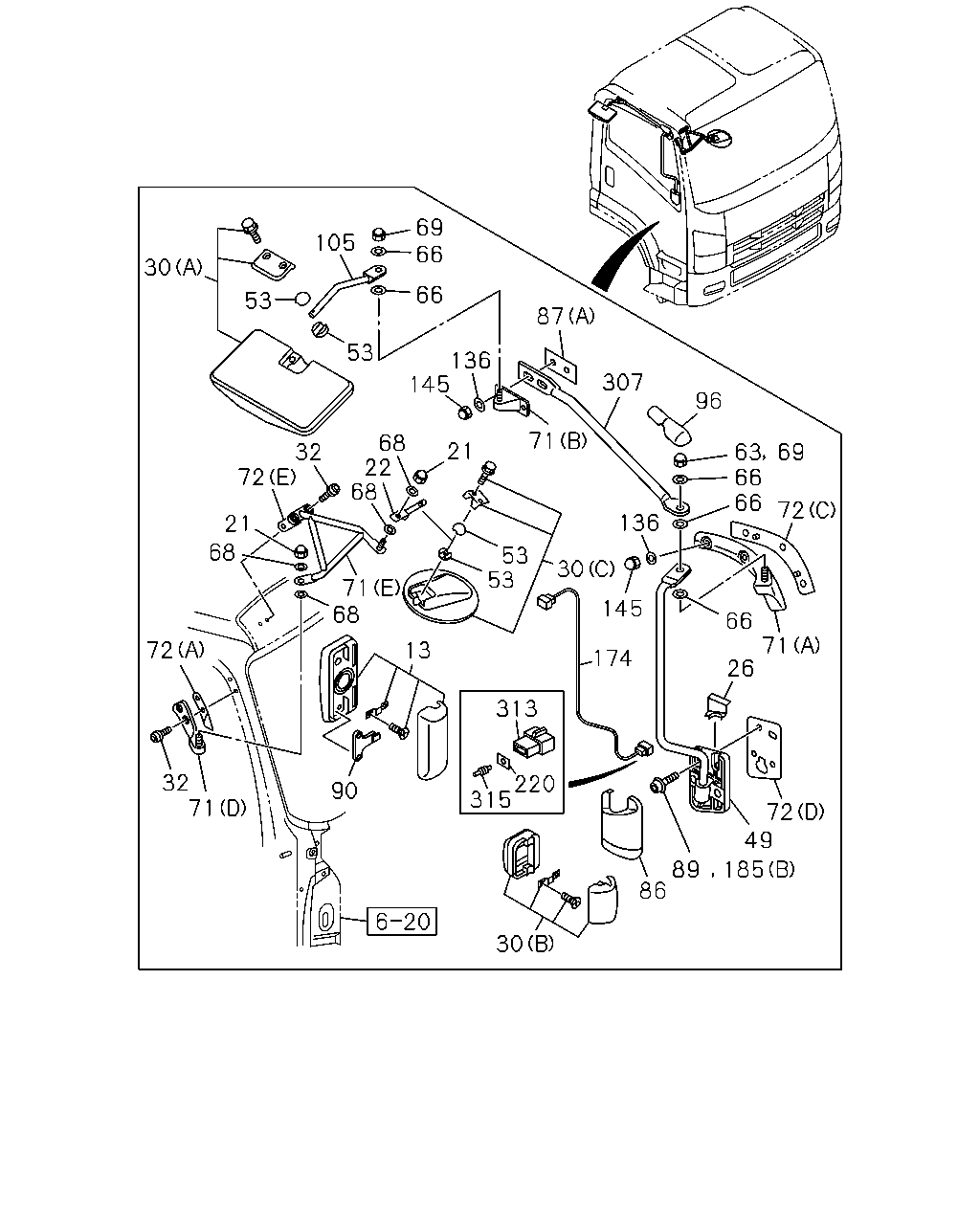

çizim 15548
69 66 105 30 66 53 87 53 136 145 307 96 71 68 22 68 21 32 72 63 66 66 69 72 136 21 68 53 53 30 71 68 145 66 71 26 72 13 174 313 220 315 32 71 90 72 49 89 86 185 30
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 0906-1204 ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 1205- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 0906-1204 ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 1205- ● ●
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 0906-1204 ●
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 1205- ● ●
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 0906-1204 ●
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 1205- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0906-1204 ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1205- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0906-1204 ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1205- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 0906-1204 ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1205- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 0906-1204 ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1205- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 0906-1204 ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1205-1504 ● ●
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 0906-1204 ●
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 1205- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98095-546-1 01 1 0906-1202 ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1203-1204 ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1205- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98112-263-0 01 1 0906-1202 ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1203-1204 ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1205- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-781-1 01 1 0906-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1203-1204 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1205- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-780-1 01 1 0906-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1203-1204 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1205- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-053-1 01 1 0906-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-189-0 01 1 1203-1204 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-189-0 01 1 1205- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-052-1 01 1 0906-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-188-0 01 1 1203-1204 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-188-0 01 1 1205- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-067-1 01 1 0906-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1203-1204 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1205- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-066-1 01 1 0906-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1203-1204 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1205- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 0906-1204 ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 0906-1204 ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1205- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1205- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0908-1204 ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1205- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1006-1204 ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1205- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 0906-1005 ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1006-1204 ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1205- ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0906-1204 ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1205- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 03 1 0906-0907 ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 0908-1204 ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-491-3 01 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-491-3 01 1 1205- ● ●
72 SHEET
(B) 		8-98031-797-0 01 1 0906-1204 ●
72 SHEET
(B) 		8-98031-797-0 01 1 1205- ● ●
72 SHEET
(C) 		8-98031-796-0 01 1 0906-1204 ●
72 SHEET
(C) 		8-98031-796-0 01 1 1205- ● ●
72 SHEET
(E) 		8-98060-225-1 01 1 0906-1204 ●
72 SHEET
(E) 		8-98060-225-1 01 1 1205- ● ●
72 SHEET
(A) 		8-98064-773-0 01 1 0906-1204 ●
72 SHEET
(A) 		8-98064-773-0 01 1 1205- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 0906-1204 ●
72 SHEET
(D) 		8-98101-865-0 01 1 1205- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 0906-1204 ●
72 SHEET
(D) 		8-98101-864-0 01 1 1205- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0906-1204 ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1205- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0906-1204 ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1205- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 0906-1204 ●
87 SPACER
(A) 		8-98063-786-0 02 1 1205- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 0906-1204 ●
87 SPACER
(B) 		8-98063-789-0 01 1 1205- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0908-1204 ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1205- ● ●
90 BRACKET; MIRROR STAY
ISRAEL COUNTRY(CV4) 		8-98129-822-0 02 1 0906-1204 ●
90 BRACKET; MIRROR STAY
ISRAEL COUNTRY(CV4) 		8-98129-822-0 02 1 1205-1505 ● ●
90 BRACKET; MIRROR STAY 8-98129-822-0 02 1 1506- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0906-1204 ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1205- ● ●
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 0906-1204 ●
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 1205- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0906-1204 ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1205- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0906-1204 ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1205- ● ●
174 HARNESS; MIRROR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98125-653-0 02 1 0906-1204 ●
174 HARNESS; MIRROR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98125-653-0 02 1 1205- ● ●
174 HARNESS; MIRROR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98125-654-0 02 1 0906-1204 ●
174 HARNESS; MIRROR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98125-654-0 02 1 1205- ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0906-1204 ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1205- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 0906-0907 ●
220 HOLDER; CONNECTOR 8-94447-536-0 02 1 0906-1204 ●
220 HOLDER; CONNECTOR
ISRAEL COUNTRY(CV4) 		8-94447-536-0 02 1 1205- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0906-1204 ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1205- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0906-1204 ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1205- ● ●
313 CONNECTOR; MIRROR 8-94447-532-0 02 1 0906-1204 ●
313 CONNECTOR; MIRROR
ISRAEL COUNTRY(CV4) 		8-94447-532-0 02 1 1205- ● ●
315 RUBBER ASM; CONNECTOR 1-82691-026-0 02 1 0906-1204 ●
315 RUBBER ASM; CONNECTOR
ISRAEL COUNTRY(CV4) 		1-82691-026-0 02 1 1205- ● ●

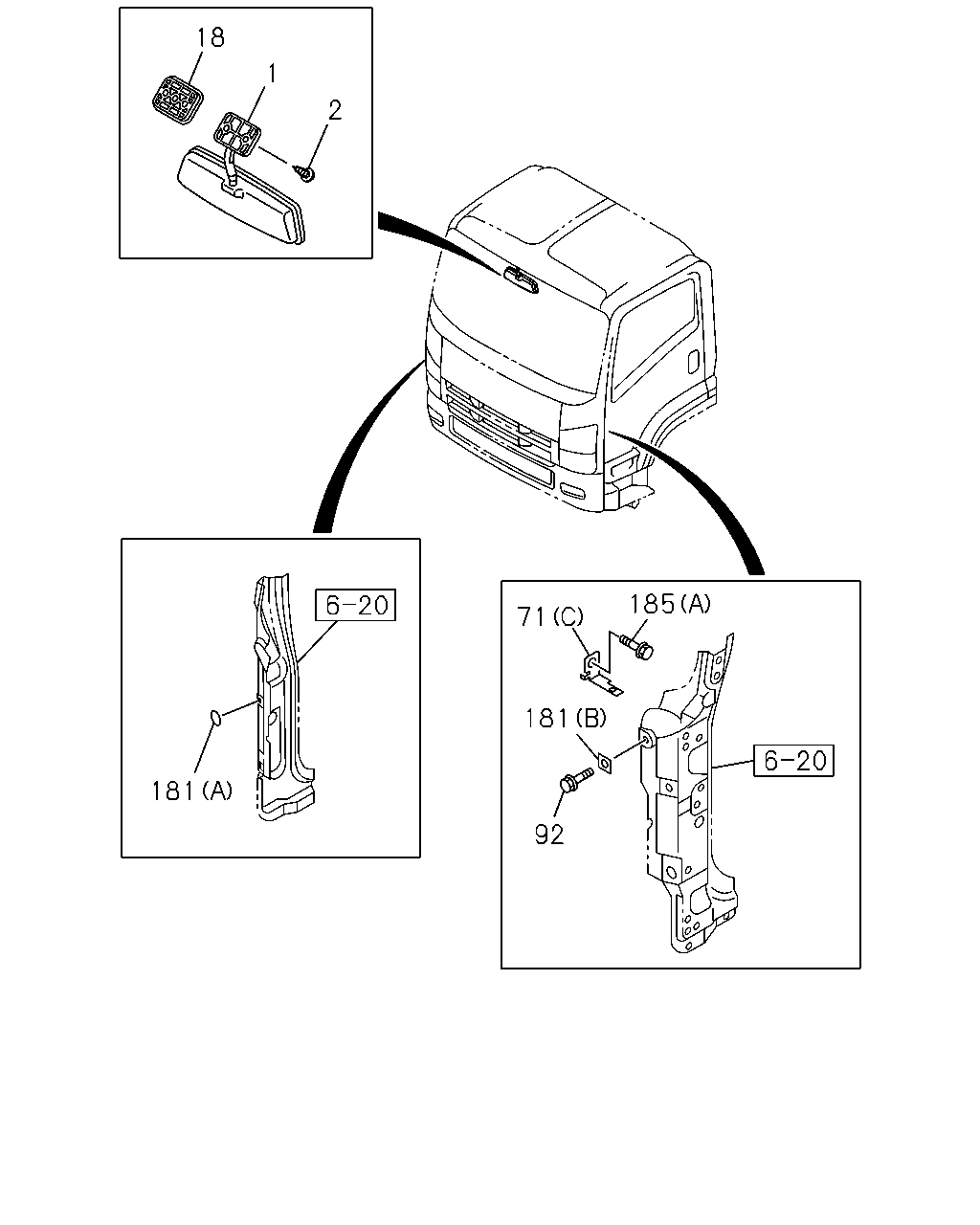

çizim 61728
18 1 2 185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
RR VIEW MIRROR<D31> DARK GRAY 		8-98097-534-1 01 1 0906-1204 ●
1 MIRROR; ROOM
RR VIEW MIRROR<D31> DARK GRAY 		8-98097-534-1 01 1 1205- ● ●
2 SCREW; MIRROR TO BODY
RR VIEW MIRROR<D31> M6X26 		8-98033-674-0 02 1 0906-1204 ●
2 SCREW; MIRROR TO BODY
RR VIEW MIRROR<D31> M6X26 		8-98033-674-0 02 1 1205- ● ●
18 CLIP; MIRROR
RR VIEW MIRROR<D31> DARK GRAY 		8-97408-241-0 01 1 0906-1204 ●
18 CLIP; MIRROR
RR VIEW MIRROR<D31> DARK GRAY 		8-97408-241-0 01 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-491-3 01 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-491-3 01 1 1205- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0906-1204 ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1205- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 0906-1204 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 1205- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0906-1204 ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1205- ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0906-1204 ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1205- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 0906-0907 ●

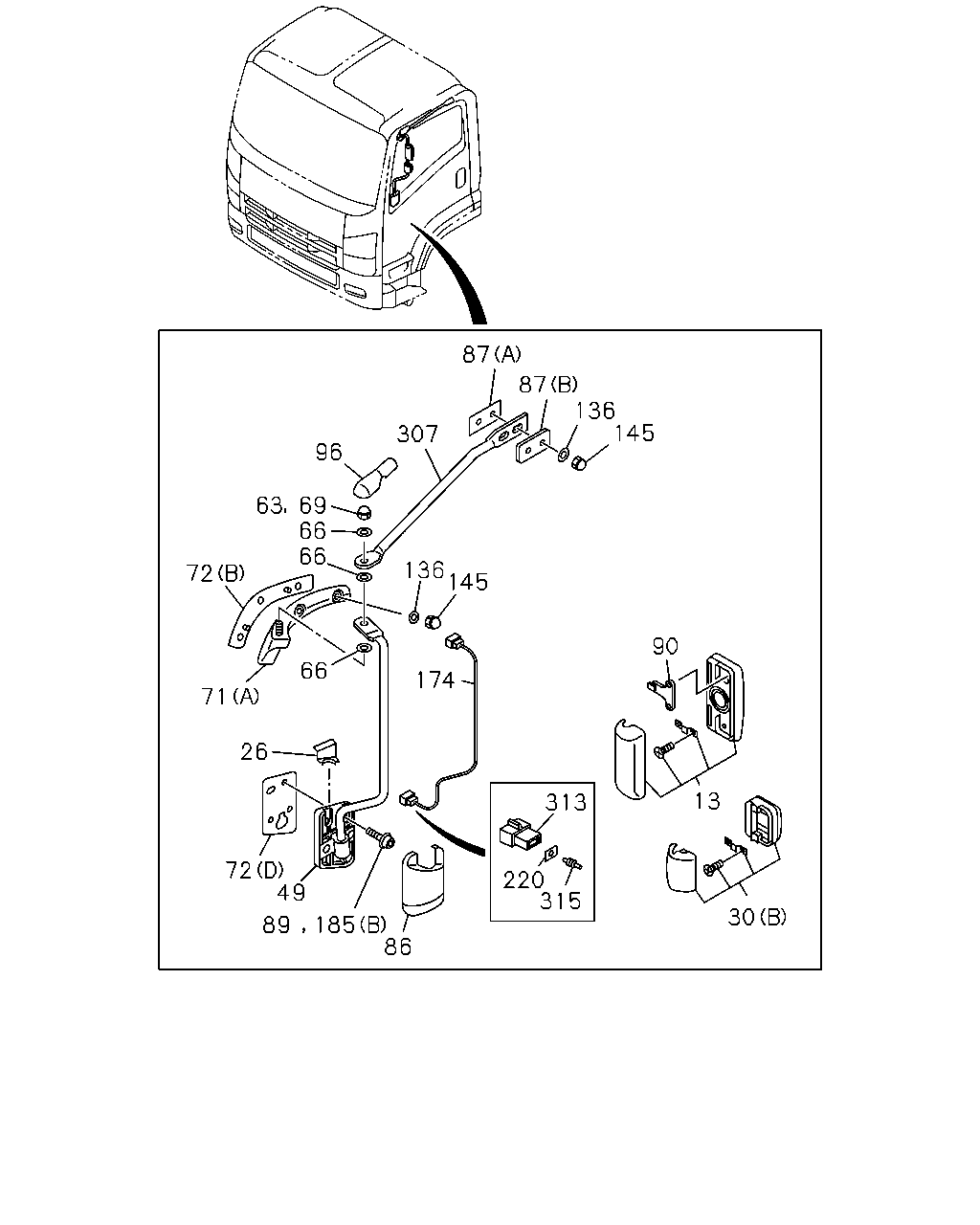

çizim 62870
87 87 136 145 307 96 63 69 66 66 136 145 72 90 66 174 71 26 13 313 72 49 220 315 30 89 185 86
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 0906-1204 ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 1205- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 0906-1204 ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 1205- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0906-1204 ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1205- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0906-1204 ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1205- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 0906-1204 ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1205- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 0906-1204 ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1205- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 0906-1204 ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1205-1504 ● ●
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98095-546-1 01 1 0906-1202 ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1203-1204 ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1205- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98112-263-0 01 1 0906-1202 ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1203-1204 ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1205- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-781-1 01 1 0906-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1203-1204 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1205- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-780-1 01 1 0906-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1203-1204 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1205- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-053-1 01 1 0906-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-189-0 01 1 1203-1204 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-189-0 01 1 1205- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-052-1 01 1 0906-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-188-0 01 1 1203-1204 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-188-0 01 1 1205- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-067-1 01 1 0906-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1203-1204 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1205- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-066-1 01 1 0906-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1203-1204 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1205- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0908-1204 ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1205- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1006-1204 ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1205- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 0906-1005 ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1006-1204 ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1205- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 03 1 0906-0907 ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 0908-1204 ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 1205- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-491-3 01 1 0906-1204 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-491-3 01 1 1205- ● ●
72 SHEET
(B) 		8-98031-797-0 01 1 0906-1204 ●
72 SHEET
(B) 		8-98031-797-0 01 1 1205- ● ●
72 SHEET
(C) 		8-98031-796-0 01 1 0906-1204 ●
72 SHEET
(C) 		8-98031-796-0 01 1 1205- ● ●
72 SHEET
(E) 		8-98060-225-1 01 1 0906-1204 ●
72 SHEET
(E) 		8-98060-225-1 01 1 1205- ● ●
72 SHEET
(A) 		8-98064-773-0 01 1 0906-1204 ●
72 SHEET
(A) 		8-98064-773-0 01 1 1205- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 0906-1204 ●
72 SHEET
(D) 		8-98101-865-0 01 1 1205- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 0906-1204 ●
72 SHEET
(D) 		8-98101-864-0 01 1 1205- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0906-1204 ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1205- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0906-1204 ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1205- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 0906-1204 ●
87 SPACER
(A) 		8-98063-786-0 02 1 1205- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 0906-1204 ●
87 SPACER
(B) 		8-98063-789-0 01 1 1205- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0908-1204 ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1205- ● ●
90 BRACKET; MIRROR STAY
ISRAEL COUNTRY(CV4) 		8-98129-822-0 02 1 0906-1204 ●
90 BRACKET; MIRROR STAY
ISRAEL COUNTRY(CV4) 		8-98129-822-0 02 1 1205-1505 ● ●
90 BRACKET; MIRROR STAY 8-98129-822-0 02 1 1506- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0906-1204 ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1205- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0906-1204 ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1205- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0906-1204 ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1205- ● ●
174 HARNESS; MIRROR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98125-653-0 02 1 0906-1204 ●
174 HARNESS; MIRROR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98125-653-0 02 1 1205- ● ●
174 HARNESS; MIRROR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98125-654-0 02 1 0906-1204 ●
174 HARNESS; MIRROR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98125-654-0 02 1 1205- ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0906-1204 ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1205- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 0906-0907 ●
220 HOLDER; CONNECTOR 8-94447-536-0 02 1 0906-1204 ●
220 HOLDER; CONNECTOR
ISRAEL COUNTRY(CV4) 		8-94447-536-0 02 1 1205- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0906-1204 ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1205- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0906-1204 ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1205- ● ●
313 CONNECTOR; MIRROR 8-94447-532-0 02 1 0906-1204 ●
313 CONNECTOR; MIRROR
ISRAEL COUNTRY(CV4) 		8-94447-532-0 02 1 1205- ● ●
315 RUBBER ASM; CONNECTOR 1-82691-026-0 02 1 0906-1204 ●
315 RUBBER ASM; CONNECTOR
ISRAEL COUNTRY(CV4) 		1-82691-026-0 02 1 1205- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
