◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#17402) — 30 parça

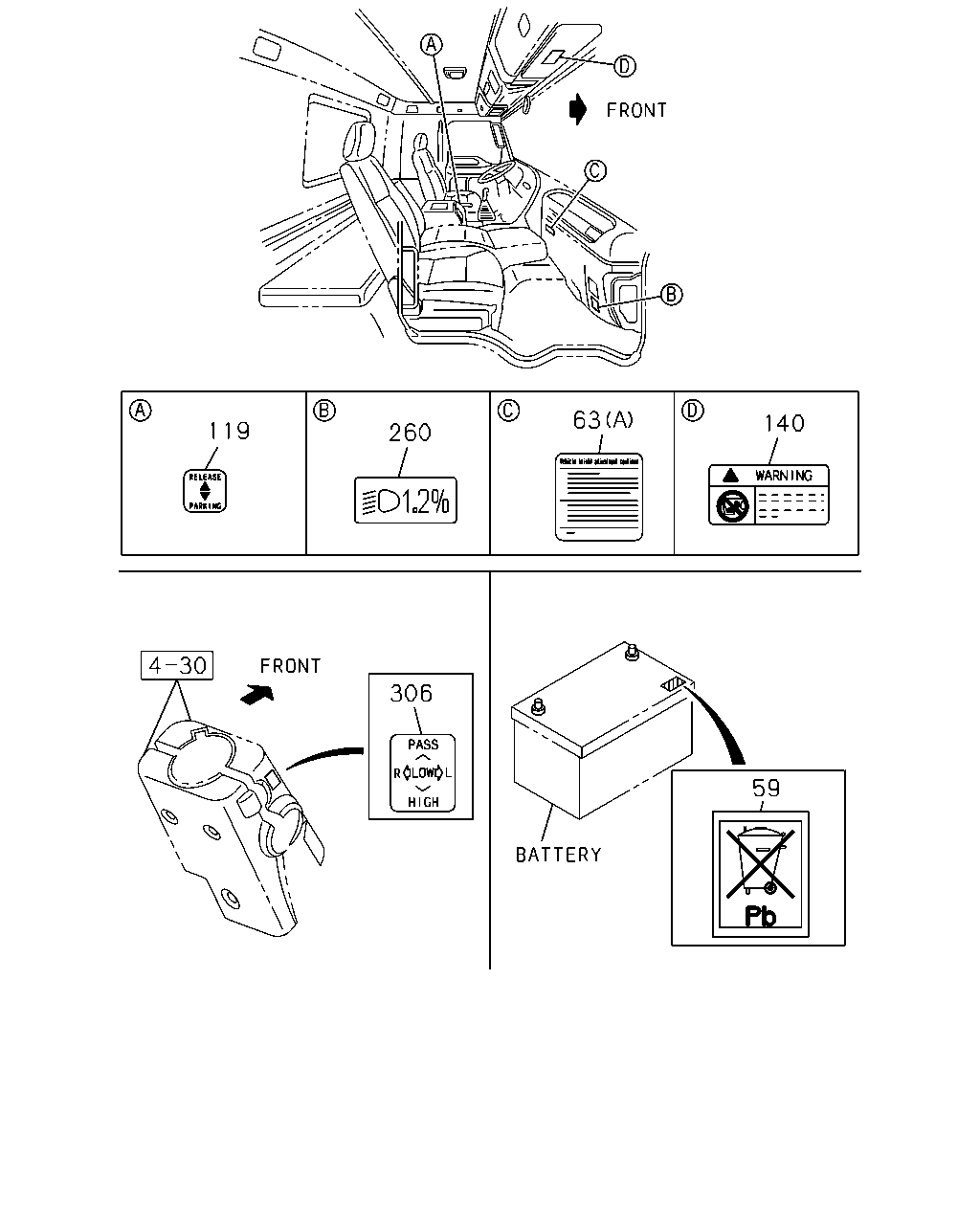

çizim 62764
63 140 119 260 306 59
BalonParca AdiParca NoAdetTipApplied Date A B
59 PLATE; CAUTION,BATTERY
EXC. KD PREPARATORY PACK<6HF> 10 PER 1 SHEET 		8-97116-760-0 02 1 0906-1204 ●
59 PLATE; CAUTION,BATTERY
EXC. KD PREPARATORY PACK<6HF> 10 PER 1 SHEET 		8-97116-760-0 02 1 1205- ● ●
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-823-0 01 1 0906- ●
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-861-0 01 1 0906- ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0906-1204 ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1205- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 0906-1204 ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 1205- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0906-1204 ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 1205- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0906-1204 ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1205- ● ●
çizim 62814
35 63 49 9 228 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 0906-1204 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1205- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-98082-437-0 01 1 1205- ●
9 PLATE; NAME,SPD RANGE
6HK1-TCN ENG(82L) ISRAEL COUNTRY(CV4) 		8-98238-355-0 01 1 1302- ●
9 PLATE; NAME,SPD RANGE
ISRAEL COUNTRY(CV4) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98219-772-0 01 1 1205- ●
9 PLATE; NAME,SPD RANGE
ISRAEL COUNTRY(CV4) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98219-771-0 01 1 1205- ●
9 PLATE; NAME,SPD RANGE
AUTO CRUISE<K30> EXC. ISRAEL COUNTRY(CV4) 6 PER 1 SHEET 		8-98142-983-0 01 1 0906-1201 ●
9 PLATE; NAME,SPD RANGE
EXC. ISRAEL COUNTRY(CV4) 6 PER 1 SHEET 		8-98142-983-0 01 1 1202- ●
9 PLATE; NAME,SPD RANGE
EXC. ISRAEL COUNTRY(CV4),AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-982-0 01 1 0906-1201 ●
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4) 		8-98205-625-0 01 1 1205- ●
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY(CV4) 		8-98205-623-0 01 1 1205- ●
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 0906-1204 ●
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 1205- ● ●
49 PLATE; CAUTION,FUSE BOX 8-98122-354-0 01 1 0906-1204 ●
49 PLATE; CAUTION,FUSE BOX 8-98122-354-0 01 1 1205- ● ●
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-823-0 01 1 0906- ●
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-861-0 01 1 0906- ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0906-1001 ●
