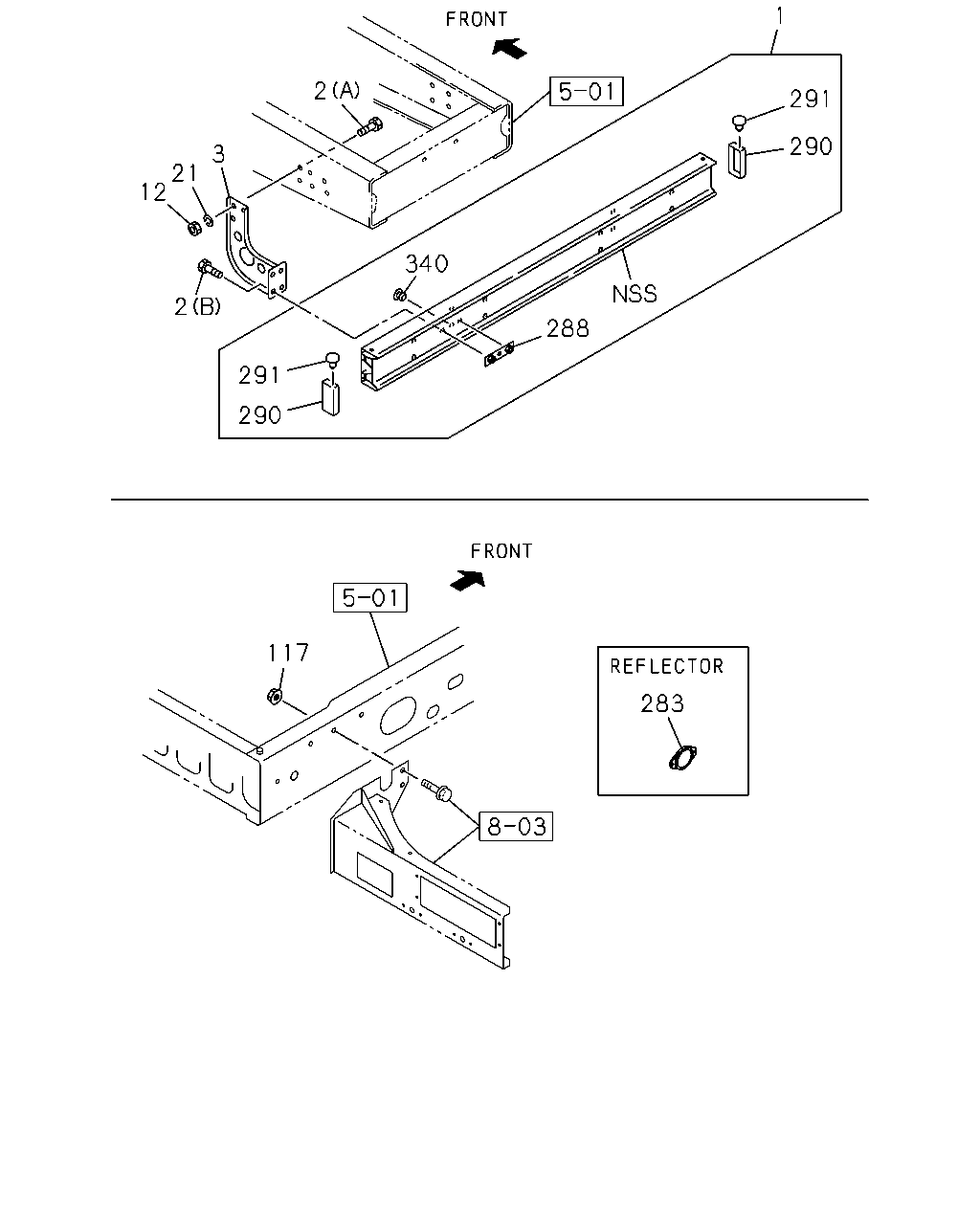

6-90 — REAR BUMPER (#17400) — 45 parça

1 2 291 290 3 21 12 340 2 288 291 290 117 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER; RR STAMP E2L	1-71220-271-0	01	1	1205-	●
1	BUMPER; RR STAMP E2M	1-71220-270-0	01	1	0906-		●
2	BOLT; BACK BAR EXC. ISRAEL COUNTRY(CV4) (A) M16X40	0-20851-640-0	08	1	1007-1204		●
2	BOLT; BACK BAR EXC. ISRAEL COUNTRY(CV4) (A) M16X40	0-20851-640-0	08	1	1205-	●	●
2	BOLT; BACK BAR (A) M16X40	0-20851-640-0	08	1	0906-1006		●
2	BOLT; BACK BAR ISRAEL COUNTRY(CV4) (A) M16X40	0-20851-640-0	04	1	1007-1204		●
2	BOLT; BACK BAR ISRAEL COUNTRY(CV4) (A) M16X40	0-20851-640-0	04	1	1205-	●	●
2	BOLT; BACK BAR (B) M12X30 FLANGE	0-28651-230-0	08	1	0906-1204		●
2	BOLT; BACK BAR (B) M12X30 FLANGE	0-28651-230-0	08	1	1205-	●	●
3	BRACKET; BUMPER WHEEL BASE 3700MM(37W) ISRAEL COUNTRY(CV4) STAMP GU	8-98126-329-0	01	1	0906-		●
3	BRACKET; BUMPER WHEEL BASE 3700MM(37W) ISRAEL COUNTRY(CV4) STAMP GU	8-98126-328-0	01	1	0906-		●
3	BRACKET; BUMPER WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) STAMP GU	1-71230-271-2	01	1	0906-1204		●
3	BRACKET; BUMPER WHEEL BASE 3700MM(37W) EXC. ISRAEL COUNTRY(CV4) STAMP GU	1-71230-271-2	01	1	0906-1204		●
3	BRACKET; BUMPER WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) STAMP GU	1-71230-271-2	01	1	1205-		●
3	BRACKET; BUMPER WHEEL BASE 3700MM(37W) EXC. ISRAEL COUNTRY(CV4) STAMP GU	1-71230-271-2	01	1	1205-		●
3	BRACKET; BUMPER STAMP GU	1-71230-271-2	01	1	1205-	●
3	BRACKET; BUMPER WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) STAMP GU	1-71230-270-2	01	1	0906-1204		●
3	BRACKET; BUMPER WHEEL BASE 3700MM(37W) EXC. ISRAEL COUNTRY(CV4) STAMP GU	1-71230-270-2	01	1	0906-1204		●
3	BRACKET; BUMPER WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) STAMP GU	1-71230-270-2	01	1	1205-		●
3	BRACKET; BUMPER WHEEL BASE 3700MM(37W) EXC. ISRAEL COUNTRY(CV4) STAMP GU	1-71230-270-2	01	1	1205-		●
3	BRACKET; BUMPER STAMP GU	1-71230-270-2	01	1	1205-	●
12	NUT; BRKT EXC. ISRAEL COUNTRY(CV4) M16	0-91110-516-0	08	1	1007-1204		●
12	NUT; BRKT EXC. ISRAEL COUNTRY(CV4) M16	0-91110-516-0	08	1	1205-	●	●
12	NUT; BRKT M16	0-91110-516-0	08	1	0906-1006		●
12	NUT; BRKT ISRAEL COUNTRY(CV4) M16	0-91110-516-0	04	1	1007-1204		●
12	NUT; BRKT ISRAEL COUNTRY(CV4) M16	0-91110-516-0	04	1	1205-	●	●
21	WASHER; LK,BUMPER EXC. ISRAEL COUNTRY(CV4) ID=16.2	0-91510-816-0	08	1	1007-1204		●
21	WASHER; LK,BUMPER EXC. ISRAEL COUNTRY(CV4) ID=16.2	0-91510-816-0	08	1	1205-	●	●
21	WASHER; LK,BUMPER ID=16.2	0-91510-816-0	08	1	0906-1006		●
21	WASHER; LK,BUMPER ISRAEL COUNTRY(CV4) ID=16.2	0-91510-816-0	04	1	1007-1204		●
21	WASHER; LK,BUMPER ISRAEL COUNTRY(CV4) ID=16.2	0-91510-816-0	04	1	1205-	●	●
117	NUT; BRKT M10 FLANGE	0-91180-210-0	06	1	0906-1204		●
117	NUT; BRKT M10 FLANGE	0-91180-210-0	06	1	1205-	●	●
283	REFLECTOR; REFLEX,RR WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W)	1-82290-011-1	04	1	0906-1204		●
283	REFLECTOR; REFLEX,RR WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W)	1-82290-011-1	04	1	1205-	●	●
283	REFLECTOR; REFLEX,RR WHEEL BASE 4900MM(49W)	1-82290-011-1	08	1	0906-1204		●
283	REFLECTOR; REFLEX,RR WHEEL BASE 4900MM(49W)	1-82290-011-1	08	1	1205-	●	●
288	PLATE; RR BUMPER,REFLECTOR	1-71290-066-0	04	1	0906-1204		●
288	PLATE; RR BUMPER,REFLECTOR	1-71290-066-0	04	1	1205-	●	●
290	COVER; RR	1-71290-067-0	02	1	0906-1204		●
290	COVER; RR	1-71290-067-0	02	1	1205-	●	●
291	RIVET; REFLECTOR	1-71290-062-0	04	1	0906-1204		●
291	RIVET; REFLECTOR	1-71290-062-0	04	1	1205-	●	●
340	RIVET	1-71290-065-0	04	1	0906-1204		●
340	RIVET	1-71290-065-0	04	1	1205-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
