Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#1740) — 211 parça

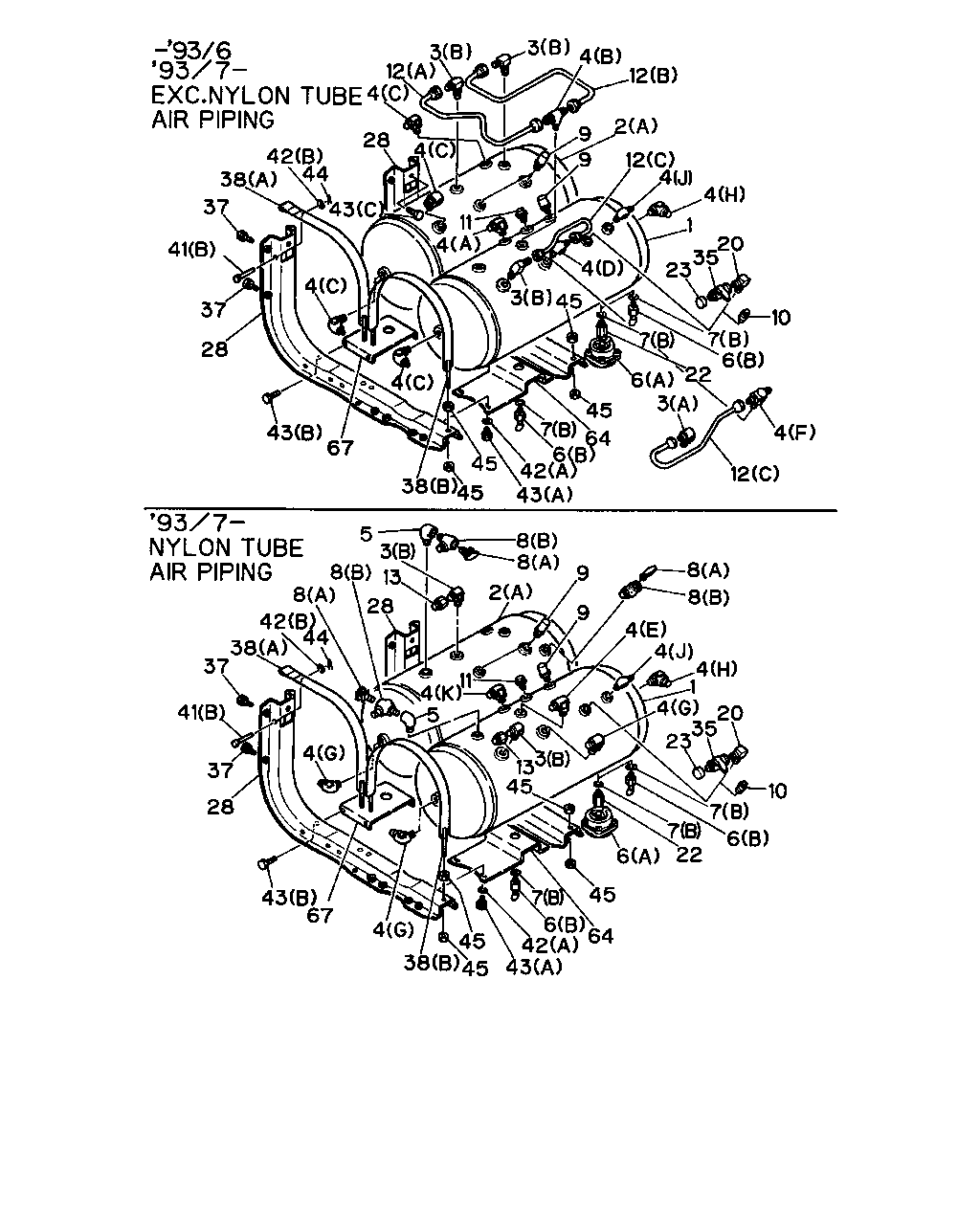

12 3 3 4 12 2 9 9 4 28 4 44 42 38 37 41 37 28 43 67 4 4 43 4 11 3 45 4 1 4 4 12 20 35 23 10 7 6 7 6 3 4 12 45 64 7 6 42 43 45 45 38 5 3 13 28 8 8 42 44 38 37 41 37 28 43 67 4 38 45 45 7 6 42 43 64 45 6 45 13 3 4 5 4 11 2 8 8 9 9 8 8 4 4 4 4 20 35 23 10 7 6 7 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> SUB AIR TANK<SJD>	1-48330-733-1	01	1	9002-9407	●
1	TANK ASM; AIR HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> SUB AIR TANK<SJD>	1-48370-212-0	01	1	9408-	●
1	TANK ASM; AIR HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD> EXC. AIR DRYER<PS7>	1-48330-610-1	01	1	9002-	●
1	TANK ASM; AIR NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7>	1-48330-610-1	01	1	9002-	●
1	TANK ASM; AIR AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1),SUB AIR TANK<SJD>, NYLON TUBE AIR PIPING<Z29>	1-48330-674-1	01	1	9002-9407	●	●
1	TANK ASM; AIR AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1),SUB AIR TANK<SJD>, NYLON TUBE AIR PIPING<Z29>	1-48370-211-0	01	1	9408-	●	●
1	TANK ASM; AIR EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7>,SUB AIR TANK<SJD>,NYLON TUBE AIR PIPING<Z29>	1-48330-479-0	01	1	9002-	●	●
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (C)	1-48330-378-1	01	1	9002-9306	●
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (C)	1-48370-024-0	01	1	9307-	●
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> (A)	1-48370-144-0	01	1	9307-	●
2	TANK; AIR EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48330-228-0	01	1	9002-	●
2	TANK; AIR (A)	1-48330-228-0	01	1	9002-		●
2	TANK; AIR SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48330-789-0	01	1	9002-	●	●
3	VALVE; CHECK,AIR TANK HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD> (A)	1-48410-133-2	01	1	9002-	●
3	VALVE; CHECK,AIR TANK NYLON TUBE AIR PIPING<Z29> (A)	1-48410-133-2	01	1	9002-	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48410-133-2	04	1	9002-	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B)	1-48410-133-2	03	1	9002-	●	●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> (E)	1-09660-287-0	01	1	9307-	●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> (G)	1-09660-290-0	03	1	9307-	●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> (K)	1-09660-291-0	01	1	9307-	●
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (B) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-	●
4	CONNECTOR; FLARE (B) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-		●
4	CONNECTOR; FLARE (J) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302	●	●
4	CONNECTOR; FLARE (J) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
4	CONNECTOR; FLARE (A) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302	●	●
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (A) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-	●
4	CONNECTOR; FLARE (A) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-		●
4	CONNECTOR; FLARE (C) M22 & PT1/2 ELBOW	9-09234-315-1	03	1	9002-9302	●	●
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (C) M22 & PT1/2 ELBOW	1-09650-444-0	03	1	9303-	●
4	CONNECTOR; FLARE (C) M22 & PT1/2 ELBOW	1-09650-444-0	03	1	9303-		●
4	CONNECTOR; FLARE EXC. AIR DRYER<PS7> (H) M22	1-09650-277-0	01	1	9002-	●	●
4	CONNECTOR; FLARE SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (D) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302	●	●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> (D) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302	●
4	CONNECTOR; FLARE SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (D) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-	●	●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> (D) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-	●
4	CONNECTOR; FLARE SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (F)	1-09656-530-1	01	1	9303-	●	●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> (F)	1-09656-530-1	01	1	9303-	●
4	CONNECTOR; FLARE EXC. SUB AIR TANK<SJD>,NYLON TUBE AIR PIPING<Z29> (D) M20 & PT1/2 ELBOW	1-09650-178-1	02	1	9002-9302	●	●
4	CONNECTOR; FLARE EXC. HONG KONG EQUIPMENT(PQ1),SUB AIR TANK<SJD>, NYLON TUBE AIR PIPING<Z29> (D) M20 & PT1/2 ELBOW	1-09650-443-0	02	1	9303-	●
4	CONNECTOR; FLARE (D) M20 & PT1/2 ELBOW	1-09650-443-0	02	1	9303-		●
5	UNION; AIR TANK NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> PT3/8 ELBOW	1-09660-696-0	02	1	9307-9308	●
5	UNION; AIR TANK NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> PT3/8 ELBOW	1-09660-696-0	03	1	9309-	●
6	COCK; DRAIN,AIR TANK (B) W/COVER	1-48312-004-1	04	1	9002-9407	●	●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> EXC. NYLON TUBE AIR PIPING<Z29> (C) W/COVER	1-48312-004-1	03	1	9408-9509	●	●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-48312-015-0	03	1	9510-	●	●
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (C) W/COVER	1-48312-004-1	04	1	9408-9509	●	●
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (C)	1-48312-015-0	04	1	9510-	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	9-09904-177-0	01	1	9002-	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (C) W/COVER	1-48312-004-1	01	1	9002-9509	●	●
6	COCK; DRAIN,AIR TANK SUB AIR TANK<SJD> (C) W/COVER	1-48312-004-1	01	1	9002-9509	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (C)	1-48312-015-0	01	1	9510-	●	●
6	COCK; DRAIN,AIR TANK SUB AIR TANK<SJD> (C)	1-48312-015-0	01	1	9510-	●	●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9306	●	●
7	GASKET; DRAIN COCK SUB AIR TANK<SJD> (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9306	●	●
7	GASKET; DRAIN COCK (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9306	●	●
7	GASKET; DRAIN COCK (B) ID=14.2 OD=19.2	1-09630-085-0	04	1	9307-	●	●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	9307-	●	●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9602	●	●
7	GASKET; DRAIN COCK SUB AIR TANK<SJD> (A) ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9602	●	●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-	●
7	GASKET; DRAIN COCK SUB AIR TANK<SJD> (A) ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-	●
8	CONNECTOR; AIR TANK NYLON TUBE AIR PIPING<Z29> (C)	1-47459-002-0	01	1	9307-	●
8	CONNECTOR; AIR TANK NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> (B)	1-09660-687-0	03	1	9307-	●
8	CONNECTOR; AIR TANK NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> (A)	1-47459-002-0	03	1	9307-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD>	1-48340-040-0	04	1	9002-9411	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> 530KPA	1-48340-054-0	04	1	9412-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> 530KPA	1-48340-054-0	04	1	9412-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. HONG KONG EQUIPMENT(PQ1),SUB AIR TANK<SJD>	1-48340-040-0	03	1	9002-9411	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	1-48340-040-0	03	1	9002-9411		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. HONG KONG EQUIPMENT(PQ1),SUB AIR TANK<SJD> 530KPA	1-48340-054-0	03	1	9412-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-0	03	1	9412-		●
10	PLUG; AIR TANK HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD> EXC. AIR DRYER<PS7> SQUARE HEAD PT3/8	9-09204-517-0	01	1	9305-9404	●
10	PLUG; AIR TANK NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> SQUARE HEAD PT3/8	9-09204-517-0	01	1	9305-9404	●
10	PLUG; AIR TANK HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD> EXC. AIR DRYER<PS7> SQUARE HEAD PT3/8	9-09204-517-0	01	1	9405-	●
10	PLUG; AIR TANK NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> PT1/2	9-09204-521-0	02	1	9307-	●
10	PLUG; AIR TANK NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> SQUARE HEAD PT1/4	9-99204-513-0	02	1	9307-9404	●
10	PLUG; AIR TANK NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> SQUARE HEAD PT3/8	9-09204-517-0	02	1	9405-	●
10	PLUG; AIR TANK AIR DRYER<PS7> PT 1/4 HEADLESS	9-09205-513-0	01	1	9002-9008	●	●
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. NYLON TUBE AIR PIPING<Z29> PT 3/8 HEADLESS	9-99205-517-0	01	1	9009-	●	●
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. NYLON TUBE AIR PIPING<Z29> M14X9	9-99202-314-0	01	1	9408-	●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> SQUARE HEAD PT1/4	9-99204-513-0	01	1	9002-	●	●
10	PLUG; AIR TANK EXC. NYLON TUBE AIR PIPING<Z29> SQUARE HEAD PT1/4	9-99204-513-0	01	1	9002-	●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9002-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47496-038-0	01	1	9307-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47496-038-0	01	1	9307-		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47496-039-0	01	1	9307-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47496-039-0	01	1	9307-		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-47496-040-0	02	1	9307-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (C)	1-47496-040-0	02	1	9307-		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47485-581-0	01	1	9002-9306	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47485-582-0	01	1	9002-9306	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (C)	1-47485-583-0	01	1	9002-9306	●	●
13	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M20X36	1-09660-576-0	04	1	9307-	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47>	9-09903-738-0	01	1	9002-9306	●	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4	1-09660-501-0	01	1	9307-	●	●
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9002-	●	●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9002-	●	●
28	BRACKET; AIR TANK	1-48317-240-4	02	1	9002-	●	●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9002-	●	●
37	BOLT; AIR TANK M12X45	1-09030-052-1	08	1	9002-9601	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9602-	●	●
38	BAND; AIR TANK NYLON TUBE AIR PIPING<Z29> (C)	1-48317-378-1	02	1	9002-	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9002-	●	●
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9002-	●	●
38	BAND; AIR TANK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (D)	1-48317-187-1	02	1	9002-	●	●
41	PIN; BAND FIX NYLON TUBE AIR PIPING<Z29> (A) OD=10 L=60	9-08224-060-0	02	1	9002-9407	●
41	PIN; BAND FIX (B) OD=10 L=60	9-08224-060-0	02	1	9408-	●	●
41	PIN; BAND FIX (B)	9-08221-060-0	02	1	9002-9407	●	●
42	WASHER; PL (A)	9-09160-708-0	04	1	9002-	●	●
42	WASHER; PL (B)	9-09164-510-0	02	1	9002-	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	9-01960-620-0	04	1	9002-9204	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9205-	●	●
43	BOLT; STAY,AIR TANK,MAIN SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (C) M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-	●	●
44	PIN; SPLIT OD=2.8 L=18	9-08113-018-0	02	1	9002-	●	●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	12	1	9002-	●	●
64	STAY; AIR TANK,MAIN	1-48317-220-1	01	1	9002-	●	●
67	STAY; SUB TANK	1-48317-271-0	01	1	9002-	●	●

121 95 111 111 111 111 241 243 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
95	VALVE; DOUBLE CHECK NYLON TUBE AIR PIPING<Z29>	1-48410-251-0	02	1	9307-	●
111	CONNECTOR; CHECK VLV NYLON TUBE AIR PIPING<Z29> (A) STRAIGHT 11/16-20 UNS	1-09660-531-0	01	1	9307-	●
111	CONNECTOR; CHECK VLV NYLON TUBE AIR PIPING<Z29> (B) ELBOW 17/32-24 UNS	1-09660-534-0	01	1	9307-	●
111	CONNECTOR; CHECK VLV NYLON TUBE AIR PIPING<Z29> (B) ELBOW 11/16-20 UNS	1-09660-535-0	01	1	9307-	●
111	CONNECTOR; CHECK VLV NYLON TUBE AIR PIPING<Z29> (A) STRAIGHT 17/32-24 UNS	1-09660-555-0	02	1	9307-	●
111	CONNECTOR; CHECK VLV NYLON TUBE AIR PIPING<Z29> (C) 3WAY	1-09660-563-0	01	1	9307-	●
121	BOLT; DOUBLE CHECK VLV NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	02	1	9307-	●
241	BOLT; SET,CONT VLV HONG KONG EQUIPMENT(PQ1) M8X30	9-01970-830-0	01	1	9002-9005	●
241	BOLT; SET,CONT VLV HONG KONG EQUIPMENT(PQ1) M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9006-9312	●
241	BOLT; SET,CONT VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9401-	●
241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> EXC. HONG KONG EQUIPMENT(PQ1) M8X65	9-01055-865-0	02	1	9002-9005	●
241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> EXC. HONG KONG EQUIPMENT(PQ1) M8X65	0-10805-865-0	02	1	9006-9306	●
242	WASHER; LK,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> EXC. HONG KONG EQUIPMENT(PQ1) ID=8.2	9-09150-508-0	02	1	9002-9306	●
243	WASHER; PL,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> EXC. HONG KONG EQUIPMENT(PQ1) ID=8.4	9-09160-508-0	02	1	9002-9306	●

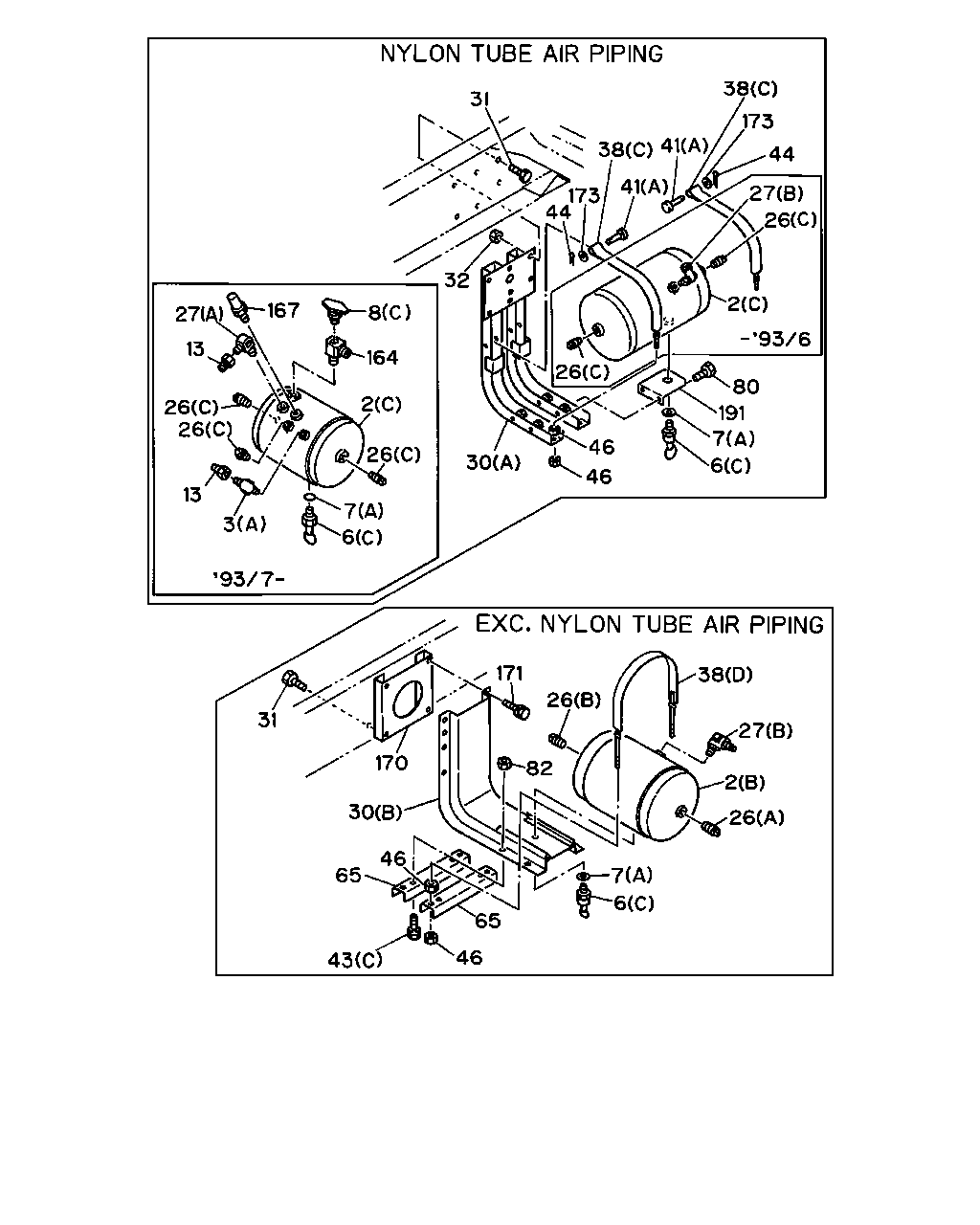

31 38 173 38 41 27 44 26 2 41 173 44 80 6 191 26 32 30 46 46 7 8 167 27 164 13 2 26 26 26 13 7 6 3 171 31 170 30 26 82 38 27 2 26 7 6 65 46 43 46 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (C)	1-48330-378-1	01	1	9002-9306	●
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (C)	1-48370-024-0	01	1	9307-	●
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> (A)	1-48370-144-0	01	1	9307-	●
2	TANK; AIR EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48330-228-0	01	1	9002-	●
2	TANK; AIR (A)	1-48330-228-0	01	1	9002-		●
2	TANK; AIR SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48330-789-0	01	1	9002-	●	●
3	VALVE; CHECK,AIR TANK HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD> (A)	1-48410-133-2	01	1	9002-	●
3	VALVE; CHECK,AIR TANK NYLON TUBE AIR PIPING<Z29> (A)	1-48410-133-2	01	1	9002-	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48410-133-2	04	1	9002-	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B)	1-48410-133-2	03	1	9002-	●	●
6	COCK; DRAIN,AIR TANK (B) W/COVER	1-48312-004-1	04	1	9002-9407	●	●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> EXC. NYLON TUBE AIR PIPING<Z29> (C) W/COVER	1-48312-004-1	03	1	9408-9509	●	●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-48312-015-0	03	1	9510-	●	●
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (C) W/COVER	1-48312-004-1	04	1	9408-9509	●	●
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (C)	1-48312-015-0	04	1	9510-	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	9-09904-177-0	01	1	9002-	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (C) W/COVER	1-48312-004-1	01	1	9002-9509	●	●
6	COCK; DRAIN,AIR TANK SUB AIR TANK<SJD> (C) W/COVER	1-48312-004-1	01	1	9002-9509	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (C)	1-48312-015-0	01	1	9510-	●	●
6	COCK; DRAIN,AIR TANK SUB AIR TANK<SJD> (C)	1-48312-015-0	01	1	9510-	●	●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9306	●	●
7	GASKET; DRAIN COCK SUB AIR TANK<SJD> (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9306	●	●
7	GASKET; DRAIN COCK (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9306	●	●
7	GASKET; DRAIN COCK (B) ID=14.2 OD=19.2	1-09630-085-0	04	1	9307-	●	●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	9307-	●	●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9602	●	●
7	GASKET; DRAIN COCK SUB AIR TANK<SJD> (A) ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9602	●	●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-	●
7	GASKET; DRAIN COCK SUB AIR TANK<SJD> (A) ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-	●
8	CONNECTOR; AIR TANK NYLON TUBE AIR PIPING<Z29> (C)	1-47459-002-0	01	1	9307-	●
8	CONNECTOR; AIR TANK NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> (B)	1-09660-687-0	03	1	9307-	●
8	CONNECTOR; AIR TANK NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> (A)	1-47459-002-0	03	1	9307-	●
13	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M20X36	1-09660-576-0	04	1	9307-	●
26	PLUG; SUB AIR TANK NYLON TUBE AIR PIPING<Z29> (C) PT1/4	9-99204-513-0	02	1	9002-9306	●
26	PLUG; SUB AIR TANK NYLON TUBE AIR PIPING<Z29> (C) PT1/4	9-99204-513-0	03	1	9307-	●
26	PLUG; SUB AIR TANK SUB AIR TANK<SJD> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) PT1/2	9-09204-521-0	01	1	9002-	●	●
26	PLUG; SUB AIR TANK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (B) PT1/4	9-99204-513-0	01	1	9002-	●	●
27	UNION; ELBOW,AIR TANK HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD> (B) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302	●
27	UNION; ELBOW,AIR TANK HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-	●
27	UNION; ELBOW,AIR TANK NYLON TUBE AIR PIPING<Z29> (B)	1-09660-238-0	01	1	9002-9306	●
27	UNION; ELBOW,AIR TANK NYLON TUBE AIR PIPING<Z29> (A)	1-09660-574-0	01	1	9307-	●
27	UNION; ELBOW,AIR TANK SUB AIR TANK<SJD> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B)	1-09650-261-1	01	1	9002-	●	●
30	BRACKET; AIR TANK,SUB NYLON TUBE AIR PIPING<Z29> (A)	1-48317-377-1	01	1	9002-	●
30	BRACKET; AIR TANK,SUB SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48317-461-2	01	1	9002-9204	●	●
30	BRACKET; AIR TANK,SUB SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48317-390-8	01	1	9205-	●	●
31	BOLT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M10X25 W/LK WASHER	0-50041-025-0	03	1	9002-	●
31	BOLT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M10X32 W/LK WASHER	0-50041-032-0	03	1	9002-	●
31	BOLT; BRKT TO FRAME SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M12X35	9-01911-235-0	04	1	9002-9005	●	●
31	BOLT; BRKT TO FRAME SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	0-50041-235-0	04	1	9006-	●
32	NUT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	06	1	9002-	●
38	BAND; AIR TANK NYLON TUBE AIR PIPING<Z29> (C)	1-48317-378-1	02	1	9002-	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9002-	●	●
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9002-	●	●
38	BAND; AIR TANK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (D)	1-48317-187-1	02	1	9002-	●	●
41	PIN; BAND FIX NYLON TUBE AIR PIPING<Z29> (A) OD=10 L=60	9-08224-060-0	02	1	9002-9407	●
41	PIN; BAND FIX (B) OD=10 L=60	9-08224-060-0	02	1	9408-	●	●
41	PIN; BAND FIX (B)	9-08221-060-0	02	1	9002-9407	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	9-01960-620-0	04	1	9002-9204	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9205-	●	●
43	BOLT; STAY,AIR TANK,MAIN SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (C) M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-	●	●
44	PIN; SPLIT OD=2.8 L=18	9-08113-018-0	02	1	9002-	●	●
46	NUT; U-BOLT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-	●
46	NUT; U-BOLT SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	08	1	9002-	●	●
65	STAY; AIR TANK,SUB SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29>	1-48317-391-0	02	1	9002-	●	●
80	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
80	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●
80	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	02	1	9307-	●
82	NUT; STAY,AIR MASTER BRKT SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	04	1	9307-	●	●
164	CONNECTOR; SUB AIR TANK NYLON TUBE AIR PIPING<Z29>	1-09660-687-0	01	1	9307-	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB NYLON TUBE AIR PIPING<Z29>	1-48340-040-0	01	1	9307-9411	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB NYLON TUBE AIR PIPING<Z29> 530KPA	1-48340-054-0	01	1	9412-	●
170	DISTANCE; AIR TANK,SUB SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29>	1-48319-094-0	01	1	9002-	●	●
171	BOLT; BRKT TO DIST SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
171	BOLT; BRKT TO DIST SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●
173	WASHER; PL,AIR TANK,SUB NYLON TUBE AIR PIPING<Z29> ID=10.5	9-09164-510-0	02	1	9002-	●
191	BRACKET; STOPPER,AIR TANK NYLON TUBE AIR PIPING<Z29>	1-48317-379-0	01	1	9002-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
