1-50 — EXHAUST PIPE AND SILENCER (#174) — 56 parça

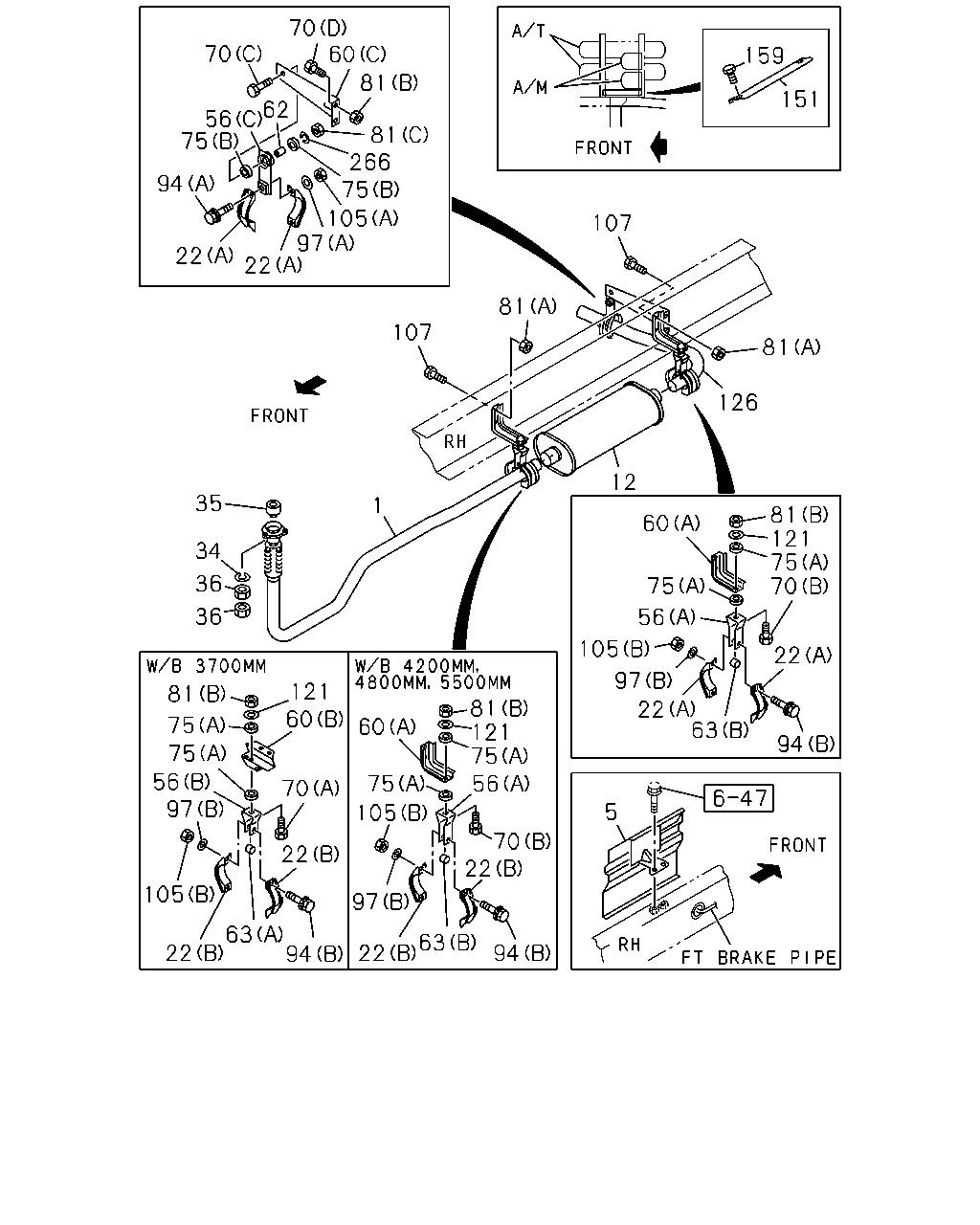

çizim 27360
70 60 70 159 81 151 62 56 75 81 266 75 94 105 97 107 22 22 81 107 81 126 12 35 1 81 121 75 70 60 34 36 75 36 56 105 22 81 121 75 56 97 121 60 81 22 63 75 75 60 94 56 97 75 70 5 105 70 22 22 105 97 63 22 94 63 22 94
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-22122-368-0 01 1 9212- ● ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT VAR2<TAK> 		1-22122-252-2 01 1 9212- ● ●
5 PROTECTOR; HEAT 1-33659-167-1 01 1 9212- ● ●
12 SILENCER ASM; EXH 1-22140-715-2 01 1 9212- ● ●
22 CLAMP; EXH PIPE
(B) L=120 		1-22133-231-0 02 1 9212- ● ●
22 CLAMP; EXH PIPE
(A) ID=75-78 		1-22133-232-0 04 1 9212- ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9212- ● ●
35 GASKET; EXH PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> 		1-22116-024-0 01 1 9212- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9212- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22131-584-0 01 1 9212- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) H=100 		1-22139-052-0 01 1 9212- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) (A) H=100 		1-22139-052-0 01 1 9212- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (B) 		1-22139-044-0 01 1 9212- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		1-22131-639-1 01 1 9212- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-512-2 01 1 9212- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) (A) 		1-22151-512-2 01 1 9212- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (B) 		1-22151-534-3 01 1 9212- ● ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9212- ● ●
63 TUBE; DIST,BRKT
(B) L=11 		1-22139-026-0 01 1 9212- ● ●
63 TUBE; DIST,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) (B) L=11 		1-22139-026-0 01 1 9212- ● ●
63 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W) (A) L=8.5 		1-22139-057-0 01 1 9212- ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9212- ● ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) (B) M10X50 		0-10806-050-0 01 1 9212- ● ●
70 BOLT; BRKT
(C) M10X55 		0-10806-055-0 01 1 9212- ● ●
70 BOLT; BRKT
(D) M10X30 W/LK WASHER 		0-50041-030-0 02 1 9212-9307 ● ●
70 BOLT; BRKT
(D) M10X30 FLANGE 		0-28081-030-0 02 1 9308- ● ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W) (A) M10X45 		0-10806-045-0 01 1 9212- ● ●
75 RUBBER; SUPPORT,BRKT
(A) 		1-22159-106-1 04 1 9212- ● ●
75 RUBBER; SUPPORT,BRKT
(B) 		1-22159-119-0 02 1 9212- ● ●
81 NUT; BRKT
(C) M10 		9-09110-510-0 01 1 9212- ● ●
81 NUT; BRKT
(A) M10 		9-09110-510-0 02 1 9212- ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) (A) M10 		9-09110-510-0 02 1 9212- ● ●
81 NUT; BRKT
(B) M10 LOCK NUT 		9-09131-510-0 02 1 9212- ● ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) (A) M10 		9-09110-510-0 03 1 9212- ● ●
94 BOLT; CLAMP
(A) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9212- ● ●
94 BOLT; CLAMP
(B) M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 9212- ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9212- ● ●
97 WASHER; PL,CLAMP
(B) ID=10.5 		9-09164-510-0 04 1 9212- ● ●
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 9212- ● ●
105 NUT; CLAMP
(B) M10 		9-09110-510-0 04 1 9212- ● ●
107 BOLT; BRKT
M10X30 W/LK WASHER 		0-50041-030-0 02 1 9212-9307 ● ●
107 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) M10X30 W/LK WASHER 		0-50041-030-0 02 1 9212-9307 ● ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28081-030-0 02 1 9308- ● ●
107 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) M10X30 FLANGE 		0-28081-030-0 02 1 9308- ● ●
107 BOLT; BRKT
WHEEL BASE 3700MM(37W) M10X25 W/LK WASHER 		0-50041-025-0 03 1 9212-9307 ● ●
107 BOLT; BRKT
WHEEL BASE 3700MM(37W) M10X25 FLANGE 		0-28081-025-0 03 1 9308- ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 02 1 9212- ● ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-22126-071-0 01 1 9212- ● ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-22126-071-0 01 1 9212- ● ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-22126-072-0 01 1 9212- ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-22126-073-0 01 1 9212- ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-22126-024-2 01 1 9212- ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-22126-024-2 01 1 9212- ● ●
151 PROTECTOR; HEAT,EXH PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-53319-018-0 01 1 9212- ● ●
159 BOLT; HEAT PROTECTOR
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE 		0-28080-825-0 02 1 9212- ● ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9212- ● ●
