◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#17394) — 14 parça

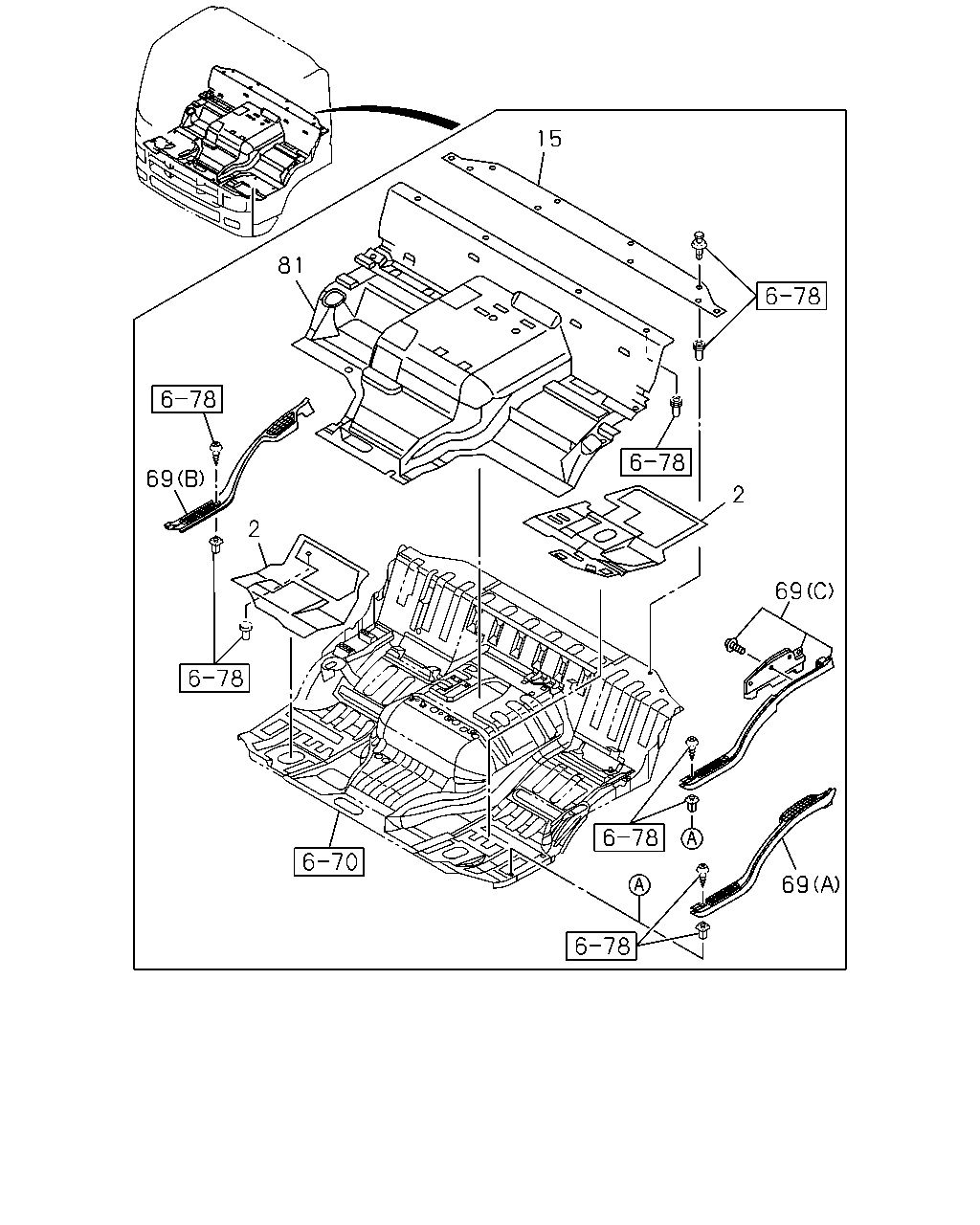

çizim 62853
15 81 69 2 2 69 69
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
GRAY 		8-97412-941-2 01 1 0906-1204 ●
2 MAT; FLOOR
GRAY 		8-97412-941-2 01 1 1205- ● ●
2 MAT; FLOOR
GRAY 		8-97415-003-1 01 1 0906-1204 ●
2 MAT; FLOOR
GRAY 		8-97415-003-1 01 1 1205- ● ●
15 MAT; FLOOR REAR
GRAY 		8-97407-517-1 01 1 0906-1204 ●
15 MAT; FLOOR REAR
GRAY 		8-97407-517-1 01 1 1205- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(B) GRAY 		8-97412-925-0 01 1 0906-1204 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(B) GRAY 		8-97412-925-0 01 1 1205- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97412-929-0 01 1 0906-1204 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97412-929-0 01 1 1205- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97412-927-0 01 1 0906-1204 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97412-927-0 01 1 1205- ● ●
81 MAT; FLOOR,CENTER
GRAY 		8-97411-793-4 01 1 1205- ●
81 MAT; FLOOR,CENTER
GRAY 		8-97411-795-3 01 1 0906- ●
