6-20 — SIDE PANEL AND STEP (#17384) — 200 parça

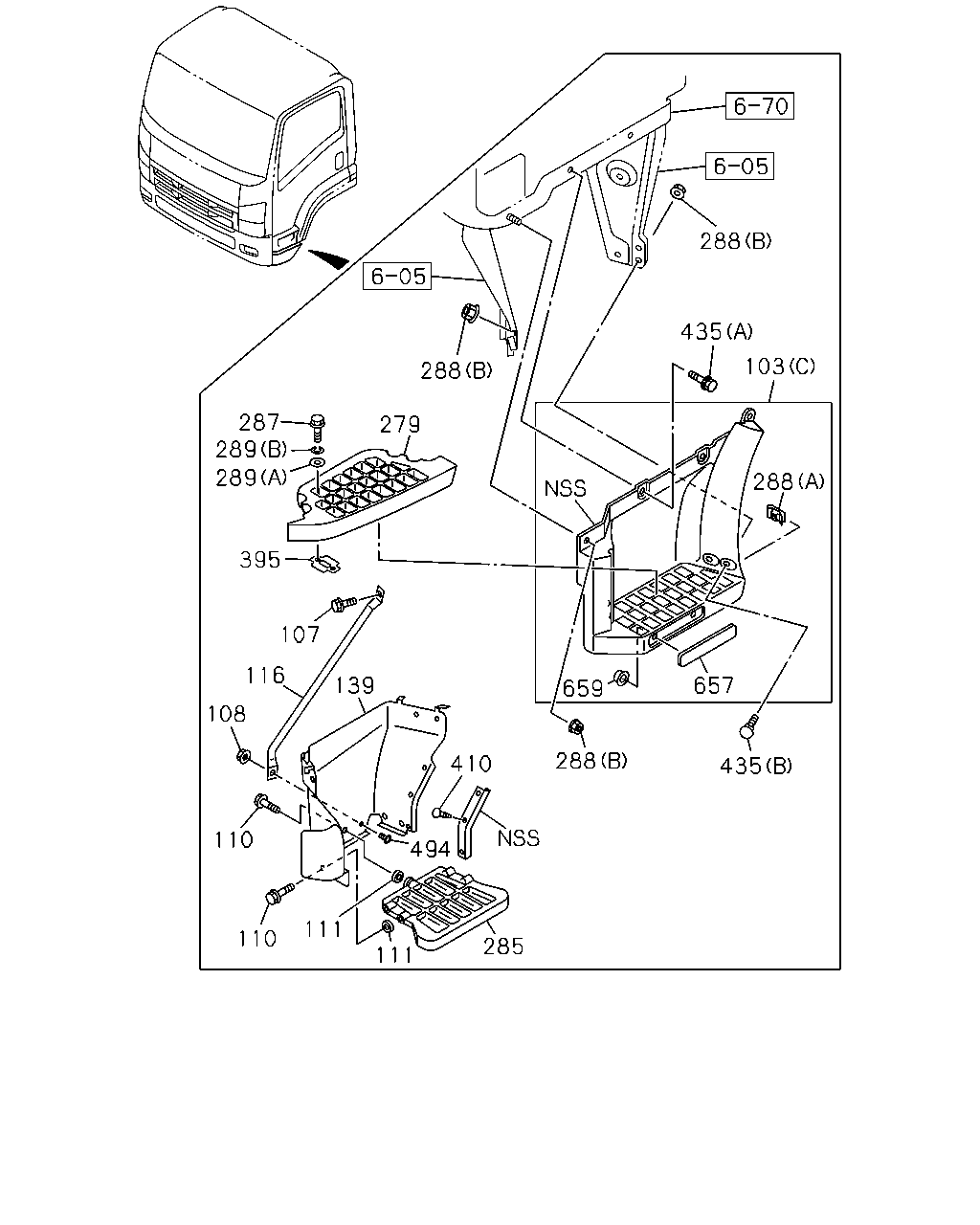

288 279 287 289 289 395 107 139 116 108 110 110 111 111 285 494 410 288 435 657 659 288 103 435 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
103	PLATE; STEP KD PREPARATORY PACK<6HF> (C)	8-98037-329-3	01	1	0906-1204	●
103	PLATE; STEP KD PREPARATORY PACK<6HF> (C)	8-98037-329-3	01	1	1205-	●	●
103	PLATE; STEP KD PREPARATORY PACK<6HF> (C)	8-98037-327-3	01	1	0906-1204	●
103	PLATE; STEP KD PREPARATORY PACK<6HF> (C)	8-98037-327-3	01	1	1205-	●	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98080-623-1	01	1	0906-1204	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98080-623-1	01	1	1205-	●	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98080-628-0	01	1	0906-1204	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98080-628-0	01	1	1205-	●	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98080-622-1	01	1	0906-1204	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98080-622-1	01	1	1205-	●	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98080-627-0	01	1	0906-1204	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98080-627-0	01	1	1205-	●	●
107	BOLT; SIDE STEP M8X20 FLANGE	0-28650-820-0	02	1	0906-1204	●
107	BOLT; SIDE STEP M8X20 FLANGE	0-28650-820-0	02	1	1205-	●	●
108	NUT; SIDE STEP M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
108	NUT; SIDE STEP M8 FLANGE	0-91180-108-0	02	1	1205-	●	●
110	BOLT; 1ST STEP PLATE M8X16 FLANGE	0-28050-816-0	10	1	0906-1204	●
110	BOLT; 1ST STEP PLATE M8X16 FLANGE	0-28050-816-0	10	1	1205-	●	●
111	COVER; 1ST STEP	1-71998-153-0	10	1	0906-1204	●
111	COVER; 1ST STEP	1-71998-153-0	10	1	1205-	●	●
116	STAY; 1ST STEP,FRT	8-98080-640-0	01	1	0906-1204	●
116	STAY; 1ST STEP,FRT	8-98080-640-0	01	1	1205-	●	●
116	STAY; 1ST STEP,FRT	8-98080-639-0	01	1	0906-1204	●
116	STAY; 1ST STEP,FRT	8-98080-639-0	01	1	1205-	●	●
139	CLOSING; 1ST STEP	8-98080-636-0	01	1	0906-1204	●
139	CLOSING; 1ST STEP	8-98080-636-0	01	1	1205-	●	●
139	CLOSING; 1ST STEP	8-98080-635-0	01	1	0906-1204	●
139	CLOSING; 1ST STEP	8-98080-635-0	01	1	1205-	●	●
279	BOARD; STEP 1ST KD PREPARATORY PACK<6HF>	8-98080-628-0	01	1	0906-1204	●
279	BOARD; STEP 1ST KD PREPARATORY PACK<6HF>	8-98080-628-0	01	1	1205-	●	●
279	BOARD; STEP 1ST KD PREPARATORY PACK<6HF>	8-98080-627-0	01	1	0906-1204	●
279	BOARD; STEP 1ST KD PREPARATORY PACK<6HF>	8-98080-627-0	01	1	1205-	●	●
285	PLATE; STEP,1ST STEP	1-71998-312-2	02	1	0906-1204	●
285	PLATE; STEP,1ST STEP	1-71998-312-2	02	1	1205-	●	●
287	BOLT; BOARD STEP KD PREPARATORY PACK<6HF>	8-98112-671-0	08	1	0906-1006	●
287	BOLT; BOARD STEP KD PREPARATORY PACK<6HF>	8-98165-009-0	08	1	1007-1204	●
287	BOLT; BOARD STEP KD PREPARATORY PACK<6HF>	8-98165-009-0	08	1	1205-	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	0906-1204	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1205-	●	●
288	NUT; STEP (A) M8	8-98040-792-0	02	1	0906-1204	●
288	NUT; STEP (A) M8	8-98040-792-0	02	1	1205-	●	●
289	WASHER; PL,STEP KD PREPARATORY PACK<6HF> (A)	8-98112-672-1	08	1	0906-1204	●
289	WASHER; PL,STEP KD PREPARATORY PACK<6HF> (A)	8-98112-672-1	08	1	1205-	●	●
289	WASHER; PL,STEP KD PREPARATORY PACK<6HF> (B)	8-98112-673-1	08	1	0906-1204	●
289	WASHER; PL,STEP KD PREPARATORY PACK<6HF> (B)	8-98112-673-1	08	1	1205-	●	●
395	BRACKET; SIDE STEP KD PREPARATORY PACK<6HF>	8-98080-646-1	04	1	0906-1204	●
395	BRACKET; SIDE STEP KD PREPARATORY PACK<6HF>	8-98080-646-1	04	1	1205-	●	●
410	CLIP; COVER,STEP PLATE OD=12 L=14.8	8-94279-921-0	06	1	0906-1204	●
410	CLIP; COVER,STEP PLATE OD=12 L=14.8	8-94279-921-0	06	1	1205-	●	●
435	BOLT; RR STEP (B) M8X16	8-98049-538-1	08	1	0906-0907	●
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	0908-1204	●
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	1205-	●	●
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0906-1204	●
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1205-	●	●
494	STUD; BRKT	8-94389-701-0	02	1	0906-1204	●
494	STUD; BRKT	8-94389-701-0	02	1	1205-	●	●
657	REFLECTOR; REFLEX	8-97378-910-0	02	1	0906-1204	●
657	REFLECTOR; REFLEX	8-97378-910-0	02	1	1205-	●	●
659	CLIP; SPRING NUT	8-97811-510-0	04	1	0906-1204	●
659	CLIP; SPRING NUT	8-97811-510-0	04	1	1205-	●	●

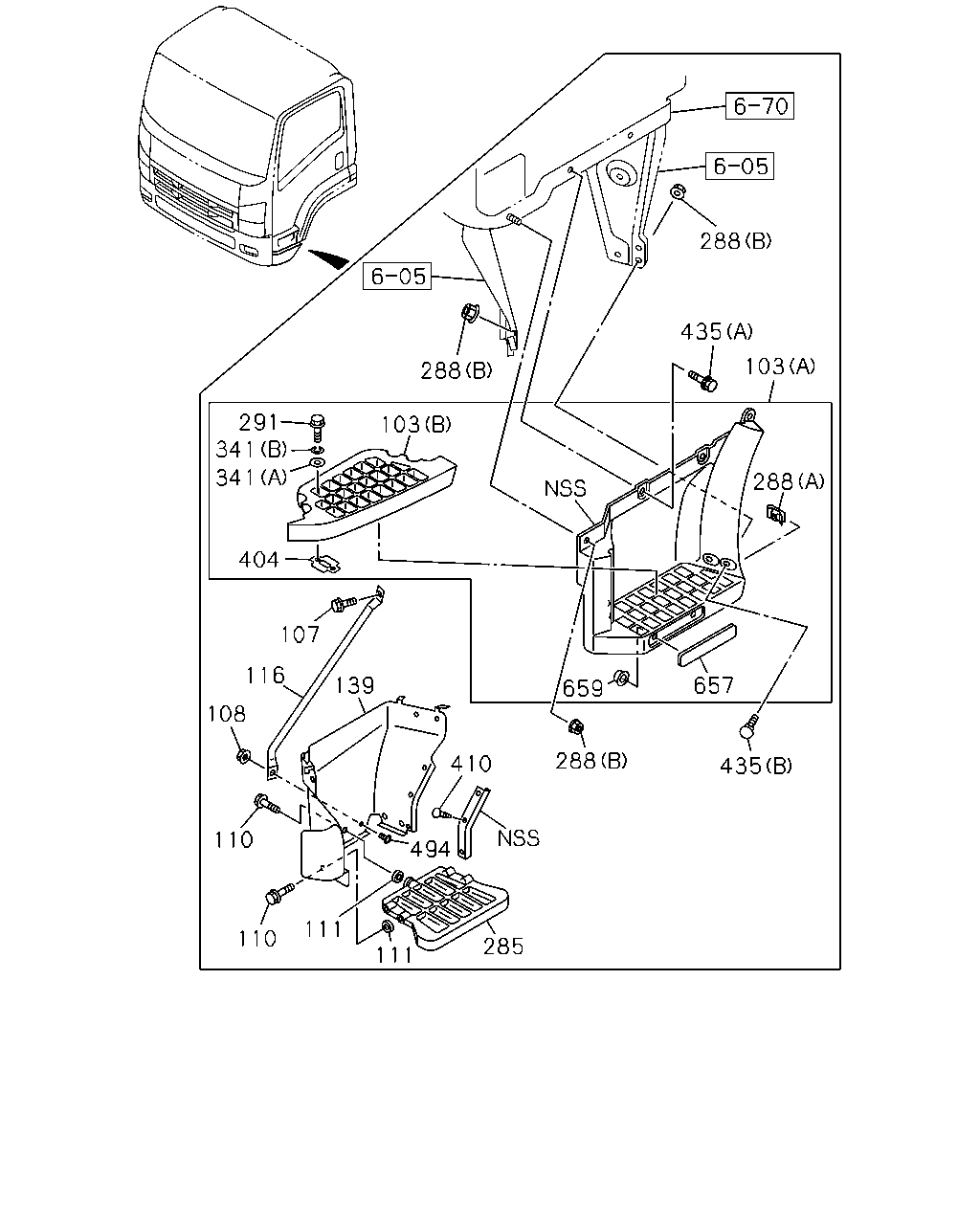

291 341 341 404 107 116 139 108 110 110 111 111 494 410 285 288 435 657 659 288 103 435 288 103 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
103	PLATE; STEP KD PREPARATORY PACK<6HF> (C)	8-98037-329-3	01	1	0906-1204	●
103	PLATE; STEP KD PREPARATORY PACK<6HF> (C)	8-98037-329-3	01	1	1205-	●	●
103	PLATE; STEP KD PREPARATORY PACK<6HF> (C)	8-98037-327-3	01	1	0906-1204	●
103	PLATE; STEP KD PREPARATORY PACK<6HF> (C)	8-98037-327-3	01	1	1205-	●	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98080-623-1	01	1	0906-1204	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98080-623-1	01	1	1205-	●	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98080-628-0	01	1	0906-1204	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98080-628-0	01	1	1205-	●	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98080-622-1	01	1	0906-1204	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98080-622-1	01	1	1205-	●	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98080-627-0	01	1	0906-1204	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98080-627-0	01	1	1205-	●	●
107	BOLT; SIDE STEP M8X20 FLANGE	0-28650-820-0	02	1	0906-1204	●
107	BOLT; SIDE STEP M8X20 FLANGE	0-28650-820-0	02	1	1205-	●	●
108	NUT; SIDE STEP M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
108	NUT; SIDE STEP M8 FLANGE	0-91180-108-0	02	1	1205-	●	●
110	BOLT; 1ST STEP PLATE M8X16 FLANGE	0-28050-816-0	10	1	0906-1204	●
110	BOLT; 1ST STEP PLATE M8X16 FLANGE	0-28050-816-0	10	1	1205-	●	●
111	COVER; 1ST STEP	1-71998-153-0	10	1	0906-1204	●
111	COVER; 1ST STEP	1-71998-153-0	10	1	1205-	●	●
116	STAY; 1ST STEP,FRT	8-98080-640-0	01	1	0906-1204	●
116	STAY; 1ST STEP,FRT	8-98080-640-0	01	1	1205-	●	●
116	STAY; 1ST STEP,FRT	8-98080-639-0	01	1	0906-1204	●
116	STAY; 1ST STEP,FRT	8-98080-639-0	01	1	1205-	●	●
139	CLOSING; 1ST STEP	8-98080-636-0	01	1	0906-1204	●
139	CLOSING; 1ST STEP	8-98080-636-0	01	1	1205-	●	●
139	CLOSING; 1ST STEP	8-98080-635-0	01	1	0906-1204	●
139	CLOSING; 1ST STEP	8-98080-635-0	01	1	1205-	●	●
285	PLATE; STEP,1ST STEP	1-71998-312-2	02	1	0906-1204	●
285	PLATE; STEP,1ST STEP	1-71998-312-2	02	1	1205-	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	0906-1204	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1205-	●	●
288	NUT; STEP (A) M8	8-98040-792-0	02	1	0906-1204	●
288	NUT; STEP (A) M8	8-98040-792-0	02	1	1205-	●	●
291	BOLT; STEP PLATE EXC. KD PREPARATORY PACK<6HF>	8-98112-671-0	08	1	0906-1006	●
291	BOLT; STEP PLATE EXC. KD PREPARATORY PACK<6HF>	8-98165-009-0	08	1	1007-1204	●
291	BOLT; STEP PLATE EXC. KD PREPARATORY PACK<6HF>	8-98165-009-0	08	1	1205-	●	●
341	WASHER; PL,STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98112-672-1	08	1	0906-1204	●
341	WASHER; PL,STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98112-672-1	08	1	1205-	●	●
341	WASHER; PL,STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98112-673-1	08	1	0906-1204	●
341	WASHER; PL,STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98112-673-1	08	1	1205-	●	●
404	BRACKET EXC. KD PREPARATORY PACK<6HF>	8-98080-646-1	04	1	0906-1204	●
404	BRACKET EXC. KD PREPARATORY PACK<6HF>	8-98080-646-1	04	1	1205-	●	●
410	CLIP; COVER,STEP PLATE OD=12 L=14.8	8-94279-921-0	06	1	0906-1204	●
410	CLIP; COVER,STEP PLATE OD=12 L=14.8	8-94279-921-0	06	1	1205-	●	●
435	BOLT; RR STEP (B) M8X16	8-98049-538-1	08	1	0906-0907	●
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	0908-1204	●
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	1205-	●	●
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0906-1204	●
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1205-	●	●
494	STUD; BRKT	8-94389-701-0	02	1	0906-1204	●
494	STUD; BRKT	8-94389-701-0	02	1	1205-	●	●
657	REFLECTOR; REFLEX	8-97378-910-0	02	1	0906-1204	●
657	REFLECTOR; REFLEX	8-97378-910-0	02	1	1205-	●	●
659	CLIP; SPRING NUT	8-97811-510-0	04	1	0906-1204	●
659	CLIP; SPRING NUT	8-97811-510-0	04	1	1205-	●	●

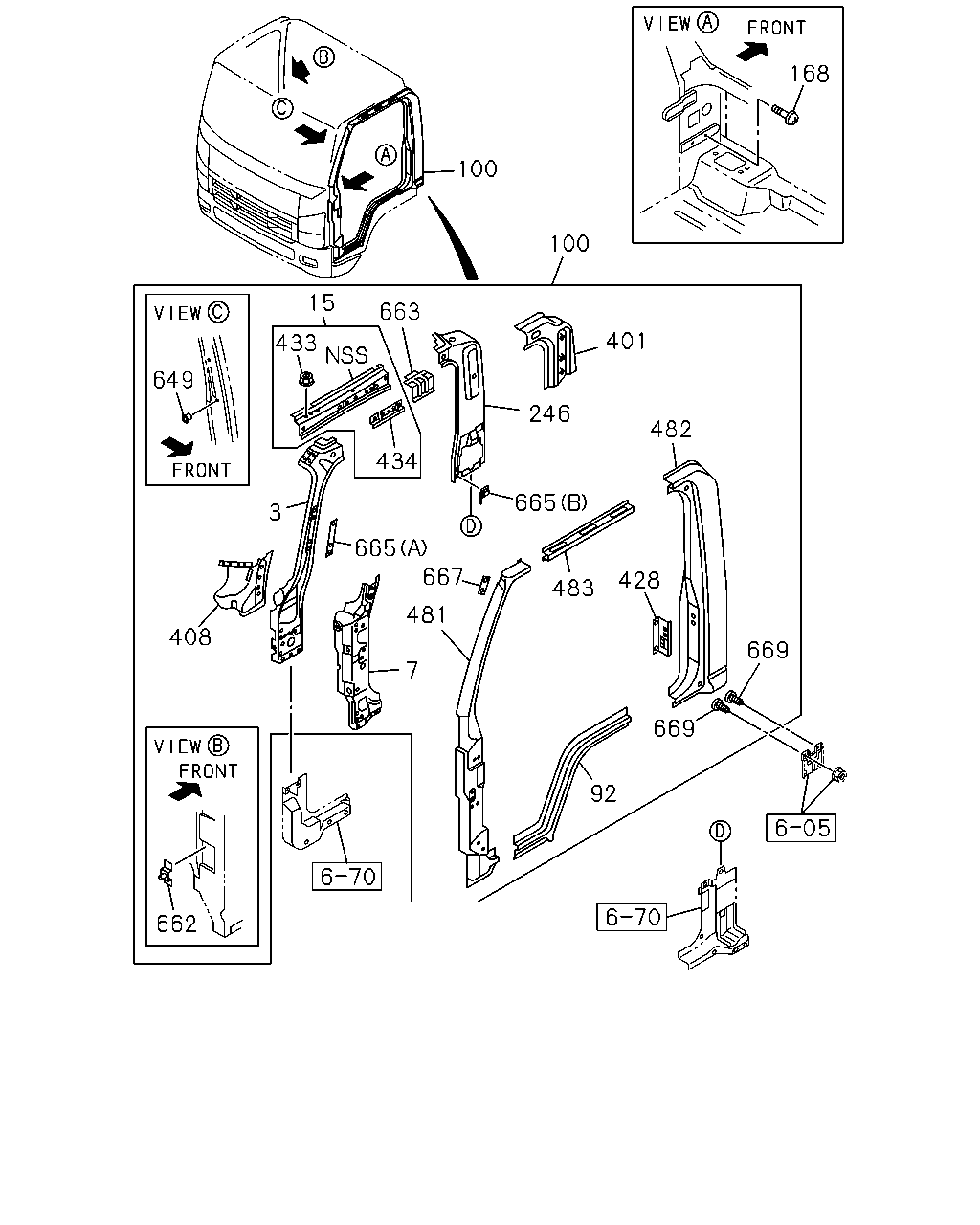

168 100 100 15 663 401 433 649 246 482 434 665 3 665 667 428 483 481 408 669 7 669 92 662

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PANEL; CLOSING,FRT PILLAR	8-98058-237-1	01	1	0906-1204	●
3	PANEL; CLOSING,FRT PILLAR	8-98058-237-1	01	1	1205-	●	●
3	PANEL; CLOSING,FRT PILLAR	8-98058-236-1	01	1	0906-1204	●
3	PANEL; CLOSING,FRT PILLAR	8-98058-236-1	01	1	1205-	●	●
7	REINFORCEMENT; HINGE	8-97585-244-4	01	1	0906-1204	●
7	REINFORCEMENT; HINGE	8-97585-244-4	01	1	1205-	●	●
7	REINFORCEMENT; HINGE	8-97585-240-3	01	1	0906-1204	●
7	REINFORCEMENT; HINGE	8-97585-240-3	01	1	1205-	●	●
15	PANEL; CANT RAIL SIDE	8-97585-293-2	01	1	0906-1204	●
15	PANEL; CANT RAIL SIDE	8-97585-293-2	01	1	1205-	●	●
15	PANEL; CANT RAIL SIDE	8-97585-292-2	01	1	0906-1204	●
15	PANEL; CANT RAIL SIDE	8-97585-292-2	01	1	1205-	●	●
92	PANEL; SIDE SILL,CAB	8-98055-462-1	01	1	0906-1204	●
92	PANEL; SIDE SILL,CAB	8-98055-462-1	01	1	1205-	●	●
92	PANEL; SIDE SILL,CAB	8-98055-461-1	01	1	0906-1204	●
92	PANEL; SIDE SILL,CAB	8-98055-461-1	01	1	1205-	●	●
100	PANEL ASM; BODY SIDE	8-97586-056-4	01	1	0906-1204	●
100	PANEL ASM; BODY SIDE	8-97586-056-4	01	1	1205-	●	●
100	PANEL ASM; BODY SIDE	8-98088-577-4	01	1	0906-1204	●
100	PANEL ASM; BODY SIDE	8-98088-577-4	01	1	1205-	●	●
168	BOLT; BODY SIDE PANEL SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	08	1	0906-1204	●
168	BOLT; BODY SIDE PANEL SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	08	1	1205-	●	●
246	PANEL; RR PILLAR,INNER	8-97585-301-3	01	1	0906-1204	●
246	PANEL; RR PILLAR,INNER	8-97585-301-3	01	1	1205-	●	●
246	PANEL; RR PILLAR,INNER	8-97586-154-3	01	1	0906-1204	●
246	PANEL; RR PILLAR,INNER	8-97586-154-3	01	1	1205-	●	●
401	PATCH; CLOSING,FRT PILLAR	8-97585-303-2	01	1	0906-1204	●
401	PATCH; CLOSING,FRT PILLAR	8-97585-303-2	01	1	1205-	●	●
401	PATCH; CLOSING,FRT PILLAR	8-98065-791-0	01	1	0906-1204	●
401	PATCH; CLOSING,FRT PILLAR	8-98065-791-0	01	1	1205-	●	●
408	GUSSET; PILLAR	8-97586-194-2	01	1	0906-1204	●
408	GUSSET; PILLAR	8-97586-194-2	01	1	1205-	●	●
408	GUSSET; PILLAR	8-97586-193-3	01	1	0906-1204	●
408	GUSSET; PILLAR	8-97586-193-3	01	1	1205-	●	●
428	REINFORCEMENT; DOOR STRIKER	8-97585-261-4	01	1	0906-1204	●
428	REINFORCEMENT; DOOR STRIKER	8-97585-261-4	01	1	1205-	●	●
428	REINFORCEMENT; DOOR STRIKER	8-97585-260-4	01	1	0906-1204	●
428	REINFORCEMENT; DOOR STRIKER	8-97585-260-4	01	1	1205-	●	●
433	NUT; HEADER SHELF M6	9-09114-086-0	04	1	0906-0907	●
433	NUT; HEADER SHELF M6	9-09114-086-0	02	1	0908-1204	●
433	NUT; HEADER SHELF M6	9-09114-086-0	02	1	0908-1204	●
433	NUT; HEADER SHELF M6	9-09114-086-0	02	1	1205-	●	●
433	NUT; HEADER SHELF M6	9-09114-086-0	02	1	1205-	●	●
434	PATCH; ASSIST GRIP	8-98039-020-0	01	1	0906-1204	●
434	PATCH; ASSIST GRIP	8-98039-020-0	01	1	1205-	●	●
434	PATCH; ASSIST GRIP	8-98039-019-0	01	1	0906-1204	●
434	PATCH; ASSIST GRIP	8-98039-019-0	01	1	1205-	●	●
481	PANEL; SIDE FRT PILLAR	8-98093-581-0	01	1	0906-1204	●
481	PANEL; SIDE FRT PILLAR	8-98093-581-0	01	1	1205-	●	●
481	PANEL; SIDE FRT PILLAR	8-98092-911-0	01	1	0906-1204	●
481	PANEL; SIDE FRT PILLAR	8-98092-911-0	01	1	1205-	●	●
482	PANEL; SIDE RR PILLAR	8-98055-467-1	01	1	0906-1204	●
482	PANEL; SIDE RR PILLAR	8-98055-467-1	01	1	1205-	●	●
482	PANEL; SIDE RR PILLAR	8-98092-922-0	01	1	0906-1204	●
482	PANEL; SIDE RR PILLAR	8-98092-922-0	01	1	1205-	●	●
483	PANEL; SIDE CANTRAIL	8-98055-460-0	01	1	0906-1204	●
483	PANEL; SIDE CANTRAIL	8-98055-460-0	01	1	1205-	●	●
483	PANEL; SIDE CANTRAIL	8-98055-458-0	01	1	0906-1204	●
483	PANEL; SIDE CANTRAIL	8-98055-458-0	01	1	1205-	●	●
649	NUT; POP M5 POP NUT	8-97249-574-0	02	1	0906-1204	●
649	NUT; POP M5 POP NUT	8-97249-574-0	02	1	1205-	●	●
662	BRACKET; DUCT	8-97584-611-1	01	1	0906-1204	●
662	BRACKET; DUCT	8-97584-611-1	01	1	1205-	●	●
663	BRACKET; AIR	8-97585-208-2	01	1	0906-1204	●
663	BRACKET; AIR	8-97585-208-2	01	1	1205-	●	●
663	BRACKET; AIR	8-97585-207-2	01	1	0906-1204	●
663	BRACKET; AIR	8-97585-207-2	01	1	1205-	●	●
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	02	1	0906-0907	●
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	01	1	0908-1204	●
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	01	1	0908-1204	●
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	01	1	1205-	●	●
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	01	1	1205-	●	●
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	02	1	0906-0907	●
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	01	1	0908-1204	●
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	01	1	0908-1204	●
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	01	1	1205-	●	●
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	01	1	1205-	●	●
667	BRACKET; MIRROR	8-98109-948-0	01	1	0906-1204	●
667	BRACKET; MIRROR	8-98109-948-0	01	1	1205-	●	●
669	STUD; FENDER M6X18	8-98013-113-1	04	1	0906-0907	●
669	STUD; FENDER M6X18	8-98013-113-1	02	1	0908-1204	●
669	STUD; FENDER M6X18	8-98013-113-1	02	1	0908-1204	●
669	STUD; FENDER M6X18	8-98013-113-1	02	1	1205-	●	●
669	STUD; FENDER M6X18	8-98013-113-1	02	1	1205-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
