3-10 — BRAKE PEDAL AND CONTROL (#1738) — 101 parça

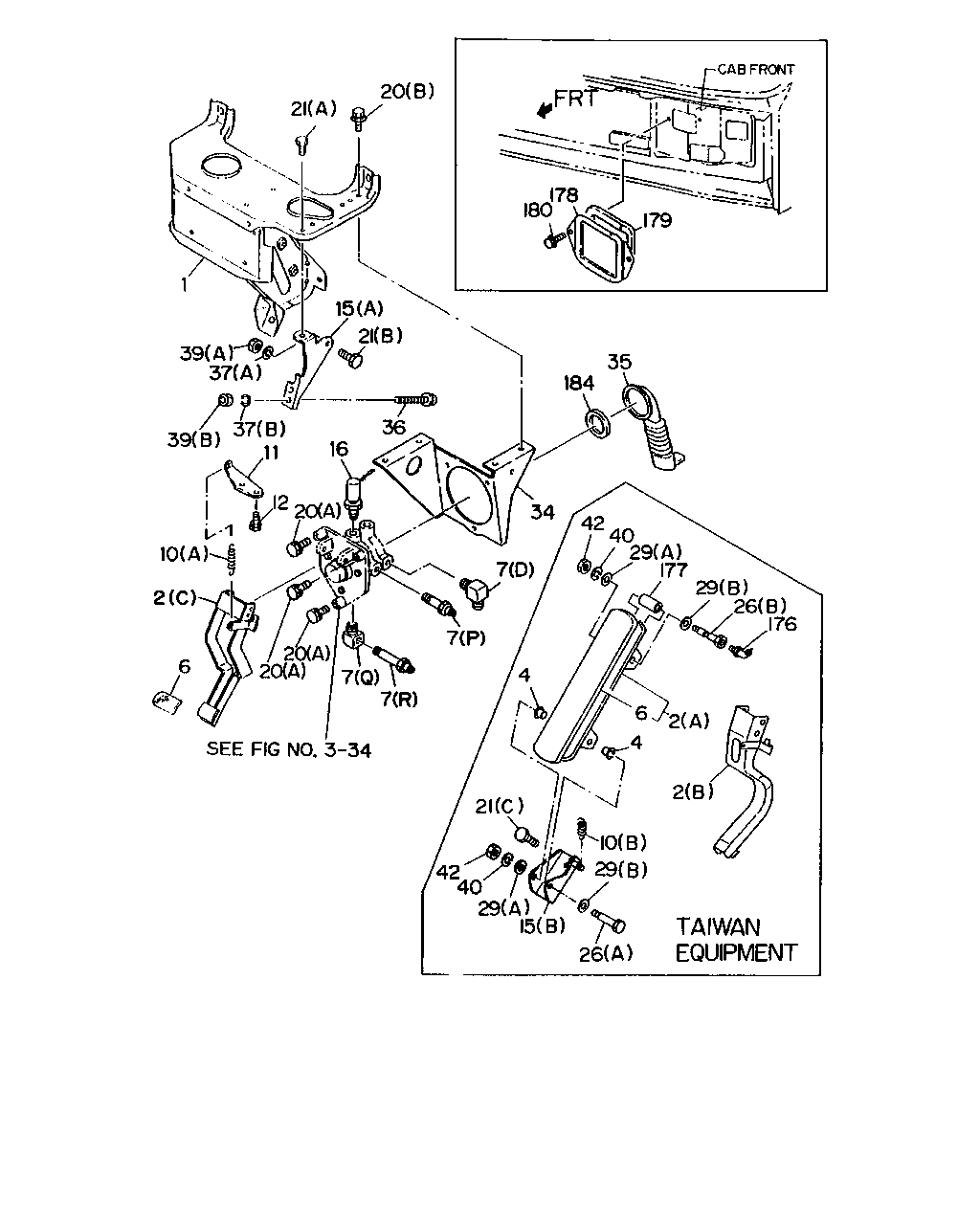

çizim 29512
179 178 180 20 21 15 39 35 21 37 184 37 39 16 36 11 10 20 12 1 7 20 20 6 7 7 7 34 176 42 40 177 29 29 26 2 4 6 2 4 10 29 26 21 42 40 29 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL 1-73998-392-5 01 1 9002-9205 ●
1 BRACKET ASM; PEDAL 1-73907-196-2 01 1 9206- ●
1 BRACKET ASM; PEDAL 1-73998-393-3 01 1 9002- ●
2 PEDAL; BRK
TAIWAN EQUIPMENT(WW5) (A) 		1-47310-073-2 01 1 9002-9306 ●
2 PEDAL; BRK
TAIWAN EQUIPMENT(WW5) (B) 		1-79997-168-2 01 1 9002-9306 ●
2 PEDAL; BRK
EXC. TAIWAN EQUIPMENT(WW5) (C) 		1-47311-105-0 01 1 9002- ●
4 BUSHING; BRK PEDAL
TAIWAN EQUIPMENT(WW5) 		5-33659-011-0 02 1 9002-9306 ●
6 COVER; BRK PEDAL
TAIWAN EQUIPMENT(WW5) 		1-48119-246-0 01 1 9002-9306 ●
6 COVER; BRK PEDAL
EXC. TAIWAN EQUIPMENT(WW5) 		8-94204-810-0 01 1 9002- ●
7 CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> NYLON TUBE AIR PIPING<Z29> (K) 		1-09660-253-0 01 1 9002-9306 ●
7 CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> NYLON TUBE AIR PIPING<Z29> (L) 		1-09660-254-0 01 1 9002-9306 ●
7 CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (G) 		1-09660-224-0 01 1 9002-9306 ●
7 CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (H) 		1-09660-234-0 01 1 9002-9306 ●
7 CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (C) 		1-09660-320-0 01 1 9307- ●
7 CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (M) 		1-09660-570-0 01 1 9307- ●
7 CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (A) 		1-09660-602-0 01 1 9307- ●
7 CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (B) 		1-09660-605-0 01 1 9307- ●
7 CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (J) 		1-09660-235-0 02 1 9002-9306 ●
7 CONNECTOR; BRK VALVE
EXC. NYLON TUBE AIR PIPING<Z29> (F) 		1-09650-188-1 01 1 9002- ●
7 CONNECTOR; BRK VALVE
EXC. NYLON TUBE AIR PIPING<Z29> (E) 		9-09231-812-1 01 1 9002- ●
7 CONNECTOR; BRK VALVE
EXC. NYLON TUBE AIR PIPING<Z29> (D) 		9-09234-312-1 01 1 9002-9302 ●
7 CONNECTOR; BRK VALVE
EXC. NYLON TUBE AIR PIPING<Z29> (D) 		9-09234-312-1 01 1 9002-9302 ●
7 CONNECTOR; BRK VALVE
(D) 		9-09234-312-1 01 1 9002-9302 ●
7 CONNECTOR; BRK VALVE
EXC. NYLON TUBE AIR PIPING<Z29> (D) 		1-09650-439-0 01 1 9303- ●
7 CONNECTOR; BRK VALVE
EXC. NYLON TUBE AIR PIPING<Z29> (D) 		1-09650-439-0 01 1 9303- ●
7 CONNECTOR; BRK VALVE
(D) 		1-09650-439-0 01 1 9303- ●
7 CONNECTOR; BRK VALVE
(R) 		1-09650-150-2 01 1 9002- ●
7 CONNECTOR; BRK VALVE
(P) 		1-09650-181-1 01 1 9002- ●
7 CONNECTOR; BRK VALVE
(Q) 		1-09664-049-1 01 1 9002-9302 ●
7 CONNECTOR; BRK VALVE
(Q) PT3/8 ELBOW 		1-09660-696-0 01 1 9303- ●
10 SPRING; RETURN,BRK PEDAL
(A) 		8-94251-601-0 01 1 9002- ●
10 SPRING; RETURN,BRK PEDAL
TAIWAN EQUIPMENT(WW5) (B) 		1-09985-203-0 01 1 9002-9306 ●
11 BRACKET; RETURN SPRING 1-73997-820-0 01 1 9002- ●
12 BOLT; BRKT
M6X12 W/LK&PL WASHER 		9-01960-612-0 02 1 9002-9204 ●
12 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9205- ●
15 BRACKET ASM; STOPPER,BRK PEDAL
(A) 		1-73997-821-1 01 1 9002- ●
15 BRACKET ASM; STOPPER,BRK PEDAL
TAIWAN EQUIPMENT(WW5) (B) 		1-79997-166-1 01 1 9002-9306 ●
16 SWITCH; STOP LAMP 1-82410-080-1 02 1 9002- ●
16 SWITCH; STOP LAMP 1-82380-007-3 01 1 9002- ●
20 BOLT; BRKT
(A) M10X25 W/LK WASHER 		0-50041-025-0 01 1 9002- ● ●
20 BOLT; BRKT
(A) M10X35 W/LK WASHER 		0-50041-035-0 02 1 9002- ● ●
20 BOLT; BRKT
(B) M8X20 		9-01970-820-0 04 1 9002-9005 ●
20 BOLT; BRKT
(B) M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9006- ●
21 BOLT; STOPPER BRKT
(A) M6X20 W/LK&PL WASHER 		9-01960-620-0 01 1 9002-9204 ●
21 BOLT; STOPPER BRKT
(A) M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9205- ●
21 BOLT; STOPPER BRKT
(B) M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9002-9204 ●
21 BOLT; STOPPER BRKT
(B) M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9205- ●
21 BOLT; STOPPER BRKT
TAIWAN EQUIPMENT(WW5) (C) M8X18 W/LK&PL WASHER 		9-01970-818-0 02 1 9002-9005 ●
21 BOLT; STOPPER BRKT
TAIWAN EQUIPMENT(WW5) (C) M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9006-9306 ●
26 BOLT; PEDAL
TAIWAN EQUIPMENT(WW5) (A) 		1-09980-559-1 01 1 9002-9306 ●
26 BOLT; PEDAL
TAIWAN EQUIPMENT(WW5) (B) 		1-09980-565-0 01 1 9002-9306 ●
29 WASHER; PL,BRK PEDAL
TAIWAN EQUIPMENT(WW5) (A) ID=8.4 		9-09164-508-0 02 1 9002-9306 ●
29 WASHER; PL,BRK PEDAL
TAIWAN EQUIPMENT(WW5) (B) ID=12.5 		9-09164-512-0 02 1 9002-9306 ●
34 BRACKET ASM; BRK VLV 1-73997-771-1 01 1 9002- ●
35 DUCT ASM; AIR,BRK VLV EXH 1-76377-099-1 01 1 9002-9305 ●
35 DUCT ASM; AIR,BRK VLV EXH 1-76377-176-0 01 1 9306- ●
36 STOPPER; BRK PEDAL 9-54359-079-0 01 1 9002- ●
37 WASHER; LK,STOPPER
(A) ID=8.2 		9-09150-508-0 01 1 9002- ●
37 WASHER; LK,STOPPER
(B) ID=10.2 		9-09150-510-0 01 1 9002- ●
39 NUT; STOPPER LK
(A) 		9-09111-408-0 01 1 9002- ●
39 NUT; STOPPER LK
(B) 		9-09111-410-0 01 1 9002- ●
40 WASHER; BRK PEDAL
TAIWAN EQUIPMENT(WW5) ID=8.2 		9-09150-508-0 02 1 9002-9306 ●
42 NUT; BRK PEDAL
TAIWAN EQUIPMENT(WW5) M8 		9-09110-508-0 02 1 9002-9306 ●
176 NIPPLE; GREASE,BRK PEDAL
TAIWAN EQUIPMENT(WW5) PT1/8 ELBOW 		9-09031-210-0 01 1 9002-9306 ●
177 ROLLER; BRK PEDAL
TAIWAN EQUIPMENT(WW5) 		1-79997-263-0 01 1 9002-9306 ●
178 COVER; CHECK HOLE 1-71997-687-0 01 1 9002- ●
179 SEAL; CHECK HOLE COVER 1-71997-689-0 01 1 9002- ●
180 BOLT; CHECK HOLE COVER 0-50100-616-0 02 1 9002-9204 ●
180 BOLT; CHECK HOLE COVER 0-50180-616-0 02 1 9205- ●
184 SEAL; AIR DUCT 1-76377-102-0 01 1 9002- ●

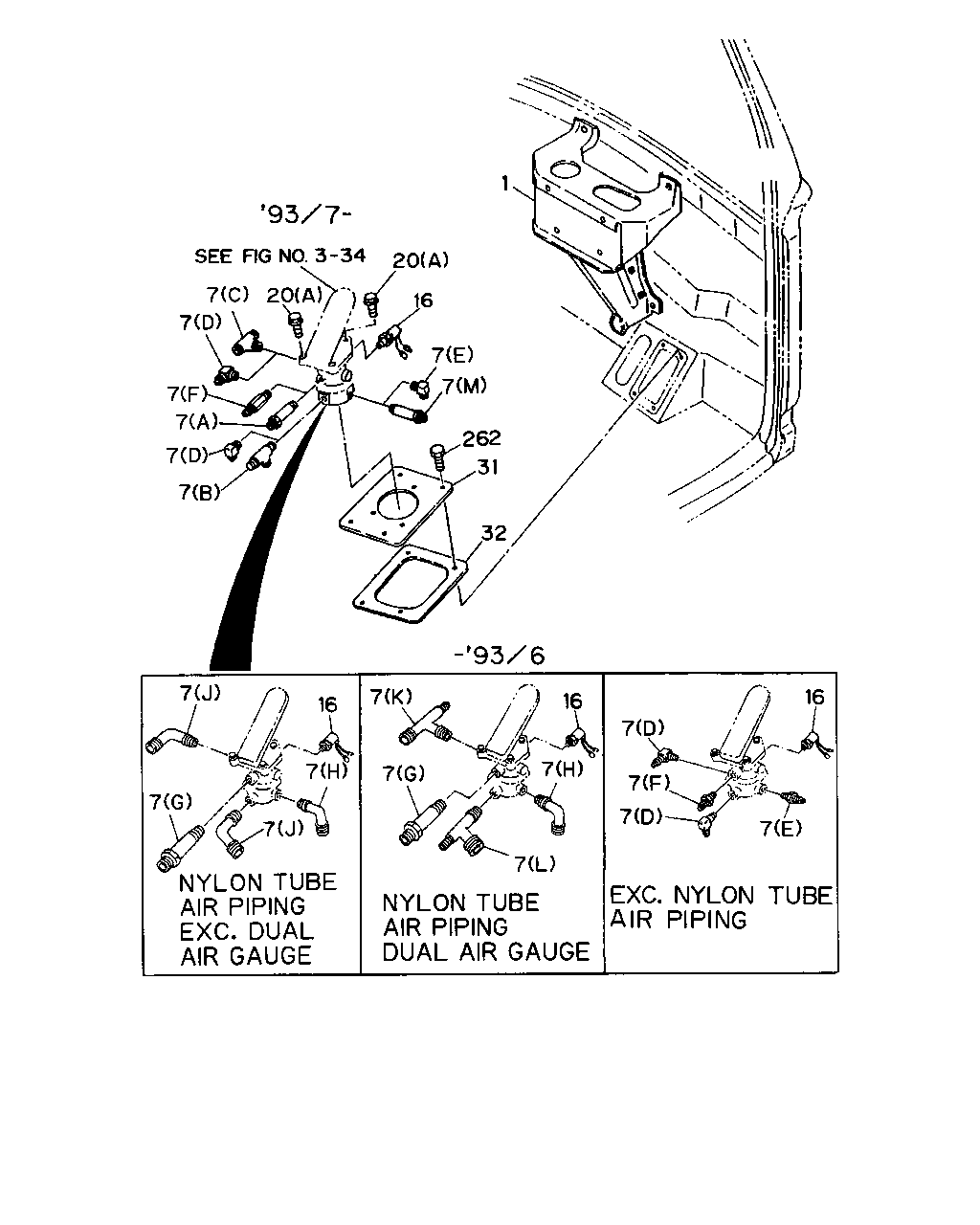

çizim 94329
20 7 7 16 20 7 7 7 7 7 7 32 31 262 7 16 7 7 7 7 7 7 7 16 7 7 7 7 16
BalonParca AdiParca NoAdetTipApplied Date A B
7 CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> NYLON TUBE AIR PIPING<Z29> (K) 		1-09660-253-0 01 1 9002-9306 ●
7 CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> NYLON TUBE AIR PIPING<Z29> (L) 		1-09660-254-0 01 1 9002-9306 ●
7 CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (G) 		1-09660-224-0 01 1 9002-9306 ●
7 CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (H) 		1-09660-234-0 01 1 9002-9306 ●
7 CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (C) 		1-09660-320-0 01 1 9307- ●
7 CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (M) 		1-09660-570-0 01 1 9307- ●
7 CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (A) 		1-09660-602-0 01 1 9307- ●
7 CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (B) 		1-09660-605-0 01 1 9307- ●
7 CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (J) 		1-09660-235-0 02 1 9002-9306 ●
7 CONNECTOR; BRK VALVE
EXC. NYLON TUBE AIR PIPING<Z29> (F) 		1-09650-188-1 01 1 9002- ●
7 CONNECTOR; BRK VALVE
EXC. NYLON TUBE AIR PIPING<Z29> (E) 		9-09231-812-1 01 1 9002- ●
7 CONNECTOR; BRK VALVE
EXC. NYLON TUBE AIR PIPING<Z29> (D) 		9-09234-312-1 01 1 9002-9302 ●
7 CONNECTOR; BRK VALVE
EXC. NYLON TUBE AIR PIPING<Z29> (D) 		9-09234-312-1 01 1 9002-9302 ●
7 CONNECTOR; BRK VALVE
(D) 		9-09234-312-1 01 1 9002-9302 ●
7 CONNECTOR; BRK VALVE
EXC. NYLON TUBE AIR PIPING<Z29> (D) 		1-09650-439-0 01 1 9303- ●
7 CONNECTOR; BRK VALVE
EXC. NYLON TUBE AIR PIPING<Z29> (D) 		1-09650-439-0 01 1 9303- ●
7 CONNECTOR; BRK VALVE
(D) 		1-09650-439-0 01 1 9303- ●
7 CONNECTOR; BRK VALVE
(R) 		1-09650-150-2 01 1 9002- ●
7 CONNECTOR; BRK VALVE
(P) 		1-09650-181-1 01 1 9002- ●
7 CONNECTOR; BRK VALVE
(Q) 		1-09664-049-1 01 1 9002-9302 ●
7 CONNECTOR; BRK VALVE
(Q) PT3/8 ELBOW 		1-09660-696-0 01 1 9303- ●
16 SWITCH; STOP LAMP 1-82410-080-1 02 1 9002- ●
16 SWITCH; STOP LAMP 1-82380-007-3 01 1 9002- ●
20 BOLT; BRKT
(A) M10X25 W/LK WASHER 		0-50041-025-0 01 1 9002- ● ●
20 BOLT; BRKT
(A) M10X35 W/LK WASHER 		0-50041-035-0 02 1 9002- ● ●
20 BOLT; BRKT
(B) M8X20 		9-01970-820-0 04 1 9002-9005 ●
20 BOLT; BRKT
(B) M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9006- ●
31 PLATE; MTG,BRKT VLV 1-73997-620-4 01 1 9002- ●
32 SHEET; BRK VALVE BRKT 1-73997-622-4 01 1 9002- ●
262 BOLT; PLATE
M6X16 W/LK&PL WASHER 		1-09980-527-0 04 1 9002-9008 ●
262 BOLT; PLATE
M6X16 W/LK&PL WASHER 		1-09980-586-0 04 1 9009- ●
