◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#17377) — 59 parça

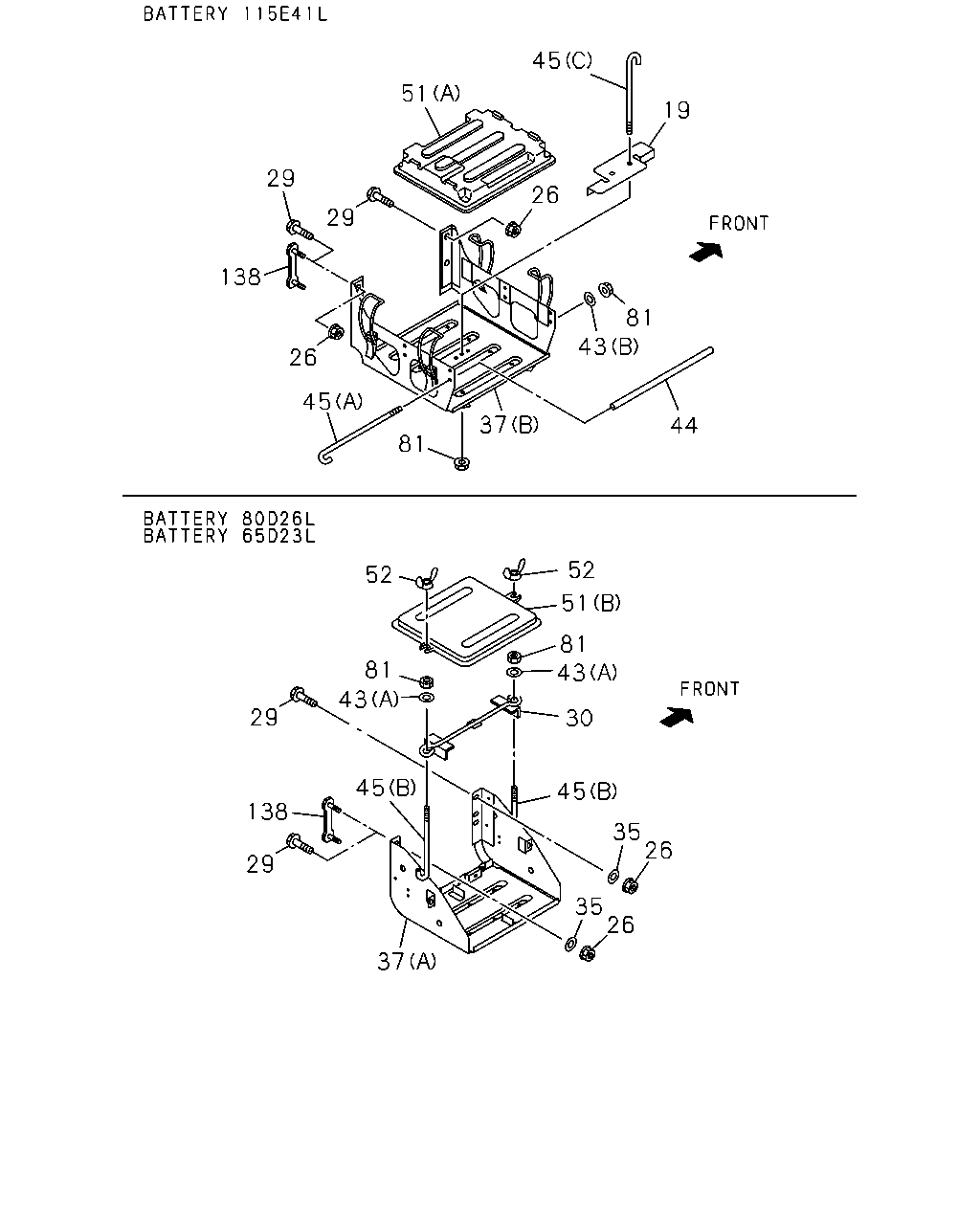

çizim 62106
45 51 19 29 26 29 138 81 43 26 45 37 44 81 52 52 51 81 43 81 43 29 30 45 45 138 35 26 29 35 26 37
BalonParca AdiParca NoAdetTipApplied Date A B
19 STAY; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> 		8-98120-443-0 01 1 0906-1204 ●
19 STAY; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> 		8-98120-443-0 01 1 1205- ● ●
26 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0906-1204 ●
26 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1205- ● ●
29 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 04 1 1205- ●
29 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 0906- ●
30 PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		5-53615-004-1 01 1 0906-1204 ●
30 PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		5-53615-004-1 01 1 1205- ● ●
35 WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 		0-91614-610-0 04 1 0906-1204 ●
35 WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 		0-91614-610-0 04 1 1205- ● ●
37 BRACKET; BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (B) 		8-98091-497-0 01 1 0906-1204 ●
37 BRACKET; BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (B) 		8-98091-497-0 01 1 1205-1405 ● ●
37 BRACKET; BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (B) 		8-98261-636-0 01 1 1406- ● ●
37 BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A) 		8-97384-068-2 01 1 0906-1204 ●
37 BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A) 		8-97384-068-2 01 1 1205- ● ●
37 BRACKET; BATTERY
BATTERY 80D26L<TM1> (A) 		8-97384-067-2 01 1 0906-1204 ●
37 BRACKET; BATTERY
BATTERY 80D26L<TM1> (A) 		8-97384-067-2 01 1 1205- ● ●
37 BRACKET; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (B) 		8-98120-393-0 01 1 0906-1204 ●
37 BRACKET; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (B) 		8-98120-393-0 01 1 1205- ● ●
43 WASHER; PL,CLAMP
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (B) ID=8.4 OD=16 		0-91610-508-0 02 1 0906-1204 ●
43 WASHER; PL,CLAMP
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (B) ID=8.4 OD=16 		0-91610-508-0 02 1 1205- ● ●
43 WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22 		0-91614-708-0 02 1 0906-1204 ●
43 WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22 		0-91614-708-0 02 1 1205- ● ●
43 WASHER; PL,CLAMP
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (B) ID=8.4 OD=16 		0-91610-508-0 01 1 0906-1204 ●
43 WASHER; PL,CLAMP
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (B) ID=8.4 OD=16 		0-91610-508-0 01 1 1205- ● ●
44 SPACER; BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> 		8-98261-682-0 02 1 1406- ● ●
44 SPACER; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> 		8-98120-442-0 01 1 0906-1204 ●
44 SPACER; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> 		8-98120-442-0 01 1 1205- ● ●
45 ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A) L=430 		8-97134-740-0 02 1 0906-1204 ●
45 ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A) L=430 		8-97134-740-0 02 1 1205- ● ●
45 ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120 		9-53616-615-0 02 1 0906-1204 ●
45 ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120 		9-53616-615-0 02 1 1205- ● ●
45 ROD; TENSION,BATTERY
ITALY COUNTRY(CT6) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (C) L=235 		8-98120-478-0 02 1 0906-1004 ●
45 ROD; TENSION,BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (C) L=235 		8-98120-478-0 02 1 1005-1204 ●
45 ROD; TENSION,BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (C) L=235 		8-98120-478-0 02 1 1205- ● ●
45 ROD; TENSION,BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A) L=430 		8-97134-740-0 01 1 0906-1204 ●
45 ROD; TENSION,BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A) L=430 		8-97134-740-0 01 1 1205- ● ●
45 ROD; TENSION,BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. ITALY COUNTRY(CT6) (C) L=250 		1-53616-081-0 02 1 0906-1003 ●
45 ROD; TENSION,BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. ITALY COUNTRY(CT6) (C) L=250 		1-53616-108-0 02 1 1004-1004 ●
51 COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) 		8-97120-747-0 01 1 0906-1204 ●
51 COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) 		8-97120-747-0 01 1 1205- ● ●
51 COVER; BATTERY
ITALY COUNTRY(CT6) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A) 		8-98124-443-0 01 1 0906-1004 ●
51 COVER; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A) 		8-98124-443-0 01 1 1005-1204 ●
51 COVER; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A) 		8-98124-443-0 01 1 1205- ● ●
51 COVER; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. ITALY COUNTRY(CT6) (A) 		1-53612-037-2 01 1 0906-1004 ●
51 COVER; BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A) 		1-53612-037-2 01 1 0906-1004 ●
51 COVER; BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A) 		1-53612-037-2 01 1 1005-1204 ●
51 COVER; BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A) 		1-53612-037-2 01 1 1205- ● ●
52 NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT 		0-91118-408-0 02 1 0906-1204 ●
52 NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT 		0-91118-408-0 02 1 1205- ● ●
81 NUT; BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> M8 FLANGE 		0-91180-108-0 02 1 0906-1204 ●
81 NUT; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE 		0-91180-108-0 02 1 0906-1204 ●
81 NUT; BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> M8 FLANGE 		0-91180-108-0 02 1 1205- ● ●
81 NUT; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE 		0-91180-108-0 02 1 1205- ● ●
81 NUT; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> M8 FLANGE 		0-91180-108-0 03 1 0906-1204 ●
81 NUT; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> M8 FLANGE 		0-91180-108-0 03 1 1205- ● ●
138 STUD 8-98066-802-0 01 1 0906-1010 ●
138 STUD 8-98178-497-0 01 1 1011-1311 ●
138 STUD 8-98255-710-0 01 1 1312- ●
