◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#17375) — 67 parça

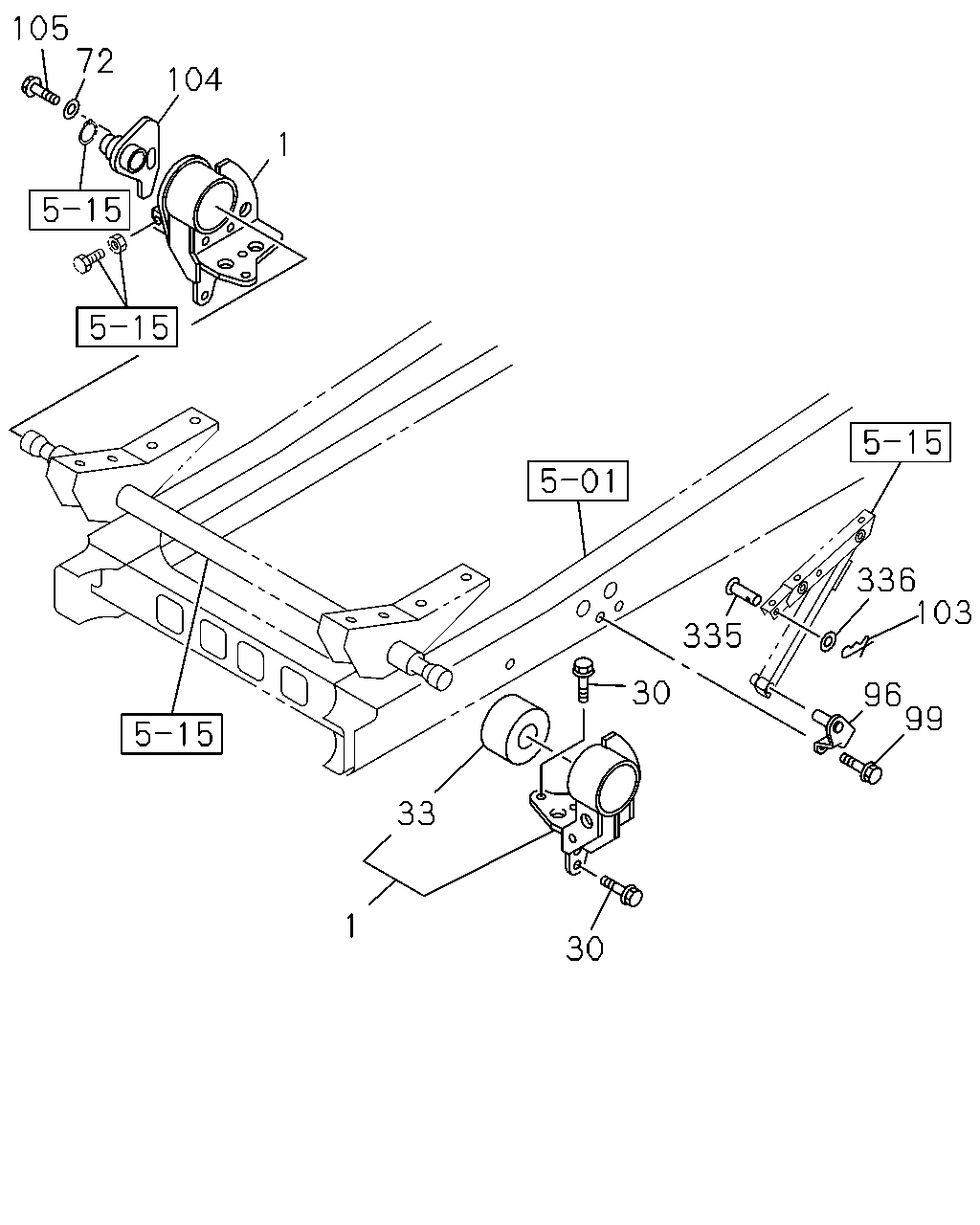

çizim 61698
105 72 104 1 336 103 335 30 96 99 33 1 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG 8-98017-606-1 01 1 0906-1204 ●
1 BRACKET; CAB MTG 8-98017-606-1 01 1 1205- ● ●
1 BRACKET; CAB MTG 8-98017-605-2 01 1 0906-1204 ●
1 BRACKET; CAB MTG 8-98017-605-2 01 1 1205- ● ●
30 BOLT; CAB FRT FOOT
M14X45 FLANGE 		0-28861-445-0 10 1 0906-1204 ●
30 BOLT; CAB FRT FOOT
M14X45 FLANGE 		0-28861-445-0 10 1 1205- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 8-98013-932-2 02 1 0906-1204 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 8-98013-932-2 02 1 1205- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=15 OD=36 		0-91614-714-0 01 1 0906-1204 ●
72 WASHER; PL,BRKT TO FRAME
ID=15 OD=36 		0-91614-714-0 01 1 1205- ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 0906-1204 ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 1205- ● ●
99 BOLT; BRKT
M10X30 FLANGE 		0-28661-030-0 02 1 0906-1204 ●
99 BOLT; BRKT
M10X30 FLANGE 		0-28661-030-0 02 1 1205- ● ●
103 PIN; SPLIT,CAB STAY
L=32.6 		8-98062-280-0 01 1 0906-1204 ●
103 PIN; SPLIT,CAB STAY
L=32.6 		8-98062-280-0 01 1 1205- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98017-610-3 01 1 0906-1204 ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98017-610-3 01 1 1205- ● ●
105 BOLT; BRKT TO CAB FRAME
M14X35 FLANGE 		0-28661-435-0 01 1 0906-1204 ●
105 BOLT; BRKT TO CAB FRAME
M14X35 FLANGE 		0-28661-435-0 01 1 1205- ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 0906-1204 ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 1205- ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 0906-1204 ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 1205- ● ●

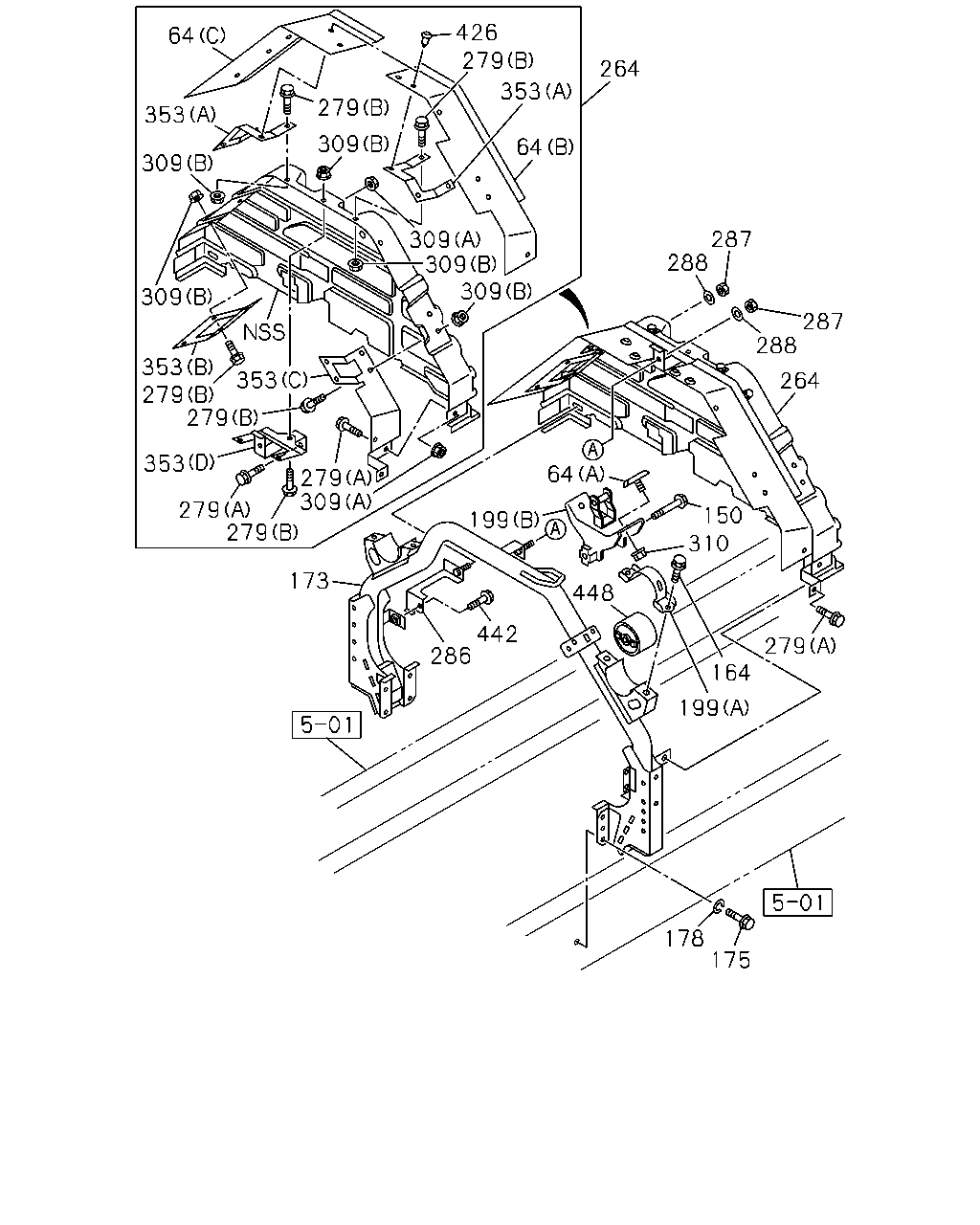

çizim 63314
64 353 309 309 353 279 353 279 353 279 279 309 279 309 309 309 309 279 426 279 353 264 64 287 288 287 288 264 279 310 150 64 199 448 164 199 442 286 173 178 175
BalonParca AdiParca NoAdetTipApplied Date A B
64 RUBBER; CUSHION
(B) 		8-98254-237-0 01 1 0906- ●
64 RUBBER; CUSHION
(C) 		8-98254-238-0 01 1 0906- ●
64 RUBBER; CUSHION
(A) 		8-97113-340-0 04 1 0906-1204 ●
64 RUBBER; CUSHION
(A) 		8-97113-340-0 04 1 1205- ● ●
150 BOLT; CAB MTG RR
M14X100 		0-10956-400-0 02 1 0906-1204 ●
150 BOLT; CAB MTG RR
M14X100 		0-10956-400-0 02 1 1205- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M12X25 FLANGE 		0-28651-225-0 04 1 0906-1204 ●
164 BOLT; CUSHION RUBBER,CAB MTG
M12X25 FLANGE 		0-28651-225-0 04 1 1205- ● ●
173 MEMBER; CAB MTG RR 8-98205-657-0 01 1 1205- ●
173 MEMBER; CAB MTG RR 8-98083-792-3 01 1 0906- ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0906-1204 ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 1205- ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0906-1204 ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 1205- ● ●
199 BRACKET; CAB RR MTG
EXC. KD PREPARATORY PACK<6HF> (B) 		8-98099-068-0 01 1 1503- ● ●
199 BRACKET; CAB RR MTG
EXC. KD PREPARATORY PACK<6HF> (B) 		8-98297-105-0 01 1 1503- ● ●
199 BRACKET; CAB RR MTG
(A) 		8-98044-556-1 02 1 0906-1204 ●
199 BRACKET; CAB RR MTG
(A) 		8-98044-556-1 02 1 1205- ● ●
199 BRACKET; CAB RR MTG
(B) 		8-98023-692-0 01 1 0906-1204 ●
199 BRACKET; CAB RR MTG
(B) 		8-98023-692-0 01 1 1205-1301 ● ●
199 BRACKET; CAB RR MTG
(B) 		8-98099-068-0 01 1 0906-1204 ●
199 BRACKET; CAB RR MTG
(B) 		8-98099-068-0 01 1 1205-1301 ● ●
199 BRACKET; CAB RR MTG
(B) 		8-98099-068-0 02 1 1302-1502 ● ●
199 BRACKET; CAB RR MTG
KD PREPARATORY PACK<6HF> (B) 		8-98099-068-0 02 1 1503- ● ●
264 PANEL; BACK 8-98122-781-0 01 1 0906- ●
279 BOLT
(B) M6X16 FLANGE 		0-28650-616-0 09 1 0906- ●
279 BOLT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0906-1310 ●
279 BOLT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1311- ●
286 BRACKET; LOW 8-98122-782-0 01 1 0906- ●
287 NUT
M8 FLANGE 		0-91180-108-0 02 1 0906- ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 02 1 0906- ●
309 NUT
(A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 0906- ●
309 NUT
(B) M6 W/DISHED WASHER 		8-98029-921-0 09 1 0906- ●
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 0906-1204 ●
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 1205- ● ●
353 BRACKET
(A) 		8-98254-245-0 02 1 0906- ●
353 BRACKET
(B) 		8-98254-247-0 01 1 0906- ●
353 BRACKET
(C) 		8-98254-307-0 01 1 0906- ●
353 BRACKET
(D) 		8-98254-309-0 01 1 0906- ●
426 CLIP 8-98258-483-0 11 1 0906- ●
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0906- ●
448 BUSHING; CAB MTG 8-98010-759-2 02 1 0906-1204 ●
448 BUSHING; CAB MTG 8-98010-759-2 02 1 1205- ● ●
