◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#17374) — 346 parça

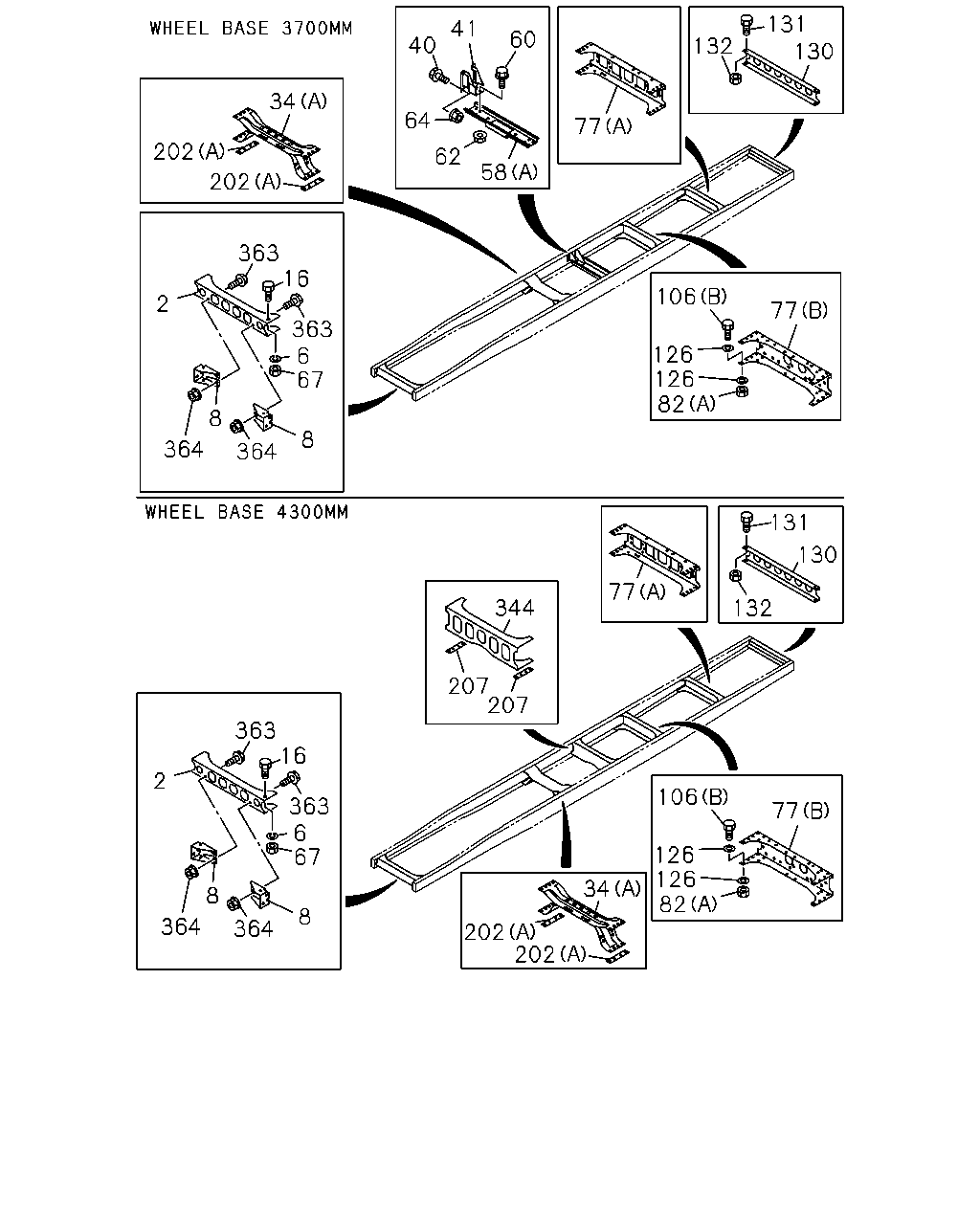

çizim 15643
131 132 130 41 60 40 34 64 77 202 62 58 202 363 16 106 2 77 363 6 67 126 126 82 8 8 364 364 131 130 77 344 132 207 207 363 16 2 106 363 6 67 77 126 126 82 34 8 8 202 202 364 364
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST
FSR LEAF SUS(FCR***) 		8-97609-462-9 01 1 1205- ● ● ●
2 MEMBER; CROSS,1ST 8-97609-462-9 01 1 1205- ●
2 MEMBER; CROSS,1ST 8-97626-854-3 01 1 0906-1204 ● ● ●
2 MEMBER; CROSS,1ST
FSR AIR SUS(FCD***) 		8-97626-854-3 01 1 1205- ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 0906-1204 ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1205- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-1 01 1 0906-1204 ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-2 01 1 1205- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-2 01 1 0906-1204 ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-3 01 1 1205- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 0906-1204 ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 1205- ● ● ● ●
34 MEMBER; CROSS,3RD
FSR LEAF SUS(FCR***) (B) 		8-97609-501-2 01 1 1205- ● ● ●
34 MEMBER; CROSS,3RD
(B) 		8-97609-501-2 01 1 1205- ●
34 MEMBER; CROSS,3RD
(A) 		8-97609-755-0 01 1 0906-1204 ● ● ●
34 MEMBER; CROSS,3RD
FSR AIR SUS(FCD***) (A) 		8-97609-755-0 01 1 1205- ● ● ●
40 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 08 1 0906- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 0906- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 0906- ●
58 MEMBER; CENTER BRG
FSR LEAF SUS(FCR***) (B) 		8-97638-924-0 01 1 1205- ●
58 MEMBER; CENTER BRG
(A) 		8-97619-112-0 01 1 0906-1204 ●
58 MEMBER; CENTER BRG
FSR AIR SUS(FCD***) (A) 		8-97619-112-0 01 1 1205- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0906- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0906- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0906- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0906-1204 ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1205- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FSR LEAF SUS(FCR***) (A) 		8-97609-481-4 02 1 1205- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 02 1 1205- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 01 1 0906-1204 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FSR AIR SUS(FCD***) (A) 		8-97609-481-4 01 1 1205- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-483-0 01 1 0906-1204 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FSR AIR SUS(FCD***) (B) 		8-97609-483-0 01 1 1205- ● ● ●
82 NUT; BRKT
FSR LEAF SUS(FCR***) (B) M14 		0-91110-514-0 22 1 1205- ● ●
82 NUT; BRKT
FSR LEAF SUS(FCR***) (B) M14 		0-91110-514-0 10 1 1205- ●
82 NUT; BRKT
(B) M14 		0-91110-514-0 10 1 1205- ●
82 NUT; BRKT
(A) M10 		0-91110-510-0 04 1 0906-1204 ● ● ●
82 NUT; BRKT
FSR AIR SUS(FCD***) (A) M10 		0-91110-510-0 04 1 1205- ● ● ●
106 BOLT; BRKT
FSR LEAF SUS(FCR***) (C) M14X50 		0-20951-450-0 22 1 1205- ● ●
106 BOLT; BRKT
FSR LEAF SUS(FCR***) (C) M14X50 		0-20951-450-0 10 1 1205- ●
106 BOLT; BRKT
(C) M14X50 		0-20951-450-0 10 1 1205- ●
106 BOLT; BRKT
(B) M10X35 		0-10961-035-0 04 1 0906-1204 ● ● ●
106 BOLT; BRKT
FSR AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 1205- ● ● ●
106 BOLT; BRKT
(A) M14X35 FLANGE 		0-28661-435-0 12 1 0906-1204 ● ● ●
106 BOLT; BRKT
FSR AIR SUS(FCD***) (A) M14X35 FLANGE 		0-28661-435-0 12 1 1205- ● ● ●
126 WASHER; PL,BRKT
ID=10.5 OD=22 		0-91614-610-0 08 1 0906-1204 ● ● ●
126 WASHER; PL,BRKT
FSR AIR SUS(FCD***) ID=10.5 OD=22 		0-91614-610-0 08 1 1205- ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0906-1204 ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1205- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0906-1204 ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1205- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0906-1204 ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1205- ● ● ● ●
202 SPACER; 3RD C/MBR
FSR LEAF SUS(FCR***) (B) 		8-97609-756-1 02 1 1205- ● ● ●
202 SPACER; 3RD C/MBR
(B) 		8-97609-756-1 02 1 1205- ●
202 SPACER; 3RD C/MBR
(A) 		8-97609-757-0 02 1 0906-1204 ● ● ●
202 SPACER; 3RD C/MBR
FSR AIR SUS(FCD***) (A) 		8-97609-757-0 02 1 1205- ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 0906-1204 ● ●
207 SPACER; 4TH C/MBR
FSR AIR SUS(FCD***) 		8-97609-758-0 02 1 1205- ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1205- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0906-1204 ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1205- ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0906-1204 ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1205- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0906-1204 ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1205- ● ● ● ●

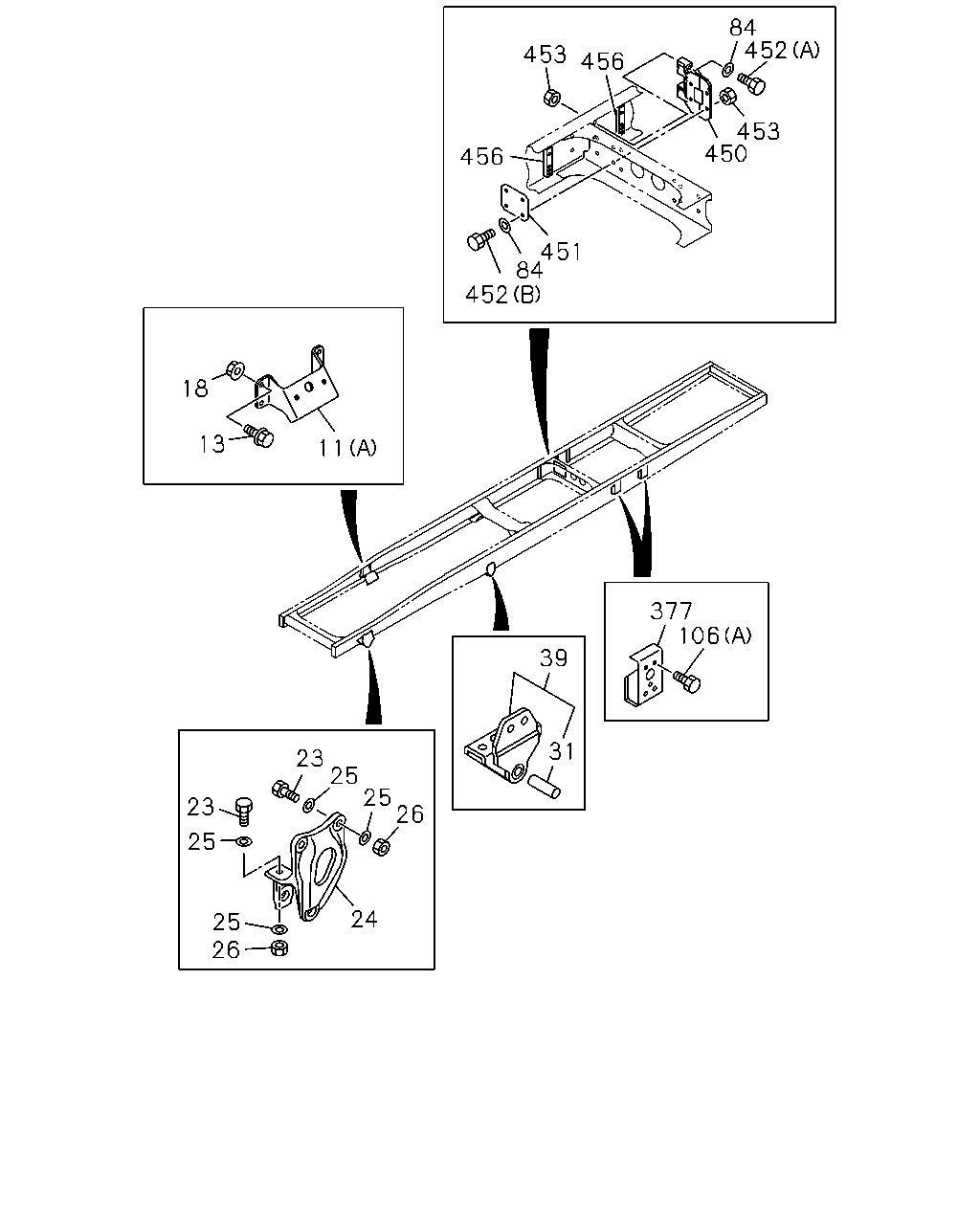

çizim 62680
84 452 453 456 453 450 456 451 84 452 18 13 11 377 106 39 31 23 25 25 26 23 25 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG
FSR LEAF SUS(FCR***) (B) 		8-97604-129-0 02 1 1205- ● ● ●
11 BRACKET; ENG MTG
(B) 		8-97604-129-0 02 1 1205- ●
11 BRACKET; ENG MTG
(A) 		8-97610-244-0 01 1 0906-1204 ● ● ●
11 BRACKET; ENG MTG
FSR AIR SUS(FCD***) (A) 		8-97610-244-0 01 1 1205- ● ● ●
11 BRACKET; ENG MTG
(A) 		8-97610-245-0 01 1 0906-1204 ● ● ●
11 BRACKET; ENG MTG
FSR AIR SUS(FCD***) (A) 		8-97610-245-0 01 1 1205- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0906-1204 ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1205- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0906-1204 ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1205- ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0906-1204 ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1205- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 0906-1204 ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1205- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 0906-1204 ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1205- ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 0906-1204 ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1205- ● ● ● ●
26 NUT; BRKT,SPR
FSR LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1205- ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1205- ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 0906-1204 ● ● ●
26 NUT; BRKT,SPR
FSR AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1205- ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 1205- ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0906-1204 ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1205- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 0906-1204 ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 1205- ● ● ● ●
84 WASHER; PL,BRKT
ID=16.2 		1-09503-316-0 12 1 0906-1204 ● ● ●
84 WASHER; PL,BRKT
FSR AIR SUS(FCD***) ID=16.2 		1-09503-316-0 12 1 1205- ● ● ●
106 BOLT; BRKT
FSR LEAF SUS(FCR***) (C) M14X50 		0-20951-450-0 22 1 1205- ● ●
106 BOLT; BRKT
FSR LEAF SUS(FCR***) (C) M14X50 		0-20951-450-0 10 1 1205- ●
106 BOLT; BRKT
(C) M14X50 		0-20951-450-0 10 1 1205- ●
106 BOLT; BRKT
(B) M10X35 		0-10961-035-0 04 1 0906-1204 ● ● ●
106 BOLT; BRKT
FSR AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 1205- ● ● ●
106 BOLT; BRKT
(A) M14X35 FLANGE 		0-28661-435-0 12 1 0906-1204 ● ● ●
106 BOLT; BRKT
FSR AIR SUS(FCD***) (A) M14X35 FLANGE 		0-28661-435-0 12 1 1205- ● ● ●
377 BRACKET; TOP PLATE 8-98061-350-0 04 1 0906-1204 ● ● ●
377 BRACKET; TOP PLATE
FSR AIR SUS(FCD***) 		8-98061-350-0 04 1 1205- ● ● ●
450 BRACKET; V ROD 1-53353-121-0 02 1 0906-1204 ● ● ●
450 BRACKET; V ROD
FSR AIR SUS(FCD***) 		1-53353-121-0 02 1 1205- ● ● ●
451 GUSSET; V ROD 8-97610-436-0 02 1 0906-1204 ● ● ●
451 GUSSET; V ROD
FSR AIR SUS(FCD***) 		8-97610-436-0 02 1 1205- ● ● ●
452 BOLT; V ROD
(A) M16X120 		1-09000-677-0 04 1 0906-0908 ● ● ●
452 BOLT; V ROD
(A) M16X110 		1-09000-738-0 04 1 0909-1204 ● ● ●
452 BOLT; V ROD
FSR AIR SUS(FCD***) (A) M16X110 		1-09000-738-0 04 1 1205- ● ● ●
452 BOLT; V ROD
(B) M16X50 		1-09000-679-0 08 1 0906-1204 ● ● ●
452 BOLT; V ROD
FSR AIR SUS(FCD***) (B) M16X50 		1-09000-679-0 08 1 1205- ● ● ●
453 NUT; V ROD
M16 FLANGE 		1-09440-066-0 12 1 0906-1204 ● ● ●
453 NUT; V ROD
FSR AIR SUS(FCD***) M16 FLANGE 		1-09440-066-0 12 1 1205- ● ● ●
456 PATCH; STOPPER 8-97610-437-1 04 1 0906-1204 ● ● ●
456 PATCH; STOPPER
FSR AIR SUS(FCD***) 		8-97610-437-1 04 1 1205- ● ● ●

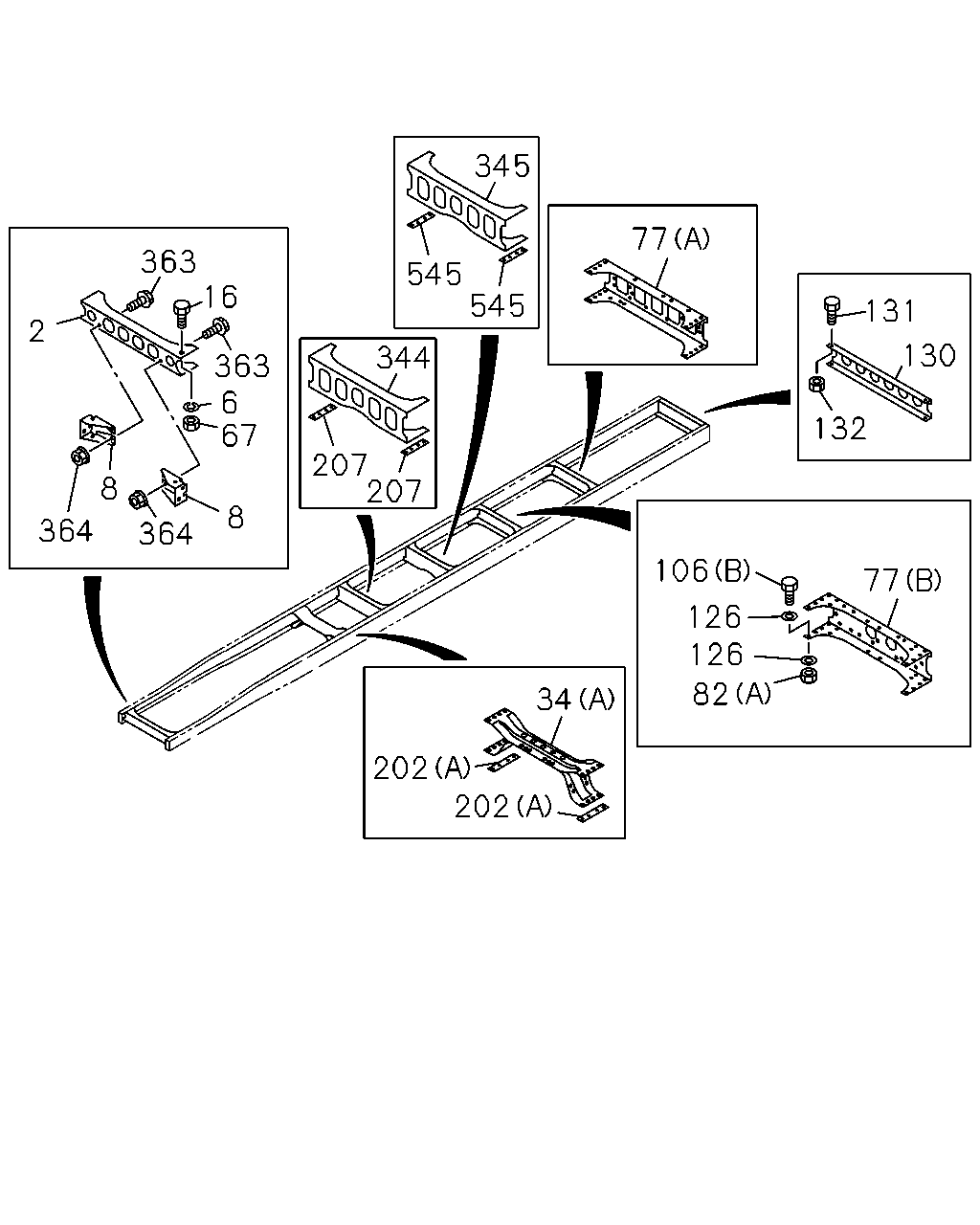

çizim 62843
345 77 363 16 545 545 131 2 130 344 363 6 67 132 207 207 8 8 364 364 106 77 126 126 82 34 202 202
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST
FSR LEAF SUS(FCR***) 		8-97609-462-9 01 1 1205- ● ● ●
2 MEMBER; CROSS,1ST 8-97609-462-9 01 1 1205- ●
2 MEMBER; CROSS,1ST 8-97626-854-3 01 1 0906-1204 ● ● ●
2 MEMBER; CROSS,1ST
FSR AIR SUS(FCD***) 		8-97626-854-3 01 1 1205- ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 0906-1204 ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1205- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-1 01 1 0906-1204 ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-2 01 1 1205- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-2 01 1 0906-1204 ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-3 01 1 1205- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 0906-1204 ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 1205- ● ● ● ●
34 MEMBER; CROSS,3RD
FSR LEAF SUS(FCR***) (B) 		8-97609-501-2 01 1 1205- ● ● ●
34 MEMBER; CROSS,3RD
(B) 		8-97609-501-2 01 1 1205- ●
34 MEMBER; CROSS,3RD
(A) 		8-97609-755-0 01 1 0906-1204 ● ● ●
34 MEMBER; CROSS,3RD
FSR AIR SUS(FCD***) (A) 		8-97609-755-0 01 1 1205- ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0906-1204 ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1205- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FSR LEAF SUS(FCR***) (A) 		8-97609-481-4 02 1 1205- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 02 1 1205- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 01 1 0906-1204 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FSR AIR SUS(FCD***) (A) 		8-97609-481-4 01 1 1205- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-483-0 01 1 0906-1204 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FSR AIR SUS(FCD***) (B) 		8-97609-483-0 01 1 1205- ● ● ●
82 NUT; BRKT
FSR LEAF SUS(FCR***) (B) M14 		0-91110-514-0 22 1 1205- ● ●
82 NUT; BRKT
FSR LEAF SUS(FCR***) (B) M14 		0-91110-514-0 10 1 1205- ●
82 NUT; BRKT
(B) M14 		0-91110-514-0 10 1 1205- ●
82 NUT; BRKT
(A) M10 		0-91110-510-0 04 1 0906-1204 ● ● ●
82 NUT; BRKT
FSR AIR SUS(FCD***) (A) M10 		0-91110-510-0 04 1 1205- ● ● ●
106 BOLT; BRKT
FSR LEAF SUS(FCR***) (C) M14X50 		0-20951-450-0 22 1 1205- ● ●
106 BOLT; BRKT
FSR LEAF SUS(FCR***) (C) M14X50 		0-20951-450-0 10 1 1205- ●
106 BOLT; BRKT
(C) M14X50 		0-20951-450-0 10 1 1205- ●
106 BOLT; BRKT
(B) M10X35 		0-10961-035-0 04 1 0906-1204 ● ● ●
106 BOLT; BRKT
FSR AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 1205- ● ● ●
106 BOLT; BRKT
(A) M14X35 FLANGE 		0-28661-435-0 12 1 0906-1204 ● ● ●
106 BOLT; BRKT
FSR AIR SUS(FCD***) (A) M14X35 FLANGE 		0-28661-435-0 12 1 1205- ● ● ●
126 WASHER; PL,BRKT
ID=10.5 OD=22 		0-91614-610-0 08 1 0906-1204 ● ● ●
126 WASHER; PL,BRKT
FSR AIR SUS(FCD***) ID=10.5 OD=22 		0-91614-610-0 08 1 1205- ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0906-1204 ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1205- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0906-1204 ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1205- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0906-1204 ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1205- ● ● ● ●
202 SPACER; 3RD C/MBR
FSR LEAF SUS(FCR***) (B) 		8-97609-756-1 02 1 1205- ● ● ●
202 SPACER; 3RD C/MBR
(B) 		8-97609-756-1 02 1 1205- ●
202 SPACER; 3RD C/MBR
(A) 		8-97609-757-0 02 1 0906-1204 ● ● ●
202 SPACER; 3RD C/MBR
FSR AIR SUS(FCD***) (A) 		8-97609-757-0 02 1 1205- ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 0906-1204 ● ●
207 SPACER; 4TH C/MBR
FSR AIR SUS(FCD***) 		8-97609-758-0 02 1 1205- ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1205- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0906-1204 ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1205- ● ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 0906-1204 ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1205- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0906-1204 ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1205- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0906-1204 ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1205- ● ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 0906-1204 ●
545 SPACER; 5TH C/MBR
FSR AIR SUS(FCD***) 		8-97609-758-0 02 1 1205- ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 1205- ●

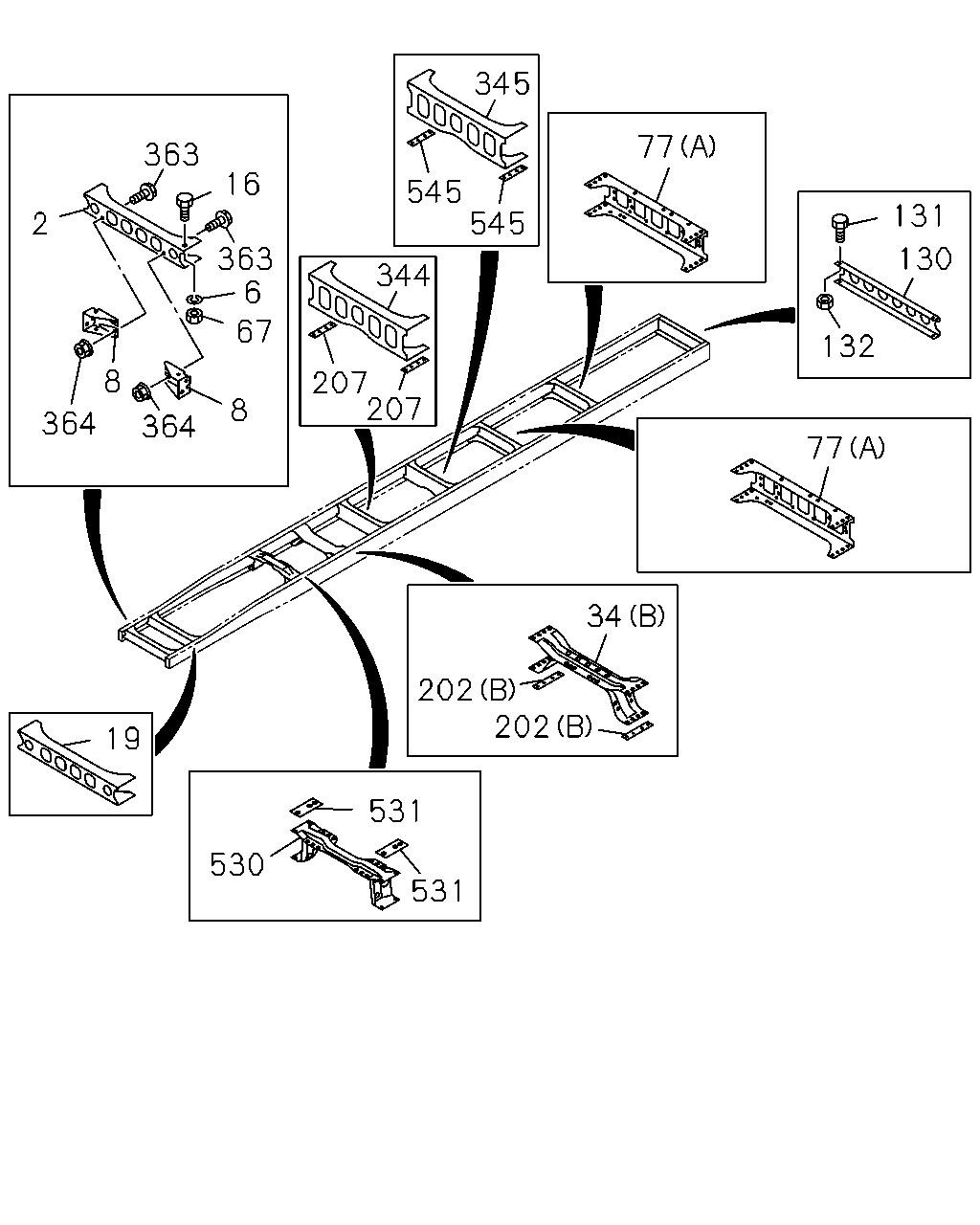

çizim 283275
345 77 363 16 545 545 131 2 130 363 6 344 67 132 8 207 207 8 364 364 77 34 202 202 19 531 530 531
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST
FSR LEAF SUS(FCR***) 		8-97609-462-9 01 1 1205- ● ● ●
2 MEMBER; CROSS,1ST 8-97609-462-9 01 1 1205- ●
2 MEMBER; CROSS,1ST 8-97626-854-3 01 1 0906-1204 ● ● ●
2 MEMBER; CROSS,1ST
FSR AIR SUS(FCD***) 		8-97626-854-3 01 1 1205- ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 0906-1204 ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1205- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-1 01 1 0906-1204 ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-2 01 1 1205- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-2 01 1 0906-1204 ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-3 01 1 1205- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 0906-1204 ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 1205- ● ● ● ●
19 MEMBER; CROSS,2ND
FSR LEAF SUS(FCR***) 		8-97629-428-5 01 1 1205- ● ● ●
19 MEMBER; CROSS,2ND 8-97629-428-5 01 1 1205- ●
34 MEMBER; CROSS,3RD
FSR LEAF SUS(FCR***) (B) 		8-97609-501-2 01 1 1205- ● ● ●
34 MEMBER; CROSS,3RD
(B) 		8-97609-501-2 01 1 1205- ●
34 MEMBER; CROSS,3RD
(A) 		8-97609-755-0 01 1 0906-1204 ● ● ●
34 MEMBER; CROSS,3RD
FSR AIR SUS(FCD***) (A) 		8-97609-755-0 01 1 1205- ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0906-1204 ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1205- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FSR LEAF SUS(FCR***) (A) 		8-97609-481-4 02 1 1205- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 02 1 1205- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 01 1 0906-1204 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FSR AIR SUS(FCD***) (A) 		8-97609-481-4 01 1 1205- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-483-0 01 1 0906-1204 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FSR AIR SUS(FCD***) (B) 		8-97609-483-0 01 1 1205- ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0906-1204 ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1205- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0906-1204 ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1205- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0906-1204 ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1205- ● ● ● ●
202 SPACER; 3RD C/MBR
FSR LEAF SUS(FCR***) (B) 		8-97609-756-1 02 1 1205- ● ● ●
202 SPACER; 3RD C/MBR
(B) 		8-97609-756-1 02 1 1205- ●
202 SPACER; 3RD C/MBR
(A) 		8-97609-757-0 02 1 0906-1204 ● ● ●
202 SPACER; 3RD C/MBR
FSR AIR SUS(FCD***) (A) 		8-97609-757-0 02 1 1205- ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 0906-1204 ● ●
207 SPACER; 4TH C/MBR
FSR AIR SUS(FCD***) 		8-97609-758-0 02 1 1205- ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1205- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0906-1204 ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1205- ● ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 0906-1204 ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1205- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0906-1204 ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1205- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0906-1204 ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1205- ● ● ● ●
530 MEMBER; CROSS,T/M
FSR LEAF SUS(FCR***) 		8-97609-809-3 01 1 1205- ● ● ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1205- ●
531 SPACER; C/MBR,T/M
FSR LEAF SUS(FCR***) 		8-97616-461-1 02 1 1205- ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1205- ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 0906-1204 ●
545 SPACER; 5TH C/MBR
FSR AIR SUS(FCD***) 		8-97609-758-0 02 1 1205- ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 1205- ●

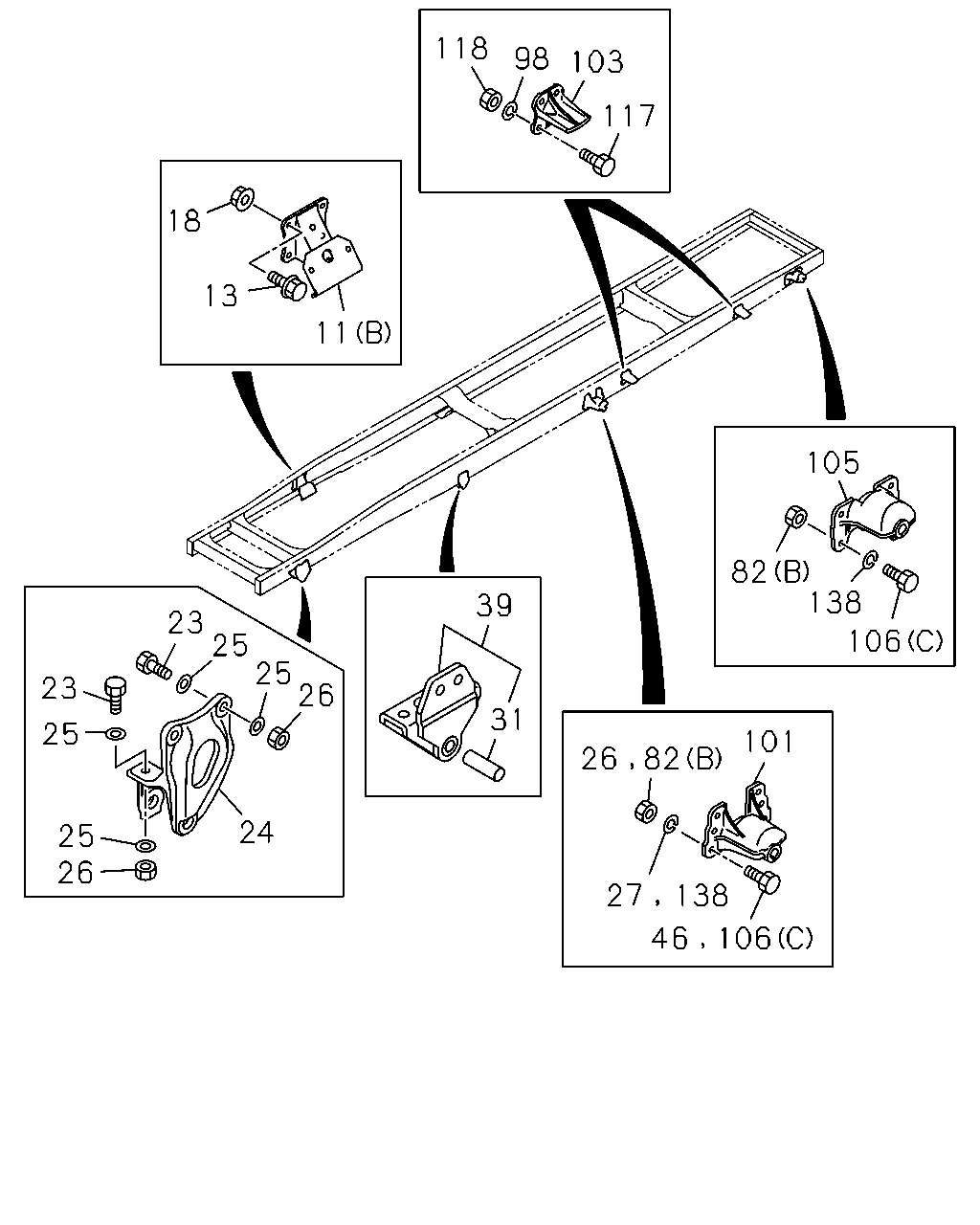

çizim 283276
118 98 103 117 18 13 11 105 82 138 39 23 25 25 26 106 23 31 25 101 138 24 25 26 27 46 106 82 26
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG
FSR LEAF SUS(FCR***) (B) 		8-97604-129-0 02 1 1205- ● ● ●
11 BRACKET; ENG MTG
(B) 		8-97604-129-0 02 1 1205- ●
11 BRACKET; ENG MTG
(A) 		8-97610-244-0 01 1 0906-1204 ● ● ●
11 BRACKET; ENG MTG
FSR AIR SUS(FCD***) (A) 		8-97610-244-0 01 1 1205- ● ● ●
11 BRACKET; ENG MTG
(A) 		8-97610-245-0 01 1 0906-1204 ● ● ●
11 BRACKET; ENG MTG
FSR AIR SUS(FCD***) (A) 		8-97610-245-0 01 1 1205- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0906-1204 ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1205- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0906-1204 ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1205- ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0906-1204 ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1205- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 0906-1204 ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1205- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 0906-1204 ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1205- ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 0906-1204 ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1205- ● ● ● ●
26 NUT; BRKT,SPR
FSR LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1205- ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1205- ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 0906-1204 ● ● ●
26 NUT; BRKT,SPR
FSR AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1205- ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 1205- ● ●
27 WASHER; LK,BRKT,FRT SPR
FSR LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 12 1 1205- ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1205- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0906-1204 ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1205- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 0906-1204 ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 1205- ● ● ● ●
46 BOLT; BRKT FIX
FSR LEAF SUS(FCR***) M14X50 		0-20951-450-0 12 1 1205- ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1205- ●
82 NUT; BRKT
FSR LEAF SUS(FCR***) (B) M14 		0-91110-514-0 22 1 1205- ● ●
82 NUT; BRKT
FSR LEAF SUS(FCR***) (B) M14 		0-91110-514-0 10 1 1205- ●
82 NUT; BRKT
(B) M14 		0-91110-514-0 10 1 1205- ●
82 NUT; BRKT
(A) M10 		0-91110-510-0 04 1 0906-1204 ● ● ●
82 NUT; BRKT
FSR AIR SUS(FCD***) (A) M10 		0-91110-510-0 04 1 1205- ● ● ●
98 WASHER; LK,STOPPER
FSR LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 16 1 1205- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1205- ●
101 BRACKET; RR SPR,FRT
FSR LEAF SUS(FCR***) 		1-53353-090-4 02 1 1205- ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1205- ●
103 STOPPER; SUB SPR
FSR LEAF SUS(FCR***) 		1-53356-059-1 04 1 1205- ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1205- ●
105 BRACKET; RR SPR,RR
FSR LEAF SUS(FCR***) 		1-53354-074-0 02 1 1205- ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1205- ●
106 BOLT; BRKT
FSR LEAF SUS(FCR***) (C) M14X50 		0-20951-450-0 22 1 1205- ● ●
106 BOLT; BRKT
FSR LEAF SUS(FCR***) (C) M14X50 		0-20951-450-0 10 1 1205- ●
106 BOLT; BRKT
(C) M14X50 		0-20951-450-0 10 1 1205- ●
106 BOLT; BRKT
(B) M10X35 		0-10961-035-0 04 1 0906-1204 ● ● ●
106 BOLT; BRKT
FSR AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 1205- ● ● ●
106 BOLT; BRKT
(A) M14X35 FLANGE 		0-28661-435-0 12 1 0906-1204 ● ● ●
106 BOLT; BRKT
FSR AIR SUS(FCD***) (A) M14X35 FLANGE 		0-28661-435-0 12 1 1205- ● ● ●
117 BOLT; STOPPER
FSR LEAF SUS(FCR***) M14X50 		0-20951-450-0 16 1 1205- ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1205- ●
118 NUT; STOPPER
FSR LEAF SUS(FCR***) M14 		0-91110-514-0 16 1 1205- ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1205- ●
138 WASHER; LK,BRKT
FSR LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 22 1 1205- ● ●
138 WASHER; LK,BRKT
FSR LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 10 1 1205- ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1205- ●

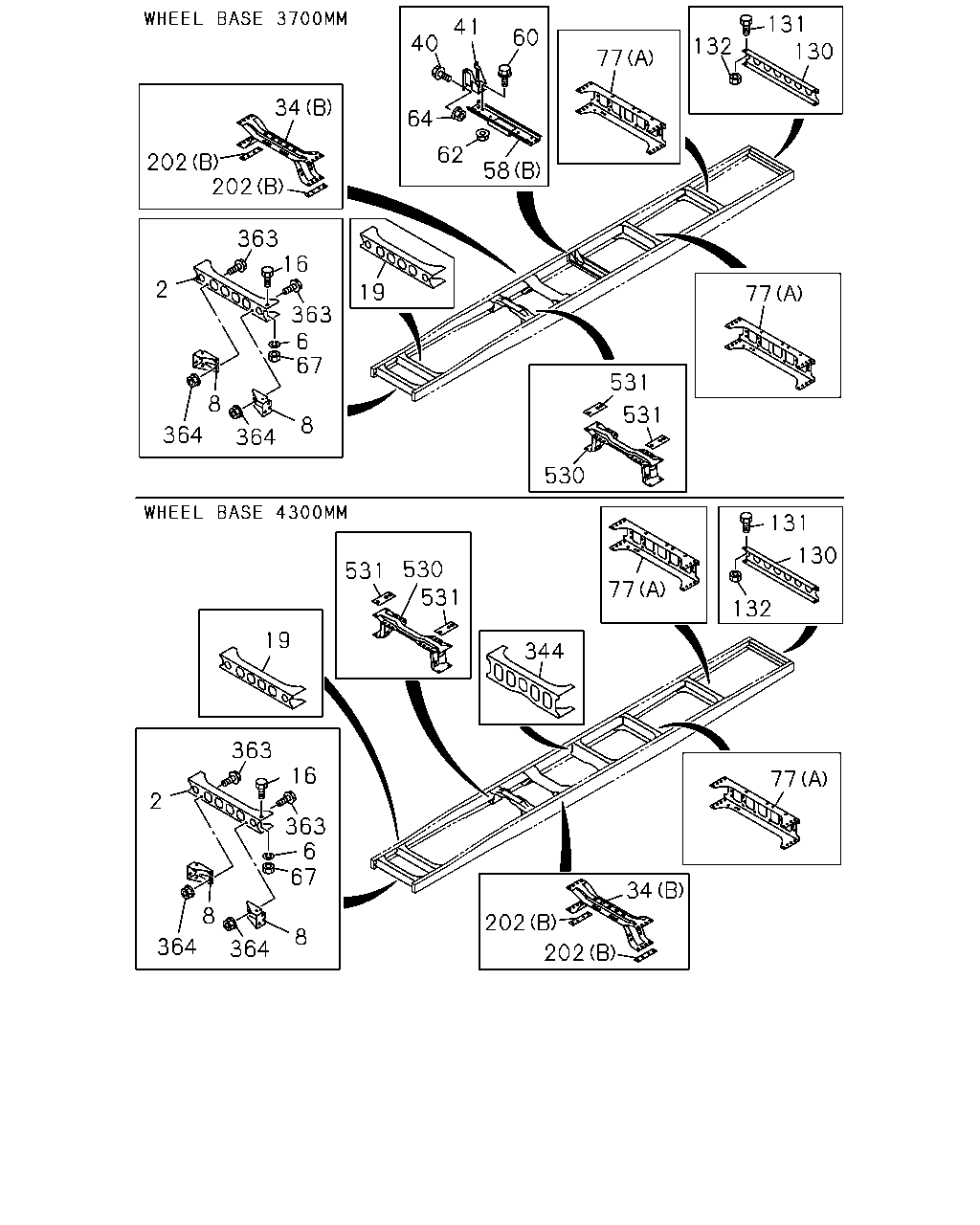

çizim 283543
131 132 130 41 60 40 77 34 64 62 202 202 58 363 16 2 19 77 363 6 67 531 8 531 8 364 364 530 131 130 530 531 531 77 132 19 344 363 16 77 2 363 6 67 34 8 202 8 364 364 202
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST
FSR LEAF SUS(FCR***) 		8-97609-462-9 01 1 1205- ● ● ●
2 MEMBER; CROSS,1ST 8-97609-462-9 01 1 1205- ●
2 MEMBER; CROSS,1ST 8-97626-854-3 01 1 0906-1204 ● ● ●
2 MEMBER; CROSS,1ST
FSR AIR SUS(FCD***) 		8-97626-854-3 01 1 1205- ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 0906-1204 ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1205- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-1 01 1 0906-1204 ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-2 01 1 1205- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-2 01 1 0906-1204 ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-3 01 1 1205- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 0906-1204 ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 1205- ● ● ● ●
19 MEMBER; CROSS,2ND
FSR LEAF SUS(FCR***) 		8-97629-428-5 01 1 1205- ● ● ●
19 MEMBER; CROSS,2ND 8-97629-428-5 01 1 1205- ●
34 MEMBER; CROSS,3RD
FSR LEAF SUS(FCR***) (B) 		8-97609-501-2 01 1 1205- ● ● ●
34 MEMBER; CROSS,3RD
(B) 		8-97609-501-2 01 1 1205- ●
34 MEMBER; CROSS,3RD
(A) 		8-97609-755-0 01 1 0906-1204 ● ● ●
34 MEMBER; CROSS,3RD
FSR AIR SUS(FCD***) (A) 		8-97609-755-0 01 1 1205- ● ● ●
40 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 08 1 0906- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 0906- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 0906- ●
58 MEMBER; CENTER BRG
FSR LEAF SUS(FCR***) (B) 		8-97638-924-0 01 1 1205- ●
58 MEMBER; CENTER BRG
(A) 		8-97619-112-0 01 1 0906-1204 ●
58 MEMBER; CENTER BRG
FSR AIR SUS(FCD***) (A) 		8-97619-112-0 01 1 1205- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0906- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0906- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0906- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0906-1204 ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1205- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FSR LEAF SUS(FCR***) (A) 		8-97609-481-4 02 1 1205- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 02 1 1205- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 01 1 0906-1204 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FSR AIR SUS(FCD***) (A) 		8-97609-481-4 01 1 1205- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-483-0 01 1 0906-1204 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FSR AIR SUS(FCD***) (B) 		8-97609-483-0 01 1 1205- ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0906-1204 ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1205- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0906-1204 ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1205- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0906-1204 ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1205- ● ● ● ●
202 SPACER; 3RD C/MBR
FSR LEAF SUS(FCR***) (B) 		8-97609-756-1 02 1 1205- ● ● ●
202 SPACER; 3RD C/MBR
(B) 		8-97609-756-1 02 1 1205- ●
202 SPACER; 3RD C/MBR
(A) 		8-97609-757-0 02 1 0906-1204 ● ● ●
202 SPACER; 3RD C/MBR
FSR AIR SUS(FCD***) (A) 		8-97609-757-0 02 1 1205- ● ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0906-1204 ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1205- ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0906-1204 ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1205- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0906-1204 ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1205- ● ● ● ●
530 MEMBER; CROSS,T/M
FSR LEAF SUS(FCR***) 		8-97609-809-3 01 1 1205- ● ● ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1205- ●
531 SPACER; C/MBR,T/M
FSR LEAF SUS(FCR***) 		8-97616-461-1 02 1 1205- ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1205- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
