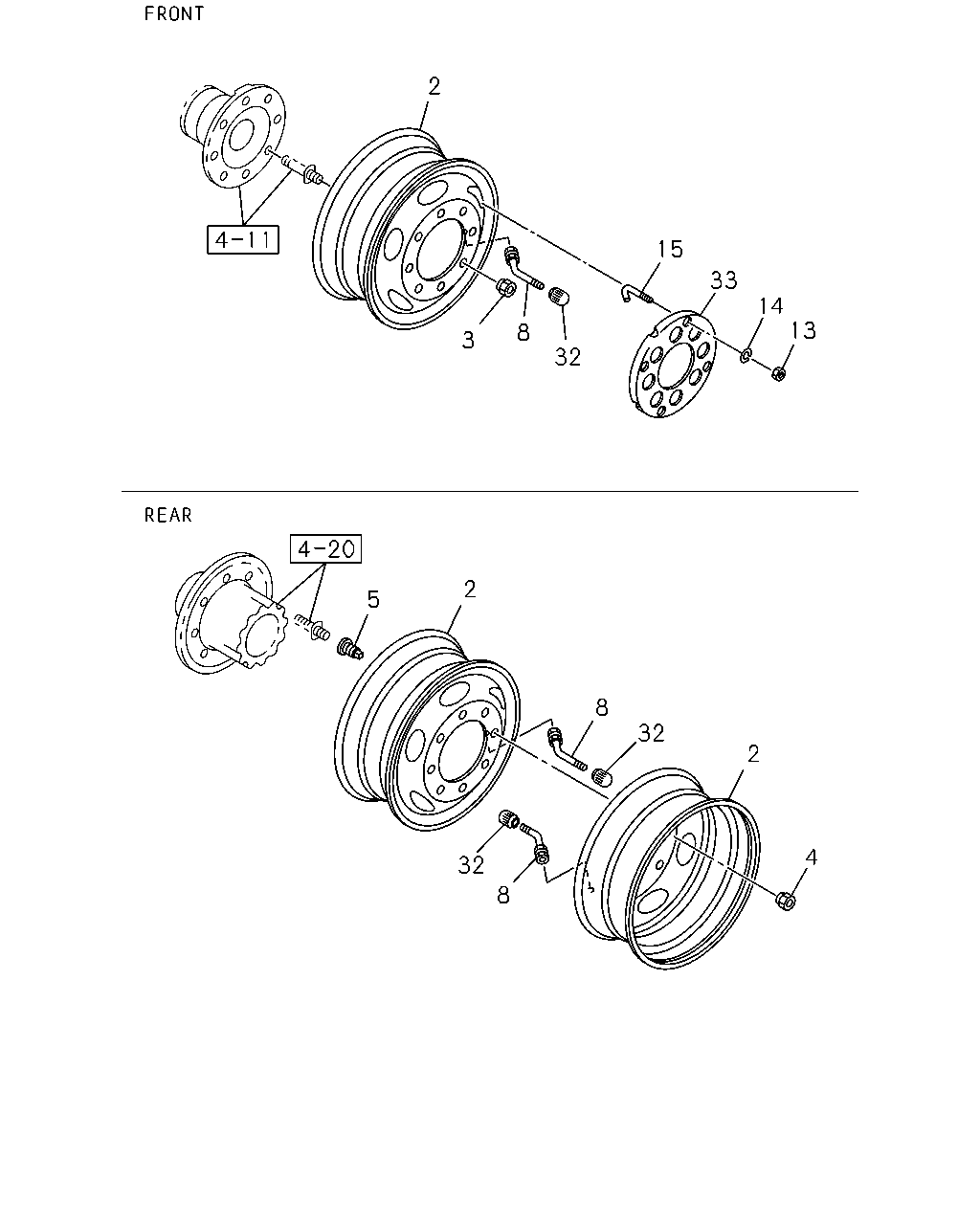

4-80 — ROAD WHEEL (#17373) — 40 parça

2 15 33 14 13 8 3 32 2 5 8 32 2 4 32 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC FRONT,REAR	1-42350-761-1	06	1	0906-1204	●
2	WHEEL; DISC FRONT,REAR	1-42350-761-1	06	1	1205-	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42350-761-1	01	1	0906-1204	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42350-761-1	01	1	1205-	●	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	0906-1204	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	1205-	●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	0906-1204	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	1205-	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	0906-1204	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	1205-	●	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	0906-1204	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	1205-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0906-1204	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	1205-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0906-1204	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	1205-	●	●
8	VALVE; TIRE FRONT,REAR	1-42370-020-3	06	1	0906-1204	●
8	VALVE; TIRE FRONT,REAR	1-42370-020-3	06	1	1205-	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0906-1204	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	1205-	●	●
13	NUT; STEP DISC M10	0-91110-510-0	08	1	0906-1110	●
13	NUT; STEP DISC TIRE 245/70R19.5-136/134M RIB EEC(5J8) M10	0-91110-510-0	08	1	1111-1202	●
13	NUT; STEP DISC M10	0-91110-510-0	08	1	1203-1204	●
13	NUT; STEP DISC M10	0-91110-510-0	08	1	1205-	●	●
14	WASHER; LK,STEP DISC ID=10.2	0-91510-810-0	08	1	0906-1110	●
14	WASHER; LK,STEP DISC TIRE 245/70R19.5-136/134M RIB EEC(5J8) ID=10.2	0-91510-810-0	08	1	1111-1202	●
14	WASHER; LK,STEP DISC ID=10.2	0-91510-810-0	08	1	1203-1204	●
14	WASHER; LK,STEP DISC ID=10.2	0-91510-810-0	08	1	1205-	●	●
15	BOLT; STEP DISC	1-43139-073-0	08	1	0906-1110	●
15	BOLT; STEP DISC TIRE 245/70R19.5-136/134M RIB EEC(5J8)	1-43139-073-0	08	1	1111-1202	●
15	BOLT; STEP DISC	1-43139-073-0	08	1	1203-1204	●
15	BOLT; STEP DISC	1-43139-073-0	08	1	1205-	●	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	0906-1204	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	1205-	●	●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0906-1204	●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	1205-	●	●
33	COVER; WHEEL	1-43139-062-2	02	1	0906-1110	●
33	COVER; WHEEL TIRE 245/70R19.5-136/134M RIB EEC(5J8)	1-43139-062-2	02	1	1111-1202	●
33	COVER; WHEEL	1-43139-062-2	02	1	1203-1204	●
33	COVER; WHEEL	1-43139-062-2	02	1	1205-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
