◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-71 - AIR SUSPENSION PIPING ▶
4-71 — AIR SUSPENSION PIPING (#17372) — 33 parça

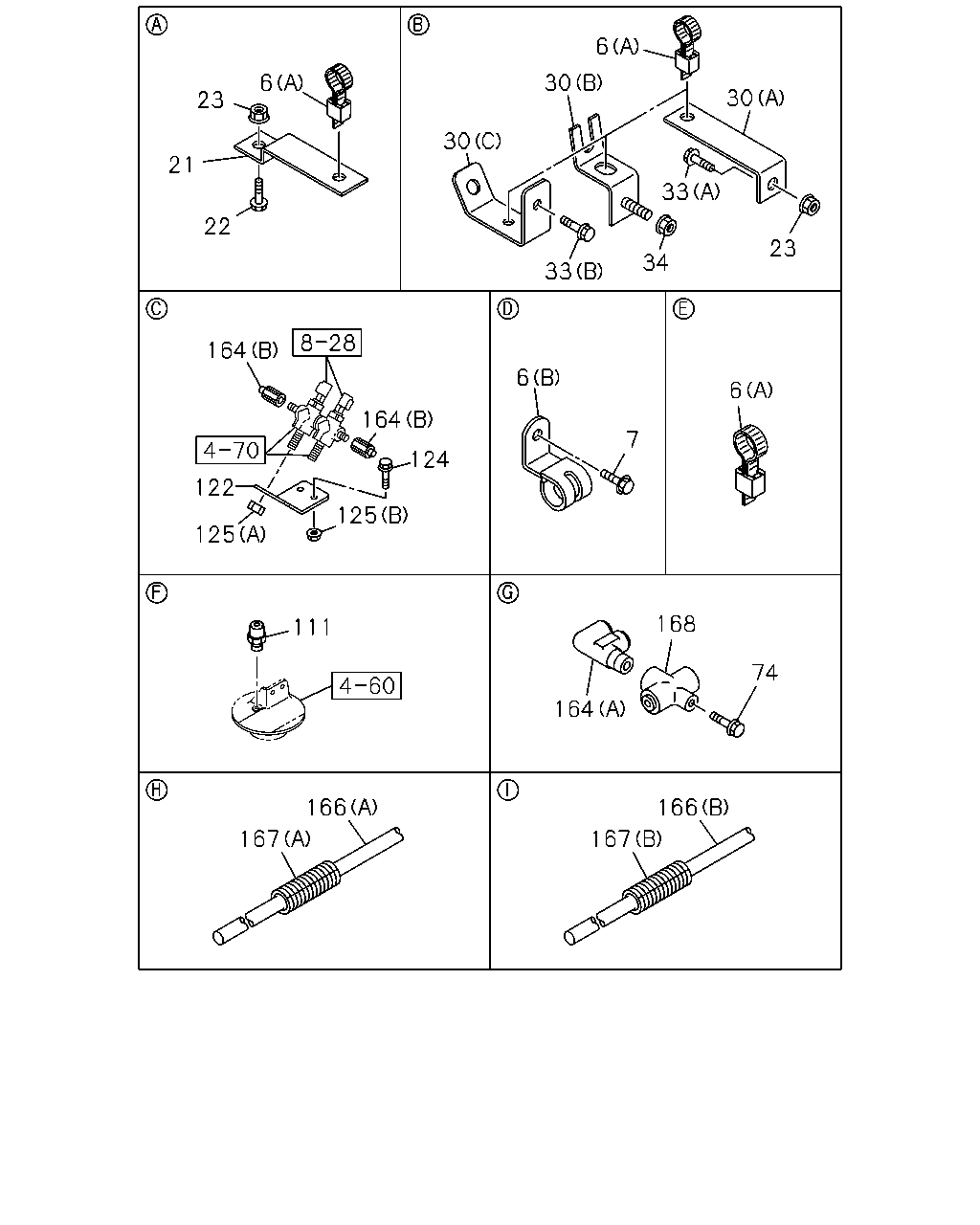

çizim 63101
6 30 6 30 23 30 21 33 22 23 34 33 164 6 6 164 7 124 122 125 125 168 111 74 164 166 166 167 167
BalonParca AdiParca NoAdetTipApplied Date
6 CLIP; AIR PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 13 1 1110-
6 CLIP; AIR PIPE
(B) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0906-
6 CLIP; AIR PIPE
(A) L=350 		1-09707-183-0 13 1 0906-1109
6 CLIP; AIR PIPE
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 12 1 1110-
6 CLIP; AIR PIPE
WHEEL BASE 4300MM(43W) (A) L=350 		1-09707-183-0 03 1 0906-
6 CLIP; AIR PIPE
WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 0906-
7 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0906-
21 BRACKET; AIR PIPE 1-47471-163-0 03 1 0906-
22 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0906-
23 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0906-
30 BRACKET; CLIP
(A) L=55 B=25 		1-47478-439-0 01 1 0906-1109
30 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (A) L=55 B=25 		1-47478-439-0 01 1 1110-
30 BRACKET; CLIP
WHEEL BASE 4900MM(49W) (B) 		8-98096-272-0 02 1 0906-0910
30 BRACKET; CLIP
WHEEL BASE 4900MM(49W) (C) 		8-98117-686-0 01 1 0906-0910
33 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0906-1109
33 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1110-
33 BOLT; BRKT
WHEEL BASE 4900MM(49W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0906-0910
34 NUT; BRKT
WHEEL BASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 02 1 0906-0910
74 BOLT; CLIP AIR PIPE
M8X20 FLANGE 		0-28050-820-0 02 1 0906-
111 UNION; AIR PIPE
DIN8 & R3/8 STRAIGHT 		1-09660-964-0 04 1 0906-
122 BRACKET; AIR PIPE 1-47479-878-0 01 1 0906-
124 BOLT; CLIP AIR PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0906-
125 NUT; CLIP AIR PIPE
(A) M12 		0-91111-512-0 02 1 0906-
125 NUT; CLIP AIR PIPE
(B) M8 FLANGE 		0-91180-108-0 02 1 0906-
164 CONNECTOR
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0906-
164 CONNECTOR
(A) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 02 1 0906-
166 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0906-
166 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0906-
166 TUBE; NYLON
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0906-
166 TUBE; NYLON
WHEEL BASE 4900MM(49W) (A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0906-
167 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0906-
167 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0906-
168 UNION; 3WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 02 1 0906-
