Sayfa 3-05 - Isuzu EPC

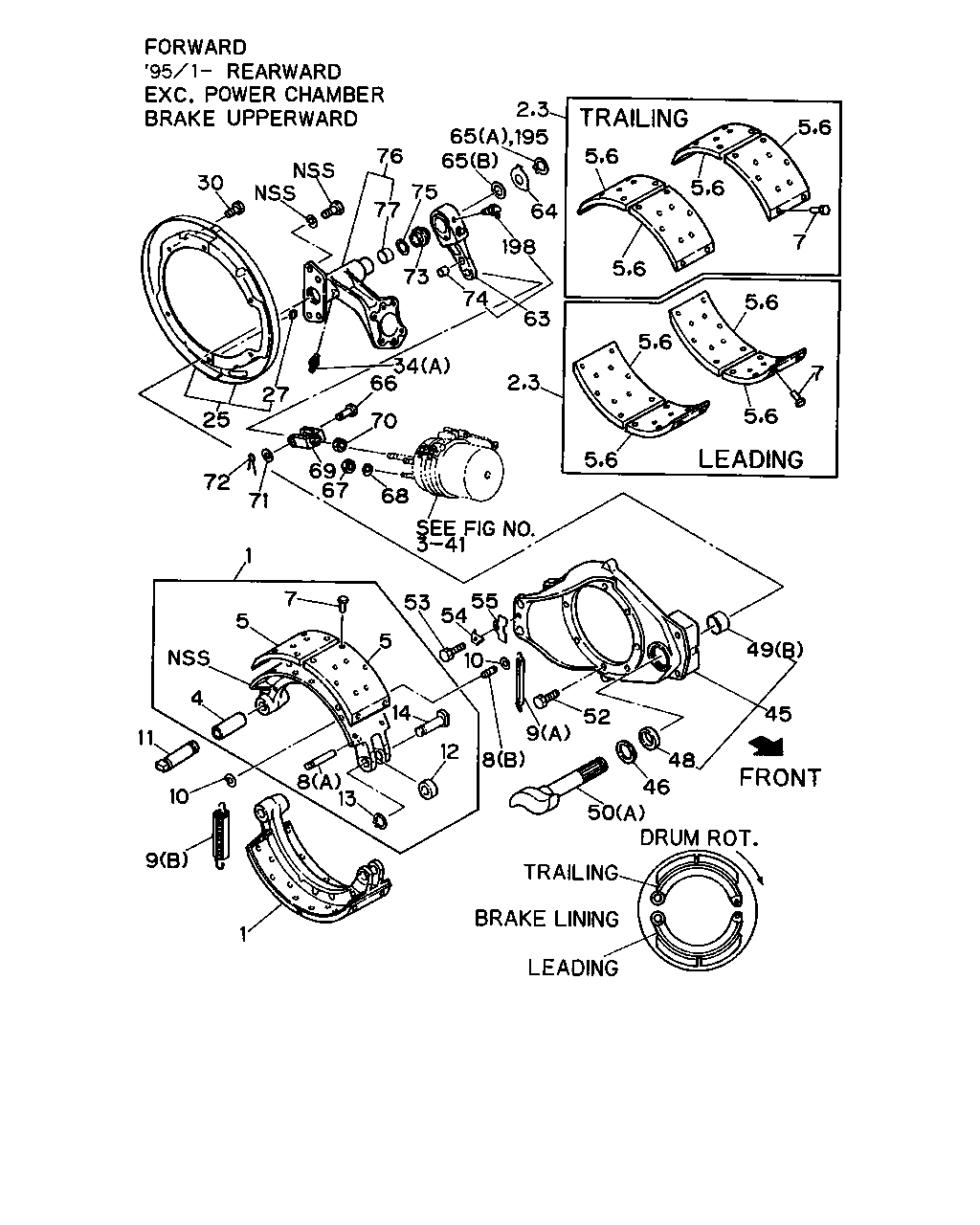

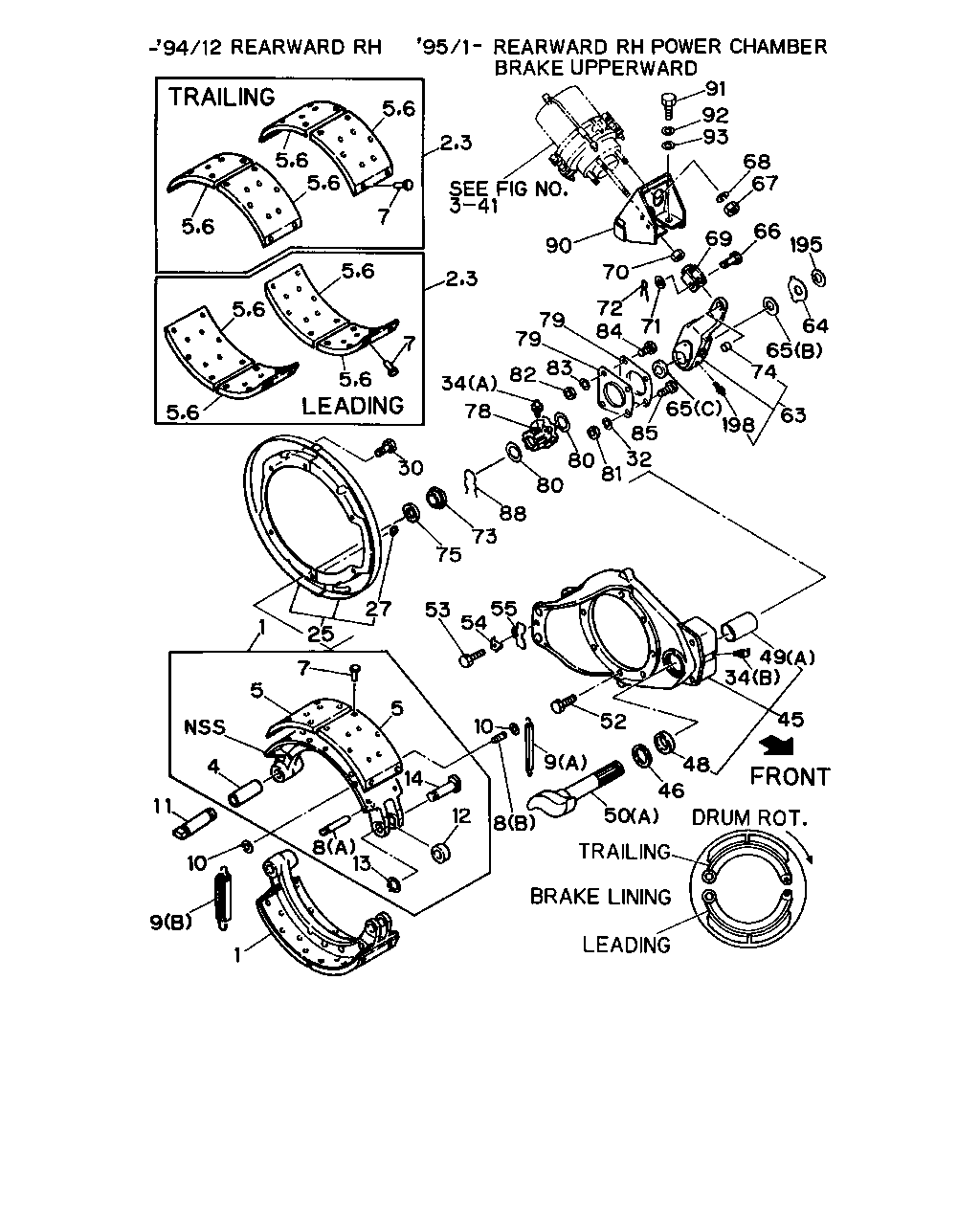

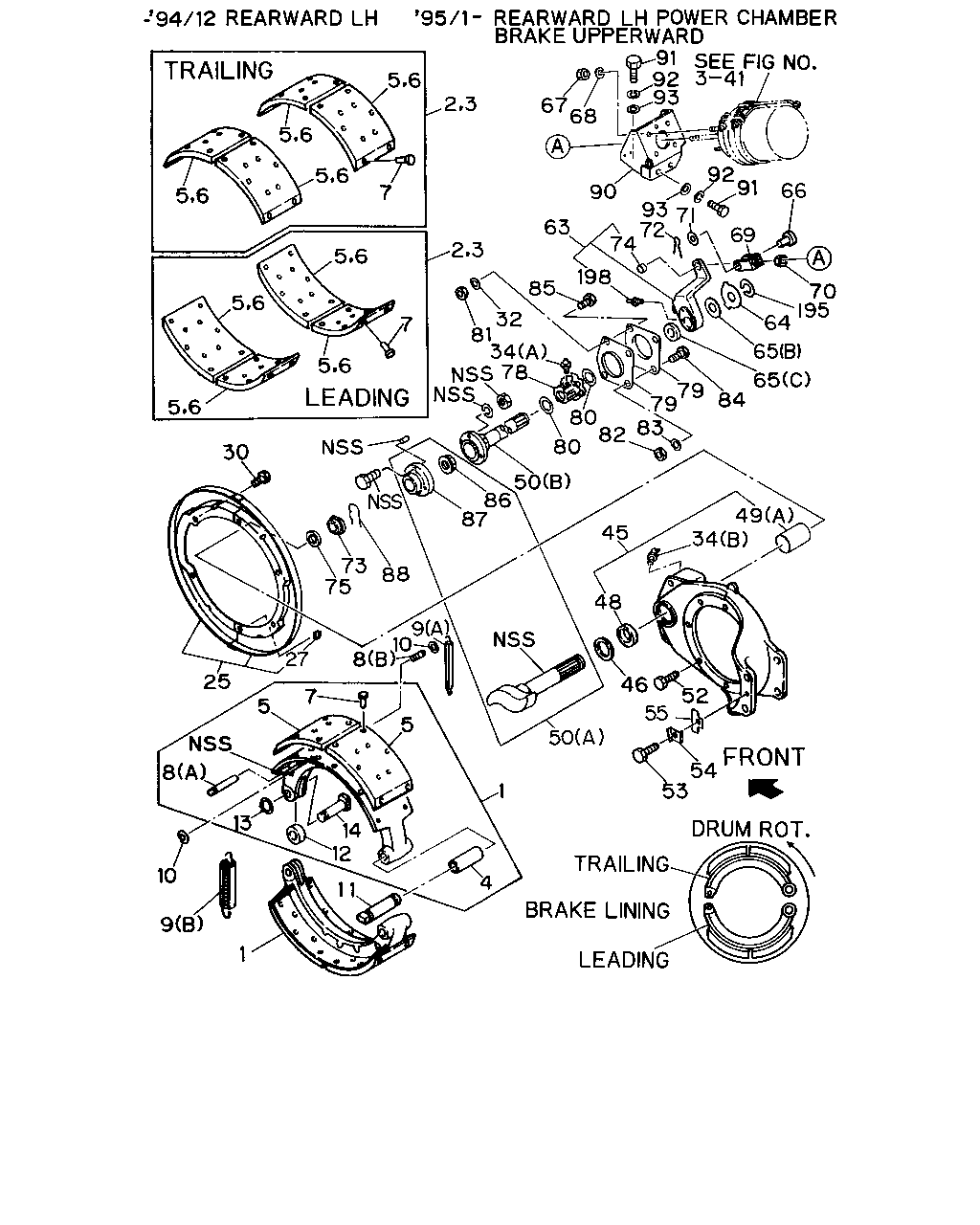

3-05 — REAR WHEEL BRAKE (#1737) — 490 parça

6 5 6 5 6 5 6 5 7 3 2 67 68 91 93 92 92 91 66 69 71 93 90 70 72 74 63 3 2 6 5 6 5 7 6 5 6 5 85 198 195 64 32 81 79 34 78 84 65 65 82 83 79 49 80 34 80 50 86 87 45 46 52 55 54 53 88 73 75 30 9 10 8 27 25 5 8 10 9 7 13 1 14 12 11 5 48 50 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR LEADING	1-47110-969-0	02	1	9002-	●	●
1	SHOE; BRK,RR TRAILING	1-47110-970-0	02	1	9002-	●	●
1	SHOE; BRK,RR LEADING	1-47110-967-0	02	1	9002-	●	●
1	SHOE; BRK,RR TRAILING	1-47110-968-0	02	1	9002-	●	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-929-0	02	1	9002-9306	●	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-937-0	02	1	9002-9306	●	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-925-0	02	1	9307-	●	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-933-0	02	1	9307-	●	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-930-0	02	1	9002-9306	●	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-938-0	02	1	9002-9306	●	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-926-0	02	1	9307-	●	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-934-0	02	1	9307-	●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	9002-	●	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-773-0	08	1	9002-	●	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-817-0	08	1	9002-	●	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-774-0	08	1	9002-	●	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-818-0	08	1	9002-	●	●
7	RIVET; LINING,RR BRK FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 17.5"(W4R),FINAL GEAR 43/11 17.5"(W4S) L=18.5	1-09732-034-0	AR	1	9002-	●
7	RIVET; LINING,RR BRK FINAL GEAR 43/7 17.5"(W3Y) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=18.5	1-09732-034-0	AR	1	9002-	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9002-		●
7	RIVET; LINING,RR BRK FINAL GEAR 43/7 17.5"(W3Y) TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> L=17.0	1-09732-027-0	AR	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	9002-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	9002-	●	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	9002-	●	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	9002-	●	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	9002-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	9002-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	9002-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	9002-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	08	1	9002-	●	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	04	1	9002-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	08	1	9002-9501	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	08	1	9502-	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	24	1	9002-9204	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	9205-9306	●	●
30	BOLT; DRUM COVER M10X16 FLANGE	0-28081-016-0	24	1	9307-9410	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	9411-	●	●
32	WASHER; LK REARWARD	9-09150-510-0	04	1	9002-9412	●	●
32	WASHER; LK POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD ID=10.2	9-09150-510-0	04	1	9501-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (A)	9-09031-010-0	04	1	9002-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-9412	●	●
34	NIPPLE; GREASE,CHAMBER BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9501-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD	1-47137-120-2	02	1	9002-9412	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD & REARWARD	1-47137-120-2	02	1	9501-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD & REARWARD	1-47137-120-2	02	1	9501-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	02	1	9002-9412	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47137-128-1	02	1	9501-	●	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	9002-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	9002-	●	●
49	BUSHING; CM/SHF,RR BRK (B) FORWARD	1-47146-003-1	02	1	9002-9412	●	●
49	BUSHING; CM/SHF,RR BRK (B) FORWARD & REARWARD	1-47146-003-1	02	1	9501-	●	●
49	BUSHING; CM/SHF,RR BRK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) FORWARD & REARWARD	1-47146-003-1	02	1	9501-	●	●
49	BUSHING; CM/SHF,RR BRK (A) REARWARD	1-47146-009-0	02	1	9002-9412	●	●
49	BUSHING; CM/SHF,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD	1-47146-009-0	02	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-053-0	01	1	9002-9412	●	●
50	CAMSHAFT; BRK,RR BRK (A) FORWARD & REARWARD	1-47141-053-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD & REARWARD	1-47141-053-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK (B) REARWARD	1-47141-065-1	01	1	9002-9412	●	●
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-066-0	01	1	9002-9412	●	●
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD	1-47141-066-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-054-0	01	1	9002-9412	●	●
50	CAMSHAFT; BRK,RR BRK (A) FORWARD & REARWARD	1-47141-054-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD & REARWARD	1-47141-054-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-063-0	01	1	9002-9412	●	●
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD	1-47141-063-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD	1-47141-065-1	01	1	9501-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9002-9412	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9501-	●	●
52	BOLT; ANCHOR BRKT EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M14X50	1-09040-066-0	02	1	9501-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	9002-9412	●	●
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M14X50	1-09040-066-0	01	1	9501-	●	●
52	BOLT; ANCHOR BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M14X43	1-09040-045-0	01	1	9002-9306	●	●
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M14X43	1-09040-045-0	01	1	9307-9412	●
52	BOLT; ANCHOR BRKT M14X43	1-09040-045-0	01	1	9307-9412		●
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M14X43	1-09040-045-0	01	1	9501-	●	●
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	04	1	9002-9204	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	9205-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	04	1	9002-9109	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	9110-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK LH; FORWARD & RH; REARWARD	1-48270-045-0	02	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	9002-9412	●	●
63	ADJUSTER ASM; SLACK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48270-050-1	01	1	9501-	●	●
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-046-0	01	1	9002-9412	●	●
63	ADJUSTER ASM; SLACK,RR BRK RH; FORWARD & LH; REARWARD	1-48270-046-0	01	1	9501-	●	●
63	ADJUSTER ASM; SLACK,RR BRK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> RH; FORWARD & LH; REARWARD	1-48270-046-0	01	1	9501-	●	●
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-022-0	02	1	9002-9412	●	●
64	PLATE; STOPPER,CM/SHF FORWARD & REARWARD	1-47149-022-0	02	1	9501-	●	●
64	PLATE; STOPPER,CM/SHF EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD & REARWARD	1-47149-022-0	02	1	9501-	●	●
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	9002-9412	●	●
64	PLATE; STOPPER,CM/SHF POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47149-040-0	02	1	9501-	●	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	9002-	●	●
65	SPACER; SLACK ADJ,BRK (C) REARWARD	1-47143-007-0	02	1	9002-9412	●	●
65	SPACER; SLACK ADJ,BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (C) REARWARD	1-47143-007-0	02	1	9501-	●	●
65	SPACER; SLACK ADJ,BRK (A) FORWARD	9-09180-038-0	01	1	9002-9412	●	●
65	SPACER; SLACK ADJ,BRK (A) FORWARD & REARWARD	9-09180-038-0	01	1	9501-	●	●
65	SPACER; SLACK ADJ,BRK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD & REARWARD	9-09180-038-0	01	1	9501-	●	●
66	PIN; JAW JOINT	1-09744-088-0	04	1	9002-	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	16	1	9002-	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	16	1	9002-	●	●
69	JOINT; JAW	1-09768-060-0	04	1	9002-	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	04	1	9002-	●	●
71	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	04	1	9002-9401	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	04	1	9402-	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	04	1	9002-	●	●
73	COLLAR; FELT RING,CM/SHF FORWARD	1-47143-003-0	02	1	9002-9412	●	●
73	COLLAR; FELT RING,CM/SHF FORWARD & REARWARD	1-47143-003-0	02	1	9501-	●	●
73	COLLAR; FELT RING,CM/SHF EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD & REARWARD	1-47143-003-0	02	1	9501-	●	●
73	COLLAR; FELT RING,CM/SHF REARWARD	1-47143-006-0	02	1	9002-9412	●	●
73	COLLAR; FELT RING,CM/SHF POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47143-006-0	02	1	9501-	●	●
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	9002-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	9002-	●	●
78	BUSHING; BRKT	1-47146-008-0	02	1	9002-9412	●	●
78	BUSHING; BRKT POWER CHAMBER BRAKE UPPERWARD<C1T>	1-47146-008-0	02	1	9501-	●	●
79	BRACKET; CM/SHF	9-47145-013-0	04	1	9002-9412	●	●
79	BRACKET; CM/SHF POWER CHAMBER BRAKE UPPERWARD<C1T>	9-47145-013-0	04	1	9501-	●	●
80	GASKET; BUSHING ID=39.7	9-09561-340-0	04	1	9002-9412	●	●
80	GASKET; BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> ID=39.7	9-09561-340-0	04	1	9501-	●	●
81	NUT M10	9-09110-410-0	04	1	9002-9412	●	●
81	NUT POWER CHAMBER BRAKE UPPERWARD<C1T> M10	9-09110-410-0	04	1	9501-	●	●
82	NUT M16	9-99110-516-0	04	1	9002-9412	●	●
82	NUT POWER CHAMBER BRAKE UPPERWARD<C1T> M16	9-99110-516-0	04	1	9501-	●	●
83	WASHER; PL ID=16.2	9-09851-672-2	08	1	9002-9412	●	●
83	WASHER; PL POWER CHAMBER BRAKE UPPERWARD<C1T> ID=16.2	9-09851-672-2	08	1	9501-	●	●
84	BOLT; BRKT TO CASE M16X40	9-92061-640-0	04	1	9002-9412	●	●
84	BOLT; BRKT TO CASE POWER CHAMBER BRAKE UPPERWARD<C1T> M16X40	9-92061-640-0	04	1	9501-	●	●
85	BOLT; CM/SHF BRKT M10X20	9-02041-020-0	04	1	9002-9204	●	●
85	BOLT; CM/SHF BRKT M10X20	0-20801-020-0	04	1	9205-9412	●	●
85	BOLT; CM/SHF BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M10X20	0-20801-020-0	04	1	9501-	●	●
86	NUT; FLANGE REARWARD; LH	1-09440-020-0	01	1	9002-9412	●	●
86	NUT; FLANGE POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD; LH	1-09440-020-0	01	1	9501-	●	●
87	FLANGE; SHAFT POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD;LH	1-47149-041-0	01	1	9501-	●	●
87	FLANGE; SHAFT REARWARD;LH	1-47149-041-0	01	1	9002-9412	●	●
88	CLIP; BRKT	1-09589-014-0	02	1	9002-9403	●	●
88	CLIP; BRKT	1-09589-018-0	02	1	9404-9412	●	●
88	CLIP; BRKT POWER CHAMBER BRAKE UPPERWARD<C1T>	1-09589-018-0	02	1	9501-	●	●
90	BRACKET; CHAMBER	1-42129-046-3	01	1	9002-	●	●
90	BRACKET; CHAMBER	1-42129-045-3	01	1	9002-	●	●
91	BOLT; CHAMBER	9-92351-635-0	08	1	9002-9005	●	●
91	BOLT; CHAMBER M16X35	0-23801-635-0	08	1	9006-	●	●
92	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9002-	●	●
93	WASHER; PL,CHAMBER ID=17 OD=32	9-09160-616-0	08	1	9002-	●	●
195	RING; SNAP,CM/SHF FORWARD	9-09180-038-0	01	1	9002-9412	●	●
195	RING; SNAP,CM/SHF FORWARD & REARWARD	9-09180-038-0	01	1	9501-	●	●
195	RING; SNAP,CM/SHF EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD & REARWARD	9-09180-038-0	01	1	9501-	●	●
195	RING; SNAP,CM/SHF REARWARD	9-09180-038-0	02	1	9002-9412	●	●
195	RING; SNAP,CM/SHF POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	9-09180-038-0	02	1	9501-	●	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	9002-	●	●

30 76 2 3 65 195 65 75 77 64 198 73 63 74 27 25 72 70 66 34 2 3 5 6 5 6 7 6 5 6 5 6 5 5 6 6 5 6 5 68 67 69 71 1 5 7 4 11 10 9 1 8 13 14 5 12 8 53 55 54 10 9 48 46 50 52 49 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR LEADING	1-47110-969-0	02	1	9002-	●	●
1	SHOE; BRK,RR TRAILING	1-47110-970-0	02	1	9002-	●	●
1	SHOE; BRK,RR LEADING	1-47110-967-0	02	1	9002-	●	●
1	SHOE; BRK,RR TRAILING	1-47110-968-0	02	1	9002-	●	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-929-0	02	1	9002-9306	●	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-937-0	02	1	9002-9306	●	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-925-0	02	1	9307-	●	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-933-0	02	1	9307-	●	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-930-0	02	1	9002-9306	●	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-938-0	02	1	9002-9306	●	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-926-0	02	1	9307-	●	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-934-0	02	1	9307-	●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	9002-	●	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-773-0	08	1	9002-	●	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-817-0	08	1	9002-	●	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-774-0	08	1	9002-	●	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-818-0	08	1	9002-	●	●
7	RIVET; LINING,RR BRK FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 17.5"(W4R),FINAL GEAR 43/11 17.5"(W4S) L=18.5	1-09732-034-0	AR	1	9002-	●
7	RIVET; LINING,RR BRK FINAL GEAR 43/7 17.5"(W3Y) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=18.5	1-09732-034-0	AR	1	9002-	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9002-		●
7	RIVET; LINING,RR BRK FINAL GEAR 43/7 17.5"(W3Y) TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> L=17.0	1-09732-027-0	AR	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	9002-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	9002-	●	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	9002-	●	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	9002-	●	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	9002-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	9002-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	9002-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	9002-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	08	1	9002-	●	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	04	1	9002-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	08	1	9002-9501	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	08	1	9502-	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	24	1	9002-9204	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	9205-9306	●	●
30	BOLT; DRUM COVER M10X16 FLANGE	0-28081-016-0	24	1	9307-9410	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	9411-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (A)	9-09031-010-0	04	1	9002-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-9412	●	●
34	NIPPLE; GREASE,CHAMBER BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9501-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD	1-47137-120-2	02	1	9002-9412	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD & REARWARD	1-47137-120-2	02	1	9501-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD & REARWARD	1-47137-120-2	02	1	9501-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	02	1	9002-9412	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47137-128-1	02	1	9501-	●	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	9002-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	9002-	●	●
49	BUSHING; CM/SHF,RR BRK (B) FORWARD	1-47146-003-1	02	1	9002-9412	●	●
49	BUSHING; CM/SHF,RR BRK (B) FORWARD & REARWARD	1-47146-003-1	02	1	9501-	●	●
49	BUSHING; CM/SHF,RR BRK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) FORWARD & REARWARD	1-47146-003-1	02	1	9501-	●	●
49	BUSHING; CM/SHF,RR BRK (A) REARWARD	1-47146-009-0	02	1	9002-9412	●	●
49	BUSHING; CM/SHF,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD	1-47146-009-0	02	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-053-0	01	1	9002-9412	●	●
50	CAMSHAFT; BRK,RR BRK (A) FORWARD & REARWARD	1-47141-053-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD & REARWARD	1-47141-053-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK (B) REARWARD	1-47141-065-1	01	1	9002-9412	●	●
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-066-0	01	1	9002-9412	●	●
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD	1-47141-066-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-054-0	01	1	9002-9412	●	●
50	CAMSHAFT; BRK,RR BRK (A) FORWARD & REARWARD	1-47141-054-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD & REARWARD	1-47141-054-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-063-0	01	1	9002-9412	●	●
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD	1-47141-063-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD	1-47141-065-1	01	1	9501-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9002-9412	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9501-	●	●
52	BOLT; ANCHOR BRKT EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M14X50	1-09040-066-0	02	1	9501-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	9002-9412	●	●
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M14X50	1-09040-066-0	01	1	9501-	●	●
52	BOLT; ANCHOR BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M14X43	1-09040-045-0	01	1	9002-9306	●	●
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M14X43	1-09040-045-0	01	1	9307-9412	●
52	BOLT; ANCHOR BRKT M14X43	1-09040-045-0	01	1	9307-9412		●
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M14X43	1-09040-045-0	01	1	9501-	●	●
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	04	1	9002-9204	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	9205-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	04	1	9002-9109	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	9110-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK LH; FORWARD & RH; REARWARD	1-48270-045-0	02	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	9002-9412	●	●
63	ADJUSTER ASM; SLACK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48270-050-1	01	1	9501-	●	●
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-046-0	01	1	9002-9412	●	●
63	ADJUSTER ASM; SLACK,RR BRK RH; FORWARD & LH; REARWARD	1-48270-046-0	01	1	9501-	●	●
63	ADJUSTER ASM; SLACK,RR BRK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> RH; FORWARD & LH; REARWARD	1-48270-046-0	01	1	9501-	●	●
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-022-0	02	1	9002-9412	●	●
64	PLATE; STOPPER,CM/SHF FORWARD & REARWARD	1-47149-022-0	02	1	9501-	●	●
64	PLATE; STOPPER,CM/SHF EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD & REARWARD	1-47149-022-0	02	1	9501-	●	●
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	9002-9412	●	●
64	PLATE; STOPPER,CM/SHF POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47149-040-0	02	1	9501-	●	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	9002-	●	●
65	SPACER; SLACK ADJ,BRK (C) REARWARD	1-47143-007-0	02	1	9002-9412	●	●
65	SPACER; SLACK ADJ,BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (C) REARWARD	1-47143-007-0	02	1	9501-	●	●
65	SPACER; SLACK ADJ,BRK (A) FORWARD	9-09180-038-0	01	1	9002-9412	●	●
65	SPACER; SLACK ADJ,BRK (A) FORWARD & REARWARD	9-09180-038-0	01	1	9501-	●	●
65	SPACER; SLACK ADJ,BRK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD & REARWARD	9-09180-038-0	01	1	9501-	●	●
66	PIN; JAW JOINT	1-09744-088-0	04	1	9002-	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	16	1	9002-	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	16	1	9002-	●	●
69	JOINT; JAW	1-09768-060-0	04	1	9002-	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	04	1	9002-	●	●
71	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	04	1	9002-9401	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	04	1	9402-	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	04	1	9002-	●	●
73	COLLAR; FELT RING,CM/SHF FORWARD	1-47143-003-0	02	1	9002-9412	●	●
73	COLLAR; FELT RING,CM/SHF FORWARD & REARWARD	1-47143-003-0	02	1	9501-	●	●
73	COLLAR; FELT RING,CM/SHF EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD & REARWARD	1-47143-003-0	02	1	9501-	●	●
73	COLLAR; FELT RING,CM/SHF REARWARD	1-47143-006-0	02	1	9002-9412	●	●
73	COLLAR; FELT RING,CM/SHF POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47143-006-0	02	1	9501-	●	●
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	9002-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	9002-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD	1-48258-083-0	01	1	9002-9412	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD & REARWARD	1-48258-083-0	01	1	9501-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD & REARWARD	1-48258-083-0	01	1	9501-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD	1-48258-084-0	01	1	9002-9412	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD & REARWARD	1-48258-084-0	01	1	9501-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD & REARWARD	1-48258-084-0	01	1	9501-	●	●
77	BUSHING	1-47146-003-1	02	1	9002-9412	●	●
77	BUSHING	1-47146-003-1	02	1	9501-	●	●
77	BUSHING EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-47146-003-1	02	1	9501-	●	●
195	RING; SNAP,CM/SHF FORWARD	9-09180-038-0	01	1	9002-9412	●	●
195	RING; SNAP,CM/SHF FORWARD & REARWARD	9-09180-038-0	01	1	9501-	●	●
195	RING; SNAP,CM/SHF EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD & REARWARD	9-09180-038-0	01	1	9501-	●	●
195	RING; SNAP,CM/SHF REARWARD	9-09180-038-0	02	1	9002-9412	●	●
195	RING; SNAP,CM/SHF POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	9-09180-038-0	02	1	9501-	●	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	9002-	●	●

91 67 68 93 92 66 195 69 90 64 70 65 63 72 71 74 79 84 65 198 79 78 82 83 85 88 80 80 81 32 75 73 30 27 25 1 53 54 55 49 34 45 48 46 50 52 9 10 8 5 14 12 7 5 4 8 13 11 1 9 10 2 3 3 2 6 5 6 5 6 5 34 6 5 6 5 6 5 6 5 7 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR LEADING	1-47110-969-0	02	1	9002-	●	●
1	SHOE; BRK,RR TRAILING	1-47110-970-0	02	1	9002-	●	●
1	SHOE; BRK,RR LEADING	1-47110-967-0	02	1	9002-	●	●
1	SHOE; BRK,RR TRAILING	1-47110-968-0	02	1	9002-	●	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-929-0	02	1	9002-9306	●	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-937-0	02	1	9002-9306	●	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-925-0	02	1	9307-	●	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-933-0	02	1	9307-	●	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-930-0	02	1	9002-9306	●	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-938-0	02	1	9002-9306	●	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-926-0	02	1	9307-	●	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-934-0	02	1	9307-	●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	9002-	●	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-773-0	08	1	9002-	●	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-817-0	08	1	9002-	●	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-774-0	08	1	9002-	●	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-818-0	08	1	9002-	●	●
7	RIVET; LINING,RR BRK FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 17.5"(W4R),FINAL GEAR 43/11 17.5"(W4S) L=18.5	1-09732-034-0	AR	1	9002-	●
7	RIVET; LINING,RR BRK FINAL GEAR 43/7 17.5"(W3Y) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=18.5	1-09732-034-0	AR	1	9002-	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9002-		●
7	RIVET; LINING,RR BRK FINAL GEAR 43/7 17.5"(W3Y) TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> L=17.0	1-09732-027-0	AR	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	9002-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	9002-	●	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	9002-	●	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	9002-	●	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	9002-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	9002-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	9002-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	9002-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	08	1	9002-	●	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	04	1	9002-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	08	1	9002-9501	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	08	1	9502-	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	24	1	9002-9204	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	9205-9306	●	●
30	BOLT; DRUM COVER M10X16 FLANGE	0-28081-016-0	24	1	9307-9410	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	9411-	●	●
32	WASHER; LK REARWARD	9-09150-510-0	04	1	9002-9412	●	●
32	WASHER; LK POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD ID=10.2	9-09150-510-0	04	1	9501-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (A)	9-09031-010-0	04	1	9002-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-9412	●	●
34	NIPPLE; GREASE,CHAMBER BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9501-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD	1-47137-120-2	02	1	9002-9412	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD & REARWARD	1-47137-120-2	02	1	9501-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD & REARWARD	1-47137-120-2	02	1	9501-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	02	1	9002-9412	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47137-128-1	02	1	9501-	●	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	9002-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	9002-	●	●
49	BUSHING; CM/SHF,RR BRK (B) FORWARD	1-47146-003-1	02	1	9002-9412	●	●
49	BUSHING; CM/SHF,RR BRK (B) FORWARD & REARWARD	1-47146-003-1	02	1	9501-	●	●
49	BUSHING; CM/SHF,RR BRK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) FORWARD & REARWARD	1-47146-003-1	02	1	9501-	●	●
49	BUSHING; CM/SHF,RR BRK (A) REARWARD	1-47146-009-0	02	1	9002-9412	●	●
49	BUSHING; CM/SHF,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD	1-47146-009-0	02	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-053-0	01	1	9002-9412	●	●
50	CAMSHAFT; BRK,RR BRK (A) FORWARD & REARWARD	1-47141-053-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD & REARWARD	1-47141-053-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK (B) REARWARD	1-47141-065-1	01	1	9002-9412	●	●
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-066-0	01	1	9002-9412	●	●
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD	1-47141-066-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-054-0	01	1	9002-9412	●	●
50	CAMSHAFT; BRK,RR BRK (A) FORWARD & REARWARD	1-47141-054-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD & REARWARD	1-47141-054-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-063-0	01	1	9002-9412	●	●
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD	1-47141-063-0	01	1	9501-	●	●
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD	1-47141-065-1	01	1	9501-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9002-9412	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9501-	●	●
52	BOLT; ANCHOR BRKT EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M14X50	1-09040-066-0	02	1	9501-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	9002-9412	●	●
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M14X50	1-09040-066-0	01	1	9501-	●	●
52	BOLT; ANCHOR BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M14X43	1-09040-045-0	01	1	9002-9306	●	●
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M14X43	1-09040-045-0	01	1	9307-9412	●
52	BOLT; ANCHOR BRKT M14X43	1-09040-045-0	01	1	9307-9412		●
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M14X43	1-09040-045-0	01	1	9501-	●	●
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	04	1	9002-9204	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	9205-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	04	1	9002-9109	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	9110-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK LH; FORWARD & RH; REARWARD	1-48270-045-0	02	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	9002-9412	●	●
63	ADJUSTER ASM; SLACK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48270-050-1	01	1	9501-	●	●
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-046-0	01	1	9002-9412	●	●
63	ADJUSTER ASM; SLACK,RR BRK RH; FORWARD & LH; REARWARD	1-48270-046-0	01	1	9501-	●	●
63	ADJUSTER ASM; SLACK,RR BRK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> RH; FORWARD & LH; REARWARD	1-48270-046-0	01	1	9501-	●	●
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-022-0	02	1	9002-9412	●	●
64	PLATE; STOPPER,CM/SHF FORWARD & REARWARD	1-47149-022-0	02	1	9501-	●	●
64	PLATE; STOPPER,CM/SHF EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD & REARWARD	1-47149-022-0	02	1	9501-	●	●
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	9002-9412	●	●
64	PLATE; STOPPER,CM/SHF POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47149-040-0	02	1	9501-	●	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	9002-	●	●
65	SPACER; SLACK ADJ,BRK (C) REARWARD	1-47143-007-0	02	1	9002-9412	●	●
65	SPACER; SLACK ADJ,BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (C) REARWARD	1-47143-007-0	02	1	9501-	●	●
65	SPACER; SLACK ADJ,BRK (A) FORWARD	9-09180-038-0	01	1	9002-9412	●	●
65	SPACER; SLACK ADJ,BRK (A) FORWARD & REARWARD	9-09180-038-0	01	1	9501-	●	●
65	SPACER; SLACK ADJ,BRK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD & REARWARD	9-09180-038-0	01	1	9501-	●	●
66	PIN; JAW JOINT	1-09744-088-0	04	1	9002-	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	16	1	9002-	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	16	1	9002-	●	●
69	JOINT; JAW	1-09768-060-0	04	1	9002-	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	04	1	9002-	●	●
71	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	04	1	9002-9401	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	04	1	9402-	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	04	1	9002-	●	●
73	COLLAR; FELT RING,CM/SHF FORWARD	1-47143-003-0	02	1	9002-9412	●	●
73	COLLAR; FELT RING,CM/SHF FORWARD & REARWARD	1-47143-003-0	02	1	9501-	●	●
73	COLLAR; FELT RING,CM/SHF EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD & REARWARD	1-47143-003-0	02	1	9501-	●	●
73	COLLAR; FELT RING,CM/SHF REARWARD	1-47143-006-0	02	1	9002-9412	●	●
73	COLLAR; FELT RING,CM/SHF POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47143-006-0	02	1	9501-	●	●
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	9002-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	9002-	●	●
78	BUSHING; BRKT	1-47146-008-0	02	1	9002-9412	●	●
78	BUSHING; BRKT POWER CHAMBER BRAKE UPPERWARD<C1T>	1-47146-008-0	02	1	9501-	●	●
79	BRACKET; CM/SHF	9-47145-013-0	04	1	9002-9412	●	●
79	BRACKET; CM/SHF POWER CHAMBER BRAKE UPPERWARD<C1T>	9-47145-013-0	04	1	9501-	●	●
80	GASKET; BUSHING ID=39.7	9-09561-340-0	04	1	9002-9412	●	●
80	GASKET; BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> ID=39.7	9-09561-340-0	04	1	9501-	●	●
81	NUT M10	9-09110-410-0	04	1	9002-9412	●	●
81	NUT POWER CHAMBER BRAKE UPPERWARD<C1T> M10	9-09110-410-0	04	1	9501-	●	●
82	NUT M16	9-99110-516-0	04	1	9002-9412	●	●
82	NUT POWER CHAMBER BRAKE UPPERWARD<C1T> M16	9-99110-516-0	04	1	9501-	●	●
83	WASHER; PL ID=16.2	9-09851-672-2	08	1	9002-9412	●	●
83	WASHER; PL POWER CHAMBER BRAKE UPPERWARD<C1T> ID=16.2	9-09851-672-2	08	1	9501-	●	●
84	BOLT; BRKT TO CASE M16X40	9-92061-640-0	04	1	9002-9412	●	●
84	BOLT; BRKT TO CASE POWER CHAMBER BRAKE UPPERWARD<C1T> M16X40	9-92061-640-0	04	1	9501-	●	●
85	BOLT; CM/SHF BRKT M10X20	9-02041-020-0	04	1	9002-9204	●	●
85	BOLT; CM/SHF BRKT M10X20	0-20801-020-0	04	1	9205-9412	●	●
85	BOLT; CM/SHF BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M10X20	0-20801-020-0	04	1	9501-	●	●
88	CLIP; BRKT	1-09589-014-0	02	1	9002-9403	●	●
88	CLIP; BRKT	1-09589-018-0	02	1	9404-9412	●	●
88	CLIP; BRKT POWER CHAMBER BRAKE UPPERWARD<C1T>	1-09589-018-0	02	1	9501-	●	●
90	BRACKET; CHAMBER	1-42129-046-3	01	1	9002-	●	●
90	BRACKET; CHAMBER	1-42129-045-3	01	1	9002-	●	●
91	BOLT; CHAMBER	9-92351-635-0	08	1	9002-9005	●	●
91	BOLT; CHAMBER M16X35	0-23801-635-0	08	1	9006-	●	●
92	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9002-	●	●
93	WASHER; PL,CHAMBER ID=17 OD=32	9-09160-616-0	08	1	9002-	●	●
195	RING; SNAP,CM/SHF FORWARD	9-09180-038-0	01	1	9002-9412	●	●
195	RING; SNAP,CM/SHF FORWARD & REARWARD	9-09180-038-0	01	1	9501-	●	●
195	RING; SNAP,CM/SHF EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD & REARWARD	9-09180-038-0	01	1	9501-	●	●
195	RING; SNAP,CM/SHF REARWARD	9-09180-038-0	02	1	9002-9412	●	●
195	RING; SNAP,CM/SHF POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	9-09180-038-0	02	1	9501-	●	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	9002-	●	●

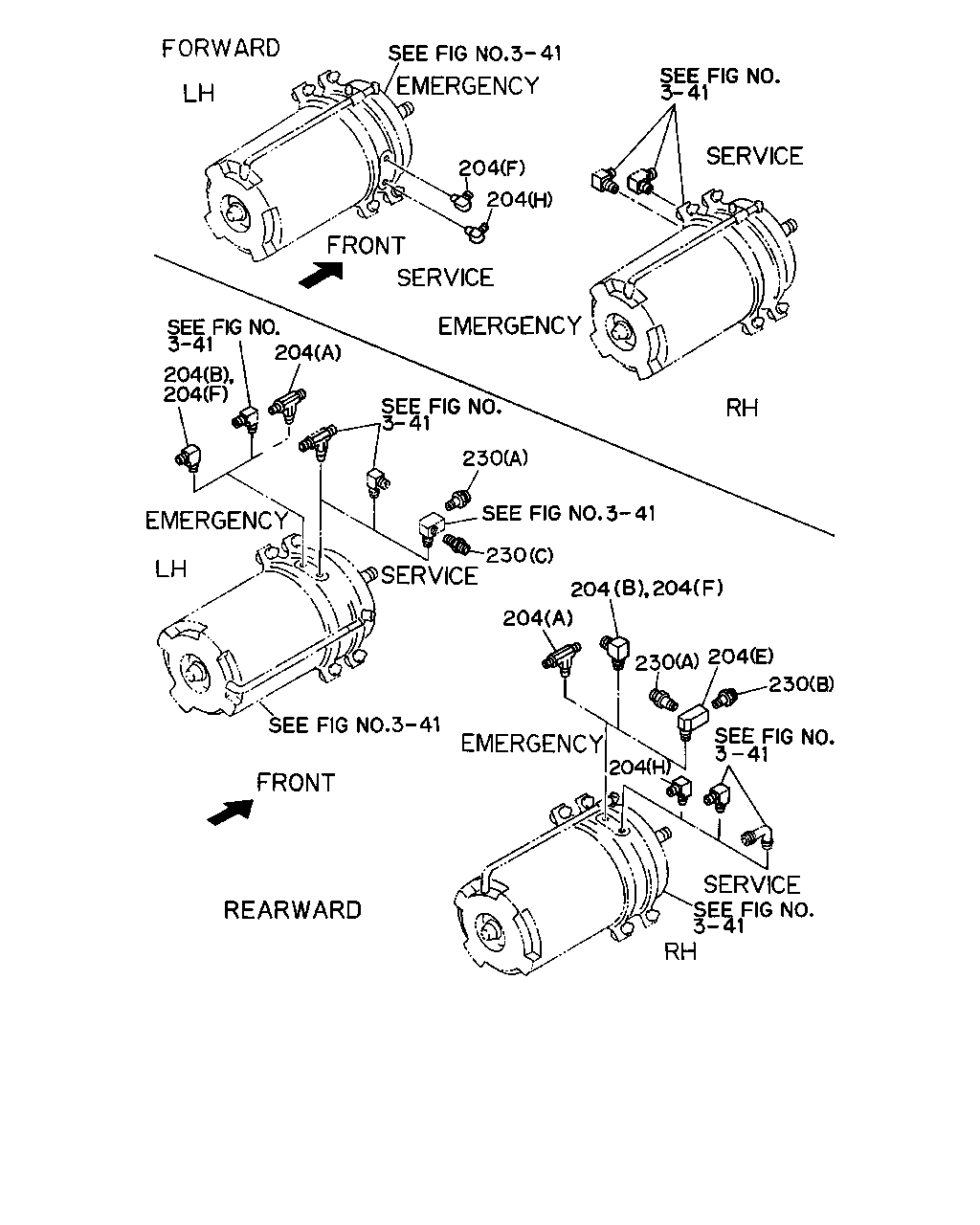

204 204 204 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (C)	1-09660-518-0	01	1	9002-9306	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> NEW ZEALAND EQUIPMENT(PK5) NYLON TUBE AIR PIPING<Z29> (A)	1-09660-614-0	02	1	9307-9404	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> NEW ZEALAND EQUIPMENT(PK5) NYLON TUBE AIR PIPING<Z29> (B)	1-09660-570-0	02	1	9405-9412	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> INTERNATIONAL STANDARD ISO 10STUD<B3V> NYLON TUBE AIR PIPING<Z29> (B)	1-09660-570-0	02	1	9501-	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> NYLON TUBE AIR PIPING<Z29> (D)	1-09660-520-0	01	1	9002-9306	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> NYLON TUBE AIR PIPING<Z29> EXC. NEW ZEALAND EQUIPMENT(PK5) (E)	1-09660-697-1	01	1	9307-9412	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (E)	1-09660-697-1	01	1	9501-	●
204	CONNECTOR; SPR CHAMBER (E)	1-09660-697-1	01	1	9501-		●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (K)	1-09650-325-1	02	1	9002-9306	●
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (K)	1-09650-325-1	02	1	9002-9306		●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (L)	1-09656-556-1	01	1	9002-9306	●
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (L)	1-09656-556-1	01	1	9002-9306		●
204	CONNECTOR; SPR CHAMBER (H)	1-09660-574-0	02	1	9307-	●	●
204	CONNECTOR; SPR CHAMBER (F)	1-09660-570-0	02	1	9307-9412	●	●
204	CONNECTOR; SPR CHAMBER (F)	1-09660-570-0	01	1	9501-	●	●
204	CONNECTOR; SPR CHAMBER EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (F)	1-09660-570-0	01	1	9501-	●
204	CONNECTOR; SPR CHAMBER (F)	1-09660-570-0	01	1	9501-		●
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (I)	1-09660-517-0	01	1	9002-9306	●	●
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (J)	1-48259-136-0	04	1	9002-9306	●	●

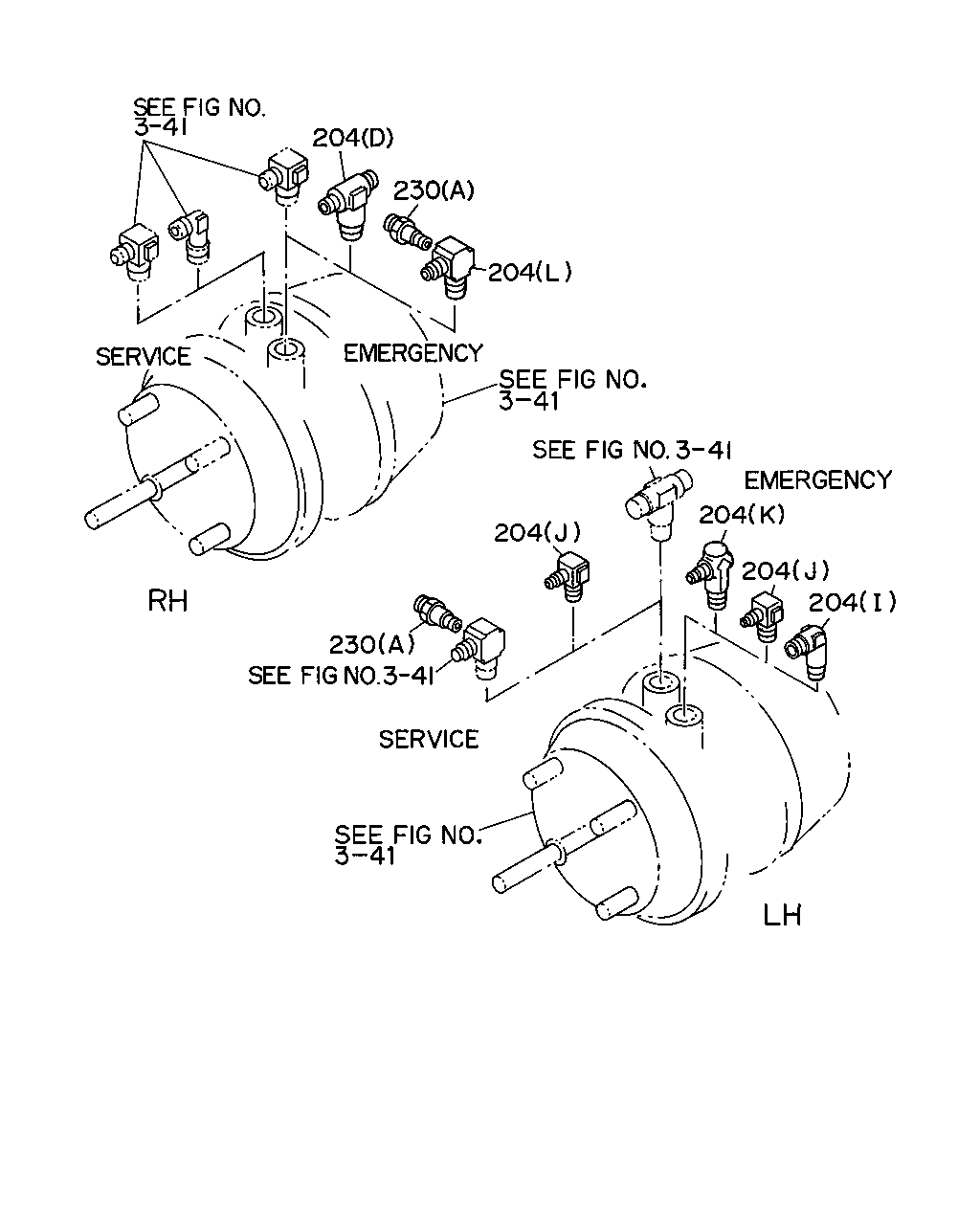

204 204 230 204 204 204 204 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (C)	1-09660-518-0	01	1	9002-9306	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> NEW ZEALAND EQUIPMENT(PK5) NYLON TUBE AIR PIPING<Z29> (A)	1-09660-614-0	02	1	9307-9404	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> NEW ZEALAND EQUIPMENT(PK5) NYLON TUBE AIR PIPING<Z29> (B)	1-09660-570-0	02	1	9405-9412	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> INTERNATIONAL STANDARD ISO 10STUD<B3V> NYLON TUBE AIR PIPING<Z29> (B)	1-09660-570-0	02	1	9501-	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> NYLON TUBE AIR PIPING<Z29> (D)	1-09660-520-0	01	1	9002-9306	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> NYLON TUBE AIR PIPING<Z29> EXC. NEW ZEALAND EQUIPMENT(PK5) (E)	1-09660-697-1	01	1	9307-9412	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (E)	1-09660-697-1	01	1	9501-	●
204	CONNECTOR; SPR CHAMBER (E)	1-09660-697-1	01	1	9501-		●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (K)	1-09650-325-1	02	1	9002-9306	●
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (K)	1-09650-325-1	02	1	9002-9306		●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (L)	1-09656-556-1	01	1	9002-9306	●
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (L)	1-09656-556-1	01	1	9002-9306		●
204	CONNECTOR; SPR CHAMBER (H)	1-09660-574-0	02	1	9307-	●	●
204	CONNECTOR; SPR CHAMBER (F)	1-09660-570-0	02	1	9307-9412	●	●
204	CONNECTOR; SPR CHAMBER (F)	1-09660-570-0	01	1	9501-	●	●
204	CONNECTOR; SPR CHAMBER EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (F)	1-09660-570-0	01	1	9501-	●
204	CONNECTOR; SPR CHAMBER (F)	1-09660-570-0	01	1	9501-		●
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (I)	1-09660-517-0	01	1	9002-9306	●	●
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (J)	1-48259-136-0	04	1	9002-9306	●	●
230	NIPPLE; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-09660-178-0	02	1	9002-9306	●
230	NIPPLE; SPR CHAMBER (A)	1-09660-178-0	02	1	9002-9306		●
230	NIPPLE; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-	●
230	NIPPLE; SPR CHAMBER (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-		●
230	NIPPLE; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09660-569-0	01	1	9307-	●
230	NIPPLE; SPR CHAMBER (B)	1-09660-569-0	01	1	9307-		●
230	NIPPLE; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09660-572-0	01	1	9307-	●
230	NIPPLE; SPR CHAMBER (C)	1-09660-572-0	01	1	9307-		●

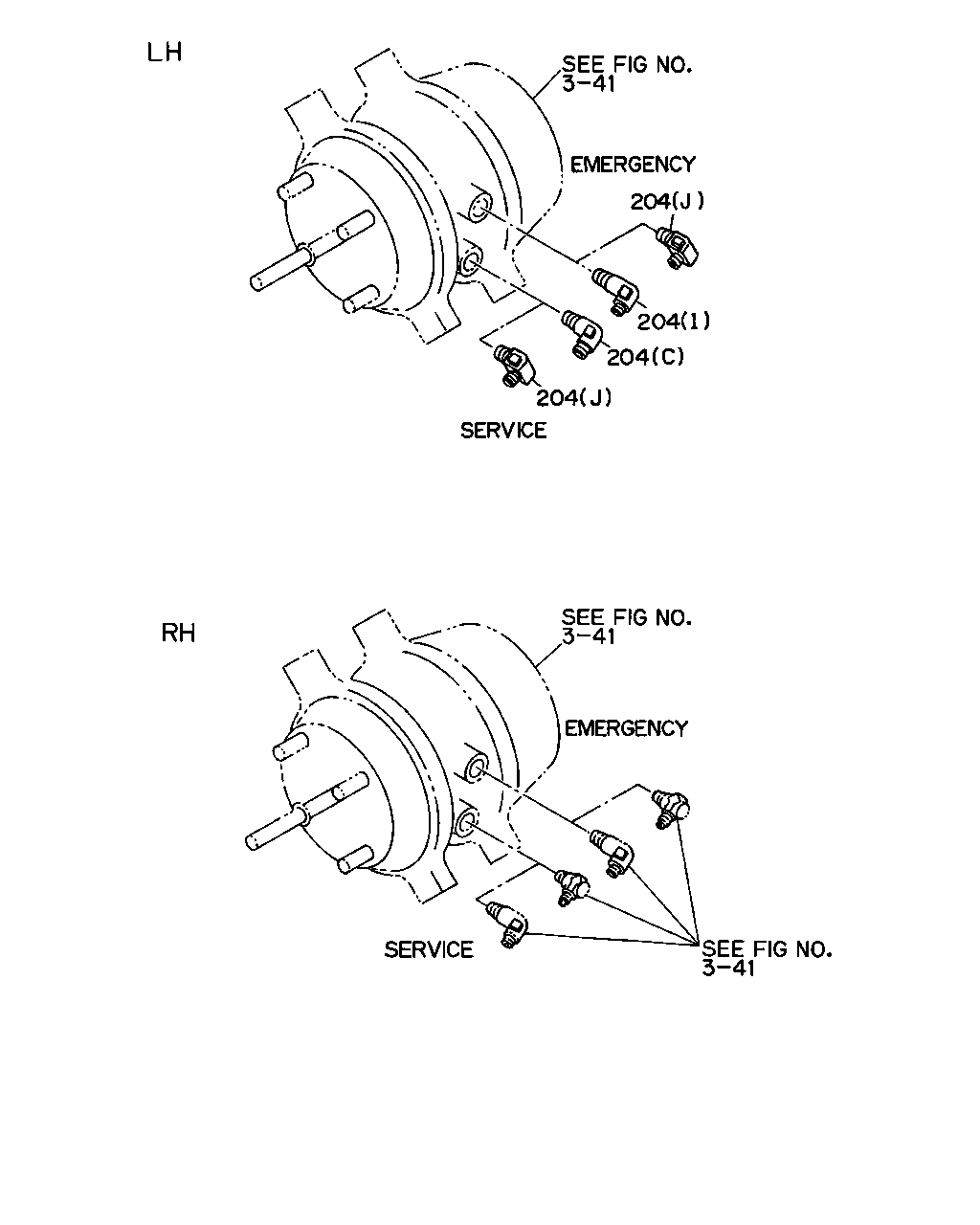

204 204 204 204 204 230 230 230 204 230 204 204 204 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (C)	1-09660-518-0	01	1	9002-9306	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> NEW ZEALAND EQUIPMENT(PK5) NYLON TUBE AIR PIPING<Z29> (A)	1-09660-614-0	02	1	9307-9404	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> NEW ZEALAND EQUIPMENT(PK5) NYLON TUBE AIR PIPING<Z29> (B)	1-09660-570-0	02	1	9405-9412	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> INTERNATIONAL STANDARD ISO 10STUD<B3V> NYLON TUBE AIR PIPING<Z29> (B)	1-09660-570-0	02	1	9501-	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> NYLON TUBE AIR PIPING<Z29> (D)	1-09660-520-0	01	1	9002-9306	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> NYLON TUBE AIR PIPING<Z29> EXC. NEW ZEALAND EQUIPMENT(PK5) (E)	1-09660-697-1	01	1	9307-9412	●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (E)	1-09660-697-1	01	1	9501-	●
204	CONNECTOR; SPR CHAMBER (E)	1-09660-697-1	01	1	9501-		●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (K)	1-09650-325-1	02	1	9002-9306	●
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (K)	1-09650-325-1	02	1	9002-9306		●
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (L)	1-09656-556-1	01	1	9002-9306	●
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (L)	1-09656-556-1	01	1	9002-9306		●
204	CONNECTOR; SPR CHAMBER (H)	1-09660-574-0	02	1	9307-	●	●
204	CONNECTOR; SPR CHAMBER (F)	1-09660-570-0	02	1	9307-9412	●	●
204	CONNECTOR; SPR CHAMBER (F)	1-09660-570-0	01	1	9501-	●	●
204	CONNECTOR; SPR CHAMBER EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (F)	1-09660-570-0	01	1	9501-	●
204	CONNECTOR; SPR CHAMBER (F)	1-09660-570-0	01	1	9501-		●
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (I)	1-09660-517-0	01	1	9002-9306	●	●
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (J)	1-48259-136-0	04	1	9002-9306	●	●
230	NIPPLE; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-09660-178-0	02	1	9002-9306	●
230	NIPPLE; SPR CHAMBER (A)	1-09660-178-0	02	1	9002-9306		●
230	NIPPLE; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-	●
230	NIPPLE; SPR CHAMBER (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-		●
230	NIPPLE; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09660-569-0	01	1	9307-	●
230	NIPPLE; SPR CHAMBER (B)	1-09660-569-0	01	1	9307-		●
230	NIPPLE; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09660-572-0	01	1	9307-	●
230	NIPPLE; SPR CHAMBER (C)	1-09660-572-0	01	1	9307-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
