4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#17362) — 221 parça

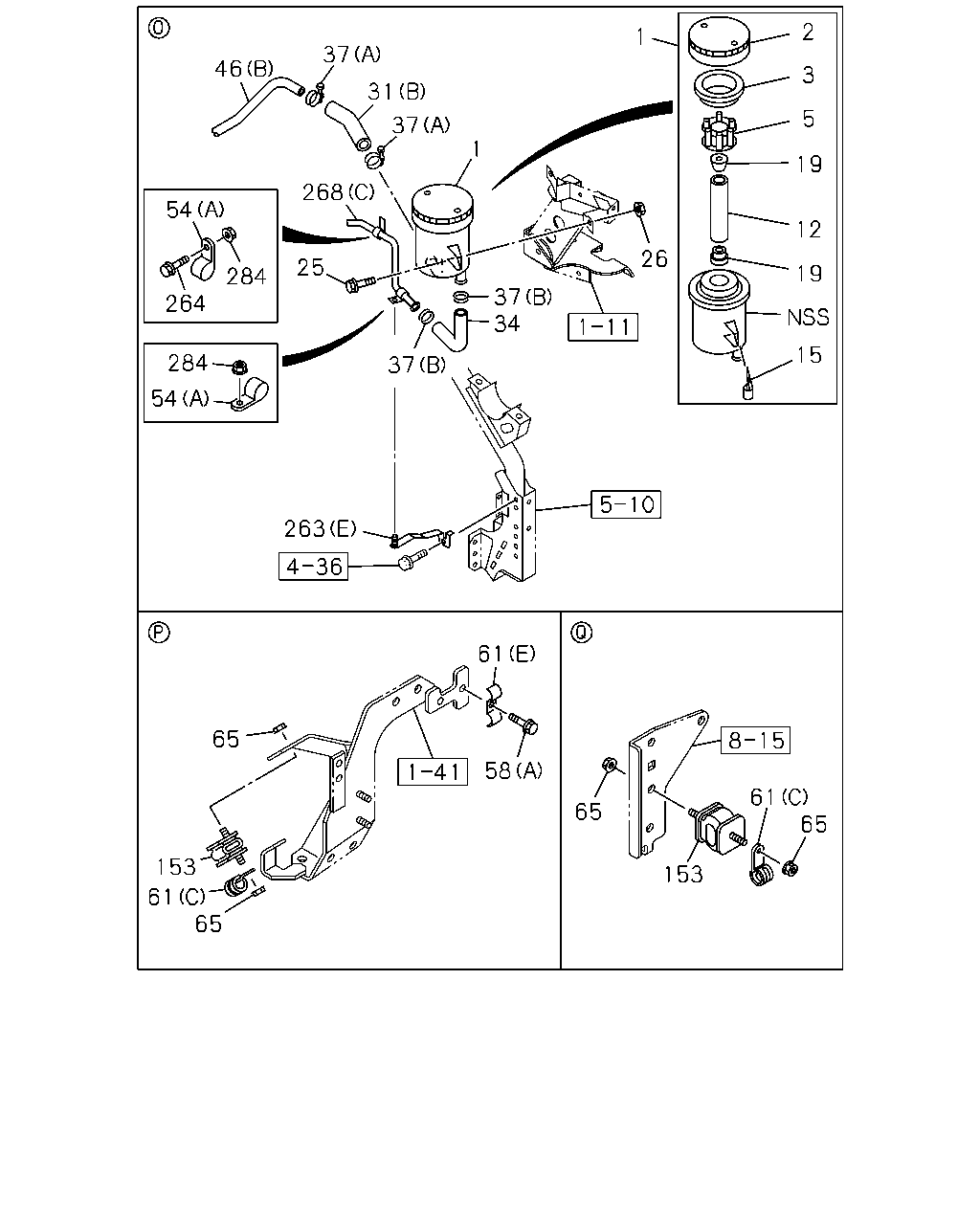

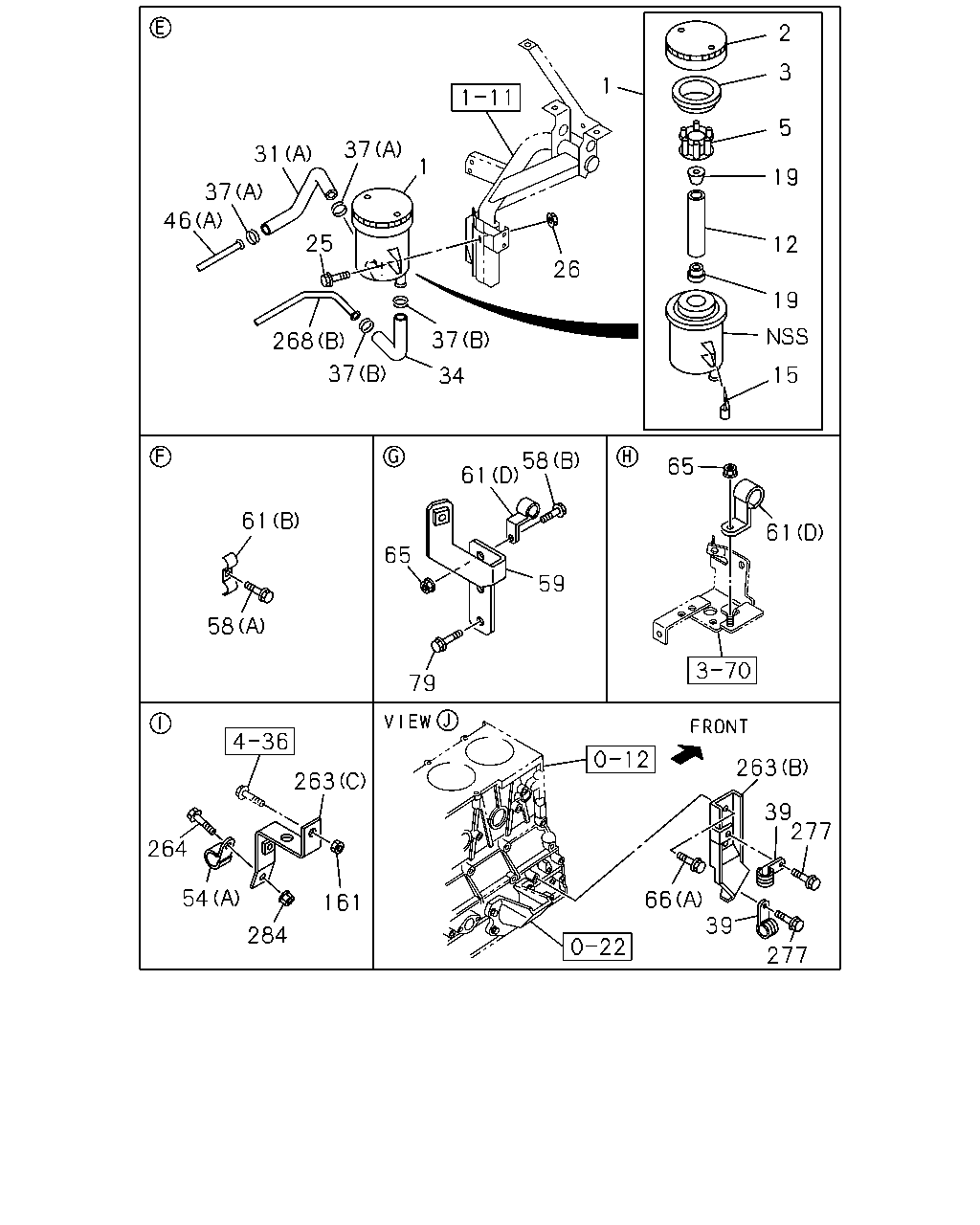

2 3 1 5 37 31 1 19 37 46 25 12 26 19 37 268 37 15 34 58 61 65 61 61 65 59 58 79 263 263 39 277 264 54 66 39 161 284 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0906-1006	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-1204	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1205-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0906-1006	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-1204	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1205-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0906-1204	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1205-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0906-1204	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1205-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0906-1204	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1205-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0906-1204	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1205-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0906-1204	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1205-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0906-1204	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1205-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1205-	●	●
31	HOSE; P/S OIL TANK,INL (B)	8-98131-108-0	01	1	1205-		●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	0906-	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0906-1204	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1205-	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0906-1204	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1205-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0906-1204	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1205-	●	●
39	CLIP; FLEX HOSE ID=24 L=27	1-09700-809-0	03	1	0906-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=1515	8-98215-642-0	01	1	1205-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=1480	8-98123-964-0	01	1	0906-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1205-		●
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	02	1	1205-		●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1205-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0906-	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1205-		●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1205-		●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28050-845-0	01	1	1205-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0906-	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0906-	●
59	BRACKET; CLIP,OIL PIPE	8-98063-650-1	01	1	0906-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1205-		●
61	CLIP; OIL PIPE (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1205-		●
61	CLIP; OIL PIPE (D) ID=13 H=18 L=20	1-09700-813-0	01	1	1205-		●
61	CLIP; OIL PIPE (A) ID=13 L=20	0-95235-236-0	01	1	0906-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	01	1	0906-	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0906-	●
61	CLIP; OIL PIPE (D) ID=13 H=18 L=20	1-09700-813-0	02	1	0906-	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1205-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0906-1109	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1110-	●
66	BOLT; BRKT,OIL PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-1204	●
66	BOLT; BRKT,OIL PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	1205-	●	●
66	BOLT; BRKT,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	01	1	0906-	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0906-	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	0906-	●
263	BRACKET; P/S PIPE (E)	8-98130-274-0	01	1	1205-		●
263	BRACKET; P/S PIPE (D) L=85	8-98044-743-0	01	1	0906-	●
263	BRACKET; P/S PIPE (A)	8-98049-251-0	01	1	0906-	●
263	BRACKET; P/S PIPE (B)	8-98071-752-0	01	1	0906-	●
263	BRACKET; P/S PIPE (C)	8-98079-445-0	01	1	0906-	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0906-1008	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1009-1204	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1205-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98077-739-2	01	1	1205-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-963-0	01	1	0906-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-964-0	01	1	0906-	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0906-	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	1205-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0906-	●

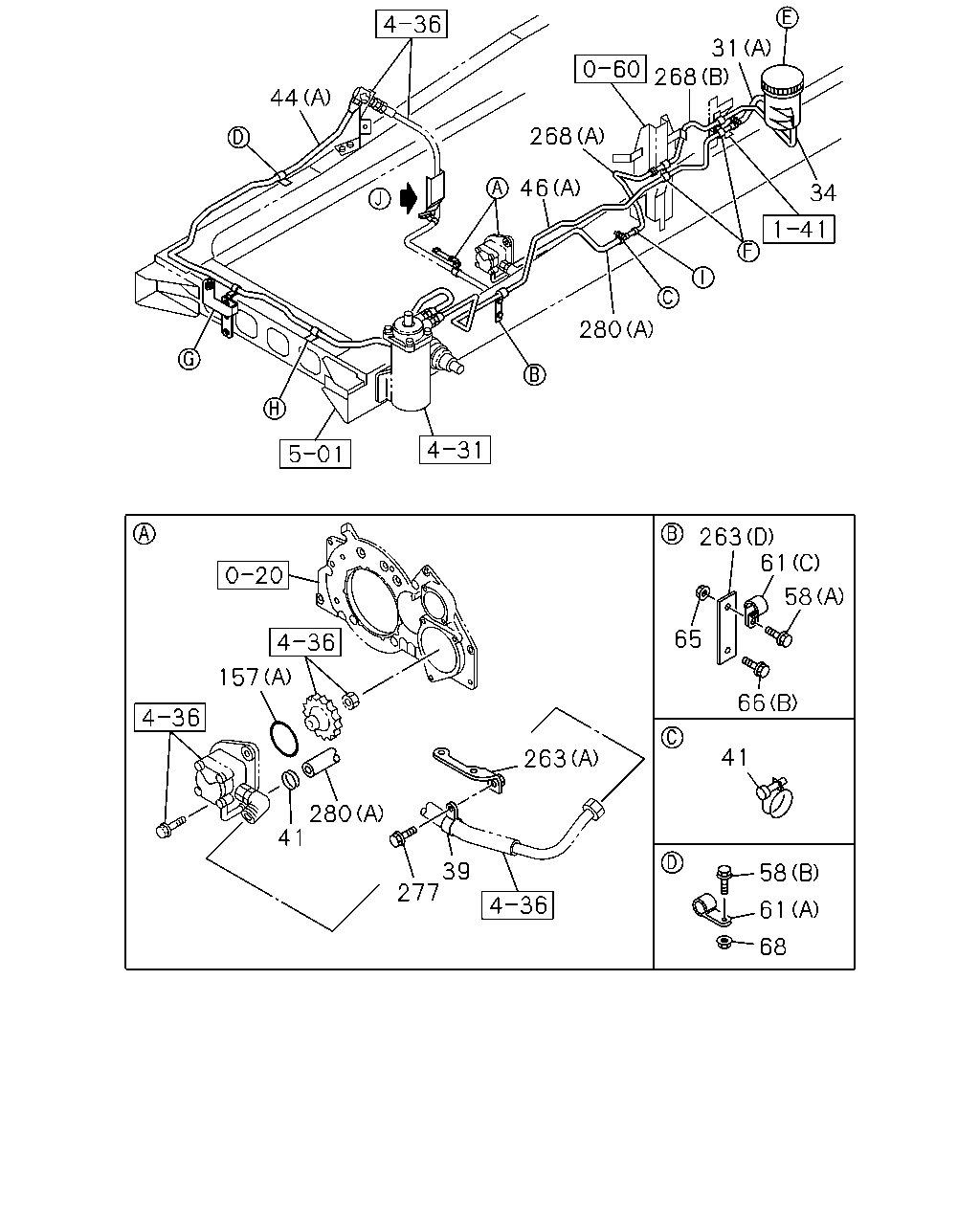

31 268 44 268 46 34 280 263 61 58 65 157 66 41 263 280 41 39 277 58 61 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL (B)	8-98131-108-0	01	1	1205-		●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	0906-	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0906-1204	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1205-	●	●
39	CLIP; FLEX HOSE ID=24 L=27	1-09700-809-0	03	1	0906-	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0906-1204	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1205-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44) (B)	8-98215-420-0	01	1	1205-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. GENERATOR 24V90A(K44) (B)	8-98215-419-0	01	1	1205-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98123-112-1	01	1	0906-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=1515	8-98215-642-0	01	1	1205-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=1480	8-98123-964-0	01	1	0906-	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1205-		●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1205-		●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28050-845-0	01	1	1205-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0906-	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0906-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1205-		●
61	CLIP; OIL PIPE (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1205-		●
61	CLIP; OIL PIPE (D) ID=13 H=18 L=20	1-09700-813-0	01	1	1205-		●
61	CLIP; OIL PIPE (A) ID=13 L=20	0-95235-236-0	01	1	0906-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	01	1	0906-	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0906-	●
61	CLIP; OIL PIPE (D) ID=13 H=18 L=20	1-09700-813-0	02	1	0906-	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1205-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0906-1109	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1110-	●
66	BOLT; BRKT,OIL PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-1204	●
66	BOLT; BRKT,OIL PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	1205-	●	●
66	BOLT; BRKT,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	01	1	0906-	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1205-		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0906-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=105.6	8-97386-295-0	01	1	1205-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	0906-	●
263	BRACKET; P/S PIPE (E)	8-98130-274-0	01	1	1205-		●
263	BRACKET; P/S PIPE (D) L=85	8-98044-743-0	01	1	0906-	●
263	BRACKET; P/S PIPE (A)	8-98049-251-0	01	1	0906-	●
263	BRACKET; P/S PIPE (B)	8-98071-752-0	01	1	0906-	●
263	BRACKET; P/S PIPE (C)	8-98079-445-0	01	1	0906-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98077-739-2	01	1	1205-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-963-0	01	1	0906-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-964-0	01	1	0906-	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0906-	●
280	HOSE; P/S OIL PUMP,INL (B)	8-98053-040-1	01	1	1205-		●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-168-0	01	1	0906-	●

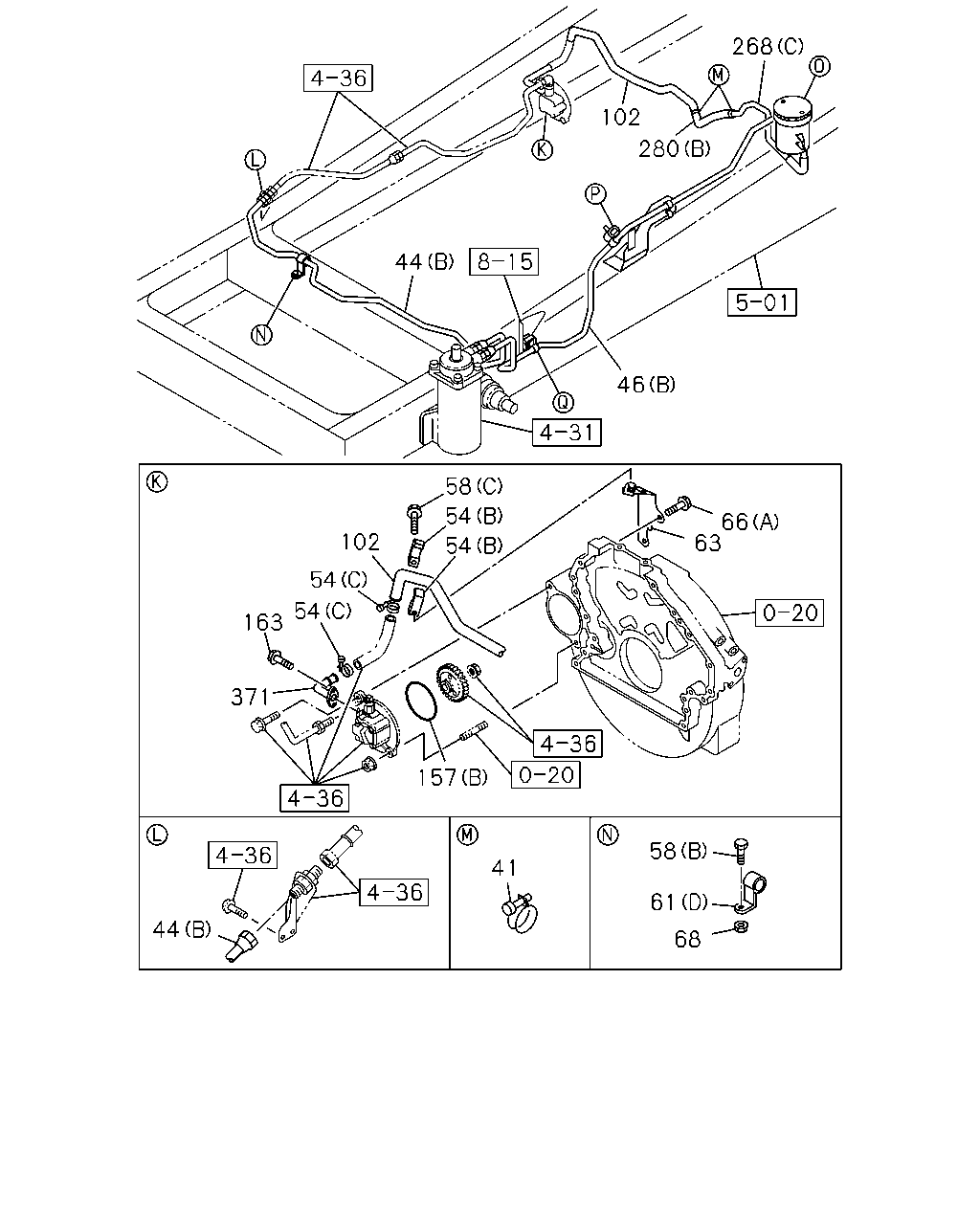

268 102 280 44 46 58 54 66 63 102 54 54 54 163 371 157 58 41 61 44 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0906-1204	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1205-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44) (B)	8-98215-420-0	01	1	1205-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. GENERATOR 24V90A(K44) (B)	8-98215-419-0	01	1	1205-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98123-112-1	01	1	0906-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=1515	8-98215-642-0	01	1	1205-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=1480	8-98123-964-0	01	1	0906-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1205-		●
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	02	1	1205-		●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1205-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0906-	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1205-		●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1205-		●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28050-845-0	01	1	1205-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0906-	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0906-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1205-		●
61	CLIP; OIL PIPE (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1205-		●
61	CLIP; OIL PIPE (D) ID=13 H=18 L=20	1-09700-813-0	01	1	1205-		●
61	CLIP; OIL PIPE (A) ID=13 L=20	0-95235-236-0	01	1	0906-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	01	1	0906-	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0906-	●
61	CLIP; OIL PIPE (D) ID=13 H=18 L=20	1-09700-813-0	02	1	0906-	●
63	BRACKET; CLIP,P/S	8-98075-954-0	01	1	1205-		●
66	BOLT; BRKT,OIL PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-1204	●
66	BOLT; BRKT,OIL PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	1205-	●	●
66	BOLT; BRKT,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	01	1	0906-	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1205-		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0906-	●
102	PIPE; SUCTION,P/S	8-98057-017-4	01	1	1205-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=105.6	8-97386-295-0	01	1	1205-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	0906-	●
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1205-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98077-739-2	01	1	1205-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-963-0	01	1	0906-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-964-0	01	1	0906-	●
280	HOSE; P/S OIL PUMP,INL (B)	8-98053-040-1	01	1	1205-		●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-168-0	01	1	0906-	●
371	PIPE; OIL,INLET	8-98072-089-1	01	1	1205-		●

2 1 37 46 3 31 5 37 268 1 19 54 12 26 25 19 284 37 34 264 15 284 37 54 263 61 65 58 61 65 65 153 153 61 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0906-1006	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-1204	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1205-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0906-1006	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-1204	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1205-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0906-1204	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1205-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0906-1204	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1205-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0906-1204	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1205-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0906-1204	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1205-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0906-1204	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1205-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0906-1204	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1205-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1205-	●	●
31	HOSE; P/S OIL TANK,INL (B)	8-98131-108-0	01	1	1205-		●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	0906-	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0906-1204	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1205-	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0906-1204	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1205-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0906-1204	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1205-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=1515	8-98215-642-0	01	1	1205-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=1480	8-98123-964-0	01	1	0906-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1205-		●
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	02	1	1205-		●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1205-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0906-	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1205-		●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1205-		●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28050-845-0	01	1	1205-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0906-	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0906-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1205-		●
61	CLIP; OIL PIPE (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1205-		●
61	CLIP; OIL PIPE (D) ID=13 H=18 L=20	1-09700-813-0	01	1	1205-		●
61	CLIP; OIL PIPE (A) ID=13 L=20	0-95235-236-0	01	1	0906-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	01	1	0906-	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0906-	●
61	CLIP; OIL PIPE (D) ID=13 H=18 L=20	1-09700-813-0	02	1	0906-	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1205-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0906-1109	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1110-	●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	02	1	1205-		●
263	BRACKET; P/S PIPE (E)	8-98130-274-0	01	1	1205-		●
263	BRACKET; P/S PIPE (D) L=85	8-98044-743-0	01	1	0906-	●
263	BRACKET; P/S PIPE (A)	8-98049-251-0	01	1	0906-	●
263	BRACKET; P/S PIPE (B)	8-98071-752-0	01	1	0906-	●
263	BRACKET; P/S PIPE (C)	8-98079-445-0	01	1	0906-	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0906-1008	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1009-1204	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1205-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98077-739-2	01	1	1205-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-963-0	01	1	0906-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-964-0	01	1	0906-	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	1205-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0906-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
