◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#17360) — 51 parça

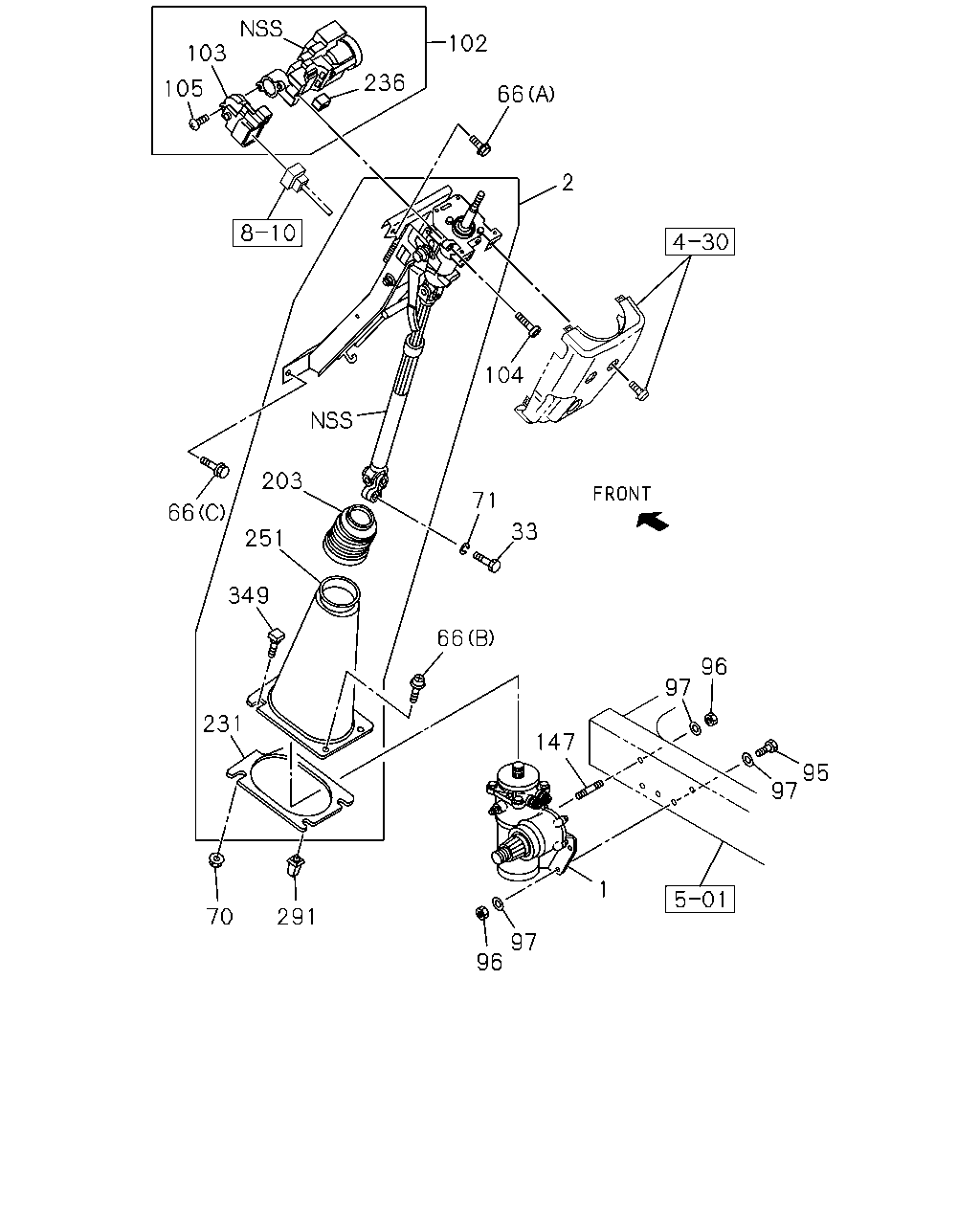

çizim 61995
102 103 236 105 66 2 104 203 71 66 33 251 349 66 96 97 231 147 95 97 1 70 291 97 96
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-948-2 01 1 0906-1204 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-948-2 01 1 1205- ● ●
2 SHAFT ASM; STRG
BLACK 		8-97415-620-2 01 1 0906-1204 ●
2 SHAFT ASM; STRG
BLACK 		8-97415-620-2 01 1 1205- ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 0906-1204 ●
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 1205-1504 ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 1505- ● ●
66 BOLT; STRG COLUMN
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0906-1204 ●
66 BOLT; STRG COLUMN
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1205-1504 ● ●
66 BOLT; STRG COLUMN
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1505- ● ●
66 BOLT; STRG COLUMN
(B) M5X18 TAPPING 		0-72180-518-0 02 1 0906-1204 ●
66 BOLT; STRG COLUMN
(B) M5X18 TAPPING 		0-72180-518-0 02 1 1205-1504 ● ●
66 BOLT; STRG COLUMN
(B) M5X18 TAPPING 		0-72180-518-0 02 1 1505- ● ●
66 BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 02 1 0906-1204 ●
66 BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 02 1 1205-1504 ● ●
66 BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 02 1 1505- ● ●
70 NUT; STRG COLUMN
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0906-1204 ●
70 NUT; STRG COLUMN
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1205-1504 ● ●
70 NUT; STRG COLUMN
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1505- ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0906-1204 ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 1205-1504 ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 1505- ● ●
95 BOLT; STRG UNIT
M14X50 		1-09000-787-1 04 1 0906-1204 ●
95 BOLT; STRG UNIT
M14X50 		1-09000-787-1 04 1 1205- ● ●
96 NUT; STRG UNIT
M14 		1-09440-097-0 05 1 0906-1204 ●
96 NUT; STRG UNIT
M14 		1-09440-097-0 05 1 1205- ● ●
97 WASHER; PL,STRG UNIT
ID=15 		8-98010-627-1 09 1 0906-1204 ●
97 WASHER; PL,STRG UNIT
ID=15 		8-98010-627-1 09 1 1205- ● ●
102 LOCK ASM; STRG 8-97387-036-0 01 1 0906-1204 ●
102 LOCK ASM; STRG 8-97387-036-0 01 1 1205- ● ●
103 SWITCH; IGNITION 8-98045-349-0 01 1 0906-1204 ●
103 SWITCH; IGNITION 8-98045-349-0 01 1 1205- ● ●
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 0906-1204 ●
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 1205- ● ●
105 SCREW; IGN SW 8-98045-346-0 02 1 0906-1204 ●
105 SCREW; IGN SW 8-98045-346-0 02 1 1205- ● ●
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-125-0 01 1 0906-1204 ●
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-125-0 01 1 1205- ● ●
203 BOOT; STRG COLUMN LWR 8-98137-333-0 01 1 0906-1204 ●
203 BOOT; STRG COLUMN LWR 8-98137-333-0 01 1 1205- ● ●
231 SEAL; RUBBER,STRG COLUMN 8-98137-330-0 01 1 0906-1204 ●
231 SEAL; RUBBER,STRG COLUMN 8-98137-330-0 01 1 1205- ● ●
236 SWITCH; DOOR WARNING,STRG LOCK 8-98045-350-0 01 1 0906-1204 ●
236 SWITCH; DOOR WARNING,STRG LOCK 8-98045-350-0 01 1 1205- ● ●
251 COVER; LWR
BLACK 		8-97417-050-0 01 1 0906-1204 ●
251 COVER; LWR
BLACK 		8-97417-050-0 01 1 1205- ● ●
291 GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0906-1204 ●
291 GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1205-1504 ● ●
291 GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1505- ● ●
349 BOLT; COVER 8-98137-334-0 02 1 0906-1204 ●
349 BOLT; COVER 8-98137-334-0 02 1 1205- ● ●
