4-30 — STEERING WHEEL AND COWL (#17359) — 47 parça

1 20 5 81 6 26 106 44 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	WHEEL; STRG EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97412-555-1	01	1	0908-1204	●
1	WHEEL; STRG EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97412-555-1	01	1	1205-	●	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97407-720-0	01	1	0906-1204	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97407-720-0	01	1	1205-1210	●	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (C) DARK GRAY	8-97423-998-0	01	1	1211-	●	●
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0906-1204	●
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1205-	●	●
6	SCREW; HORN SPR CONTACT EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12	8-97167-588-0	04	1	0908-1204	●
6	SCREW; HORN SPR CONTACT EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12	8-97167-588-0	04	1	1205-	●	●
20	SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97405-985-1	01	1	0908-1204	●
20	SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97405-985-1	01	1	1205-	●	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97409-275-2	01	1	0908-1204	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97409-275-2	01	1	1205-	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97405-841-0	01	1	0906-1204	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97405-841-0	01	1	1205-1210	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97421-978-0	01	1	1211-	●	●
30	COWL; STEERING DARK GRAY	8-97411-503-1	01	1	0906-1204	●
30	COWL; STEERING DARK GRAY	8-97411-503-1	01	1	1205-	●	●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0906-1204	●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1205-	●	●
81	EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97405-986-0	01	1	0908-1204	●
81	EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97405-986-0	01	1	1205-	●	●
106	BOLT; TORX AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98231-397-0	02	1	0906-0907	●
106	BOLT; TORX	8-98231-397-0	02	1	0908-1204	●
106	BOLT; TORX	8-98231-397-0	02	1	1205-	●	●

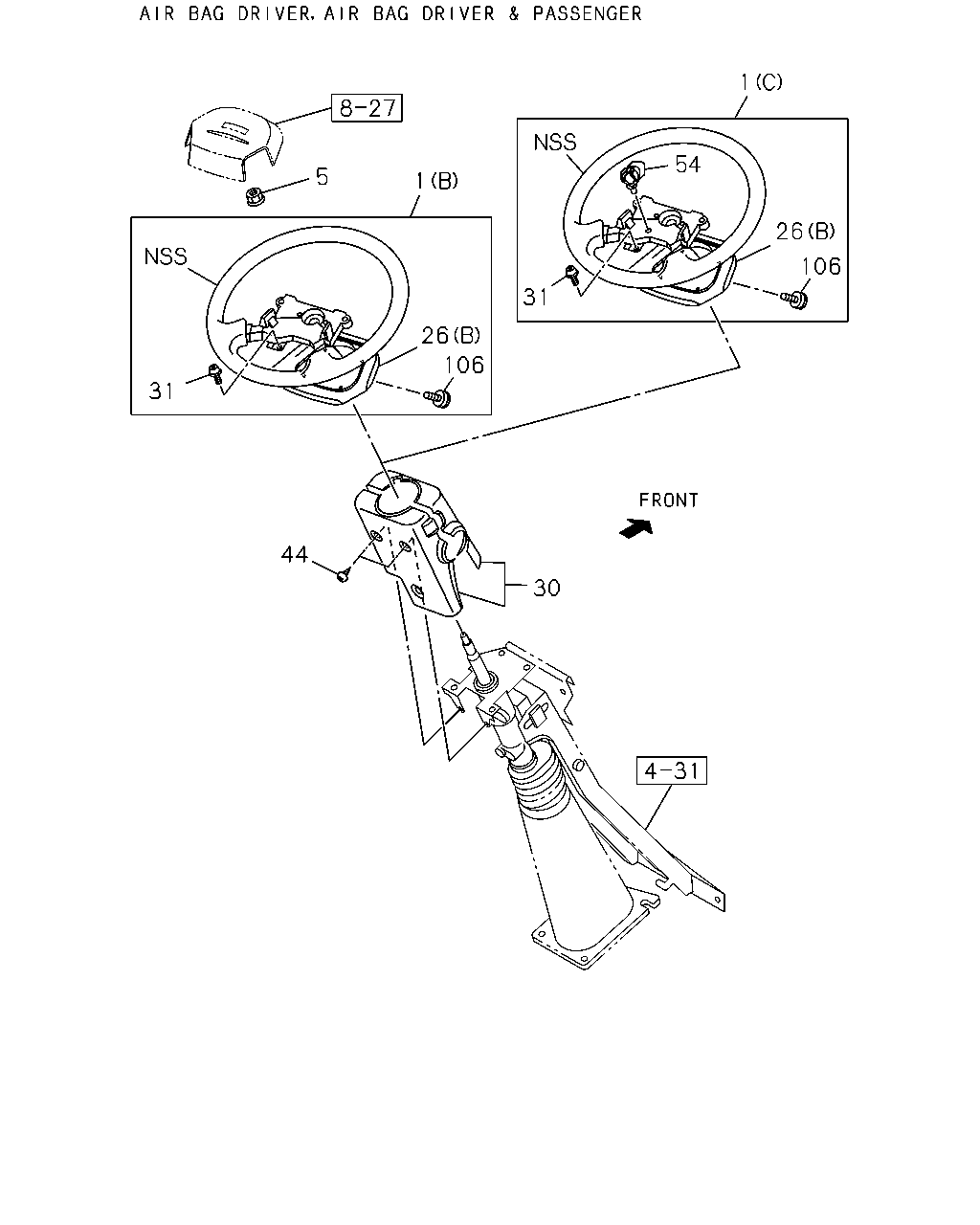

1 26 106 54 31 1 5 31 26 106 44 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	WHEEL; STRG EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97412-555-1	01	1	0908-1204	●
1	WHEEL; STRG EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97412-555-1	01	1	1205-	●	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97407-720-0	01	1	0906-1204	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97407-720-0	01	1	1205-1210	●	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (C) DARK GRAY	8-97423-998-0	01	1	1211-	●	●
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0906-1204	●
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1205-	●	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97409-275-2	01	1	0908-1204	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97409-275-2	01	1	1205-	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97405-841-0	01	1	0906-1204	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97405-841-0	01	1	1205-1210	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97421-978-0	01	1	1211-	●	●
30	COWL; STEERING DARK GRAY	8-97411-503-1	01	1	0906-1204	●
30	COWL; STEERING DARK GRAY	8-97411-503-1	01	1	1205-	●	●
31	SCREW; BOSS TO COVER AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12	8-97167-588-0	04	1	0906-1204	●
31	SCREW; BOSS TO COVER AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12	8-97167-588-0	04	1	1205-	●	●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0906-1204	●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1205-	●	●
54	CLIP; HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98165-703-0	01	1	1211-	●	●
106	BOLT; TORX AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98231-397-0	02	1	0906-0907	●
106	BOLT; TORX	8-98231-397-0	02	1	0908-1204	●
106	BOLT; TORX	8-98231-397-0	02	1	1205-	●	●
