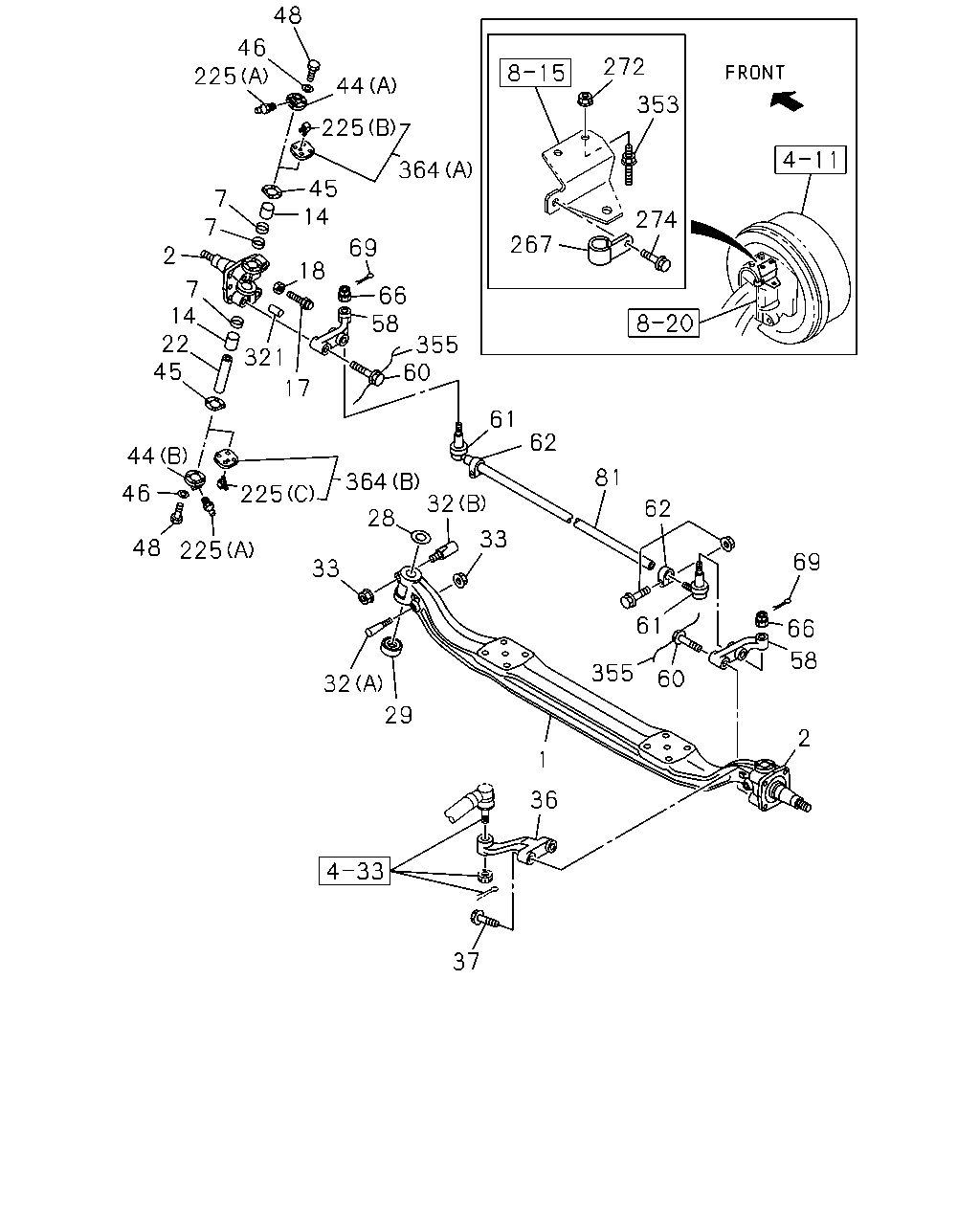

4-10 — FRONT AXLE (#17355) — 147 parça

37 36 355 60 2 58 69 66 62 61 81 62 61 32 28 33 33 29 32 225 225 48 46 44 45 22 17 321 18 69 58 66 355 60 14 45 7 7 2 14 7 225 46 48 44 225 272 364 267 274 353 364 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-173-0	01	1	0906-1204	●
1	AXLE; FRT	1-43111-173-0	01	1	1205-	●	●
2	KNUCKLE; FRT AXLE	1-43131-129-0	01	1	0906-1204	●
2	KNUCKLE; FRT AXLE	1-43131-129-0	01	1	1205-	●	●
2	KNUCKLE; FRT AXLE	1-43132-129-0	01	1	0906-1204	●
2	KNUCKLE; FRT AXLE	1-43132-129-0	01	1	1205-	●	●
7	SEAL; OIL,KING PIN	1-09625-648-0	06	1	0906-1204	●
7	SEAL; OIL,KING PIN	1-09625-648-0	06	1	1205-	●	●
14	BUSHING; KING PIN	1-43141-014-0	04	1	0906-1204	●
14	BUSHING; KING PIN	1-43141-014-0	04	1	1205-	●	●
17	BOLT; STOPPER KNUCKLE	1-09009-184-0	02	1	0906-1204	●
17	BOLT; STOPPER KNUCKLE	1-09009-184-0	02	1	1205-	●	●
18	NUT; STOPPER BOLT,KNUCKLE	1-09440-096-0	02	1	0906-1204	●
18	NUT; STOPPER BOLT,KNUCKLE	1-09440-096-0	02	1	1205-	●	●
22	PIN; KING,FRT AXLE	1-43161-018-0	02	1	0906-1204	●
22	PIN; KING,FRT AXLE	1-43161-018-0	02	1	1205-	●	●
28	WASHER; KING PIN T=0.80	1-43171-341-0	AR	1	0906-1204	●
28	WASHER; KING PIN T=0.80	1-43171-341-0	AR	1	1205-	●	●
28	WASHER; KING PIN T=1.00	1-43171-342-0	AR	1	0906-1204	●
28	WASHER; KING PIN T=1.00	1-43171-342-0	AR	1	1205-	●	●
28	WASHER; KING PIN T=0.12	1-43171-343-0	AR	1	0906-1204	●
28	WASHER; KING PIN T=0.12	1-43171-343-0	AR	1	1205-	●	●
28	WASHER; KING PIN T=0.25	1-43171-344-0	AR	1	0906-1204	●
28	WASHER; KING PIN T=0.25	1-43171-344-0	AR	1	1205-	●	●
28	WASHER; KING PIN T=0.40	1-43171-345-0	AR	1	0906-1204	●
28	WASHER; KING PIN T=0.40	1-43171-345-0	AR	1	1205-	●	●
28	WASHER; KING PIN T=0.60	1-43171-346-0	AR	1	0906-1204	●
28	WASHER; KING PIN T=0.60	1-43171-346-0	AR	1	1205-	●	●
29	BEARING; KING PIN	1-09829-047-0	02	1	0906-1204	●
29	BEARING; KING PIN	1-09829-047-0	02	1	1205-	●	●
32	BOLT; KEY,KING PIN (B) L=70	1-43116-009-0	02	1	0906-1204	●
32	BOLT; KEY,KING PIN (B) L=70	1-43116-009-0	02	1	1205-	●	●
32	BOLT; KEY,KING PIN (B) L=64	1-43116-010-0	02	1	0906-1204	●
32	BOLT; KEY,KING PIN (B) L=64	1-43116-010-0	02	1	1205-	●	●
32	BOLT; KEY,KING PIN (A) L=102	1-43116-011-0	02	1	0906-1204	●
32	BOLT; KEY,KING PIN (A) L=102	1-43116-011-0	02	1	1205-	●	●
32	BOLT; KEY,KING PIN (A) L=96	1-43116-012-0	02	1	0906-1204	●
32	BOLT; KEY,KING PIN (A) L=96	1-43116-012-0	02	1	1205-	●	●
33	NUT; KEY BOLT	1-09440-093-0	04	1	0906-1204	●
33	NUT; KEY BOLT	1-09440-093-0	04	1	1205-	●	●
36	ARM; KNUCKLE	1-43133-086-0	01	1	0906-1204	●
36	ARM; KNUCKLE	1-43133-086-0	01	1	1205-	●	●
37	BOLT; KNUCKLE ARM	1-09000-780-0	02	1	0906-1204	●
37	BOLT; KNUCKLE ARM	1-09000-780-0	02	1	1205-	●	●
44	COVER; KING PIN (A)	1-43175-028-0	02	1	0906-1204	●
44	COVER; KING PIN (A)	1-43175-028-0	02	1	1205-1311	●	●
44	COVER; KING PIN (B)	1-43175-029-0	02	1	0906-1204	●
44	COVER; KING PIN (B)	1-43175-029-0	02	1	1205-1311	●	●
45	GASKET; KING PIN COVER	1-42319-207-0	04	1	0906-1204	●
45	GASKET; KING PIN COVER	1-42319-207-0	04	1	1205-	●	●
46	WASHER; LK,COVER	1-43171-347-0	16	1	0906-1204	●
46	WASHER; LK,COVER	1-43171-347-0	16	1	1205-1311	●	●
48	BOLT; COVER	1-09000-781-0	16	1	0906-1204	●
48	BOLT; COVER	1-09000-781-0	16	1	1205-1311	●	●
48	BOLT; COVER	8-98308-436-0	16	1	1312-	●	●
58	ARM; TIE ROD	1-43134-064-0	01	1	0906-1204	●
58	ARM; TIE ROD	1-43134-064-0	01	1	1205-	●	●
58	ARM; TIE ROD	1-43135-061-0	01	1	0906-1204	●
58	ARM; TIE ROD	1-43135-061-0	01	1	1205-	●	●
60	BOLT; TIE ROD ARM	1-09000-779-0	04	1	0906-1204	●
60	BOLT; TIE ROD ARM	1-09000-779-0	04	1	1205-	●	●
61	ROD END; TIE ROD LH THREAD	1-43150-875-0	01	1	0906-1204	●
61	ROD END; TIE ROD LH THREAD	1-43150-875-0	01	1	1205-	●	●
61	ROD END; TIE ROD RH THREAD	1-43150-876-0	01	1	0906-1204	●
61	ROD END; TIE ROD RH THREAD	1-43150-876-0	01	1	1205-	●	●
62	CLAMP; TIE ROD	1-43159-125-0	02	1	0906-1204	●
62	CLAMP; TIE ROD	1-43159-125-0	02	1	1205-	●	●
66	NUT; TIE ROD END	1-09442-030-0	02	1	0906-1204	●
66	NUT; TIE ROD END	1-09442-030-0	02	1	1205-	●	●
69	PIN; SPLIT,TIE ROD END	1-09987-283-0	02	1	0906-1204	●
69	PIN; SPLIT,TIE ROD END	1-09987-283-0	02	1	1205-	●	●
81	ROD; TIE	1-43151-156-0	01	1	0906-1204	●
81	ROD; TIE	1-43151-156-0	01	1	1205-	●	●
225	NIPPLE; GREASE,COVER (C)	1-43175-036-0	02	1	1312-	●	●
225	NIPPLE; GREASE,COVER (A)	1-43004-702-0	04	1	0906-1204	●
225	NIPPLE; GREASE,COVER (A)	1-43004-702-0	04	1	1205-1311	●	●
225	NIPPLE; GREASE,COVER (B)	1-43175-035-0	02	1	1312-	●	●
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	0906-1204	●
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1205-	●	●
272	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0906-1204	●
272	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1205-	●	●
274	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0906-1204	●
274	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1205-	●	●
321	BUSHING; KNUCKLE	1-83129-474-0	02	1	0906-1204	●
321	BUSHING; KNUCKLE	1-83129-474-0	02	1	1205-	●	●
353	STUD; BRACKET M8X11,M8X25 L=45	8-97220-552-2	04	1	0906-1204	●
353	STUD; BRACKET M8X11,M8X25 L=45	8-97220-552-2	04	1	1205-	●	●
355	WIRE; LOCK	1-43004-703-0	06	1	0906-1204	●
355	WIRE; LOCK	1-43004-703-0	06	1	1205-	●	●
364	COVER ASM; KING PIN (A)	1-43175-038-0	02	1	1312-	●	●
364	COVER ASM; KING PIN (B)	1-43175-039-0	02	1	1312-	●	●

116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 111 111 110 90 234 110 91 127 91 82 234 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

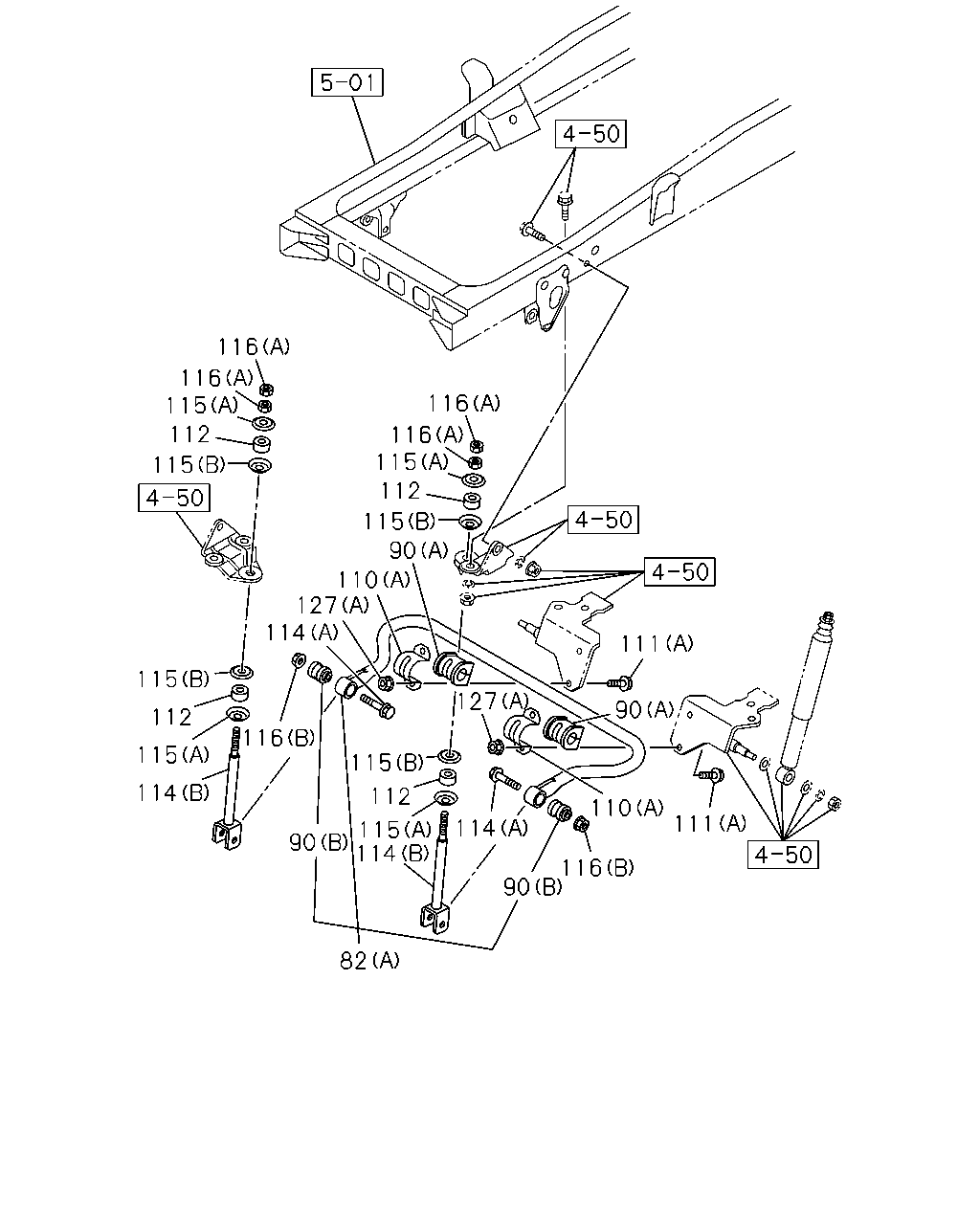

82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> (B)	1-51770-114-0	01	1	1205-		●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> (A)	8-98022-712-1	01	1	0906-	●
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> (C)	1-51779-066-0	02	1	1205-		●
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> (B)	8-94331-581-0	02	1	0906-1207	●
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> (B)	8-97239-911-0	02	1	1208-	●
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> (A)	8-97044-736-0	02	1	0906-	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1205-		●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-027-2	02	1	1205-		●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (C)	1-51789-028-1	02	1	1205-		●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	8-97044-350-0	02	1	0906-	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE	0-28051-230-0	02	1	1205-		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (C) M12X50 FLANGE	0-28051-250-0	04	1	1205-		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M10X35 FLANGE	0-28651-035-0	04	1	0906-	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	0906-1204	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	1205-	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59> (C)	1-51773-082-0	02	1	1205-		●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59> (A)	0-28851-460-0	02	1	0906-	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59> (B)	8-98021-307-1	02	1	0906-	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	0906-1204	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	1205-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	0906-1204	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	1205-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) M14	0-91111-514-0	04	1	0906-1204	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) M14	0-91111-514-0	04	1	1205-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) M14 FLANGE	0-91180-214-0	02	1	0906-	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> (B) M12	0-91110-512-0	06	1	1205-		●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> (A) M10 FLANGE	0-91180-210-0	04	1	0906-	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1205-		●

116 116 115 112 116 116 115 112 115 115 90 110 127 114 111 115 127 90 112 116 115 115 114 112 114 110 111 115 90 114 116 90 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

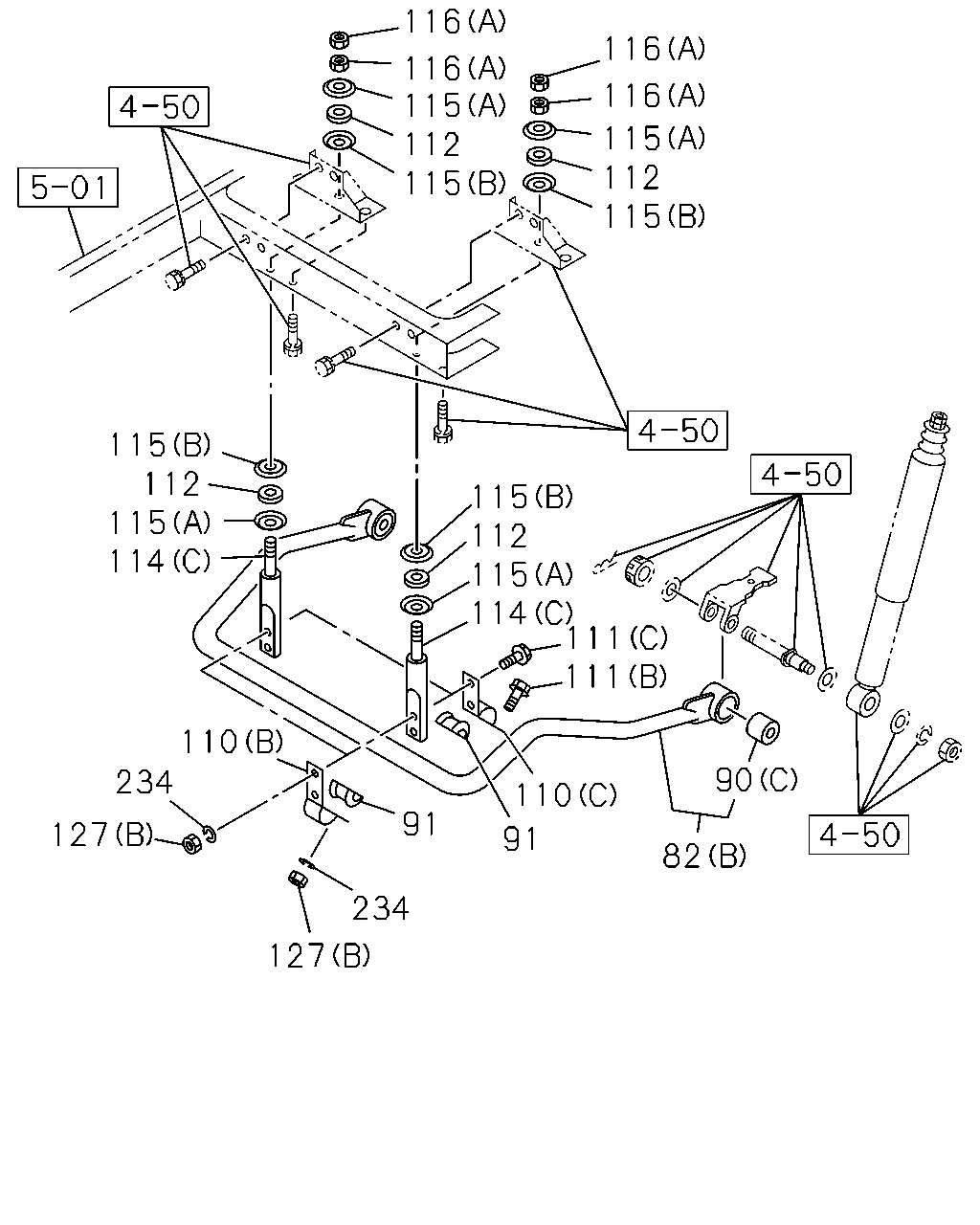

82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> (B)	1-51770-114-0	01	1	1205-		●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> (A)	8-98022-712-1	01	1	0906-	●
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> (C)	1-51779-066-0	02	1	1205-		●
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> (B)	8-94331-581-0	02	1	0906-1207	●
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> (B)	8-97239-911-0	02	1	1208-	●
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> (A)	8-97044-736-0	02	1	0906-	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-027-2	02	1	1205-		●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (C)	1-51789-028-1	02	1	1205-		●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	8-97044-350-0	02	1	0906-	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE	0-28051-230-0	02	1	1205-		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (C) M12X50 FLANGE	0-28051-250-0	04	1	1205-		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M10X35 FLANGE	0-28651-035-0	04	1	0906-	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	0906-1204	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	1205-	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59> (C)	1-51773-082-0	02	1	1205-		●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59> (A)	0-28851-460-0	02	1	0906-	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59> (B)	8-98021-307-1	02	1	0906-	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	0906-1204	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	1205-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	0906-1204	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	1205-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) M14	0-91111-514-0	04	1	0906-1204	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) M14	0-91111-514-0	04	1	1205-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) M14 FLANGE	0-91180-214-0	02	1	0906-	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> (B) M12	0-91110-512-0	06	1	1205-		●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> (A) M10 FLANGE	0-91180-210-0	04	1	0906-	●

105

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	105	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	04	1	0906-1204	●
	105	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	04	1	1205-	●	●
