◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#17354) — 516 parça

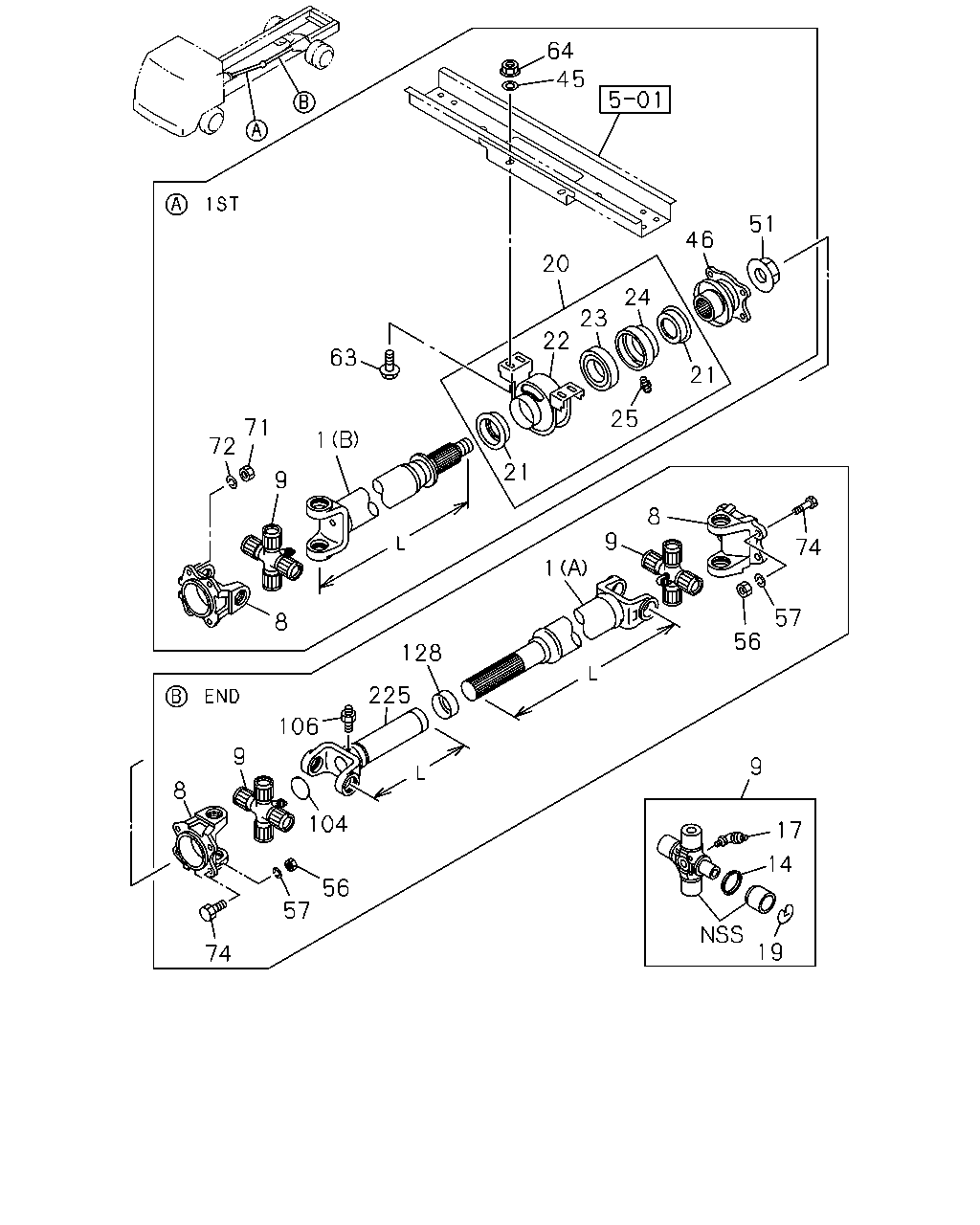

çizim 15168
64 45 51 46 20 24 23 22 63 21 25 71 72 1 21 9 8 9 74 1 57 8 56 128 225 106 9 9 8 104 17 14 56 57 19 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=694 		8-98069-611-0 01 1 1205- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=789 		8-98069-581-0 01 1 1205- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1179 		8-98069-572-0 01 1 1205- ● ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1179 		8-98069-572-0 01 1 1205- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98069-574-0 01 1 1205- ● ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98069-574-0 01 1 1205- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1116 		8-98069-665-0 01 1 1205- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=931 		8-98069-695-0 01 1 1205- ●
1 SHAFT; PROP
(C) L=629 		8-98069-609-0 01 1 1205- ●
1 SHAFT; PROP
(A) L=1271 		8-98069-657-0 01 1 1205- ●
1 SHAFT; PROP
(A) L=921 		8-98069-698-0 01 1 0906-1204 ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=921 		8-98069-698-0 01 1 1205- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=814 		8-98110-589-0 01 1 0906-1204 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) L=814 		8-98110-589-0 01 1 1205- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) (B) L=704 		8-98069-606-0 01 1 0906-1204 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=704 		8-98069-606-0 01 1 1205- ●
1 SHAFT; PROP
(A) L=1101 		8-98069-675-0 01 1 0906-1204 ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1101 		8-98069-675-0 01 1 1205- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1101 		8-98069-675-0 01 1 1205- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=1204 		8-98110-587-0 01 1 0906-1204 ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) L=1204 		8-98110-587-0 01 1 1205- ● ●
1 SHAFT; PROP
MZW6P M/T(RSZ) (B) L=1094 		8-98069-588-0 01 1 0906-1204 ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=1094 		8-98069-588-0 01 1 1205- ● ●
1 SHAFT; PROP
(C) L=569 		8-98069-566-0 01 1 0906- ●
1 SHAFT; PROP
(A) L=1086 		8-98069-690-0 01 1 0906-1204 ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1086 		8-98069-690-0 01 1 1205- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0906-1204 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0906-1204 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1205- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1205- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0906-1204 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1205- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 0906-1204 ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 0906-1204 ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1205- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1205- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 0906-1204 ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1205- ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 0906-1204 ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 0906-1204 ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1205- ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1205- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 0906-1204 ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1205- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0906-1204 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0906-1204 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1205- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1205- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0906-1204 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1205- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1205- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1205- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1205- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 0906-1204 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 0906-1204 ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1205- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1205- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0906-1204 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0906-1204 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1205- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1205- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0906-1204 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0906-1204 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1205- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1205- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0906-1204 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0906-1204 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1205- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1205- ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 0906-1204 ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 0906-1204 ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1205- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1205- ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 0906-1204 ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 0906-1204 ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1205- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1205- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0906-1204 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1205- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 0906-1204 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 0906-1204 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1205- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1205- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0906-1204 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0906-1204 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1205- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1205- ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 0906-1204 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 0906-1204 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1205- ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1205- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0906-1204 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0906-1204 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1205- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1205- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0906-1204 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0906-1204 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1205- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1205- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0906-1204 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0906-1204 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1205- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1205- ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0906-1204 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1205- ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0906-1204 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1205- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0906-1204 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0906-1204 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0906-1204 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1205- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1205- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1205- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0906-1204 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1205- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0906-1204 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1205- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0906-1204 ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1205- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0906-1204 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1205- ● ● ● ●

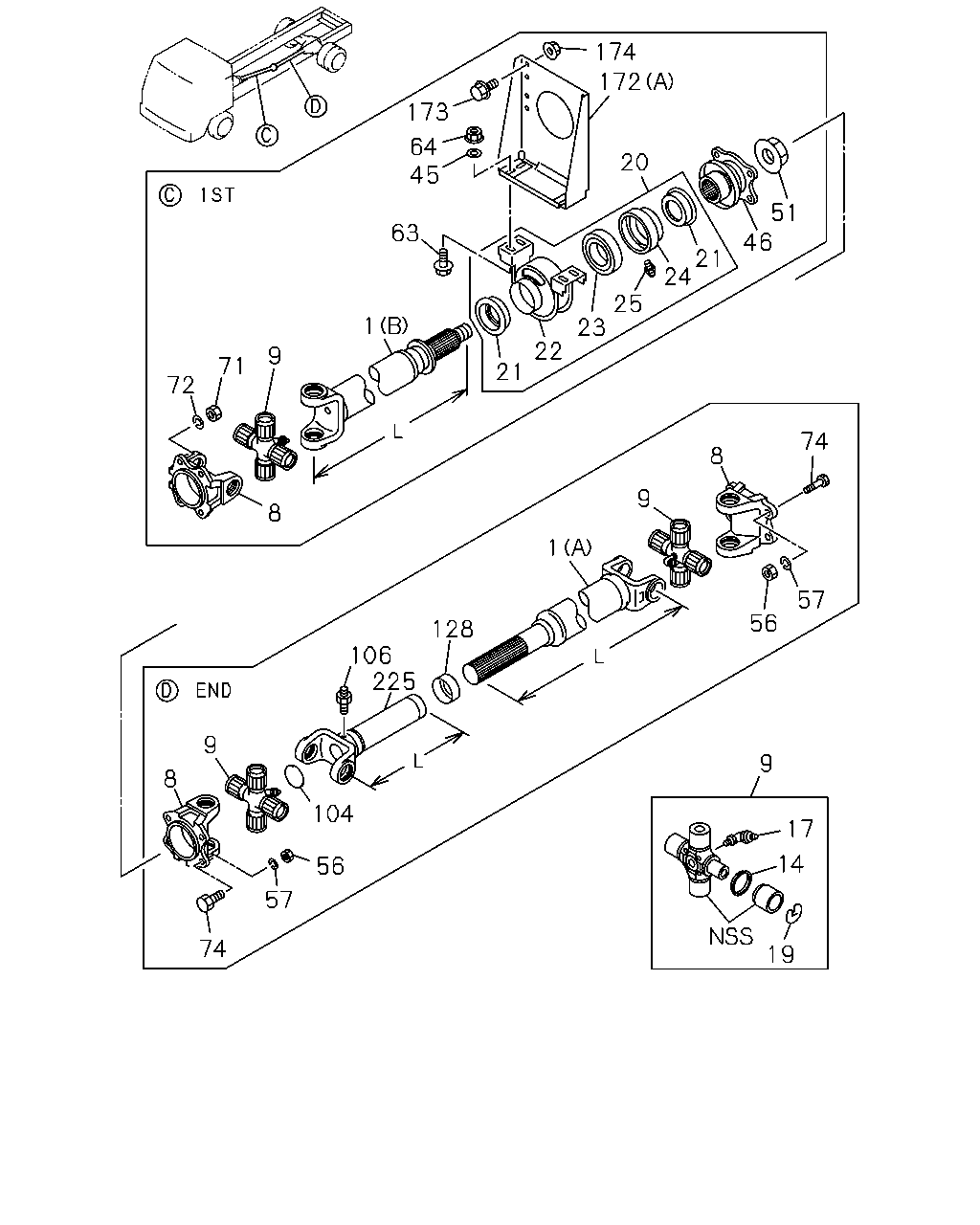

çizim 15204
174 172 173 64 45 20 51 46 63 21 24 25 23 1 22 9 71 21 72 74 8 9 8 1 57 56 128 106 225 9 9 8 104 17 14 56 57 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=694 		8-98069-611-0 01 1 1205- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=789 		8-98069-581-0 01 1 1205- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1179 		8-98069-572-0 01 1 1205- ● ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1179 		8-98069-572-0 01 1 1205- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98069-574-0 01 1 1205- ● ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98069-574-0 01 1 1205- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1116 		8-98069-665-0 01 1 1205- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=931 		8-98069-695-0 01 1 1205- ●
1 SHAFT; PROP
(C) L=629 		8-98069-609-0 01 1 1205- ●
1 SHAFT; PROP
(A) L=1271 		8-98069-657-0 01 1 1205- ●
1 SHAFT; PROP
(A) L=921 		8-98069-698-0 01 1 0906-1204 ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=921 		8-98069-698-0 01 1 1205- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=814 		8-98110-589-0 01 1 0906-1204 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) L=814 		8-98110-589-0 01 1 1205- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) (B) L=704 		8-98069-606-0 01 1 0906-1204 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=704 		8-98069-606-0 01 1 1205- ●
1 SHAFT; PROP
(A) L=1101 		8-98069-675-0 01 1 0906-1204 ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1101 		8-98069-675-0 01 1 1205- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1101 		8-98069-675-0 01 1 1205- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=1204 		8-98110-587-0 01 1 0906-1204 ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) L=1204 		8-98110-587-0 01 1 1205- ● ●
1 SHAFT; PROP
MZW6P M/T(RSZ) (B) L=1094 		8-98069-588-0 01 1 0906-1204 ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=1094 		8-98069-588-0 01 1 1205- ● ●
1 SHAFT; PROP
(C) L=569 		8-98069-566-0 01 1 0906- ●
1 SHAFT; PROP
(A) L=1086 		8-98069-690-0 01 1 0906-1204 ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1086 		8-98069-690-0 01 1 1205- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0906-1204 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0906-1204 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1205- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1205- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0906-1204 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1205- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 0906-1204 ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 0906-1204 ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1205- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1205- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 0906-1204 ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1205- ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 0906-1204 ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 0906-1204 ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1205- ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1205- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 0906-1204 ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1205- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0906-1204 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0906-1204 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1205- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1205- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0906-1204 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1205- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1205- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1205- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1205- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 0906-1204 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 0906-1204 ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1205- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1205- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0906-1204 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0906-1204 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1205- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1205- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0906-1204 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0906-1204 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1205- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1205- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0906-1204 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0906-1204 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1205- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1205- ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 0906-1204 ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 0906-1204 ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1205- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1205- ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 0906-1204 ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 0906-1204 ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1205- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1205- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0906-1204 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1205- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 0906-1204 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 0906-1204 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1205- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1205- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0906-1204 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0906-1204 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1205- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1205- ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 0906-1204 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 0906-1204 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1205- ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1205- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0906-1204 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0906-1204 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1205- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1205- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0906-1204 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0906-1204 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1205- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1205- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0906-1204 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0906-1204 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1205- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1205- ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0906-1204 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1205- ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0906-1204 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1205- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0906-1204 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0906-1204 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0906-1204 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1205- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1205- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1205- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0906-1204 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1205- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0906-1204 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1205- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0906-1204 ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1205- ● ● ● ●
172 BRACKET; CENTER BRG
FSR LEAF SUS(FCR***) (A) 		8-98044-076-0 01 1 1205- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-119-0 01 1 1205- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-122-0 01 1 0906-1204 ●
172 BRACKET; CENTER BRG
FSR AIR SUS(FCD***) (A) 		1-37515-122-0 01 1 1205- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-120-0 01 1 0906- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-121-0 01 1 0906-1204 ●
172 BRACKET; CENTER BRG
(C) 		1-37515-121-0 01 1 1205- ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0906-1204 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0906-1204 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1205- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1205- ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0906-1204 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1205- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0906-1204 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1205- ● ● ● ●

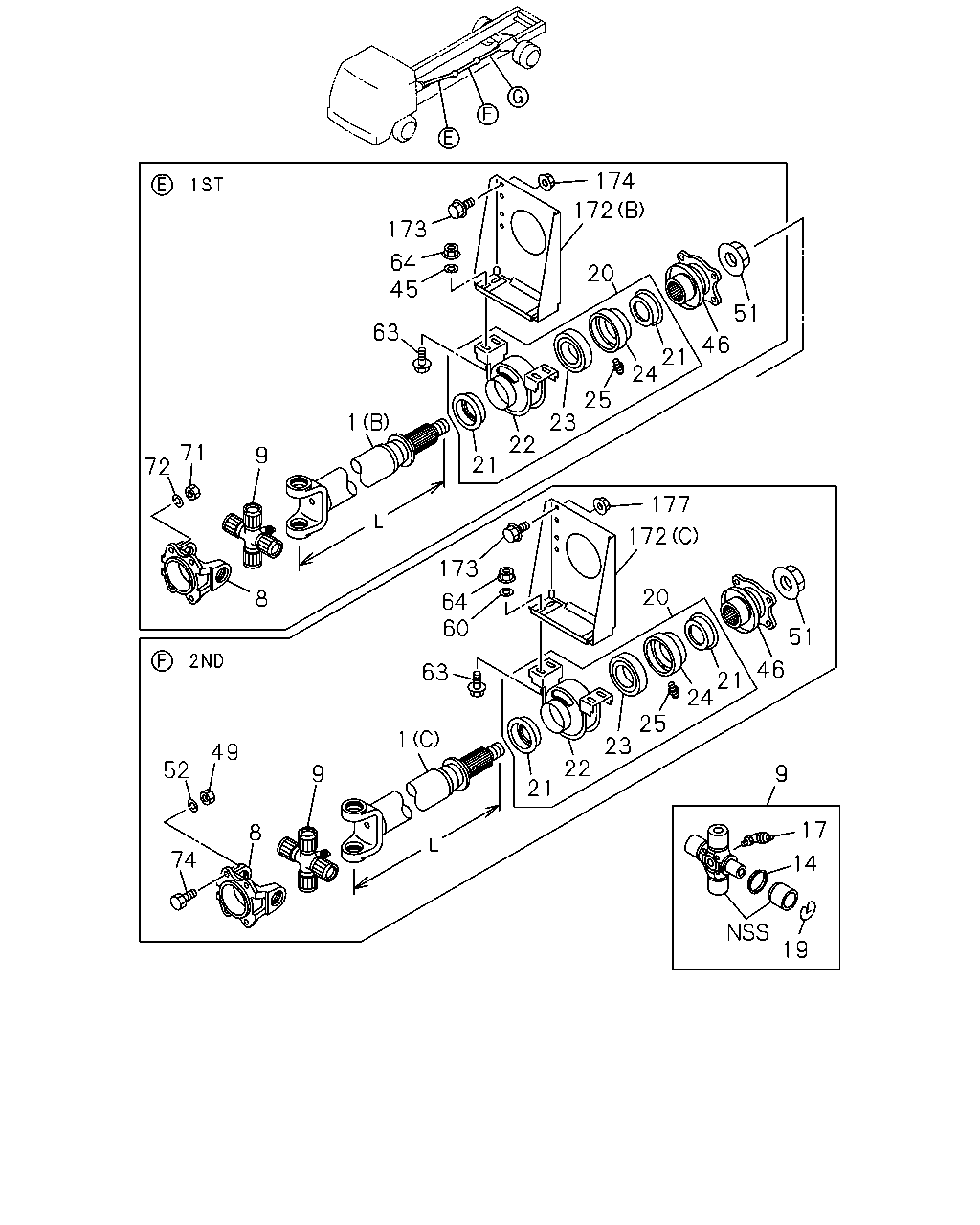

çizim 15835
174 172 173 64 45 20 51 63 46 21 24 25 23 1 22 71 72 9 21 177 172 173 20 8 64 60 51 46 63 21 24 25 23 1 49 22 52 9 9 21 17 8 74 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=694 		8-98069-611-0 01 1 1205- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=789 		8-98069-581-0 01 1 1205- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1179 		8-98069-572-0 01 1 1205- ● ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1179 		8-98069-572-0 01 1 1205- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98069-574-0 01 1 1205- ● ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98069-574-0 01 1 1205- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1116 		8-98069-665-0 01 1 1205- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=931 		8-98069-695-0 01 1 1205- ●
1 SHAFT; PROP
(C) L=629 		8-98069-609-0 01 1 1205- ●
1 SHAFT; PROP
(A) L=1271 		8-98069-657-0 01 1 1205- ●
1 SHAFT; PROP
(A) L=921 		8-98069-698-0 01 1 0906-1204 ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=921 		8-98069-698-0 01 1 1205- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=814 		8-98110-589-0 01 1 0906-1204 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) L=814 		8-98110-589-0 01 1 1205- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) (B) L=704 		8-98069-606-0 01 1 0906-1204 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=704 		8-98069-606-0 01 1 1205- ●
1 SHAFT; PROP
(A) L=1101 		8-98069-675-0 01 1 0906-1204 ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1101 		8-98069-675-0 01 1 1205- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1101 		8-98069-675-0 01 1 1205- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=1204 		8-98110-587-0 01 1 0906-1204 ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) L=1204 		8-98110-587-0 01 1 1205- ● ●
1 SHAFT; PROP
MZW6P M/T(RSZ) (B) L=1094 		8-98069-588-0 01 1 0906-1204 ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=1094 		8-98069-588-0 01 1 1205- ● ●
1 SHAFT; PROP
(C) L=569 		8-98069-566-0 01 1 0906- ●
1 SHAFT; PROP
(A) L=1086 		8-98069-690-0 01 1 0906-1204 ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1086 		8-98069-690-0 01 1 1205- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0906-1204 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0906-1204 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1205- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1205- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0906-1204 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1205- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 0906-1204 ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 0906-1204 ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1205- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1205- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 0906-1204 ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1205- ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 0906-1204 ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 0906-1204 ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1205- ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1205- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 0906-1204 ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1205- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0906-1204 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0906-1204 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1205- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1205- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0906-1204 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1205- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1205- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1205- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1205- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 0906-1204 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 0906-1204 ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1205- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1205- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0906-1204 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0906-1204 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1205- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1205- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0906-1204 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0906-1204 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1205- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1205- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0906-1204 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0906-1204 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1205- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1205- ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 0906-1204 ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 0906-1204 ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1205- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1205- ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 0906-1204 ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 0906-1204 ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1205- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1205- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0906-1204 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1205- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 0906-1204 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 0906-1204 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1205- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1205- ● ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 0906-1204 ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 1205- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0906-1204 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0906-1204 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1205- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1205- ● ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0906-1204 ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1205- ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0906-1204 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1205- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0906-1204 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0906-1204 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1205- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1205- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0906-1204 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0906-1204 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1205- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1205- ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0906-1204 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1205- ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0906-1204 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1205- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0906-1204 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0906-1204 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0906-1204 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1205- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1205- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1205- ● ●
172 BRACKET; CENTER BRG
FSR LEAF SUS(FCR***) (A) 		8-98044-076-0 01 1 1205- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-119-0 01 1 1205- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-122-0 01 1 0906-1204 ●
172 BRACKET; CENTER BRG
FSR AIR SUS(FCD***) (A) 		1-37515-122-0 01 1 1205- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-120-0 01 1 0906- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-121-0 01 1 0906-1204 ●
172 BRACKET; CENTER BRG
(C) 		1-37515-121-0 01 1 1205- ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0906-1204 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0906-1204 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1205- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1205- ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0906-1204 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1205- ● ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0906-1204 ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 1205- ● ●

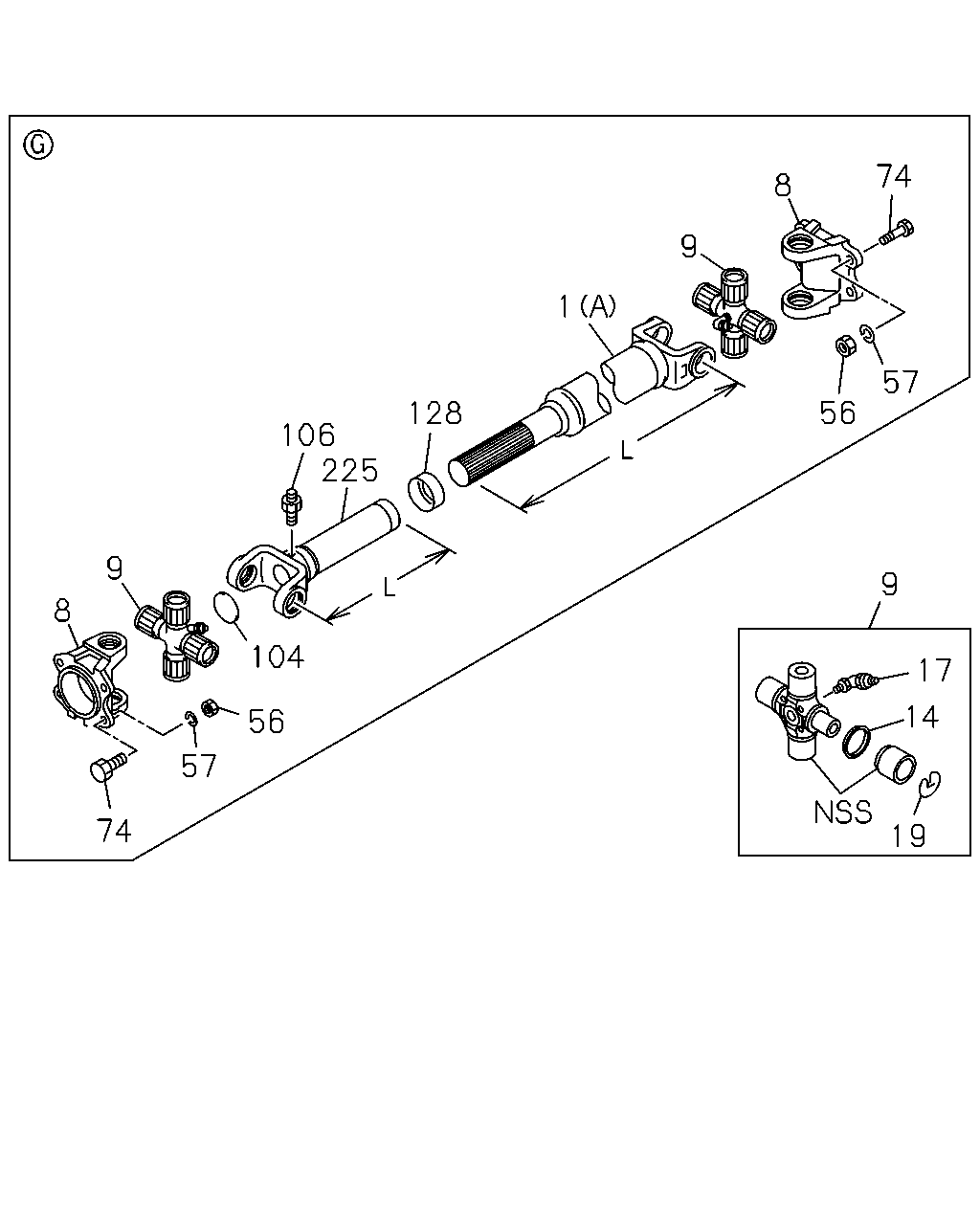

çizim 61743
74 8 9 1 57 56 128 106 225 9 9 8 104 17 14 56 57 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=694 		8-98069-611-0 01 1 1205- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=789 		8-98069-581-0 01 1 1205- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1179 		8-98069-572-0 01 1 1205- ● ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1179 		8-98069-572-0 01 1 1205- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98069-574-0 01 1 1205- ● ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98069-574-0 01 1 1205- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1116 		8-98069-665-0 01 1 1205- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=931 		8-98069-695-0 01 1 1205- ●
1 SHAFT; PROP
(C) L=629 		8-98069-609-0 01 1 1205- ●
1 SHAFT; PROP
(A) L=1271 		8-98069-657-0 01 1 1205- ●
1 SHAFT; PROP
(A) L=921 		8-98069-698-0 01 1 0906-1204 ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=921 		8-98069-698-0 01 1 1205- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=814 		8-98110-589-0 01 1 0906-1204 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) L=814 		8-98110-589-0 01 1 1205- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) (B) L=704 		8-98069-606-0 01 1 0906-1204 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=704 		8-98069-606-0 01 1 1205- ●
1 SHAFT; PROP
(A) L=1101 		8-98069-675-0 01 1 0906-1204 ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1101 		8-98069-675-0 01 1 1205- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1101 		8-98069-675-0 01 1 1205- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=1204 		8-98110-587-0 01 1 0906-1204 ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) L=1204 		8-98110-587-0 01 1 1205- ● ●
1 SHAFT; PROP
MZW6P M/T(RSZ) (B) L=1094 		8-98069-588-0 01 1 0906-1204 ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=1094 		8-98069-588-0 01 1 1205- ● ●
1 SHAFT; PROP
(C) L=569 		8-98069-566-0 01 1 0906- ●
1 SHAFT; PROP
(A) L=1086 		8-98069-690-0 01 1 0906-1204 ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1086 		8-98069-690-0 01 1 1205- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0906-1204 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0906-1204 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1205- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1205- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0906-1204 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1205- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 0906-1204 ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 0906-1204 ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1205- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1205- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 0906-1204 ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1205- ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 0906-1204 ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 0906-1204 ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1205- ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1205- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 0906-1204 ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1205- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0906-1204 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0906-1204 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1205- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1205- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0906-1204 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1205- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1205- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1205- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0906-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1205- ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 0906-1204 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 0906-1204 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1205- ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1205- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0906-1204 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0906-1204 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1205- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1205- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0906-1204 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0906-1204 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0906-1204 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1205- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1205- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1205- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0906-1204 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1205- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0906-1204 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1205- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0906-1204 ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1205- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0906-1204 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1205- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
