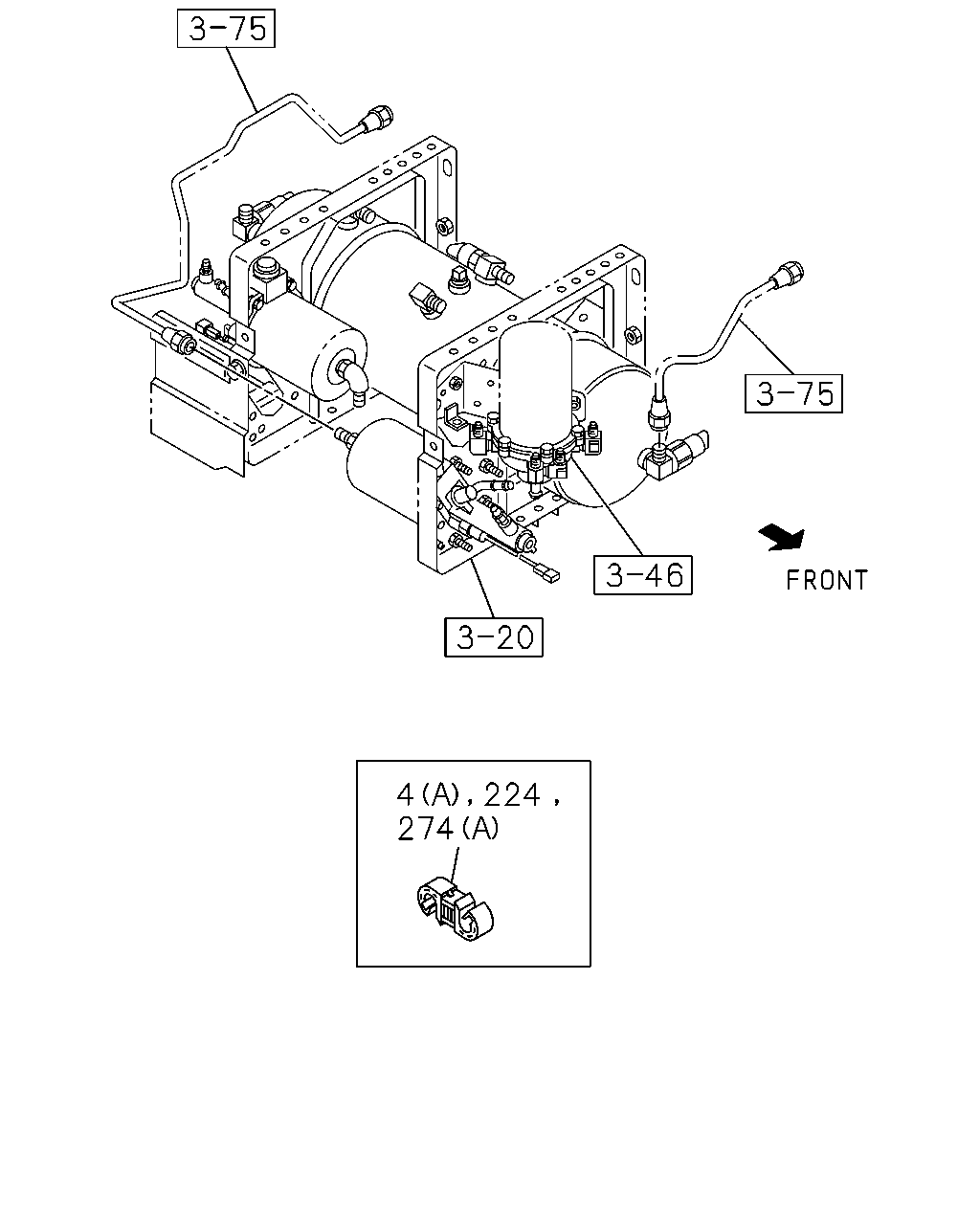

3-78 — FIXING PARTS; AIR PIPING (#17353) — 102 parça

274 4 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0906-1204	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1205-	●	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0906-1204	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	1205-	●	●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0906-1204	●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	1205-	●	●
224	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	01	1	1205-		●
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1205-		●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) (B) ID=6.35 & 10.0	1-09709-274-1	03	1	1205-		●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	01	1	1205-		●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	05	1	1205-1208		●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	04	1	1209-		●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	01	1	1205-		●

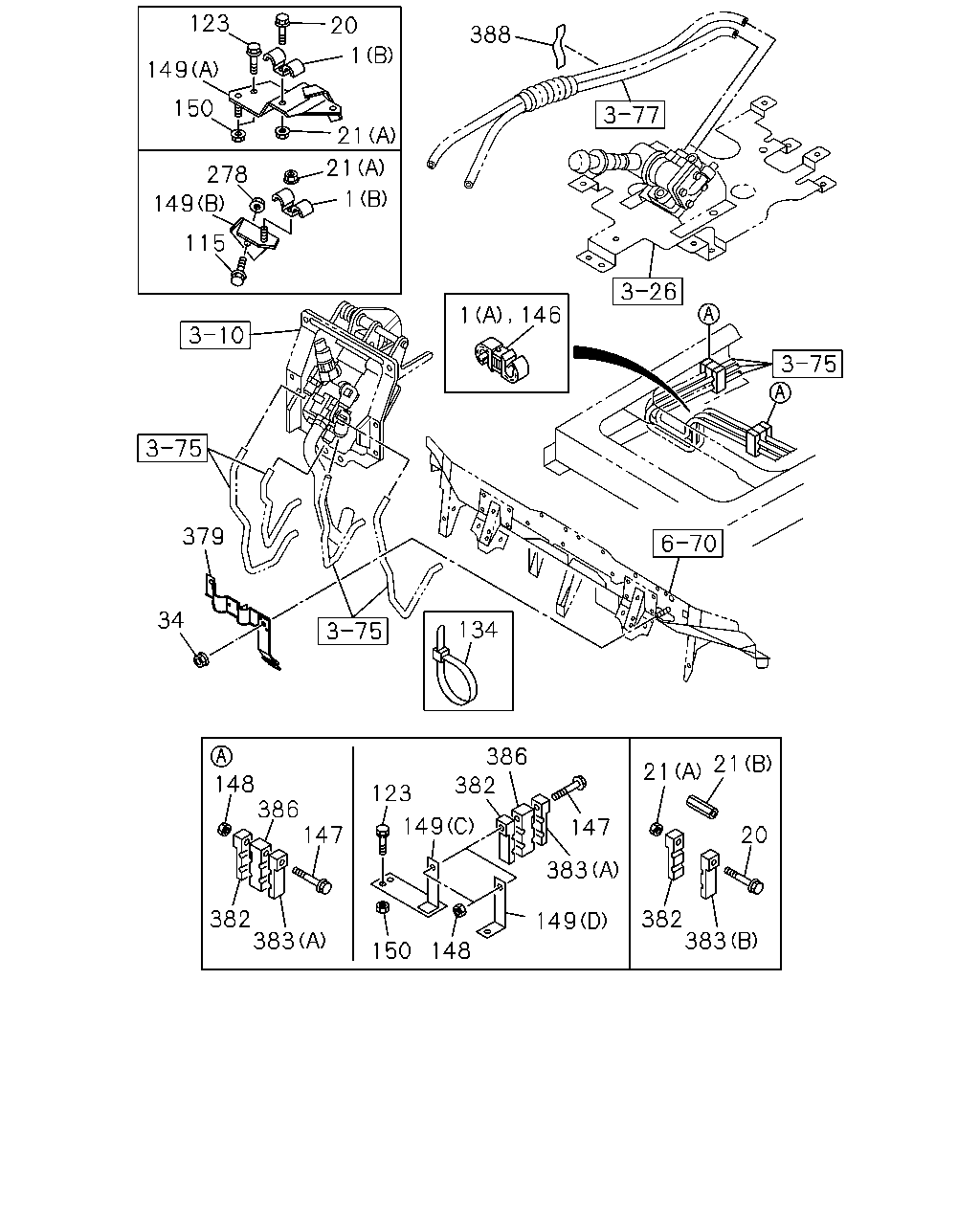

123 20 388 1 149 150 21 21 278 1 149 115 146 1 379 34 134 386 21 21 148 386 147 382 123 149 147 20 383 382 383 382 383 149 148 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0906-	●
1	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	02	1	0906-	●
20	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0906-	●
20	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	02	1	0906-	●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0906-	●
20	BOLT; CLIP WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	02	1	0906-	●
21	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	04	1	0906-	●
21	NUT; CLIP (B)	9-14149-158-0	01	1	0906-	●
21	NUT; CLIP WHEEL BASE 3700MM(37W) (A) M8 FLANGE	0-91180-108-0	01	1	0906-	●
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0906-1204	●
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	1205-	●	●
115	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0906-	●
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	1205-		●
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0906-	●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0906-1204	●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1205-	●	●
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	1205-		●
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	03	1	1205-		●
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0906-0908	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	0906-1204	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	1205-	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0906-1204	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1205-	●	●
149	BRACKET; PIPE CLIP (C)	8-98090-114-0	01	1	1205-		●
149	BRACKET; PIPE CLIP (D)	8-98116-193-0	01	1	1205-		●
149	BRACKET; PIPE CLIP (A)	8-98123-971-0	01	1	0906-	●
149	BRACKET; PIPE CLIP (B)	8-98124-703-0	01	1	0906-	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	1205-		●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0906-	●
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0906-	●
379	BRACKET; NYLON TUBE	8-98112-515-1	01	1	0906-1204	●
379	BRACKET; NYLON TUBE	8-98112-515-1	01	1	1205-	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0906-1204	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	1205-	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	0906-	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	04	1	0906-1204	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	04	1	1205-	●	●
383	CLIP; LWR (B) ID=10 & 10	1-09709-243-0	03	1	0906-	●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0906-1204	●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	1205-	●	●
388	SEAL 100X40	1-72498-022-1	03	1	0906-1204	●
388	SEAL 100X40	1-72498-022-1	03	1	1205-	●	●

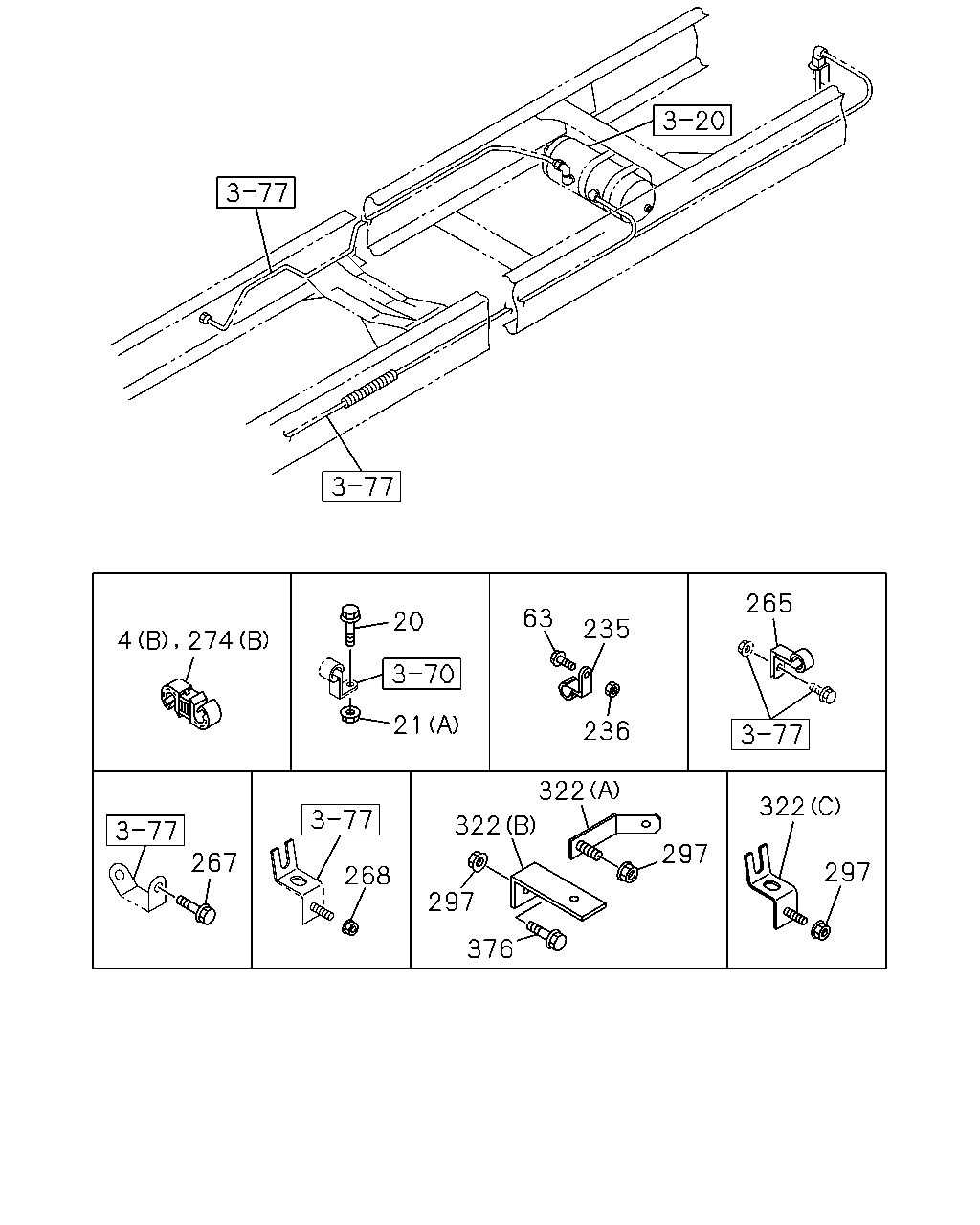

265 63 20 235 21 236 322 322 322 297 267 297 268 297 376 4 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0906-1204	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1205-	●	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0906-1204	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	1205-	●	●
20	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0906-	●
20	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	02	1	0906-	●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0906-	●
20	BOLT; CLIP WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	02	1	0906-	●
21	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	04	1	0906-	●
21	NUT; CLIP (B)	9-14149-158-0	01	1	0906-	●
21	NUT; CLIP WHEEL BASE 3700MM(37W) (A) M8 FLANGE	0-91180-108-0	01	1	0906-	●
63	BOLT; CLIP WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	06	1	1205-		●
63	BOLT; CLIP WHEEL BASE 3700MM(37W) M8X25 FLANGE	0-28650-825-0	03	1	0906-1204	●
63	BOLT; CLIP WHEEL BASE 3700MM(37W) M8X25 FLANGE	0-28650-825-0	03	1	1205-	●	●
63	BOLT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) M8X25 FLANGE	0-28650-825-0	05	1	0906-1204	●
63	BOLT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) M8X25 FLANGE	0-28650-825-0	05	1	1205-	●	●
235	CLIP; AIR PIPE WHEEL BASE 5300MM(53W) ID=11 H=20 L=20	8-98033-780-0	06	1	1205-		●
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) ID=11 H=20 L=20	8-98033-780-0	03	1	0906-1204	●
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) ID=11 H=20 L=20	8-98033-780-0	03	1	1205-	●	●
235	CLIP; AIR PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) ID=11 H=20 L=20	8-98033-780-0	05	1	0906-1204	●
235	CLIP; AIR PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) ID=11 H=20 L=20	8-98033-780-0	05	1	1205-	●	●
236	NUT; CLIP WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	06	1	1205-		●
236	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	03	1	0906-1204	●
236	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	03	1	1205-	●	●
236	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	05	1	0906-1204	●
236	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	05	1	1205-	●	●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	0906-1204	●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	1205-	●	●
267	BOLT; CLIP BRKT WHEEL BASE 4900MM(49W) M10X30 FLANGE	0-28651-030-0	01	1	0906-0909	●
268	NUT; CLIP BRKT WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	1205-		●
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1205-		●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) (B) ID=6.35 & 10.0	1-09709-274-1	03	1	1205-		●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	01	1	1205-		●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	05	1	1205-1208		●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	04	1	1209-		●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	01	1	1205-		●
297	NUT; BRKT WHEEL BASE 3700MM(37W) M10 FLANGE	0-91180-210-0	01	1	1205-		●
297	NUT; BRKT WHEEL BASE 3700MM(37W) M10 FLANGE	0-91180-210-0	01	1	0906-1109	●
297	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
297	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	02	1	1205-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1205-		●
322	BRACKET; CLIP WHEEL BASE 3700MM(37W) (C)	8-98096-272-0	01	1	1205-		●
322	BRACKET; CLIP WHEEL BASE 3700MM(37W) (B) L=55 B=25	1-47478-439-0	01	1	0906-	●
322	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (A)	1-47479-936-1	02	1	0906-1204	●
322	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (A)	1-47479-936-1	02	1	1205-	●
322	BRACKET; CLIP (A)	1-47479-936-1	02	1	1205-		●
376	BOLT; BRKT WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	01	1	0906-	●
