Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#17350) — 239 parça

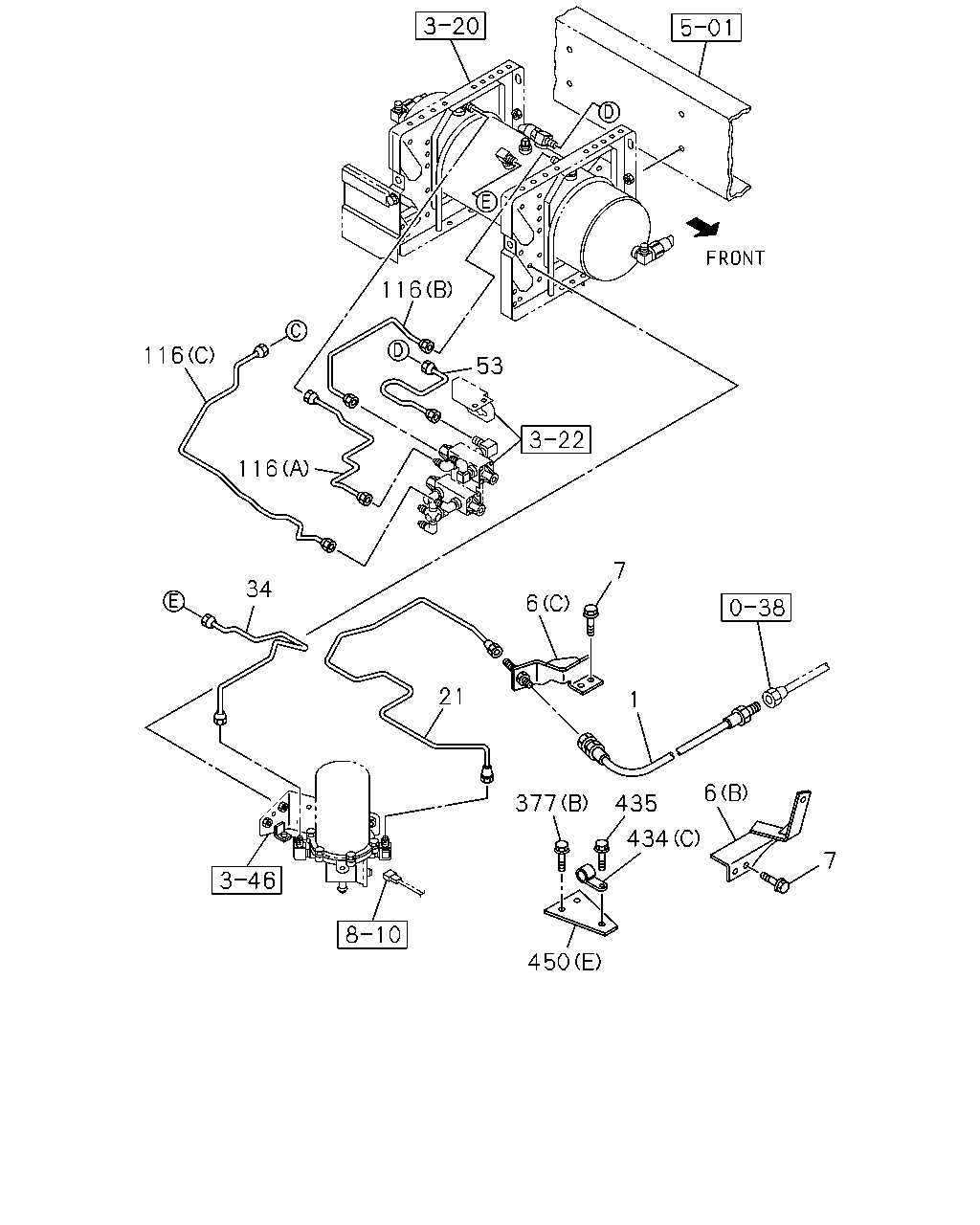

116 53 116 116 34 8 434 6 1 435 21 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK	8-98134-768-0	01	1	1205-	●
1	HOSE; FLEX,AIR TANK	8-98079-971-0	01	1	0906-		●
6	BRACKET; FLEX HOSE,AIR TANK (B)	8-98155-606-1	01	1	1205-	●
6	BRACKET; FLEX HOSE,AIR TANK (C)	8-98202-799-0	01	1	1205-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98131-155-0	01	1	0906-		●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91180-108-0	02	1	0906-		●
21	PIPE; AIR,UNION TO AIR DRYER L=1715	8-98216-542-0	01	1	1205-1208	●
21	PIPE; AIR,UNION TO AIR DRYER L=1743	8-98223-320-0	01	1	1209-	●
21	PIPE; AIR,UNION TO AIR DRYER L=1974	8-98131-197-0	01	1	0906-		●
34	PIPE; AIR L=673 SERVICED BY L=700	1-49115-481-0	01	1	0906-1204		●
34	PIPE; AIR L=673 SERVICED BY L=700	1-49115-481-0	01	1	1205-	●	●
53	PIPE; AIR,AIR TANK TO VALVE	8-98061-086-0	01	1	0906-1204		●
53	PIPE; AIR,AIR TANK TO VALVE	8-98061-086-0	01	1	1205-	●	●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (D) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1205-	●
116	PIPE; AIR,PROTECTION VLV (C) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	0906-1204		●
116	PIPE; AIR,PROTECTION VLV (C) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	1205-	●	●
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	0906-1204		●
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	1205-	●	●
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	0906-1204		●
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	1205-	●	●
316	NUT; FLEX HOSE (B) M22	0-91111-522-0	01	1	0906-		●
316	NUT; FLEX HOSE (A) M12	9-09840-280-0	01	1	0906-1204		●
316	NUT; FLEX HOSE (A) M12	9-09840-280-0	01	1	1205-	●	●
434	CLIP WHEEL BASE 3700MM(37W) (D) ID=16 H=30 L=30	1-09701-080-0	02	1	1201-		●
434	CLIP (C) ID=16 L=20	0-95235-536-0	02	1	1205-	●
434	CLIP (C) ID=35 L=33	1-09700-945-0	01	1	1205-	●
434	CLIP (A) L=350	1-09707-183-0	08	1	1205-	●
434	CLIP WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	08	1	1205-	●
434	CLIP WHEEL BASE 3700MM(37W) (C) ID=22 L=32	1-09700-126-1	01	1	1205-	●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	0906-1204		●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	1205-	●	●
434	CLIP (D) ID=15 H=24 L=20	1-09700-606-0	02	1	0906-		●
434	CLIP (A) L=350	1-09707-183-0	01	1	0906-1204		●
434	CLIP (A) L=350	1-09707-183-0	01	1	1205-	●	●
434	CLIP 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	02	1	0906-1204		●
434	CLIP (A) L=350	1-09707-183-0	12	1	1205-		●
434	CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	0906-1204		●
434	CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	1205-		●
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	05	1	1205-	●
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	05	1	1205-	●
434	CLIP (A) L=350	1-09707-183-0	12	1	0906-1204		●
434	CLIP (A) L=350	1-09707-183-0	02	1	1205-		●
434	CLIP WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	02	1	1205-	●
434	CLIP (E) ID=10 & 15	1-09709-279-1	01	1	0906-1204		●
434	CLIP (E) ID=10 & 15	1-09709-279-1	01	1	1205-	●	●
434	CLIP (B) ID=18-24 L=14.5	1-09709-298-0	02	1	0906-1204		●
434	CLIP (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1205-	●	●
434	CLIP WHEEL BASE 3700MM(37W) (D) ID=16 H=30 L=30	1-09701-080-0	02	1	0906-1109		●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1205-	●
435	BOLT; CLIP WHEEL BASE 3700MM(37W) M8X25 FLANGE	0-28650-825-0	01	1	1205-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0906-1204		●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1205-	●	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0906-1204		●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1205-	●	●

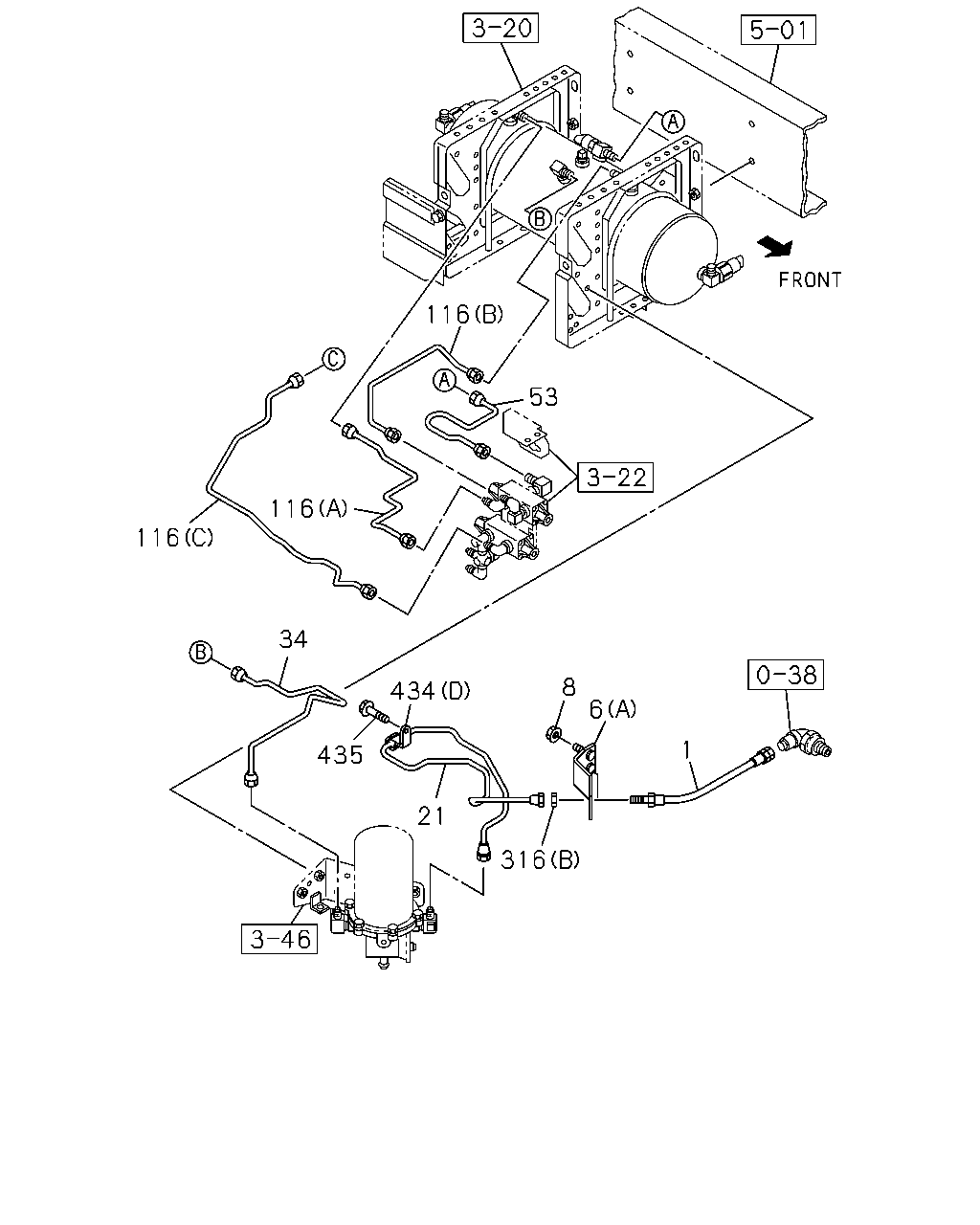

116 116 53 116 7 34 6 21 1 6 377 435 434 7 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK	8-98134-768-0	01	1	1205-	●
1	HOSE; FLEX,AIR TANK	8-98079-971-0	01	1	0906-		●
6	BRACKET; FLEX HOSE,AIR TANK (B)	8-98155-606-1	01	1	1205-	●
6	BRACKET; FLEX HOSE,AIR TANK (C)	8-98202-799-0	01	1	1205-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98131-155-0	01	1	0906-		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	1205-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	1205-	●
21	PIPE; AIR,UNION TO AIR DRYER L=1715	8-98216-542-0	01	1	1205-1208	●
21	PIPE; AIR,UNION TO AIR DRYER L=1743	8-98223-320-0	01	1	1209-	●
21	PIPE; AIR,UNION TO AIR DRYER L=1974	8-98131-197-0	01	1	0906-		●
34	PIPE; AIR L=673 SERVICED BY L=700	1-49115-481-0	01	1	0906-1204		●
34	PIPE; AIR L=673 SERVICED BY L=700	1-49115-481-0	01	1	1205-	●	●
53	PIPE; AIR,AIR TANK TO VALVE	8-98061-086-0	01	1	0906-1204		●
53	PIPE; AIR,AIR TANK TO VALVE	8-98061-086-0	01	1	1205-	●	●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (D) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1205-	●
116	PIPE; AIR,PROTECTION VLV (C) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	0906-1204		●
116	PIPE; AIR,PROTECTION VLV (C) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	1205-	●	●
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	0906-1204		●
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	1205-	●	●
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	0906-1204		●
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	1205-	●	●
377	BOLT; BRKT FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M8X25 FLANGE	0-28650-825-0	01	1	1205-	●
377	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	1205-	●
377	BOLT; BRKT FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE	0-28651-030-0	03	1	1205-	●
377	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	0906-1204		●
377	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	1205-	●	●
377	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	1205-	●
377	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	0906-1204		●
377	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1205-		●
377	BOLT; BRKT FIX WHEEL BASE 3700MM(37W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1205-	●
377	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	02	1	0906-1204		●
377	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	02	1	1205-	●	●
434	CLIP WHEEL BASE 3700MM(37W) (D) ID=16 H=30 L=30	1-09701-080-0	02	1	1201-		●
434	CLIP (C) ID=16 L=20	0-95235-536-0	02	1	1205-	●
434	CLIP (C) ID=35 L=33	1-09700-945-0	01	1	1205-	●
434	CLIP (A) L=350	1-09707-183-0	08	1	1205-	●
434	CLIP WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	08	1	1205-	●
434	CLIP WHEEL BASE 3700MM(37W) (C) ID=22 L=32	1-09700-126-1	01	1	1205-	●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	0906-1204		●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	1205-	●	●
434	CLIP (D) ID=15 H=24 L=20	1-09700-606-0	02	1	0906-		●
434	CLIP (A) L=350	1-09707-183-0	01	1	0906-1204		●
434	CLIP (A) L=350	1-09707-183-0	01	1	1205-	●	●
434	CLIP 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	02	1	0906-1204		●
434	CLIP (A) L=350	1-09707-183-0	12	1	1205-		●
434	CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	0906-1204		●
434	CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	1205-		●
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	05	1	1205-	●
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	05	1	1205-	●
434	CLIP (A) L=350	1-09707-183-0	12	1	0906-1204		●
434	CLIP (A) L=350	1-09707-183-0	02	1	1205-		●
434	CLIP WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	02	1	1205-	●
434	CLIP (E) ID=10 & 15	1-09709-279-1	01	1	0906-1204		●
434	CLIP (E) ID=10 & 15	1-09709-279-1	01	1	1205-	●	●
434	CLIP (B) ID=18-24 L=14.5	1-09709-298-0	02	1	0906-1204		●
434	CLIP (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1205-	●	●
434	CLIP WHEEL BASE 3700MM(37W) (D) ID=16 H=30 L=30	1-09701-080-0	02	1	0906-1109		●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1205-	●
435	BOLT; CLIP WHEEL BASE 3700MM(37W) M8X25 FLANGE	0-28650-825-0	01	1	1205-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0906-1204		●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1205-	●	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0906-1204		●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1205-	●	●
450	BRACKET; CLIP (D)	1-47477-694-0	01	1	1205-	●
450	BRACKET; CLIP (E)	8-98202-800-1	01	1	1205-	●
450	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (F)	1-47479-693-0	01	1	1205-	●
450	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (C)	8-98100-216-1	03	1	1205-	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	0906-1107		●
450	BRACKET; CLIP (B)	8-98180-947-0	01	1	1108-1204		●
450	BRACKET; CLIP (B)	8-98180-947-0	01	1	1205-	●	●
450	BRACKET; CLIP (C)	8-98100-216-1	01	1	0906-1204		●
450	BRACKET; CLIP (C)	8-98100-216-1	01	1	1205-		●
450	BRACKET; CLIP WHEEL BASE 3700MM(37W) (C)	8-98100-216-1	01	1	1205-	●
450	BRACKET; CLIP (A)	8-98117-686-0	02	1	0906-1204		●
450	BRACKET; CLIP (A)	8-98117-686-0	02	1	1205-	●	●

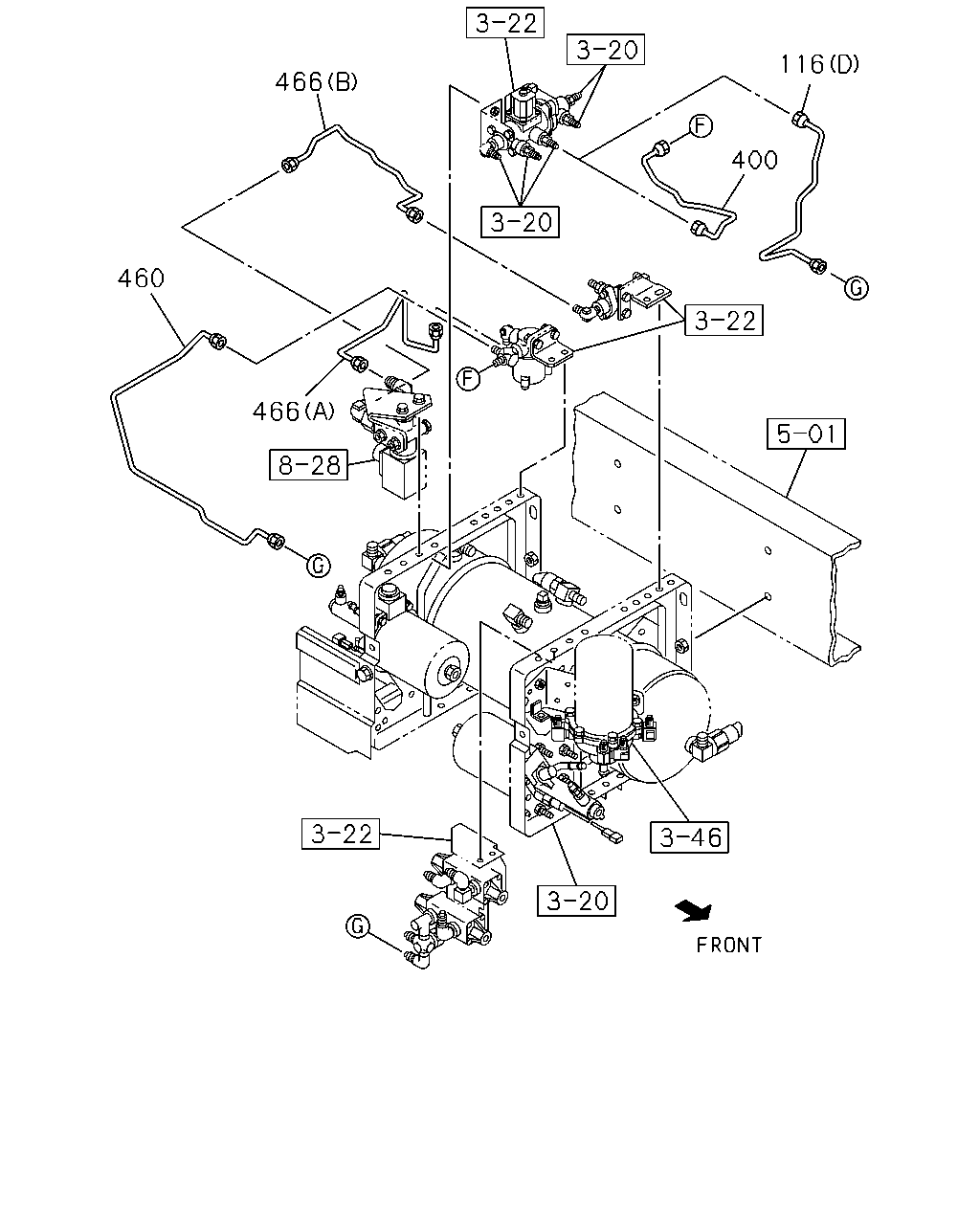

116 466 400 460 466

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (D) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1205-	●
116	PIPE; AIR,PROTECTION VLV (C) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	0906-1204		●
116	PIPE; AIR,PROTECTION VLV (C) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	1205-	●	●
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	0906-1204		●
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	1205-	●	●
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	0906-1204		●
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	1205-	●	●
400	PIPE; AIR,HSA VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467	8-98066-848-0	01	1	1205-	●
460	PIPE; AIR,PROTECTION VALVE THROTTLE CONTROL SYSTEM(6XH)	8-98066-846-0	01	1	1205-	●
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800	1-47428-872-0	01	1	1205-	●
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (A) L=492	8-98077-879-0	01	1	1205-	●

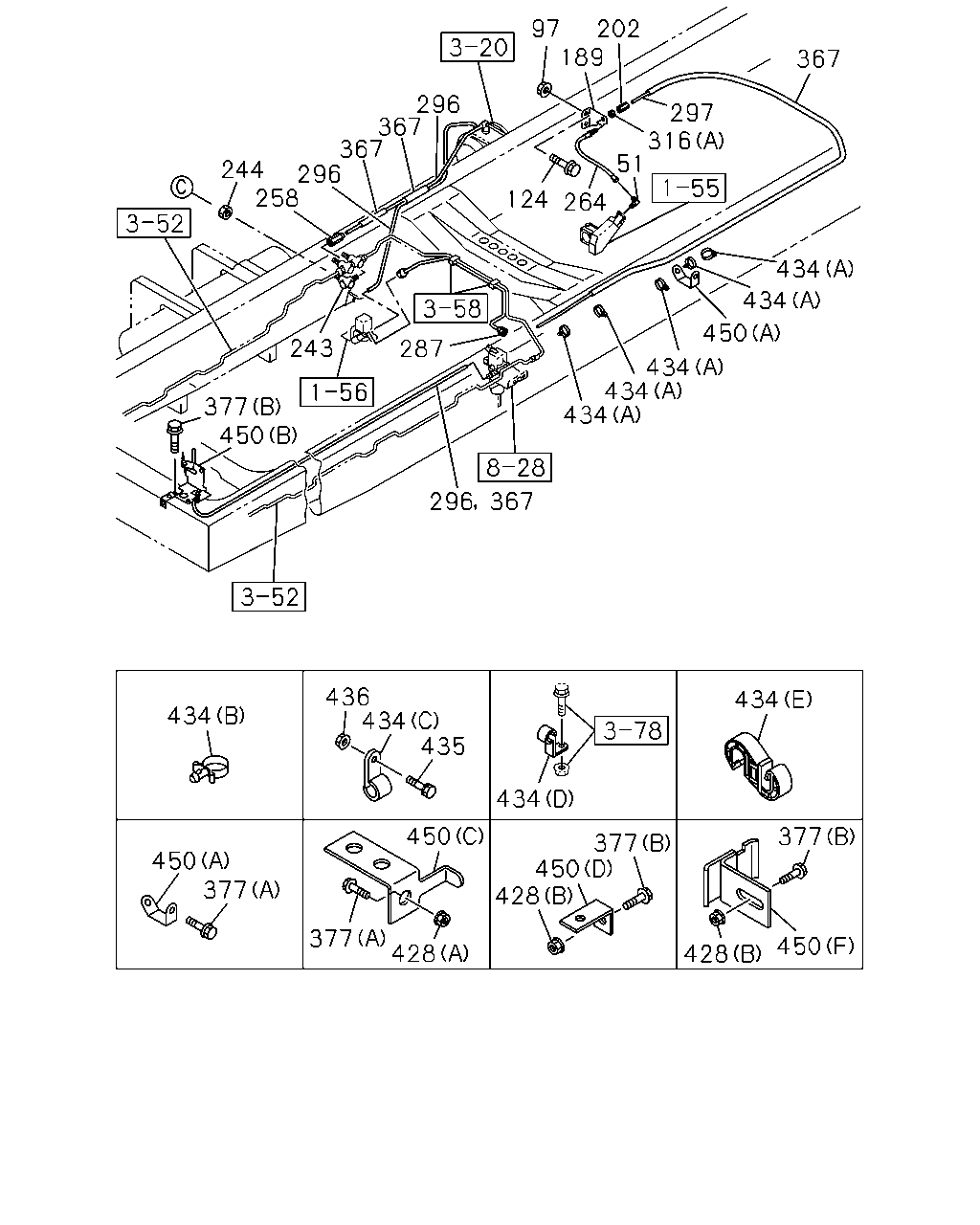

189 367 296 367 367 244 296 258 297 316 51 124 264 434 434 450 243 287 434 434 434 377 450 296 367 436 434 435 434 434 434 450 377 377 450 428 450 377 377 428 450 428 97 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	UNION M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1204		●
51	UNION M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1205-	●	●
97	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
97	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1205-	●	●
124	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0906-1204		●
124	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1205-	●	●
189	BRACKET; FLEX HOSE	8-98054-640-0	01	1	0906-1204		●
189	BRACKET; FLEX HOSE	8-98054-640-0	01	1	1205-	●	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0906-1204		●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1205-	●	●
243	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0906-1204		●
243	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	1205-	●	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0906-1204		●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1205-	●	●
258	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0906-1204		●
258	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1205-	●	●
264	HOSE; FLEX L=220	1-09363-627-0	01	1	1205-	●
264	HOSE; FLEX 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) L=350	1-09363-624-0	01	1	0906-		●
264	HOSE; FLEX 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) L=280	1-09363-610-0	01	1	0906-		●
287	PIPE; AIR,MAG VLV L=816 SERVICED BY L=900	1-47428-813-0	01	1	1205-	●
287	PIPE; AIR,MAG VLV L=863 SERVICED BY L=900	1-47428-813-0	01	1	0906-		●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0906-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0906-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0906-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0906-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0906-	●	●
316	NUT; FLEX HOSE (B) M22	0-91111-522-0	01	1	0906-		●
316	NUT; FLEX HOSE (A) M12	9-09840-280-0	01	1	0906-1204		●
316	NUT; FLEX HOSE (A) M12	9-09840-280-0	01	1	1205-	●	●
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87411-017-0	AR	1	0906-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0906-	●	●
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=10	1-87411-020-0	AR	1	0906-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0906-	●	●
377	BOLT; BRKT FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M8X25 FLANGE	0-28650-825-0	01	1	1205-	●
377	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	1205-	●
377	BOLT; BRKT FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE	0-28651-030-0	03	1	1205-	●
377	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	0906-1204		●
377	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	1205-	●	●
377	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	1205-	●
377	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	0906-1204		●
377	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1205-		●
377	BOLT; BRKT FIX WHEEL BASE 3700MM(37W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1205-	●
377	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	02	1	0906-1204		●
377	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	02	1	1205-	●	●
428	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M8 FLANGE	0-91180-108-0	01	1	1205-	●
428	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	1205-	●
428	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	1205-	●
428	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A) M10 FLANGE	0-91180-210-0	03	1	1205-	●
428	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0906-1008		●
428	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0906-1204		●
428	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1205-		●
428	NUT; BRKT WHEEL BASE 3700MM(37W) (A) M10 FLANGE	0-91180-210-0	01	1	1205-	●
434	CLIP WHEEL BASE 3700MM(37W) (D) ID=16 H=30 L=30	1-09701-080-0	02	1	1201-		●
434	CLIP (C) ID=16 L=20	0-95235-536-0	02	1	1205-	●
434	CLIP (C) ID=35 L=33	1-09700-945-0	01	1	1205-	●
434	CLIP (A) L=350	1-09707-183-0	08	1	1205-	●
434	CLIP WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	08	1	1205-	●
434	CLIP WHEEL BASE 3700MM(37W) (C) ID=22 L=32	1-09700-126-1	01	1	1205-	●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	0906-1204		●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	1205-	●	●
434	CLIP (D) ID=15 H=24 L=20	1-09700-606-0	02	1	0906-		●
434	CLIP (A) L=350	1-09707-183-0	01	1	0906-1204		●
434	CLIP (A) L=350	1-09707-183-0	01	1	1205-	●	●
434	CLIP 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	02	1	0906-1204		●
434	CLIP (A) L=350	1-09707-183-0	12	1	1205-		●
434	CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	0906-1204		●
434	CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	1205-		●
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	05	1	1205-	●
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	05	1	1205-	●
434	CLIP (A) L=350	1-09707-183-0	12	1	0906-1204		●
434	CLIP (A) L=350	1-09707-183-0	02	1	1205-		●
434	CLIP WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	02	1	1205-	●
434	CLIP (E) ID=10 & 15	1-09709-279-1	01	1	0906-1204		●
434	CLIP (E) ID=10 & 15	1-09709-279-1	01	1	1205-	●	●
434	CLIP (B) ID=18-24 L=14.5	1-09709-298-0	02	1	0906-1204		●
434	CLIP (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1205-	●	●
434	CLIP WHEEL BASE 3700MM(37W) (D) ID=16 H=30 L=30	1-09701-080-0	02	1	0906-1109		●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1205-	●
435	BOLT; CLIP WHEEL BASE 3700MM(37W) M8X25 FLANGE	0-28650-825-0	01	1	1205-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0906-1204		●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1205-	●	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0906-1204		●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1205-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0906-1204		●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1205-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1205-	●
436	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	01	1	1205-	●
450	BRACKET; CLIP (D)	1-47477-694-0	01	1	1205-	●
450	BRACKET; CLIP (E)	8-98202-800-1	01	1	1205-	●
450	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (F)	1-47479-693-0	01	1	1205-	●
450	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (C)	8-98100-216-1	03	1	1205-	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	0906-1107		●
450	BRACKET; CLIP (B)	8-98180-947-0	01	1	1108-1204		●
450	BRACKET; CLIP (B)	8-98180-947-0	01	1	1205-	●	●
450	BRACKET; CLIP (C)	8-98100-216-1	01	1	0906-1204		●
450	BRACKET; CLIP (C)	8-98100-216-1	01	1	1205-		●
450	BRACKET; CLIP WHEEL BASE 3700MM(37W) (C)	8-98100-216-1	01	1	1205-	●
450	BRACKET; CLIP (A)	8-98117-686-0	02	1	0906-1204		●
450	BRACKET; CLIP (A)	8-98117-686-0	02	1	1205-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
