Isuzu WW
▶
TRUCKS
▶
FSR
▶
11231 - FSR-LHD(EU)SPACE EU5
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#17347) — 52 parça
Tümü
A - FCD6CS
B - FCR6CS
◀

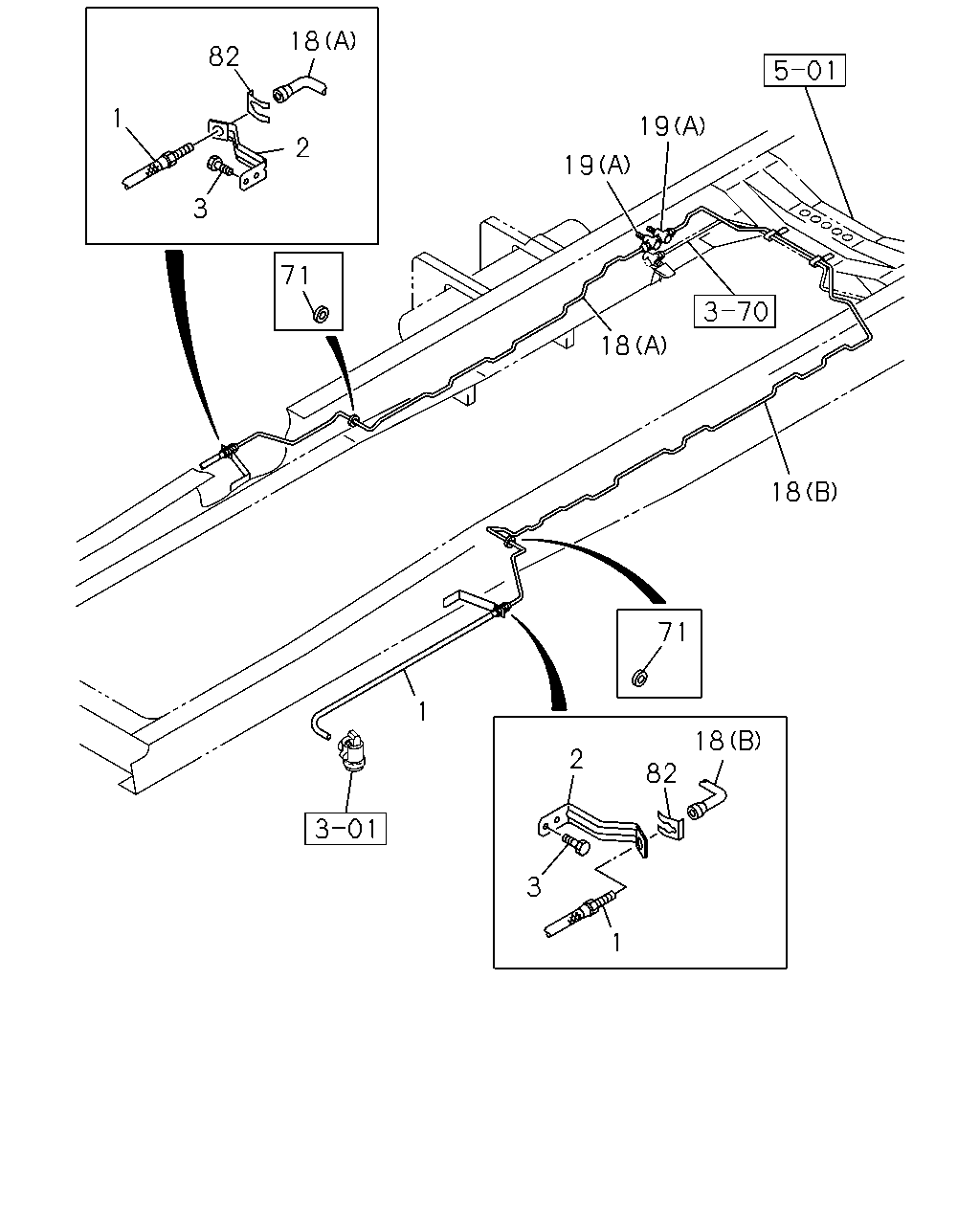

[352A] FRAME SIDE;6HK1 (17 parça)

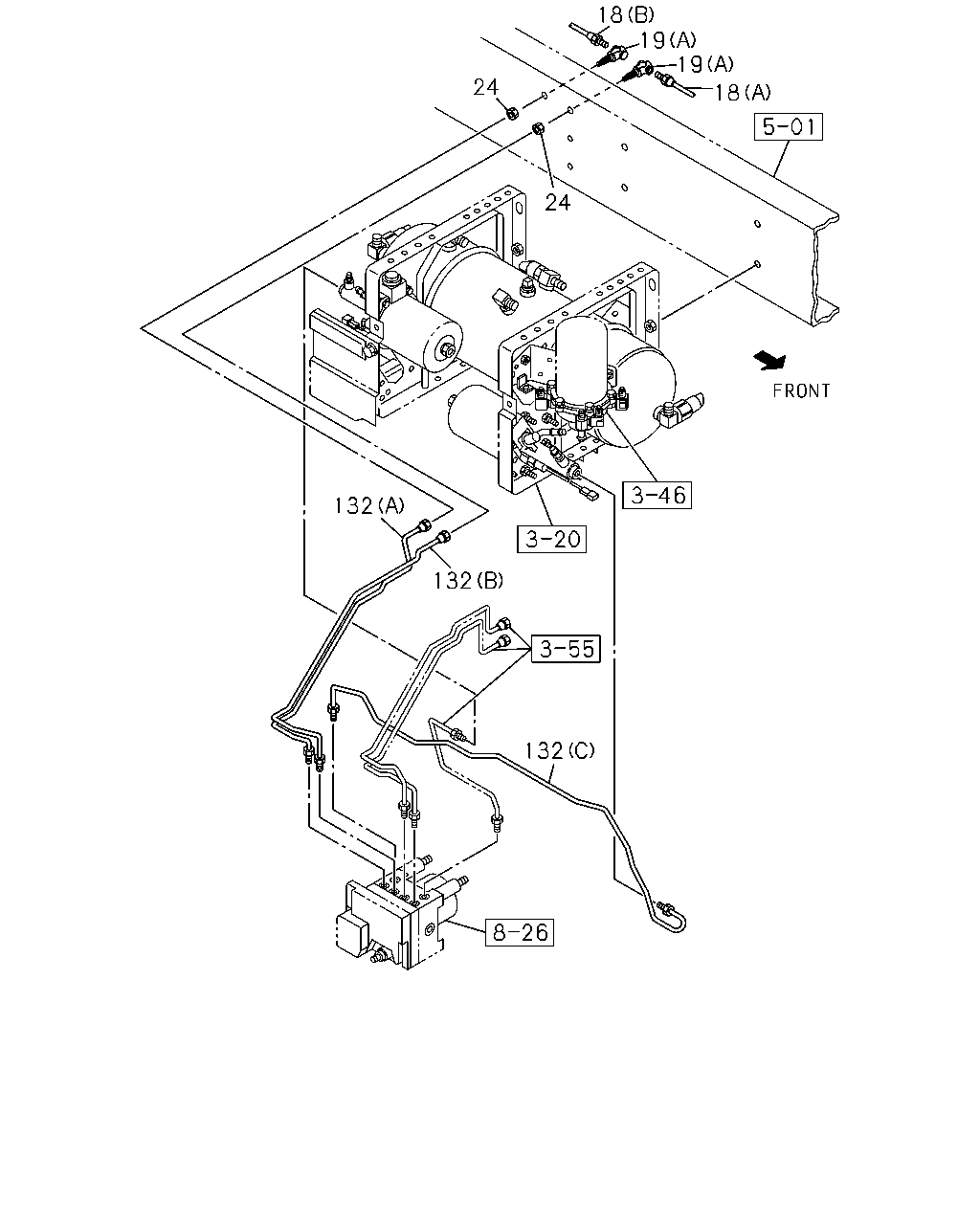

[352A] AIR TANK SIDE (15 parça)

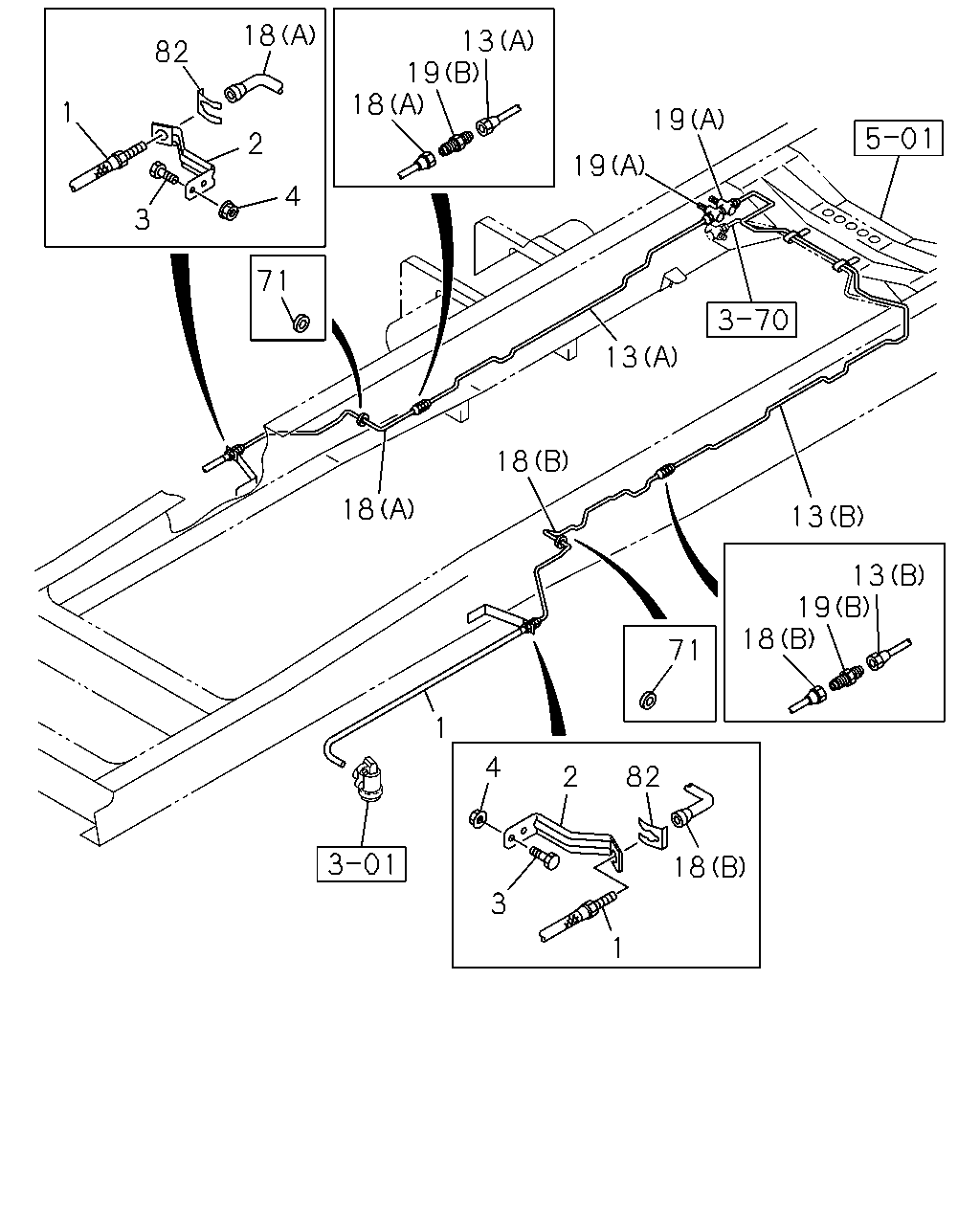

[352A] FRAME SIDE;4HK1 (20 parça)
▶
18
82
19
2
19
3
71
18
18
71
1
18
2
82
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,FRT BRK
L=330
8-98024-433-0
02
1
0906-1204
●
1
HOSE; FLEX,FRT BRK
L=330
8-98024-433-0
02
1
1205-
●
●
2
BRACKET; FLEX HOSE,FRT BRK
8-98012-343-1
02
1
0906-1204
●
2
BRACKET; FLEX HOSE,FRT BRK
8-98012-343-1
02
1
1205-
●
●
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE
0-28650-825-0
04
1
0906-1204
●
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE
0-28650-825-0
04
1
1205-
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=1111
8-98134-927-0
01
1
1205-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=687
8-98169-194-0
01
1
1205-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=2950
8-98115-260-0
01
1
0906-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=1697
8-98067-425-0
01
1
0906-
●
19
UNION; OIL PIPE
(B) M10 STRAIGHT
0-92107-005-0
02
1
1205-
●
19
UNION; OIL PIPE
(A) M10X2 ELBOW
8-98018-438-0
02
1
0906-1204
●
19
UNION; OIL PIPE
(A) M10X2 ELBOW
8-98018-438-0
02
1
1205-
●
●
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
0906-1204
●
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
1205-
●
●
82
PLATE; FLEX HOSE
8-97360-054-0
02
1
0906-1204
●
82
PLATE; FLEX HOSE
8-97360-054-0
02
1
1205-
●
●
18
19
19
24
18
24
132
132
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=1111
8-98134-927-0
01
1
1205-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=687
8-98169-194-0
01
1
1205-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=2950
8-98115-260-0
01
1
0906-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=1697
8-98067-425-0
01
1
0906-
●
19
UNION; OIL PIPE
(B) M10 STRAIGHT
0-92107-005-0
02
1
1205-
●
19
UNION; OIL PIPE
(A) M10X2 ELBOW
8-98018-438-0
02
1
0906-1204
●
19
UNION; OIL PIPE
(A) M10X2 ELBOW
8-98018-438-0
02
1
1205-
●
●
24
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
02
1
0906-1204
●
24
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
02
1
1205-
●
●
132
PIPE; OIL,BRK,HYD UNIT
(A) L=625
8-98116-095-0
01
1
0906-1204
●
132
PIPE; OIL,BRK,HYD UNIT
(A) L=625
8-98116-095-0
01
1
1205-
●
●
132
PIPE; OIL,BRK,HYD UNIT
(C) L=949
8-98078-732-0
01
1
0906-1204
●
132
PIPE; OIL,BRK,HYD UNIT
(C) L=949
8-98078-732-0
01
1
1205-
●
●
132
PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=645
8-98011-949-0
01
1
0906-1204
●
132
PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=645
8-98011-949-0
01
1
1205-
●
●
18
13
19
18
82
1
19
2
19
4
3
71
13
18
18
13
13
19
18
71
1
4
2
82
18
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,FRT BRK
L=330
8-98024-433-0
02
1
0906-1204
●
1
HOSE; FLEX,FRT BRK
L=330
8-98024-433-0
02
1
1205-
●
●
2
BRACKET; FLEX HOSE,FRT BRK
8-98012-343-1
02
1
0906-1204
●
2
BRACKET; FLEX HOSE,FRT BRK
8-98012-343-1
02
1
1205-
●
●
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE
0-28650-825-0
04
1
0906-1204
●
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE
0-28650-825-0
04
1
1205-
●
●
4
NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE
0-91180-108-0
04
1
1205-
●
13
PIPE; OIL,UNION TO UNION
(B) LH LINE L=1833
8-98158-297-0
01
1
1205-
●
13
PIPE; OIL,UNION TO UNION
(A) RH LINE L=967
8-98067-417-0
01
1
1205-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=1111
8-98134-927-0
01
1
1205-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=687
8-98169-194-0
01
1
1205-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=2950
8-98115-260-0
01
1
0906-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=1697
8-98067-425-0
01
1
0906-
●
19
UNION; OIL PIPE
(B) M10 STRAIGHT
0-92107-005-0
02
1
1205-
●
19
UNION; OIL PIPE
(A) M10X2 ELBOW
8-98018-438-0
02
1
0906-1204
●
19
UNION; OIL PIPE
(A) M10X2 ELBOW
8-98018-438-0
02
1
1205-
●
●
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
0906-1204
●
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
1205-
●
●
82
PLATE; FLEX HOSE
8-97360-054-0
02
1
0906-1204
●
82
PLATE; FLEX HOSE
8-97360-054-0
02
1
1205-
●
●
