Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#17340) — 282 parça

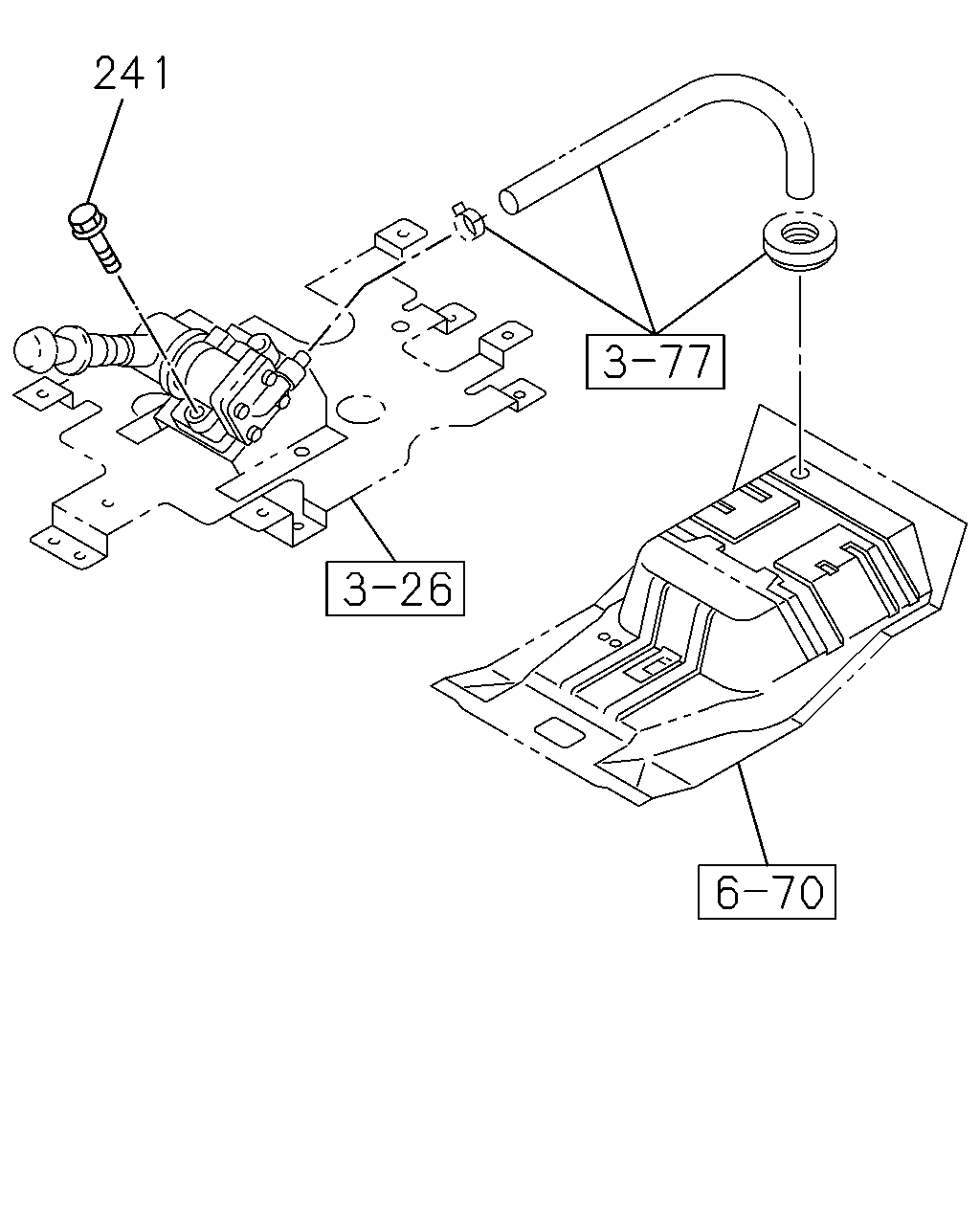

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0906-1204	●
	241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	1205-	●	●

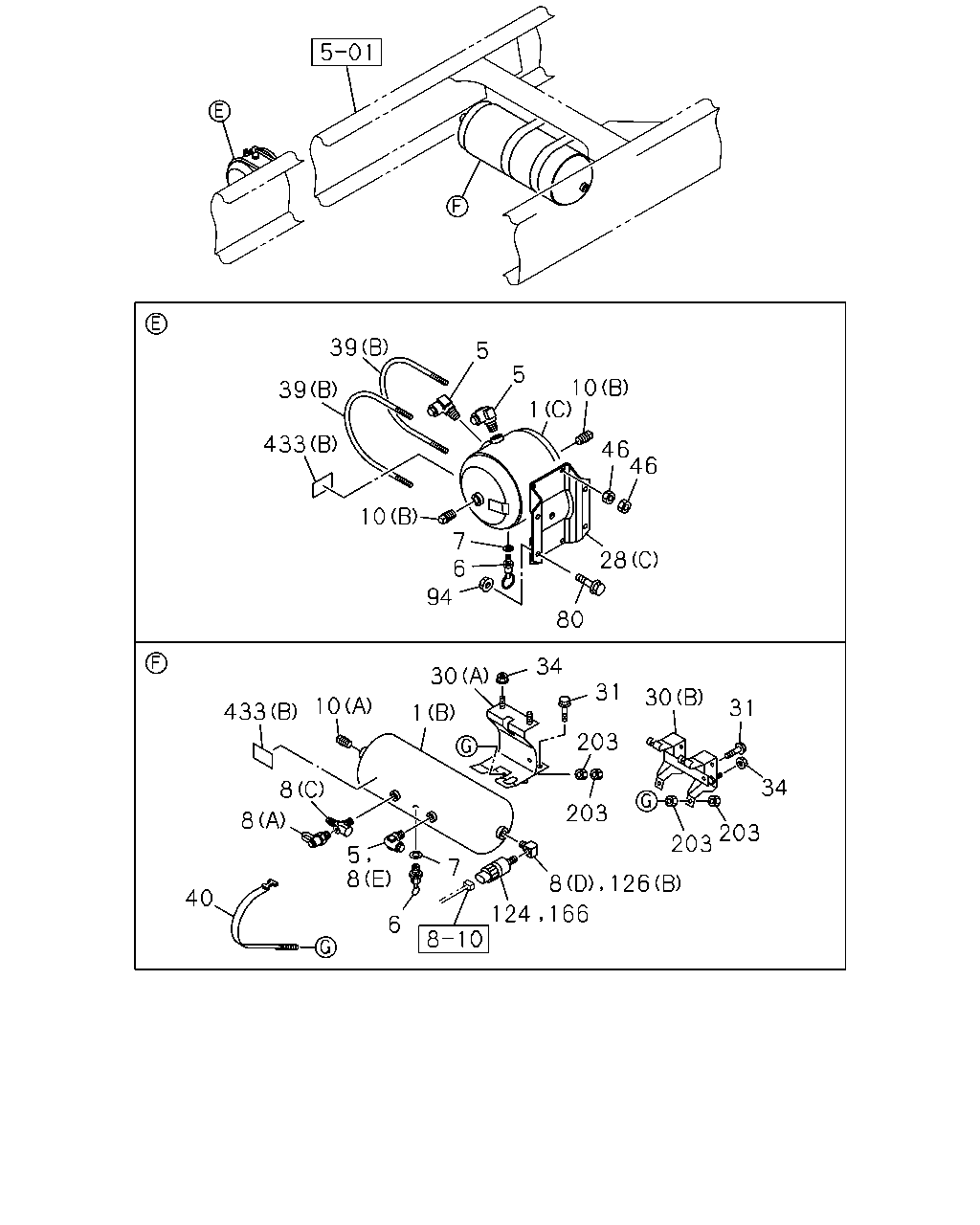

39 5 5 10 1 39 433 46 46 10 7 6 28 94 80 34 30 31 30 10 31 433 1 203 34 8 203 8 203 203 5 8 7 8 126 40 6 124 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR ISRAEL COUNTRY(CV4) (A)	8-98018-785-3	01	1	1009-1203	●
1	TANK ASM; AIR ISRAEL COUNTRY(CV4) (A)	8-98018-785-3	01	1	1204-1301	●
1	TANK ASM; AIR ISRAEL COUNTRY(CV4) (C)	8-98081-870-1	04	1	1009-1009	●
1	TANK ASM; AIR ISRAEL COUNTRY(CV4) (C)	8-98081-870-1	01	1	1010-1301	●
1	TANK ASM; AIR ISRAEL COUNTRY(CV4) (B)	8-98166-972-0	03	1	1009-1009	●
1	TANK ASM; AIR ISRAEL COUNTRY(CV4) (B)	8-98166-972-0	01	1	1010-1301	●
1	TANK ASM; AIR (A)	8-98056-178-1	01	1	0906-1008	●
1	TANK ASM; AIR EXC. ISRAEL COUNTRY(CV4) (A)	8-98056-178-1	01	1	1009-1204	●
1	TANK ASM; AIR EXC. ISRAEL COUNTRY(CV4) (A)	8-98056-178-1	01	1	1205-1301	●
1	TANK ASM; AIR (A)	8-98056-178-1	01	1	1205-1301		●
1	TANK ASM; AIR (A)	8-98056-178-1	01	1	1302-	●	●
1	TANK ASM; AIR (B)	8-98056-183-2	01	1	0906-1008	●
1	TANK ASM; AIR EXC. ISRAEL COUNTRY(CV4) (B)	8-98056-183-2	01	1	1009-1204	●
1	TANK ASM; AIR EXC. ISRAEL COUNTRY(CV4) (B)	8-98056-183-2	01	1	1205-1301	●
1	TANK ASM; AIR (B)	8-98056-183-2	01	1	1205-1301		●
1	TANK ASM; AIR (B)	8-98056-183-2	01	1	1302-	●	●
1	TANK ASM; AIR (C)	8-98081-872-2	01	1	0906-1008	●
1	TANK ASM; AIR EXC. ISRAEL COUNTRY(CV4) (C)	8-98081-872-2	01	1	1009-1204	●
1	TANK ASM; AIR EXC. ISRAEL COUNTRY(CV4) (C)	8-98081-872-2	01	1	1205-1301	●
1	TANK ASM; AIR (C)	8-98081-872-2	01	1	1205-1301		●
1	TANK ASM; AIR (C)	8-98081-872-2	01	1	1302-	●	●
5	UNION; AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0906-1008	●
5	UNION; AIR TANK EXC. ISRAEL COUNTRY(CV4) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-1204	●
5	UNION; AIR TANK EXC. ISRAEL COUNTRY(CV4) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1205-1301	●
5	UNION; AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1205-1301		●
5	UNION; AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-	●	●
5	UNION; AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0906-1204	●
5	UNION; AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1205-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0906-1204	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1205-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0906-1204	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0906-1204	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1205-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1205-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0906-1204	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1205-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0906-1204	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0906-1204	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1205-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1205-	●	●
8	CONNECTOR; AIR TANK ISRAEL COUNTRY(CV4) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-1301	●
8	CONNECTOR; AIR TANK ISRAEL COUNTRY(CV4) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-1301	●
8	CONNECTOR; AIR TANK (C) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	0906-1204	●
8	CONNECTOR; AIR TANK (C) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	1205-	●	●
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	0906-1204	●
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1205-	●	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0906-1204	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1205-1301	●	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1302-	●	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0906-1204	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1205-1301	●	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1302-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0906-1008	●
10	PLUG; AIR TANK ISRAEL COUNTRY(CV4) (B) PT3/8	9-09204-517-0	01	1	1009-1204	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1009-1204	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1205-1301	●	●
10	PLUG; AIR TANK ISRAEL COUNTRY(CV4) (B) PT3/8	9-09204-517-0	01	1	1205-1301	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1302-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0906-1204	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1205-	●	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	0906-1008	●
10	PLUG; AIR TANK EXC. ISRAEL COUNTRY(CV4) (A) PT3/4	9-09204-526-0	01	1	1009-1204	●
10	PLUG; AIR TANK EXC. ISRAEL COUNTRY(CV4) (A) PT3/4	9-09204-526-0	01	1	1205-1301	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	1205-1301		●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	1302-	●	●
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	0906-1203	●
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	1204-	●	●
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	0906-1203	●
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	1204-	●	●
28	BRACKET; AIR TANK (C)	8-98100-165-3	01	1	0906-1204	●
28	BRACKET; AIR TANK (C)	8-98100-165-3	01	1	1205-	●	●
30	BRACKET; AIR TANK,SUB (B)	1-48317-894-1	01	1	1205-1301		●
30	BRACKET; AIR TANK,SUB (B)	1-48317-894-1	01	1	1302-		●
30	BRACKET; AIR TANK,SUB (A)	1-48317-903-0	01	1	0906-	●
31	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	02	1	0906-1204	●
31	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	02	1	1205-	●	●
34	NUT; BRKT,AIR TANK M10 FLANGE	0-91180-210-0	02	1	0906-1204	●
34	NUT; BRKT,AIR TANK M10 FLANGE	0-91180-210-0	02	1	1205-	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0906-1204	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1205-	●	●
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	0906-1203	●
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	1204-	●	●
40	BAND ASM; AIR TANK	1-48317-893-1	02	1	1205-1301		●
40	BAND ASM; AIR TANK	1-48317-893-1	02	1	1302-		●
40	BAND ASM; AIR TANK	1-48317-893-1	01	1	0906-	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0906-1204	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0906-1204	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1205-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1205-	●	●
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	0906-1204	●
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	1205-	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0906-1204	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	1205-	●	●
124	SWITCH; AIR PRESSURE ISRAEL COUNTRY(CV4) STAMP 5.5	8-97609-249-0	01	1	1009-1301	●
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0906-1203	●
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1205-	●	●
126	CONNECTOR; ELBOW (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0906-1008	●
126	CONNECTOR; ELBOW EXC. ISRAEL COUNTRY(CV4) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-1204	●
126	CONNECTOR; ELBOW EXC. ISRAEL COUNTRY(CV4) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1205-1301	●
126	CONNECTOR; ELBOW (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1205-1301		●
126	CONNECTOR; ELBOW (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	0906-1008	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. ISRAEL COUNTRY(CV4) STAMP 5.5	8-97609-249-0	01	1	1009-1204	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. ISRAEL COUNTRY(CV4) STAMP 5.5	8-97609-249-0	01	1	1205-1301	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1205-1301		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1302-	●	●
203	NUT M8	0-91110-508-0	04	1	1205-1301		●
203	NUT M8	0-91110-508-0	04	1	1302-		●
203	NUT M8	0-91110-508-0	02	1	0906-	●
433	PLATE; NAME (A)	8-98121-999-0	01	1	0906-1203	●
433	PLATE; NAME (A)	8-98121-999-0	01	1	1205-	●	●
433	PLATE; NAME ISRAEL COUNTRY(CV4) (B) WHEEL PARK	8-98121-997-0	01	1	1009-1301	●
433	PLATE; NAME ISRAEL COUNTRY(CV4) (B) ACCESSORY	8-98121-998-0	01	1	1009-1301	●

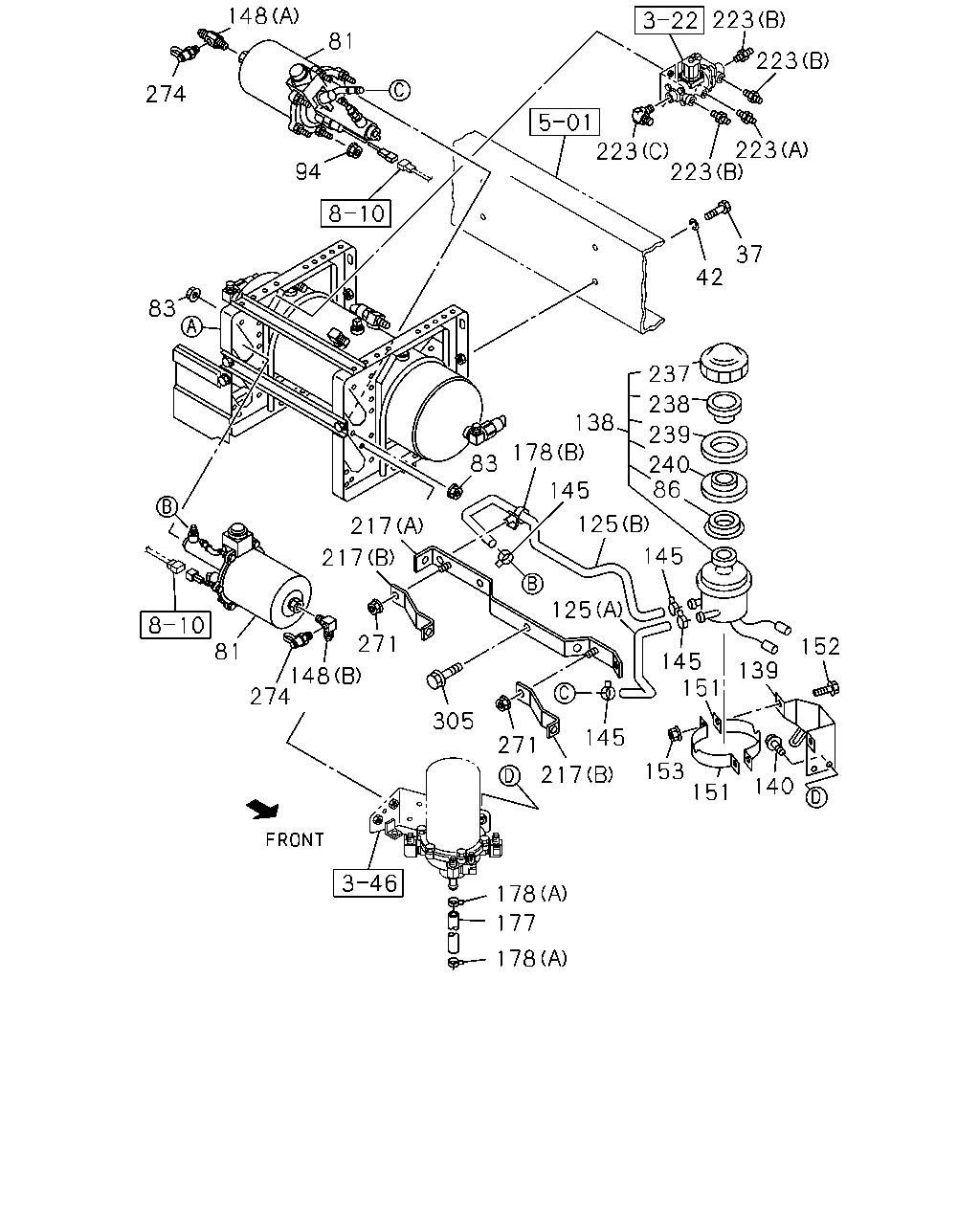

148 223 81 223 274 223 223 223 94 37 42 83 237 238 138 239 178 83 240 86 145 125 217 145 217 125 271 152 81 145 151 139 148 274 305 145 271 153 151 217 140 178 177 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	04	1	0906-1204	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	04	1	1205-	●	●
42	WASHER; PL ID=12.5 OD=32	0-91614-712-0	04	1	0906-1204	●
42	WASHER; PL ID=12.5 OD=32	0-91614-712-0	04	1	1205-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-826-0	02	1	0906-1204	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-826-0	02	1	1205-	●	●
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	09	1	0906-1204	●
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	09	1	1205-	●	●
86	SEAL; DUST	1-47529-019-0	01	1	0906-1204	●
86	SEAL; DUST	1-47529-019-0	01	1	1205-	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0906-1204	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	1205-	●	●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98051-217-0	01	1	0906-1204	●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98051-217-0	01	1	1205-	●	●
125	HOSE; OIL TANK TO AIR MASTER (B)	8-98051-218-1	01	1	0906-1204	●
125	HOSE; OIL TANK TO AIR MASTER (B)	8-98051-218-1	01	1	1205-	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-186-0	01	1	0906-1204	●
138	TANK ASM; OIL,AIR MASTER	1-47530-186-0	01	1	1205-	●	●
139	BRACKET; OIL TANK	8-98051-105-0	01	1	0906-1204	●
139	BRACKET; OIL TANK	8-98051-105-0	01	1	1205-	●	●
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0906-1204	●
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1205-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0906-1204	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	1205-	●	●
148	CONNECTOR; AIR MASTER (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0906-1204	●
148	CONNECTOR; AIR MASTER (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1205-	●	●
148	CONNECTOR; AIR MASTER (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0906-1204	●
148	CONNECTOR; AIR MASTER (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1205-	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0906-1204	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1205-	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0906-1204	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	1205-	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	1205-	●	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0906-1204	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1205-	●	●
178	CLIP; HOSE (B) ID=13-18 L=14.5	1-09709-290-0	08	1	0906-1204	●
178	CLIP; HOSE (B) ID=13-18 L=14.5	1-09709-290-0	08	1	1205-	●	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	0906-1204	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	1205-	●	●
217	BRACKET; RUBBER HOSE (A)	8-98082-871-0	01	1	0906-1204	●
217	BRACKET; RUBBER HOSE (A)	8-98082-871-0	01	1	1205-	●	●
217	BRACKET; RUBBER HOSE (B)	8-98085-273-1	02	1	0906-1204	●
217	BRACKET; RUBBER HOSE (B)	8-98085-273-1	02	1	1205-	●	●
223	UNION H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1205-		●
223	UNION H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	1205-		●
223	UNION H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1205-		●
237	CAP; OIL TANK	1-47525-030-0	01	1	0906-1204	●
237	CAP; OIL TANK	1-47525-030-0	01	1	1205-	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0906-1204	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	1205-	●	●
239	FILTER; DUST	1-47529-017-0	01	1	0906-1204	●
239	FILTER; DUST	1-47529-017-0	01	1	1205-	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0906-1204	●
240	HOLDER; FILTER	1-47529-018-0	01	1	1205-	●	●
271	NUT; BRKT,HOSE M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
271	NUT; BRKT,HOSE M8 FLANGE	0-91180-108-0	02	1	1205-	●	●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0906-1204	●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1205-	●	●
305	BOLT; BRKT,HOSE M8X16 FLANGE	0-28050-816-0	01	1	0906-1008	●

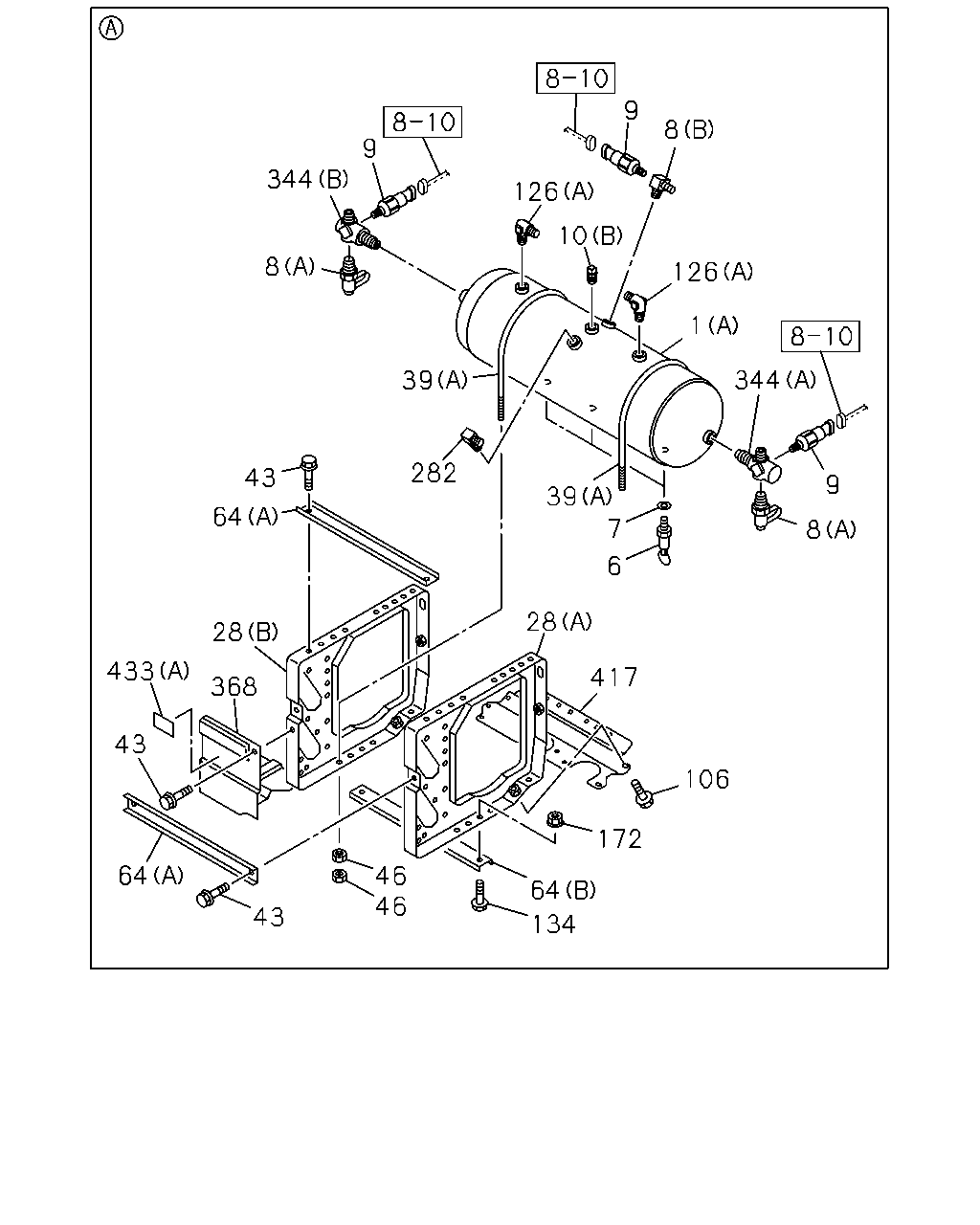

9 8 9 344 126 10 8 126 1 344 39 282 43 9 39 64 7 8 6 28 28 433 417 368 43 106 172 64 46 46 64 43 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR ISRAEL COUNTRY(CV4) (A)	8-98018-785-3	01	1	1009-1203	●
1	TANK ASM; AIR ISRAEL COUNTRY(CV4) (A)	8-98018-785-3	01	1	1204-1301	●
1	TANK ASM; AIR ISRAEL COUNTRY(CV4) (C)	8-98081-870-1	04	1	1009-1009	●
1	TANK ASM; AIR ISRAEL COUNTRY(CV4) (C)	8-98081-870-1	01	1	1010-1301	●
1	TANK ASM; AIR ISRAEL COUNTRY(CV4) (B)	8-98166-972-0	03	1	1009-1009	●
1	TANK ASM; AIR ISRAEL COUNTRY(CV4) (B)	8-98166-972-0	01	1	1010-1301	●
1	TANK ASM; AIR (A)	8-98056-178-1	01	1	0906-1008	●
1	TANK ASM; AIR EXC. ISRAEL COUNTRY(CV4) (A)	8-98056-178-1	01	1	1009-1204	●
1	TANK ASM; AIR EXC. ISRAEL COUNTRY(CV4) (A)	8-98056-178-1	01	1	1205-1301	●
1	TANK ASM; AIR (A)	8-98056-178-1	01	1	1205-1301		●
1	TANK ASM; AIR (A)	8-98056-178-1	01	1	1302-	●	●
1	TANK ASM; AIR (B)	8-98056-183-2	01	1	0906-1008	●
1	TANK ASM; AIR EXC. ISRAEL COUNTRY(CV4) (B)	8-98056-183-2	01	1	1009-1204	●
1	TANK ASM; AIR EXC. ISRAEL COUNTRY(CV4) (B)	8-98056-183-2	01	1	1205-1301	●
1	TANK ASM; AIR (B)	8-98056-183-2	01	1	1205-1301		●
1	TANK ASM; AIR (B)	8-98056-183-2	01	1	1302-	●	●
1	TANK ASM; AIR (C)	8-98081-872-2	01	1	0906-1008	●
1	TANK ASM; AIR EXC. ISRAEL COUNTRY(CV4) (C)	8-98081-872-2	01	1	1009-1204	●
1	TANK ASM; AIR EXC. ISRAEL COUNTRY(CV4) (C)	8-98081-872-2	01	1	1205-1301	●
1	TANK ASM; AIR (C)	8-98081-872-2	01	1	1205-1301		●
1	TANK ASM; AIR (C)	8-98081-872-2	01	1	1302-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0906-1204	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1205-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0906-1204	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0906-1204	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1205-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1205-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0906-1204	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1205-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0906-1204	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0906-1204	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1205-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1205-	●	●
8	CONNECTOR; AIR TANK ISRAEL COUNTRY(CV4) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-1301	●
8	CONNECTOR; AIR TANK ISRAEL COUNTRY(CV4) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-1301	●
8	CONNECTOR; AIR TANK (C) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	0906-1204	●
8	CONNECTOR; AIR TANK (C) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	1205-	●	●
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	0906-1204	●
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1205-	●	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0906-1204	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1205-1301	●	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1302-	●	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0906-1204	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1205-1301	●	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1302-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	03	1	0906-1204	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	03	1	1205-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0906-1008	●
10	PLUG; AIR TANK ISRAEL COUNTRY(CV4) (B) PT3/8	9-09204-517-0	01	1	1009-1204	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1009-1204	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1205-1301	●	●
10	PLUG; AIR TANK ISRAEL COUNTRY(CV4) (B) PT3/8	9-09204-517-0	01	1	1205-1301	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1302-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0906-1204	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1205-	●	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	0906-1008	●
10	PLUG; AIR TANK EXC. ISRAEL COUNTRY(CV4) (A) PT3/4	9-09204-526-0	01	1	1009-1204	●
10	PLUG; AIR TANK EXC. ISRAEL COUNTRY(CV4) (A) PT3/4	9-09204-526-0	01	1	1205-1301	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	1205-1301		●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	1302-	●	●
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	0906-1203	●
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	1204-	●	●
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	0906-1203	●
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	1204-	●	●
28	BRACKET; AIR TANK (C)	8-98100-165-3	01	1	0906-1204	●
28	BRACKET; AIR TANK (C)	8-98100-165-3	01	1	1205-	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0906-1204	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1205-	●	●
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	0906-1203	●
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	1204-	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X16 FLANGE	0-28050-816-0	06	1	0906-1203	●
43	BOLT; STAY,AIR TANK,MAIN M8X16 FLANGE	0-28050-816-0	06	1	1205-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0906-1204	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0906-1204	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1205-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1205-	●	●
64	STAY; AIR TANK,MAIN (A)	8-98044-510-3	02	1	0906-1203	●
64	STAY; AIR TANK,MAIN (A)	8-98044-510-3	02	1	1205-	●	●
64	STAY; AIR TANK,MAIN (B)	8-98044-511-2	01	1	0906-1203	●
64	STAY; AIR TANK,MAIN (B)	8-98044-511-2	01	1	1205-	●	●
106	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	0906-1203	●
106	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	1205-	●	●
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0906-1203	●
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1205-	●	●
126	CONNECTOR; ELBOW (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0906-1008	●
126	CONNECTOR; ELBOW EXC. ISRAEL COUNTRY(CV4) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-1204	●
126	CONNECTOR; ELBOW EXC. ISRAEL COUNTRY(CV4) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1205-1301	●
126	CONNECTOR; ELBOW (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1205-1301		●
126	CONNECTOR; ELBOW (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-	●	●
134	BOLT; COVER FIX M8X16 FLANGE	0-28050-816-0	04	1	0906-1203	●
134	BOLT; COVER FIX M8X16 FLANGE	0-28050-816-0	04	1	1205-	●	●
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91180-108-0	02	1	0906-1203	●
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91180-108-0	02	1	1205-	●	●
282	UNION; 2 WAY M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0906-1203	●
282	UNION; 2 WAY M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1205-	●	●
344	CONNECTOR; 4WAY (A)	1-09656-726-0	01	1	0906-1204	●
344	CONNECTOR; 4WAY (A)	1-09656-726-0	01	1	1205-	●	●
344	CONNECTOR; 4WAY (B)	1-09656-767-0	01	1	0906-1204	●
344	CONNECTOR; 4WAY (B)	1-09656-767-0	01	1	1205-	●	●
368	COVER; AIR TANK	8-98061-625-3	01	1	0906-1203	●
368	COVER; AIR TANK	8-98061-625-3	01	1	1205-	●	●
417	COVER; HARNESS	8-98111-401-0	01	1	0906-1203	●
417	COVER; HARNESS	8-98111-401-0	01	1	1205-	●	●
433	PLATE; NAME (A)	8-98121-999-0	01	1	0906-1203	●
433	PLATE; NAME (A)	8-98121-999-0	01	1	1205-	●	●
433	PLATE; NAME ISRAEL COUNTRY(CV4) (B) WHEEL PARK	8-98121-997-0	01	1	1009-1301	●
433	PLATE; NAME ISRAEL COUNTRY(CV4) (B) ACCESSORY	8-98121-998-0	01	1	1009-1301	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
