Isuzu WW
▶
TRUCKS
▶
FSR
▶
11231 - FSR-LHD(EU)SPACE EU5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶

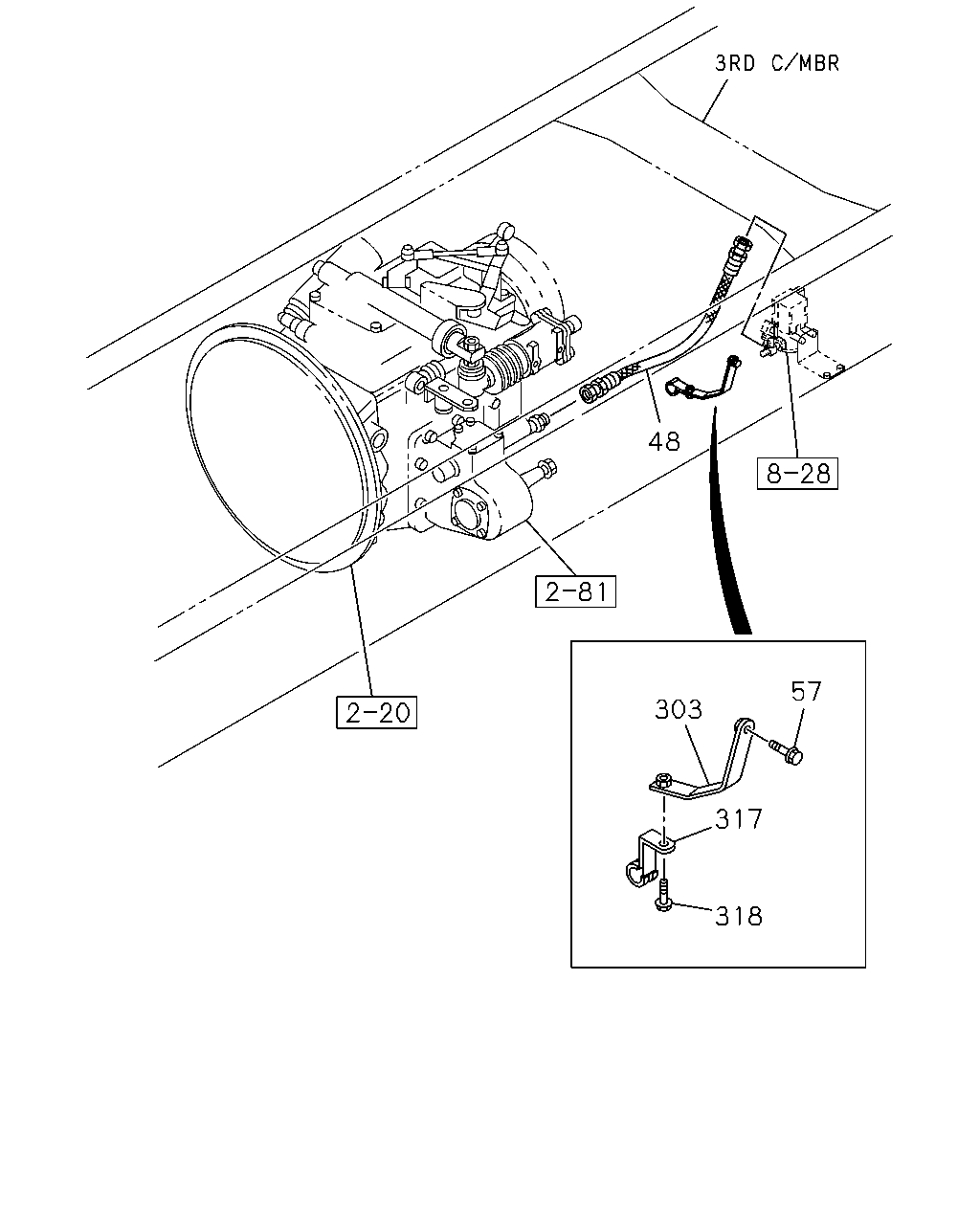

2-85 — POWER TAKE OFF CONTROL
(#17334) — 15 parça
Tümü
A - FCD6CS
B - FCR6CS
◀
[285A] PTO LEVER (4 parça)
[285A] HOSE (11 parça)
▶
3
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0906-1204
●
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1205-
●
●
15
LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79996-092-0
01
1
0906-1204
●
15
LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79996-092-0
01
1
1205-
●
●
48
57
303
317
318
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=560
1-09363-914-0
01
1
1205-
●
48
HOSE; FLEX,PTO
MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=470
1-09363-714-0
01
1
0906-0907
●
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=470
1-09363-714-0
01
1
0908-1204
●
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=470
1-09363-714-0
01
1
1205-
●
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=470
1-09363-714-0
01
1
1205-
●
48
HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=460
1-09363-648-0
01
1
0906-0907
●
57
BOLT; BRKT
PTO CONTROL<SV6> M10X25 FLANGE
0-28651-025-0
01
1
1205-
●
303
BRACKET; CLIP
PTO CONTROL<SV6>
8-98136-973-0
01
1
1205-
●
317
CLIP; NYLON TUBE
PTO CONTROL<SV6> ID=15 L=22 H=30
1-09701-215-1
01
1
1205-
●
317
CLIP; NYLON TUBE
PTO CONTROL<SV6> ID=15 L=22 H=30
1-09701-215-1
01
1
1205-
●
318
BOLT; CLIP
PTO CONTROL<SV6> M8X20 FLANGE
0-28650-820-0
01
1
1205-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
