Sayfa 2-36 - Isuzu EPC

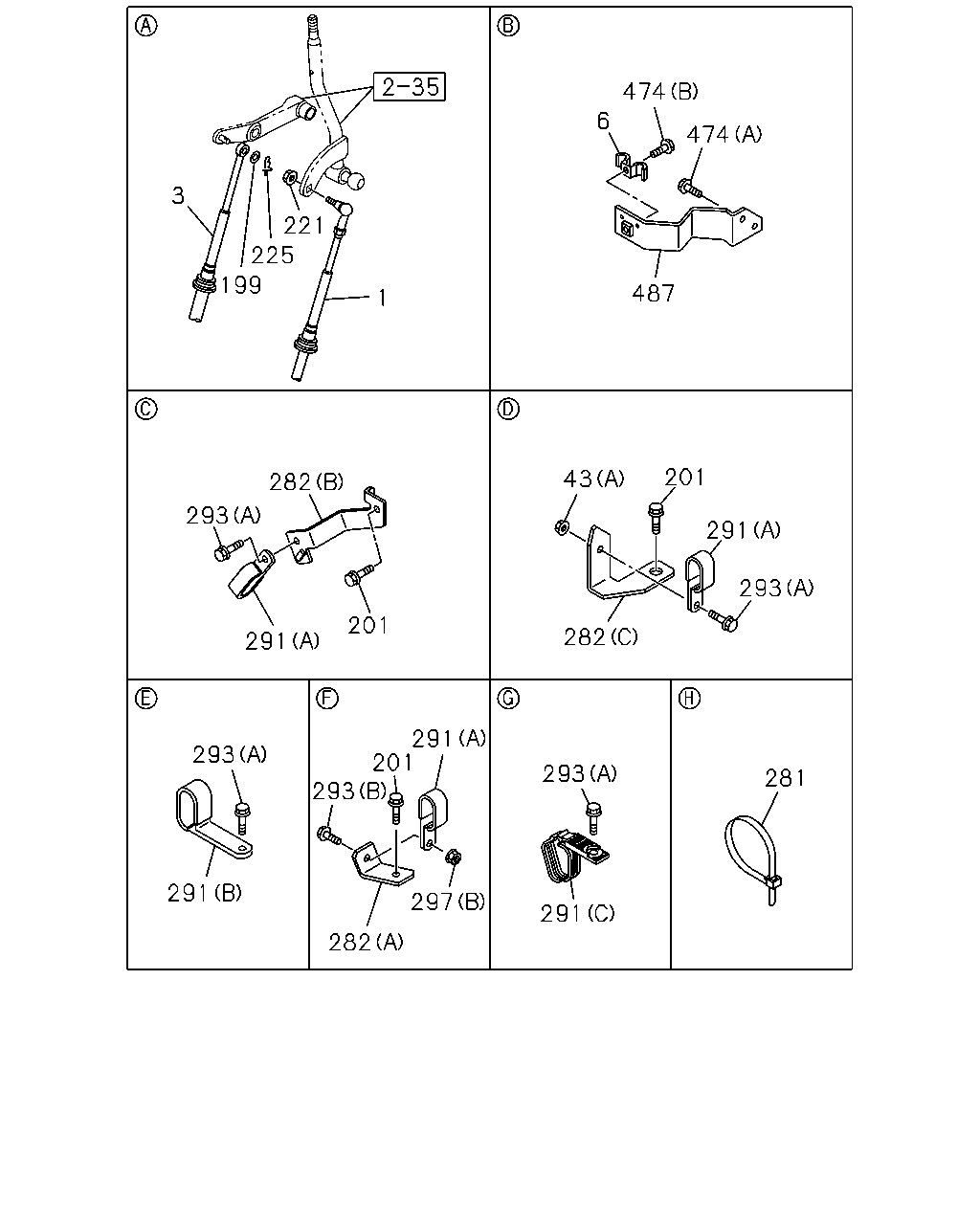

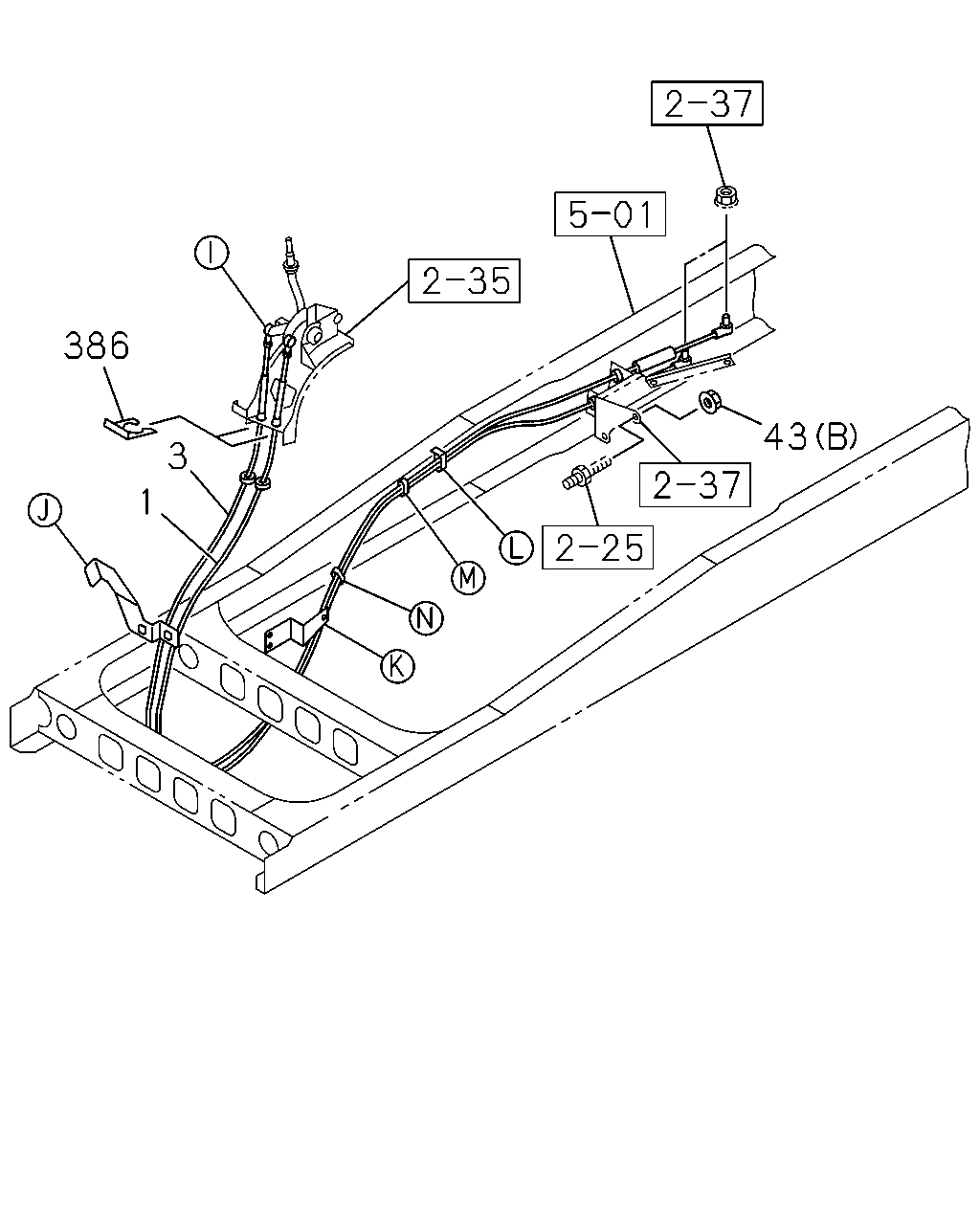

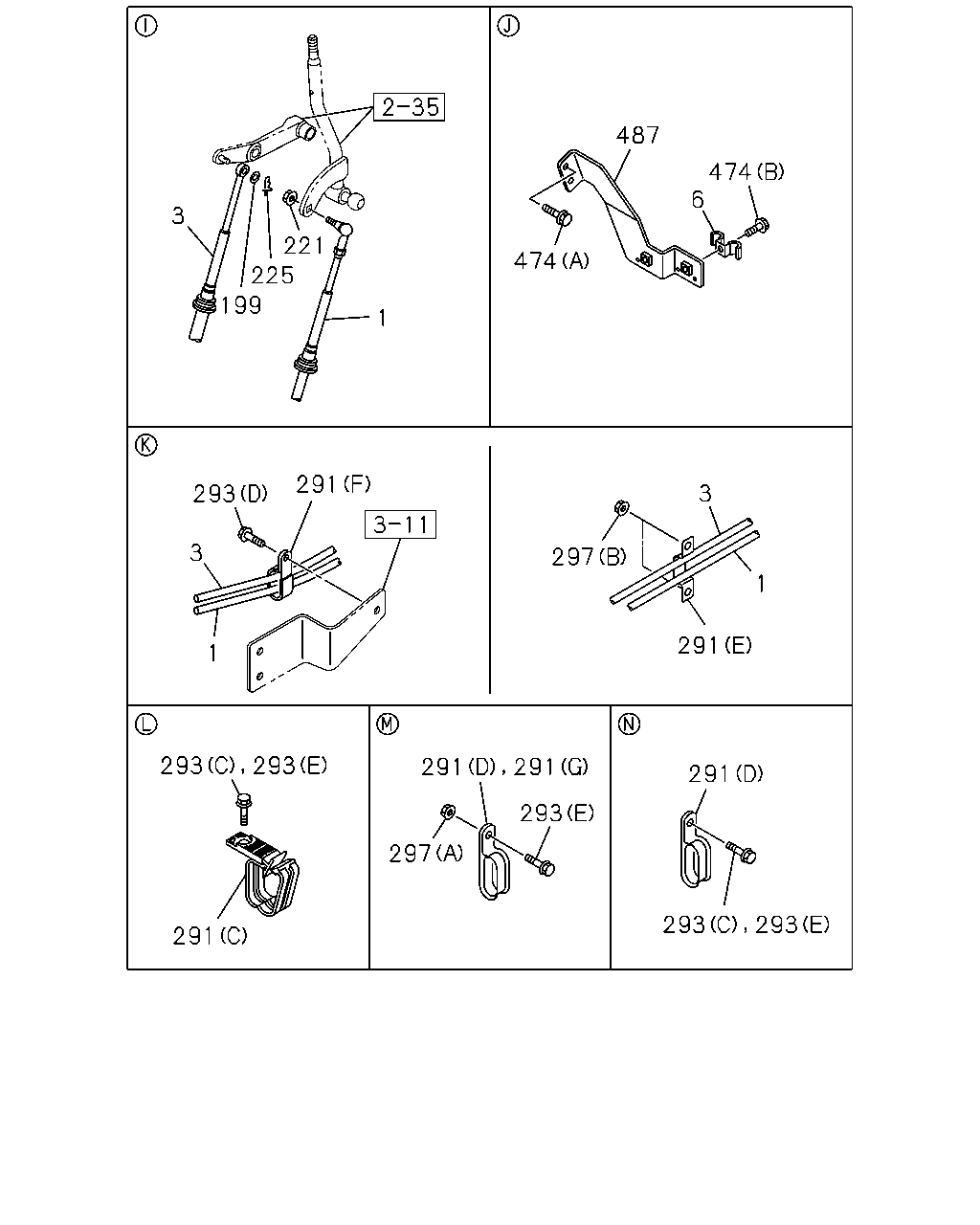

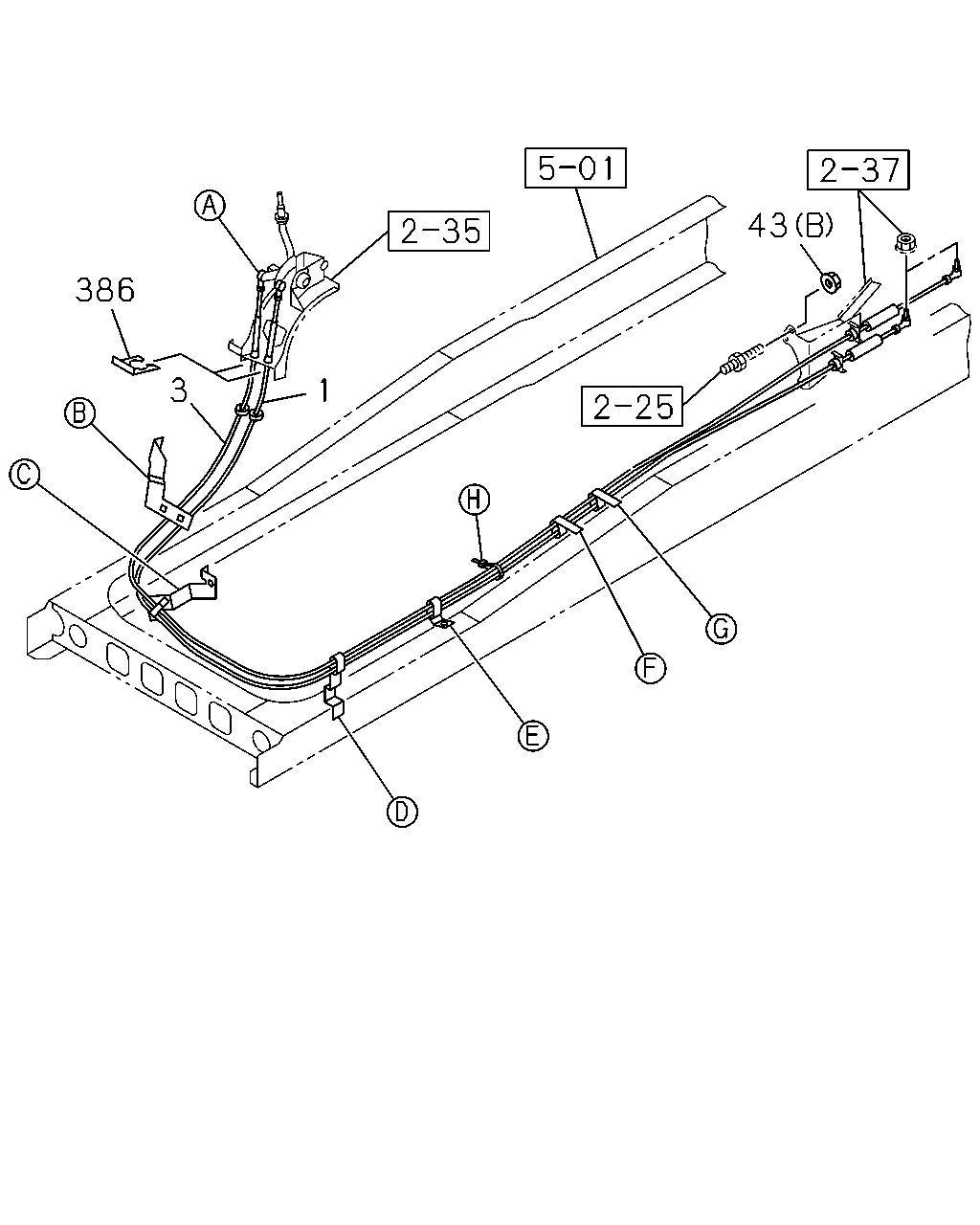

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#17330) — 149 parça

43 386 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3225	8-98206-862-0	01	1	1205-	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3275	8-98206-861-1	01	1	1205-	●
1	CABLE; SHIFT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3150	8-98206-860-0	01	1	1205-	●
1	CABLE; SHIFT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3200	8-98206-859-1	01	1	1205-	●
1	CABLE; SHIFT,TRANS CONT MLD6W M/T(Y2C) L=3595	8-98131-717-1	01	1	0906-		●
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3560	8-98131-719-2	01	1	0906-		●
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3595	8-98131-718-2	01	1	0906-		●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3355	8-98206-866-0	01	1	1205-	●
3	CABLE; SELECT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3275	8-98206-864-0	01	1	1205-	●
3	CABLE; SELECT,TRANS CONT MLD6W M/T(Y2C) L=3710	8-98131-721-0	01	1	0906-		●
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=3775	8-98131-722-1	01	1	0906-		●
43	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0906-		●
43	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
43	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1205-		●
43	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE	0-91180-210-0	02	1	1205-	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	0906-1204		●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	1205-		●
386	CLIP; CONT CABLE & TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09700-966-1	02	1	1205-	●

474 6 474 3 221 225 199 487 1 201 43 282 293 291 293 201 282 291 291 201 293 293 293 281 291 297 291 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3225	8-98206-862-0	01	1	1205-	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3275	8-98206-861-1	01	1	1205-	●
1	CABLE; SHIFT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3150	8-98206-860-0	01	1	1205-	●
1	CABLE; SHIFT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3200	8-98206-859-1	01	1	1205-	●
1	CABLE; SHIFT,TRANS CONT MLD6W M/T(Y2C) L=3595	8-98131-717-1	01	1	0906-		●
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3560	8-98131-719-2	01	1	0906-		●
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3595	8-98131-718-2	01	1	0906-		●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3355	8-98206-866-0	01	1	1205-	●
3	CABLE; SELECT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3275	8-98206-864-0	01	1	1205-	●
3	CABLE; SELECT,TRANS CONT MLD6W M/T(Y2C) L=3710	8-98131-721-0	01	1	0906-		●
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=3775	8-98131-722-1	01	1	0906-		●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0906-1204		●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1205-		●
6	CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1205-	●
43	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0906-		●
43	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
43	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1205-		●
43	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE	0-91180-210-0	02	1	1205-	●
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91614-508-0	01	1	0906-1204		●
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91614-508-0	01	1	1205-		●
199	WASHER; PL,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16	0-91614-508-0	01	1	1205-	●
201	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0906-		●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0906-1011		●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-1204		●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1205-		●
221	NUT; SHIFT WIRE TO LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	1-09440-062-1	01	1	1205-	●
225	PIN; SELECT CABLE L=27.7	8-94111-137-0	01	1	0906-1204		●
225	PIN; SELECT CABLE L=27.7	8-94111-137-0	01	1	1205-		●
225	PIN; SELECT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7	8-94111-137-0	01	1	1205-	●
281	CLIP; BAND L=350	1-09707-183-0	02	1	0906-		●
282	BRACKET; TRANS SIDE (A)	1-82699-199-0	01	1	0906-		●
282	BRACKET; TRANS SIDE (C)	8-98064-175-1	01	1	0906-		●
282	BRACKET; TRANS SIDE (B)	8-98117-610-1	01	1	0906-		●
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 10 & 10 L=43.5	8-98292-921-0	01	1	1505-	●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=13 & 13 L=32	8-97389-264-0	02	1	1205-	●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98080-966-0	01	1	1205-	●
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (F) ID=11X2 L=16	0-95325-026-0	01	1	1205-	●
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (G) ID=13 & 13 L=32	8-97389-264-0	01	1	1205-	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	05	1	0906-		●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=26 L=26	1-09701-236-0	01	1	0906-		●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0906-1204		●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1205-1504		●
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1205-1504	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1505-		●
293	BOLT; CLIP,SHIFT TO SELECT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) M8X25 FLANGE	0-28650-825-0	03	1	1205-	●
293	BOLT; CLIP,SHIFT TO SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (D) M8X16 FLANGE	0-28050-816-0	01	1	1205-	●
293	BOLT; CLIP,SHIFT TO SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (C) M8X25 FLANGE	0-28650-825-0	02	1	1205-	●
293	BOLT; CLIP,SHIFT TO SELECT (B) M8X20 FLANGE	0-28050-820-0	01	1	0906-		●
293	BOLT; CLIP,SHIFT TO SELECT (A) M8X20 FLANGE	0-28650-820-0	06	1	0906-		●
297	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8 FLANGE	0-91180-108-0	01	1	1205-	●
297	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	02	1	0906-1204		●
297	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	02	1	1205-		●
297	NUT; CLIP GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE	0-91180-108-0	02	1	1205-	●
474	BOLT; BRKT (B) M8X25 W/WASHER	0-51640-825-0	01	1	0906-1204		●
474	BOLT; BRKT (B) M8X25 W/WASHER	0-51640-825-0	01	1	1205-		●
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X25 W/WASHER	0-51640-825-0	01	1	1205-	●
474	BOLT; BRKT (A) M8X25 W/WASHER	0-51640-825-0	02	1	0906-1204		●
474	BOLT; BRKT (A) M8X25 W/WASHER	0-51640-825-0	02	1	1205-		●
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 W/WASHER	0-51640-825-0	02	1	1205-	●
487	BRACKET; CONT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98080-013-2	01	1	1205-	●
487	BRACKET; CONT CABLE 6HK1-TCN ENG(82L)	8-98056-604-1	01	1	0906-		●

386 43 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3225	8-98206-862-0	01	1	1205-	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3275	8-98206-861-1	01	1	1205-	●
1	CABLE; SHIFT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3150	8-98206-860-0	01	1	1205-	●
1	CABLE; SHIFT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3200	8-98206-859-1	01	1	1205-	●
1	CABLE; SHIFT,TRANS CONT MLD6W M/T(Y2C) L=3595	8-98131-717-1	01	1	0906-		●
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3560	8-98131-719-2	01	1	0906-		●
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3595	8-98131-718-2	01	1	0906-		●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3355	8-98206-866-0	01	1	1205-	●
3	CABLE; SELECT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3275	8-98206-864-0	01	1	1205-	●
3	CABLE; SELECT,TRANS CONT MLD6W M/T(Y2C) L=3710	8-98131-721-0	01	1	0906-		●
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=3775	8-98131-722-1	01	1	0906-		●
43	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0906-		●
43	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
43	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1205-		●
43	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE	0-91180-210-0	02	1	1205-	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	0906-1204		●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	1205-		●
386	CLIP; CONT CABLE & TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09700-966-1	02	1	1205-	●

487 474 6 3 221 474 225 199 1 291 3 293 3 297 1 291 1 291 293 297 291 291 291 293 293 293 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3225	8-98206-862-0	01	1	1205-	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3275	8-98206-861-1	01	1	1205-	●
1	CABLE; SHIFT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3150	8-98206-860-0	01	1	1205-	●
1	CABLE; SHIFT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3200	8-98206-859-1	01	1	1205-	●
1	CABLE; SHIFT,TRANS CONT MLD6W M/T(Y2C) L=3595	8-98131-717-1	01	1	0906-		●
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3560	8-98131-719-2	01	1	0906-		●
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3595	8-98131-718-2	01	1	0906-		●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3355	8-98206-866-0	01	1	1205-	●
3	CABLE; SELECT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3275	8-98206-864-0	01	1	1205-	●
3	CABLE; SELECT,TRANS CONT MLD6W M/T(Y2C) L=3710	8-98131-721-0	01	1	0906-		●
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=3775	8-98131-722-1	01	1	0906-		●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0906-1204		●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1205-		●
6	CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1205-	●
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91614-508-0	01	1	0906-1204		●
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91614-508-0	01	1	1205-		●
199	WASHER; PL,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16	0-91614-508-0	01	1	1205-	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0906-1011		●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-1204		●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1205-		●
221	NUT; SHIFT WIRE TO LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	1-09440-062-1	01	1	1205-	●
225	PIN; SELECT CABLE L=27.7	8-94111-137-0	01	1	0906-1204		●
225	PIN; SELECT CABLE L=27.7	8-94111-137-0	01	1	1205-		●
225	PIN; SELECT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7	8-94111-137-0	01	1	1205-	●
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 10 & 10 L=43.5	8-98292-921-0	01	1	1505-	●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=13 & 13 L=32	8-97389-264-0	02	1	1205-	●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98080-966-0	01	1	1205-	●
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (F) ID=11X2 L=16	0-95325-026-0	01	1	1205-	●
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (G) ID=13 & 13 L=32	8-97389-264-0	01	1	1205-	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	05	1	0906-		●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=26 L=26	1-09701-236-0	01	1	0906-		●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0906-1204		●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1205-1504		●
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1205-1504	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1505-		●
293	BOLT; CLIP,SHIFT TO SELECT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) M8X25 FLANGE	0-28650-825-0	03	1	1205-	●
293	BOLT; CLIP,SHIFT TO SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (D) M8X16 FLANGE	0-28050-816-0	01	1	1205-	●
293	BOLT; CLIP,SHIFT TO SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (C) M8X25 FLANGE	0-28650-825-0	02	1	1205-	●
293	BOLT; CLIP,SHIFT TO SELECT (B) M8X20 FLANGE	0-28050-820-0	01	1	0906-		●
293	BOLT; CLIP,SHIFT TO SELECT (A) M8X20 FLANGE	0-28650-820-0	06	1	0906-		●
297	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8 FLANGE	0-91180-108-0	01	1	1205-	●
297	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	02	1	0906-1204		●
297	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	02	1	1205-		●
297	NUT; CLIP GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE	0-91180-108-0	02	1	1205-	●
474	BOLT; BRKT (B) M8X25 W/WASHER	0-51640-825-0	01	1	0906-1204		●
474	BOLT; BRKT (B) M8X25 W/WASHER	0-51640-825-0	01	1	1205-		●
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X25 W/WASHER	0-51640-825-0	01	1	1205-	●
474	BOLT; BRKT (A) M8X25 W/WASHER	0-51640-825-0	02	1	0906-1204		●
474	BOLT; BRKT (A) M8X25 W/WASHER	0-51640-825-0	02	1	1205-		●
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 W/WASHER	0-51640-825-0	02	1	1205-	●
487	BRACKET; CONT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98080-013-2	01	1	1205-	●
487	BRACKET; CONT CABLE 6HK1-TCN ENG(82L)	8-98056-604-1	01	1	0906-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
