2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#1733) — 43 parça

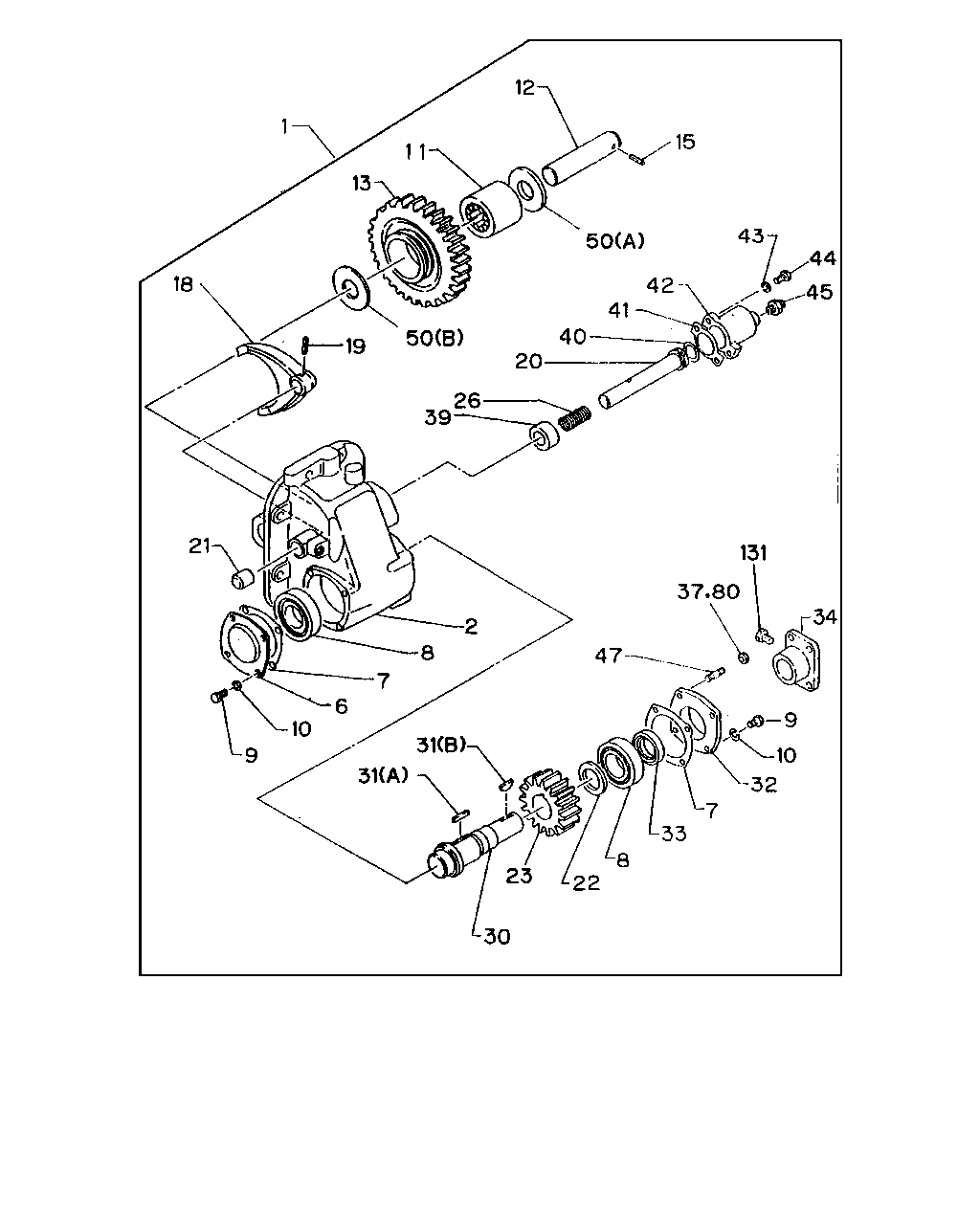

çizim 29419
1 18 13 11 12 15 50 50 19 43 44 45 42 41 40 20 26 39 21 9 7 6 10 8 2 131 37 80 47 9 34 10 32 7 33 8 22 23 30 31 31
BalonParca AdiParca NoAdetTipApplied Date A B C
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38000-253-2 01 1 9002- ● ● ●
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-057-1 01 1 9002- ● ● ●
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38151-006-0 01 1 9002- ● ● ●
7 GASKET; OUTPUT SHAFT COVER,SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38152-003-0 02 1 9002- ● ● ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		5-00098-057-0 01 1 9002-9202 ● ● ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		5-00098-057-0 02 1 9203- ● ● ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 		9-02341-016-0 07 1 9002- ● ● ●
10 WASHER; OUTPUT SHAFT COVER,SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 10 1 9002-9007 ● ● ●
10 WASHER; OUTPUT SHAFT COVER,SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 08 1 9008- ● ● ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09811-144-0 01 1 9002- ● ● ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-006-0 01 1 9002- ● ● ●
13 GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36 		1-38241-065-0 01 1 9002- ● ● ●
15 PIN; SPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16 		9-09878-613-0 01 1 9002- ● ● ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38361-014-0 01 1 9002-9007 ● ● ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38361-025-0 01 1 9008- ● ● ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09748-019-0 01 1 9002- ● ● ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38371-027-1 01 1 9002- ● ● ●
21 COVER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-33545-001-0 01 1 9002- ● ● ●
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38226-041-0 01 1 9002- ● ● ●
23 GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=21 		1-38241-057-0 01 1 9002- ● ● ●
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38121-001-0 01 1 9002- ● ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-007-0 01 1 9002-9202 ● ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-020-0 01 1 9203- ● ● ●
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		9-08011-235-0 01 1 9002- ● ● ●
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		9-08050-732-0 01 1 9002- ● ● ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38152-010-0 01 1 9002- ● ● ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09924-142-0 01 1 9002- ● ● ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38512-013-1 01 1 9002- ● ● ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 		9-09111-508-0 01 1 9002- ● ● ●
39 STOPPER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38379-006-0 01 1 9002- ● ● ●
40 GASKET; AIR SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09561-324-0 01 1 9002- ● ● ●
41 GASKET; CYL TO CASE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38152-009-0 01 1 9002- ● ● ●
42 CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38377-003-0 01 1 9002- ● ● ●
43 WASHER; LK,AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.5 OD=18 		9-09160-510-0 02 1 9002-9007 ● ● ●
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 		9-02351-028-0 02 1 9002-9007 ● ● ●
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE 		0-28181-025-0 02 1 9008- ● ● ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4 		9-09902-386-0 01 1 9002- ● ● ●
47 STUD; COVER FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-04501-016-0 01 1 9002- ● ● ●
50 WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-38226-045-0 01 1 9002- ● ● ●
50 WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-38226-052-0 01 1 9002- ● ● ●
80 NUT; OUTPUT SHAFT COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 		9-09111-410-0 01 1 9002- ● ● ●
131 BOLT; FLANGE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-02050-818-0 01 1 9002-9007 ● ● ●
131 BOLT; FLANGE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		0-20800-820-0 01 1 9008- ● ● ●
