◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#17329) — 105 parça

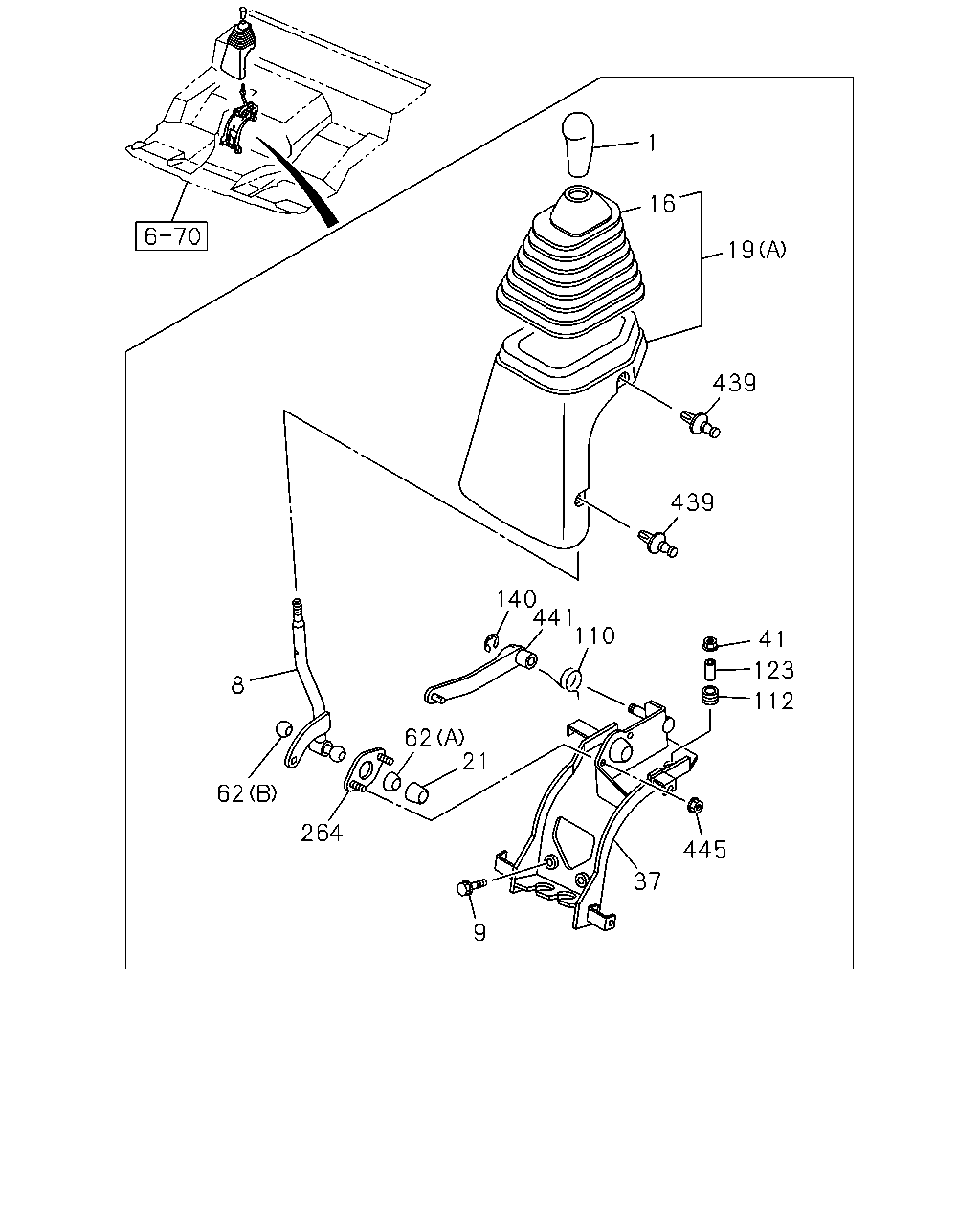

çizim 62561
1 16 19 439 439 140 441 110 41 123 8 112 62 21 62 264 445 37 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 0906-1204 ●
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 1205- ●
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33611-070-1 01 1 1205- ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97421-816-0 01 1 1205-1311 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97429-048-0 01 1 1312-1408 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97465-739-1 01 1 1409- ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		8-98093-452-0 01 1 0906-1112 ●
8 LEVER; CHANGE
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> 		8-98093-452-0 01 1 1201-1204 ●
8 LEVER; CHANGE
MZW6P M/T(RSZ) 		8-98093-452-0 01 1 1201-1204 ●
8 LEVER; CHANGE
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> 		8-98093-452-0 01 1 1205- ●
8 LEVER; CHANGE
MZW6P M/T(RSZ) 		8-98093-452-0 01 1 1205- ●
8 LEVER; CHANGE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98093-452-0 01 1 1205- ●
8 LEVER; CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-456-0 01 1 0906-1112 ●
8 LEVER; CHANGE
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-456-0 01 1 1201- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1205- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0906-1204 ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1205- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1205- ●
16 BOOT; CHANGE LEVER 1-79998-913-1 01 1 0906-1204 ●
16 BOOT; CHANGE LEVER 1-79998-913-1 01 1 1205- ●
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-79998-913-1 01 1 1205- ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) GRAY 		8-97407-501-0 01 1 1205- ●
19 COVER; CHANGE LEVER
(A) GRAY 		8-97409-847-0 01 1 0906-1204 ●
19 COVER; CHANGE LEVER
(A) GRAY 		8-97409-847-0 01 1 1205- ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97409-847-0 01 1 1205- ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0906-1204 ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1205- ●
21 SEAT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-429-0 01 1 1205- ●
37 BRACKET; CHANGE LEVER SUPPORT
ASSISTOR SHIFT CONTROL<WX8> 		8-98093-441-0 01 1 0906-1112 ●
37 BRACKET; CHANGE LEVER SUPPORT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> 		8-98093-441-0 01 1 1201-1204 ●
37 BRACKET; CHANGE LEVER SUPPORT
MZW6P M/T(RSZ) 		8-98093-441-0 01 1 1201-1204 ●
37 BRACKET; CHANGE LEVER SUPPORT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> 		8-98093-441-0 01 1 1205- ●
37 BRACKET; CHANGE LEVER SUPPORT
MZW6P M/T(RSZ) 		8-98093-441-0 01 1 1205- ●
37 BRACKET; CHANGE LEVER SUPPORT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98093-441-0 01 1 1205- ●
37 BRACKET; CHANGE LEVER SUPPORT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-462-0 01 1 0906-1112 ●
37 BRACKET; CHANGE LEVER SUPPORT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-462-0 01 1 1201- ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 04 1 1205- ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0906-1204 ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1205- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0906-1204 ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1205- ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33619-427-0 01 1 1205- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 0906-1204 ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1205- ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97049-147-0 01 1 1205- ●
110 SPRING; RETURN,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 0906-1112 ●
110 SPRING; RETURN,CHANGE LEVER
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 1201-1204 ●
110 SPRING; RETURN,CHANGE LEVER
MZW6P M/T(RSZ) 		1-33619-586-0 01 1 1201-1204 ●
110 SPRING; RETURN,CHANGE LEVER
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 1205- ●
110 SPRING; RETURN,CHANGE LEVER
MZW6P M/T(RSZ) 		1-33619-586-0 01 1 1205- ●
110 SPRING; RETURN,CHANGE LEVER
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-586-0 01 1 1205- ●
110 SPRING; RETURN,CHANGE LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 0906-1112 ●
110 SPRING; RETURN,CHANGE LEVER
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 1201- ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0906-1204 ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 1205- ●
112 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-442-0 04 1 1205- ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0906-1204 ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1205- ●
123 COLLAR; DIST,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-443-0 04 1 1205- ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 0906-1204 ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1205- ●
140 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 		0-91805-510-0 01 1 1205- ●
264 PLATE; COVER 1-33619-430-0 01 1 0906-1204 ●
264 PLATE; COVER 1-33619-430-0 01 1 1205- ●
264 PLATE; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-430-0 01 1 1205- ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 0906-1204 ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1205- ● ●
441 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		8-98071-283-0 01 1 0906-1112 ●
441 LEVER; SELECT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-283-0 01 1 1201-1204 ●
441 LEVER; SELECT
MZW6P M/T(RSZ) 		8-98071-283-0 01 1 1201-1204 ●
441 LEVER; SELECT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-283-0 01 1 1205- ●
441 LEVER; SELECT
MZW6P M/T(RSZ) 		8-98071-283-0 01 1 1205- ●
441 LEVER; SELECT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 1205- ●
441 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 0906-1112 ●
441 LEVER; SELECT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 1201- ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0906-1204 ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1205- ●
445 NUT; PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE 		0-91180-106-0 02 1 1205- ●

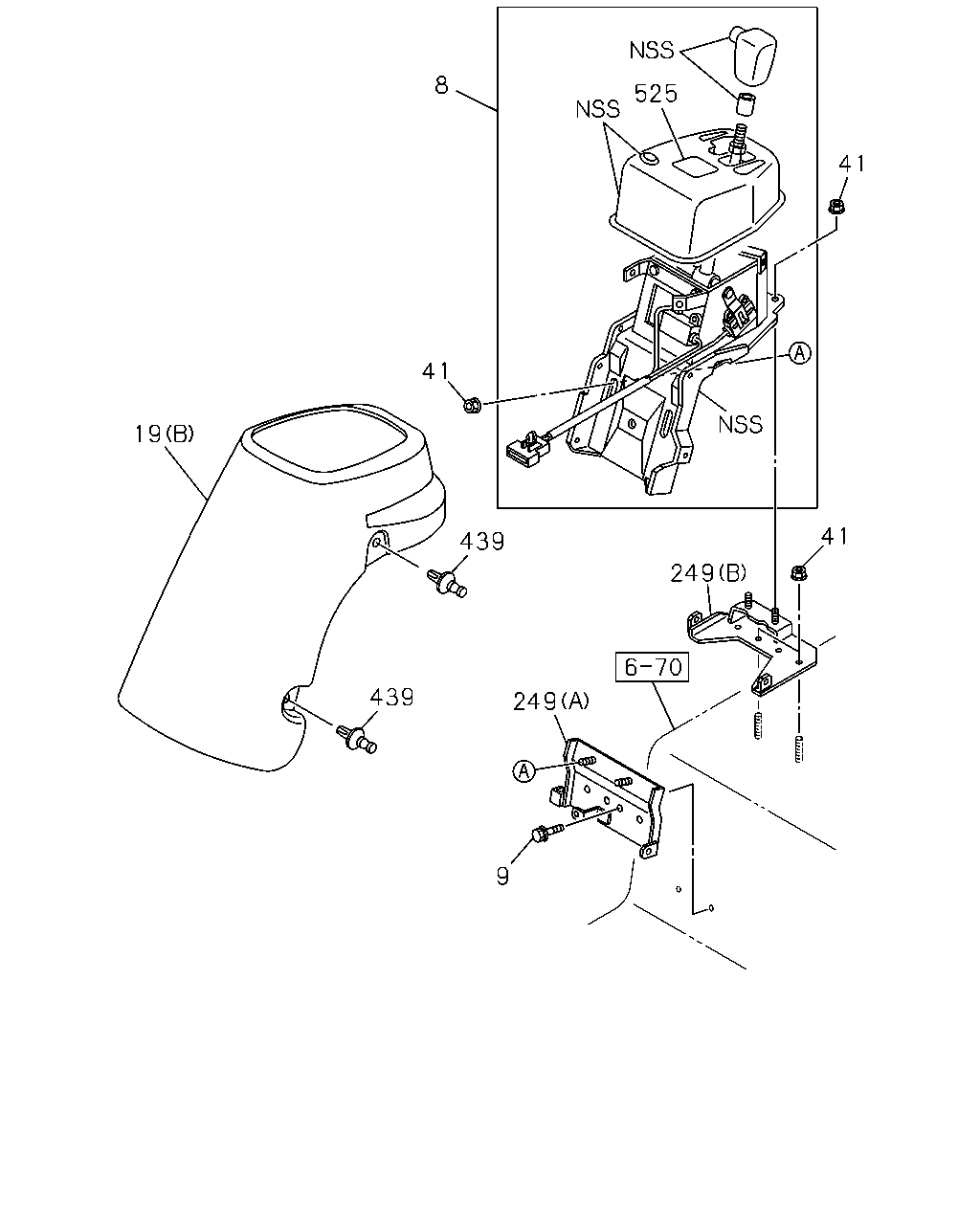

çizim 283523
8 525 41 41 19 41 439 249 439 249 9
BalonParca AdiParca NoAdetTipApplied Date A B
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97421-816-0 01 1 1205-1311 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97429-048-0 01 1 1312-1408 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97465-739-1 01 1 1409- ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		8-98093-452-0 01 1 0906-1112 ●
8 LEVER; CHANGE
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> 		8-98093-452-0 01 1 1201-1204 ●
8 LEVER; CHANGE
MZW6P M/T(RSZ) 		8-98093-452-0 01 1 1201-1204 ●
8 LEVER; CHANGE
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> 		8-98093-452-0 01 1 1205- ●
8 LEVER; CHANGE
MZW6P M/T(RSZ) 		8-98093-452-0 01 1 1205- ●
8 LEVER; CHANGE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98093-452-0 01 1 1205- ●
8 LEVER; CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-456-0 01 1 0906-1112 ●
8 LEVER; CHANGE
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-456-0 01 1 1201- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1205- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0906-1204 ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1205- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1205- ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) GRAY 		8-97407-501-0 01 1 1205- ●
19 COVER; CHANGE LEVER
(A) GRAY 		8-97409-847-0 01 1 0906-1204 ●
19 COVER; CHANGE LEVER
(A) GRAY 		8-97409-847-0 01 1 1205- ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97409-847-0 01 1 1205- ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 04 1 1205- ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0906-1204 ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1205- ● ●
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97623-278-1 01 1 1205- ●
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98016-951-3 01 1 1205- ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 0906-1204 ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1205- ● ●
525 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-480-1 01 1 1205- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
