2-25 — SPEEDOMETER DRIVEN GEAR (#17326) — 52 parça

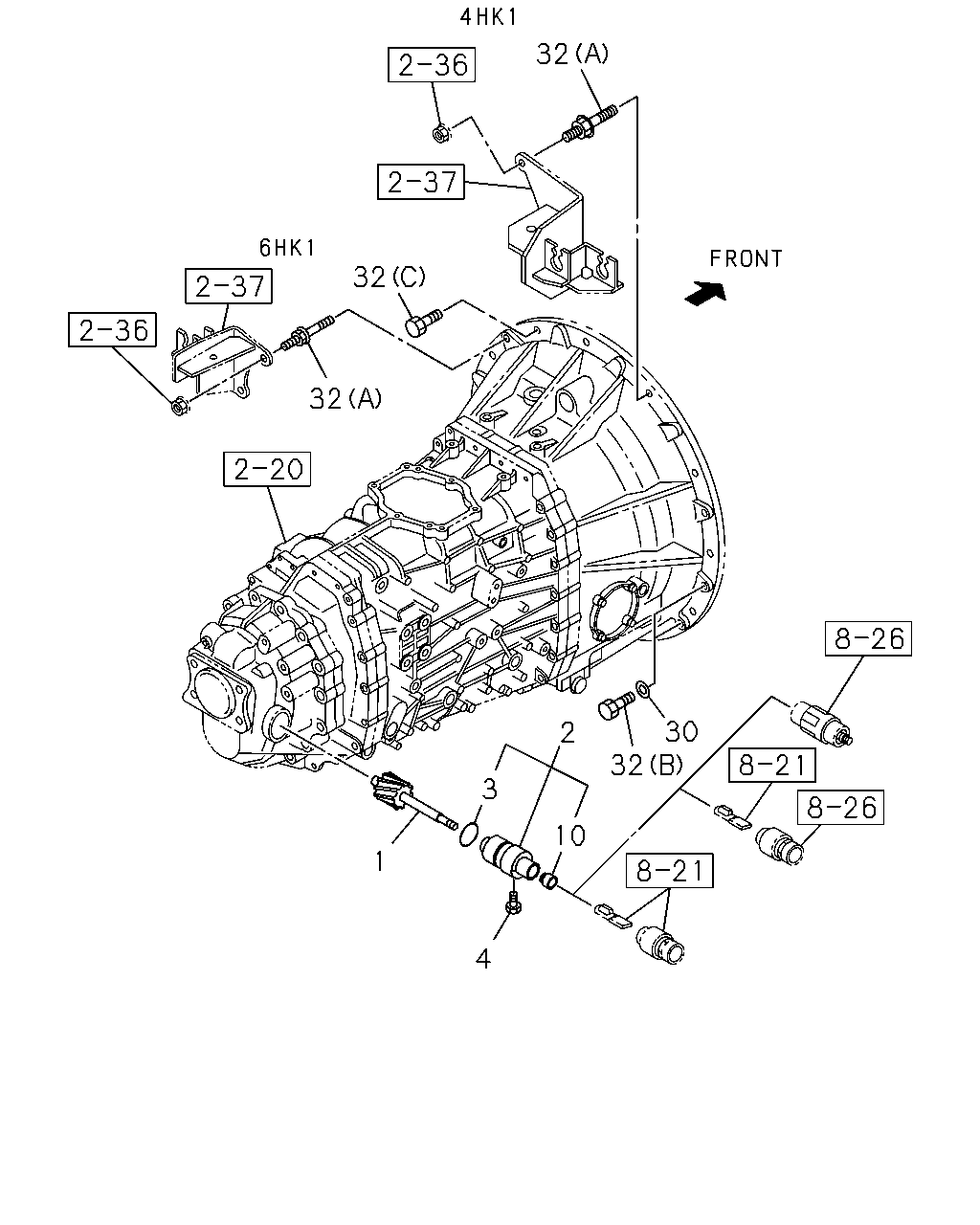

çizim 62707
32 32 32 1 3 2 32 30 10 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=15 		1-33372-133-5 02 1 1205- ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 0906-1204 ● ●
1 GEAR; DRIVEN,SPD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=15 		1-33372-133-5 01 1 1205- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-271-0 02 1 1205- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 0906- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-98000-271-0 01 1 0906-1204 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98000-271-0 01 1 1205- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-09623-246-0 02 1 1205- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 0906-1204 ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09623-246-0 01 1 1205- ● ●
4 BOLT; RET,DRIVEN GEAR
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12.5 FLANGE 		8-98014-141-0 02 1 1205- ●
4 BOLT; RET,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0906-1204 ●
4 BOLT; RET,DRIVEN GEAR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12.5 FLANGE 		8-98014-141-0 01 1 1205- ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) NOK 		1-09625-510-0 02 1 1205- ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0906-1204 ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NOK 		1-09625-510-0 01 1 1205- ● ●
30 WASHER; PL,TRANS
4HK1-TCS ENG(RJS) ID=11 OD=24 		8-94152-902-0 02 1 1302- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
4HK1-TCS ENG(RJS) (C) M10X45 FLANGE 		0-28151-045-0 06 1 1205- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
4HK1-TCS ENG(RJS) (B) M10X50 FLANGE 		0-28151-050-0 02 1 1205-1301 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
4HK1-TCS ENG(RJS) (B) M10X55 FLANGE 		8-97365-449-0 02 1 1302- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
4HK1-TCS ENG(RJS) (A) M10X20,M10X45 L=75 		8-98010-335-0 02 1 1205- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6HK1-TCN ENG(82L) (C) M10X30 FLANGE 		0-28151-030-0 08 1 0906- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6HK1-TCN ENG(82L) (A) M10X20,M10X26 L=56 		8-98010-334-0 02 1 0906- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6HK1-TCN ENG(82L) (B) M10X45 FLANGE 		8-98116-723-0 02 1 0906-1211 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6HK1-TCN ENG(82L) (B) M10X45 FLANGE 		8-98234-150-0 02 1 1212- ● ●

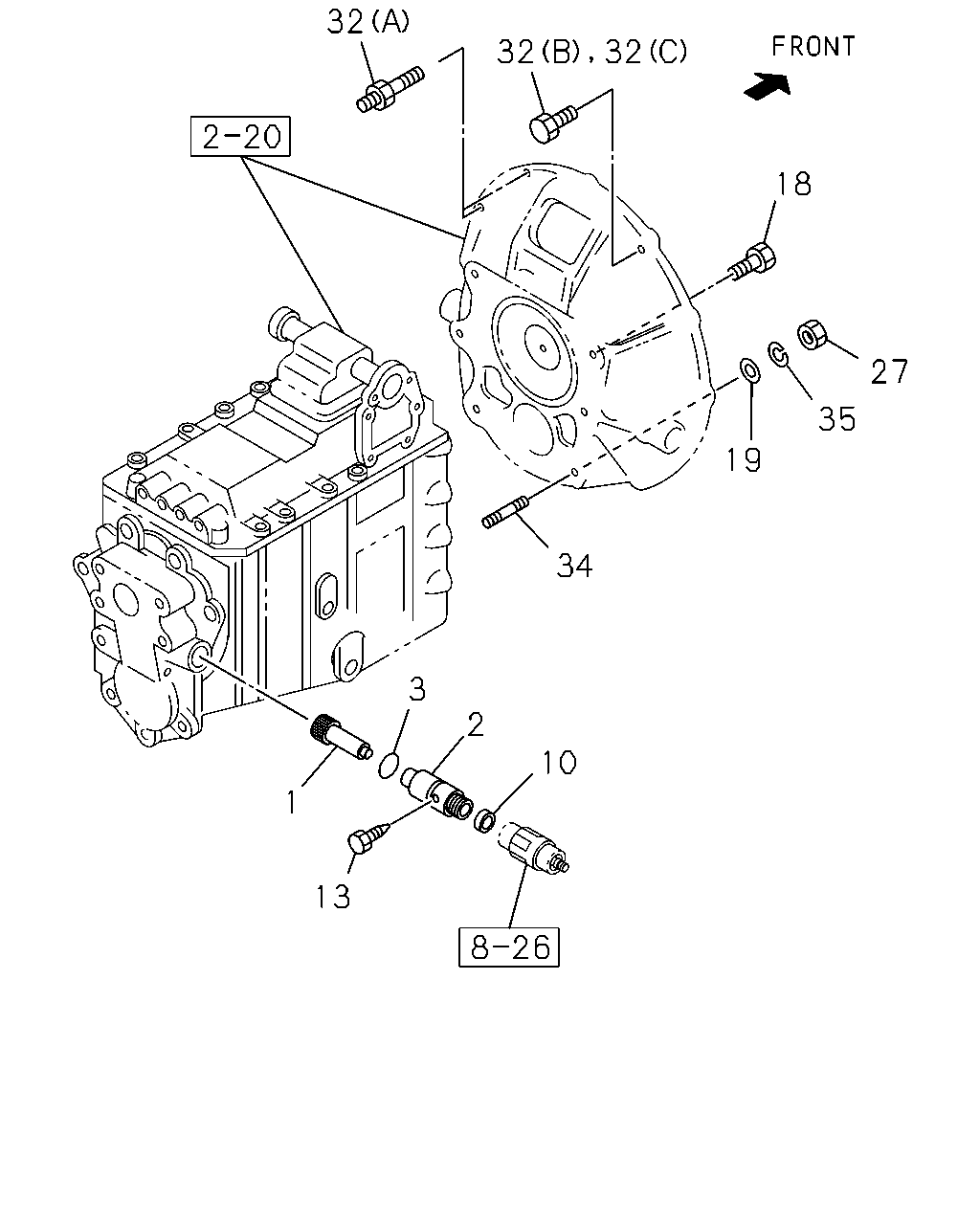

çizim 62993
32 18 27 35 19 34 3 2 10 1 13 32 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=15 		1-33372-133-5 02 1 1205- ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 0906-1204 ● ●
1 GEAR; DRIVEN,SPD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=15 		1-33372-133-5 01 1 1205- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-271-0 02 1 1205- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 0906- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-98000-271-0 01 1 0906-1204 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98000-271-0 01 1 1205- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-09623-246-0 02 1 1205- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 0906-1204 ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09623-246-0 01 1 1205- ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) NOK 		1-09625-510-0 02 1 1205- ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0906-1204 ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NOK 		1-09625-510-0 01 1 1205- ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0906- ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50651-640-0 06 1 0906- ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 OD=30 		0-91610-516-0 02 1 0906- ●
27 NUT; CLU HSG TO TRANS
M16 		0-91110-516-0 02 1 0906- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
4HK1-TCS ENG(RJS) (C) M10X45 FLANGE 		0-28151-045-0 06 1 1205- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
4HK1-TCS ENG(RJS) (B) M10X50 FLANGE 		0-28151-050-0 02 1 1205-1301 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
4HK1-TCS ENG(RJS) (B) M10X55 FLANGE 		8-97365-449-0 02 1 1302- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
4HK1-TCS ENG(RJS) (A) M10X20,M10X45 L=75 		8-98010-335-0 02 1 1205- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6HK1-TCN ENG(82L) (C) M10X30 FLANGE 		0-28151-030-0 08 1 0906- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6HK1-TCN ENG(82L) (A) M10X20,M10X26 L=56 		8-98010-334-0 02 1 0906- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6HK1-TCN ENG(82L) (B) M10X45 FLANGE 		8-98116-723-0 02 1 0906-1211 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6HK1-TCN ENG(82L) (B) M10X45 FLANGE 		8-98234-150-0 02 1 1212- ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 0906- ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		0-91510-516-0 02 1 0906- ●
