◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20 - MANUAL TRANSMISSION ASM AND CASE ▶
2-20 — MANUAL TRANSMISSION ASM AND CASE (#17325) — 233 parça

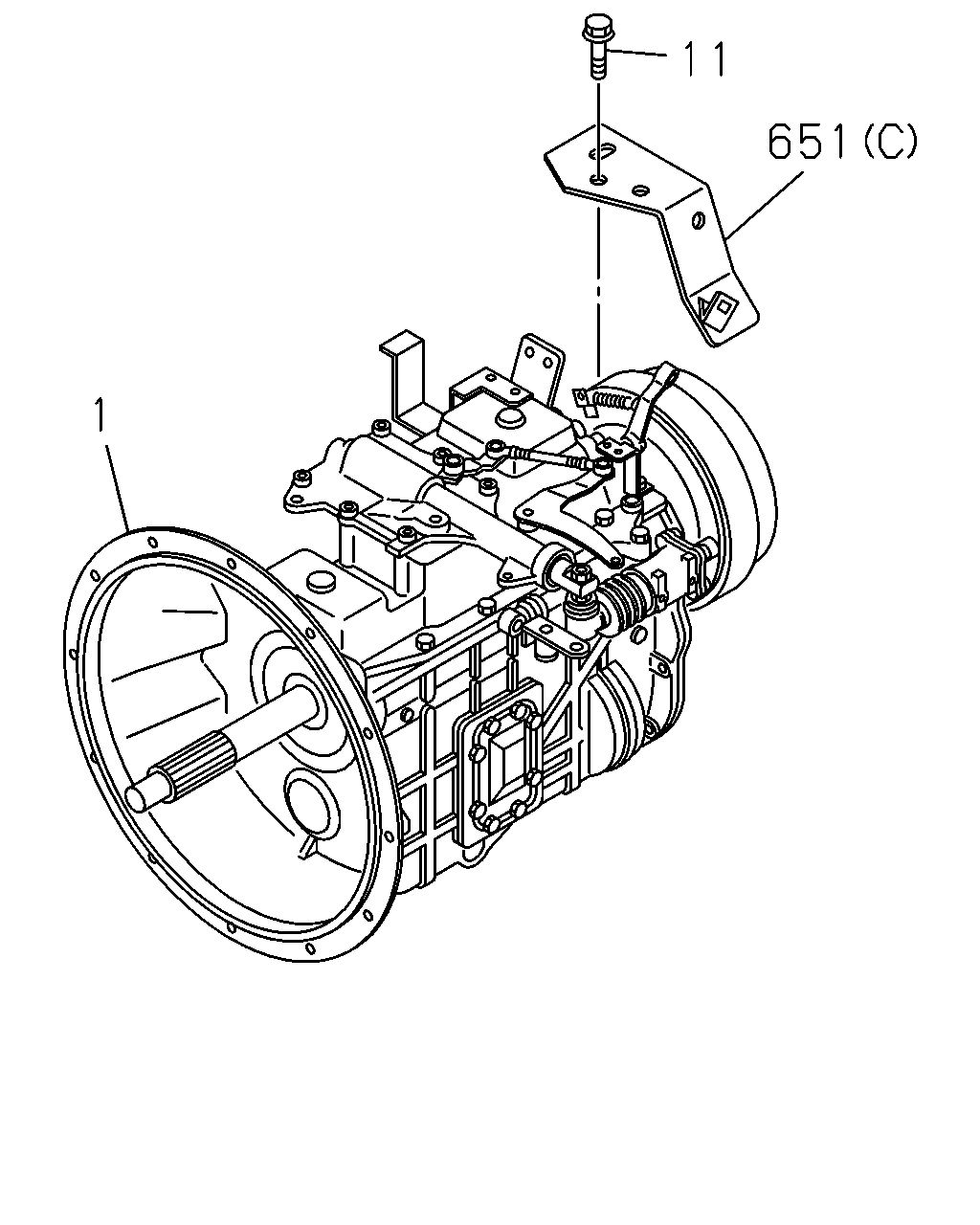

çizim 15368
11 651 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98134-586-0 01 1 1205- ●
1 TRANSMISSION ASM; MANUAL
4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98134-596-0 01 1 1205- ●
1 TRANSMISSION ASM; MANUAL
4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) KD PREPARATORY PACK<6HF> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98141-000-0 01 1 1205- ●
1 TRANSMISSION ASM; MANUAL
4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF> 		8-98140-998-0 01 1 1205- ●
1 TRANSMISSION ASM; MANUAL
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98134-586-0 01 1 1205- ●
1 TRANSMISSION ASM; MANUAL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8> 		8-98134-596-0 01 1 1205- ●
1 TRANSMISSION ASM; MANUAL
4HK1-TCS ENG(RJS) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8> 		8-98141-000-0 01 1 1205- ●
1 TRANSMISSION ASM; MANUAL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF> 		8-98140-998-0 01 1 1205- ●
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33044-299-0 01 1 0906- ●
1 TRANSMISSION ASM; MANUAL
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33044-299-0 01 1 0906- ●
1 TRANSMISSION ASM; MANUAL
6HK1-TCN ENG(82L) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98134-520-0 01 1 0906- ●
1 TRANSMISSION ASM; MANUAL
6HK1-TCN ENG(82L) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> 		8-98134-520-0 01 1 0906- ●
1 TRANSMISSION ASM; MANUAL
6HK1-TCN ENG(82L) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98134-532-0 01 1 0906- ●
1 TRANSMISSION ASM; MANUAL
6HK1-TCN ENG(82L) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8> 		8-98134-532-0 01 1 0906- ●
11 BOLT; BRKT
4HK1-TCS ENG(RJS) M12X25 FLANGE 		0-28151-225-0 02 1 1309- ● ●
11 BOLT; BRKT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		0-28650-835-0 02 1 1205- ●
11 BOLT; BRKT
6HK1-TCN ENG(82L) M8X16 FLANGE 		0-28050-816-0 02 1 0906- ●
651 BRACKET; T/M HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97610-090-3 01 1 1205- ●
651 BRACKET; T/M HARNESS
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97609-800-3 01 1 1205- ●
651 BRACKET; T/M HARNESS
6HK1-TCN ENG(82L) (C) 		8-97627-300-0 01 1 0906- ●

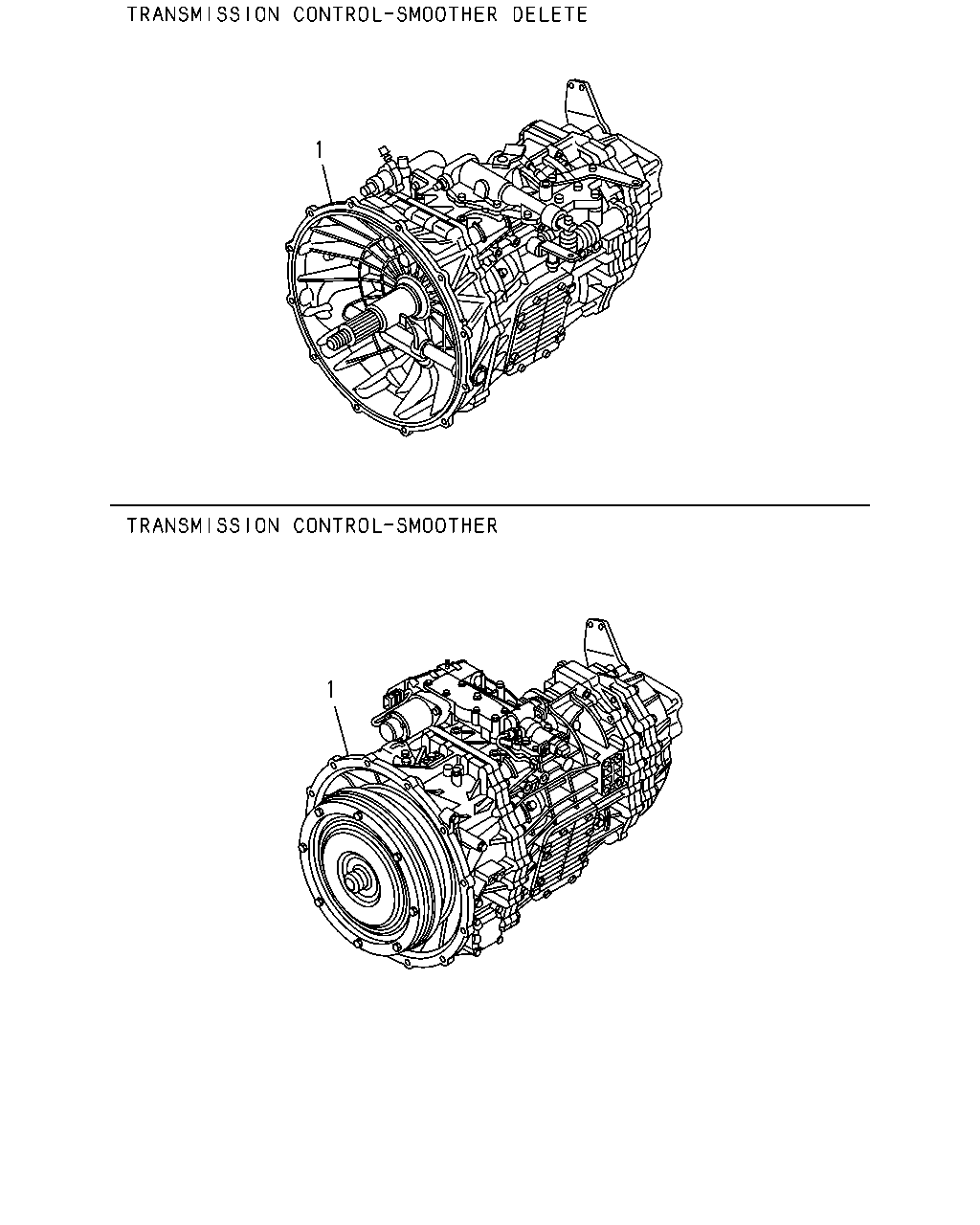

çizim 15458
1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98134-586-0 01 1 1205- ●
1 TRANSMISSION ASM; MANUAL
4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98134-596-0 01 1 1205- ●
1 TRANSMISSION ASM; MANUAL
4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) KD PREPARATORY PACK<6HF> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98141-000-0 01 1 1205- ●
1 TRANSMISSION ASM; MANUAL
4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF> 		8-98140-998-0 01 1 1205- ●
1 TRANSMISSION ASM; MANUAL
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98134-586-0 01 1 1205- ●
1 TRANSMISSION ASM; MANUAL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8> 		8-98134-596-0 01 1 1205- ●
1 TRANSMISSION ASM; MANUAL
4HK1-TCS ENG(RJS) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8> 		8-98141-000-0 01 1 1205- ●
1 TRANSMISSION ASM; MANUAL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF> 		8-98140-998-0 01 1 1205- ●
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33044-299-0 01 1 0906- ●
1 TRANSMISSION ASM; MANUAL
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33044-299-0 01 1 0906- ●
1 TRANSMISSION ASM; MANUAL
6HK1-TCN ENG(82L) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98134-520-0 01 1 0906- ●
1 TRANSMISSION ASM; MANUAL
6HK1-TCN ENG(82L) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> 		8-98134-520-0 01 1 0906- ●
1 TRANSMISSION ASM; MANUAL
6HK1-TCN ENG(82L) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98134-532-0 01 1 0906- ●
1 TRANSMISSION ASM; MANUAL
6HK1-TCN ENG(82L) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8> 		8-98134-532-0 01 1 0906- ●

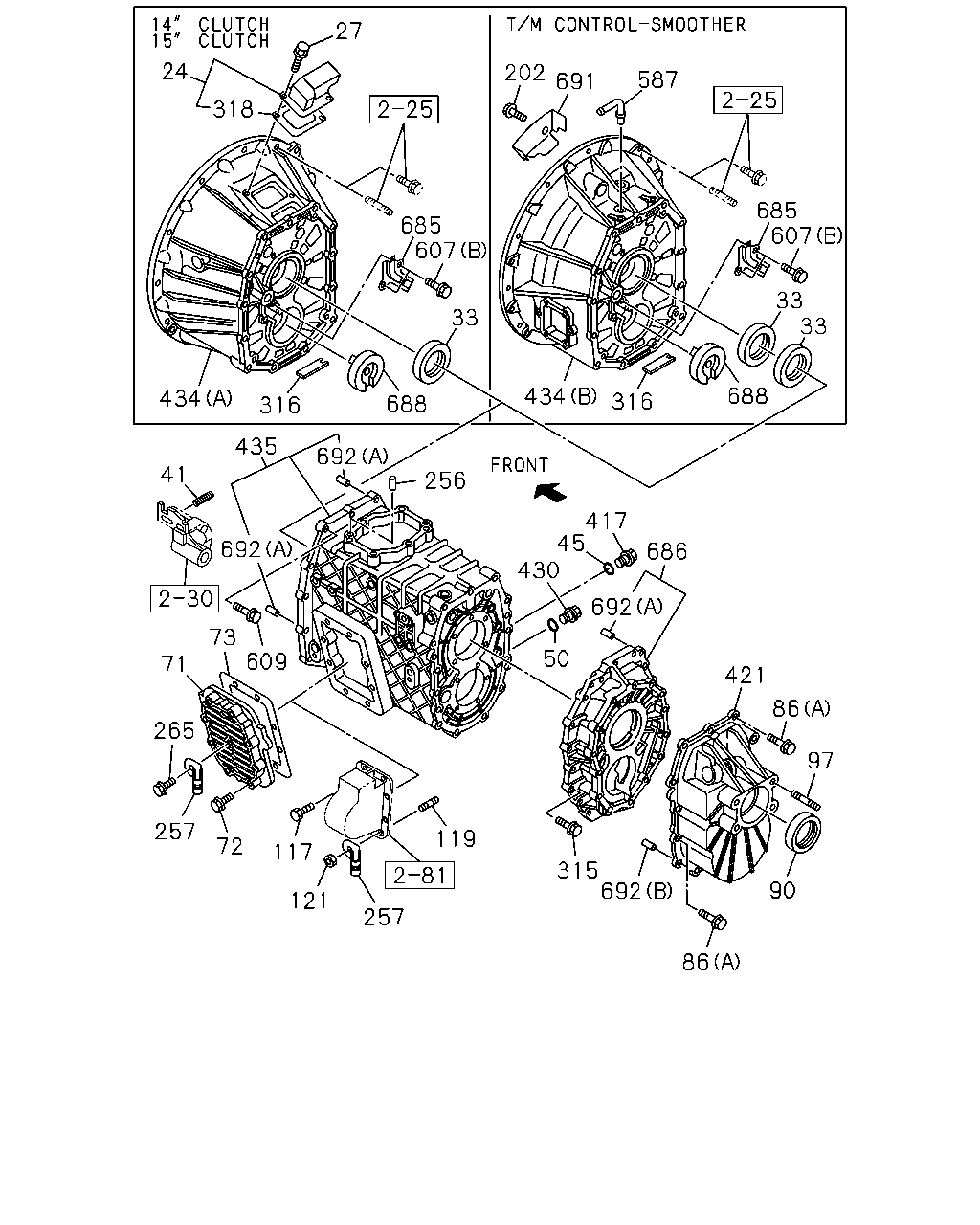

çizim 61800
27 24 318 685 607 33 688 316 434 202 691 587 685 607 33 33 688 316 434 417 45 430 686 692 50 421 86 97 90 692 86 315 119 257 121 117 72 257 265 71 73 692 609 41 435 692 256
BalonParca AdiParca NoAdetTipApplied Date A B
24 COVER; CHECK HOLE,DUST 8-98284-107-0 01 1 1411- ●
24 COVER; CHECK HOLE,DUST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98284-107-0 01 1 1411- ●
24 COVER; CHECK HOLE,DUST 1-31131-041-0 01 1 0906-1204 ● ●
24 COVER; CHECK HOLE,DUST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31131-041-0 01 1 1205-1410 ● ●
24 COVER; CHECK HOLE,DUST 8-98283-062-0 01 1 1411- ●
27 BOLT; COVER TO CLU HSG
M8X16 FLANGE 		0-28050-816-0 02 1 0906-1410 ●
27 BOLT; COVER TO CLU HSG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 02 1 1411- ● ●
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28050-812-0 02 1 0906-1204 ●
27 BOLT; COVER TO CLU HSG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE 		0-28050-812-0 02 1 1205-1410 ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-187-0 02 1 1205- ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-497-0 01 1 0906- ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		8-97377-947-0 01 1 0906-1204 ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97377-947-0 01 1 1205- ●
41 SPRING; DETENT BALL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98071-140-0 01 1 1205- ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 0906- ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0906- ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 0906- ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0906-1404 ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 02 1 1405- ●
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33141-033-0 01 1 0906- ●
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98122-318-0 01 1 0906-1408 ●
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98270-265-1 01 1 1409- ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE 		0-28151-016-0 08 1 0906- ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE 		1-09044-081-0 08 1 0906- ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33142-036-0 01 1 0906- ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98122-320-0 01 1 0906-0908 ●
86 BOLT; RR COVER
(C) M17X35 		1-09044-076-0 08 1 0906- ●
86 BOLT; RR COVER
(B) M12X60 		1-09044-084-0 01 1 0906- ●
86 BOLT; RR COVER
(A) M10X40 FLANGE 		8-98045-397-0 14 1 0906- ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97377-948-0 01 1 1104- ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-513-0 01 1 0906-1103 ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-513-0 01 1 1104- ●
97 STUD; PARKING BRK
M14X22 W/DRY-ROCK 		8-98014-138-0 01 1 0906-1412 ● ●
97 STUD; PARKING BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M14X22 W/DRY-ROCK 		8-98014-138-0 01 1 1501- ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE 		8-98044-944-0 06 1 0906- ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE 		0-28151-040-0 02 1 0906- ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45 		0-44011-030-0 02 1 0906- ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50 		0-44011-035-0 06 1 0906- ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE 		0-91180-210-0 02 1 0906- ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE 		0-91180-210-0 06 1 0906- ●
202 BOLT; PLATE
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 01 1 1205- ●
256 PIN; KNOCK
OD=6 L=12 		9-08150-612-0 02 1 0906- ●
257 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8 		8-97329-633-0 01 1 1205- ●
265 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE 		0-28151-016-0 01 1 1205- ●
315 BOLT; CASE
M8X40 FLANGE 		0-28050-840-0 18 1 0906- ●
316 MAGNET; TRANS CASE 8-94249-524-2 01 1 0906- ●
318 GASKET; COVER 1-31139-023-0 01 1 1411- ●
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 0906- ●
417 PLUG; OIL FILLER,TRANS
M20X10.5 		8-98009-333-0 01 1 0906- ●
421 COVER; RR,TRANS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98051-477-0 01 1 1205- ●
421 COVER; RR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98124-515-0 01 1 1205- ●
421 COVER; RR,TRANS 1-33131-177-1 01 1 0906- ●
421 COVER; RR,TRANS 8-98004-790-1 01 1 0906-1204 ●
421 COVER; RR,TRANS
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98004-790-1 01 1 1205- ●
430 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-023-0 01 1 0906- ●
430 PLUG; OIL DRAIN 8-97365-374-0 01 1 0906-1404 ●
430 PLUG; OIL DRAIN 8-97365-374-0 02 1 1405- ●
434 HOUSING; CLU
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98004-507-2 01 1 1205- ●
434 HOUSING; CLU
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98100-981-1 01 1 1205- ●
434 HOUSING; CLU
(C) 		1-31110-169-0 01 1 0906- ●
434 HOUSING; CLU
(A) 		8-98004-506-2 01 1 0906-1204 ●
434 HOUSING; CLU
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98004-506-2 01 1 1205- ●
435 CASE; TRANS 1-33111-355-0 01 1 0906- ●
435 CASE; TRANS 8-98123-098-1 01 1 0906-1108 ●
435 CASE; TRANS 8-98186-449-0 01 1 1109-1404 ●
435 CASE; TRANS 8-98236-421-1 01 1 1405- ●
587 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-318-0 01 1 1205- ●
607 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE 		0-28650-830-0 04 1 1205- ●
607 BOLT; COVER
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0906- ●
609 BOLT; HSG TO CASE
M8X40 FLANGE 		0-28050-840-0 22 1 0906- ●
685 COVER; OIL PORT 8-98018-864-1 01 1 0906- ●
686 CASE; RR,TRANS 8-97388-873-1 01 1 0906- ●
688 NOZZLE; OIL,COUNTER 8-98007-741-0 01 1 0906-1110 ●
688 NOZZLE; OIL,COUNTER 8-98202-402-0 01 1 1111-1508 ●
688 NOZZLE; OIL,COUNTER 8-98309-860-0 01 1 1509- ●
691 PLATE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98044-428-0 01 1 1205- ●
692 PIN; DOWEL
(A) OD=11 L=8 		9-11229-058-1 04 1 0906- ●
692 PIN; DOWEL
(B) OD=14 L=10 		9-11319-065-3 02 1 0906- ●

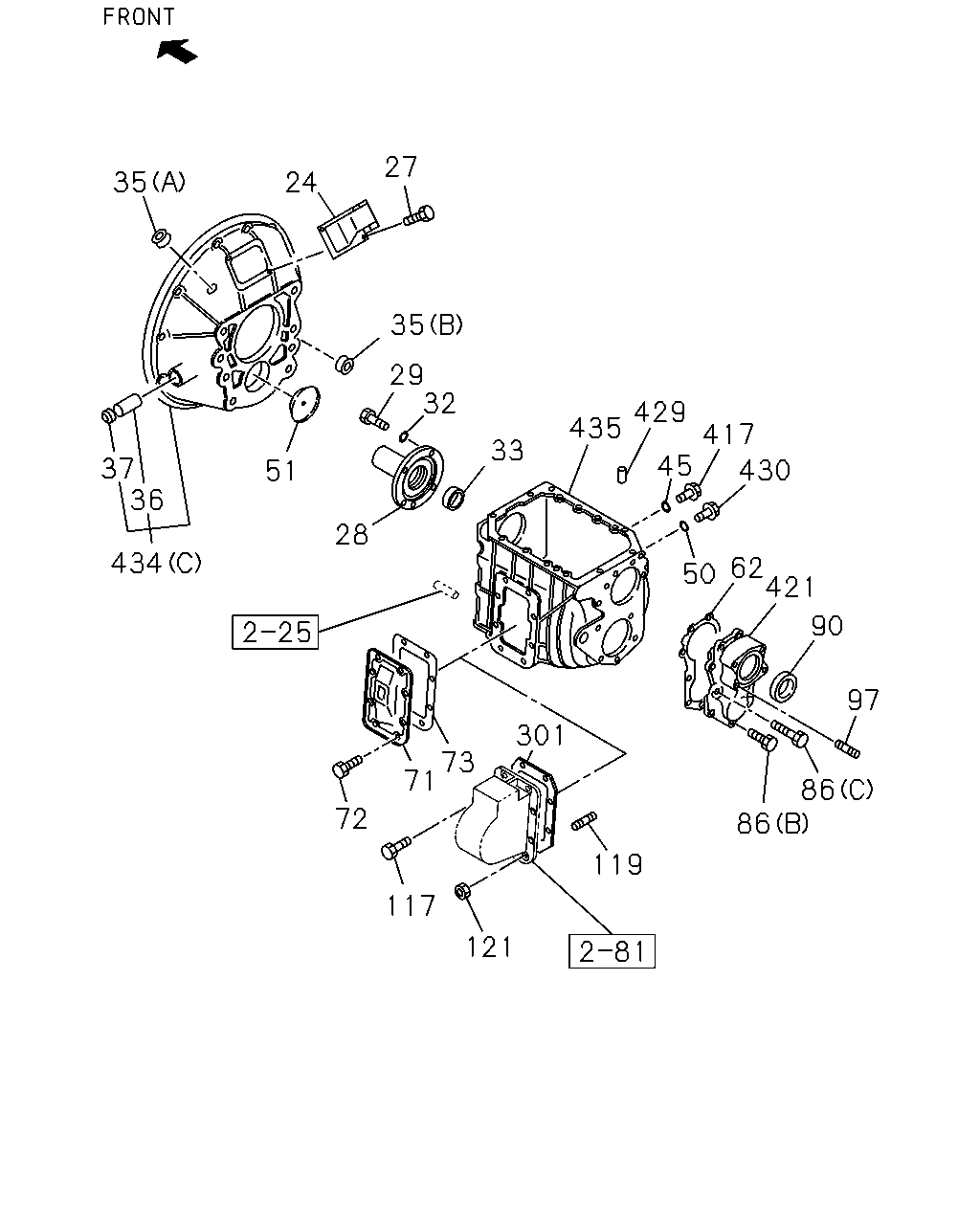

çizim 61832
27 24 35 35 29 32 429 435 417 45 33 37 36 430 51 28 434 62 421 50 90 97 301 73 71 86 86 72 119 117 121
BalonParca AdiParca NoAdetTipApplied Date A B
24 COVER; CHECK HOLE,DUST 8-98284-107-0 01 1 1411- ●
24 COVER; CHECK HOLE,DUST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98284-107-0 01 1 1411- ●
24 COVER; CHECK HOLE,DUST 1-31131-041-0 01 1 0906-1204 ● ●
24 COVER; CHECK HOLE,DUST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31131-041-0 01 1 1205-1410 ● ●
24 COVER; CHECK HOLE,DUST 8-98283-062-0 01 1 1411- ●
27 BOLT; COVER TO CLU HSG
M8X16 FLANGE 		0-28050-816-0 02 1 0906-1410 ●
27 BOLT; COVER TO CLU HSG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 02 1 1411- ● ●
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28050-812-0 02 1 0906-1204 ●
27 BOLT; COVER TO CLU HSG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE 		0-28050-812-0 02 1 1205-1410 ●
28 COVER; FRT,TRANS CASE 1-33121-108-1 01 1 0906- ●
29 BOLT; FRT COVER
M10X28 FLANGE REAMER 		8-97365-375-0 04 1 0906- ●
32 GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). ID=10 		1-09623-369-0 04 1 0906- ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-187-0 02 1 1205- ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-497-0 01 1 0906- ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		8-97377-947-0 01 1 0906-1204 ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97377-947-0 01 1 1205- ●
35 GROMMET; CLU HSG
(B) OD=15 T=6.6 		8-97037-246-0 01 1 0906- ●
35 GROMMET; CLU HSG
(A) 		9-09575-796-0 01 1 0906- ●
36 BEARING; NEEDLE,CLU HSG
NTN 		1-09811-002-1 02 1 0906- ●
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-002-0 02 1 0906- ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 0906- ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0906- ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 0906- ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0906-1404 ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 02 1 1405- ●
51 COVER; SEAL,COUNTER,FRT 1-33319-107-1 01 1 0906- ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33132-045-2 01 1 0906- ●
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33141-033-0 01 1 0906- ●
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98122-318-0 01 1 0906-1408 ●
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98270-265-1 01 1 1409- ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE 		0-28151-016-0 08 1 0906- ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE 		1-09044-081-0 08 1 0906- ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33142-036-0 01 1 0906- ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98122-320-0 01 1 0906-0908 ●
86 BOLT; RR COVER
(C) M17X35 		1-09044-076-0 08 1 0906- ●
86 BOLT; RR COVER
(B) M12X60 		1-09044-084-0 01 1 0906- ●
86 BOLT; RR COVER
(A) M10X40 FLANGE 		8-98045-397-0 14 1 0906- ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97377-948-0 01 1 1104- ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-513-0 01 1 0906-1103 ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-513-0 01 1 1104- ●
97 STUD; PARKING BRK
M14X22 W/DRY-ROCK 		8-98014-138-0 01 1 0906-1412 ● ●
97 STUD; PARKING BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M14X22 W/DRY-ROCK 		8-98014-138-0 01 1 1501- ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE 		8-98044-944-0 06 1 0906- ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE 		0-28151-040-0 02 1 0906- ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45 		0-44011-030-0 02 1 0906- ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50 		0-44011-035-0 06 1 0906- ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE 		0-91180-210-0 02 1 0906- ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE 		0-91180-210-0 06 1 0906- ●
301 PLATE; DIST,PTO TO TRANS
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-037-0 01 1 0906- ●
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 0906- ●
417 PLUG; OIL FILLER,TRANS
M20X10.5 		8-98009-333-0 01 1 0906- ●
421 COVER; RR,TRANS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98051-477-0 01 1 1205- ●
421 COVER; RR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98124-515-0 01 1 1205- ●
421 COVER; RR,TRANS 1-33131-177-1 01 1 0906- ●
421 COVER; RR,TRANS 8-98004-790-1 01 1 0906-1204 ●
421 COVER; RR,TRANS
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98004-790-1 01 1 1205- ●
429 PIN; STRAIGHT
OD=10 L=18 		9-08151-018-0 02 1 0906- ●
430 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-023-0 01 1 0906- ●
430 PLUG; OIL DRAIN 8-97365-374-0 01 1 0906-1404 ●
430 PLUG; OIL DRAIN 8-97365-374-0 02 1 1405- ●
434 HOUSING; CLU
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98004-507-2 01 1 1205- ●
434 HOUSING; CLU
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98100-981-1 01 1 1205- ●
434 HOUSING; CLU
(C) 		1-31110-169-0 01 1 0906- ●
434 HOUSING; CLU
(A) 		8-98004-506-2 01 1 0906-1204 ●
434 HOUSING; CLU
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98004-506-2 01 1 1205- ●
435 CASE; TRANS 1-33111-355-0 01 1 0906- ●
435 CASE; TRANS 8-98123-098-1 01 1 0906-1108 ●
435 CASE; TRANS 8-98186-449-0 01 1 1109-1404 ●
435 CASE; TRANS 8-98236-421-1 01 1 1405- ●

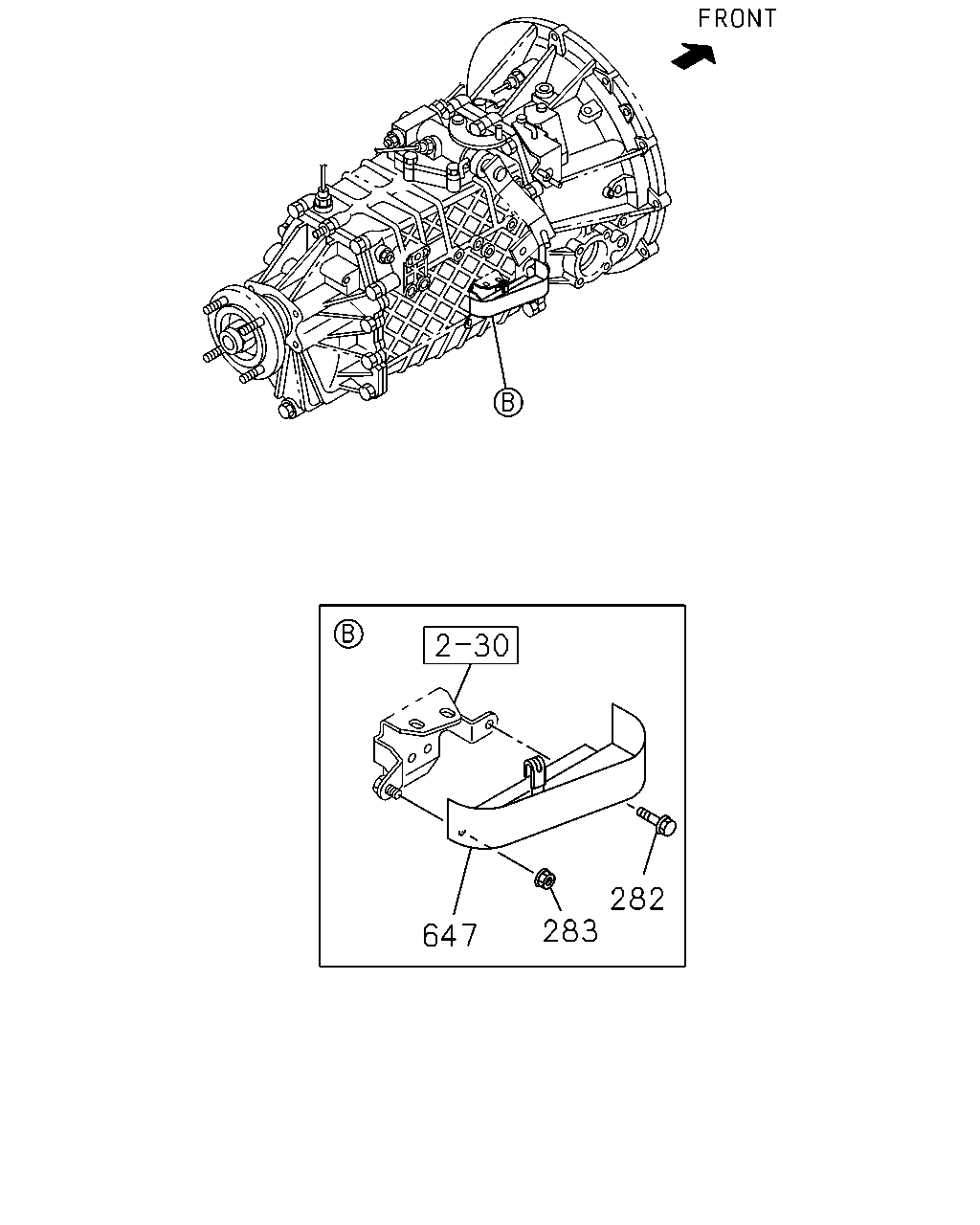

çizim 283168
282 283 647
BalonParca AdiParca NoAdetTipApplied Date A B
282 BOLT; PROTECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 01 1 1205- ●
283 NUT; PROTECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE 		0-91180-108-0 01 1 1205- ●
647 PROTECTOR; HEAT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97329-465-0 01 1 1205- ●

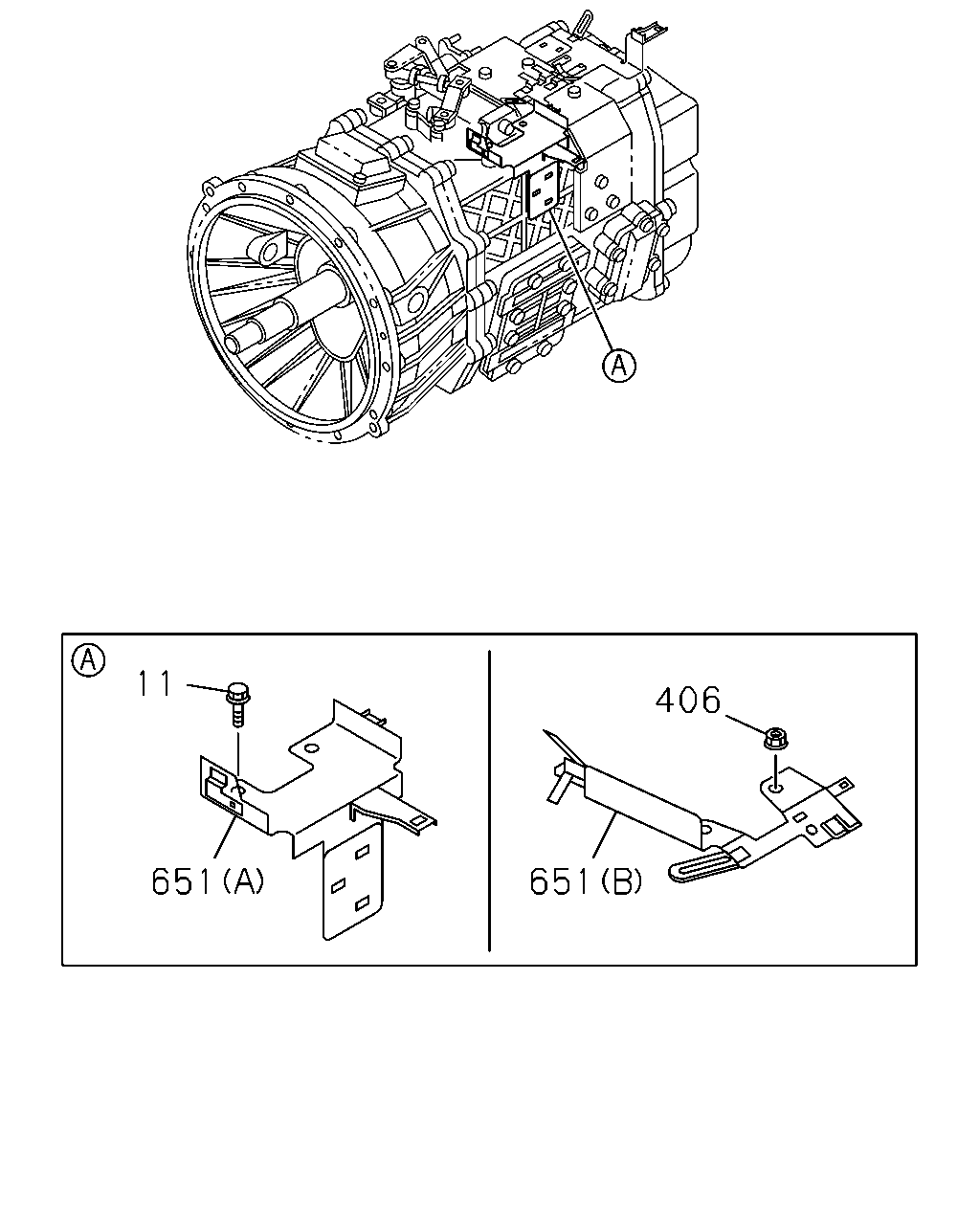

çizim 283525
11 406 651 651
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; BRKT
4HK1-TCS ENG(RJS) M12X25 FLANGE 		0-28151-225-0 02 1 1309- ● ●
11 BOLT; BRKT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		0-28650-835-0 02 1 1205- ●
11 BOLT; BRKT
6HK1-TCN ENG(82L) M8X16 FLANGE 		0-28050-816-0 02 1 0906- ●
406 NUT; BRKT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE 		0-91180-108-0 02 1 1205- ●
651 BRACKET; T/M HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97610-090-3 01 1 1205- ●
651 BRACKET; T/M HARNESS
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97609-800-3 01 1 1205- ●
651 BRACKET; T/M HARNESS
6HK1-TCN ENG(82L) (C) 		8-97627-300-0 01 1 0906- ●

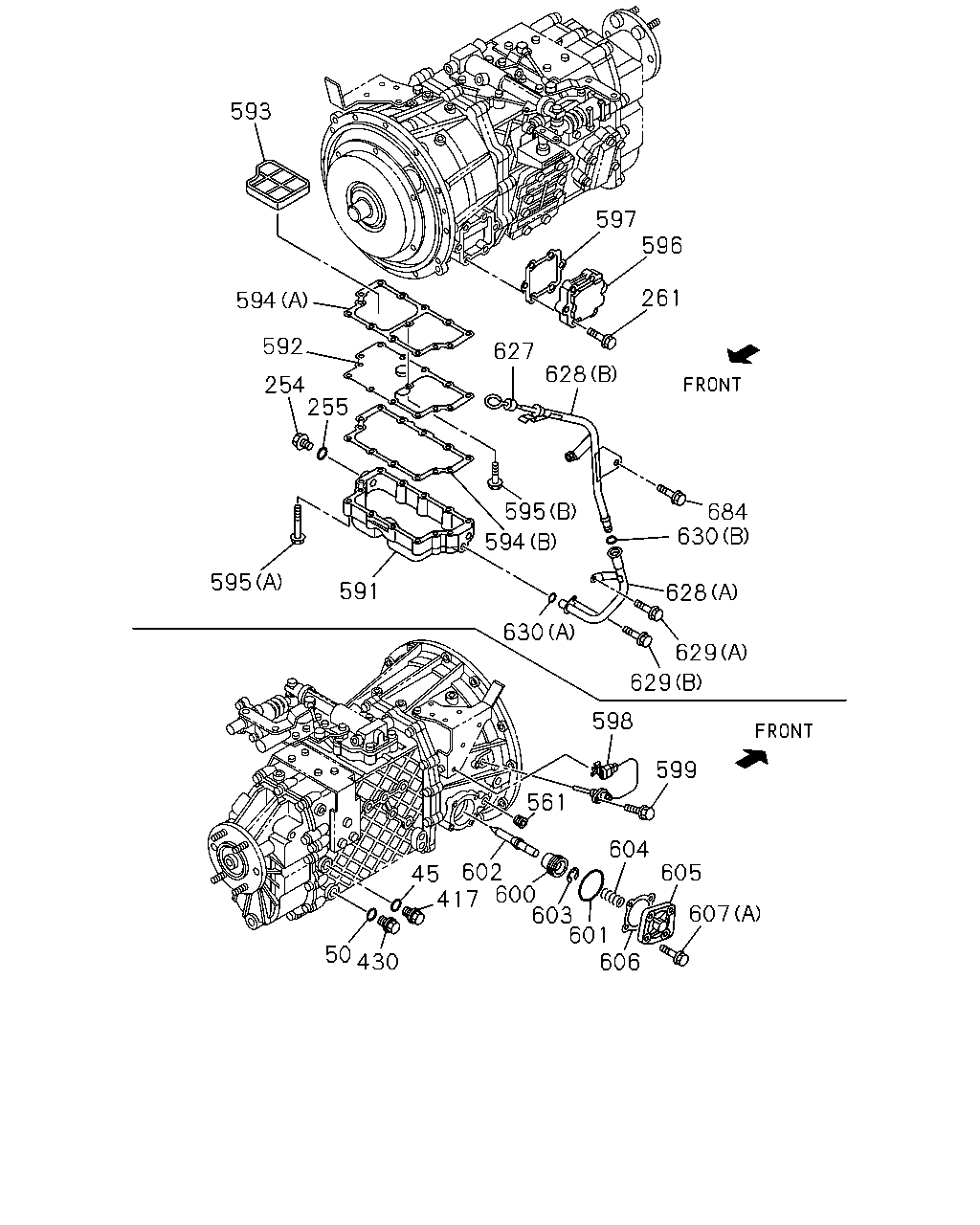

çizim 283530
593 597 596 261 594 592 627 628 254 255 595 684 630 594 595 591 628 630 629 629 598 599 561 604 600 417 603 601 606 605 607 50 430 45 602
BalonParca AdiParca NoAdetTipApplied Date A B
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 0906- ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0906- ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 0906- ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0906-1404 ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 02 1 1405- ●
254 PLUG; DRAIN,OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97365-374-0 01 1 1205- ●
255 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17 		8-97115-712-0 01 1 1205- ●
261 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X35 FLANGE 		0-28650-635-0 06 1 1205- ●
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 0906- ●
417 PLUG; OIL FILLER,TRANS
M20X10.5 		8-98009-333-0 01 1 0906- ●
430 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-023-0 01 1 0906- ●
430 PLUG; OIL DRAIN 8-97365-374-0 01 1 0906-1404 ●
430 PLUG; OIL DRAIN 8-97365-374-0 02 1 1405- ●
561 PLUG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97320-204-0 01 1 1205- ●
591 PAN; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97256-429-2 01 1 1205- ●
592 COVER; STRAINER
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-771-1 01 1 1205- ●
593 FILTER; STRAINER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97256-438-1 01 1 1205- ●
594 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97256-430-1 01 1 1205- ●
594 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97289-772-0 01 1 1205- ●
595 BOLT; OIL PAN
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE 		0-28650-616-0 01 1 1205- ●
595 BOLT; OIL PAN
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X35 FLANGE 		0-28650-635-0 13 1 1205- ●
596 COVER; OIL PAN
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-773-0 01 1 1205- ●
597 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-774-0 01 1 1205- ●
598 SENSOR; TURBINE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97316-495-1 01 1 1205- ●
599 BOLT; SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 01 1 1205- ●
600 PISTON; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-652-1 01 1 1205- ●
601 SEAL; PISTON
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-755-0 01 1 1205- ●
602 PLUNGER; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98009-306-1 01 1 1205- ●
603 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8 		9-09185-008-0 01 1 1205- ●
604 SPRING; PISTON
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-467-0 01 1 1205- ●
605 COVER; CYLINDER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-756-0 01 1 1205- ●
606 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-757-0 01 1 1205- ●
607 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE 		0-28650-830-0 04 1 1205- ●
607 BOLT; COVER
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0906- ●
627 GAUGE; OIL LEVEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98024-423-2 01 1 1205- ●
628 TUBE; OIL FILLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98003-673-0 01 1 1205- ●
628 TUBE; OIL FILLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98005-326-2 01 1 1205- ●
629 BOLT; OIL FILLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M10X16 FLANGE 		0-28151-016-0 01 1 1205- ●
629 BOLT; OIL FILLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE 		0-28650-616-0 01 1 1205- ●
630 GASKET; OIL FILLER TUBE,T/M
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=15.8 		8-97305-656-0 01 1 1205- ●
630 GASKET; OIL FILLER TUBE,T/M
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12.3 		8-97313-558-0 01 1 1205- ●
684 BOLT; OIL FILLER TUBE
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE 		0-28151-016-0 01 1 1205- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
