2-05 — CLUTCH PIPING (#17321) — 78 parça

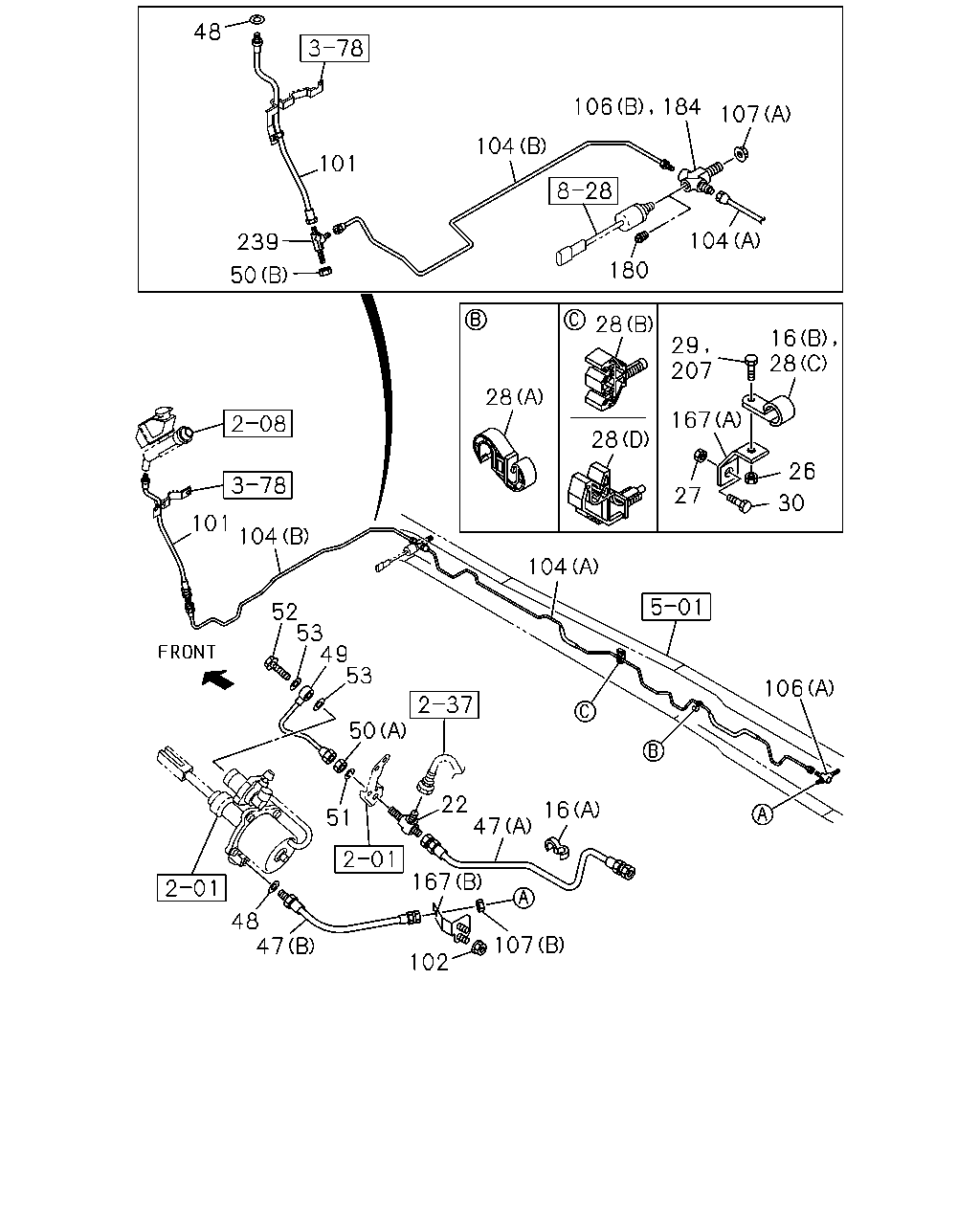

çizim 15466
48 106 184 107 104 101 104 239 180 50 28 16 28 29 207 28 167 28 26 27 30 101 104 104 52 53 49 53 106 50 22 47 16 51 167 48 47 107 102
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1205- ●
16 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1205- ●
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 0906-1204 ●
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 1205- ●
16 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=18 L=28 		1-09701-067-0 01 1 1205- ●
16 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) (A) ID=10 & 12 		1-09709-278-1 02 1 0906- ●
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0906-1204 ●
22 UNION; CLU PIPE
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1205- ●
22 UNION; CLU PIPE
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1205- ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 0906- ●
27 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0906- ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=6.35 		1-09701-247-1 01 1 1205- ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1205- ●
28 CLIP; OIL PIPE
(C) ID=7 L=20 		0-95234-635-0 01 1 0906- ●
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 01 1 0906- ●
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 01 1 0906- ●
28 CLIP; OIL PIPE
(B) 		8-98012-254-1 04 1 0906-1204 ●
28 CLIP; OIL PIPE
(B) 		8-98012-254-1 04 1 1205- ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 04 1 1205- ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0906- ●
30 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0906- ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=660 		1-09363-971-0 01 1 1205- ●
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=740 		1-09363-674-0 01 1 1205- ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=390 		8-98080-980-0 01 1 1205- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) (B) L=550 		8-98080-979-0 01 1 0906- ●
47 HOSE; FLEX,CLU CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (A) L=560 		1-09363-914-0 01 1 0906- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=580 		1-09363-613-1 01 1 0906- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=660 		1-09363-719-0 01 1 0906- ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0906-1204 ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1205- ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1205- ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
14" CLUTCH(WF6) L=204 		1-49117-400-0 01 1 1205- ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 0906- ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0906-1005 ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0906-1005 ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 		0-91111-512-0 01 1 1006-1009 ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1006-1009 ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1010-1204 ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1010-1204 ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1205- ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1205- ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1205- ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1205- ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0906-1204 ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1205- ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1205- ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0906-1204 ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 1205- ●
51 WASHER; LK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 1205- ●
52 BOLT; EYE,AIR PIPE
15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 0906- ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0906-1312 ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=570 		8-98116-741-0 01 1 0906-1204 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=570 		8-98116-741-0 01 1 1205- ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=570 		8-98116-741-0 01 1 1205- ●
102 NUT; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 1205- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2031 SERVICED BY L=2200 		1-47428-740-0 01 1 1205- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1684 SERVICED BY L=1700 		1-47428-737-0 01 1 1205- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1017 SERVICED BY L=1100 		1-47428-731-0 01 1 0906- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=3185 		8-98123-105-0 01 1 0906- ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 1205- ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 1205- ●
106 UNION; OIL PIPE
6HK1-TCN ENG(82L) (A) M12 2WAY 		1-09654-059-2 01 1 0906- ●
106 UNION; OIL PIPE
(B) M12 3WAY 		8-98051-113-0 01 1 0906-0910 ●
107 NUT; UNION,OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		9-09840-280-0 01 1 1205- ●
107 NUT; UNION,OIL PIPE
6HK1-TCN ENG(82L) (A) M12 		0-91111-512-0 01 1 0906- ●
167 BRACKET; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98078-147-0 01 1 1205- ●
167 BRACKET; UNION
(A) 		8-98123-111-1 01 1 0906- ●
180 PLUG; PIPE 9-09204-510-0 01 1 0906-0910 ●
184 UNION; FLEX HOSE 8-98150-865-0 01 1 0911-1204 ●
184 UNION; FLEX HOSE 8-98150-865-0 01 1 1205- ●
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 1205- ●
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0906-1204 ●
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1205- ●
207 BOLT; CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 01 1 1205- ●
239 UNION; CLU HOSE
M12 2WAY 		1-09654-059-2 01 1 0906-1204 ●
239 UNION; CLU HOSE
M12 2WAY 		1-09654-059-2 01 1 1205- ●
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 2WAY 		1-09654-059-2 01 1 1205- ●
