◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#17320) — 51 parça

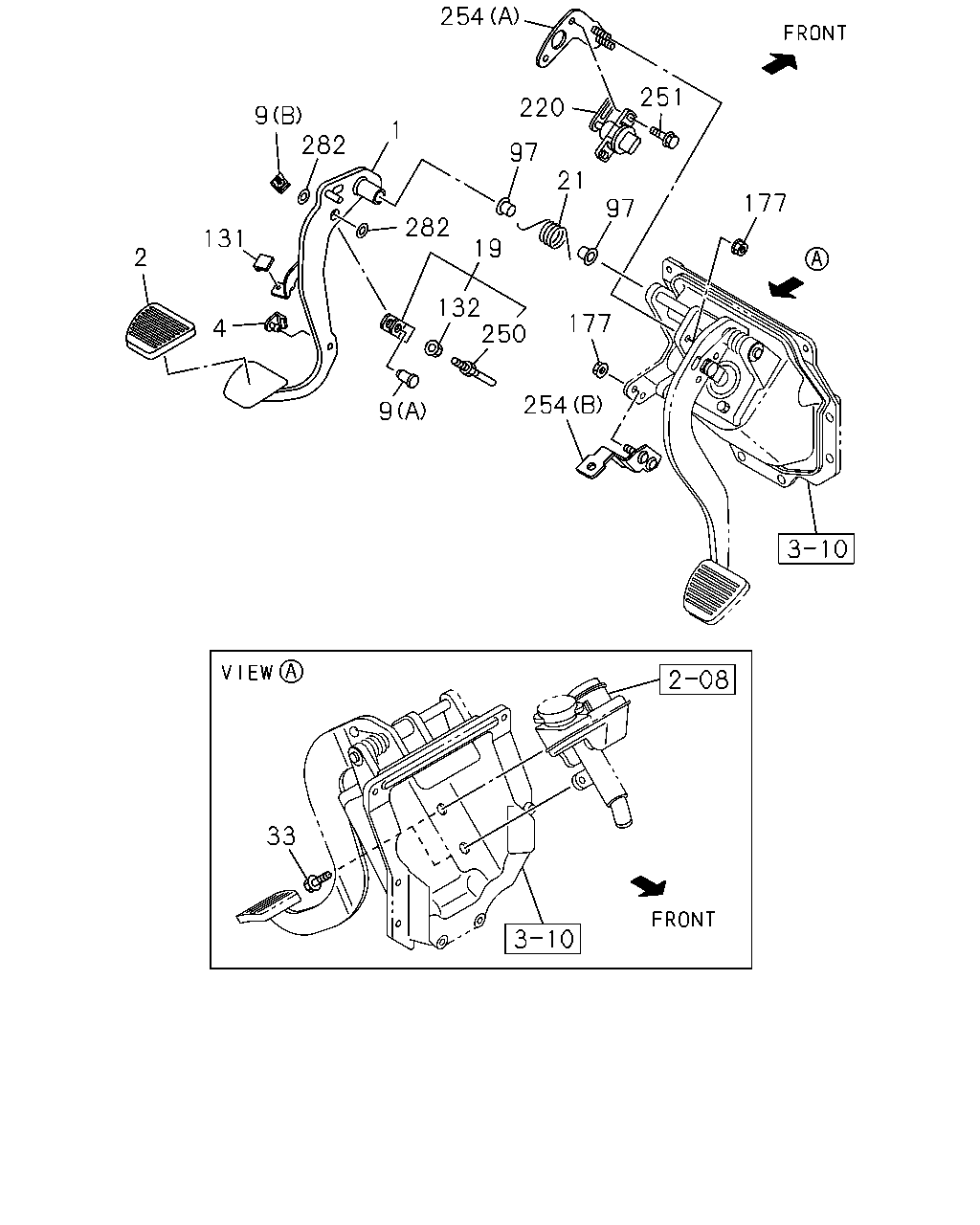

çizim 61998
254 251 220 9 282 1 97 21 177 97 282 131 19 2 132 250 177 4 254 9 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98064-603-1 01 1 1205- ●
1 PEDAL; CLU 8-98064-605-1 01 1 0906-1204 ●
1 PEDAL; CLU 8-98064-605-1 01 1 1205- ●
1 PEDAL; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98064-605-1 01 1 1205- ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 0906-1204 ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1205- ●
2 COVER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98056-865-0 01 1 1205- ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 0906-1204 ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1205- ●
4 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98079-251-0 01 1 1205- ●
9 PIN; CLU PEDAL
(A) 		8-97387-230-0 01 1 0906-1007 ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1008-1204 ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1205- ●
9 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98147-657-0 01 1 1205- ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 0906-1204 ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1205- ●
9 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98007-161-0 01 1 1205- ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 0906-1204 ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1205- ●
19 ROD ASM; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-406-1 01 1 1205- ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 0906-1204 ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1205- ●
21 SPRING; RETURN,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-560-0 01 1 1205- ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 0906-1204 ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 1205- ●
33 BOLT; CLU M/CYL TO BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12X20 FLANGE 		0-28051-220-0 02 1 1205- ●
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 0906-1204 ●
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 1205- ●
97 BUSHING; CLU PEDAL SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94238-596-0 02 1 1205- ●
131 STOPPER; CLU SW 8-97302-305-0 01 1 0906-1204 ●
131 STOPPER; CLU SW 8-97302-305-0 01 1 1205- ●
131 STOPPER; CLU SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97302-305-0 01 1 1205- ●
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 0906-1204 ●
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 1205- ●
132 NUT; LK,PUSH ROD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1205- ●
177 NUT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 04 1 1205- ●
177 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0906-1204 ●
177 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1205- ●
177 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1205- ●
220 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80250-014-0 01 1 1205- ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 0906-1204 ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1205- ●
250 ROD; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-589-0 01 1 1205- ●
251 BOLT; SENSOR
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 		0-52000-616-0 02 1 1205- ●
254 BRACKET; CLU SENSOR
(B) 		8-98021-377-1 01 1 1205- ●
254 BRACKET; CLU SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98021-377-1 01 1 1205- ●
254 BRACKET; CLU SENSOR
(B) 		8-98021-377-1 01 1 0906-1204 ●
254 BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98021-376-1 01 1 1205- ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 0906-1204 ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1205- ●
282 SPACER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98070-329-0 02 1 1205- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
