Isuzu WW
▶
TRUCKS
▶
FSR
▶
11231 - FSR-LHD(EU)SPACE EU5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#17317) — 36 parça
Tümü
A - 4HK1-TCS ENG
B - 6HK1-TCN ENG
◀
[155A] 6HK1 (18 parça)
[155A] 4HK1 (18 parça)
▶

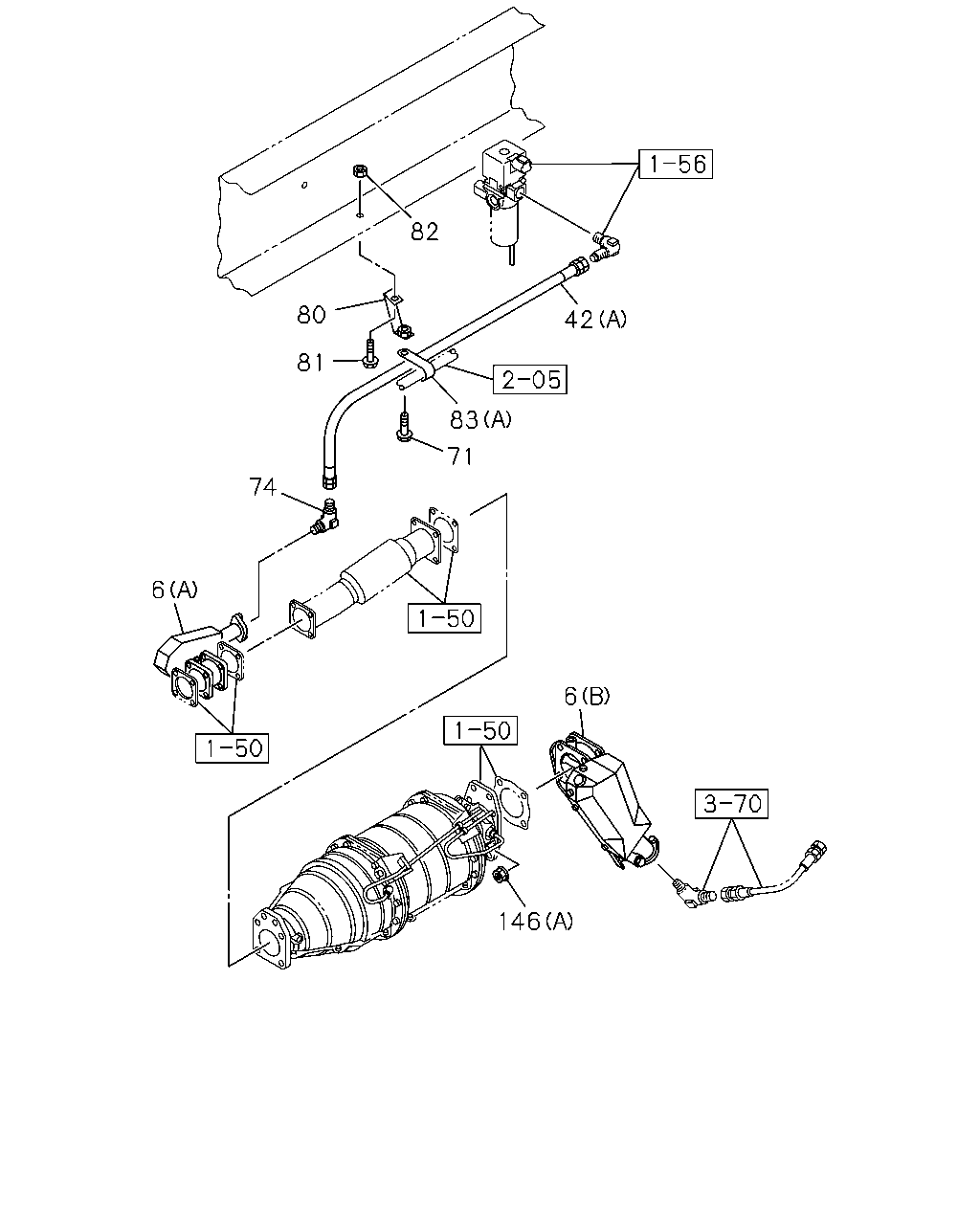

82
80
42
81
83
71
74
6
6
146
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
VALVE; EXH BRAKE
(C)
8-98054-172-6
01
1
1205-
●
6
VALVE; EXH BRAKE
(D)
8-98054-188-6
01
1
1205-
●
6
VALVE; EXH BRAKE
(A)
8-98054-173-6
01
1
0906-1302
●
6
VALVE; EXH BRAKE
(A)
8-98233-801-0
01
1
1303-
●
6
VALVE; EXH BRAKE
(B)
8-98054-185-6
01
1
0906-
●
42
HOSE; FLEX,EXH BRK
(B) L=600
1-09363-639-0
01
1
1205-
●
42
HOSE; FLEX,EXH BRK
(A) L=520
1-09363-957-0
01
1
0906-
●
71
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0906-1204
●
71
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
1205-
●
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0906-1204
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1205-
●
●
80
BRACKET; FLEX HOSE
8-98078-153-0
01
1
0906-
●
●
81
BOLT; HOSE BRKT
M10X25 FLANGE
0-28051-025-0
01
1
0906-
●
●
82
NUT; HOSE BRKT
M10 FLANGE
0-91180-210-0
01
1
0906-
●
●
83
CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10
1-09709-277-1
01
1
1205-
●
83
CLIP; FLEX HOSE
(A) ID=11X2 L=16
1-09700-820-0
01
1
0906-
●
●
146
NUT; EXH BRK VLV
(B) M8 W/LK WASHER
8-97581-234-0
04
1
1205-
●
146
NUT; EXH BRK VLV
(A) M10 FLANGE
0-91180-210-0
04
1
0906-
●

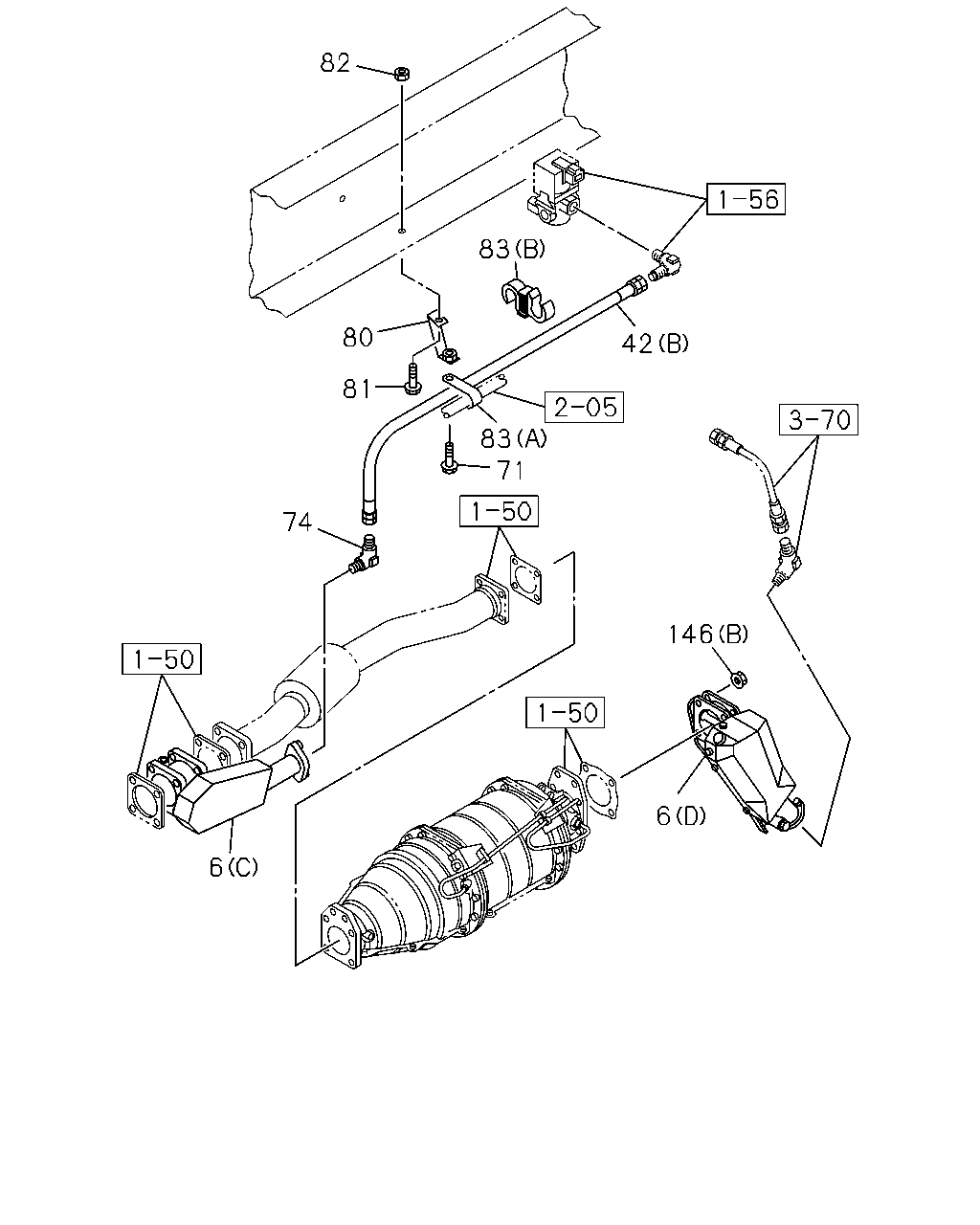

82
83
80
42
81
83
71
74
146
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
VALVE; EXH BRAKE
(C)
8-98054-172-6
01
1
1205-
●
6
VALVE; EXH BRAKE
(D)
8-98054-188-6
01
1
1205-
●
6
VALVE; EXH BRAKE
(A)
8-98054-173-6
01
1
0906-1302
●
6
VALVE; EXH BRAKE
(A)
8-98233-801-0
01
1
1303-
●
6
VALVE; EXH BRAKE
(B)
8-98054-185-6
01
1
0906-
●
42
HOSE; FLEX,EXH BRK
(B) L=600
1-09363-639-0
01
1
1205-
●
42
HOSE; FLEX,EXH BRK
(A) L=520
1-09363-957-0
01
1
0906-
●
71
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0906-1204
●
71
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
1205-
●
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0906-1204
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1205-
●
●
80
BRACKET; FLEX HOSE
8-98078-153-0
01
1
0906-
●
●
81
BOLT; HOSE BRKT
M10X25 FLANGE
0-28051-025-0
01
1
0906-
●
●
82
NUT; HOSE BRKT
M10 FLANGE
0-91180-210-0
01
1
0906-
●
●
83
CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10
1-09709-277-1
01
1
1205-
●
83
CLIP; FLEX HOSE
(A) ID=11X2 L=16
1-09700-820-0
01
1
0906-
●
●
146
NUT; EXH BRK VLV
(B) M8 W/LK WASHER
8-97581-234-0
04
1
1205-
●
146
NUT; EXH BRK VLV
(A) M10 FLANGE
0-91180-210-0
04
1
0906-
●
