Sayfa 1-50 - Isuzu EPC

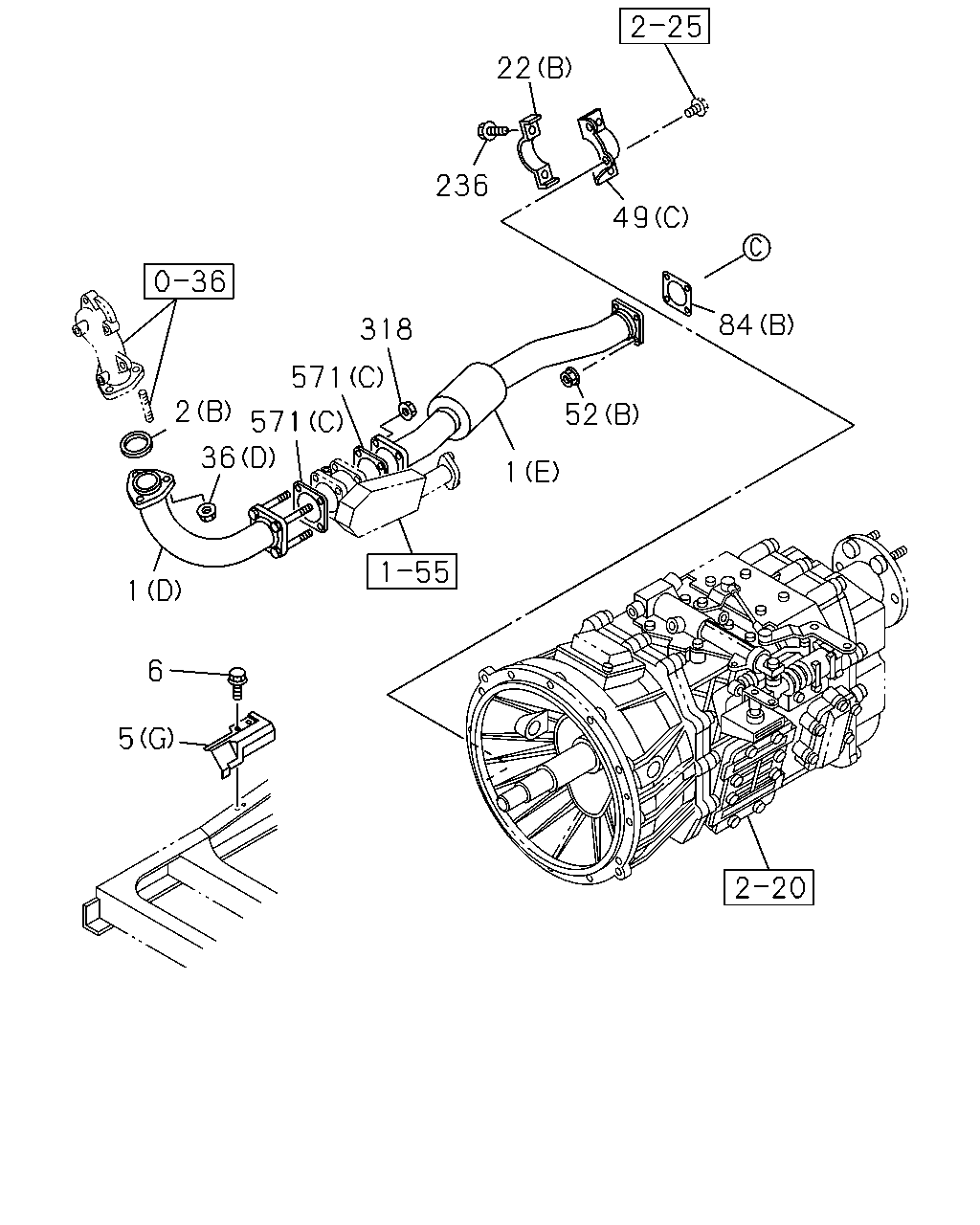

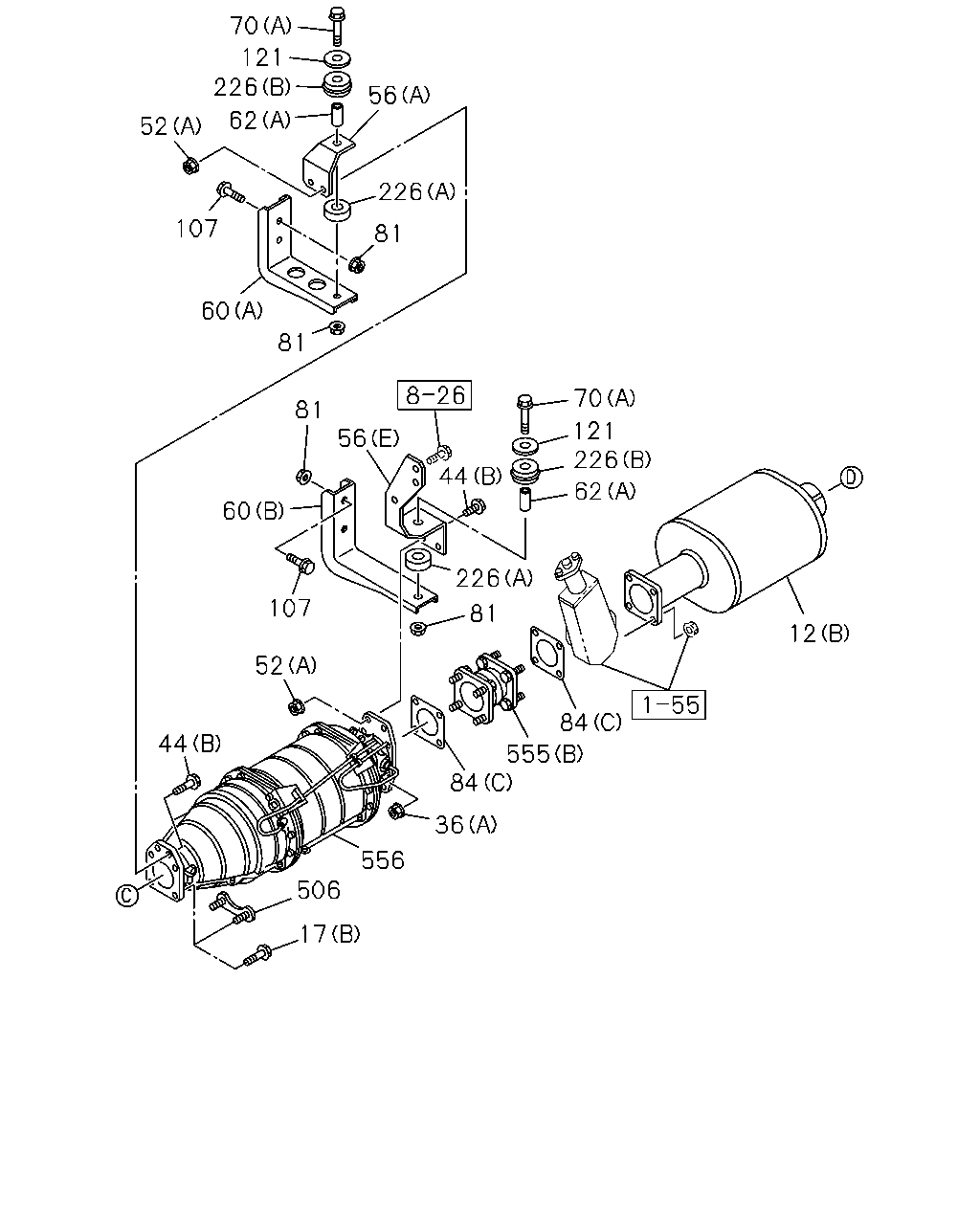

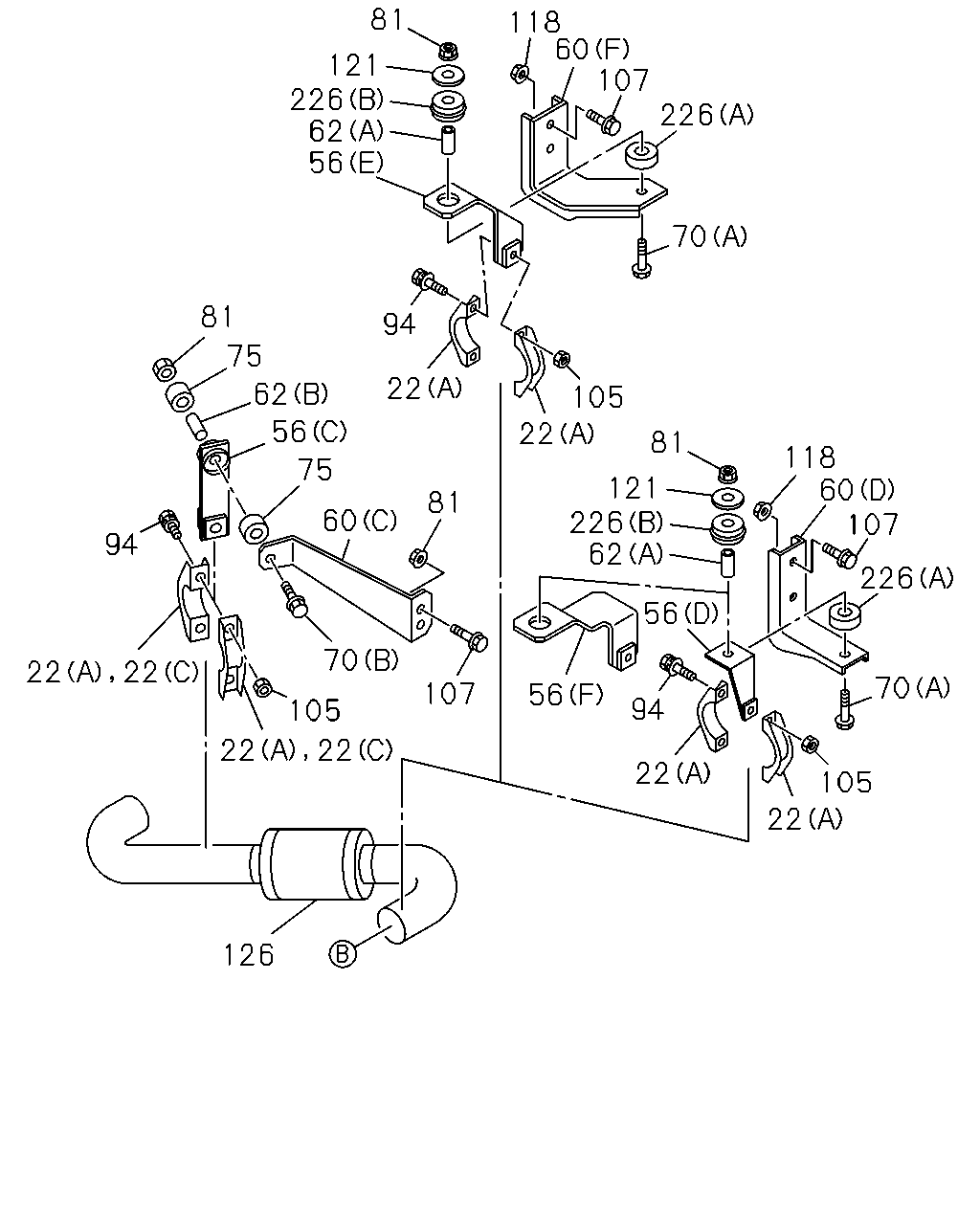

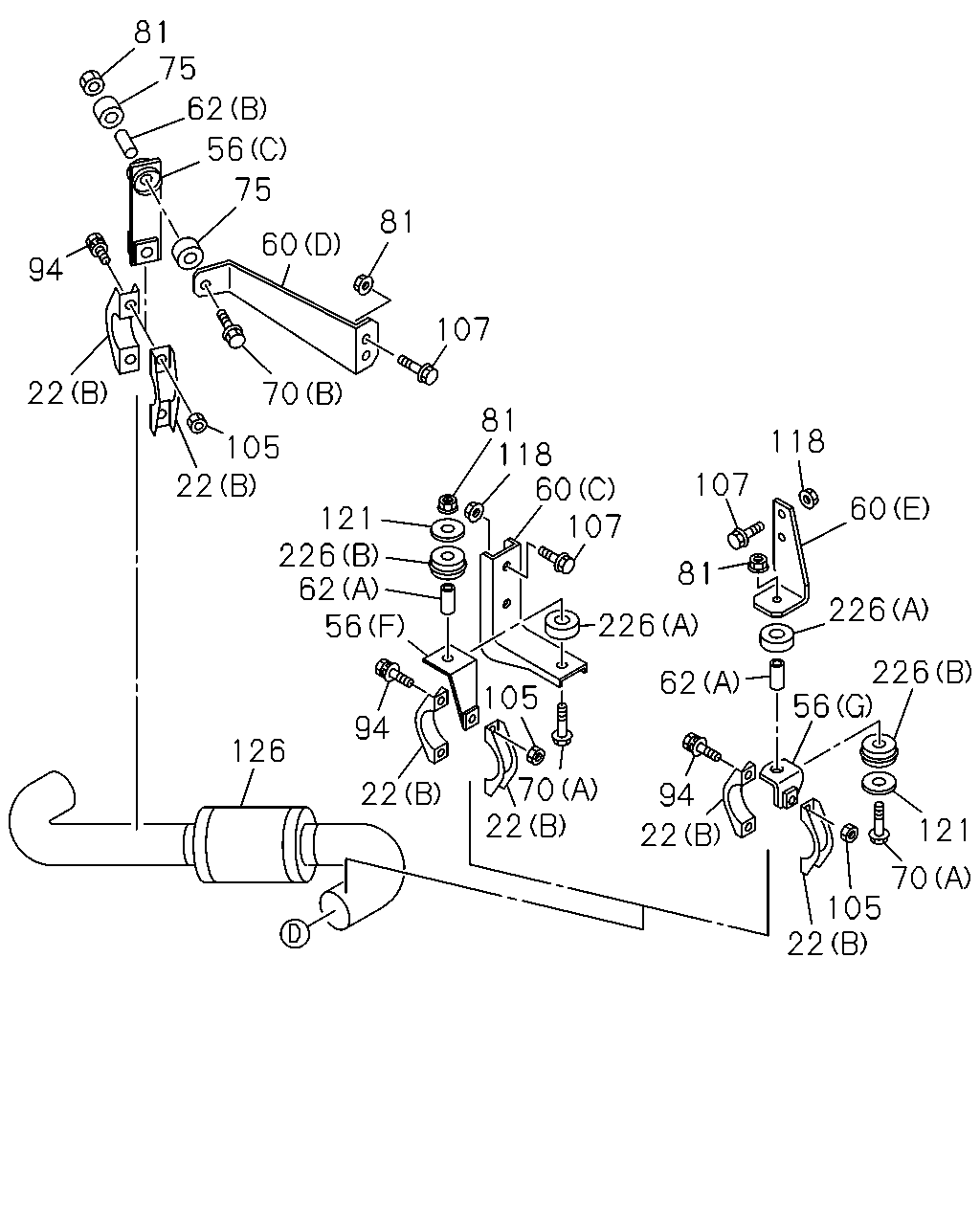

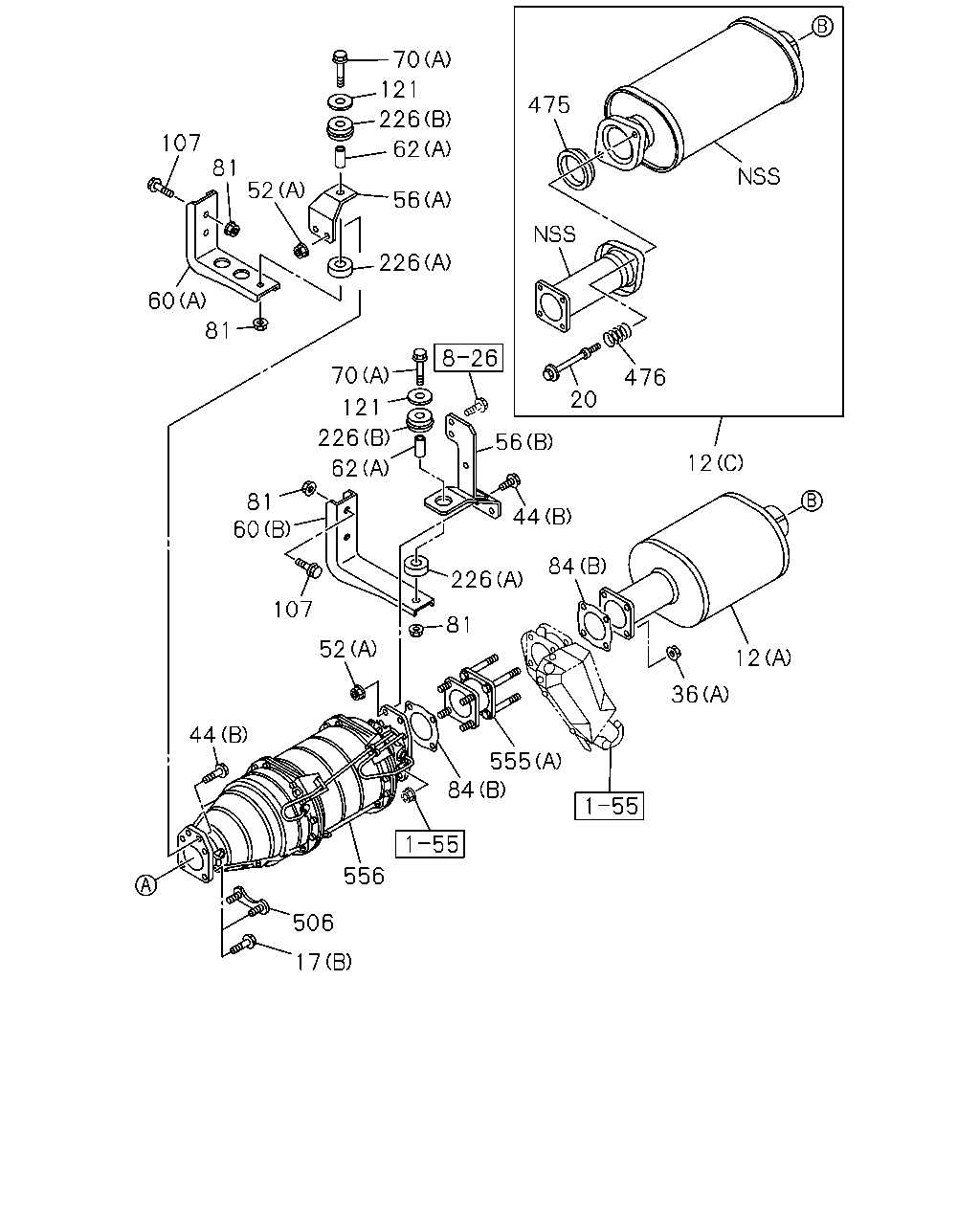

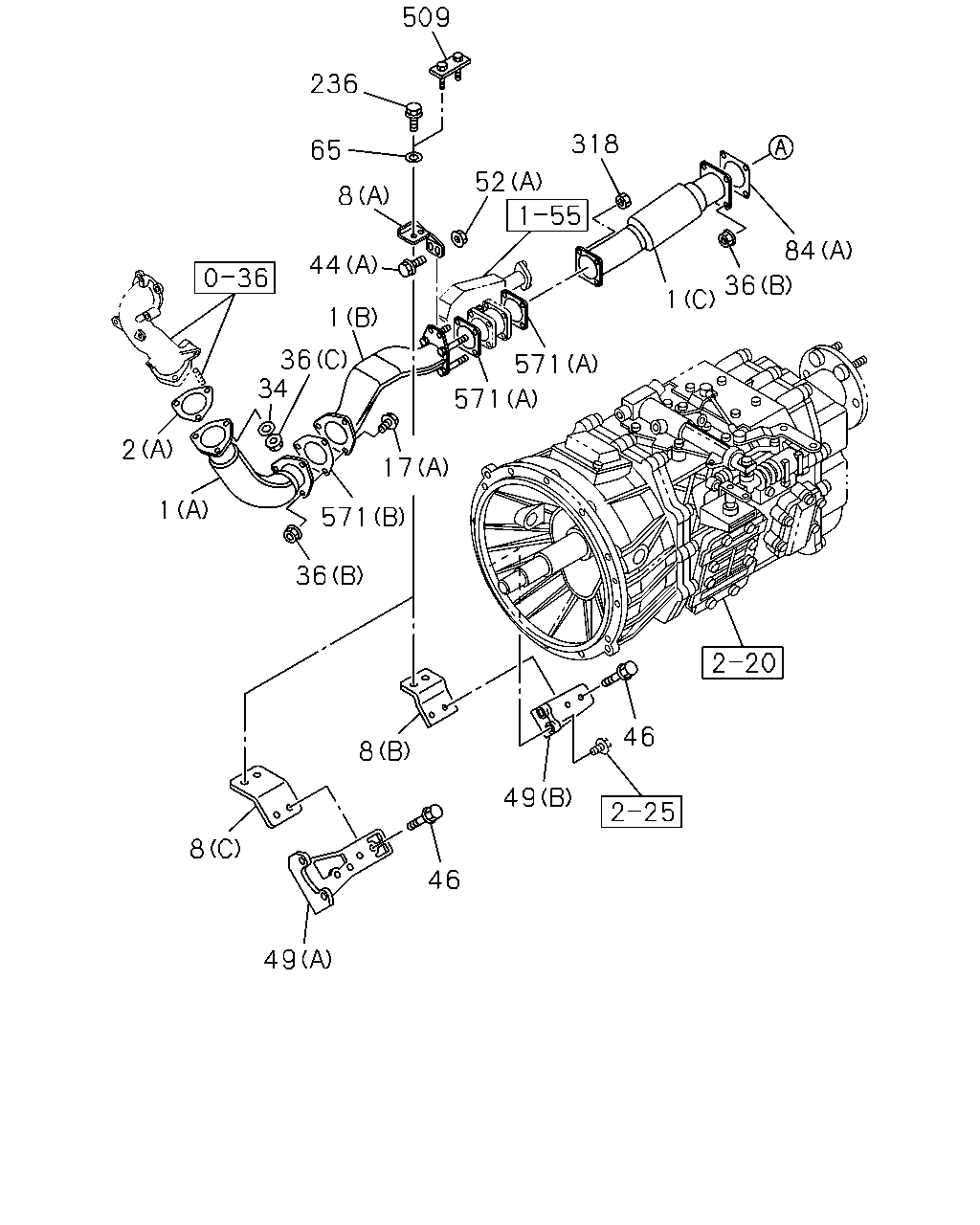

1-50 — EXHAUST PIPE AND SILENCER (#17316) — 702 parça

12 12 36 555 84 81 226 84 44 56 70 121 226 62 81 60 107 52 44 556 506 226 56 62 226 121 70 475 476 20 107 81 52 81 60 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH (B)	8-98041-921-0	01	1	1205-	●
12	SILENCER ASM; EXH (A)	8-98041-924-1	01	1	0906-1301		●
12	SILENCER ASM; EXH (C)	8-98234-506-0	01	1	1302-		●
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE	0-28051-235-0	04	1	1204-1204		●
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE	0-28051-235-0	04	1	1205-	●	●
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	0906-		●
20	BOLT; FLANGE,EXH PIPE	8-98233-481-0	02	1	1302-		●
20	BOLT; FLANGE,EXH PIPE	8-98233-481-0	02	1	1302-		●
36	NUT; EXH PIPE (D) M10 FLANGE	8-97096-192-1	03	1	1205-	●
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	0906-1204		●
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	1205-	●	●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0906-		●
36	NUT; EXH PIPE (C) M12	1-09400-010-0	03	1	0906-		●
44	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0906-0907		●
44	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0908-		●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	08	1	0906-1204		●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	08	1	1205-	●	●
52	NUT; BRKT (B) M12 FLANGE	0-91180-212-0	04	1	1205-	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	06	1	0906-1204		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	06	1	1205-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1205-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1205-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (C)	8-98234-307-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (E)	8-98074-825-0	01	1	1205-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (G)	8-98059-757-1	01	1	1205-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (F)	8-98059-755-0	01	1	1205-	●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22131-584-0	01	1	0906-1204		●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22131-584-0	01	1	1205-1301	●	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C)	1-22131-584-0	01	1	1302-1309		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	1-22131-584-0	01	1	1302-1309	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C)	8-98245-522-0	01	1	1310-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98245-522-0	01	1	1310-	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98059-729-0	01	1	0906-		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-824-1	01	1	0906-1204		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-824-1	01	1	1205-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (D)	8-98059-758-0	01	1	0906-1301		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (E)	8-98233-506-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (D)	8-98059-754-0	01	1	0906-1301		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (F)	8-98233-508-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) (C)	8-97645-579-1	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) (F)	8-98234-144-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (D)	8-98233-509-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) (E)	8-98191-048-0	01	1	1205-	●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	0906-1204		●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	1205-	●	●
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	0906-1204		●
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	1205-	●	●
60	BRACKET; FRAME TO BRKT (D)	8-98059-753-1	01	1	0906-1204		●
60	BRACKET; FRAME TO BRKT (D)	8-98059-753-1	01	1	1205-1301		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (D)	8-98059-753-1	01	1	1205-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (D)	8-98059-753-1	01	1	1302-1309	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (D)	8-98245-530-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	0906-1204		●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	1205-1301	●	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C)	8-98070-640-0	01	1	1302-1309		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98070-640-0	01	1	1302-1309	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C)	8-98245-521-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98245-521-0	01	1	1310-	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0906-0906		●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-1204		●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1205-	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0906-1204		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0906-1204		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0906-1204		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1205-	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1205-	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1205-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0906-1204		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1205-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1204		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1204		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1204		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1205-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1205-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1205-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0906-0907		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1004-1005		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1205-1301	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-0907		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-0907		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-0907		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1004-1005		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1004-1005		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1004-1005		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
84	GASKET; EXH PIPE (C) ID=64	8-97373-108-0	02	1	1205-	●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0906-		●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	0906-1204		●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1205-	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	02	1	0906-		●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0906-1204		●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0906-1204		●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1205-	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1205-	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0906-1204		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0906-1204		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0906-1204		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1205-	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1205-	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1205-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-1204		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-1204		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-1204		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1205-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1205-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1205-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-1204		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-1204		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-1204		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1205-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1205-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1205-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE	8-98233-479-0	01	1	1302-		●
476	SPRING; VIBNON,EXH PIPE	8-98233-482-0	02	1	1302-		●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	0906-1203		●
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> M12X35	1-22131-963-0	02	1	1204-1204		●
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> M12X35	1-22131-963-0	02	1	1205-	●	●
555	PIPE; EXH,DPD (B)	8-98060-847-0	01	1	1205-	●
555	PIPE; EXH,DPD (A)	8-98073-334-0	01	1	0906-		●

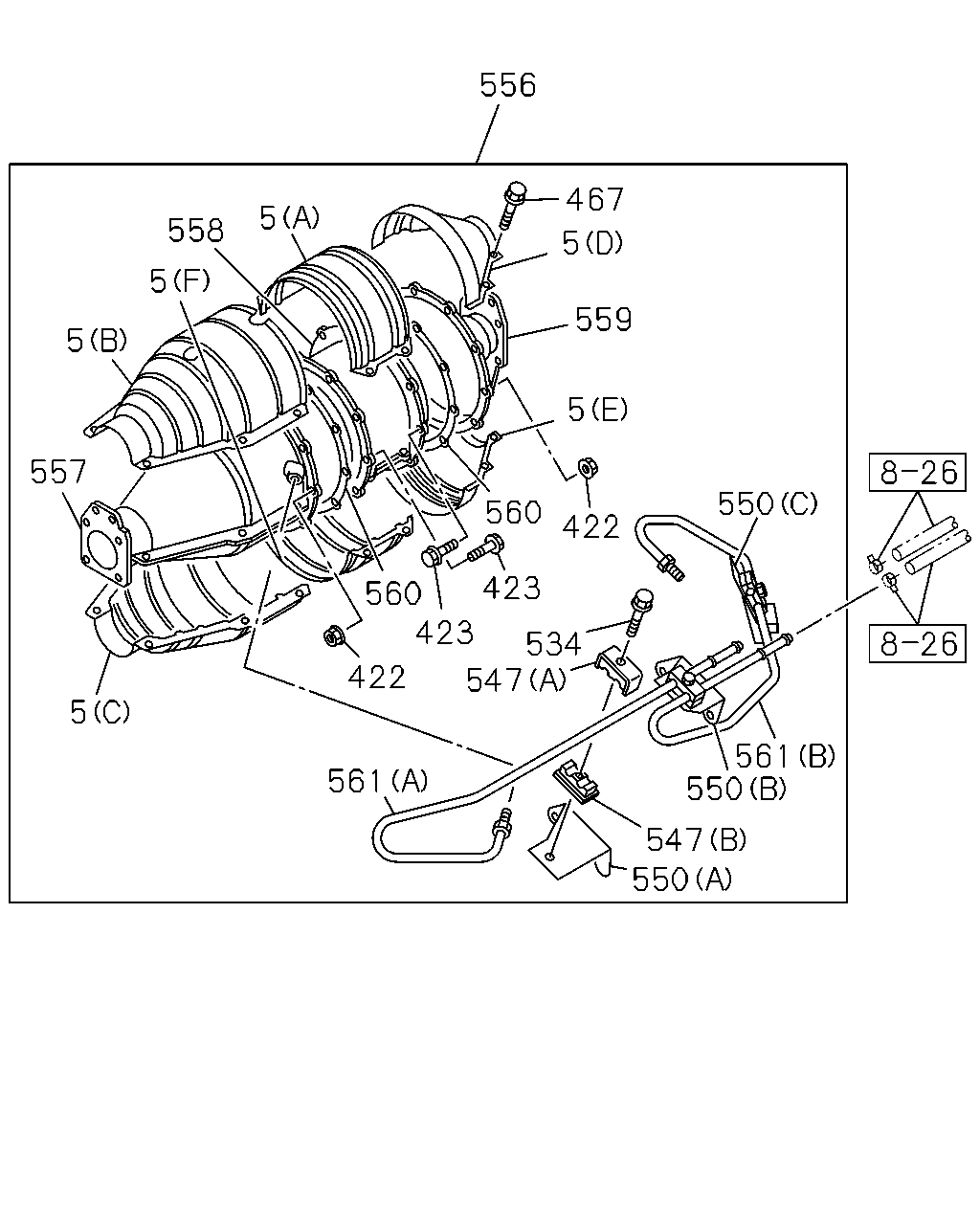

556	DPD ASM	8-97613-331-6	01	1	0906-1010		●
556	DPD ASM	8-97622-883-4	01	1	1011-1204		●
556	DPD ASM	8-97622-883-4	01	1	1205-	●	●

70 226 107 60 118 81 121 226 62 56 94 22 22 105 56 107 70 105 22 22 126 22 22 94 81 60 75 56 22 94 62 75 81 56 62 226 121 81 118 60 107 226 70 105 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLAMP; EXH PIPE WHEEL BASE 3700MM(37W) (C) ID=94-98	1-22133-237-0	02	1	1302-		●
22	CLAMP; EXH PIPE (B)	1-22133-295-0	01	1	1205-1309	●
22	CLAMP; EXH PIPE (B)	8-97646-674-0	01	1	1310-	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0906-1204		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0906-1204		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1205-1301	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1205-1301	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1302-	●	●
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (A) ID=80-84	1-22133-233-0	02	1	1302-		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (C)	8-98234-307-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (E)	8-98074-825-0	01	1	1205-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (G)	8-98059-757-1	01	1	1205-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (F)	8-98059-755-0	01	1	1205-	●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22131-584-0	01	1	0906-1204		●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22131-584-0	01	1	1205-1301	●	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C)	1-22131-584-0	01	1	1302-1309		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	1-22131-584-0	01	1	1302-1309	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C)	8-98245-522-0	01	1	1310-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98245-522-0	01	1	1310-	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98059-729-0	01	1	0906-		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-824-1	01	1	0906-1204		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-824-1	01	1	1205-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (D)	8-98059-758-0	01	1	0906-1301		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (E)	8-98233-506-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (D)	8-98059-754-0	01	1	0906-1301		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (F)	8-98233-508-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) (C)	8-97645-579-1	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) (F)	8-98234-144-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (D)	8-98233-509-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) (E)	8-98191-048-0	01	1	1205-	●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	0906-1204		●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	1205-	●	●
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	0906-1204		●
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	1205-	●	●
60	BRACKET; FRAME TO BRKT (D)	8-98059-753-1	01	1	0906-1204		●
60	BRACKET; FRAME TO BRKT (D)	8-98059-753-1	01	1	1205-1301		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (D)	8-98059-753-1	01	1	1205-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (D)	8-98059-753-1	01	1	1302-1309	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (D)	8-98245-530-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	0906-1204		●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	1205-1301	●	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C)	8-98070-640-0	01	1	1302-1309		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98070-640-0	01	1	1302-1309	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C)	8-98245-521-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98245-521-0	01	1	1310-	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0906-0906		●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-1204		●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1205-	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0906-1204		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0906-1204		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0906-1204		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1205-	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1205-	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1205-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0906-1204		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1205-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1204		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1204		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1204		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1205-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1205-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1205-	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	0906-1204		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	1205-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0906-0907		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1004-1005		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1205-1301	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-0907		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-0907		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-0907		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1004-1005		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1004-1005		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1004-1005		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0906-1204		●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0906-1204		●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1205-	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1205-	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1205-	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1205-	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0906-1204		●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0906-1204		●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1205-	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1205-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1205-	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0906-1204		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0906-1204		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0906-1204		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1205-	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1205-	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1205-	●	●
126	PIPE; EXH,RR WHEEL BASE 3700MM(37W)	8-98234-296-1	01	1	1302-		●
126	PIPE; EXH,RR WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W)	8-97645-571-0	01	1	1302-		●
126	PIPE; EXH,RR	8-98043-365-2	01	1	0906-1204		●
126	PIPE; EXH,RR	8-98043-365-2	01	1	1205-1301	●	●
126	PIPE; EXH,RR	8-98043-365-2	01	1	1302-1309	●
126	PIPE; EXH,RR	8-98245-503-0	01	1	1310-	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-1204		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-1204		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-1204		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1205-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1205-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1205-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-1204		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-1204		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-1204		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1205-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1205-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1205-	●	●

22 236 49 84 318 571 2 52 571 36 1 1 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (D)	8-98208-160-0	01	1	1205-1303	●
1	PIPE; EXH (D)	8-98243-546-0	01	1	1304-	●
1	PIPE; EXH (E)	8-98198-849-0	01	1	1205-	●
1	PIPE; EXH (C)	1-22123-882-1	01	1	0906-		●
1	PIPE; EXH (B)	8-98056-495-1	01	1	0906-1209		●
1	PIPE; EXH (B)	8-98220-314-0	01	1	1210-1301		●
1	PIPE; EXH (B)	8-98234-517-0	01	1	1302-		●
1	PIPE; EXH (A)	8-98120-560-0	01	1	0906-1209		●
1	PIPE; EXH (A)	8-98215-406-0	01	1	1210-		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97381-455-0	01	1	1205-	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=81	8-98043-481-0	01	1	0906-		●
5	PROTECTOR; HEAT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98044-122-0	01	1	1205-	●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0906-1204		●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	1205-	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0906-1204		●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	1205-	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0906-1204		●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	1205-	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0906-1204		●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	1205-	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0906-1204		●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	1205-	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0906-1204		●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	1205-	●	●
6	BOLT; HEAT PROTECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE	0-28650-825-0	02	1	1205-	●
22	CLAMP; EXH PIPE WHEEL BASE 3700MM(37W) (C) ID=94-98	1-22133-237-0	02	1	1302-		●
22	CLAMP; EXH PIPE (B)	1-22133-295-0	01	1	1205-1309	●
22	CLAMP; EXH PIPE (B)	8-97646-674-0	01	1	1310-	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0906-1204		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0906-1204		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1205-1301	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1205-1301	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1302-	●	●
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (A) ID=80-84	1-22133-233-0	02	1	1302-		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1302-	●
36	NUT; EXH PIPE (D) M10 FLANGE	8-97096-192-1	03	1	1205-	●
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	0906-1204		●
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	1205-	●	●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0906-		●
36	NUT; EXH PIPE (C) M12	1-09400-010-0	03	1	0906-		●
49	BRACKET; EXH PIPE TO TRANS (C)	8-98042-786-0	01	1	1205-1301	●
49	BRACKET; EXH PIPE TO TRANS (C)	8-98234-530-0	01	1	1302-	●
49	BRACKET; EXH PIPE TO TRANS MLD6W M/T(Y2C) (B)	8-98113-008-0	01	1	0906-		●
49	BRACKET; EXH PIPE TO TRANS MZW6P M/T(RSZ) (A)	8-98122-671-0	01	1	0906-		●
52	NUT; BRKT (B) M12 FLANGE	0-91180-212-0	04	1	1205-	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	06	1	0906-1204		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	06	1	1205-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1205-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1205-		●
84	GASKET; EXH PIPE (C) ID=64	8-97373-108-0	02	1	1205-	●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0906-		●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	0906-1204		●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1205-	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	02	1	0906-		●
236	BOLT; PIPE CLAMP TO BRKT M10X30 FLANGE	0-28051-030-0	02	1	1205-	●
236	BOLT; PIPE CLAMP TO BRKT M10X35 FLANGE	0-28051-035-0	02	1	0906-1301		●
318	NUT; EXH PIPE,FRT M8 W/LK WASHER	8-97581-234-0	04	1	1205-	●
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	0906-		●
571	GASKET (C) ID=64	8-97373-108-0	02	1	1205-	●
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	0906-		●
571	GASKET (B) ID=81	8-98043-481-0	01	1	0906-		●

509 236 65 8 44 1 36 34 2 1 571 36 17 571 571 52 318 84 36 1 46 49 46 8 49 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (D)	8-98208-160-0	01	1	1205-1303	●
1	PIPE; EXH (D)	8-98243-546-0	01	1	1304-	●
1	PIPE; EXH (E)	8-98198-849-0	01	1	1205-	●
1	PIPE; EXH (C)	1-22123-882-1	01	1	0906-		●
1	PIPE; EXH (B)	8-98056-495-1	01	1	0906-1209		●
1	PIPE; EXH (B)	8-98220-314-0	01	1	1210-1301		●
1	PIPE; EXH (B)	8-98234-517-0	01	1	1302-		●
1	PIPE; EXH (A)	8-98120-560-0	01	1	0906-1209		●
1	PIPE; EXH (A)	8-98215-406-0	01	1	1210-		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97381-455-0	01	1	1205-	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=81	8-98043-481-0	01	1	0906-		●
8	BRACKET; EXH PIPE MLD6W M/T(Y2C) (A)	8-98233-349-0	01	1	1302-		●
8	BRACKET; EXH PIPE (A)	8-98089-801-0	01	1	0906-1301		●
8	BRACKET; EXH PIPE MZW6P M/T(RSZ) (A)	8-98233-346-0	01	1	1302-		●
8	BRACKET; EXH PIPE MLD6W M/T(Y2C) (B)	8-98114-389-0	01	1	0906-1301		●
8	BRACKET; EXH PIPE MLD6W M/T(Y2C) (B)	8-98233-342-0	01	1	1302-1310		●
8	BRACKET; EXH PIPE MLD6W M/T(Y2C) (B)	8-98259-868-0	01	1	1311-		●
8	BRACKET; EXH PIPE MZW6P M/T(RSZ) (C)	8-98122-675-0	01	1	0906-1301		●
8	BRACKET; EXH PIPE MZW6P M/T(RSZ) (C)	8-98233-340-0	01	1	1302-1310		●
8	BRACKET; EXH PIPE MZW6P M/T(RSZ) (C)	8-98259-862-0	01	1	1311-		●
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE	0-28051-235-0	04	1	1204-1204		●
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE	0-28051-235-0	04	1	1205-	●	●
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	0906-		●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0906-		●
36	NUT; EXH PIPE (D) M10 FLANGE	8-97096-192-1	03	1	1205-	●
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	0906-1204		●
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	1205-	●	●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0906-		●
36	NUT; EXH PIPE (C) M12	1-09400-010-0	03	1	0906-		●
44	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0906-0907		●
44	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0908-		●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	08	1	0906-1204		●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	08	1	1205-	●	●
46	BOLT; BRKT,EXH PIPE M10X30 FLANGE	0-28051-030-0	02	1	0906-		●
49	BRACKET; EXH PIPE TO TRANS (C)	8-98042-786-0	01	1	1205-1301	●
49	BRACKET; EXH PIPE TO TRANS (C)	8-98234-530-0	01	1	1302-	●
49	BRACKET; EXH PIPE TO TRANS MLD6W M/T(Y2C) (B)	8-98113-008-0	01	1	0906-		●
49	BRACKET; EXH PIPE TO TRANS MZW6P M/T(RSZ) (A)	8-98122-671-0	01	1	0906-		●
52	NUT; BRKT (B) M12 FLANGE	0-91180-212-0	04	1	1205-	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	06	1	0906-1204		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	06	1	1205-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1205-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1205-		●
65	WASHER; PL ID=10.5	8-98073-091-0	02	1	0906-		●
84	GASKET; EXH PIPE (C) ID=64	8-97373-108-0	02	1	1205-	●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0906-		●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	0906-1204		●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1205-	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	02	1	0906-		●
236	BOLT; PIPE CLAMP TO BRKT M10X30 FLANGE	0-28051-030-0	02	1	1205-	●
236	BOLT; PIPE CLAMP TO BRKT M10X35 FLANGE	0-28051-035-0	02	1	0906-1301		●
318	NUT; EXH PIPE,FRT M8 W/LK WASHER	8-97581-234-0	04	1	1205-	●
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	0906-		●
509	STUD; BRKT	8-98233-625-0	01	1	1302-1311		●
509	STUD; BRKT	8-98259-983-0	01	1	1312-		●
571	GASKET (C) ID=64	8-97373-108-0	02	1	1205-	●
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	0906-		●
571	GASKET (B) ID=81	8-98043-481-0	01	1	0906-		●

70 121 226 56 62 52 226 107 81 60 81 70 81 121 226 56 44 62 60 226 107 81 12 52 84 44 555 84 36 556 506 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH (B)	8-98041-921-0	01	1	1205-	●
12	SILENCER ASM; EXH (A)	8-98041-924-1	01	1	0906-1301		●
12	SILENCER ASM; EXH (C)	8-98234-506-0	01	1	1302-		●
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE	0-28051-235-0	04	1	1204-1204		●
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE	0-28051-235-0	04	1	1205-	●	●
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	0906-		●
36	NUT; EXH PIPE (D) M10 FLANGE	8-97096-192-1	03	1	1205-	●
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	0906-1204		●
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	1205-	●	●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0906-		●
36	NUT; EXH PIPE (C) M12	1-09400-010-0	03	1	0906-		●
44	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0906-0907		●
44	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0908-		●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	08	1	0906-1204		●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	08	1	1205-	●	●
52	NUT; BRKT (B) M12 FLANGE	0-91180-212-0	04	1	1205-	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	06	1	0906-1204		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	06	1	1205-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1205-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1205-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (C)	8-98234-307-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (E)	8-98074-825-0	01	1	1205-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (G)	8-98059-757-1	01	1	1205-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (F)	8-98059-755-0	01	1	1205-	●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22131-584-0	01	1	0906-1204		●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22131-584-0	01	1	1205-1301	●	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C)	1-22131-584-0	01	1	1302-1309		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	1-22131-584-0	01	1	1302-1309	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C)	8-98245-522-0	01	1	1310-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98245-522-0	01	1	1310-	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98059-729-0	01	1	0906-		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-824-1	01	1	0906-1204		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-824-1	01	1	1205-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (D)	8-98059-758-0	01	1	0906-1301		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (E)	8-98233-506-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (D)	8-98059-754-0	01	1	0906-1301		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (F)	8-98233-508-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) (C)	8-97645-579-1	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) (F)	8-98234-144-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (D)	8-98233-509-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) (E)	8-98191-048-0	01	1	1205-	●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	0906-1204		●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	1205-	●	●
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	0906-1204		●
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	1205-	●	●
60	BRACKET; FRAME TO BRKT (D)	8-98059-753-1	01	1	0906-1204		●
60	BRACKET; FRAME TO BRKT (D)	8-98059-753-1	01	1	1205-1301		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (D)	8-98059-753-1	01	1	1205-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (D)	8-98059-753-1	01	1	1302-1309	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (D)	8-98245-530-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	0906-1204		●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	1205-1301	●	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C)	8-98070-640-0	01	1	1302-1309		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98070-640-0	01	1	1302-1309	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C)	8-98245-521-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98245-521-0	01	1	1310-	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0906-0906		●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-1204		●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1205-	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0906-1204		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0906-1204		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0906-1204		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1205-	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1205-	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1205-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0906-1204		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1205-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1204		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1204		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1204		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1205-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1205-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1205-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0906-0907		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1004-1005		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1205-1301	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-0907		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-0907		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-0907		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1004-1005		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1004-1005		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1004-1005		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
84	GASKET; EXH PIPE (C) ID=64	8-97373-108-0	02	1	1205-	●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0906-		●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	0906-1204		●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1205-	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	02	1	0906-		●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0906-1204		●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0906-1204		●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1205-	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1205-	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0906-1204		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0906-1204		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0906-1204		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1205-	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1205-	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1205-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-1204		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-1204		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-1204		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1205-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1205-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1205-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-1204		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-1204		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-1204		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1205-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1205-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1205-	●	●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	0906-1203		●
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> M12X35	1-22131-963-0	02	1	1204-1204		●
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> M12X35	1-22131-963-0	02	1	1205-	●	●
555	PIPE; EXH,DPD (B)	8-98060-847-0	01	1	1205-	●
555	PIPE; EXH,DPD (A)	8-98073-334-0	01	1	0906-		●
556	DPD ASM	8-97613-331-6	01	1	0906-1010		●
556	DPD ASM	8-97622-883-4	01	1	1011-1204		●
556	DPD ASM	8-97622-883-4	01	1	1205-	●	●

556 467 5 558 5 5 559 5 5 557 550 560 422 423 560 423 534 547 422 5 561 550 561 547 550

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PROTECTOR; HEAT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98044-122-0	01	1	1205-	●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0906-1204		●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	1205-	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0906-1204		●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	1205-	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0906-1204		●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	1205-	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0906-1204		●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	1205-	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0906-1204		●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	1205-	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0906-1204		●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	1205-	●	●
422	NUT; PIPE M8 FLANGE	0-91180-108-0	20	1	0906-1204		●
422	NUT; PIPE M8 FLANGE	0-91180-108-0	20	1	1205-	●	●
423	BOLT; PIPE M8X35 FLANGE	0-28650-835-0	20	1	0906-1204		●
423	BOLT; PIPE M8X35 FLANGE	0-28650-835-0	20	1	1205-	●	●
467	BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0906-1204		●
467	BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	1205-	●	●
534	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	0906-1204		●
534	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	1205-	●	●
547	CLIP; PIPE (A)	8-97381-635-0	03	1	0906-1204		●
547	CLIP; PIPE (A)	8-97381-635-0	03	1	1205-	●	●
547	CLIP; PIPE (B)	8-97381-636-0	03	1	0906-1204		●
547	CLIP; PIPE (B)	8-97381-636-0	03	1	1205-	●	●
550	BRACKET; DPD (A)	8-97611-083-0	01	1	0906-1204		●
550	BRACKET; DPD (A)	8-97611-083-0	01	1	1205-	●	●
550	BRACKET; DPD (B)	8-97611-084-0	01	1	0906-1204		●
550	BRACKET; DPD (B)	8-97611-084-0	01	1	1205-	●	●
550	BRACKET; DPD (C)	8-97611-085-0	01	1	0906-1204		●
550	BRACKET; DPD (C)	8-97611-085-0	01	1	1205-	●	●
556	DPD ASM	8-97613-331-6	01	1	0906-1010		●
556	DPD ASM	8-97622-883-4	01	1	1011-1204		●
556	DPD ASM	8-97622-883-4	01	1	1205-	●	●
557	CATALYST ASM	8-97608-055-8	01	1	0906-1204		●
557	CATALYST ASM	8-97608-055-8	01	1	1205-	●	●
558	FILTER ASM	8-97608-057-3	01	1	0906-1204		●
558	FILTER ASM	8-97608-057-3	01	1	1205-	●	●
559	COVER; RR	8-97611-078-0	01	1	0906-1010		●
559	COVER; RR	8-97622-887-0	01	1	1011-1204		●
559	COVER; RR	8-97622-887-0	01	1	1205-	●	●
560	GASKET; DPD	8-97611-080-0	02	1	0906-1204		●
560	GASKET; DPD	8-97611-080-0	02	1	1205-	●	●
561	PIPE; DPD (A)	8-97611-081-0	01	1	0906-1010		●
561	PIPE; DPD (A)	8-97622-888-0	01	1	1011-1204		●
561	PIPE; DPD (A)	8-97622-888-0	01	1	1205-	●	●
561	PIPE; DPD (B)	8-97611-082-0	01	1	0906-1010		●
561	PIPE; DPD (B)	8-97622-889-0	01	1	1011-1204		●
561	PIPE; DPD (B)	8-97622-889-0	01	1	1205-	●	●

81 75 62 56 75 60 81 94 107 22 70 81 118 60 107 118 105 22 107 60 121 226 62 56 81 226 226 226 62 105 56 94 126 70 22 22 94 121 22 70 105 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLAMP; EXH PIPE WHEEL BASE 3700MM(37W) (C) ID=94-98	1-22133-237-0	02	1	1302-		●
22	CLAMP; EXH PIPE (B)	1-22133-295-0	01	1	1205-1309	●
22	CLAMP; EXH PIPE (B)	8-97646-674-0	01	1	1310-	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0906-1204		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0906-1204		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1205-1301	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1205-1301	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1302-	●	●
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (A) ID=80-84	1-22133-233-0	02	1	1302-		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (C)	8-98234-307-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (E)	8-98074-825-0	01	1	1205-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (G)	8-98059-757-1	01	1	1205-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (F)	8-98059-755-0	01	1	1205-	●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22131-584-0	01	1	0906-1204		●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22131-584-0	01	1	1205-1301	●	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C)	1-22131-584-0	01	1	1302-1309		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	1-22131-584-0	01	1	1302-1309	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C)	8-98245-522-0	01	1	1310-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98245-522-0	01	1	1310-	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98059-729-0	01	1	0906-		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-824-1	01	1	0906-1204		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-824-1	01	1	1205-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (D)	8-98059-758-0	01	1	0906-1301		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (E)	8-98233-506-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (D)	8-98059-754-0	01	1	0906-1301		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (F)	8-98233-508-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) (C)	8-97645-579-1	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) (F)	8-98234-144-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (D)	8-98233-509-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) (E)	8-98191-048-0	01	1	1205-	●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	0906-1204		●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	1205-	●	●
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	0906-1204		●
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	1205-	●	●
60	BRACKET; FRAME TO BRKT (D)	8-98059-753-1	01	1	0906-1204		●
60	BRACKET; FRAME TO BRKT (D)	8-98059-753-1	01	1	1205-1301		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (D)	8-98059-753-1	01	1	1205-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (D)	8-98059-753-1	01	1	1302-1309	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (D)	8-98245-530-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	0906-1204		●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	1205-1301	●	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C)	8-98070-640-0	01	1	1302-1309		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98070-640-0	01	1	1302-1309	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C)	8-98245-521-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98245-521-0	01	1	1310-	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0906-0906		●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-1204		●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1205-	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0906-1204		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0906-1204		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0906-1204		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1205-	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1205-	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1205-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0906-1204		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1205-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1204		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1204		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1204		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1205-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1205-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1205-	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	0906-1204		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	1205-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0906-0907		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1004-1005		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1205-1301	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-0907		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-0907		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-0907		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1003		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1004-1005		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1004-1005		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1004-1005		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1204		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0906-1204		●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0906-1204		●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1205-	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1205-	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1205-	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1205-	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0906-1204		●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0906-1204		●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1205-	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1205-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0906-1204		●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1205-	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0906-1204		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0906-1204		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0906-1204		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1205-	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1205-	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1205-	●	●
126	PIPE; EXH,RR WHEEL BASE 3700MM(37W)	8-98234-296-1	01	1	1302-		●
126	PIPE; EXH,RR WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W)	8-97645-571-0	01	1	1302-		●
126	PIPE; EXH,RR	8-98043-365-2	01	1	0906-1204		●
126	PIPE; EXH,RR	8-98043-365-2	01	1	1205-1301	●	●
126	PIPE; EXH,RR	8-98043-365-2	01	1	1302-1309	●
126	PIPE; EXH,RR	8-98245-503-0	01	1	1310-	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-1204		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-1204		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-1204		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1205-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1205-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1205-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-1204		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-1204		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-1204		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1205-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1205-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1205-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
