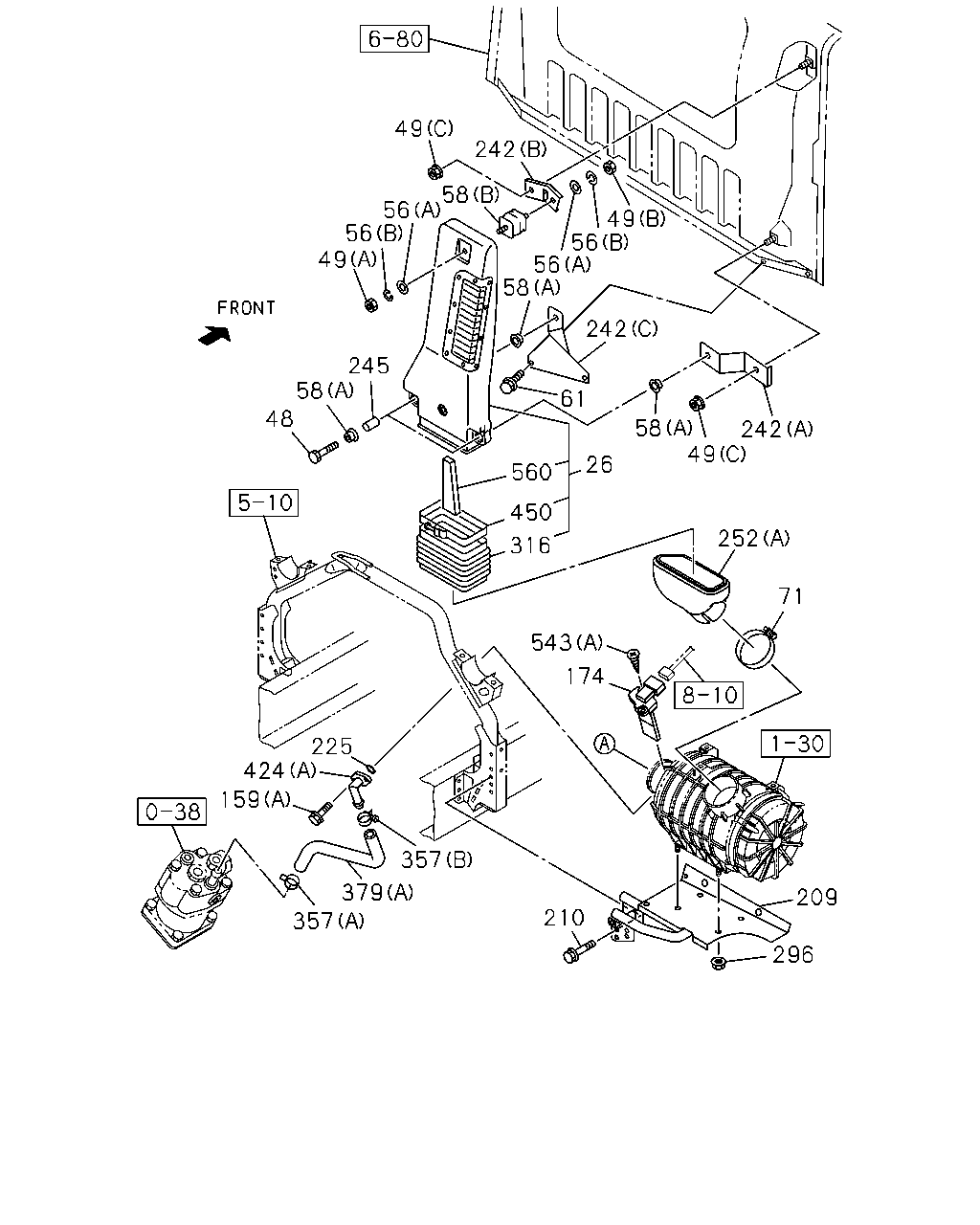

1-31 — AIR DUCT (#17311) — 201 parça

49 242 58 56 56 49 49 56 56 58 242 245 61 58 242 49 48 58 26 560 450 252 316 71 543 174 225 424 159 357 379 209 210 357 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	DUCT; AIR INT	8-98010-361-2	01	1	0906-1204	●
26	DUCT; AIR INT	8-98010-361-2	01	1	1205-	●	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	0906-1204	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	1205-	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0906-1204	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1205-	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0906-1204	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1205-	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	0906-1204	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	1205-	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0906-1204	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1205-	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0906-1204	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1205-	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0906-1204	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1205-	●	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	0906-1204	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1205-	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0906-1204	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1205-	●	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	0906-1204	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1205-	●	●
159	BOLT; AIR PIPE (B) M8X25 FLANGE	0-28650-825-0	01	1	1205-		●
159	BOLT; AIR PIPE (A) M6X16 FLANGE	0-28050-616-0	02	1	0906-1204	●
159	BOLT; AIR PIPE (A) M6X16 FLANGE	0-28050-616-0	02	1	1205-	●	●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0906-1204	●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1205-	●	●
209	BRACKET; ACL	8-98010-343-4	01	1	0906-1204	●
209	BRACKET; ACL	8-98010-343-4	01	1	1205-	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	0906-1204	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	1205-	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0906-1204	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1205-	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0906-1204	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1205-	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	0906-1204	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	1205-	●	●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	0906-1204	●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	1205-	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0906-1204	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1205-	●	●
252	DUCT; AIR INT (B)	8-98207-266-0	01	1	1205-		●
252	DUCT; AIR INT (A)	8-98010-639-1	01	1	0906-	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0906-1204	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1205-	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	0908-1204	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1205-	●	●
357	CLIP; RUBBER HOSE (D) ID=24	8-98025-921-0	02	1	1205-		●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1205-		●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (E) ID=65-85	8-98133-350-0	01	1	1205-		●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1205-		●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (E) ID=68-85	8-98096-592-0	01	1	1205-		●
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	0906-	●
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	0906-	●
379	HOSE; RUBBER (B)	8-98062-621-1	01	1	1205-		●
379	HOSE; RUBBER (A)	8-98063-173-0	01	1	0906-	●
424	PIPE; AIR,INL (B)	8-98081-835-0	01	1	1205-		●
424	PIPE; AIR,INL (A)	8-98081-834-0	01	1	0906-	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0906-1204	●
450	CLAMP; HOSE	9-09915-504-1	01	1	1205-	●	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1205-		●
543	SCREW; SENSOR (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0906-1204	●
543	SCREW; SENSOR (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1205-	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0906-1204	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1205-	●	●

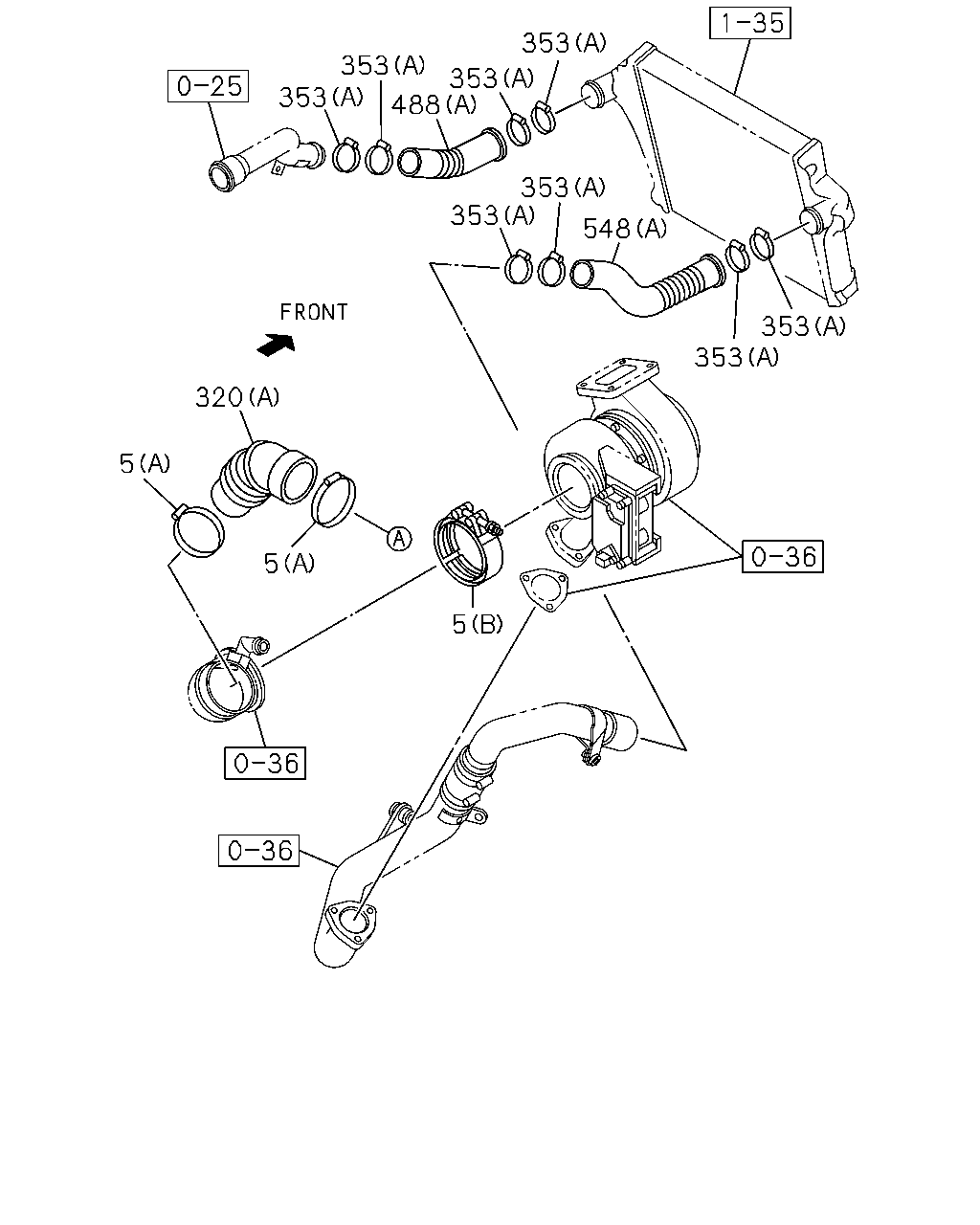

353 353 353 353 488 353 353 548 353 353 320 5 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1205-		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1205-		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-	●
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	0906-	●
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	01	1	0906-1001	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (A) ID=100-120	8-98133-366-0	01	1	0906-1001	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=100-120	8-98133-366-0	01	1	1002-	●
320	HOSE; CONN,ACL (B)	8-98010-643-3	01	1	1205-		●
320	HOSE; CONN,ACL (A)	8-98010-645-2	01	1	0906-	●
353	CLIP; RUBBER HOSE (B) ID=60-65	8-98096-418-0	02	1	1205-		●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (A) ID=55-75	8-98133-349-0	02	1	1205-		●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (A) ID=58-79	1-09707-136-0	02	1	1205-		●
353	CLIP; RUBBER HOSE FSR AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> (A) ID=58-79	1-09707-136-0	08	1	1002-	●
353	CLIP; RUBBER HOSE (A) ID=55-75	8-98133-349-0	08	1	0906-1001	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (A) ID=55-75	8-98133-349-0	08	1	1002-	●
488	HOSE; RUBBER,PIPE (B)	8-98010-723-0	01	1	1205-		●
488	HOSE; RUBBER,PIPE (A)	8-98013-914-0	01	1	0906-	●
548	HOSE; RUBBER,TURBO TO INL PIPE (C)	8-98061-809-1	01	1	1205-		●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98061-810-0	01	1	1205-		●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98065-042-0	01	1	0906-	●

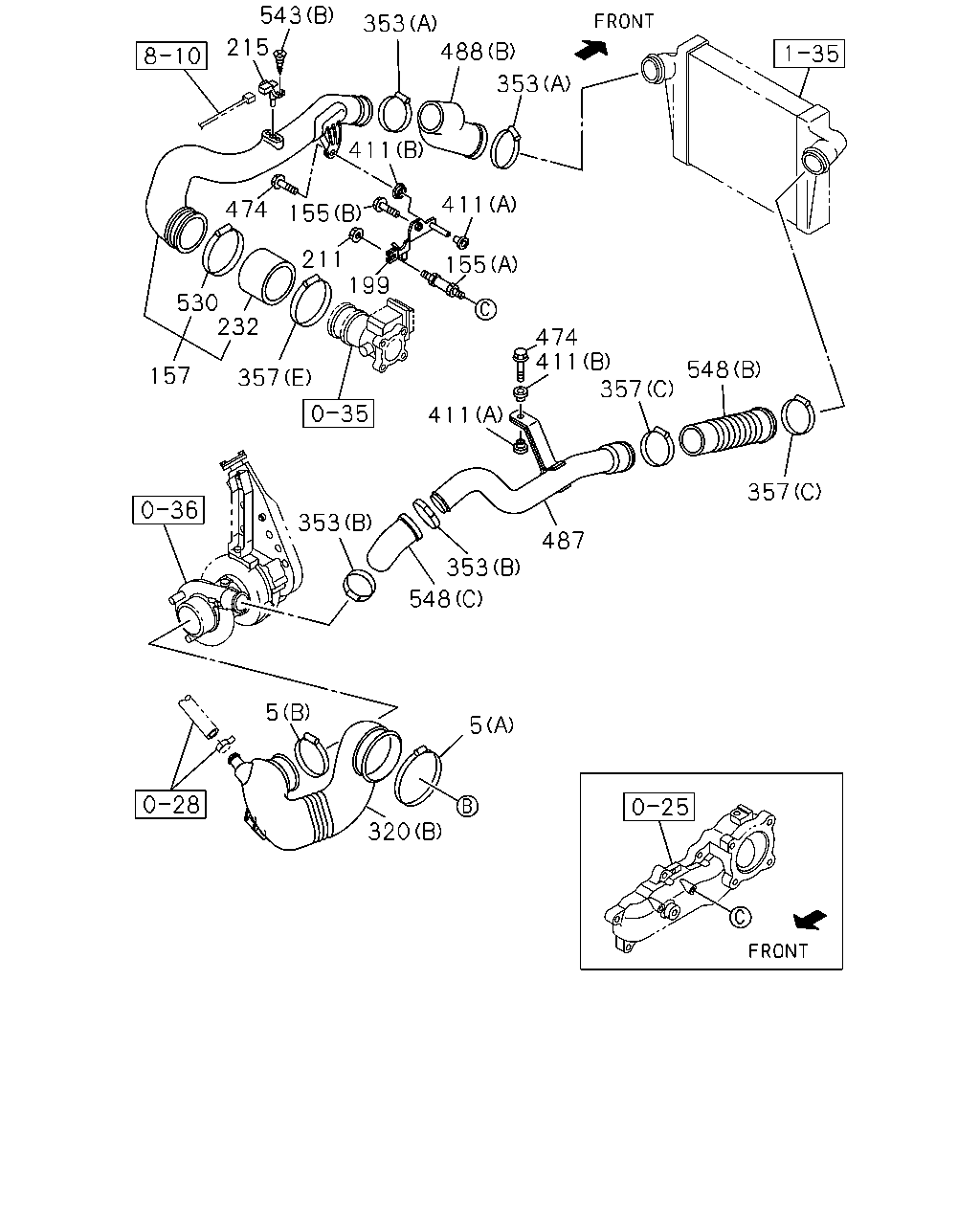

543 353 488 215 353 411 411 474 155 155 211 199 530 232 474 411 357 548 157 357 411 357 353 487 353 548 5 5 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1205-		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1205-		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-	●
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	0906-	●
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	01	1	0906-1001	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (A) ID=100-120	8-98133-366-0	01	1	0906-1001	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=100-120	8-98133-366-0	01	1	1002-	●
155	BOLT; BRKT (B) M10X110 FLANGE	0-28156-011-0	01	1	1205-		●
155	BOLT; BRKT (A) M10X17,M10X30 L=105	8-97233-428-0	01	1	1205-		●
157	PIPE; AIR	8-98096-274-1	01	1	1205-		●
199	BRACKET; PIPE	8-98109-137-1	01	1	1205-1403		●
199	BRACKET; PIPE	8-98252-223-0	01	1	1404-		●
211	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1205-		●
215	SENSOR; MAP	8-98009-418-0	01	1	1205-		●
232	HOSE; CONN	8-98128-293-0	01	1	1205-		●
320	HOSE; CONN,ACL (B)	8-98010-643-3	01	1	1205-		●
320	HOSE; CONN,ACL (A)	8-98010-645-2	01	1	0906-	●
353	CLIP; RUBBER HOSE (B) ID=60-65	8-98096-418-0	02	1	1205-		●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (A) ID=55-75	8-98133-349-0	02	1	1205-		●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (A) ID=58-79	1-09707-136-0	02	1	1205-		●
353	CLIP; RUBBER HOSE FSR AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> (A) ID=58-79	1-09707-136-0	08	1	1002-	●
353	CLIP; RUBBER HOSE (A) ID=55-75	8-98133-349-0	08	1	0906-1001	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (A) ID=55-75	8-98133-349-0	08	1	1002-	●
357	CLIP; RUBBER HOSE (D) ID=24	8-98025-921-0	02	1	1205-		●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1205-		●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (E) ID=65-85	8-98133-350-0	01	1	1205-		●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1205-		●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (E) ID=68-85	8-98096-592-0	01	1	1205-		●
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	0906-	●
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	0906-	●
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	1205-		●
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	1205-		●
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	1205-		●
487	PIPE; TURBO TO CHARGE AIR COOLER	8-98038-759-3	01	1	1205-		●
488	HOSE; RUBBER,PIPE (B)	8-98010-723-0	01	1	1205-		●
488	HOSE; RUBBER,PIPE (A)	8-98013-914-0	01	1	0906-	●
530	CLAMP; AIR DUCT ID=65-85	8-98133-350-0	01	1	1205-		●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1205-		●
543	SCREW; SENSOR (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0906-1204	●
543	SCREW; SENSOR (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1205-	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE (C)	8-98061-809-1	01	1	1205-		●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98061-810-0	01	1	1205-		●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98065-042-0	01	1	0906-	●

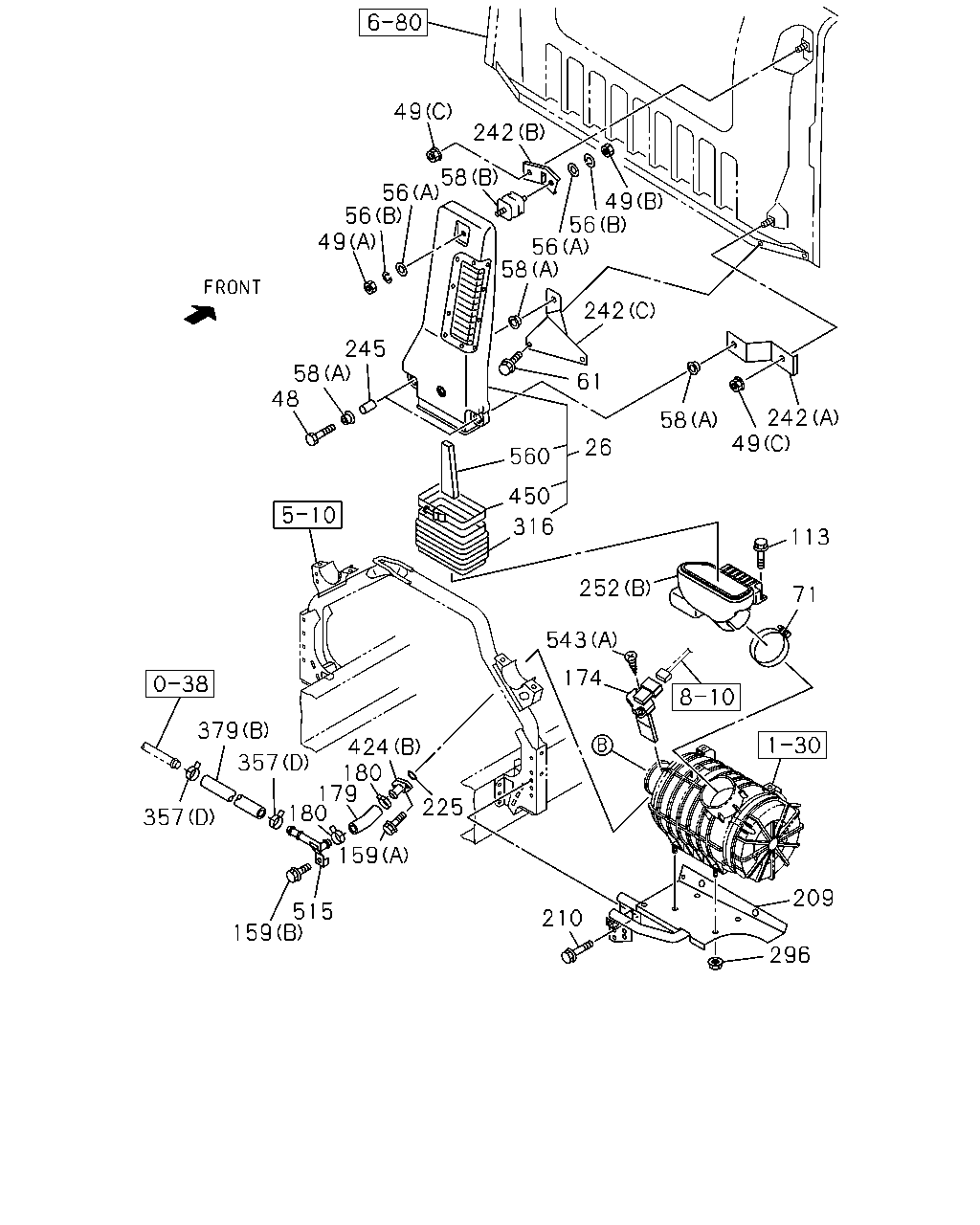

49 242 58 56 56 49 49 56 56 58 242 245 61 58 48 242 49 58 26 560 450 316 113 252 71 543 174 379 357 424 180 179 180 225 357 159 209 515 159 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	DUCT; AIR INT	8-98010-361-2	01	1	0906-1204	●
26	DUCT; AIR INT	8-98010-361-2	01	1	1205-	●	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	0906-1204	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	1205-	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0906-1204	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1205-	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0906-1204	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1205-	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	0906-1204	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	1205-	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0906-1204	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1205-	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0906-1204	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1205-	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0906-1204	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1205-	●	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	0906-1204	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1205-	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0906-1204	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1205-	●	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	0906-1204	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1205-	●	●
113	BOLT; RESONATOR M6X16 W/PL WASHER	8-98094-071-0	03	1	1205-		●
159	BOLT; AIR PIPE (B) M8X25 FLANGE	0-28650-825-0	01	1	1205-		●
159	BOLT; AIR PIPE (A) M6X16 FLANGE	0-28050-616-0	02	1	0906-1204	●
159	BOLT; AIR PIPE (A) M6X16 FLANGE	0-28050-616-0	02	1	1205-	●	●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0906-1204	●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1205-	●	●
179	HOSE; AIR INT	8-98063-233-0	01	1	1205-		●
180	CLIP; AIR INT HOSE ID=24	8-98025-921-0	02	1	1205-		●
209	BRACKET; ACL	8-98010-343-4	01	1	0906-1204	●
209	BRACKET; ACL	8-98010-343-4	01	1	1205-	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	0906-1204	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	1205-	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0906-1204	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1205-	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0906-1204	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1205-	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	0906-1204	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	1205-	●	●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	0906-1204	●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	1205-	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0906-1204	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1205-	●	●
252	DUCT; AIR INT (B)	8-98207-266-0	01	1	1205-		●
252	DUCT; AIR INT (A)	8-98010-639-1	01	1	0906-	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0906-1204	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1205-	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	0908-1204	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1205-	●	●
357	CLIP; RUBBER HOSE (D) ID=24	8-98025-921-0	02	1	1205-		●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1205-		●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (E) ID=65-85	8-98133-350-0	01	1	1205-		●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1205-		●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (E) ID=68-85	8-98096-592-0	01	1	1205-		●
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	0906-	●
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	0906-	●
379	HOSE; RUBBER (B)	8-98062-621-1	01	1	1205-		●
379	HOSE; RUBBER (A)	8-98063-173-0	01	1	0906-	●
424	PIPE; AIR,INL (B)	8-98081-835-0	01	1	1205-		●
424	PIPE; AIR,INL (A)	8-98081-834-0	01	1	0906-	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0906-1204	●
450	CLAMP; HOSE	9-09915-504-1	01	1	1205-	●	●
515	PIPE; AIR,SUCTION	8-98061-569-1	01	1	1205-		●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1205-		●
543	SCREW; SENSOR (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0906-1204	●
543	SCREW; SENSOR (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1205-	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0906-1204	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1205-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
