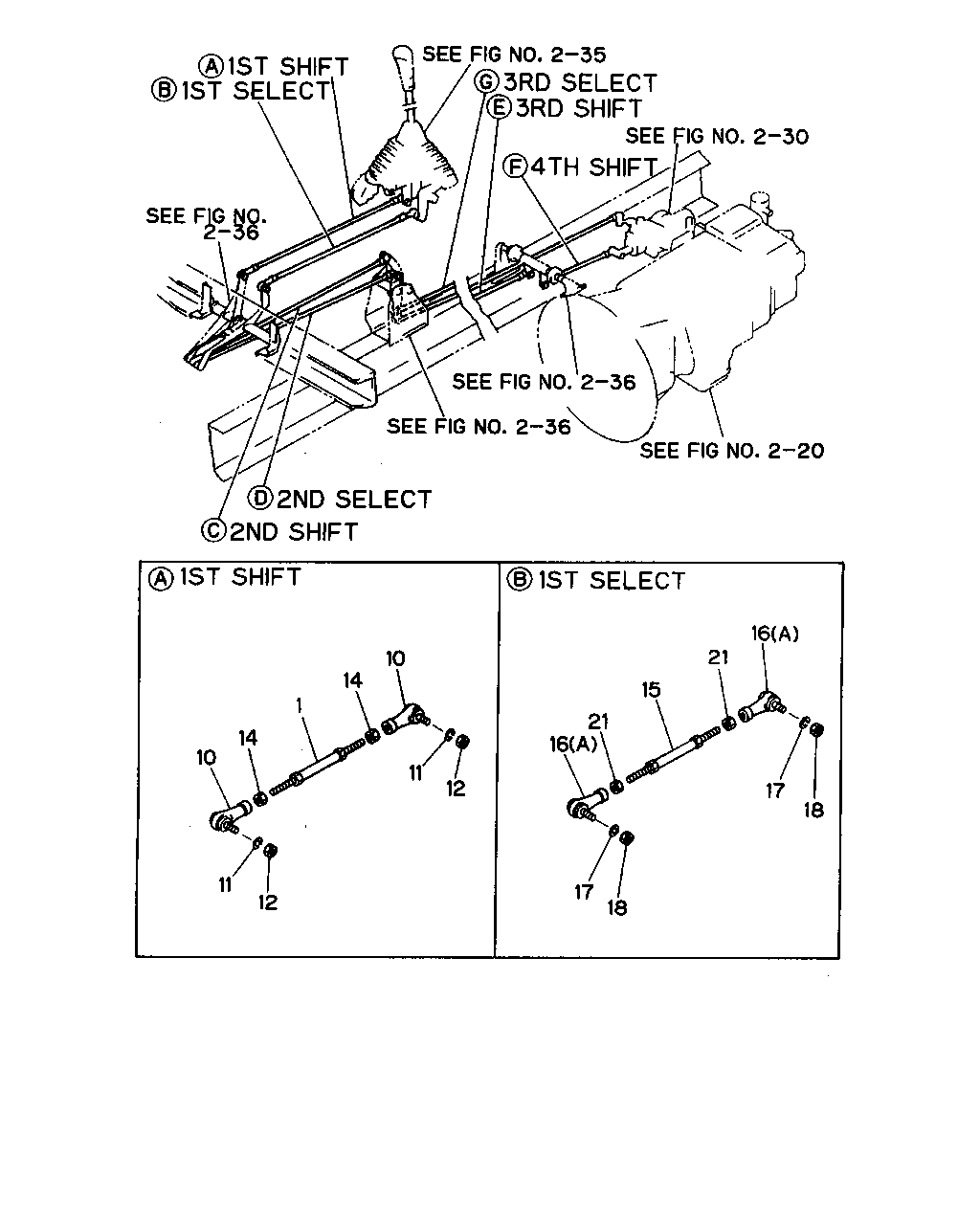

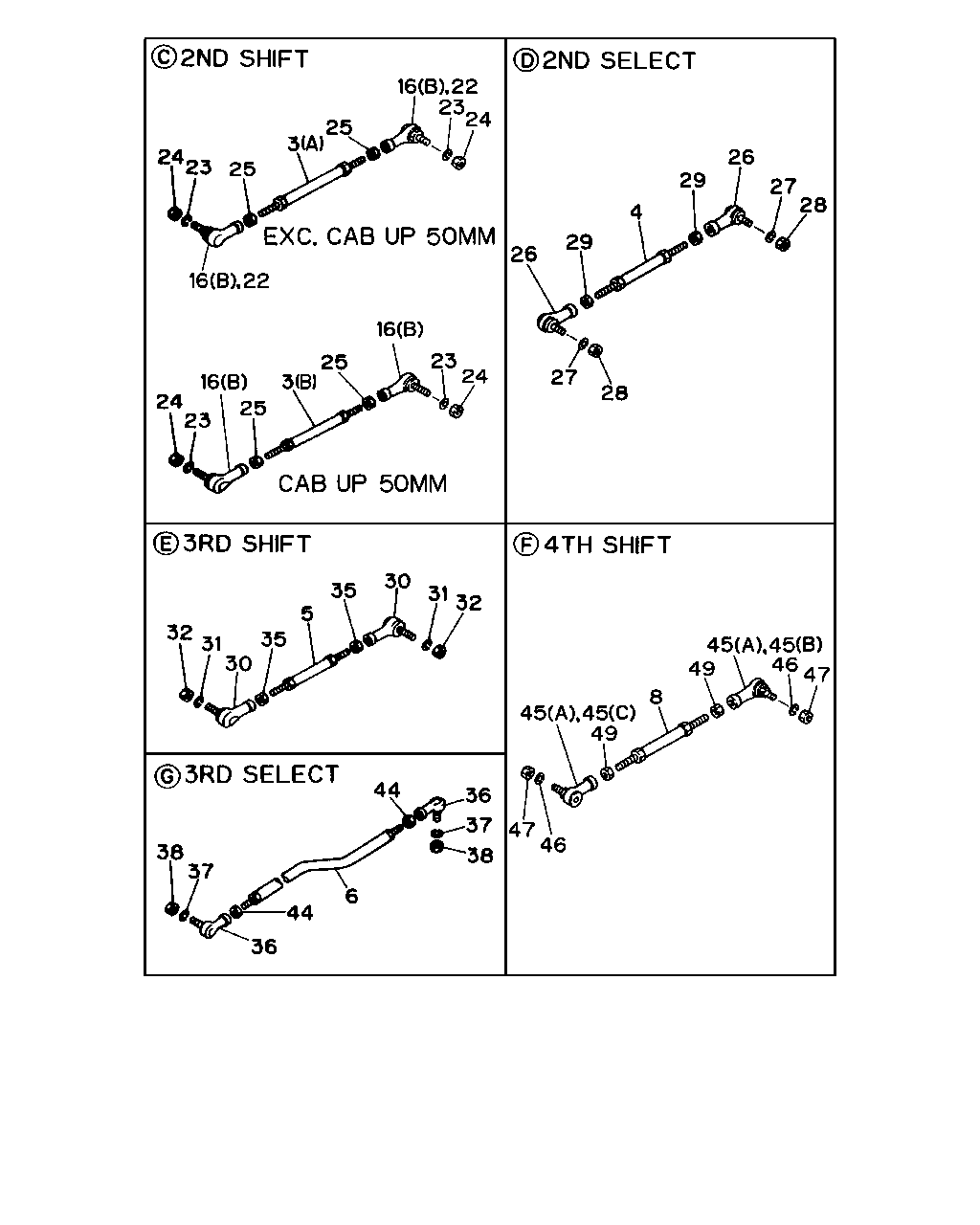

2-37B — MANUAL TRANSMISSION CONT; MISSION SIDE (#1731) — 77 parça

24 23 25 3 25 16 22 23 24 22 16 24 16 23 3 25 25 16 23 24 26 29 4 29 26 27 28 28 27 32 31 30 35 5 35 30 31 32 38 37 36 6 44 44 36 37 38 46 47 49 45 45 8 49 45 45 46 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	ROD; LINK,2ND SHIFT 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) EXC. CAB UP 50MM(W60) (A) L=595	1-33652-568-0	01	1	9002-	●	●	●	●
3	ROD; LINK,2ND SHIFT CAB UP 50MM(W60) (B) L=580	1-33652-416-0	01	1	9002-	●				●	●
3	ROD; LINK,2ND SHIFT 6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. CAB UP 50MM(W60) (A) L=588	1-33652-567-1	01	1	9002-	●				●	●
4	ROD; LINK,2ND SELECT 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=585	1-33652-320-0	01	1	9002-9409	●	●	●	●
4	ROD; LINK,2ND SELECT 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=585	1-33652-320-0	01	1	9410-	●	●	●	●
4	ROD; LINK,2ND SELECT 6RB1TC ENG(30L) CAB UP 50MM(W60) L=585	1-33652-320-0	01	1	9410-	●				●	●
4	ROD; LINK,2ND SELECT 6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. CAB UP 50MM(W60) L=668	1-33652-339-2	01	1	9002-	●				●	●
4	ROD; LINK,2ND SELECT 6RB1TC ENG(30L) CAB UP 50MM(W60) L=580	1-33652-381-0	01	1	9002-9409	●				●	●
5	ROD; LINK,3RD SHIFT 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) L=1300	1-33652-342-0	01	1	9002-9306	●	●	●	●	●	●
5	ROD; LINK,3RD SHIFT 8PD1 STD ENG(38L),10PD1 STD ENG(40L) L=855	1-33652-321-0	01	1	9002-	●	●		●
5	ROD; LINK,3RD SHIFT 12PD1 STD ENG(42L) L=950	1-33652-325-0	01	1	9002-9306	●	●
5	ROD; LINK,3RD SHIFT 6RB1TC ENG(30L) L=1300	1-33652-342-0	01	1	9307-	●				●
6	ROD; LINK,3RD SELECT 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) L=1635	1-33652-425-2	01	1	9002-	●	●	●	●	●	●
6	ROD; LINK,3RD SELECT 12PD1 STD ENG(42L) L=1535	1-33652-395-0	01	1	9002-9306	●	●
6	ROD; LINK,3RD SELECT 8PD1 STD ENG(38L),10PD1 STD ENG(40L) L=1440	1-33652-340-0	01	1	9002-	●	●		●
8	ROD; LINK,4TH SHIFT 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) L=303	1-33652-433-1	01	1	9002-	●	●	●	●	●	●
8	ROD; LINK,4TH SHIFT 8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) L=530	1-33652-394-1	01	1	9002-	●	●		●
16	JOINT ASM; BALL,CONT ROD (A) L=48	1-09760-038-1	02	1	9002-	●	●	●	●	●	●
16	JOINT ASM; BALL,CONT ROD 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STDENG(42L) EXC. CAB UP 50MM(W60) (B)	1-09760-078-0	02	1	9002-	●	●	●	●
16	JOINT ASM; BALL,CONT ROD CAB UP 50MM(W60) (B)	1-09760-078-0	02	1	9002-	●				●	●
22	JOINT; BALL,SCREW,LINK ROD 6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. CAB UP 50MM(W60)	1-09760-082-0	02	1	9002-	●				●	●
23	WASHER; LK,2ND LINK ROD ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●	●	●	●
24	NUT; 2ND LINK ROD,SHIFT M10	9-09110-410-0	02	1	9002-9301	●	●	●	●	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9302-	●	●	●	●	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) M10	9-09111-410-0	02	1	9002-	●	●	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6RB1TC ENG(30L) CAB UP 50MM(W60) M10	9-09111-410-0	02	1	9002-	●				●	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. CAB UP 50MM(W60) M12	9-99111-412-0	02	1	9002-	●				●	●
26	JOINT; BALL,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=48	1-09760-038-1	02	1	9002-	●	●	●	●
26	JOINT; BALL,RIGHT SCREW,LINK ROD 6RB1TC ENG(30L) CAB UP 50MM(W60) L=48	1-09760-038-1	02	1	9002-	●				●	●
26	JOINT; BALL,RIGHT SCREW,LINK ROD 6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. CAB UP 50MM(W60) RH THREAD	1-09760-039-1	02	1	9002-	●				●	●
27	WASHER; LK,2ND LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9301	●	●	●	●	●	●
28	NUT; 2ND LINK ROD M8	9-09110-408-0	02	1	9002-9301	●	●	●	●	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-049-0	02	1	9302-	●	●	●	●	●	●
29	NUT; LK,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) M8	9-09111-408-0	02	1	9002-	●	●	●	●
29	NUT; LK,RIGHT SCREW,LINK ROD 6RB1TC ENG(30L) CAB UP 50MM(W60) M8	9-09111-408-0	02	1	9002-	●				●	●
29	NUT; LK,RIGHT SCREW,LINK ROD 6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. CAB UP 50MM(W60) M8	9-09111-510-0	02	1	9002-9306	●				●	●
29	NUT; LK,RIGHT SCREW,LINK ROD 6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. CAB UP 50MM(W60) M8	9-09111-410-0	02	1	9307-	●				●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-078-0	02	1	9002-	●	●	●	●	●	●
31	WASHER; LK,3RD LINK ROD ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●	●	●	●
31	WASHER; LK,3RD LINK ROD 12PD1 STD ENG(42L) ID=10.2	9-09150-510-0	02	1	9002-9301	●	●
31	WASHER; LK,3RD LINK ROD 12PD1 STD ENG(42L) ID=10.2	9-09150-510-0	02	1	9302-9306	●	●
32	NUT; 3RD LINK ROD M10	9-09110-410-0	02	1	9002-9301	●	●	●	●	●	●
32	NUT; 3RD LINK ROD M10	1-09440-050-0	02	1	9302-	●	●	●	●	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-	●	●	●	●	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD 12PD1 STD ENG(42L) M10	9-09110-410-0	02	1	9002-9306	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD L=48	1-09760-038-1	02	1	9002-9212	●	●	●	●	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD L=48	1-09760-038-1	02	1	9301-	●	●	●	●	●	●
37	WASHER; LK,3RD LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9301	●	●	●	●	●	●
38	NUT; 3RD LINK ROD M8	9-09110-408-0	02	1	9002-9301	●	●	●	●	●	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-049-0	02	1	9302-	●	●	●	●	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-508-0	02	1	9002-9212	●	●	●	●	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-508-0	02	1	9301-9306	●	●	●	●	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9307-	●			●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) (A)	1-09760-078-0	02	1	9002-9501	●	●		●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 8PD1 STD ENG(38L),10PD1 STD ENG(40L) (A)	1-09760-078-0	02	1	9502-	●			●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (B)	1-09760-078-0	01	1	9002-	●	●	●	●	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (C)	1-33660-157-1	01	1	9002-	●	●	●	●	●	●
46	WASHER; LK,4TH LINK ROD ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●	●	●	●
47	NUT; 4TH LINK ROD M10	9-09110-410-0	02	1	9002-9301	●	●	●	●	●	●
47	NUT; 4TH LINK ROD M10	1-09440-050-0	02	1	9302-	●	●	●	●	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-9103	●	●	●	●	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9104-9501	●	●	●	●	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9502-	●			●	●

11 12 10 14 1 11 14 12 10 17 18 18 17 16 21 15 21 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	ROD; LINK,1ST SHIFT L=498	1-33652-269-1	01	1	9002-	●	●	●	●	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-078-0	02	1	9002-	●	●	●	●	●	●
11	WASHER; LK,1ST LINK ROD,SHIFT ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●	●	●	●
12	NUT; 1ST LINK ROD,SHIFT M10	9-09110-510-0	02	1	9002-9301	●	●	●	●	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9302-	●	●	●	●	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-	●	●	●	●	●	●
15	ROD; LINK 1ST SHIFT L=513	1-33652-318-1	01	1	9002-	●	●	●	●	●	●
16	JOINT ASM; BALL,CONT ROD (A) L=48	1-09760-038-1	02	1	9002-	●	●	●	●	●	●
16	JOINT ASM; BALL,CONT ROD 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STDENG(42L) EXC. CAB UP 50MM(W60) (B)	1-09760-078-0	02	1	9002-	●	●	●	●
16	JOINT ASM; BALL,CONT ROD CAB UP 50MM(W60) (B)	1-09760-078-0	02	1	9002-	●				●	●
17	WASHER; LK,1ST LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9301	●	●	●	●	●	●
18	NUT; 1ST LINK ROD M8	9-09110-508-0	02	1	9002-9301	●	●	●	●	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-049-0	02	1	9302-	●	●	●	●	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9002-	●	●	●	●	●	●
