◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#17309) — 50 parça

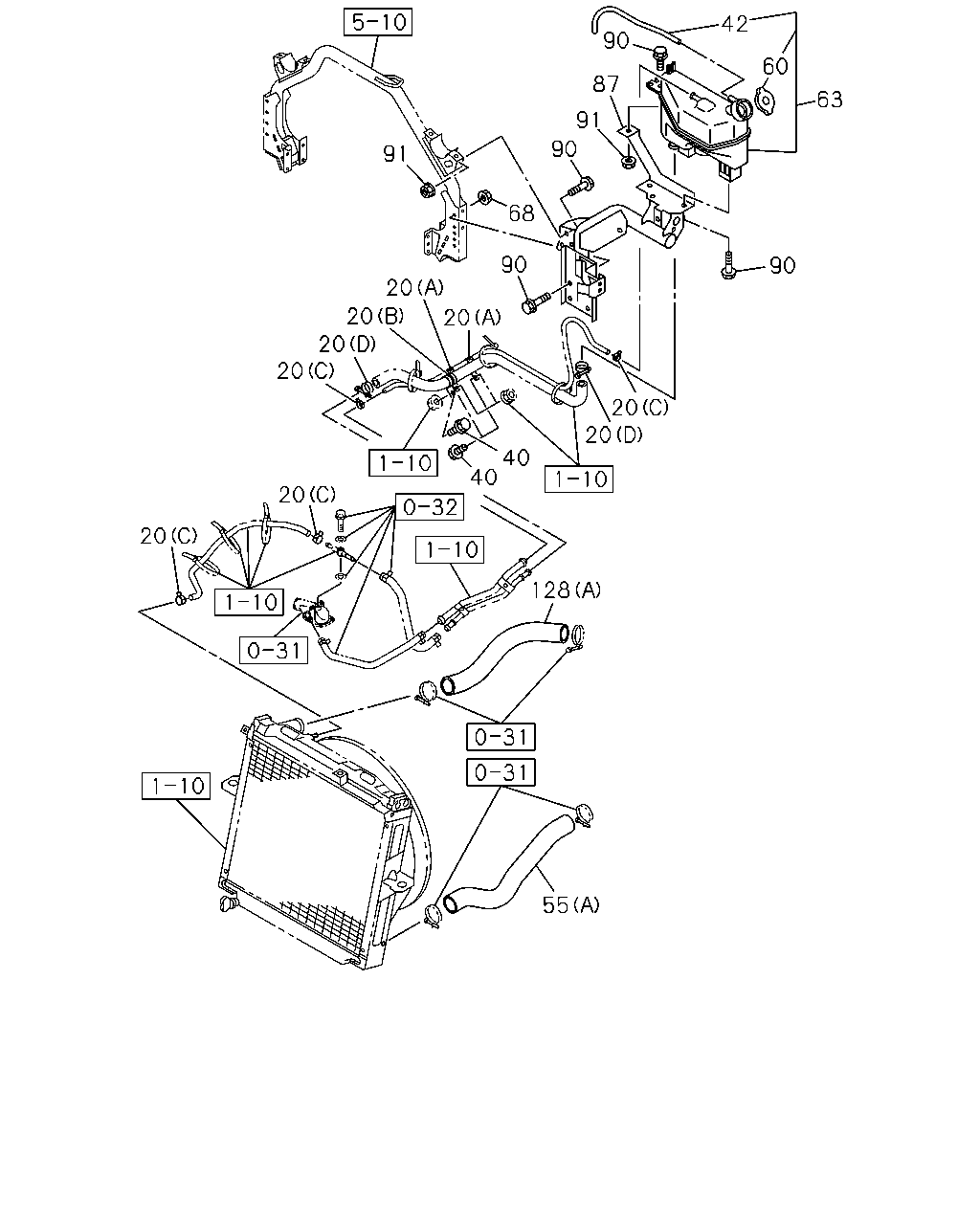

çizim 63096
42 90 60 87 63 91 90 91 68 90 90 20 20 20 20 20 20 20 40 40 20 20 128 55
BalonParca AdiParca NoAdetTipApplied Date A B
20 CLIP; HOSE,RAD
(H) ID=13 L=20 		0-95235-235-0 01 1 1205- ●
20 CLIP; HOSE,RAD
(E) ID=10.5 & 18 		8-94381-420-0 01 1 1205- ●
20 CLIP; HOSE,RAD
(C) ID=11.5 		8-97375-638-0 02 1 1205- ●
20 CLIP; HOSE,RAD
(F) ID=12 		8-98029-256-0 03 1 1205- ●
20 CLIP; HOSE,RAD
(I) ID=14 L=44 		9-09917-427-0 01 1 1205- ●
20 CLIP; HOSE,RAD
(G) ID=20 L=50 		9-09917-430-0 01 1 1205- ●
20 CLIP; HOSE,RAD
(A) ID=13 L=50 		0-95235-286-0 02 1 0906- ●
20 CLIP; HOSE,RAD
(D) ID=32 		1-09704-085-0 02 1 0906- ●
20 CLIP; HOSE,RAD
(B) ID=29 L=35 		5-09700-293-1 01 1 0906- ●
20 CLIP; HOSE,RAD
(C) ID=11.5 		8-97375-638-0 04 1 0906- ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1205- ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0906- ●
42 HOSE; RUBBER 8-98054-071-0 01 1 0906- ●
55 HOSE; WATER,RAD OUTLET
(B) 		8-98010-573-2 01 1 1205- ●
55 HOSE; WATER,RAD OUTLET
(A) 		8-98010-575-3 01 1 0906- ●
60 CAP; SUB TANK 8-98051-035-0 01 1 0906- ●
63 TANK ASM; SUB 8-98068-207-0 01 1 0906- ●
68 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0906- ●
87 BRACKET; SUB TANK 8-98010-565-1 01 1 0906- ●
90 BOLT; SUB TANK TO BRKT
M8X20 FLANGE 		0-28650-820-0 07 1 0906- ●
91 NUT; SUB TANK TO BRKT
M8 FLANGE 		0-91180-108-0 01 1 0906- ●
128 HOSE; WATER,RAD INL
(B) 		8-98010-572-1 01 1 1205- ●
128 HOSE; WATER,RAD INL
(A) 		8-98010-574-1 01 1 0906- ●

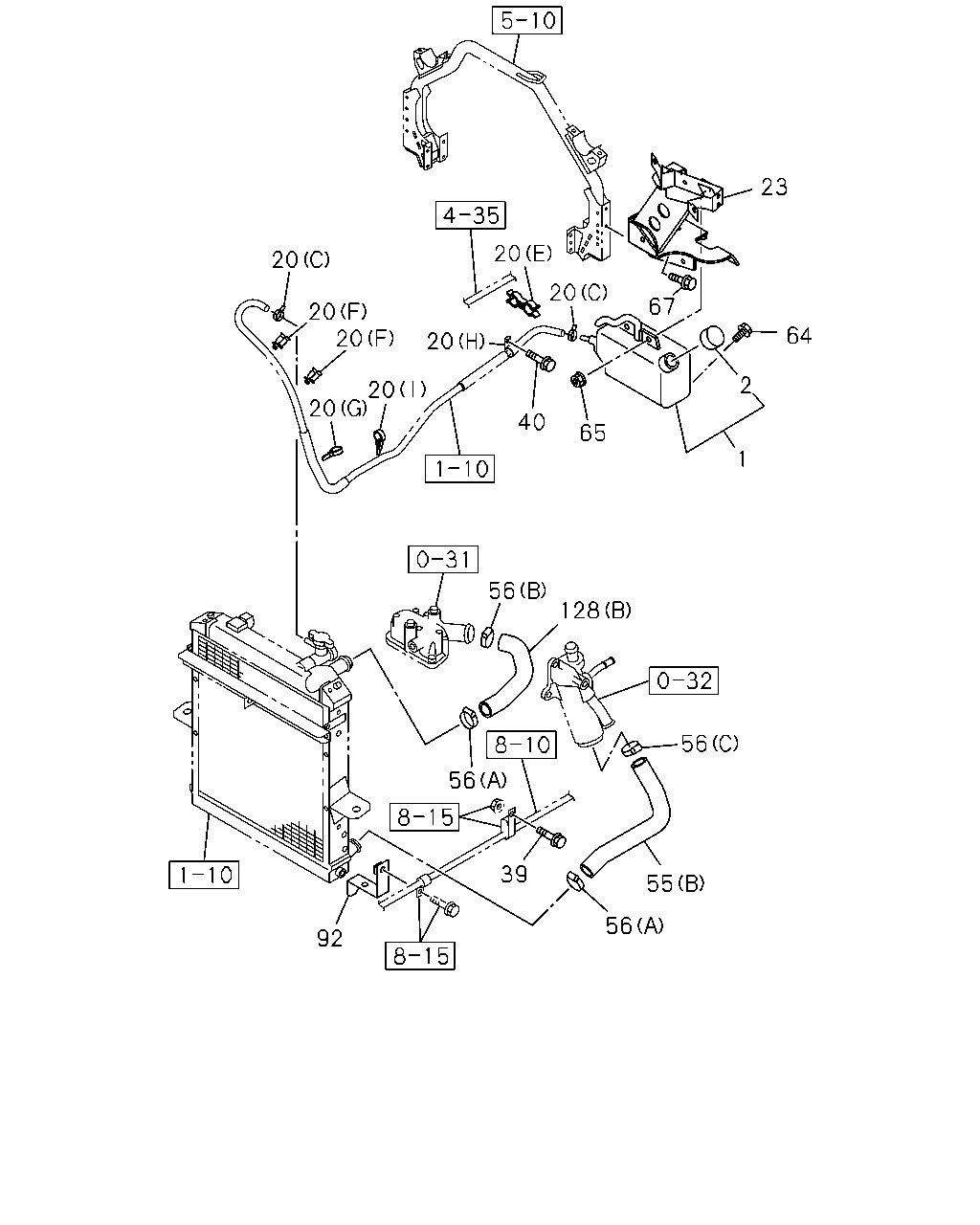

çizim 283129
23 20 20 20 67 20 20 64 20 2 20 20 40 65 1 56 128 56 56 39 55 56 92
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; SURGE,RAD 8-98171-757-0 01 1 1205- ●
2 CAP; SURGE TANK 8-98178-074-0 01 1 1205- ●
20 CLIP; HOSE,RAD
(H) ID=13 L=20 		0-95235-235-0 01 1 1205- ●
20 CLIP; HOSE,RAD
(E) ID=10.5 & 18 		8-94381-420-0 01 1 1205- ●
20 CLIP; HOSE,RAD
(C) ID=11.5 		8-97375-638-0 02 1 1205- ●
20 CLIP; HOSE,RAD
(F) ID=12 		8-98029-256-0 03 1 1205- ●
20 CLIP; HOSE,RAD
(I) ID=14 L=44 		9-09917-427-0 01 1 1205- ●
20 CLIP; HOSE,RAD
(G) ID=20 L=50 		9-09917-430-0 01 1 1205- ●
20 CLIP; HOSE,RAD
(A) ID=13 L=50 		0-95235-286-0 02 1 0906- ●
20 CLIP; HOSE,RAD
(D) ID=32 		1-09704-085-0 02 1 0906- ●
20 CLIP; HOSE,RAD
(B) ID=29 L=35 		5-09700-293-1 01 1 0906- ●
20 CLIP; HOSE,RAD
(C) ID=11.5 		8-97375-638-0 04 1 0906- ●
23 BRACKET; RESERVE TANK 8-98010-310-3 01 1 1205- ●
39 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1205- ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1205- ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0906- ●
55 HOSE; WATER,RAD OUTLET
(B) 		8-98010-573-2 01 1 1205- ●
55 HOSE; WATER,RAD OUTLET
(A) 		8-98010-575-3 01 1 0906- ●
56 CLIP; WATER HOSE,RAD
(B) ID=52 		1-09704-057-0 01 1 1205- ●
56 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98133-956-0 02 1 1205- ●
56 CLIP; WATER HOSE,RAD
(C) ID=62 		8-98133-957-0 01 1 1205- ●
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1205- ●
65 NUT; BRKT,SUB TANK
M8 FLANGE 		0-91180-108-0 01 1 1205- ●
67 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 1205- ●
92 BRACKET; CLIP,RUBBER HOSE 8-98055-051-0 01 1 1205- ●
128 HOSE; WATER,RAD INL
(B) 		8-98010-572-1 01 1 1205- ●
128 HOSE; WATER,RAD INL
(A) 		8-98010-574-1 01 1 0906- ●
