◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#17308) — 196 parça

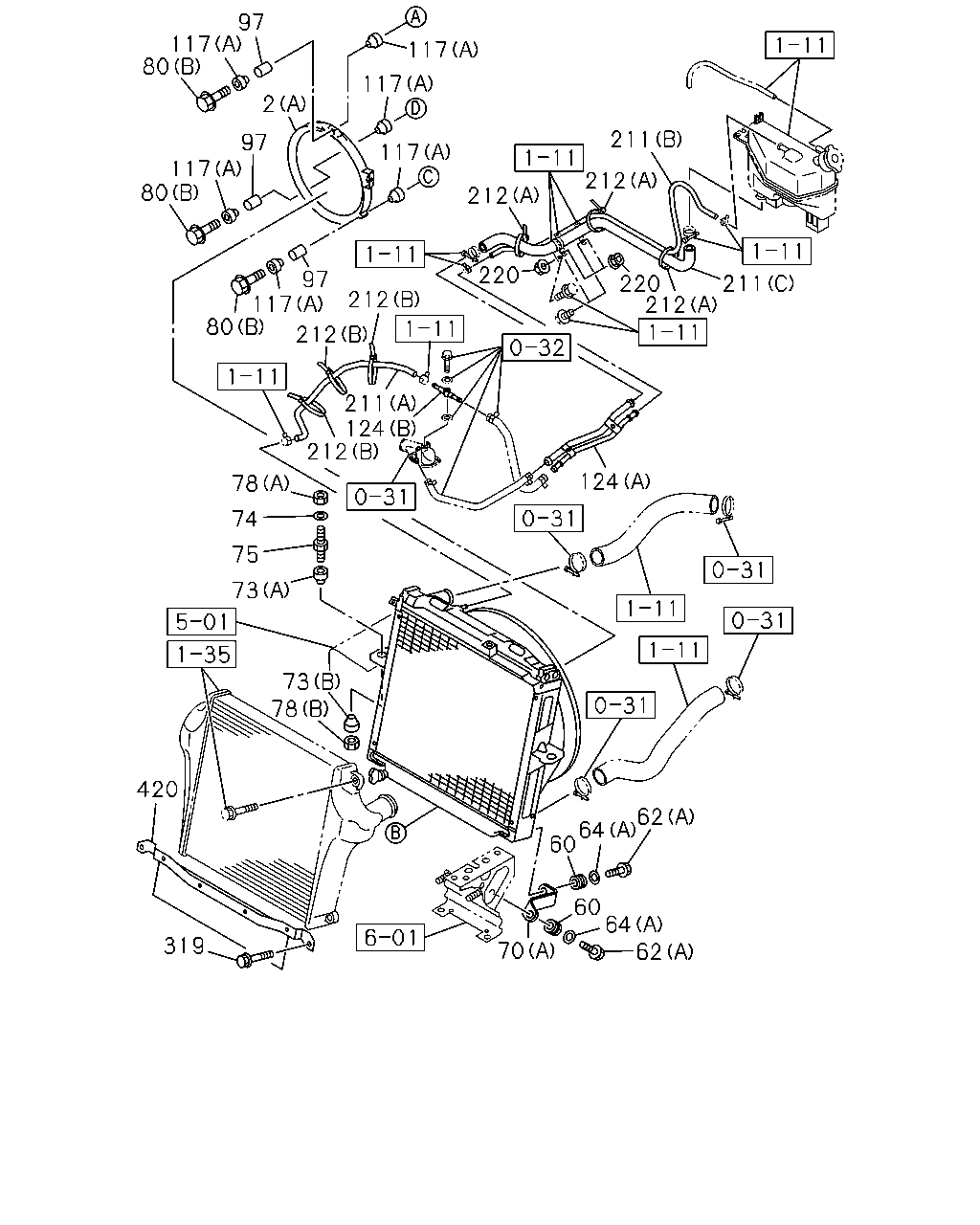

çizim 15477
97 117 80 2 117 117 97 117 80 117 211 212 212 97 117 212 220 220 212 211 80 212 211 124 212 78 124 74 75 73 73 78 420 64 62 60 60 64 62 70 319
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN
(B) 		8-97350-995-0 01 1 1205- ●
2 GUIDE; FAN
(A) 		8-94393-779-1 01 1 0906- ●
60 GROMMET 1-09332-117-0 04 1 0906- ●
62 BOLT; STAY
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1205- ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 0906- ●
62 BOLT; STAY
(A) M8X26 		1-09009-175-0 02 1 0906- ●
64 WASHER; STAY TO RAD
(B) ID=10.5 		0-91610-510-0 02 1 1205- ●
64 WASHER; STAY TO RAD
(A) ID=12.5 OD=26 		0-91610-612-0 04 1 0906- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1205- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1205- ●
70 STAY; RAD
(A) 		8-98083-604-0 01 1 0906- ●
70 STAY; RAD
(A) 		8-98083-605-0 01 1 0906- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0906-1204 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1205- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0906-1204 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1205- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0906-1204 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1205- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0906-1204 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1205- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0906-1204 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1205- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0906-1204 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1205- ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1205- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0906-1204 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1205- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0906- ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0906- ●
117 RUBBER; MTG,FAN GUIDE
(B) 		1-09337-027-0 06 1 1205- ●
117 RUBBER; MTG,FAN GUIDE
(A) OD=32 		8-94395-766-0 06 1 0906- ●
124 PIPE; WATER,TANK TO RAD
(B) 		8-94390-681-0 01 1 0906- ●
124 PIPE; WATER,TANK TO RAD
(A) 		8-98051-795-0 01 1 0906- ●
211 HOSE; RAD TO PIPE
(D) 		8-98132-968-0 01 1 1205- ●
211 HOSE; RAD TO PIPE
(A) L=560 SERVICED BY L=3000 		0-03557-300-0 01 1 0906- ●
211 HOSE; RAD TO PIPE
(C) 		8-98011-274-3 01 1 0906- ●
211 HOSE; RAD TO PIPE
(B) 		8-98119-374-0 01 1 0906- ●
212 CLIP; HOSE
(A) L=190 		1-09707-116-0 03 1 0906- ●
212 CLIP; HOSE
(B) L=250 		5-09707-030-1 03 1 0906- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0906- ●
319 BOLT; RAD GUARD
EXC. KD PREPARATORY PACK<6HF> M8X20 FLANGE 		0-28650-820-0 02 1 0906-0907 ●
319 BOLT; RAD GUARD
ISRAEL COUNTRY(CV4) M8X20 FLANGE 		0-28650-820-0 02 1 0908- ●
420 GUIDE; AIR,RAD
EXC. KD PREPARATORY PACK<6HF> 		8-98123-399-0 01 1 0906-0907 ●
420 GUIDE; AIR,RAD
ISRAEL COUNTRY(CV4) 		8-98123-399-0 01 1 0908- ●

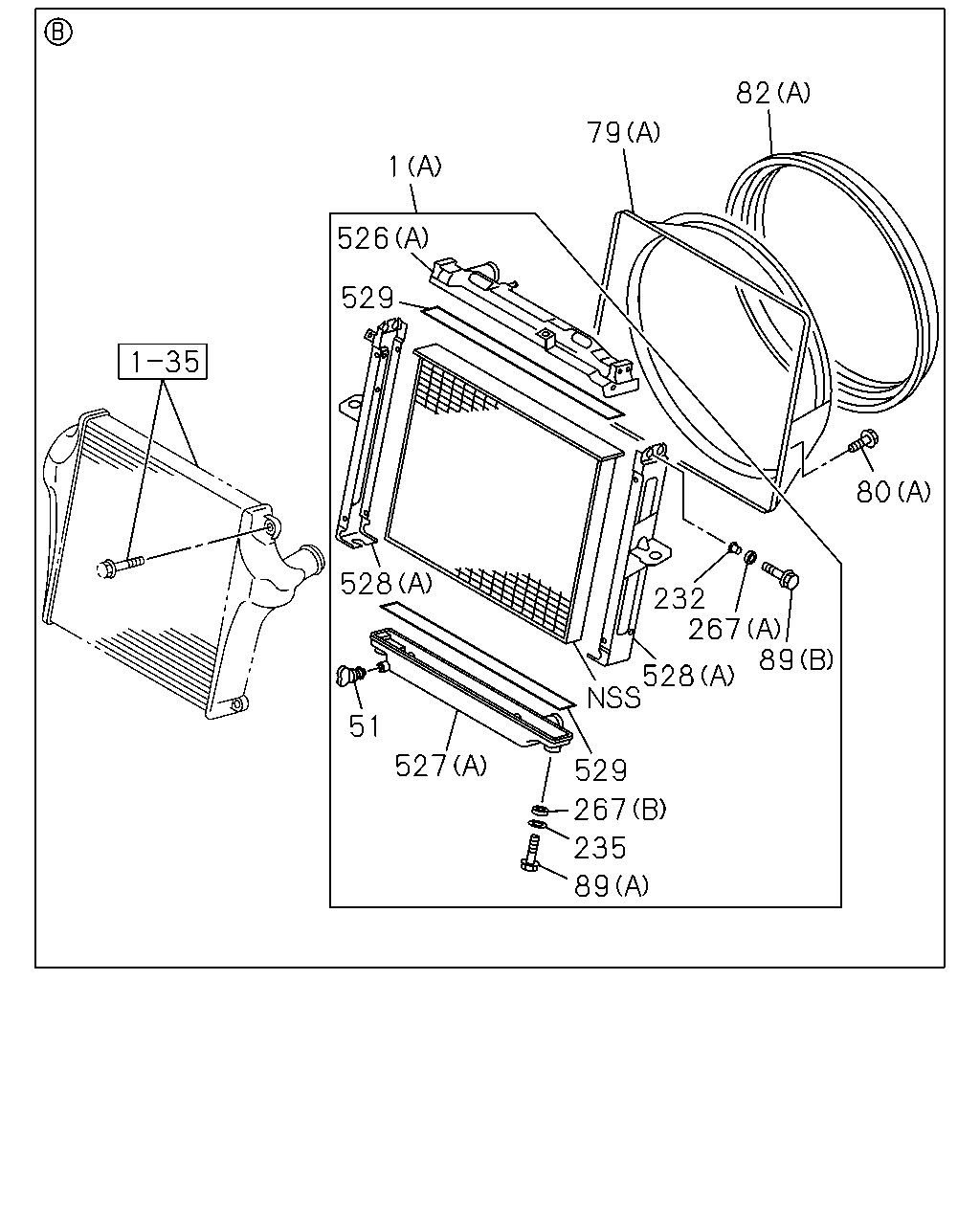

çizim 62862
82 79 1 526 529 80 528 232 267 89 528 51 527 529 267 235 89
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98139-307-0 01 1 1205- ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98139-306-0 01 1 1205- ●
1 RADIATOR ASM
KD PREPARATORY PACK<6HF> (A) 		8-98096-675-0 01 1 0906-0907 ●
1 RADIATOR ASM
EXC. ISRAEL COUNTRY(CV4) (A) 		8-98096-675-0 01 1 0908- ●
1 RADIATOR ASM
EXC. KD PREPARATORY PACK<6HF> (A) 		8-98127-765-0 01 1 0906-0907 ●
1 RADIATOR ASM
ISRAEL COUNTRY(CV4) (A) 		8-98127-765-0 01 1 0908- ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0906-1204 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1205- ● ●
79 GUIDE; FAN,RAD
(B) 		8-98010-297-0 01 1 1205- ●
79 GUIDE; FAN,RAD
(A) 		8-98010-383-0 01 1 0906- ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1205- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0906-1204 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1205- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0906- ●
82 COVER; FAN,RAD
(B) 		8-98006-478-0 01 1 1205- ●
82 COVER; FAN,RAD
(A) 		8-98010-385-0 01 1 0906- ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1205- ●
89 BOLT
(D) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1205- ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0906- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0906- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1205- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0906- ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0906- ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 1205- ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0906- ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0906- ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98010-271-2 01 1 1205- ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98010-363-1 01 1 0906- ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98010-279-0 01 1 1205- ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98032-433-1 01 1 1205- ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 0906- ●
528 PLATE; SIDE,RADIATOR CORE
(B) 		8-98010-290-1 01 1 1205- ●
528 PLATE; SIDE,RADIATOR CORE
(B) 		8-98010-291-1 01 1 1205- ●
528 PLATE; SIDE,RADIATOR CORE
KD PREPARATORY PACK<6HF> (A) 		8-98010-369-1 01 1 0906-0907 ●
528 PLATE; SIDE,RADIATOR CORE
EXC. ISRAEL COUNTRY(CV4) (A) 		8-98010-369-1 01 1 0908- ●
528 PLATE; SIDE,RADIATOR CORE
KD PREPARATORY PACK<6HF> (A) 		8-98089-602-0 01 1 0906-0907 ●
528 PLATE; SIDE,RADIATOR CORE
EXC. ISRAEL COUNTRY(CV4) (A) 		8-98089-602-0 01 1 0908- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. KD PREPARATORY PACK<6HF> (A) 		8-98123-520-0 01 1 0906-0907 ●
528 PLATE; SIDE,RADIATOR CORE
ISRAEL COUNTRY(CV4) (A) 		8-98123-520-0 01 1 0908- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. KD PREPARATORY PACK<6HF> (A) 		8-98123-521-0 01 1 0906-0907 ●
528 PLATE; SIDE,RADIATOR CORE
ISRAEL COUNTRY(CV4) (A) 		8-98123-521-0 01 1 0908- ●
529 GASKET; CORE,RADIATOR 8-98032-435-0 02 1 1205- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0906- ●

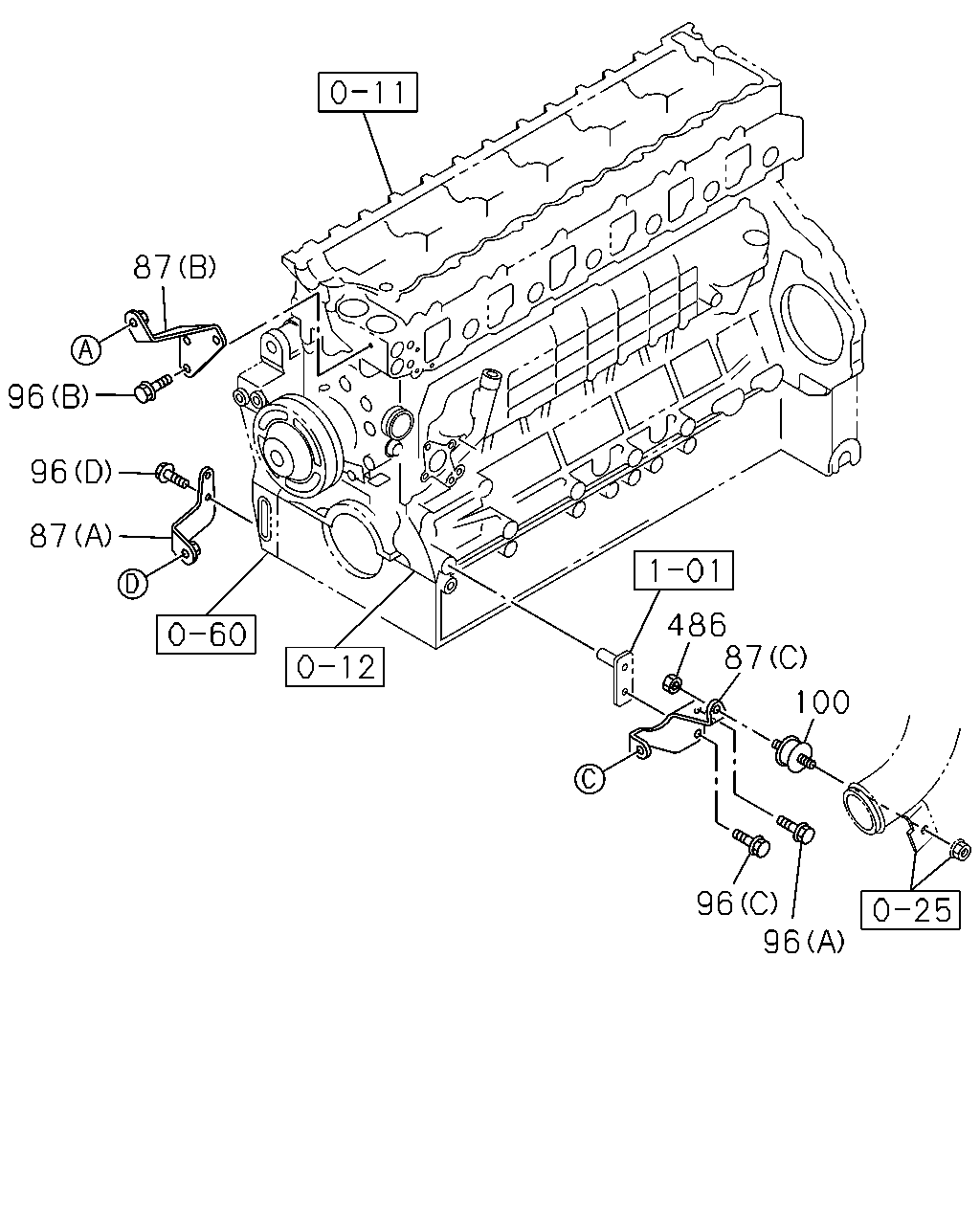

çizim 62989
87 96 96 87 486 87 100 96 96
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(B) 		8-97608-497-0 01 1 0906- ●
87 STAY; FAN GUIDE
(C) 		8-97608-499-0 01 1 0906- ●
87 STAY; FAN GUIDE
(A) 		8-97608-500-0 01 1 0906- ●
96 BOLT; STAY FIX
(C) M10X20 FLANGE 		0-28151-020-0 02 1 1205- ●
96 BOLT; STAY FIX
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) M10X75 FLANGE 		8-94399-669-1 02 1 1205- ●
96 BOLT; STAY FIX
GENERATOR 24V90A(K44) (C) M10X25 FLANGE 		0-28751-025-0 02 1 1205- ●
96 BOLT; STAY FIX
(A) M10X60 FLANGE 		0-28151-060-0 01 1 0906- ●
96 BOLT; STAY FIX
(D) M8X20 FLANGE 		0-28650-820-0 02 1 0906- ●
96 BOLT; STAY FIX
(C) M10X25 FLANGE 		0-28751-025-0 01 1 0906- ●
96 BOLT; STAY FIX
(B) M12X30 FLANGE 		0-28751-230-0 03 1 0906- ●
100 RUBBER; MTG 8-94394-268-1 01 1 0906-0910 ●
100 RUBBER; MTG 8-98148-109-0 01 1 0911- ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0906- ●

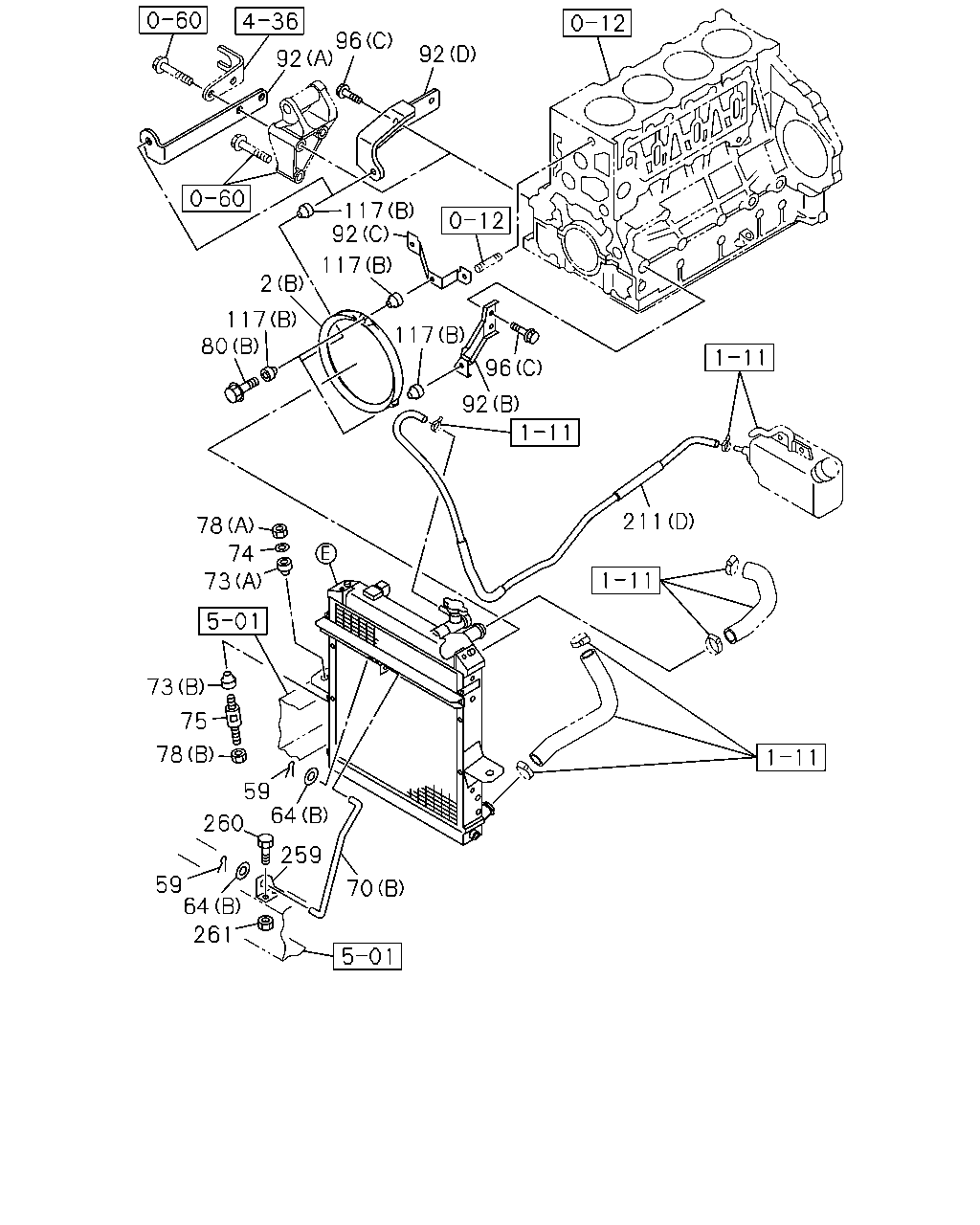

çizim 283126
96 92 92 117 92 117 2 117 80 117 96 92 211 78 74 73 73 75 78 59 64 260 259 59 64 70 261
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN
(B) 		8-97350-995-0 01 1 1205- ●
2 GUIDE; FAN
(A) 		8-94393-779-1 01 1 0906- ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 1205- ●
64 WASHER; STAY TO RAD
(B) ID=10.5 		0-91610-510-0 02 1 1205- ●
64 WASHER; STAY TO RAD
(A) ID=12.5 OD=26 		0-91610-612-0 04 1 0906- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1205- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1205- ●
70 STAY; RAD
(A) 		8-98083-604-0 01 1 0906- ●
70 STAY; RAD
(A) 		8-98083-605-0 01 1 0906- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0906-1204 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1205- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0906-1204 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1205- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0906-1204 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1205- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0906-1204 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1205- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0906-1204 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1205- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0906-1204 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1205- ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1205- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0906-1204 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1205- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0906- ●
92 BRACKET; FAN GUIDE
(B) 		8-97386-233-0 01 1 1205- ●
92 BRACKET; FAN GUIDE
(C) 		8-97382-827-2 01 1 1205- ●
92 BRACKET; FAN GUIDE
GENERATOR 24V90A(K44) (D) 		8-98032-526-0 01 1 1205- ●
92 BRACKET; FAN GUIDE
EXC. GENERATOR 24V90A(K44) (A) 		8-97350-997-0 01 1 1205- ●
96 BOLT; STAY FIX
(C) M10X20 FLANGE 		0-28151-020-0 02 1 1205- ●
96 BOLT; STAY FIX
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) M10X75 FLANGE 		8-94399-669-1 02 1 1205- ●
96 BOLT; STAY FIX
GENERATOR 24V90A(K44) (C) M10X25 FLANGE 		0-28751-025-0 02 1 1205- ●
96 BOLT; STAY FIX
(A) M10X60 FLANGE 		0-28151-060-0 01 1 0906- ●
96 BOLT; STAY FIX
(D) M8X20 FLANGE 		0-28650-820-0 02 1 0906- ●
96 BOLT; STAY FIX
(C) M10X25 FLANGE 		0-28751-025-0 01 1 0906- ●
96 BOLT; STAY FIX
(B) M12X30 FLANGE 		0-28751-230-0 03 1 0906- ●
117 RUBBER; MTG,FAN GUIDE
(B) 		1-09337-027-0 06 1 1205- ●
117 RUBBER; MTG,FAN GUIDE
(A) OD=32 		8-94395-766-0 06 1 0906- ●
211 HOSE; RAD TO PIPE
(D) 		8-98132-968-0 01 1 1205- ●
211 HOSE; RAD TO PIPE
(A) L=560 SERVICED BY L=3000 		0-03557-300-0 01 1 0906- ●
211 HOSE; RAD TO PIPE
(C) 		8-98011-274-3 01 1 0906- ●
211 HOSE; RAD TO PIPE
(B) 		8-98119-374-0 01 1 0906- ●
259 BRACKET; RAD STAY 8-98063-603-0 01 1 1205- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1205- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1205- ●

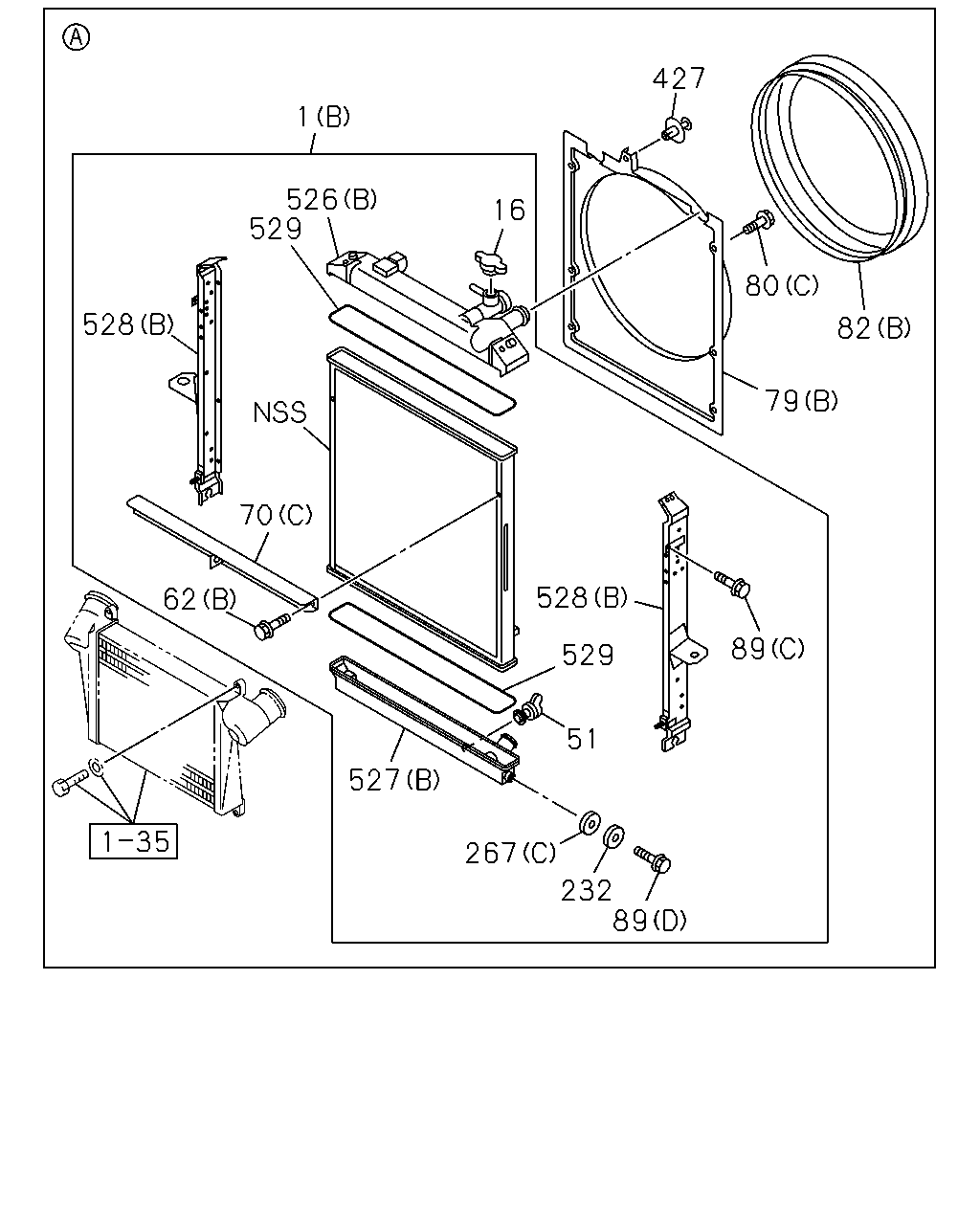

çizim 283127
427 80 82 79 1 16 526 529 528 70 62 528 529 89 51 527 267 232 89
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98139-307-0 01 1 1205- ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98139-306-0 01 1 1205- ●
1 RADIATOR ASM
KD PREPARATORY PACK<6HF> (A) 		8-98096-675-0 01 1 0906-0907 ●
1 RADIATOR ASM
EXC. ISRAEL COUNTRY(CV4) (A) 		8-98096-675-0 01 1 0908- ●
1 RADIATOR ASM
EXC. KD PREPARATORY PACK<6HF> (A) 		8-98127-765-0 01 1 0906-0907 ●
1 RADIATOR ASM
ISRAEL COUNTRY(CV4) (A) 		8-98127-765-0 01 1 0908- ●
16 CAP; RAD 8-98096-226-0 01 1 1205- ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0906-1204 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1205- ● ●
62 BOLT; STAY
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1205- ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 0906- ●
62 BOLT; STAY
(A) M8X26 		1-09009-175-0 02 1 0906- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1205- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1205- ●
70 STAY; RAD
(A) 		8-98083-604-0 01 1 0906- ●
70 STAY; RAD
(A) 		8-98083-605-0 01 1 0906- ●
79 GUIDE; FAN,RAD
(B) 		8-98010-297-0 01 1 1205- ●
79 GUIDE; FAN,RAD
(A) 		8-98010-383-0 01 1 0906- ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1205- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0906-1204 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1205- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0906- ●
82 COVER; FAN,RAD
(B) 		8-98006-478-0 01 1 1205- ●
82 COVER; FAN,RAD
(A) 		8-98010-385-0 01 1 0906- ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1205- ●
89 BOLT
(D) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1205- ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0906- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0906- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1205- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0906- ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 1205- ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0906- ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0906- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1205- ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98010-271-2 01 1 1205- ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98010-363-1 01 1 0906- ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98010-279-0 01 1 1205- ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98032-433-1 01 1 1205- ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 0906- ●
528 PLATE; SIDE,RADIATOR CORE
(B) 		8-98010-290-1 01 1 1205- ●
528 PLATE; SIDE,RADIATOR CORE
(B) 		8-98010-291-1 01 1 1205- ●
528 PLATE; SIDE,RADIATOR CORE
KD PREPARATORY PACK<6HF> (A) 		8-98010-369-1 01 1 0906-0907 ●
528 PLATE; SIDE,RADIATOR CORE
EXC. ISRAEL COUNTRY(CV4) (A) 		8-98010-369-1 01 1 0908- ●
528 PLATE; SIDE,RADIATOR CORE
KD PREPARATORY PACK<6HF> (A) 		8-98089-602-0 01 1 0906-0907 ●
528 PLATE; SIDE,RADIATOR CORE
EXC. ISRAEL COUNTRY(CV4) (A) 		8-98089-602-0 01 1 0908- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. KD PREPARATORY PACK<6HF> (A) 		8-98123-520-0 01 1 0906-0907 ●
528 PLATE; SIDE,RADIATOR CORE
ISRAEL COUNTRY(CV4) (A) 		8-98123-520-0 01 1 0908- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. KD PREPARATORY PACK<6HF> (A) 		8-98123-521-0 01 1 0906-0907 ●
528 PLATE; SIDE,RADIATOR CORE
ISRAEL COUNTRY(CV4) (A) 		8-98123-521-0 01 1 0908- ●
529 GASKET; CORE,RADIATOR 8-98032-435-0 02 1 1205- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0906- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
