◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#17304) — 294 parça

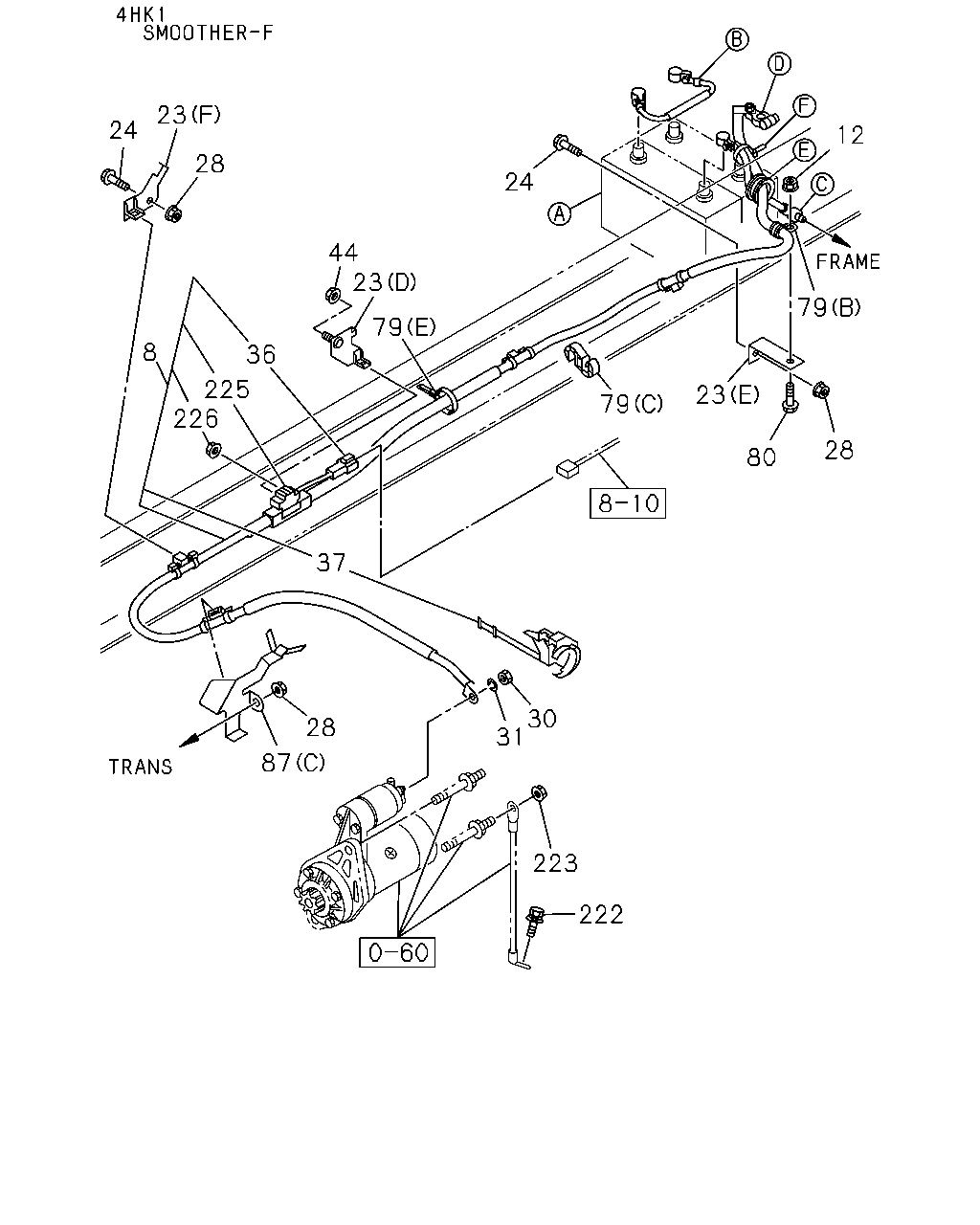

çizim 15465
23 24 12 28 24 44 23 79 79 8 36 225 226 23 79 28 80 37 30 31 28 87 223 222
BalonParca AdiParca NoAdetTipApplied Date A B
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2370 		8-97618-942-5 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2370 		8-98295-321-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2400 		8-98111-674-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2410 		8-98295-329-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2610 		8-98123-178-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2610 		8-98295-333-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2610 		8-97618-943-5 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2610 		8-98295-322-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2650 		8-98123-180-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2650 		8-98295-335-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2640 		8-98111-675-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2650 		8-98295-330-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2530 		8-97619-325-5 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2530 		8-98295-325-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> L=2770 		8-98123-179-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> L=2770 		8-98295-334-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> L=2770 		8-97619-326-5 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> L=2770 		8-98295-326-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> L=1855 		8-98116-067-2 01 1 0906-1012 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> 		8-98176-194-0 01 1 1101-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> 		8-98295-595-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1705 		8-98116-066-2 01 1 0906-1012 ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98176-193-0 01 1 1101-1502 ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-594-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> L=1855 		8-98123-461-2 01 1 0906-1012 ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> 		8-98176-195-0 01 1 1101-1502 ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> 		8-98295-596-0 01 1 1503- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0906-1204 ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1205- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(F) 		8-98047-277-1 01 1 1205- ●
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 3700MM(37W) (G) 		8-98096-020-0 01 1 1205- ●
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (E) L=95 		1-82699-085-0 01 1 1205- ●
23 BRACKET; CABLE CLIP TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98044-882-0 01 1 1205- ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98051-380-1 01 1 0906-1012 ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98176-167-0 01 1 1101- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98051-381-2 01 1 0906- ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 01 1 1205- ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 01 1 1205- ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 02 1 0906-1012 ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 03 1 1101- ●
28 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-210-0 01 1 1205- ●
28 NUT; BRKT TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 01 1 1205- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0906-1204 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1205- ● ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1205- ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-508-0 01 1 1205- ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 0906-1204 ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1205-1502 ● ●
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503- ● ●
37 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1205- ●
44 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 01 1 1205- ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-1012 ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1101- ●
79 CLIP; BATTERY CABLE
(C) ID=4.76 & 15 		1-09709-307-0 01 1 1205- ●
79 CLIP; BATTERY CABLE
(E) ID=20 L=50 		9-09917-430-0 01 1 1205- ●
79 CLIP; BATTERY CABLE
(A) ID=14.5 L=40 		1-09701-014-0 01 1 0906-1012 ●
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1101- ●
79 CLIP; BATTERY CABLE
(C) ID=6.35 & 15 		1-09709-276-1 01 1 0906-1204 ●
79 CLIP; BATTERY CABLE
(C) ID=6.35 & 15 		1-09709-276-1 01 1 1205- ●
79 CLIP; BATTERY CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 & 15 		1-09709-276-1 01 1 1205- ●
79 CLIP; BATTERY CABLE
(D) ID=21 & 9.8 		8-97309-945-0 01 1 0906- ●
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 01 1 0906-1204 ●
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 01 1 1205- ● ●
80 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1205- ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0906- ●
87 BRACKET; HARNESS
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98126-428-0 01 1 1205- ●
87 BRACKET; HARNESS
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98053-927-1 01 1 1205- ●
87 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98045-617-1 01 1 1205- ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0906-1204 ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1205- ● ●
223 NUT; EARTH CABLE
M10 FLANGE 		0-91180-210-0 01 1 1205- ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 0906-1204 ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1205-1502 ● ●
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503- ● ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 0906-1204 ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1205-1502 ● ●
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503- ● ●

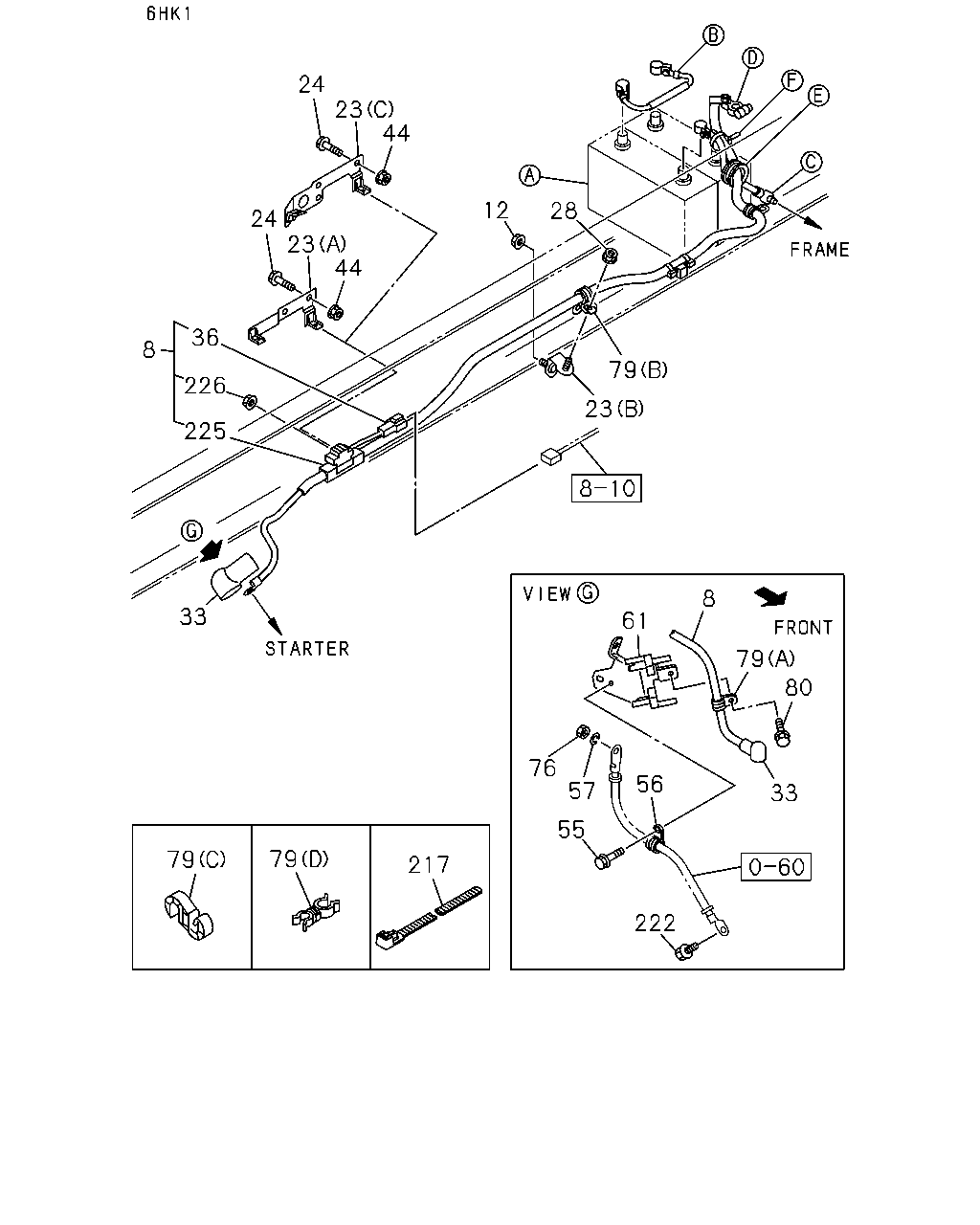

çizim 63080
24 23 44 12 28 24 23 44 36 8 79 226 23 225 8 33 61 79 80 76 56 57 33 55 79 79 217 222
BalonParca AdiParca NoAdetTipApplied Date A B
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2370 		8-97618-942-5 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2370 		8-98295-321-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2400 		8-98111-674-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2410 		8-98295-329-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2610 		8-98123-178-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2610 		8-98295-333-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2610 		8-97618-943-5 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2610 		8-98295-322-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2650 		8-98123-180-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2650 		8-98295-335-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2640 		8-98111-675-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2650 		8-98295-330-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2530 		8-97619-325-5 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2530 		8-98295-325-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> L=2770 		8-98123-179-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> L=2770 		8-98295-334-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> L=2770 		8-97619-326-5 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> L=2770 		8-98295-326-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> L=1855 		8-98116-067-2 01 1 0906-1012 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> 		8-98176-194-0 01 1 1101-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> 		8-98295-595-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1705 		8-98116-066-2 01 1 0906-1012 ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98176-193-0 01 1 1101-1502 ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-594-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> L=1855 		8-98123-461-2 01 1 0906-1012 ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> 		8-98176-195-0 01 1 1101-1502 ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> 		8-98295-596-0 01 1 1503- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0906-1204 ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1205- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(F) 		8-98047-277-1 01 1 1205- ●
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 3700MM(37W) (G) 		8-98096-020-0 01 1 1205- ●
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (E) L=95 		1-82699-085-0 01 1 1205- ●
23 BRACKET; CABLE CLIP TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98044-882-0 01 1 1205- ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98051-380-1 01 1 0906-1012 ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98176-167-0 01 1 1101- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98051-381-2 01 1 0906- ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 01 1 1205- ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 01 1 1205- ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 02 1 0906-1012 ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 03 1 1101- ●
28 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-210-0 01 1 1205- ●
28 NUT; BRKT TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 01 1 1205- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0906-1204 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1205- ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 0906- ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 0906-1204 ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1205-1502 ● ●
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503- ● ●
44 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 01 1 1205- ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-1012 ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1101- ●
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 0906- ●
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 0906- ●
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0906- ●
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 0906- ●
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 0906- ●
79 CLIP; BATTERY CABLE
(C) ID=4.76 & 15 		1-09709-307-0 01 1 1205- ●
79 CLIP; BATTERY CABLE
(E) ID=20 L=50 		9-09917-430-0 01 1 1205- ●
79 CLIP; BATTERY CABLE
(A) ID=14.5 L=40 		1-09701-014-0 01 1 0906-1012 ●
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1101- ●
79 CLIP; BATTERY CABLE
(C) ID=6.35 & 15 		1-09709-276-1 01 1 0906-1204 ●
79 CLIP; BATTERY CABLE
(C) ID=6.35 & 15 		1-09709-276-1 01 1 1205- ●
79 CLIP; BATTERY CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 & 15 		1-09709-276-1 01 1 1205- ●
79 CLIP; BATTERY CABLE
(D) ID=21 & 9.8 		8-97309-945-0 01 1 0906- ●
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 01 1 0906-1204 ●
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 01 1 1205- ● ●
80 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1205- ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0906- ●
217 CLIP; BAND,CABLE
L=250 		1-09707-126-0 01 1 0906- ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0906-1204 ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1205- ● ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 0906-1204 ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1205-1502 ● ●
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503- ● ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 0906-1204 ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1205-1502 ● ●
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503- ● ●

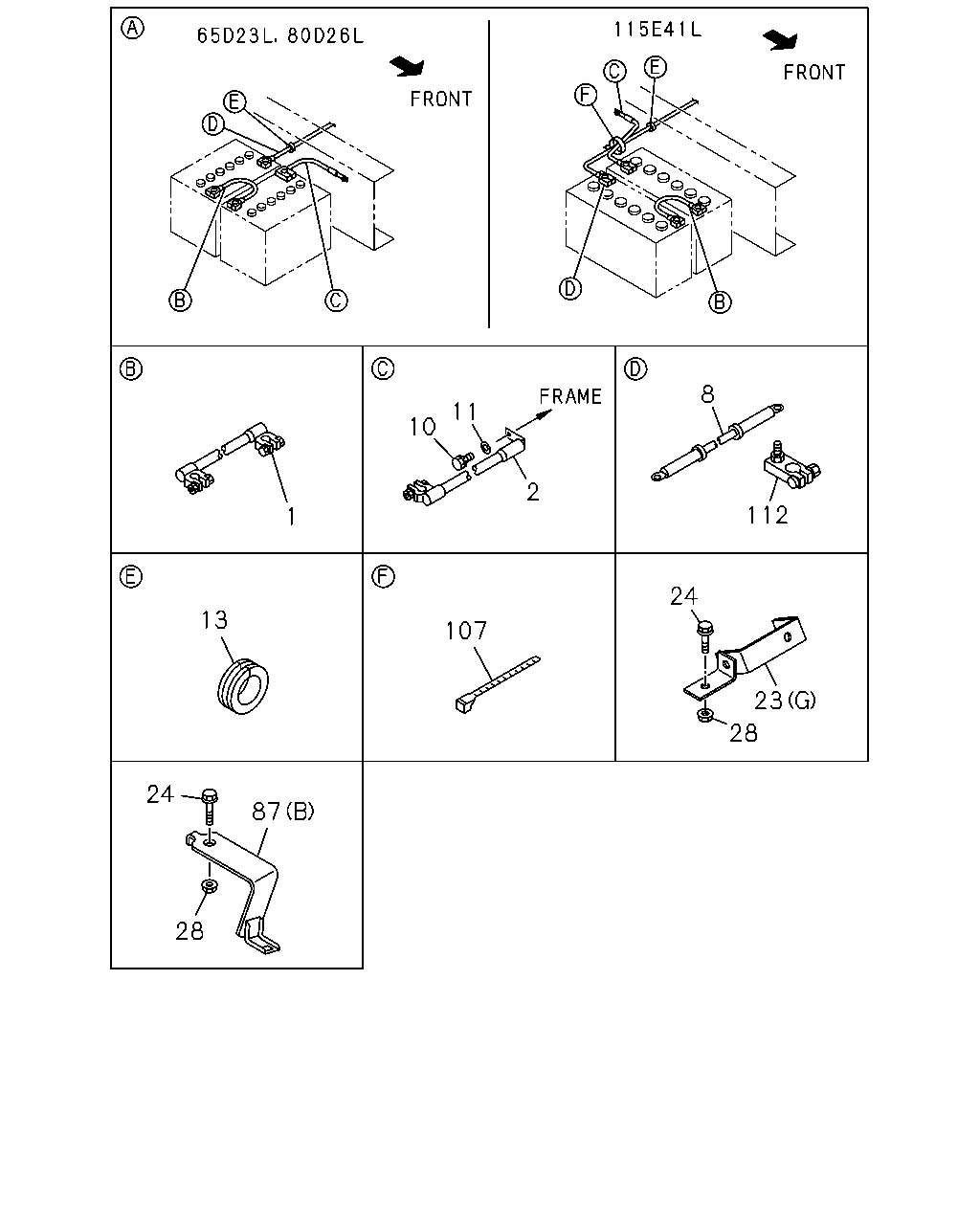

çizim 283112
8 11 10 2 112 1 24 13 107 23 28 24 87 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0906-1204 ●
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1205- ● ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=400 		8-97619-733-1 01 1 0906-1204 ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=400 		8-97619-733-1 01 1 1205- ● ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=240 		8-97619-727-1 01 1 0906-1204 ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=240 		8-97619-727-1 01 1 1205- ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2370 		8-97618-942-5 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2370 		8-98295-321-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2400 		8-98111-674-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2410 		8-98295-329-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2610 		8-98123-178-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2610 		8-98295-333-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2610 		8-97618-943-5 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2610 		8-98295-322-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2650 		8-98123-180-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2650 		8-98295-335-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2640 		8-98111-675-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2650 		8-98295-330-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2530 		8-97619-325-5 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2530 		8-98295-325-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> L=2770 		8-98123-179-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> L=2770 		8-98295-334-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> L=2770 		8-97619-326-5 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> L=2770 		8-98295-326-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> L=1855 		8-98116-067-2 01 1 0906-1012 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> 		8-98176-194-0 01 1 1101-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> 		8-98295-595-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1705 		8-98116-066-2 01 1 0906-1012 ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98176-193-0 01 1 1101-1502 ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-594-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> L=1855 		8-98123-461-2 01 1 0906-1012 ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> 		8-98176-195-0 01 1 1101-1502 ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> 		8-98295-596-0 01 1 1503- ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0906-1204 ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1205- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0906-1204 ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1205- ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0906-1204 ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1205- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(F) 		8-98047-277-1 01 1 1205- ●
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 3700MM(37W) (G) 		8-98096-020-0 01 1 1205- ●
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (E) L=95 		1-82699-085-0 01 1 1205- ●
23 BRACKET; CABLE CLIP TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98044-882-0 01 1 1205- ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98051-380-1 01 1 0906-1012 ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98176-167-0 01 1 1101- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98051-381-2 01 1 0906- ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 01 1 1205- ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 01 1 1205- ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 02 1 0906-1012 ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 03 1 1101- ●
28 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-210-0 01 1 1205- ●
28 NUT; BRKT TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 01 1 1205- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0906-1204 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1205- ● ●
87 BRACKET; HARNESS
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98126-428-0 01 1 1205- ●
87 BRACKET; HARNESS
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98053-927-1 01 1 1205- ●
87 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98045-617-1 01 1 1205- ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 0906-1204 ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1205- ● ●
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0906-1204 ●
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1205-1408 ● ●
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409- ● ●

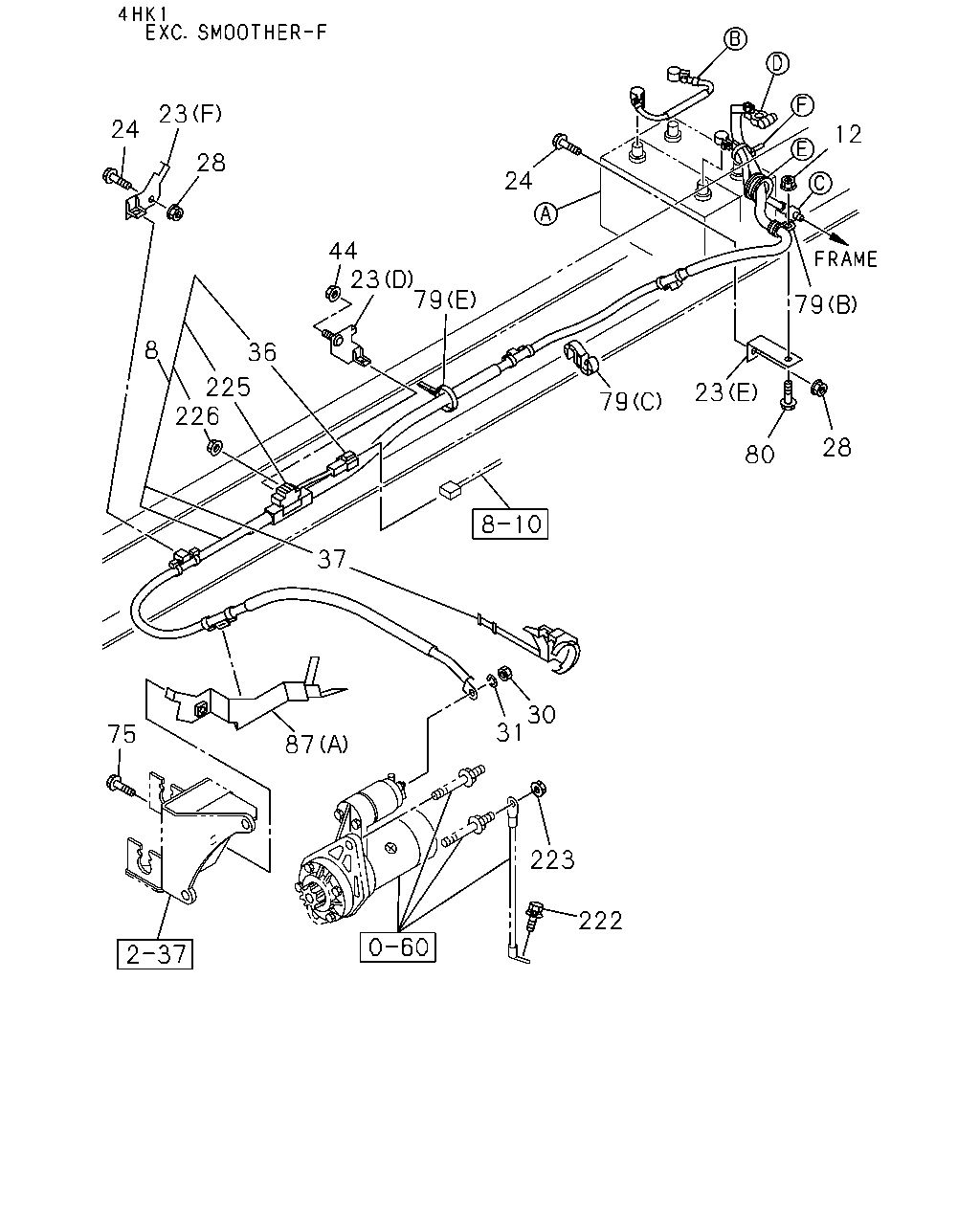

çizim 283114
23 24 12 28 24 44 23 79 79 8 36 225 226 23 79 28 80 37 30 31 75 87 223 222
BalonParca AdiParca NoAdetTipApplied Date A B
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2370 		8-97618-942-5 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2370 		8-98295-321-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2400 		8-98111-674-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2410 		8-98295-329-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2610 		8-98123-178-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2610 		8-98295-333-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2610 		8-97618-943-5 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2610 		8-98295-322-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2650 		8-98123-180-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2650 		8-98295-335-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2640 		8-98111-675-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2650 		8-98295-330-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2530 		8-97619-325-5 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2530 		8-98295-325-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> L=2770 		8-98123-179-3 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> L=2770 		8-98295-334-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> L=2770 		8-97619-326-5 01 1 1205-1502 ●
8 CABLE; BATTERY,STARTER
TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> L=2770 		8-98295-326-1 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> L=1855 		8-98116-067-2 01 1 0906-1012 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> 		8-98176-194-0 01 1 1101-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> 		8-98295-595-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1705 		8-98116-066-2 01 1 0906-1012 ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98176-193-0 01 1 1101-1502 ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-594-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> L=1855 		8-98123-461-2 01 1 0906-1012 ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> 		8-98176-195-0 01 1 1101-1502 ●
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> 		8-98295-596-0 01 1 1503- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0906-1204 ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1205- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(F) 		8-98047-277-1 01 1 1205- ●
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 3700MM(37W) (G) 		8-98096-020-0 01 1 1205- ●
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (E) L=95 		1-82699-085-0 01 1 1205- ●
23 BRACKET; CABLE CLIP TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98044-882-0 01 1 1205- ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98051-380-1 01 1 0906-1012 ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98176-167-0 01 1 1101- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98051-381-2 01 1 0906- ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 01 1 1205- ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 01 1 1205- ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 02 1 0906-1012 ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 03 1 1101- ●
28 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-210-0 01 1 1205- ●
28 NUT; BRKT TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 01 1 1205- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0906-1204 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1205- ● ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1205- ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-508-0 01 1 1205- ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 0906-1204 ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1205-1502 ● ●
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503- ● ●
37 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1205- ●
44 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 01 1 1205- ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-1012 ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1101- ●
75 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 1205- ●
79 CLIP; BATTERY CABLE
(C) ID=4.76 & 15 		1-09709-307-0 01 1 1205- ●
79 CLIP; BATTERY CABLE
(E) ID=20 L=50 		9-09917-430-0 01 1 1205- ●
79 CLIP; BATTERY CABLE
(A) ID=14.5 L=40 		1-09701-014-0 01 1 0906-1012 ●
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1101- ●
79 CLIP; BATTERY CABLE
(C) ID=6.35 & 15 		1-09709-276-1 01 1 0906-1204 ●
79 CLIP; BATTERY CABLE
(C) ID=6.35 & 15 		1-09709-276-1 01 1 1205- ●
79 CLIP; BATTERY CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 & 15 		1-09709-276-1 01 1 1205- ●
79 CLIP; BATTERY CABLE
(D) ID=21 & 9.8 		8-97309-945-0 01 1 0906- ●
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 01 1 0906-1204 ●
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 01 1 1205- ● ●
80 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1205- ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0906- ●
87 BRACKET; HARNESS
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98126-428-0 01 1 1205- ●
87 BRACKET; HARNESS
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98053-927-1 01 1 1205- ●
87 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98045-617-1 01 1 1205- ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0906-1204 ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1205- ● ●
223 NUT; EARTH CABLE
M10 FLANGE 		0-91180-210-0 01 1 1205- ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 0906-1204 ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1205-1502 ● ●
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503- ● ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 0906-1204 ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1205-1502 ● ●
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
