Sayfa 0-60 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#17303) — 168 parça

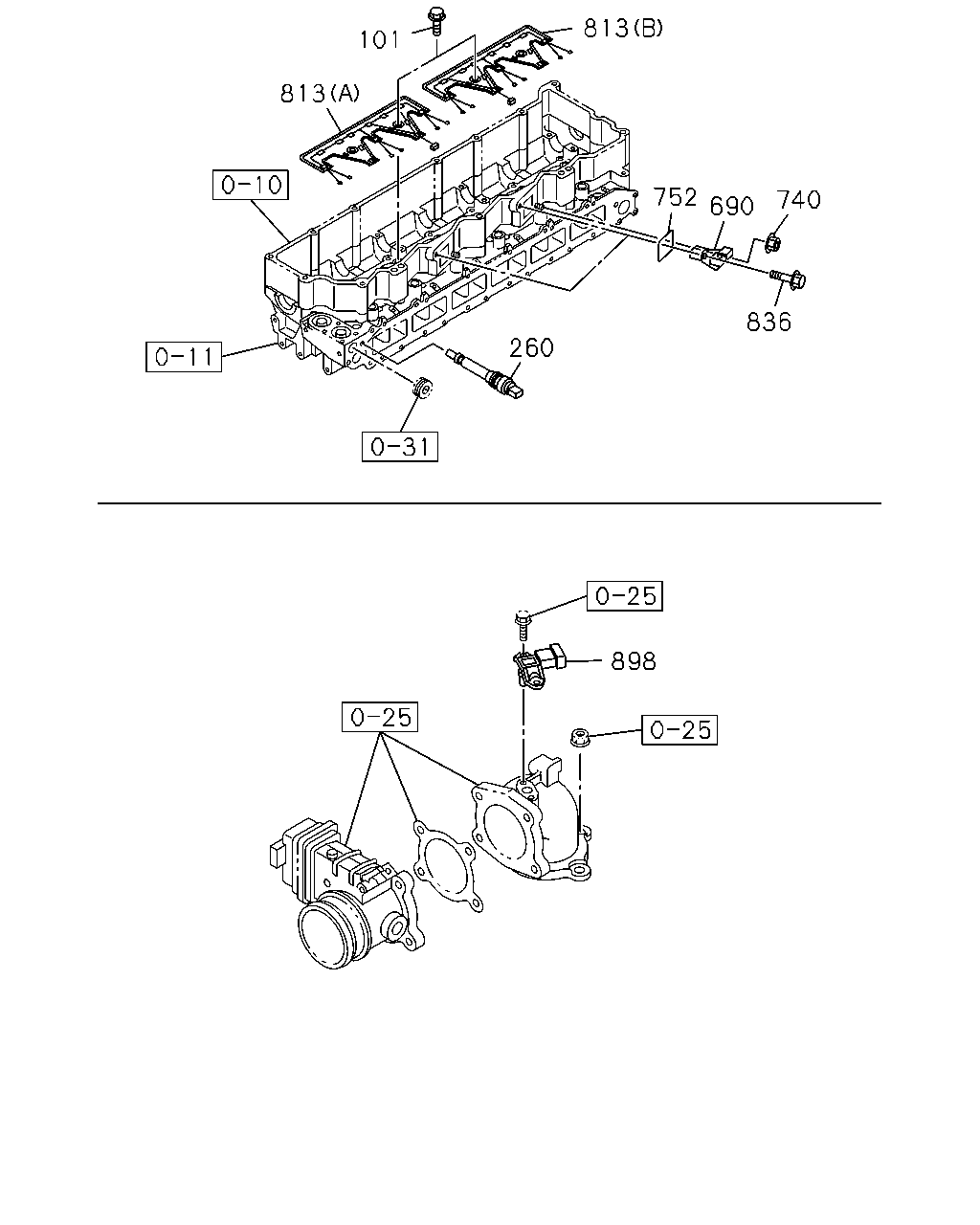

813 101 813 752 740 690 836 260 898

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
101	BOLT; HARNESS M8X40 FLANGE	0-28650-840-0	04	1	0906-	●
260	SENSOR; WATER TEMP MITSUBISHI	8-98023-883-0	01	1	0906-1503	●
260	SENSOR; WATER TEMP NISHIDA	8-98260-257-0	01	1	1504-	●
690	CONNECTOR	8-94390-858-1	02	1	0906-	●
740	NUT M8 FLANGE	0-91180-108-0	04	1	0906-1011	●
740	NUT M8 FLANGE	0-91180-108-0	02	1	1012-	●
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	0906-	●
813	HARNESS; INJECTOR (A) FRONT	8-97602-748-2	01	1	0906-1008	●
813	HARNESS; INJECTOR (A) FRONT	8-98177-447-0	01	1	1009-1112	●
813	HARNESS; INJECTOR (A) FRONT	8-98204-717-0	01	1	1201-	●
813	HARNESS; INJECTOR (B) REAR	8-97602-749-2	01	1	0906-1008	●
813	HARNESS; INJECTOR (B) REAR	8-98177-448-0	01	1	1009-1112	●
813	HARNESS; INJECTOR (B) REAR	8-98204-718-0	01	1	1201-	●
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	02	1	1012-	●
898	SENSOR; BOOST	8-98009-418-0	01	1	0906-	●

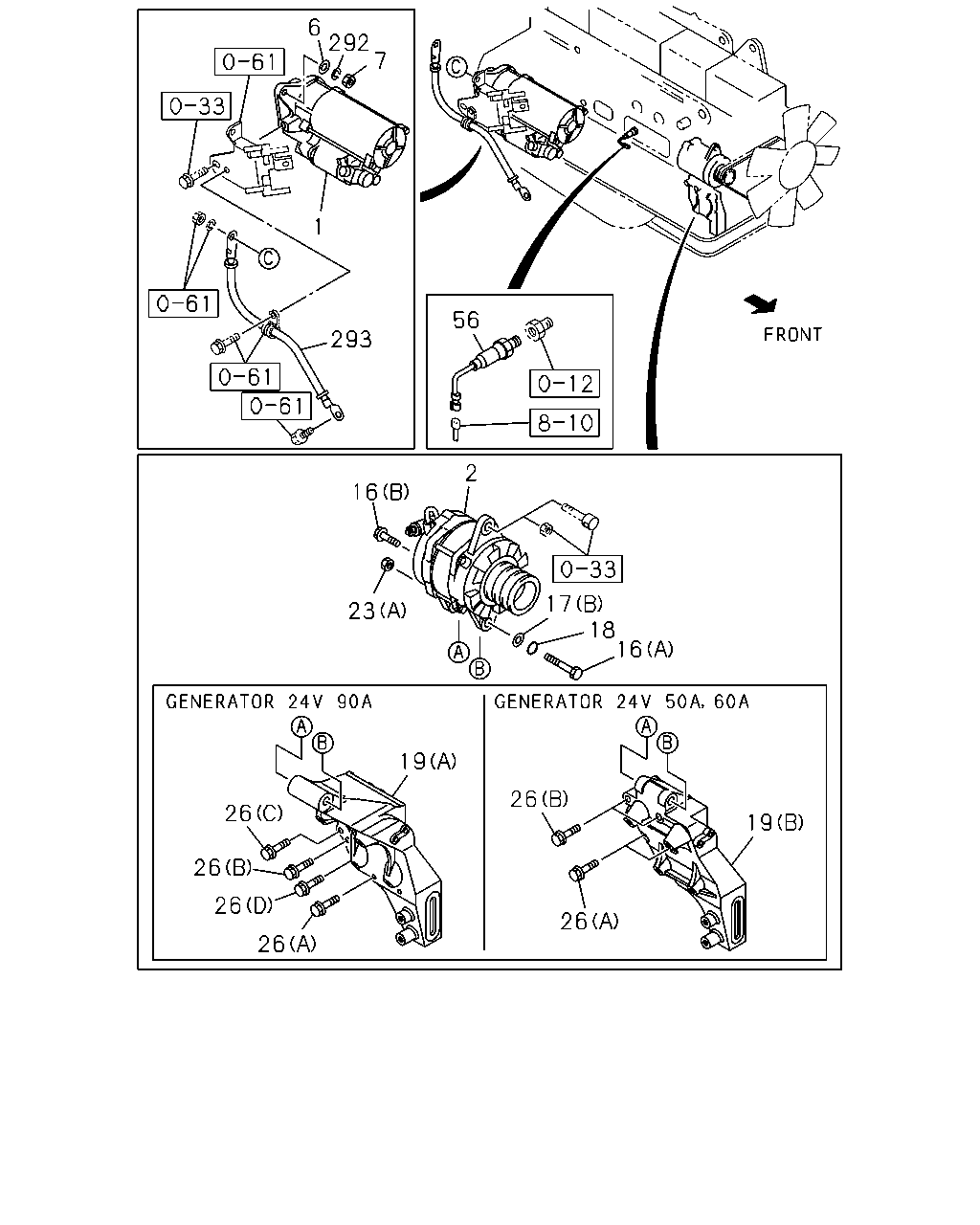

6 292 293 56 16 23 17 18 16 19 26 26 26 26 26 26 19 2 1 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98179-204-1	01	1	1205-1207		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98222-021-0	01	1	1208-1310		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98245-258-0	01	1	1311-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98009-043-2	01	1	1205-1207		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98222-023-0	01	1	1208-1311		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98245-260-1	01	1	1312-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98060-854-0	01	1	0906-0909	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	0910-1409	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1410-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-456-4	01	1	1205-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98013-459-3	01	1	1205-1508		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98330-085-0	01	1	1509-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-455-4	01	1	1205-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-461-5	01	1	0906-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-462-5	01	1	0906-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98013-463-3	01	1	0906-1508	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98330-087-0	01	1	1509-	●
6	WASHER; PL,STARTER ID=15	0-91610-514-0	01	1	0906-	●
7	NUT; STARTER M14	0-91110-514-0	02	1	0906-	●
16	BOLT; GEN GENERATOR 24V90A(K44) (C) M10X45 FLANGE	0-28051-045-0	01	1	1205-		●
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	0906-1204	●
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1205-	●	●
16	BOLT; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	02	1	0906-	●
16	BOLT; GEN HEATER & DEFROSTER(C41) (B) M6X10 FLANGE	0-28050-610-0	01	1	0906-	●
17	WASHER; PL,GEN (A) ID=14.2	0-91510-514-0	01	1	1205-		●
17	WASHER; PL,GEN EXC. GENERATOR 24V90A(K44) (C) ID=12.5 OD=32	9-09160-712-0	01	1	1205-		●
17	WASHER; PL,GEN (B) ID=15	0-91610-514-0	01	1	0906-1204	●
17	WASHER; PL,GEN (B) ID=15	0-91610-514-0	01	1	1205-	●	●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0906-	●
19	BRACKET; GEN GENERATOR 24V90A(K44) (C)	8-98032-273-0	01	1	1205-		●
19	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98082-615-1	01	1	0906-	●
19	BRACKET; GEN GENERATOR 24V90A(K44) (A)	8-98082-617-0	01	1	0906-	●
23	NUT; GEN GENERATOR 24V90A(K44) (C) M10 FLANGE	8-97065-439-0	01	1	1205-		●
23	NUT; GEN EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE	0-91180-112-0	01	1	1205-		●
23	NUT; GEN (A) M14	0-91110-514-0	01	1	0906-1204	●
23	NUT; GEN (A) M14	0-91110-514-0	01	1	1205-	●	●
26	BOLT; GEN BRKT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (D) M10X50 FLANGE	0-28151-050-0	01	1	1205-		●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (F) M8X70 FLANGE	0-28050-870-0	01	1	1205-		●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (G) M10X60 FLANGE	0-28151-060-0	02	1	1205-		●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (E) M10X70 FLANGE	0-28151-070-0	01	1	1205-		●
26	BOLT; GEN BRKT (B) M10X40 FLANGE	0-28151-040-0	02	1	0906-	●
26	BOLT; GEN BRKT (A) M10X80 FLANGE	0-28151-080-0	02	1	0906-	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (C) M10X25 FLANGE	0-28151-025-0	01	1	0906-	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (C) M10X135	8-94397-139-1	01	1	0906-	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0906-	●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	01	1	0906-	●
293	CABLE; STARTER EARTH L=410	8-97620-375-0	01	1	1205-		●
293	CABLE; STARTER EARTH L=480	8-98097-227-0	01	1	0906-	●

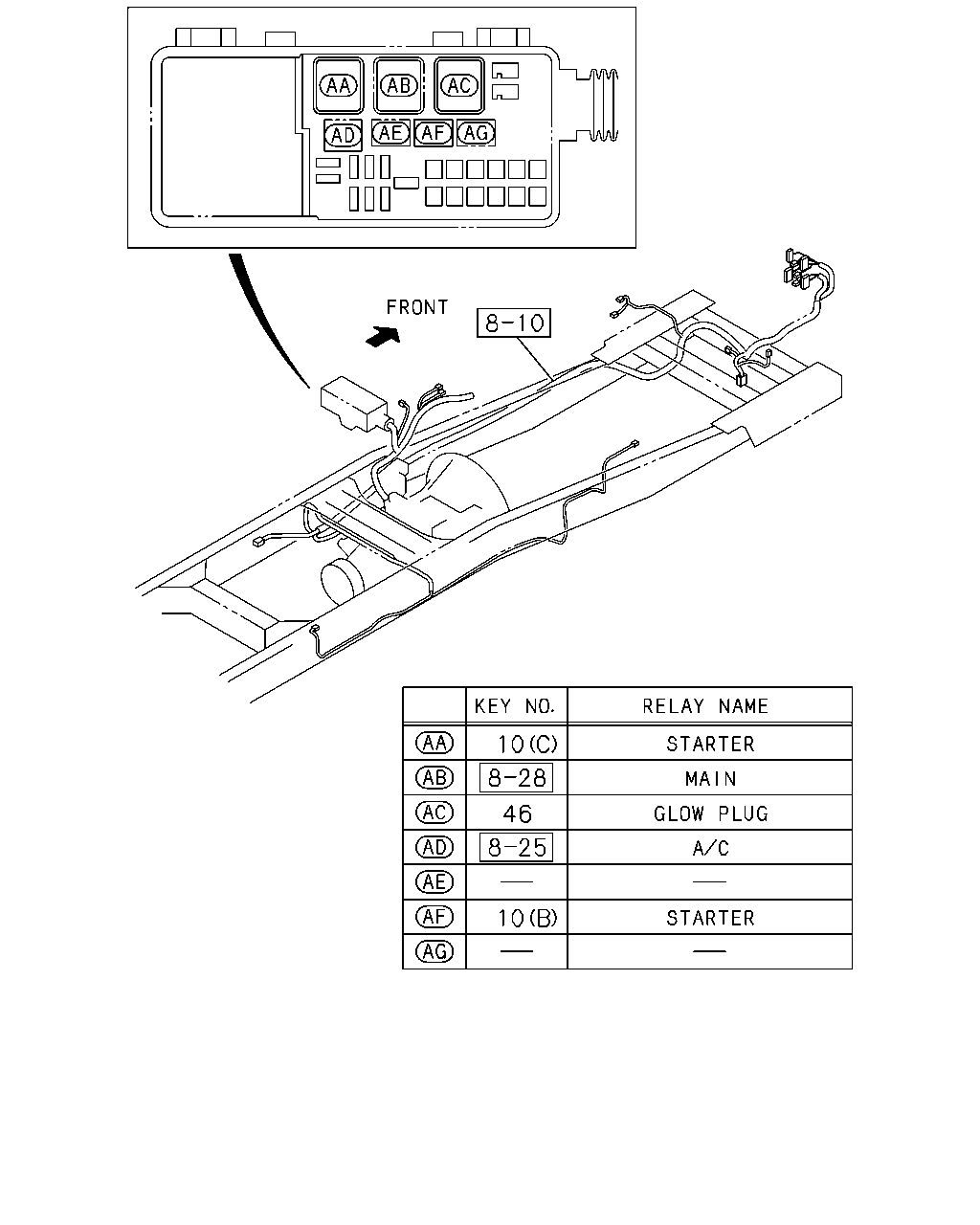

10 46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER (C) 24V 50A	8-97264-947-0	01	1	1205-		●
10	RELAY; STARTER (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0906-1005	●
10	RELAY; STARTER (B) 24V 10A PANASONIC	8-98167-173-0	01	1	1006-1204	●
10	RELAY; STARTER (B) 24V 10A PANASONIC	8-98167-173-0	01	1	1205-	●	●
10	RELAY; STARTER (A) 24V NIKKO	8-98005-631-1	01	1	0906-	●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	0906-1204	●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	1205-	●	●

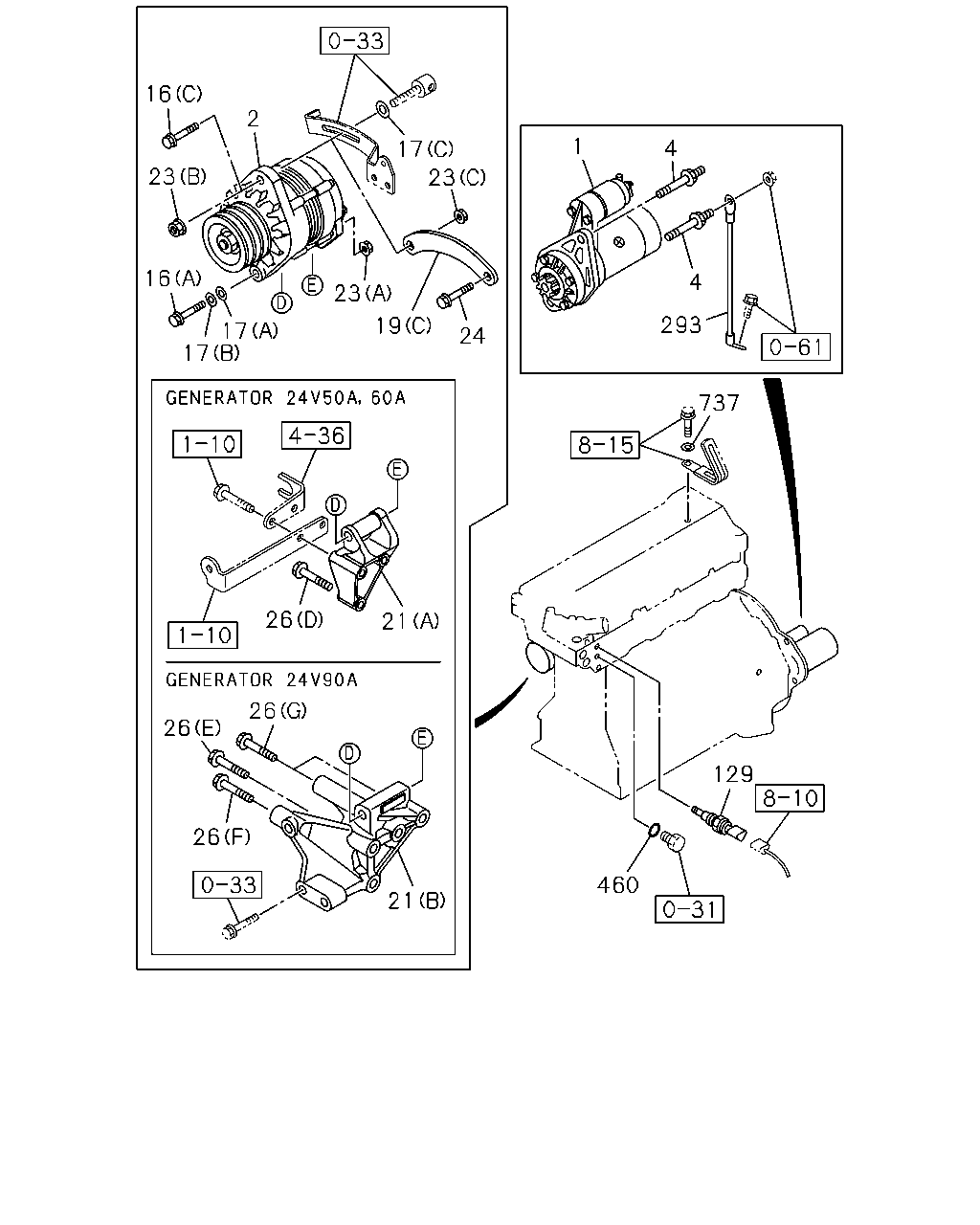

16 2 23 16 17 17 23 23 17 24 19 21 26 293 4 4 1 737 129 460 21 26 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98179-204-1	01	1	1205-1207		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98222-021-0	01	1	1208-1310		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98245-258-0	01	1	1311-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98009-043-2	01	1	1205-1207		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98222-023-0	01	1	1208-1311		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98245-260-1	01	1	1312-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98060-854-0	01	1	0906-0909	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	0910-1409	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1410-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-456-4	01	1	1205-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98013-459-3	01	1	1205-1508		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98330-085-0	01	1	1509-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-455-4	01	1	1205-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-461-5	01	1	0906-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-462-5	01	1	0906-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98013-463-3	01	1	0906-1508	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98330-087-0	01	1	1509-	●
4	BOLT; STARTER M10X15,M14X82 L=110	8-98029-095-0	02	1	1205-		●
16	BOLT; GEN GENERATOR 24V90A(K44) (C) M10X45 FLANGE	0-28051-045-0	01	1	1205-		●
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	0906-1204	●
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1205-	●	●
16	BOLT; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	02	1	0906-	●
16	BOLT; GEN HEATER & DEFROSTER(C41) (B) M6X10 FLANGE	0-28050-610-0	01	1	0906-	●
17	WASHER; PL,GEN (A) ID=14.2	0-91510-514-0	01	1	1205-		●
17	WASHER; PL,GEN EXC. GENERATOR 24V90A(K44) (C) ID=12.5 OD=32	9-09160-712-0	01	1	1205-		●
17	WASHER; PL,GEN (B) ID=15	0-91610-514-0	01	1	0906-1204	●
17	WASHER; PL,GEN (B) ID=15	0-91610-514-0	01	1	1205-	●	●
19	BRACKET; GEN GENERATOR 24V90A(K44) (C)	8-98032-273-0	01	1	1205-		●
19	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98082-615-1	01	1	0906-	●
19	BRACKET; GEN GENERATOR 24V90A(K44) (A)	8-98082-617-0	01	1	0906-	●
21	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-97381-404-0	01	1	1205-		●
21	BRACKET; GEN GENERATOR 24V90A(K44) (B)	8-98075-340-0	01	1	1205-		●
23	NUT; GEN GENERATOR 24V90A(K44) (C) M10 FLANGE	8-97065-439-0	01	1	1205-		●
23	NUT; GEN EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE	0-91180-112-0	01	1	1205-		●
23	NUT; GEN (A) M14	0-91110-514-0	01	1	0906-1204	●
23	NUT; GEN (A) M14	0-91110-514-0	01	1	1205-	●	●
24	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X20 FLANGE	0-28151-020-0	01	1	1205-		●
26	BOLT; GEN BRKT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (D) M10X50 FLANGE	0-28151-050-0	01	1	1205-		●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (F) M8X70 FLANGE	0-28050-870-0	01	1	1205-		●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (G) M10X60 FLANGE	0-28151-060-0	02	1	1205-		●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (E) M10X70 FLANGE	0-28151-070-0	01	1	1205-		●
26	BOLT; GEN BRKT (B) M10X40 FLANGE	0-28151-040-0	02	1	0906-	●
26	BOLT; GEN BRKT (A) M10X80 FLANGE	0-28151-080-0	02	1	0906-	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (C) M10X25 FLANGE	0-28151-025-0	01	1	0906-	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (C) M10X135	8-94397-139-1	01	1	0906-	●
129	SENSOR; GLOW PLUG,THERMO MITSUBISHI	8-98023-883-0	01	1	1205-1503		●
129	SENSOR; GLOW PLUG,THERMO NISHIDA	8-98260-257-0	01	1	1504-		●
293	CABLE; STARTER EARTH L=410	8-97620-375-0	01	1	1205-		●
293	CABLE; STARTER EARTH L=480	8-98097-227-0	01	1	0906-	●
460	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	01	1	1205-		●
737	WASHER; PL ID=6.4 OD=18	0-91610-706-0	02	1	1205-		●

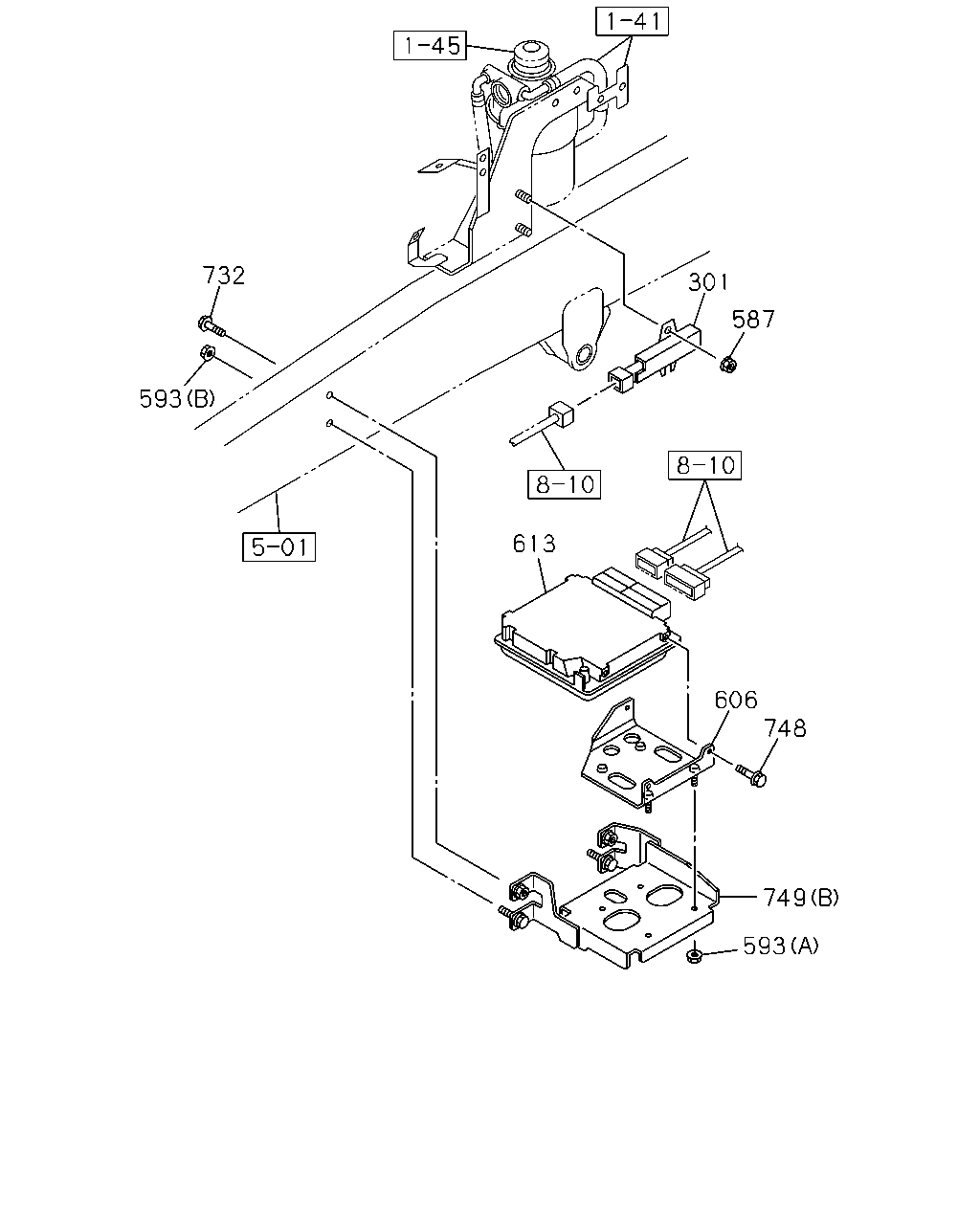

732 301 587 593 613 606 748 749 593

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
301	RESISTOR; DROPPING	8-97357-613-0	01	1	0906-1204	●
301	RESISTOR; DROPPING	8-97357-613-0	01	1	1205-	●	●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	0906-1204	●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	1205-	●	●
593	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1205-		●
593	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	04	1	0906-1204	●
593	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	04	1	1205-	●	●
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	0906-1204	●
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	1205-	●	●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-258-3	01	1	1205-		●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98127-261-3	01	1	1205-		●
613	CONTROL UNIT; ENG AUTO CRUISE<K30>	8-98127-086-5	01	1	0906-1201	●
613	CONTROL UNIT; ENG	8-98127-086-5	01	1	1202-	●
613	CONTROL UNIT; ENG EXC. AUTO CRUISE<K30>	8-98127-085-5	01	1	0906-1201	●
732	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1205-		●
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	0906-	●
748	BOLT; CONT UNIT M6X12 FLANGE	0-28050-612-0	03	1	0906-1204	●
748	BOLT; CONT UNIT M6X12 FLANGE	0-28050-612-0	03	1	1205-	●	●
749	STAY; CONT UNIT (B)	8-98056-967-0	01	1	1205-		●
749	STAY; CONT UNIT (A)	8-98067-250-1	01	1	0906-	●

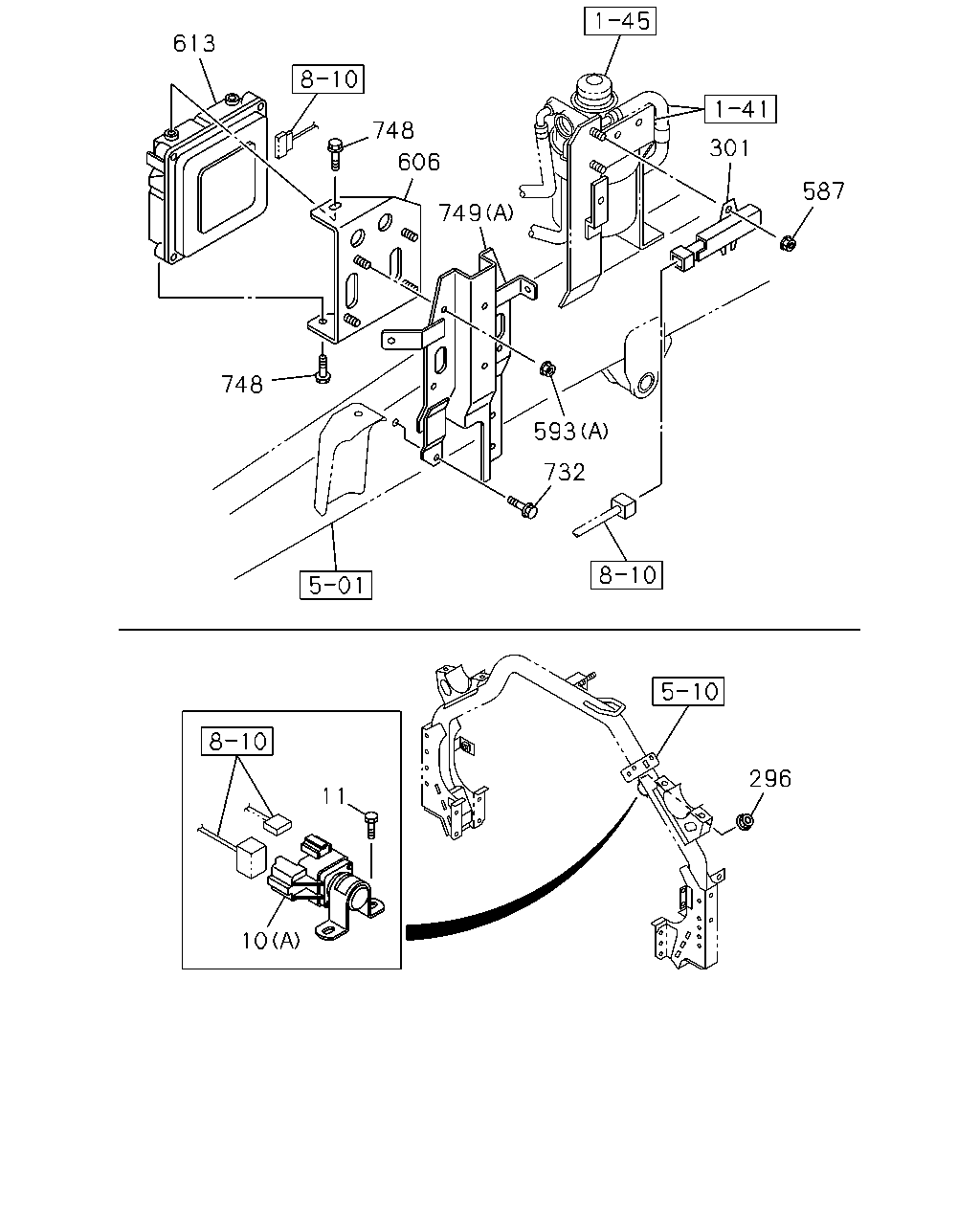

613 748 301 606 587 749 748 593 732 296 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER (C) 24V 50A	8-97264-947-0	01	1	1205-		●
10	RELAY; STARTER (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0906-1005	●
10	RELAY; STARTER (B) 24V 10A PANASONIC	8-98167-173-0	01	1	1006-1204	●
10	RELAY; STARTER (B) 24V 10A PANASONIC	8-98167-173-0	01	1	1205-	●	●
10	RELAY; STARTER (A) 24V NIKKO	8-98005-631-1	01	1	0906-	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28650-820-0	02	1	0906-	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0906-	●
301	RESISTOR; DROPPING	8-97357-613-0	01	1	0906-1204	●
301	RESISTOR; DROPPING	8-97357-613-0	01	1	1205-	●	●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	0906-1204	●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	1205-	●	●
593	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1205-		●
593	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	04	1	0906-1204	●
593	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	04	1	1205-	●	●
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	0906-1204	●
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	1205-	●	●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-258-3	01	1	1205-		●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98127-261-3	01	1	1205-		●
613	CONTROL UNIT; ENG AUTO CRUISE<K30>	8-98127-086-5	01	1	0906-1201	●
613	CONTROL UNIT; ENG	8-98127-086-5	01	1	1202-	●
613	CONTROL UNIT; ENG EXC. AUTO CRUISE<K30>	8-98127-085-5	01	1	0906-1201	●
732	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1205-		●
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	0906-	●
748	BOLT; CONT UNIT M6X12 FLANGE	0-28050-612-0	03	1	0906-1204	●
748	BOLT; CONT UNIT M6X12 FLANGE	0-28050-612-0	03	1	1205-	●	●
749	STAY; CONT UNIT (B)	8-98056-967-0	01	1	1205-		●
749	STAY; CONT UNIT (A)	8-98067-250-1	01	1	0906-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
