Sayfa 2-37A - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37A - MANUAL TRANSMISSION CONT; MISSION SIDE ▶

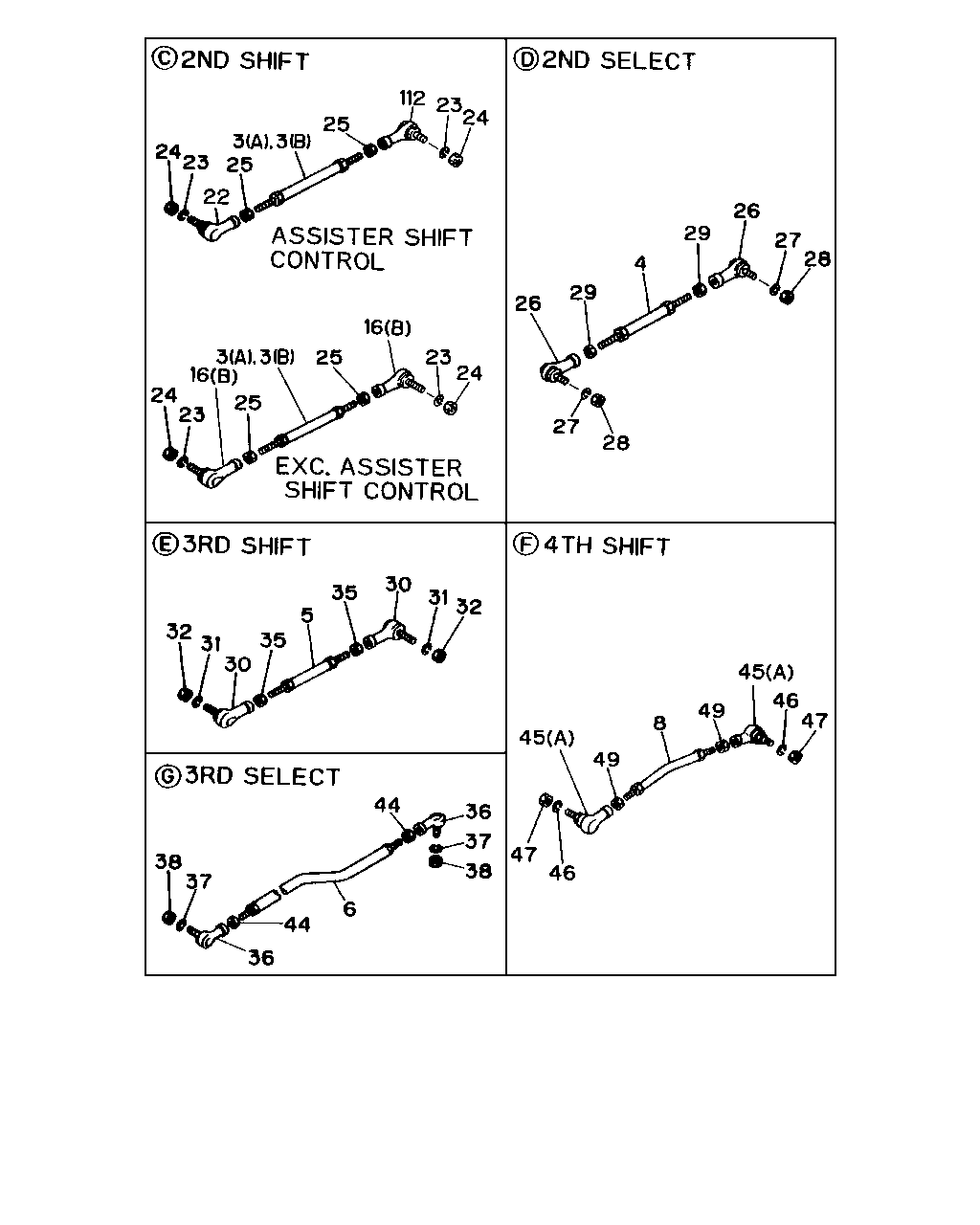

2-37A — MANUAL TRANSMISSION CONT; MISSION SIDE (#1730) — 87 parça

38 37 36 44 6 44 36 37 38 46 47 45 49 49 8 46 47 45 32 31 30 35 5 35 30 31 32 24 16 23 25 25 3 3 16 23 24 26 29 4 27 28 29 26 28 27 24 23 112 25 3 3 25 22 23 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	ROD; LINK,2ND SHIFT EXC. CAB UP 50MM(W60) (A) L=595	1-33652-568-0	01	1	9002-	●	●	●
3	ROD; LINK,2ND SHIFT CAB UP 50MM(W60) (B) L=580	1-33652-416-0	01	1	9002-	●
4	ROD; LINK,2ND SELECT L=585	1-33652-320-0	01	1	9002-9409	●	●	●
4	ROD; LINK,2ND SELECT L=585	1-33652-320-0	01	1	9410-	●	●	●
5	ROD; LINK,3RD SHIFT 6RB1 STD ENG(07L) L=1300	1-33652-342-0	01	1	9002-9306		●	●
5	ROD; LINK,3RD SHIFT 10PD1 STD ENG(40L) L=855	1-33652-321-0	01	1	9002-	●		●
5	ROD; LINK,3RD SHIFT 12PD1 STD ENG(42L) L=950	1-33652-325-0	01	1	9002-9306	●
6	ROD; LINK,3RD SELECT L=1576	1-33652-543-0	01	1	9002-9304		●
6	ROD; LINK,3RD SELECT 6RB1 STD ENG(07L) L=1576	1-33652-543-0	01	1	9002-9304			●
6	ROD; LINK,3RD SELECT L=1570	1-33652-498-1	01	1	9305-9306		●
6	ROD; LINK,3RD SELECT 6RB1 STD ENG(07L) L=1570	1-33652-498-1	01	1	9305-9306			●
6	ROD; LINK,3RD SELECT ASSISTER SHIFT CONTROL<WX8> L=1408	1-33652-606-1	01	1	9002-	●		●
6	ROD; LINK,3RD SELECT 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> L=1409	1-33652-444-0	01	1	9002-	●		●
6	ROD; LINK,3RD SELECT 12PD1 STD ENG(42L) EXC. 15? CLUCH TWIN PLATE(SGL) L=1502	1-33652-585-1	01	1	9002-9306	●
6	ROD; LINK,3RD SELECT 15? CLUCH TWIN PLATE(SGL) L=1408	1-33652-607-1	01	1	9002-9306	●
8	ROD; LINK,4TH SHIFT L=277	1-33652-398-2	01	1	9002-9306		●
8	ROD; LINK,4TH SHIFT 6RB1 STD ENG(07L) L=277	1-33652-398-2	01	1	9002-9306			●
8	ROD; LINK,4TH SHIFT ASSISTER SHIFT CONTROL<WX8> L=330	1-33652-405-0	01	1	9002-9103	●		●
8	ROD; LINK,4TH SHIFT ASSISTER SHIFT CONTROL<WX8> L=320	1-33652-648-1	01	1	9104-	●		●
8	ROD; LINK,4TH SHIFT 10PD1 STD ENG(40L),12PD1 STD ENG(42L) EXC. ASSISTER SHIFT CONTROL<WX8> L=502	1-33652-445-1	01	1	9002-9501	●		●
8	ROD; LINK,4TH SHIFT 10PD1 STD ENG(40L),12PD1 STD ENG(42L) EXC. ASSISTER SHIFT CONTROL<WX8> L=490	1-33652-749-0	01	1	9502-	●		●
16	JOINT ASM; BALL,CONT ROD (A) L=48	1-09760-038-1	02	1	9002-	●	●	●
16	JOINT ASM; BALL,CONT ROD EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-09760-078-0	02	1	9002-	●	●	●
22	JOINT; BALL,SCREW,LINK ROD ASSISTER SHIFT CONTROL<WX8>	1-09760-036-1	01	1	9002-	●		●
23	WASHER; LK,2ND LINK ROD ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●
24	NUT; 2ND LINK ROD,SHIFT M10	9-09110-410-0	02	1	9002-9301	●	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9302-	●	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-	●	●	●
26	JOINT; BALL,RIGHT SCREW,LINK ROD L=48	1-09760-038-1	02	1	9002-	●	●	●
27	WASHER; LK,2ND LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9301	●	●	●
28	NUT; 2ND LINK ROD M8	9-09110-408-0	02	1	9002-9301	●	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-049-0	02	1	9302-	●	●	●
29	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9002-	●	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-078-0	02	1	9002-	●	●	●
31	WASHER; LK,3RD LINK ROD ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●
31	WASHER; LK,3RD LINK ROD 12PD1 STD ENG(42L) ID=10.2	9-09150-510-0	02	1	9002-9301	●
31	WASHER; LK,3RD LINK ROD 12PD1 STD ENG(42L) ID=10.2	9-09150-510-0	02	1	9302-9306	●
32	NUT; 3RD LINK ROD M10	9-09110-410-0	02	1	9002-9301	●	●	●
32	NUT; 3RD LINK ROD M10	1-09440-050-0	02	1	9302-	●	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-	●	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD 12PD1 STD ENG(42L) M10	9-09110-410-0	02	1	9002-9306	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD RH THREAD	1-09760-039-1	02	1	9002-9306		●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L) RH THREAD	1-09760-039-1	02	1	9002-9306			●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PD1 STD ENG(40L) L=48	1-09760-038-1	02	1	9002-9212			●
36	JOINT; BALL,RIGHT SCREW,LINK ROD L=48	1-09760-038-1	02	1	9002-9212	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD L=48	1-09760-038-1	02	1	9301-	●	●	●
37	WASHER; LK,3RD LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9301	●	●	●
38	NUT; 3RD LINK ROD M8	9-09110-408-0	02	1	9002-9301	●	●	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-049-0	02	1	9302-	●	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-9306		●
44	NUT; LK,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L) M10	9-09111-410-0	02	1	9002-9306			●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PD1 STD ENG(40L) M8	9-09111-508-0	02	1	9002-9212			●
44	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-508-0	02	1	9002-9212	●
44	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-508-0	02	1	9301-9306	●	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9307-	●		●
45	JOINT; BALL,RIGHT SCREW,LINK ROD EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-09760-078-0	02	1	9002-9501	●	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD ASSISTER SHIFT CONTROL<WX8> (A)	1-09760-078-0	02	1	9002-9103	●		●
45	JOINT; BALL,RIGHT SCREW,LINK ROD ASSISTER SHIFT CONTROL<WX8> (A)	1-09760-082-0	02	1	9104-9501	●		●
45	JOINT; BALL,RIGHT SCREW,LINK ROD (A)	1-09760-116-0	02	1	9502-	●		●
46	WASHER; LK,4TH LINK ROD ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●
47	NUT; 4TH LINK ROD M10	9-09110-410-0	02	1	9002-9301	●	●	●
47	NUT; 4TH LINK ROD M10	1-09440-050-0	02	1	9302-	●	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-9103	●	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09111-410-0	02	1	9104-9501	●	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD ASSISTER SHIFT CONTROL<WX8> M12	9-99111-412-0	02	1	9104-9501	●		●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9502-	●		●
112	JOINT; RUBBER ASSISTER SHIFT CONTROL<WX8>	1-33660-157-1	01	1	9002-	●		●

58 39 57 39 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
39	GASKET; FLEX HOSE ASSISTER SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●
57	NIPPLE; POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9002-9302	●	●
57	NIPPLE; POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-	●	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> L=340	0-07150-340-0	01	1	9002-9103	●	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> L=360	0-07150-360-0	01	1	9104-	●	●
60	CLIP; FLEX HOSE ASSISTER SHIFT CONTROL<WX8>	1-09709-183-1	01	1	9002-9103	●	●
60	CLIP; FLEX HOSE ASSISTER SHIFT CONTROL<WX8> ID=13 & 12	8-94178-797-0	01	1	9104-9204	●	●

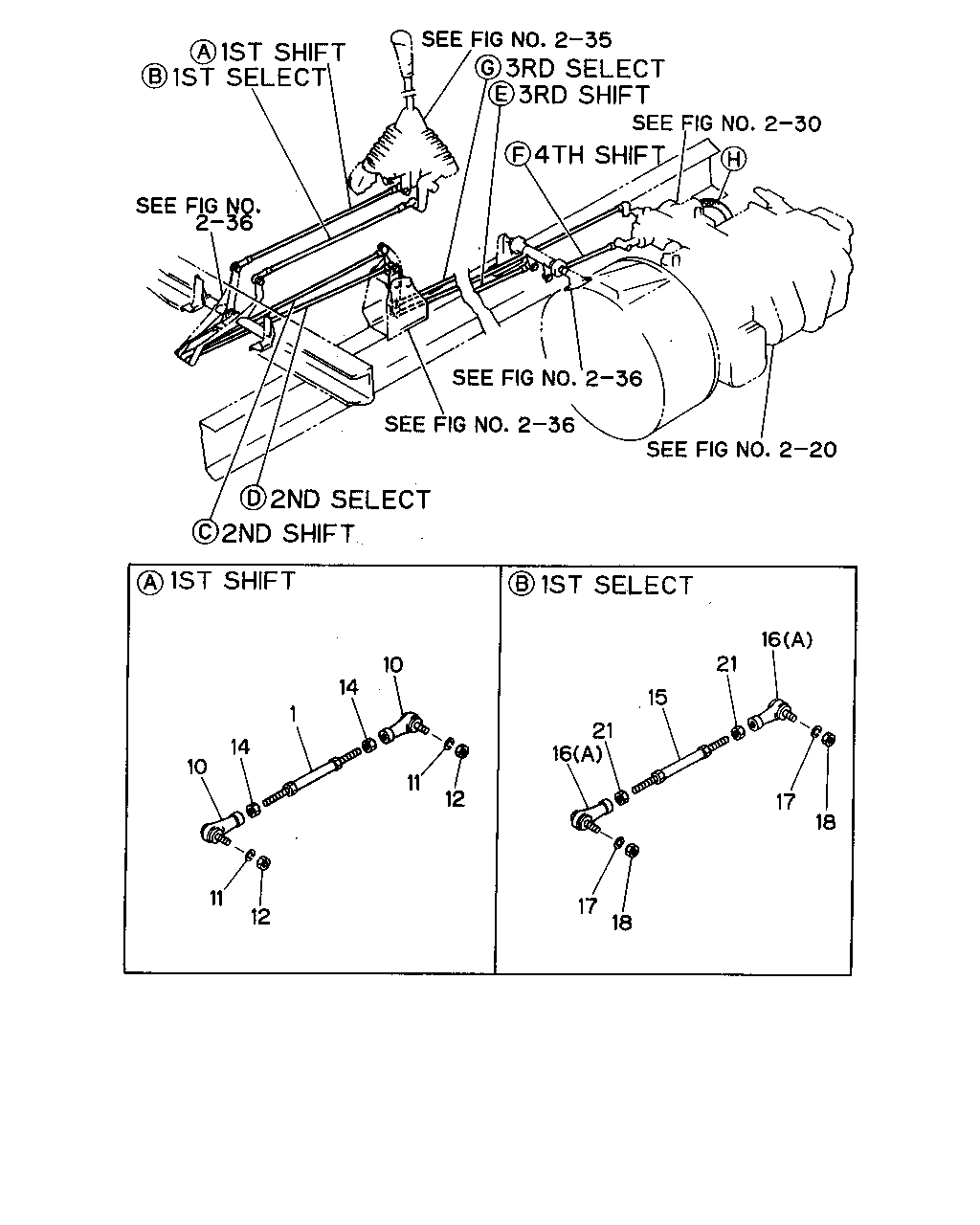

12 11 10 14 1 14 10 11 12 17 18 16 21 15 21 17 18 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ROD; LINK,1ST SHIFT L=498	1-33652-269-1	01	1	9002-	●	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-078-0	02	1	9002-	●	●	●
11	WASHER; LK,1ST LINK ROD,SHIFT ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●
12	NUT; 1ST LINK ROD,SHIFT M10	9-09110-510-0	02	1	9002-9301	●	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9302-	●	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-	●	●	●
15	ROD; LINK 1ST SHIFT L=513	1-33652-318-1	01	1	9002-	●	●	●
16	JOINT ASM; BALL,CONT ROD (A) L=48	1-09760-038-1	02	1	9002-	●	●	●
16	JOINT ASM; BALL,CONT ROD EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-09760-078-0	02	1	9002-	●	●	●
17	WASHER; LK,1ST LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9301	●	●	●
18	NUT; 1ST LINK ROD M8	9-09110-508-0	02	1	9002-9301	●	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-049-0	02	1	9302-	●	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9002-	●	●	●
