◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶
0-39 — AIR COMPRESSOR; BRAKE (#17296) — 83 parça

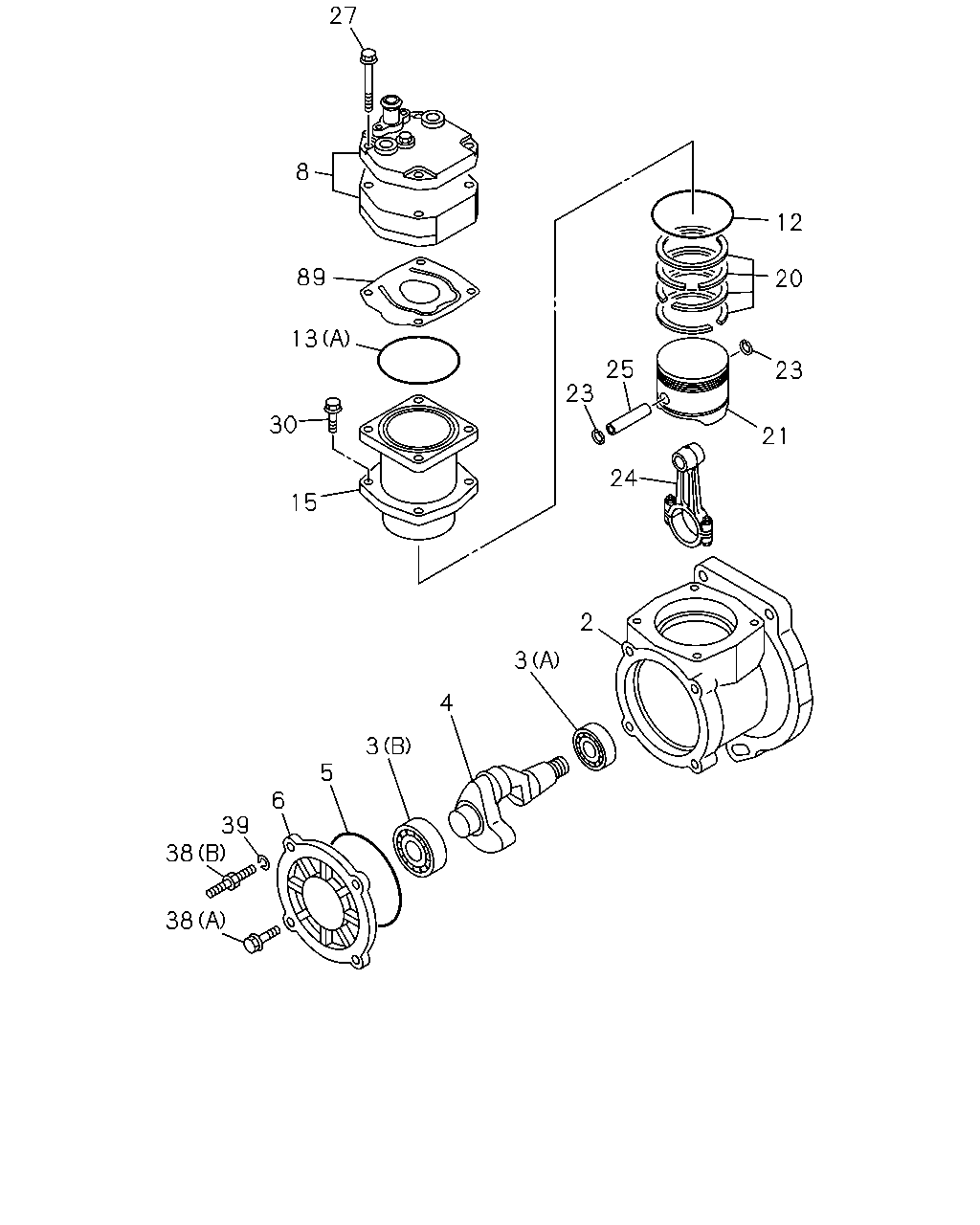

çizim 61763
27 8 12 89 20 13 25 23 23 30 21 24 15 2 3 4 3 5 6 39 38 38
BalonParca AdiParca NoAdetTipApplied Date A B
2 CRANKCASE; AIR CMPR 1-19151-303-0 01 1 1205- ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0906- ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0906- ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0906- ●
4 CRANKSHAFT; AIR CMPR 1-19171-090-1 01 1 1205- ●
4 CRANKSHAFT; AIR CMPR 1-19171-096-0 01 1 0906- ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0906-1107 ●
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1108- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-086-1 01 1 1205- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0906- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-075-0 01 1 1205- ●
8 HEAD ASM; CYL,AIR CMPR 8-98038-657-2 01 1 0906-1012 ●
8 HEAD ASM; CYL,AIR CMPR 8-98167-015-0 01 1 1101- ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0906-1107 ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108-1204 ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1205- ● ●
13 GASKET; AIR CMPR
(C) 		1-19115-015-0 01 1 1205- ●
13 GASKET; AIR CMPR
(B) 		1-19115-016-0 01 1 1205- ●
13 GASKET; AIR CMPR
(A) 		1-09623-615-0 01 1 0906-1107 ●
13 GASKET; AIR CMPR
(A) 		8-98048-640-0 01 1 1108- ●
15 CYLINDER; AIR CMPR 1-19163-068-1 01 1 1205- ●
15 CYLINDER; AIR CMPR 8-98038-668-0 01 1 0906- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0906-1204 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 1205- ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0906-1204 ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 1205- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0906-1204 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 1205- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-023-0 01 1 1205- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0906- ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0906-1204 ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 1205- ● ●
27 BOLT; HD 8-98188-172-0 04 1 1205- ●
27 BOLT; HD
M10X80 		8-98038-666-0 04 1 0906-1012 ●
27 BOLT; HD
M10X75 		8-98167-018-0 04 1 1101- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 1205- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		8-98038-763-0 04 1 0906- ●
38 BOLT; COVER FIX
(C) 		1-19159-023-0 03 1 1205- ●
38 BOLT; COVER FIX
(B) 		8-97617-894-0 02 1 0906- ●
38 BOLT; COVER FIX
(A) M8X20 		8-97617-895-0 02 1 0906- ●
39 WASHER; LK,COVER FIX 8-97617-893-0 02 1 0906- ●
89 VALVE; SUCTION 1-19119-045-0 01 1 0906- ●

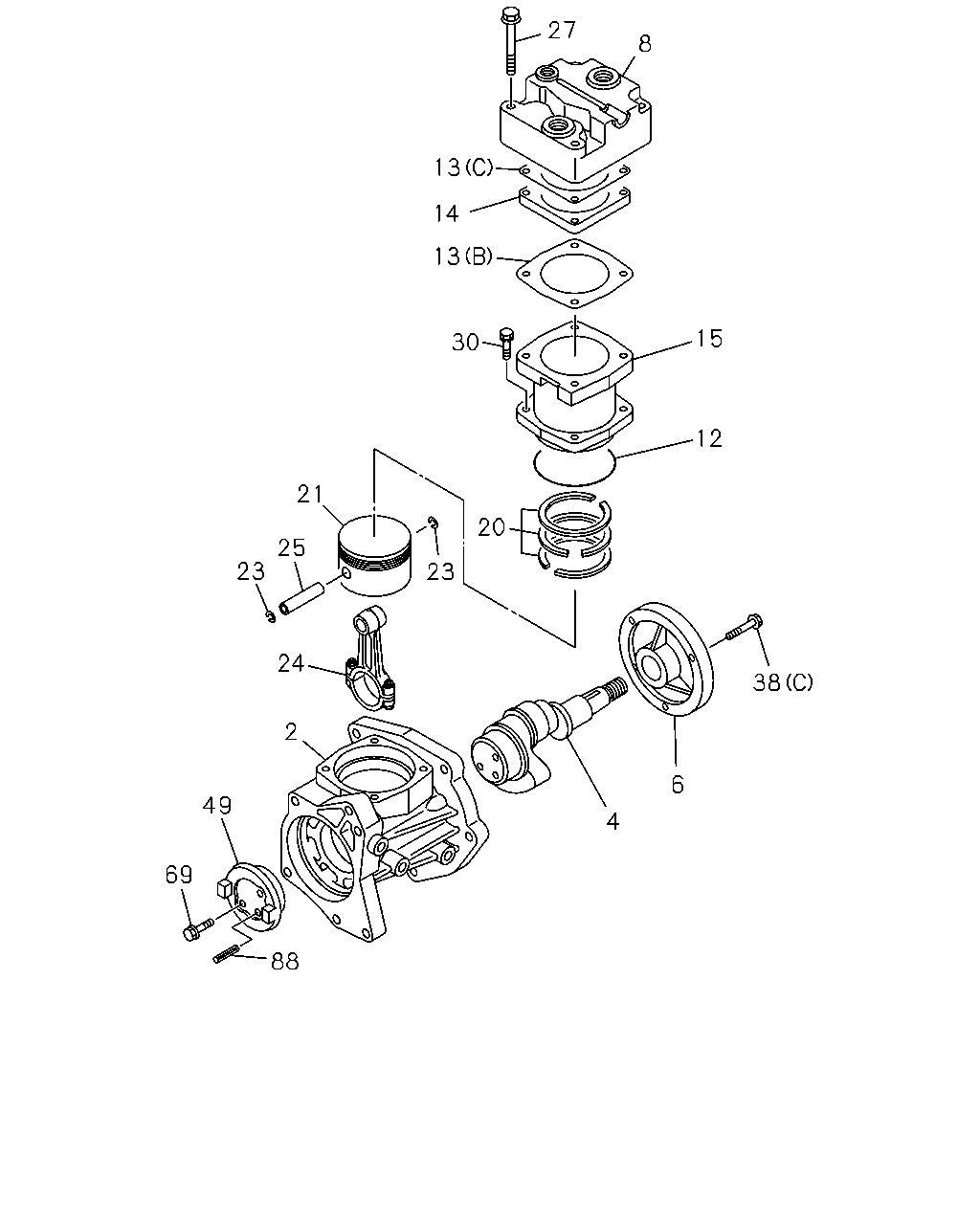

çizim 283074
8 27 13 14 13 30 20 23 21 25 23 24 2 49 69 88 4 6 38 12 15
BalonParca AdiParca NoAdetTipApplied Date A B
2 CRANKCASE; AIR CMPR 1-19151-303-0 01 1 1205- ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0906- ●
4 CRANKSHAFT; AIR CMPR 1-19171-090-1 01 1 1205- ●
4 CRANKSHAFT; AIR CMPR 1-19171-096-0 01 1 0906- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-086-1 01 1 1205- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0906- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-075-0 01 1 1205- ●
8 HEAD ASM; CYL,AIR CMPR 8-98038-657-2 01 1 0906-1012 ●
8 HEAD ASM; CYL,AIR CMPR 8-98167-015-0 01 1 1101- ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0906-1107 ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108-1204 ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1205- ● ●
13 GASKET; AIR CMPR
(C) 		1-19115-015-0 01 1 1205- ●
13 GASKET; AIR CMPR
(B) 		1-19115-016-0 01 1 1205- ●
13 GASKET; AIR CMPR
(A) 		1-09623-615-0 01 1 0906-1107 ●
13 GASKET; AIR CMPR
(A) 		8-98048-640-0 01 1 1108- ●
14 PLATE; AIR CMPR 1-19130-010-1 01 1 1205-1405 ●
14 PLATE; AIR CMPR 8-98271-713-0 01 1 1406- ●
15 CYLINDER; AIR CMPR 1-19163-068-1 01 1 1205- ●
15 CYLINDER; AIR CMPR 8-98038-668-0 01 1 0906- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0906-1204 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 1205- ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0906-1204 ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 1205- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0906-1204 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 1205- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-023-0 01 1 1205- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0906- ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0906-1204 ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 1205- ● ●
27 BOLT; HD 8-98188-172-0 04 1 1205- ●
27 BOLT; HD
M10X80 		8-98038-666-0 04 1 0906-1012 ●
27 BOLT; HD
M10X75 		8-98167-018-0 04 1 1101- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 1205- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		8-98038-763-0 04 1 0906- ●
38 BOLT; COVER FIX
(C) 		1-19159-023-0 03 1 1205- ●
38 BOLT; COVER FIX
(B) 		8-97617-894-0 02 1 0906- ●
38 BOLT; COVER FIX
(A) M8X20 		8-97617-895-0 02 1 0906- ●
49 COUPLING ASM 1-19179-032-0 01 1 1205- ●
69 BOLT ASM; AIR COMP 1-19179-033-0 02 1 1205- ●
88 PIN; SPRING 1-19179-034-0 01 1 1205- ●
