0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#17295) — 78 parça

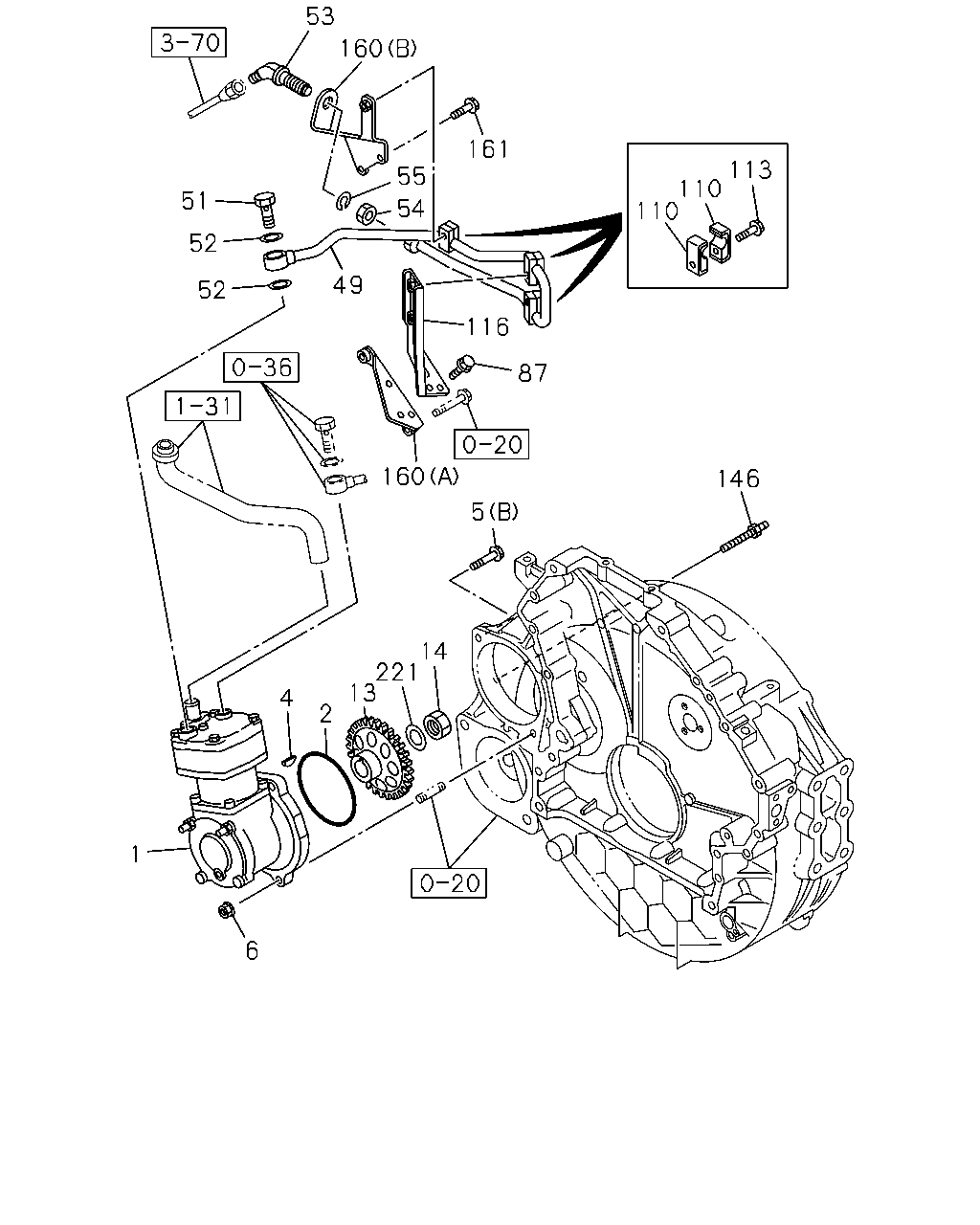

53 160 161 113 110 110 55 51 54 52 49 52 116 87 160 146 5 14 221 13 4 2 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1205-1405	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98055-879-2	01	1	0906-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-303-0	01	1	1108-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1205-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0906-		●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1205-	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0906-		●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1205-	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1205-	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	02	1	0906-		●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1205-	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0906-		●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0906-		●
14	NUT; GEAR M18	8-97141-154-0	01	1	1205-	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0906-		●
49	PIPE; AIR,CHARGE	8-98057-015-0	01	1	1205-	●
49	PIPE; AIR,CHARGE	8-98042-002-0	01	1	0906-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1205-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0906-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0906-1204		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1205-	●	●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0906-		●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0906-		●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0906-		●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	03	1	0906-		●
110	CLIP; AIR PIPE ID=17 L=17	1-09701-284-0	06	1	0906-		●
113	BOLT; CLIP,AIR PIPE M8X45 FLANGE	0-28050-845-0	03	1	0906-		●
116	BRACKET; AIR PIPE	8-97614-183-1	01	1	0906-		●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	0906-		●
160	BRACKET; AIR PIPE (C)	8-98076-098-0	01	1	1205-	●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	0906-		●
160	BRACKET; AIR PIPE (B)	8-98042-844-1	01	1	0906-		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0906-		●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0906-		●

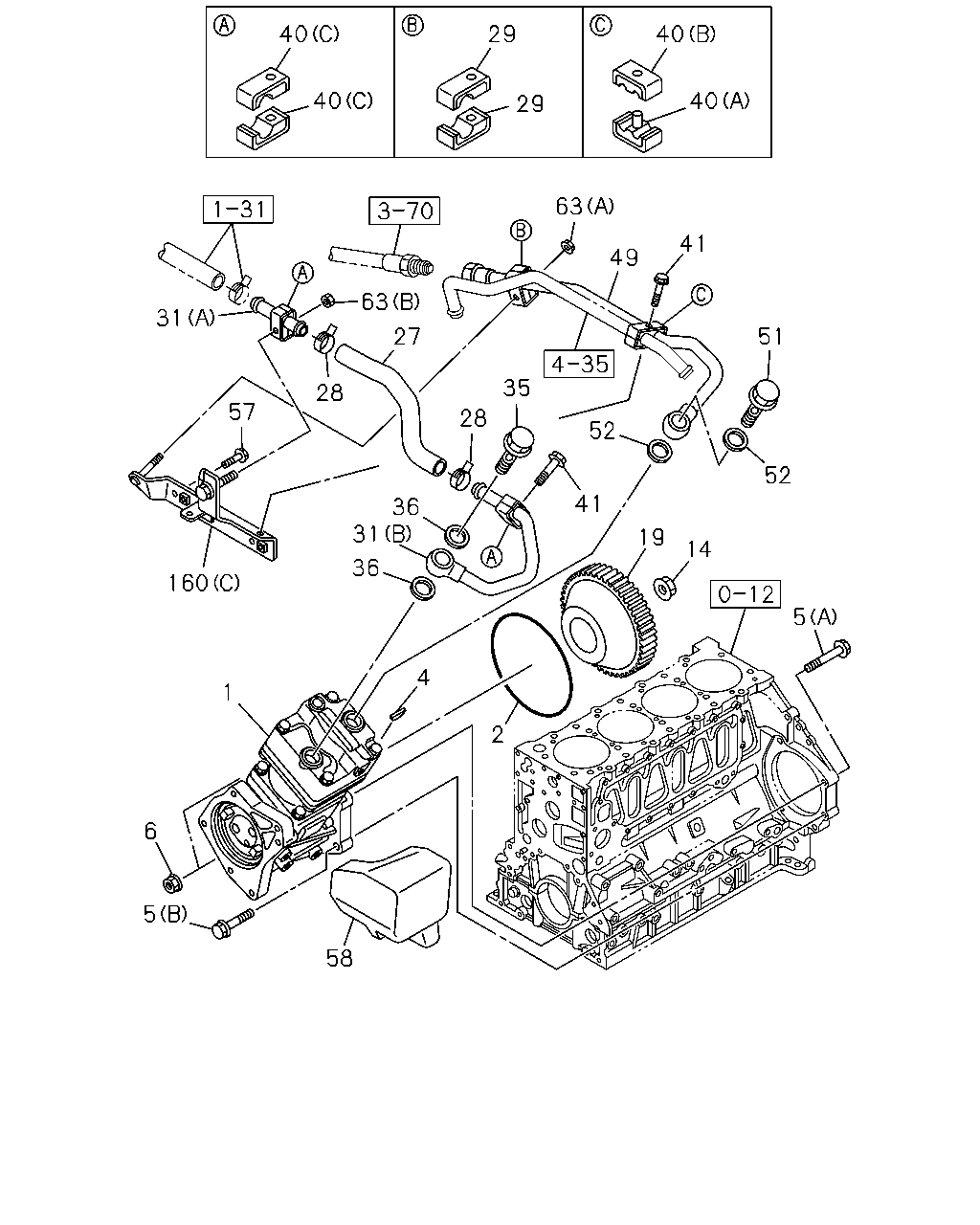

40 29 40 40 40 29 63 41 49 63 31 51 27 35 28 57 28 52 52 41 36 31 19 14 36 160 5 4 1 2 6 5 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1205-1405	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98055-879-2	01	1	0906-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-303-0	01	1	1108-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1205-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0906-		●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1205-	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0906-		●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1205-	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1205-	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	02	1	0906-		●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1205-	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0906-		●
14	NUT; GEAR M18	8-97141-154-0	01	1	1205-	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0906-		●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1205-	●
27	HOSE; AIR CMPR,SUCTION	8-98057-031-1	01	1	1205-	●
28	CLIP; HOSE,AIR CMPR ID=24	8-98025-921-0	02	1	1205-	●
29	CLIP; AIR PIPE	1-09701-282-0	02	1	1205-	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-98023-170-0	01	1	1205-	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-98076-324-0	01	1	1205-	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1205-1404	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1205-	●
40	CLIP; AIR PIPE (C) ID=17 L=17	1-09701-284-0	04	1	1205-	●
40	CLIP; AIR PIPE (A) ID=14&17 L=32.5	8-97619-417-0	01	1	1205-	●
40	CLIP; AIR PIPE (B) ID=14&17 L=32.5	8-97619-418-0	01	1	1205-	●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1205-	●
49	PIPE; AIR,CHARGE	8-98057-015-0	01	1	1205-	●
49	PIPE; AIR,CHARGE	8-98042-002-0	01	1	0906-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1205-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0906-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0906-1204		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1205-	●	●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1205-	●
58	SPACER; AIR CMPR	8-98059-817-1	01	1	1205-	●
63	NUT; CLIP (A) M6 FLANGE	0-91180-106-0	03	1	1205-	●
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	1205-	●
160	BRACKET; AIR PIPE (C)	8-98076-098-0	01	1	1205-	●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	0906-		●
160	BRACKET; AIR PIPE (B)	8-98042-844-1	01	1	0906-		●
