Sayfa 2-36B - Isuzu EPC

2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#1729) — 225 parça

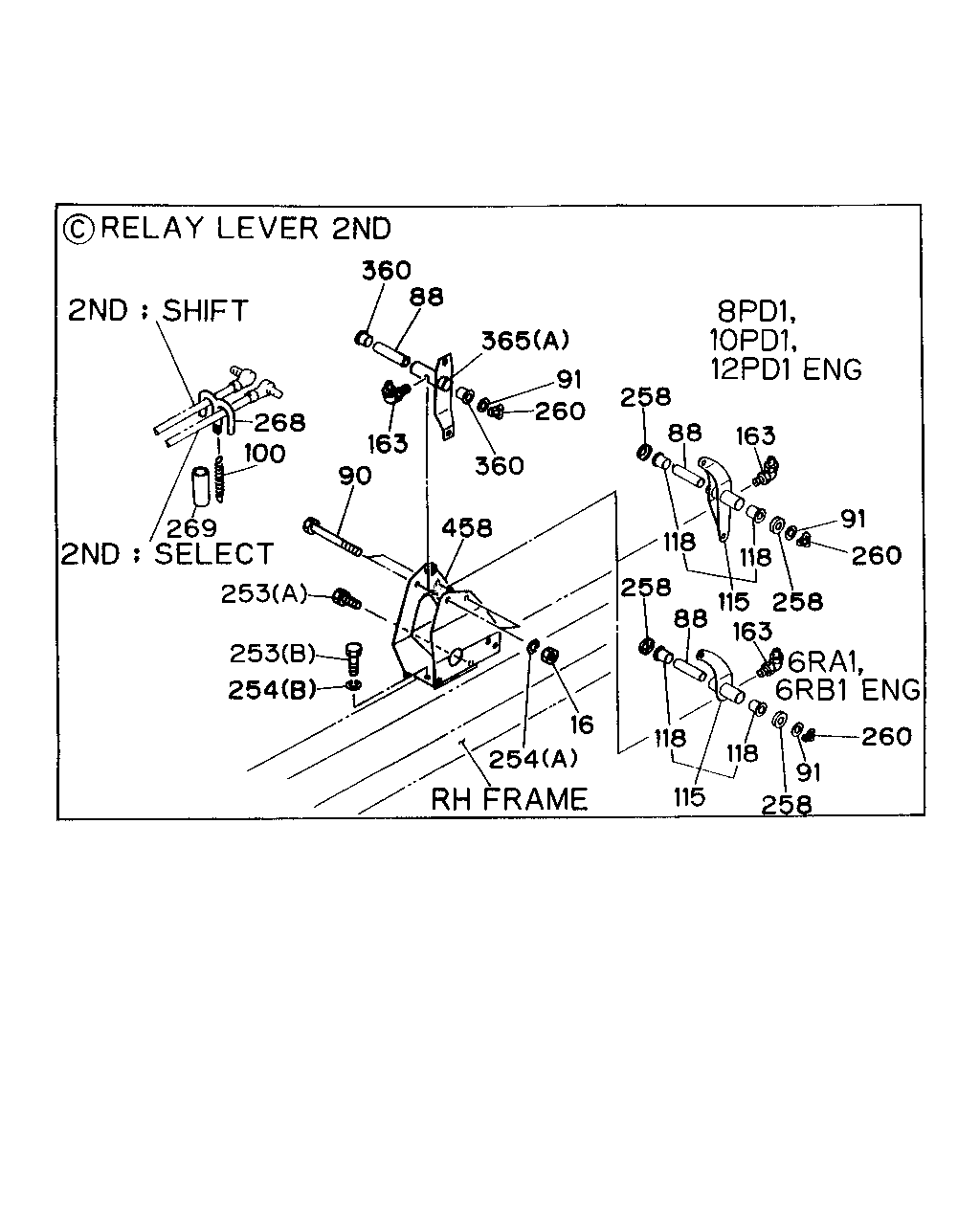

268 100 269 90 163 88 360 365 360 260 91 258 88 163 118 91 260 118 115 88 258 258 163 260 91 258 115 118 118 16 254 458 253 254 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	NUT; RELAY LEVER M14	9-99111-514-0	02	1	9002-	●	●	●	●	●	●
88	COLLAR; RELAY LEVER	1-33659-074-0	02	1	9002-	●	●	●	●	●	●
90	SHAFT	1-33619-125-0	02	1	9002-	●	●	●	●	●	●
91	SHIM; RELAY LEVER	1-33659-092-0	02	1	9002-	●	●	●	●	●	●
100	SPRING 6RA1TC ENG(19L)	1-09583-218-0	01	1	9002-9306		●
100	SPRING 6RB1TC ENG(30L) EXC. CAB UP 50MM(W60)	1-09583-218-0	01	1	9307-	●	●
115	LEVER; RELAY,2ND SHIFT 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L)	1-33651-505-1	01	1	9002-	●	●	●	●	●	●
115	LEVER; RELAY,2ND SHIFT 8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L)	1-33651-504-1	01	1	9002-		●	●			●
118	BUSHING; RELAY LEVER ID=22 OD=25 L=18	1-09330-050-0	02	1	9002-	●	●	●	●	●	●
163	NIPPLE; GREASE,RELAY LEVER PT1/8 ELBOW	9-09031-210-0	02	1	9002-	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (B) M14X40	9-92051-440-0	02	1	9002-9005	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (B) M14X40	0-20801-440-0	02	1	9006-9306	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER 6RB1TC ENG(30L) (B) M14X40	0-20801-440-0	02	1	9307-	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9002-	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (B) M14X45	9-92051-445-0	02	1	9002-9005		●	●
253	BOLT; BRKT,2ND RELAY LEVER 8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) (B) M14X45	0-20801-445-0	02	1	9006-		●	●			●
254	WASHER; LK,RELAY LEVER (A) ID=14.2	9-09150-514-0	02	1	9002-	●	●	●	●	●	●
254	WASHER; LK,RELAY LEVER (B) ID=14.2	9-09150-614-0	02	1	9002-	●	●	●	●	●	●
258	WASHER; RELAY LEVER	1-09509-041-0	02	1	9002-	●	●	●	●	●	●
260	WASHER; WAVED	1-33659-093-0	02	1	9002-	●	●	●	●	●	●
268	BRACKET; LINK ROD 6RA1TC ENG(19L)	1-33657-216-0	01	1	9002-9306		●
268	BRACKET; LINK ROD 6RB1TC ENG(30L) EXC. CAB UP 50MM(W60)	1-33657-216-0	01	1	9307-	●	●
269	COVER; SPR 6RA1TC ENG(19L)	1-15669-002-0	01	1	9002-9306		●
269	COVER; SPR 6RB1TC ENG(30L) EXC. CAB UP 50MM(W60)	1-15669-002-0	01	1	9307-	●	●
360	BUSHING; RELAY LEVER L=24	5-33659-054-0	02	1	9002-	●	●	●	●	●	●
365	LEVER; RELAY,SELECT 8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) (A)	1-33651-249-4	01	1	9002-		●	●			●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (C)	1-33651-285-2	01	1	9002-9306		●	●	●		●
365	LEVER; RELAY,SELECT (C)	1-33651-285-2	01	1	9002-9306	●				●
365	LEVER; RELAY,SELECT (C)	1-33651-557-0	01	1	9307-	●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (C)	1-33651-557-0	01	1	9307-		●				●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (B)	1-33651-286-2	01	1	9002-9306		●	●	●		●
365	LEVER; RELAY,SELECT (B)	1-33651-286-2	01	1	9002-9306	●				●
365	LEVER; RELAY,SELECT (B)	1-33651-555-0	01	1	9307-	●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (B)	1-33651-555-0	01	1	9307-		●				●
365	LEVER; RELAY,SELECT EXZ&LHD(EX6*) (D)	1-33651-328-2	01	1	9002-		●	●	●		●
365	LEVER; RELAY,SELECT 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (A)	1-33651-295-1	01	1	9002-	●	●	●	●	●	●
458	BRACKET; 2ND RELAY LEVER 8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L)	1-33657-210-4	01	1	9002-		●	●			●
458	BRACKET; 2ND RELAY LEVER 6RB1 STD ENG(07L),6RB1TC ENG(30L)	1-33657-221-5	01	1	9002-9306	●	●	●	●	●	●
458	BRACKET; 2ND RELAY LEVER 6RB1TC ENG(30L) CAB UP 50MM(W60)	1-33657-221-5	01	1	9307-	●	●
458	BRACKET; 2ND RELAY LEVER 6RB1TC ENG(30L) EXC. CAB UP 50MM(W60)	1-33657-215-5	01	1	9307-	●	●
458	BRACKET; 2ND RELAY LEVER 6RA1TC ENG(19L)	1-33657-215-5	01	1	9002-9306		●

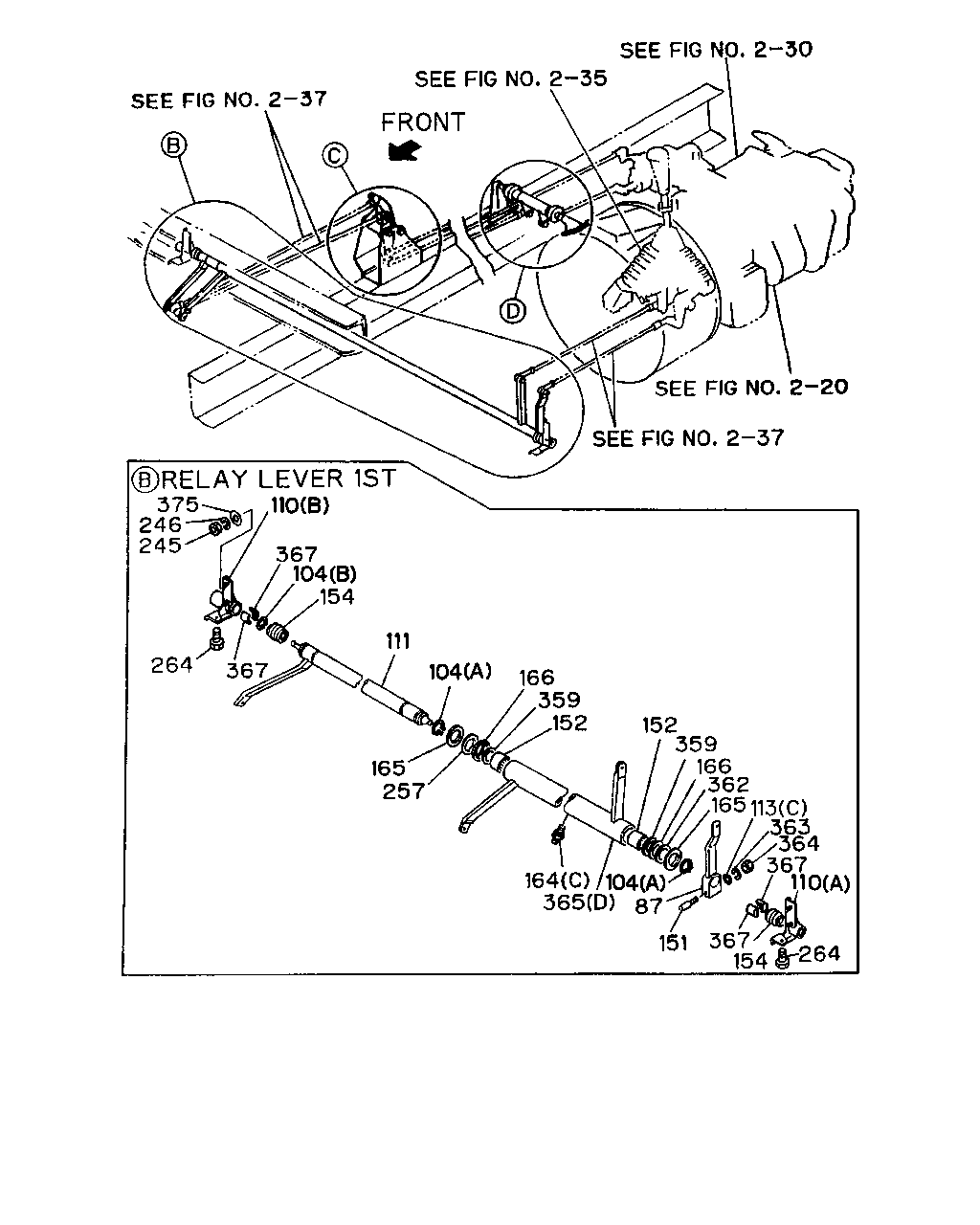

375 110 246 245 367 104 154 367 264 111 104 165 257 166 359 152 152 359 166 362 165 113 363 364 367 110 264 154 367 151 87 104 164 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
87	LEVER; RELAY,SELECT EXZ&LHD(EX6*)	1-33651-327-1	01	1	9002-		●	●	●		●
104	RING; SNAP EXZ&LHD(EX6*) (A) ID=32.2	9-09180-035-0	02	1	9307-		●	●	●		●
104	RING; SNAP EXZ&LHD(EX6*) (B) OD=23.5	9-09180-122-0	01	1	9307-		●	●	●		●
110	BRACKET; RELAY LEVER,1ST EXZ&RHD(EX5*) (A)	1-33657-180-1	01	1	9002-		●	●	●		●
110	BRACKET; RELAY LEVER,1ST (A)	1-33657-180-1	01	1	9002-	●				●
110	BRACKET; RELAY LEVER,1ST EXZ&RHD(EX5*) (B)	1-33657-184-2	01	1	9002-		●	●	●		●
110	BRACKET; RELAY LEVER,1ST (B)	1-33657-184-2	01	1	9002-	●				●
110	BRACKET; RELAY LEVER,1ST EXZ&LHD(EX6*) (A)	1-33657-261-3	01	1	9307-		●	●	●		●
110	BRACKET; RELAY LEVER,1ST EXZ&LHD(EX6*) (B)	1-33657-383-0	01	1	9307-		●	●	●		●
111	SHAFT; RELAY LEVER,1ST EXZ&RHD(EX5*)	1-33619-123-1	01	1	9002-		●	●	●		●
111	SHAFT; RELAY LEVER,1ST	1-33619-123-1	01	1	9002-	●				●
111	SHAFT; RELAY LEVER,1ST EXZ&LHD(EX6*)	1-33659-103-2	01	1	9307-		●	●	●		●
113	WASHER; RELAY LEVER EXZ&RHD(EX5*) (A)	1-09509-041-0	02	1	9002-		●	●	●		●
113	WASHER; RELAY LEVER (A)	1-09509-041-0	02	1	9002-	●				●
113	WASHER; RELAY LEVER EXZ&RHD(EX5*) (B)	9-09160-506-0	01	1	9002-		●	●	●		●
113	WASHER; RELAY LEVER (B)	9-09160-506-0	01	1	9002-	●				●
113	WASHER; RELAY LEVER EXZ&LHD(EX6*) (C)	9-09160-710-0	01	1	9002-		●	●	●		●
151	BOLT; KEY,RELAY LEVER EXZ&LHD(EX6*)	1-33659-063-0	01	1	9002-		●	●	●		●
152	BEARING; NEEDLE,RELAY LEVER EXZ&LHD(EX6*)	1-09811-328-0	02	1	9002-		●	●	●		●
154	COVER; DUST,RELAY LEVER EXZ&LHD(EX6*)	1-33659-068-0	02	1	9002-		●	●	●		●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD EXZ&RHD(EX5*) (B)	9-09031-006-0	01	1	9002-		●	●	●		●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD (B)	9-09031-006-0	01	1	9002-	●				●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD EXZ&RHD(EX5*) (A) PT1/8 ELBOW	9-09031-210-0	01	1	9002-		●	●	●		●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD (A) PT1/8 ELBOW	9-09031-210-0	01	1	9002-	●				●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD EXZ&LHD(EX6*) (C) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-		●	●	●		●
165	WASHER; RELAY LEVER EXZ&LHD(EX6*)	1-09503-148-0	AR	1	9002-		●	●	●		●
166	WASHER; NYLON,RELAY LEVER EXZ&LHD(EX6*)	1-09509-040-0	02	1	9002-		●	●	●		●
245	NUT; BRKT,RELAY LEVER EXZ&LHD(EX6*) M8	9-09110-508-0	04	1	9002-		●	●	●		●
246	WASHER; LK,BRKT,RELAY LEVER EXZ&LHD(EX6*) ID=8.2	9-09150-508-0	04	1	9002-		●	●	●		●
257	PIECE; DIST,RELAY LEVER EXZ&LHD(EX6*)	1-09503-198-0	AR	1	9002-		●	●	●		●
264	BOLT; BRKT,RELAY LEVER EXZ&RHD(EX5*) M8X25 W/LK&PL WASHER	9-01970-825-0	07	1	9002-9005		●	●	●		●
264	BOLT; BRKT,RELAY LEVER M8X25 W/LK&PL WASHER	9-01970-825-0	07	1	9002-9005	●				●
264	BOLT; BRKT,RELAY LEVER EXZ&RHD(EX5*) M8X25 W/LK&PL WASHER	0-50140-825-0	07	1	9006-		●	●	●		●
264	BOLT; BRKT,RELAY LEVER M8X25 W/LK&PL WASHER	0-50140-825-0	07	1	9006-	●				●
264	BOLT; BRKT,RELAY LEVER EXZ&LHD(EX6*) M8X25 W/LK&PL WASHER	9-01970-825-0	02	1	9002-9005		●	●	●		●
264	BOLT; BRKT,RELAY LEVER EXZ&LHD(EX6*) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9006-		●	●	●		●
359	SEAL; RUBBER,RELAY LEVER EXZ&LHD(EX6*)	1-09625-005-1	02	1	9002-		●	●	●		●
362	SHIM EXZ&RHD(EX5*)	1-33659-092-0	02	1	9002-		●	●	●		●
362	SHIM	1-33659-092-0	02	1	9002-	●				●
362	SHIM EXZ&LHD(EX6*)	1-09503-172-0	01	1	9002-		●	●	●		●
363	WASHER; LK,KEY BOLT EXZ&LHD(EX6*) ID=10.2	9-09150-510-0	01	1	9002-		●	●	●		●
364	NUT; KEY BOLT EXZ&LHD(EX6*) M10	9-09111-410-0	01	1	9002-		●	●	●		●
365	LEVER; RELAY,SELECT 8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) (A)	1-33651-249-4	01	1	9002-		●	●			●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (C)	1-33651-285-2	01	1	9002-9306		●	●	●		●
365	LEVER; RELAY,SELECT (C)	1-33651-285-2	01	1	9002-9306	●				●
365	LEVER; RELAY,SELECT (C)	1-33651-557-0	01	1	9307-	●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (C)	1-33651-557-0	01	1	9307-		●				●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (B)	1-33651-286-2	01	1	9002-9306		●	●	●		●
365	LEVER; RELAY,SELECT (B)	1-33651-286-2	01	1	9002-9306	●				●
365	LEVER; RELAY,SELECT (B)	1-33651-555-0	01	1	9307-	●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (B)	1-33651-555-0	01	1	9307-		●				●
365	LEVER; RELAY,SELECT EXZ&LHD(EX6*) (D)	1-33651-328-2	01	1	9002-		●	●	●		●
365	LEVER; RELAY,SELECT 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (A)	1-33651-295-1	01	1	9002-	●	●	●	●	●	●
367	SEAT; BALL,CONT SHAFT EXZ&LHD(EX6*)	1-33659-053-0	04	1	9002-		●	●	●		●
375	WASHER; PL,BRKT,RELAY LEVER EXZ&LHD(EX6*) ID=8.4	9-09160-508-0	04	1	9002-		●	●	●		●

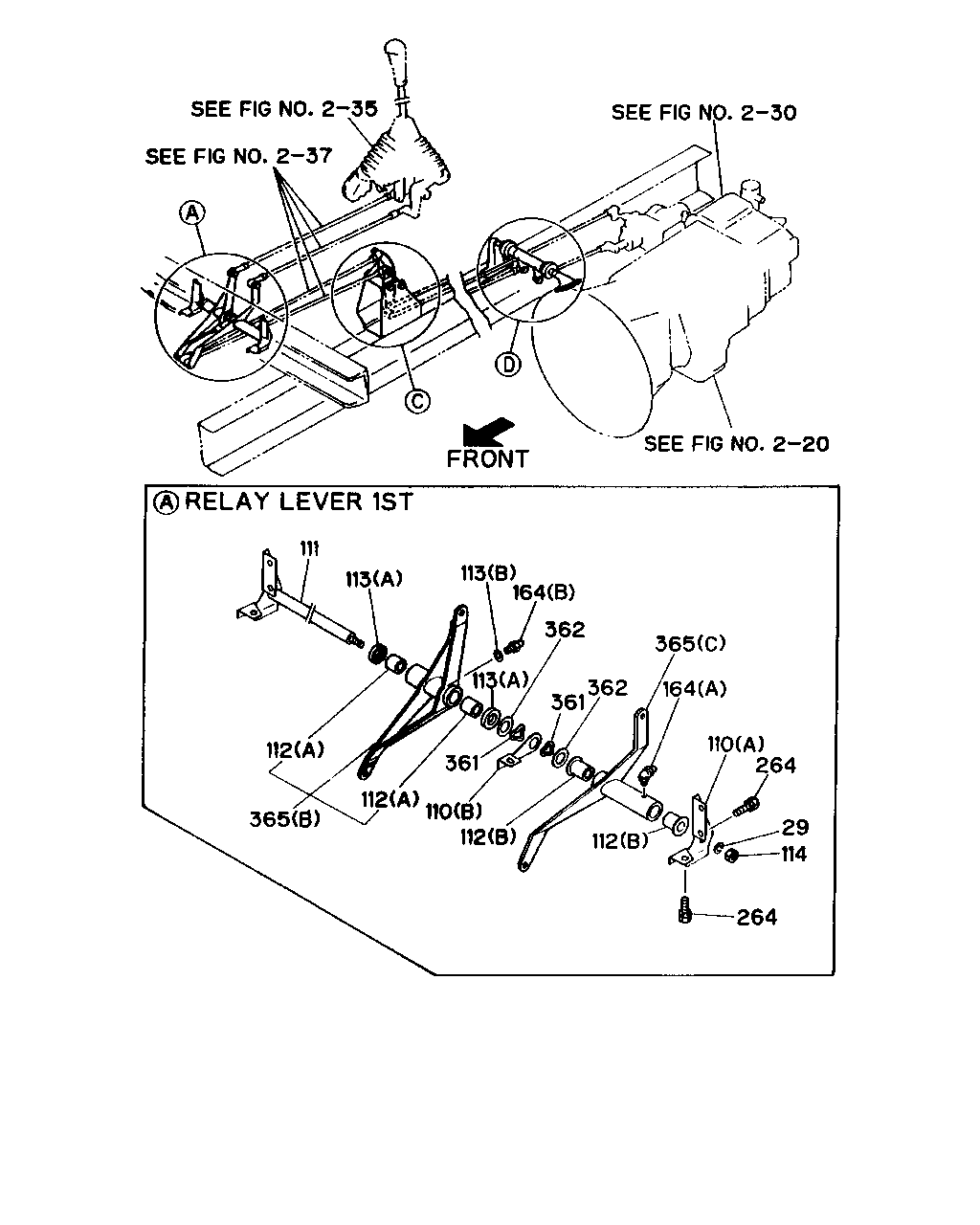

111 113 113 164 113 362 361 362 365 164 110 264 29 114 264 112 112 110 112 365 112 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
29	WASHER; LK,RELAY LEVER EXZ&RHD(EX5*) ID=14.2	9-09150-514-0	01	1	9002-		●	●	●		●
29	WASHER; LK,RELAY LEVER ID=14.2	9-09150-514-0	01	1	9002-	●				●
110	BRACKET; RELAY LEVER,1ST EXZ&RHD(EX5*) (A)	1-33657-180-1	01	1	9002-		●	●	●		●
110	BRACKET; RELAY LEVER,1ST (A)	1-33657-180-1	01	1	9002-	●				●
110	BRACKET; RELAY LEVER,1ST EXZ&RHD(EX5*) (B)	1-33657-184-2	01	1	9002-		●	●	●		●
110	BRACKET; RELAY LEVER,1ST (B)	1-33657-184-2	01	1	9002-	●				●
110	BRACKET; RELAY LEVER,1ST EXZ&LHD(EX6*) (A)	1-33657-261-3	01	1	9307-		●	●	●		●
110	BRACKET; RELAY LEVER,1ST EXZ&LHD(EX6*) (B)	1-33657-383-0	01	1	9307-		●	●	●		●
111	SHAFT; RELAY LEVER,1ST EXZ&RHD(EX5*)	1-33619-123-1	01	1	9002-		●	●	●		●
111	SHAFT; RELAY LEVER,1ST	1-33619-123-1	01	1	9002-	●				●
111	SHAFT; RELAY LEVER,1ST EXZ&LHD(EX6*)	1-33659-103-2	01	1	9307-		●	●	●		●
112	BUSHING; RELAY LEVER EXZ&RHD(EX5*) (A)	1-09330-050-0	02	1	9002-		●	●	●		●
112	BUSHING; RELAY LEVER (A)	1-09330-050-0	02	1	9002-	●				●
112	BUSHING; RELAY LEVER EXZ&RHD(EX5*) (B)	5-33659-054-0	02	1	9002-		●	●	●		●
112	BUSHING; RELAY LEVER (B)	5-33659-054-0	02	1	9002-	●				●
113	WASHER; RELAY LEVER EXZ&RHD(EX5*) (A)	1-09509-041-0	02	1	9002-		●	●	●		●
113	WASHER; RELAY LEVER (A)	1-09509-041-0	02	1	9002-	●				●
113	WASHER; RELAY LEVER EXZ&RHD(EX5*) (B)	9-09160-506-0	01	1	9002-		●	●	●		●
113	WASHER; RELAY LEVER (B)	9-09160-506-0	01	1	9002-	●				●
113	WASHER; RELAY LEVER EXZ&LHD(EX6*) (C)	9-09160-710-0	01	1	9002-		●	●	●		●
114	NUT; RELAY LEVER EXZ&RHD(EX5*) M14	9-99110-414-0	01	1	9002-		●	●	●		●
114	NUT; RELAY LEVER M14	9-99110-414-0	01	1	9002-	●				●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD EXZ&RHD(EX5*) (B)	9-09031-006-0	01	1	9002-		●	●	●		●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD (B)	9-09031-006-0	01	1	9002-	●				●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD EXZ&RHD(EX5*) (A) PT1/8 ELBOW	9-09031-210-0	01	1	9002-		●	●	●		●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD (A) PT1/8 ELBOW	9-09031-210-0	01	1	9002-	●				●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD EXZ&LHD(EX6*) (C) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-		●	●	●		●
264	BOLT; BRKT,RELAY LEVER EXZ&RHD(EX5*) M8X25 W/LK&PL WASHER	9-01970-825-0	07	1	9002-9005		●	●	●		●
264	BOLT; BRKT,RELAY LEVER M8X25 W/LK&PL WASHER	9-01970-825-0	07	1	9002-9005	●				●
264	BOLT; BRKT,RELAY LEVER EXZ&RHD(EX5*) M8X25 W/LK&PL WASHER	0-50140-825-0	07	1	9006-		●	●	●		●
264	BOLT; BRKT,RELAY LEVER M8X25 W/LK&PL WASHER	0-50140-825-0	07	1	9006-	●				●
264	BOLT; BRKT,RELAY LEVER EXZ&LHD(EX6*) M8X25 W/LK&PL WASHER	9-01970-825-0	02	1	9002-9005		●	●	●		●
264	BOLT; BRKT,RELAY LEVER EXZ&LHD(EX6*) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9006-		●	●	●		●
361	WASHER; WAVED EXZ&RHD(EX5*)	1-33659-093-0	02	1	9002-		●	●	●		●
361	WASHER; WAVED	1-33659-093-0	02	1	9002-	●				●
362	SHIM EXZ&RHD(EX5*)	1-33659-092-0	02	1	9002-		●	●	●		●
362	SHIM	1-33659-092-0	02	1	9002-	●				●
362	SHIM EXZ&LHD(EX6*)	1-09503-172-0	01	1	9002-		●	●	●		●
365	LEVER; RELAY,SELECT 8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) (A)	1-33651-249-4	01	1	9002-		●	●			●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (C)	1-33651-285-2	01	1	9002-9306		●	●	●		●
365	LEVER; RELAY,SELECT (C)	1-33651-285-2	01	1	9002-9306	●				●
365	LEVER; RELAY,SELECT (C)	1-33651-557-0	01	1	9307-	●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (C)	1-33651-557-0	01	1	9307-		●				●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (B)	1-33651-286-2	01	1	9002-9306		●	●	●		●
365	LEVER; RELAY,SELECT (B)	1-33651-286-2	01	1	9002-9306	●				●
365	LEVER; RELAY,SELECT (B)	1-33651-555-0	01	1	9307-	●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (B)	1-33651-555-0	01	1	9307-		●				●
365	LEVER; RELAY,SELECT EXZ&LHD(EX6*) (D)	1-33651-328-2	01	1	9002-		●	●	●		●
365	LEVER; RELAY,SELECT 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (A)	1-33651-295-1	01	1	9002-	●	●	●	●	●	●

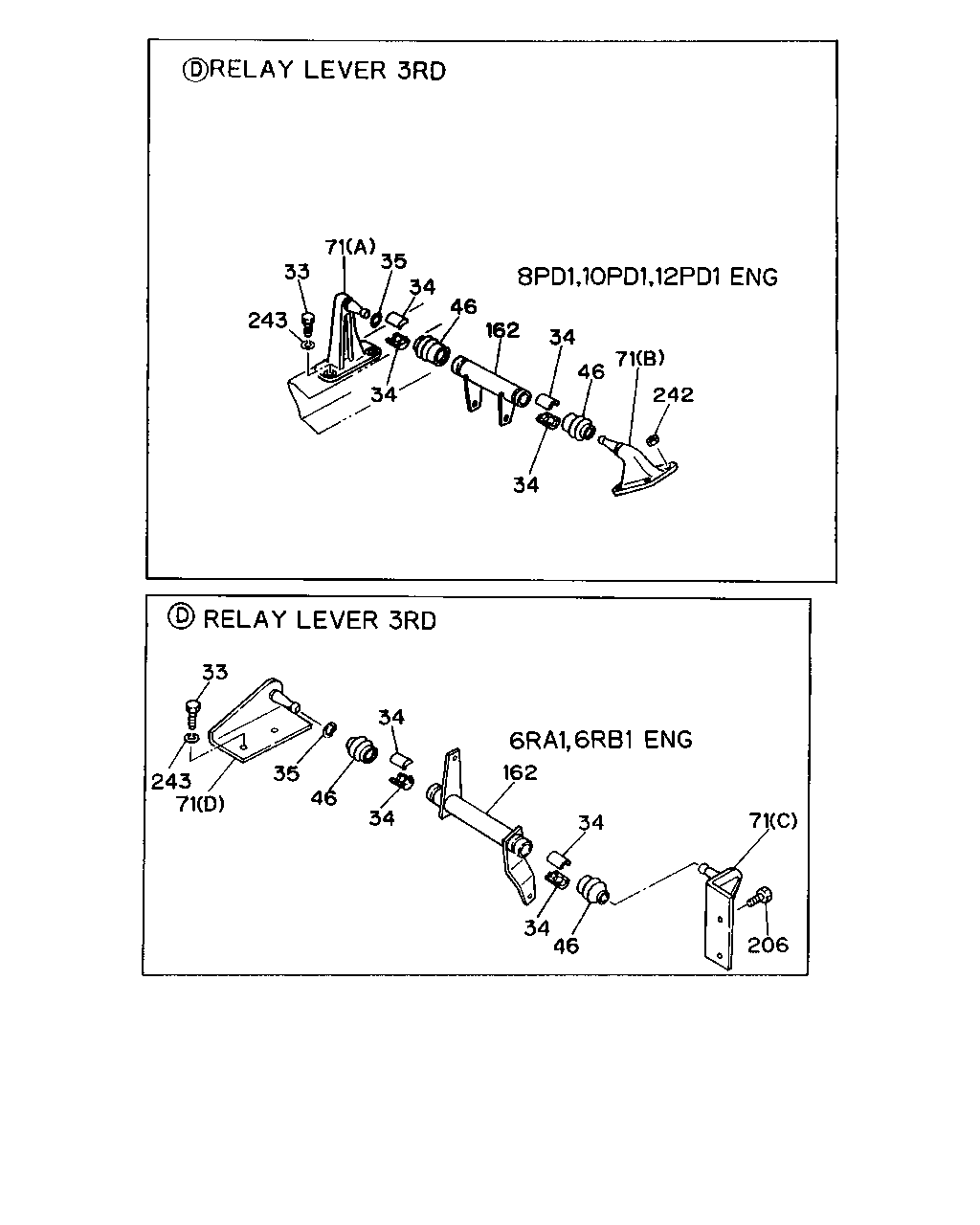

243 33 71 35 34 34 46 162 34 46 71 242 34 71 243 33 35 46 34 34 162 34 34 46 206 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
33	BOLT; BRKT,3RD RELAY LEVER M14X45	9-92051-445-0	01	1	9002-9005	●		●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L),10PD1 STD ENG(40L) M14X45	9-92051-445-0	01	1	9002-9005		●
33	BOLT; BRKT,3RD RELAY LEVER M14X45	0-20801-445-0	01	1	9006-9306	●		●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L),10PD1 STD ENG(40L) M14X45	0-20801-445-0	01	1	9006-9306		●
33	BOLT; BRKT,3RD RELAY LEVER M14X45	0-20801-445-0	01	1	9307-	●	●				●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) M12X45	9-01911-245-0	01	1	9002-9005	●	●	●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) M12X45 W/LK WASHER	0-50041-245-0	01	1	9006-9306	●	●	●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M10X45 W/LK WASHER	0-50041-045-0	01	1	9002-9205		●	●
33	BOLT; BRKT,3RD RELAY LEVER 8PD1 STD ENG(38L),10PD1 STD ENG(40L) M10X40 W/LK WASHER	0-50041-040-0	01	1	9206-		●	●			●
33	BOLT; BRKT,3RD RELAY LEVER 12PD1 STD ENG(42L) M14X50	9-91056-450-0	02	1	9002-9005		●
33	BOLT; BRKT,3RD RELAY LEVER 12PD1 STD ENG(42L) M14X50	0-10806-450-0	02	1	9006-9306		●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1TC ENG(30L) M12X45 W/LK WASHER	0-50041-245-0	01	1	9307-	●	●
34	SEAT; BALL,RELAY LEVER	1-33659-118-0	04	1	9002-	●	●	●	●	●	●
35	RING; SNAP,RELAY LEVER OD=23.5	9-09180-122-0	01	1	9002-	●	●	●	●	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-076-0	02	1	9002-	●	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (C)	1-33657-193-2	01	1	9002-9306	●	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (D)	1-33657-198-1	01	1	9002-9306	●	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PD1 STD ENG(38L),10PD1 STD ENG(40L) (A)	1-33657-223-0	01	1	9002-		●	●			●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) (B)	1-33657-188-0	01	1	9002-		●	●			●
71	BRACKET; 3RD RELAY LEVER,FRAME 12PD1 STD ENG(42L) (A)	1-33657-224-0	01	1	9002-9306		●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1TC ENG(30L) (C)	1-33657-193-2	01	1	9307-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1TC ENG(30L) (D)	1-33657-198-1	01	1	9307-	●	●
162	LEVER; RELAY 12PD1 STD ENG(42L)	1-33651-266-1	01	1	9002-9306		●	●
162	LEVER; RELAY 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L)	1-33651-338-1	01	1	9002-	●	●	●	●	●	●
162	LEVER; RELAY 8PD1 STD ENG(38L),10PD1 STD ENG(40L)	1-33651-403-3	01	1	9002-		●	●			●
206	BOLT; BRKT,3RD RELAY LEVER,ENG 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●	●	●	●	●	●
206	BOLT; BRKT,3RD RELAY LEVER,ENG 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-9306	●	●	●	●	●	●
206	BOLT; BRKT,3RD RELAY LEVER,ENG 6RB1TC ENG(30L) M12X30 W/LK WASHER	0-50041-230-0	02	1	9307-	●	●
242	NUT; FLANGE 3RD RELAY LEVER 8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) M8 FLANGE	5-09440-005-0	04	1	9002-		●	●			●
243	WASHER; LK,BRKT ID=14.2	9-09150-614-0	01	1	9002-9306	●		●	●	●	●
243	WASHER; LK,BRKT 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L),10PD1 STD ENG(40L) ID=14.2	9-09150-614-0	01	1	9002-9306		●
243	WASHER; LK,BRKT 12PD1 STD ENG(42L) ID=14.2	9-09150-614-0	02	1	9002-9306		●	●
243	WASHER; LK,BRKT ID=14.2	9-09150-614-0	01	1	9307-	●	●				●

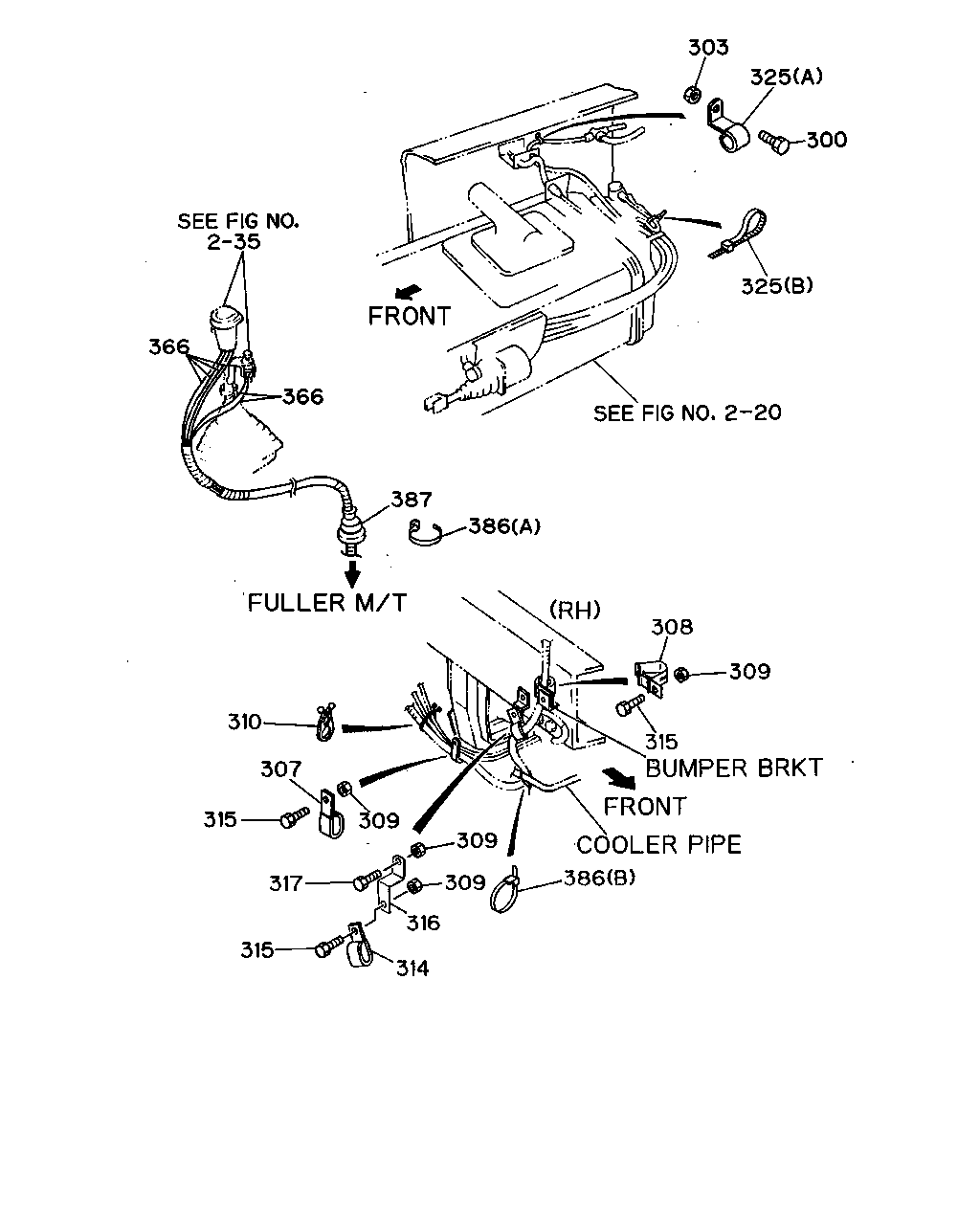

366 366 387 386 303 325 300 325 308 309 315 386 309 309 316 314 315 317 315 309 307 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
300	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●			●
300	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●			●
300	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9303-9405	●	●			●
303	NUT; CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-9405	●	●			●
307	CLIP; PIPE BRKT EXZ&LHD(EX6*) ID=16 L=20	9-09525-536-0	01	1	9002-9007		●	●	●		●
308	CLIP; PIPE EXZ&LHD(EX6*) REINFORCEMENT BUMPER<VG7>	1-09700-780-1	01	1	9002-		●	●	●		●
308	CLIP; PIPE EXZ&LHD(EX6*) EXC. REINFORCEMENT BUMPER<VG7>	1-09700-772-2	01	1	9002-		●	●	●		●
309	NUT; PIPE CLIP EXZ&LHD(EX6*) REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	03	1	9002-		●	●	●		●
310	CLIP; TUBE 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) ID=13.5 & 11	1-09709-123-0	02	1	9002-9007	●	●	●	●	●	●
310	CLIP; TUBE 10PD1 STD ENG(40L) ID=13.5 & 9.5 & 11	1-09709-124-0	02	1	9002-9007		●	●
314	CLIP; PIPE,UNDER MBR EXZ&LHD(EX6*) ID=19.5X2 L=24.5	9-09917-356-0	01	1	9002-		●	●	●		●
315	BOLT; PIPE CLIP EXZ&LHD(EX6*) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9007		●	●	●		●
315	BOLT; PIPE CLIP EXZ&LHD(EX6*) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204		●	●	●		●
315	BOLT; PIPE CLIP EXZ&LHD(EX6*) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302		●	●	●		●
315	BOLT; PIPE CLIP EXZ&LHD(EX6*) M8X20 FLANGE	0-28080-820-0	01	1	9303-		●	●	●		●
315	BOLT; PIPE CLIP EXZ&LHD(EX6*) REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9002-9204		●	●	●		●
315	BOLT; PIPE CLIP EXZ&LHD(EX6*) REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-		●	●	●		●
315	BOLT; PIPE CLIP EXZ&LHD(EX6*) EXC. REINFORCEMENT BUMPER<VG7> M8X25 W/LK&PL WASHER	9-01960-825-0	01	1	9002-9204		●	●	●		●
315	BOLT; PIPE CLIP EXZ&LHD(EX6*) EXC. REINFORCEMENT BUMPER<VG7> M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9205-		●	●	●		●
316	BRACKET; CLIP EXZ&LHD(EX6*)	1-47465-449-1	01	1	9002-		●	●	●		●
317	BOLT; BRKT,SIDE MBR EXZ&LHD(EX6*) M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9204		●	●	●		●
317	BOLT; BRKT,SIDE MBR EXZ&LHD(EX6*) M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302		●	●	●		●
317	BOLT; BRKT,SIDE MBR EXZ&LHD(EX6*) M8X30 FLANGE	0-28080-830-0	01	1	9303-		●	●	●		●
325	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09700-604-0	01	1	9002-9306	●	●			●
325	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09700-605-0	01	1	9307-9405	●	●
325	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09707-126-0	01	1	9307-	●	●
366	TUBE; NYLON,FULLER CONT WHITE OD=1/8" L=30000	1-09368-256-0	02	1	9002-9306		●	●	●
366	TUBE; NYLON,FULLER CONT EXZ&RHD(EX5*) 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) WHITE OD=3/8" L=30000	1-09369-315-0	01	1	9002-9306		●	●	●		●
366	TUBE; NYLON,FULLER CONT 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) WHITE OD=3/8" L=30000	1-09369-315-0	01	1	9002-9306	●				●
366	TUBE; NYLON,FULLER CONT BLACK OD=1/8" L=5150	1-09368-255-0	01	1	9002-9306	●	●			●
366	TUBE; NYLON,FULLER CONT BLUE OD=0.156" L=6350 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9307-	●	●
366	TUBE; NYLON,FULLER CONT GREEN OD=0.156" L=5800 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9307-	●	●
366	TUBE; NYLON,FULLER CONT RED OD=0.156" L=5800 SERVICED BY L=5800 RED	1-33619-362-0	01	1	9307-	●	●				●
366	TUBE; NYLON,FULLER CONT BLACK OD=0.156" L=5800 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9307-	●	●				●
366	TUBE; NYLON,FULLER CONT YELLOW OD=0.156" L=4700	1-33619-394-0	01	1	9307-	●	●				●
366	TUBE; NYLON,FULLER CONT ORANGE OD=0.156" L=6250	1-33619-400-0	01	1	9307-	●	●				●
366	TUBE; NYLON,FULLER CONT BLUE OD=0.156" L=6050	1-33619-377-0	01	1	9307-		●
366	TUBE; NYLON,FULLER CONT GREEN OD=0.156" L=5500	1-33619-386-0	01	1	9307-		●
366	TUBE; NYLON,FULLER CONT RED OD=0.156" L=5500	1-33619-359-0	01	1	9307-		●				●
366	TUBE; NYLON,FULLER CONT BLACK OD=0.156" L=5500	1-33619-369-0	01	1	9307-		●				●
366	TUBE; NYLON,FULLER CONT YELLOW OD=0.156" L=5150	1-33619-391-0	01	1	9307-		●				●
366	TUBE; NYLON,FULLER CONT ORANGE OD=0.156" L=6050	1-33619-399-0	01	1	9307-		●				●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-0	01	1	9002-	●	●	●	●	●	●
386	CLIP; CONT CABLE & TUBE EXZ&LHD(EX6*) (B) L=250	5-09707-030-0	02	1	9002-9007		●	●	●		●
386	CLIP; CONT CABLE & TUBE EXZ&LHD(EX6*) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP 50MM(W60) (B) L=250	5-09707-030-0	01	1	9002-		●	●	●		●
387	GROMMET; CONT TUBE,FULLER	1-09332-102-0	01	1	9002-9306	●	●	●	●	●	●
387	GROMMET; CONT TUBE,FULLER	1-09332-135-0	01	1	9307-	●	●				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
